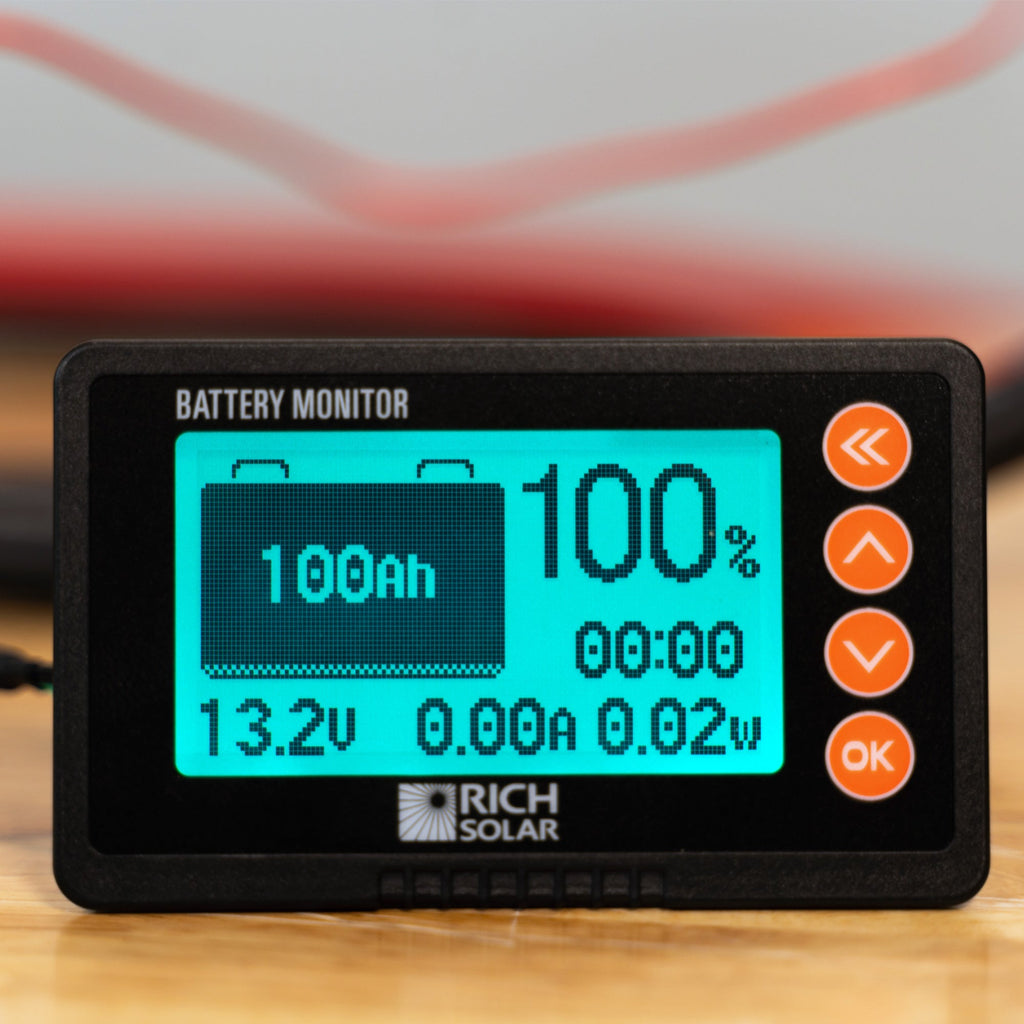

RS-BM500 Battery Monitor with Remote Shunt
The RS-BM500 is a precision battery shunt and remote display system for monitoring battery voltage, current and remaining capacity. Designed to mount the shunt close to the battery and the display on a wall or panel, it gives clear, reliable readings so you can manage power with confidence.
Benefits
- Know battery status at a glance so you avoid unexpected power loss and plan charging cycles more effectively.
- Accurate capacity tracking helps you maximize battery life and prevents over-discharge.

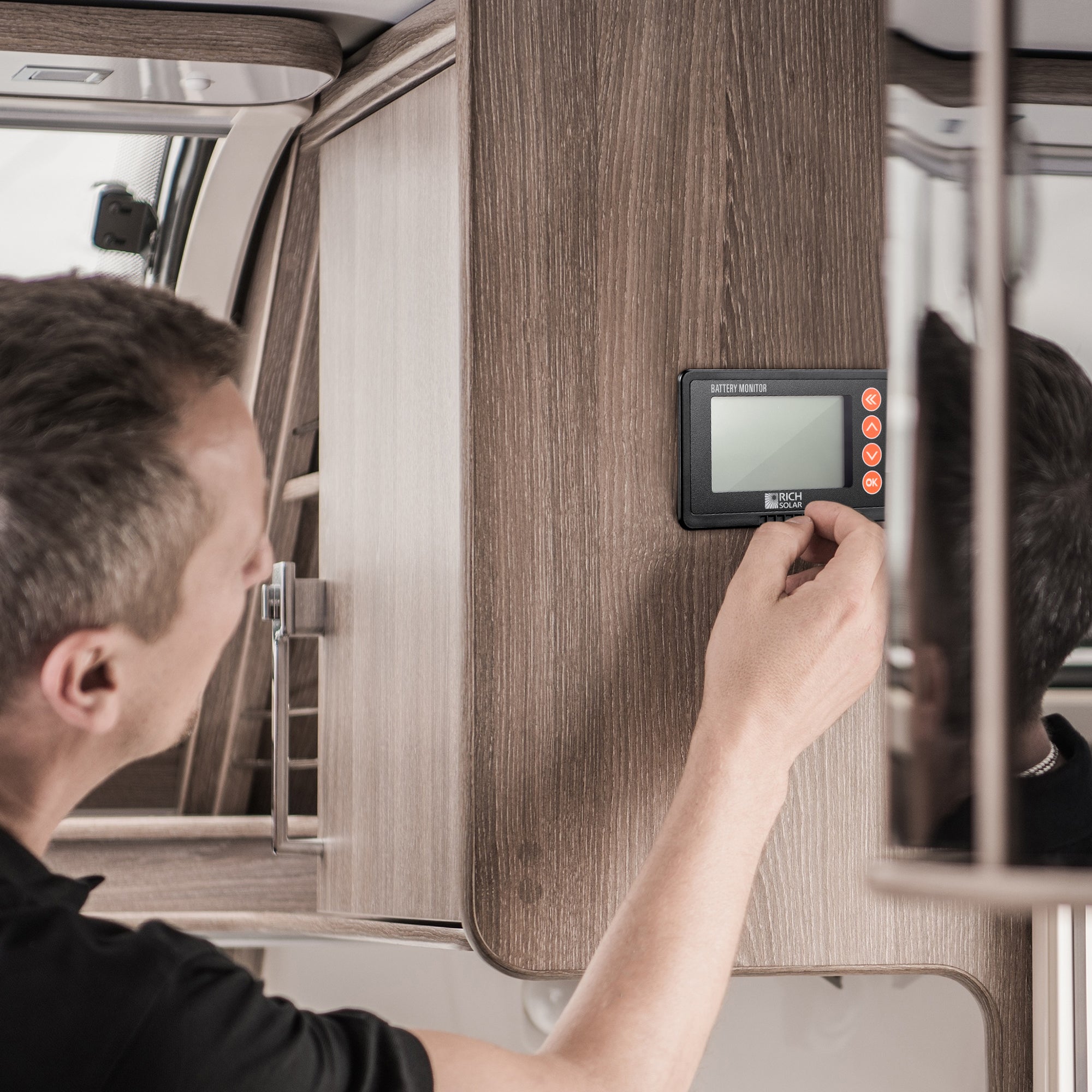

- Remote display placement lets you monitor batteries from a convenient, visible location instead of next to the battery bank.
- Simple wiring and included shielded cable reduce installation time and the chance of wiring errors.
- Low standby and working dissipation conserve battery energy when monitoring is active.
Features
- High-precision shunt that mounts next to the battery for accurate current measurement.

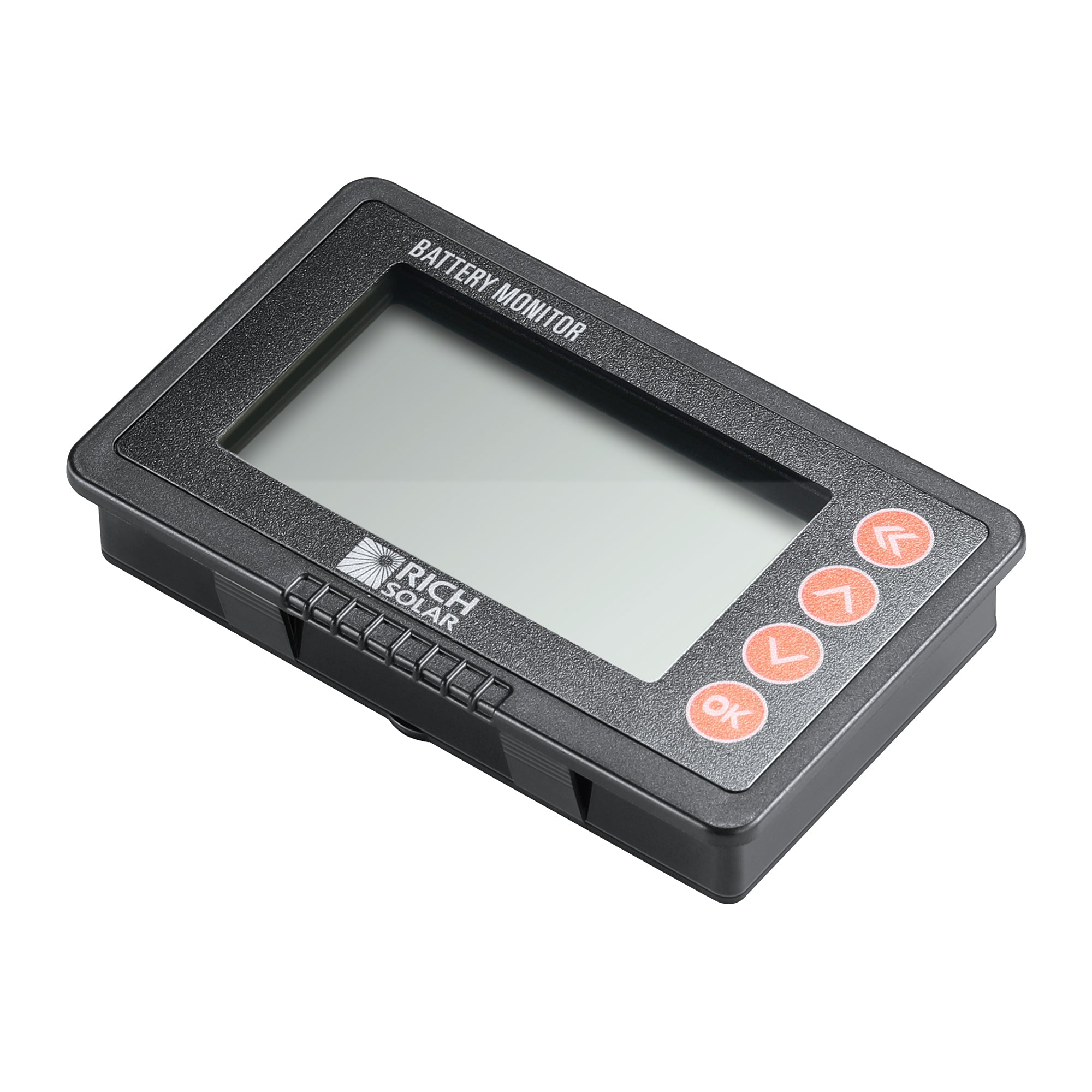

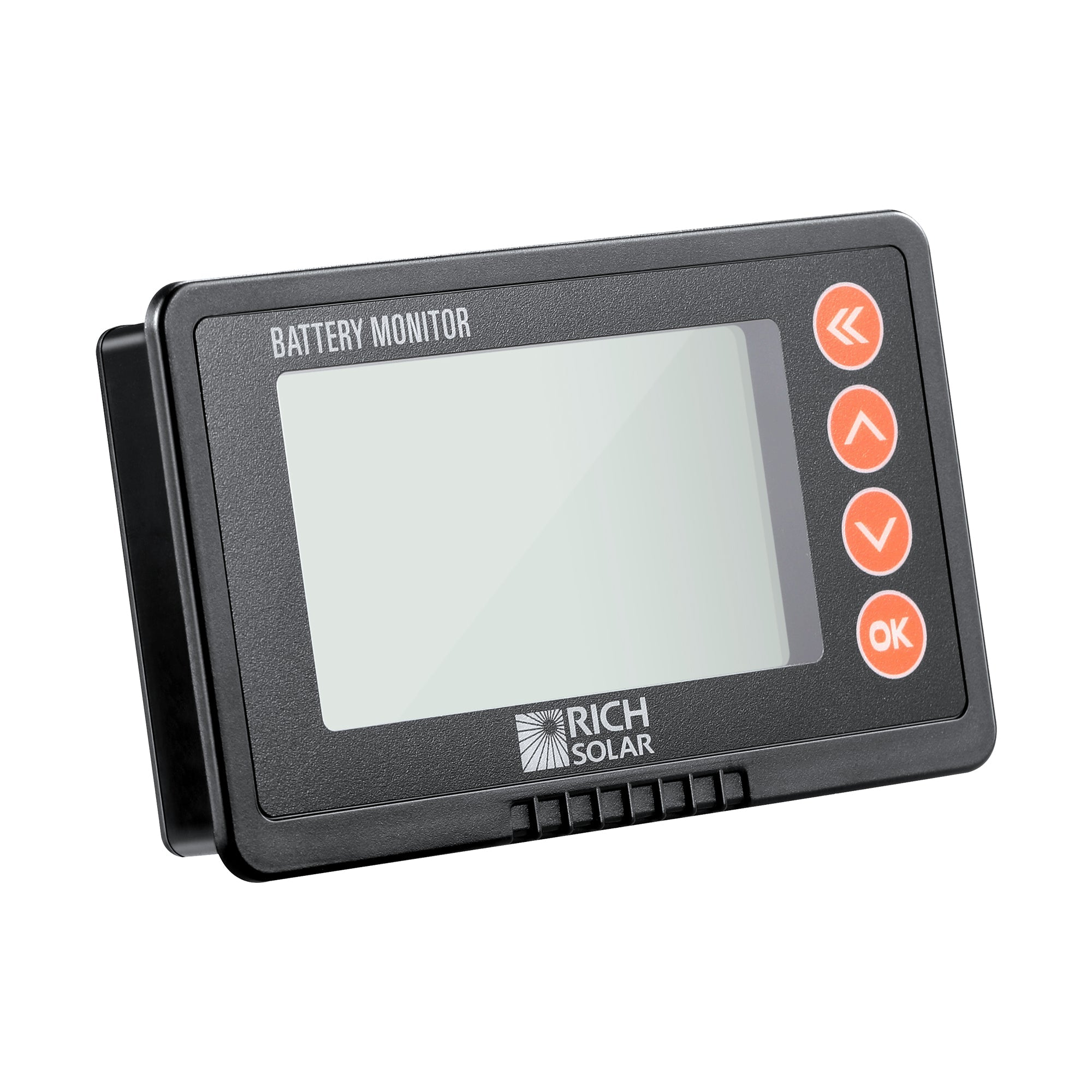

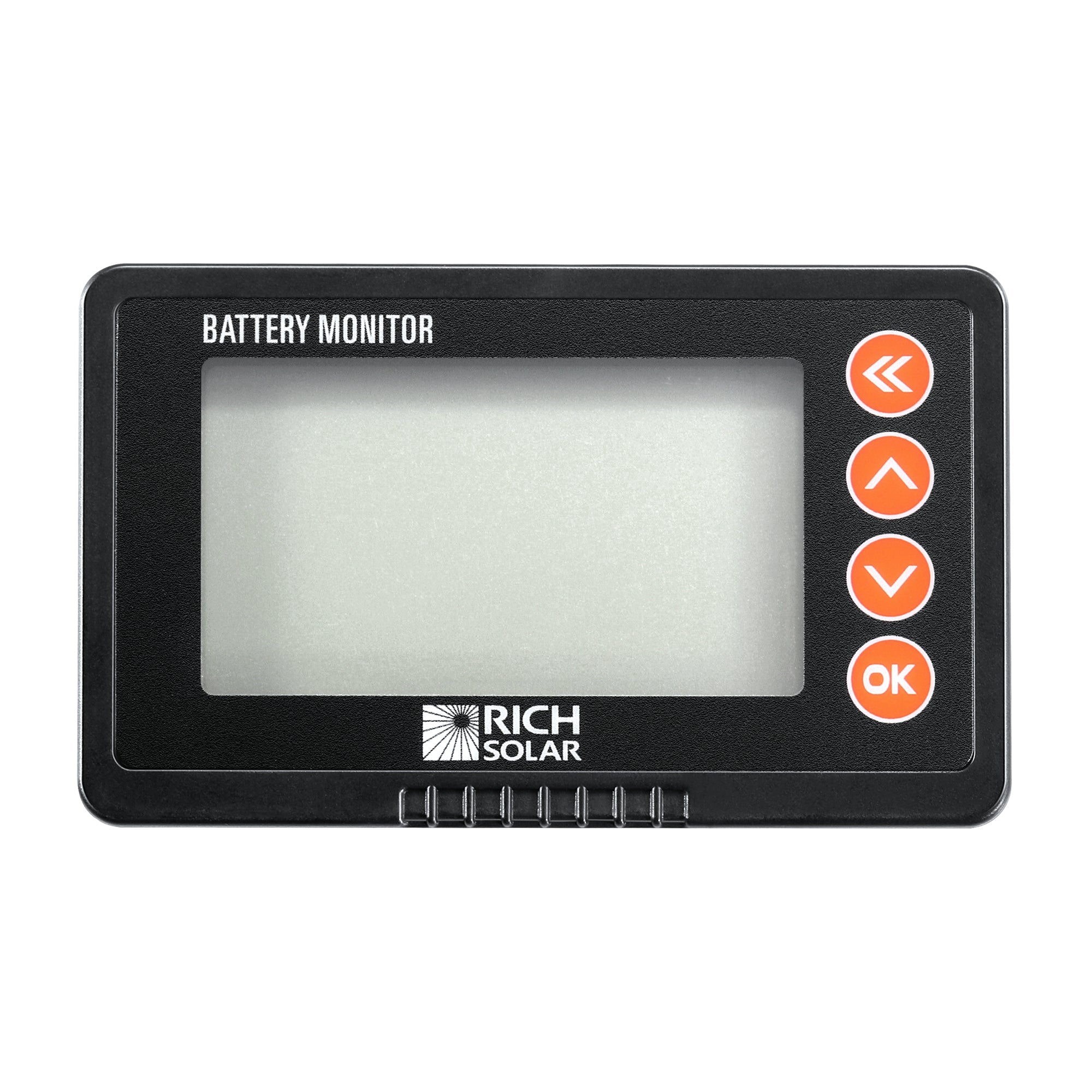

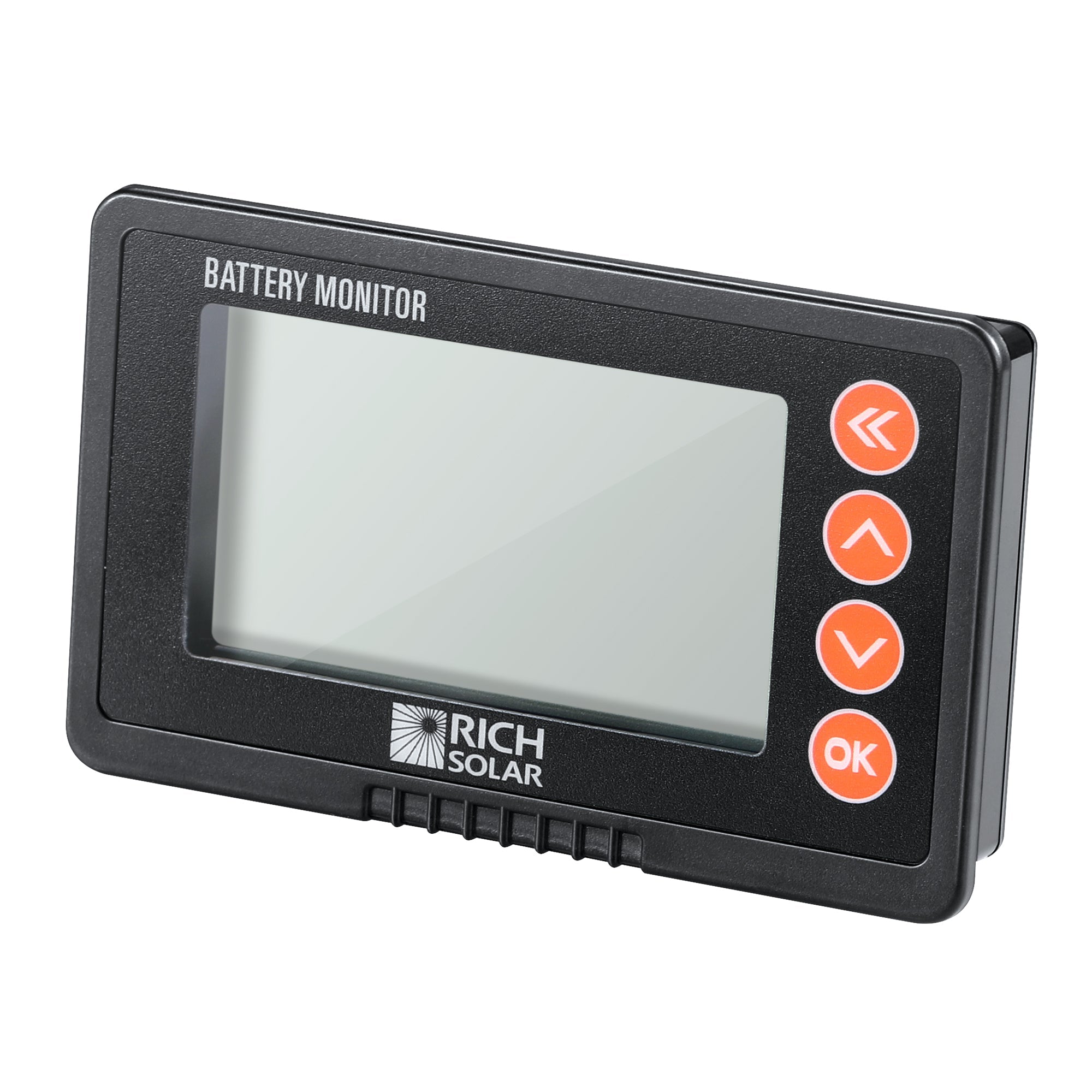

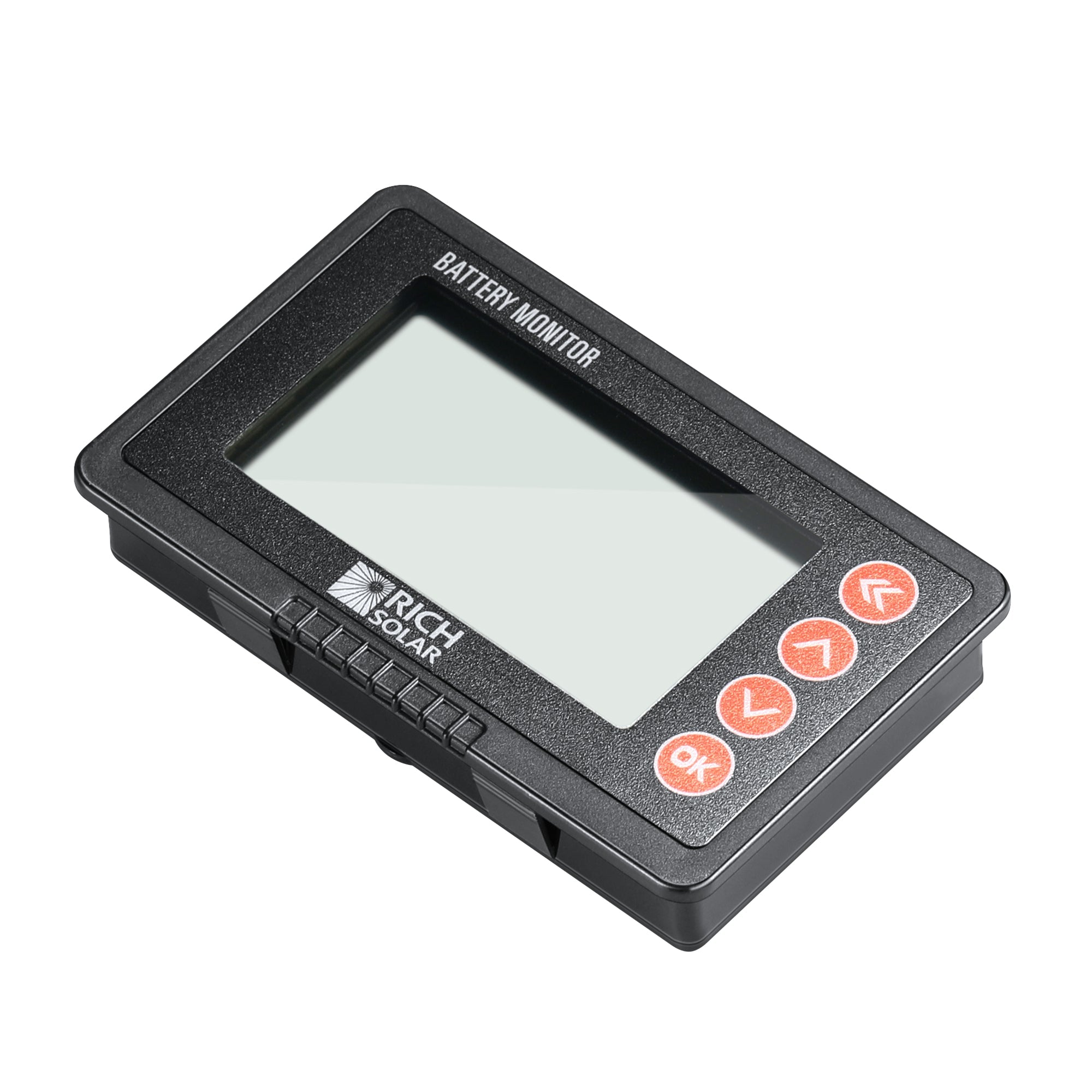

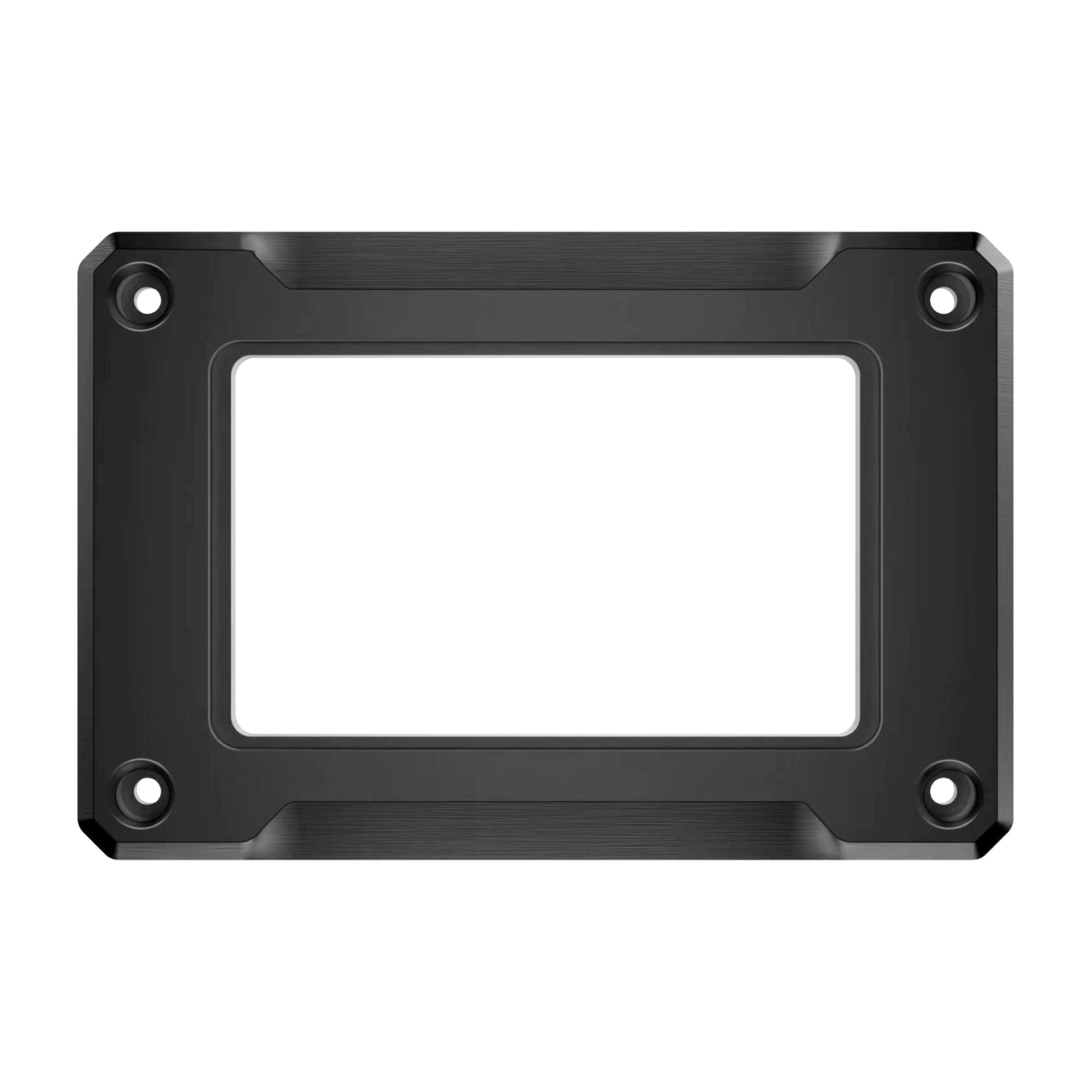

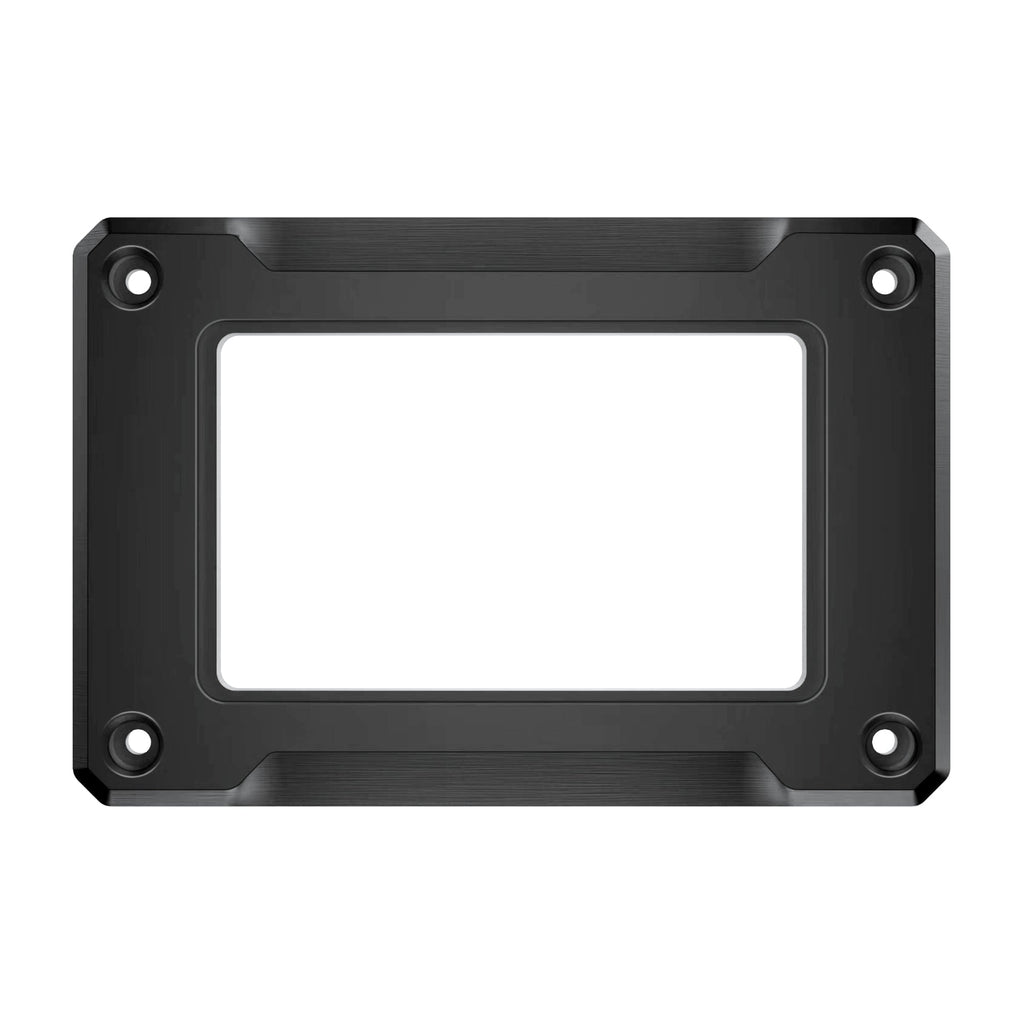

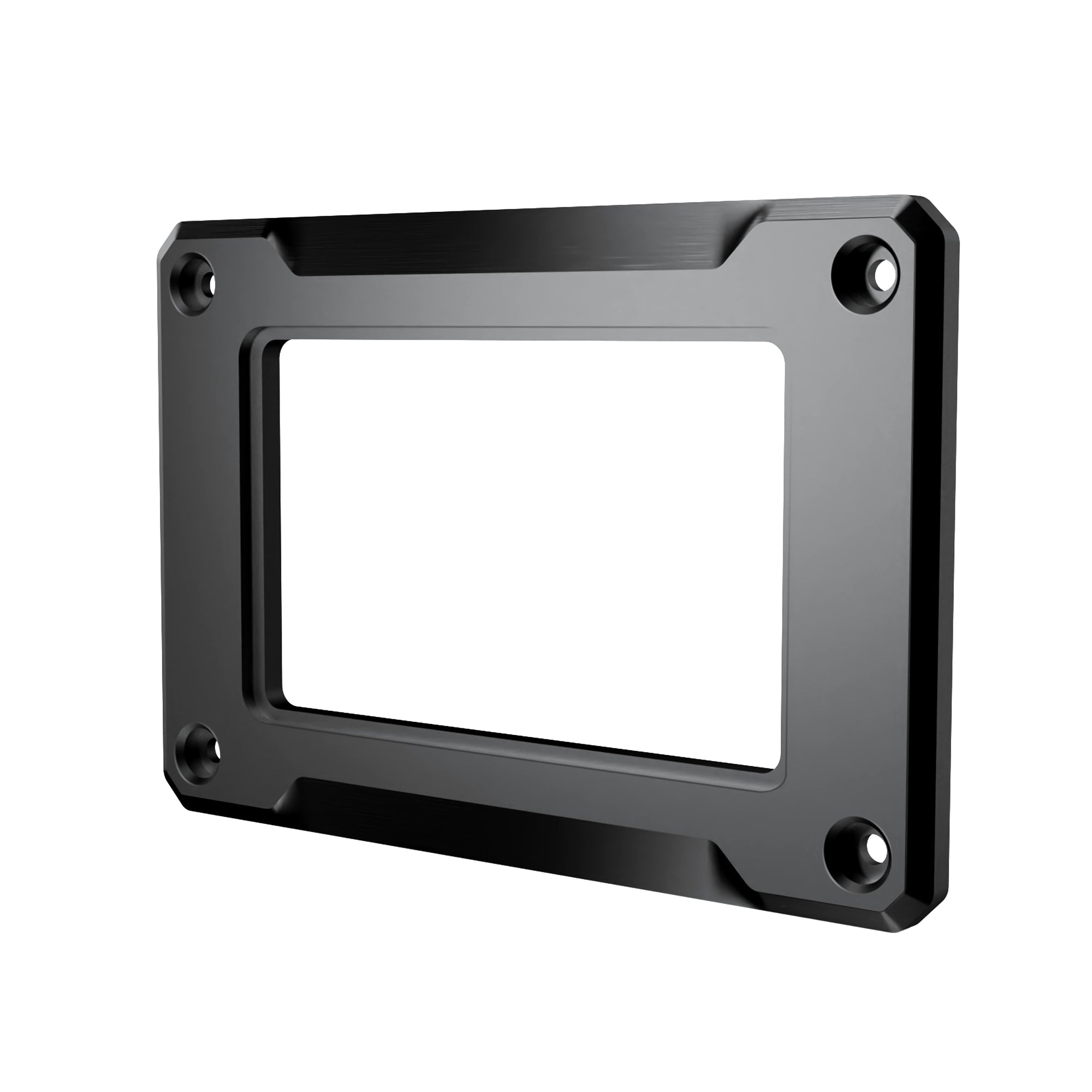

- Separate remote display designed for wall or panel mounting with a snap-in installation.
- Included shielded cable to connect the shunt and remote display for reliable signal transmission.
- Direct B- connection requirement to the shunt for correct measurements and isolation of the negative terminal.
- B+ lead supplied to connect the shunt to the battery positive; prevents stacking mismatched terminal sizes.
- Capacity setting adjustable (user-configurable) to match battery bank size and system demands.
- Range and accuracy suitable for a wide variety of battery systems, from small setups to large banks.

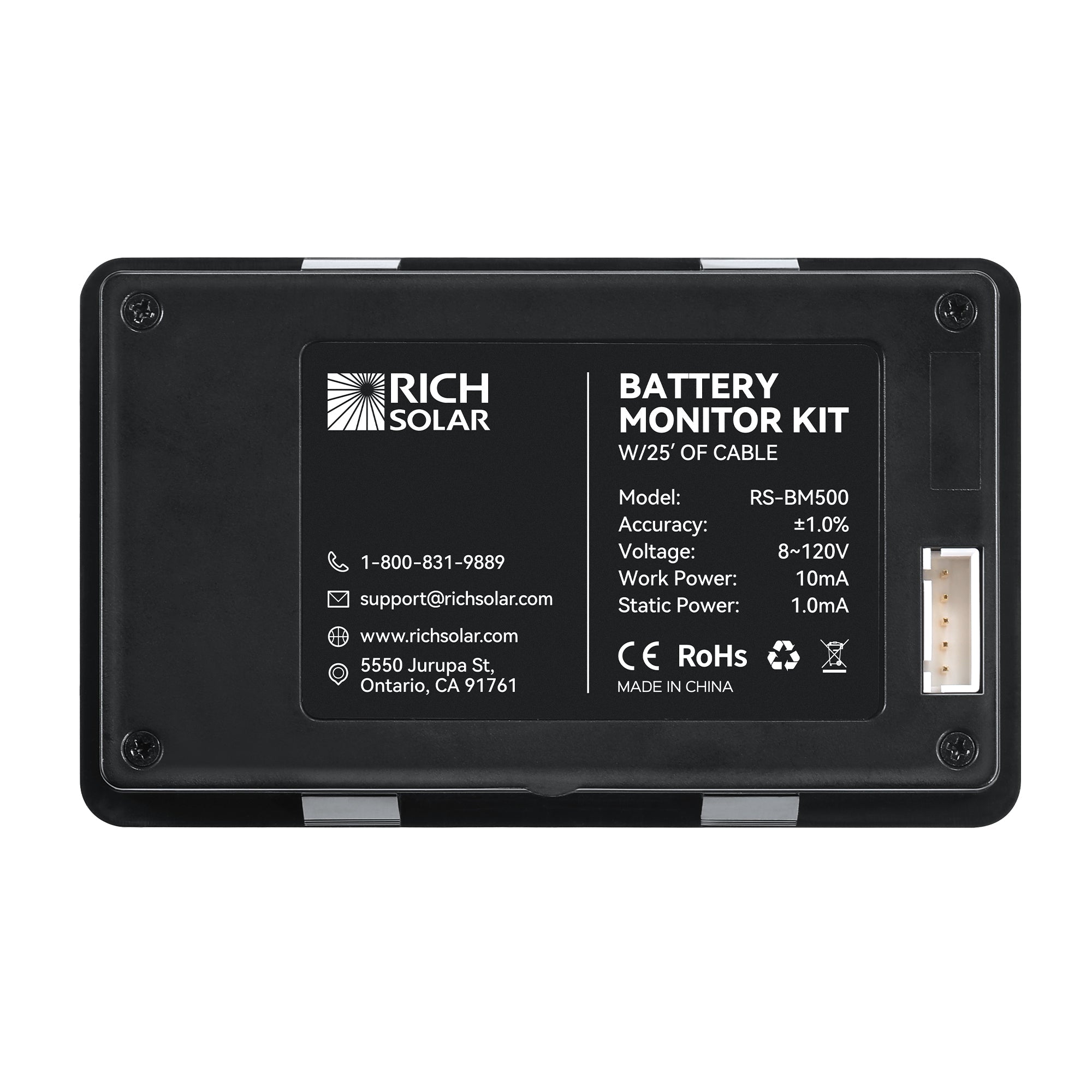

Specifications
-

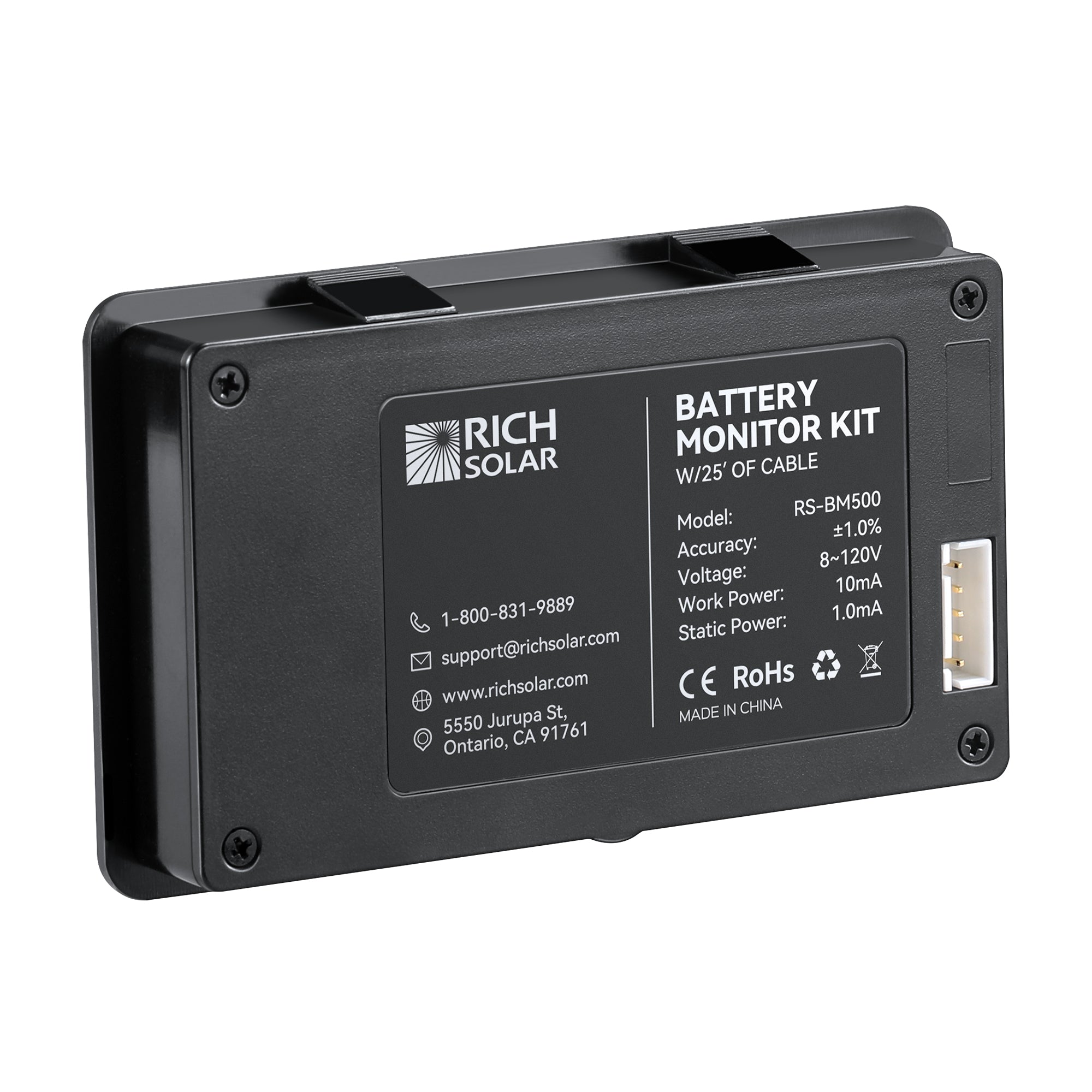

Model: RS-BM500
-
Battery Voltage Range: 8–120 V
-
Working Dissipation (operating): 10 mA
-
Standby Dissipation: 1 mA
-
Capacity Accuracy: ±1.0%
-
Voltage Accuracy: ±1.0%
-
Current Accuracy: ±1.0%
-
Backlight On Current: 80 mA
-
Capacity Setting Value: 0–500 A
-
Current/Capacity Range: 0.1–9999 Ah
-
Mounting: Shunt mounts at battery negative; remote display mounts on wall or panel (snap-in)
-

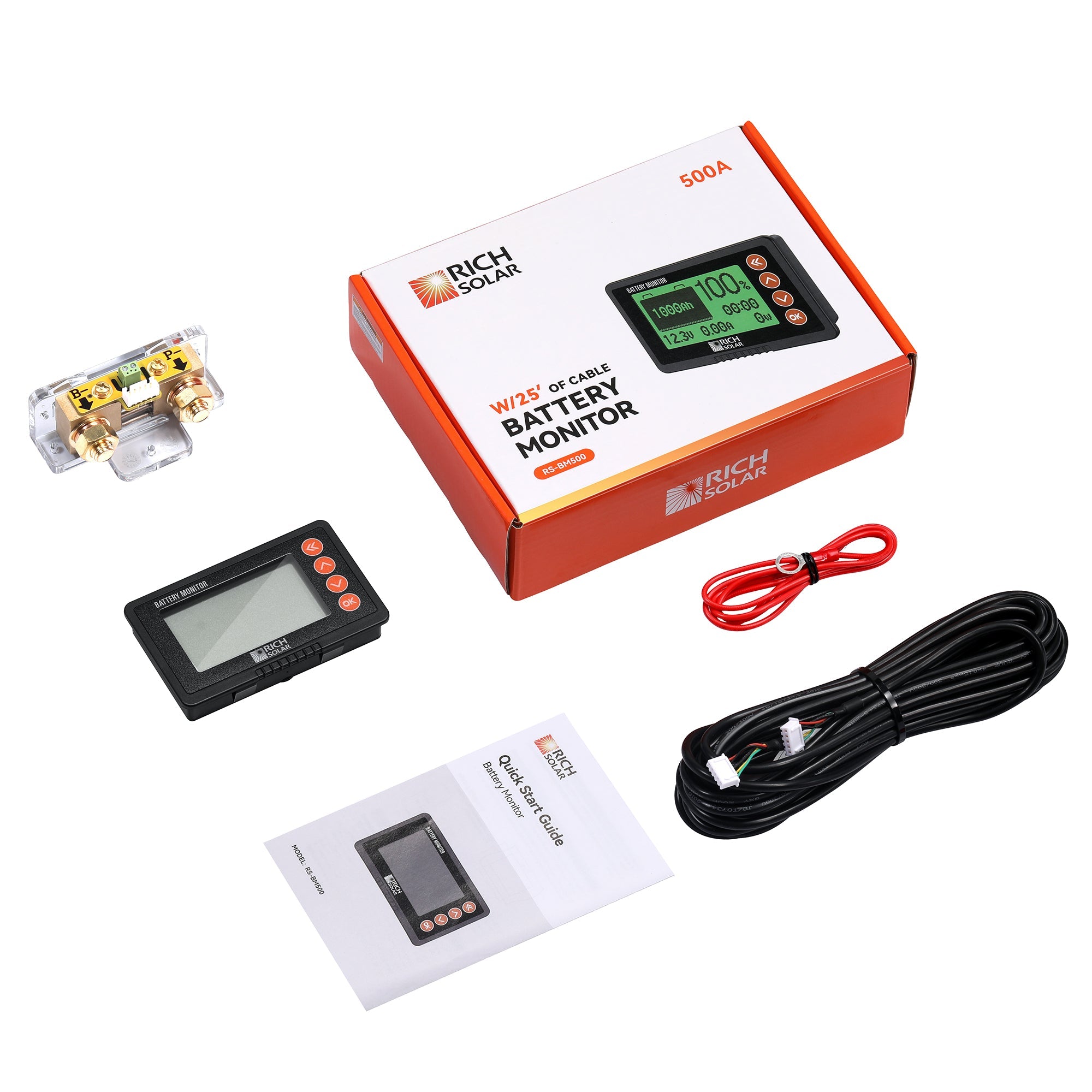

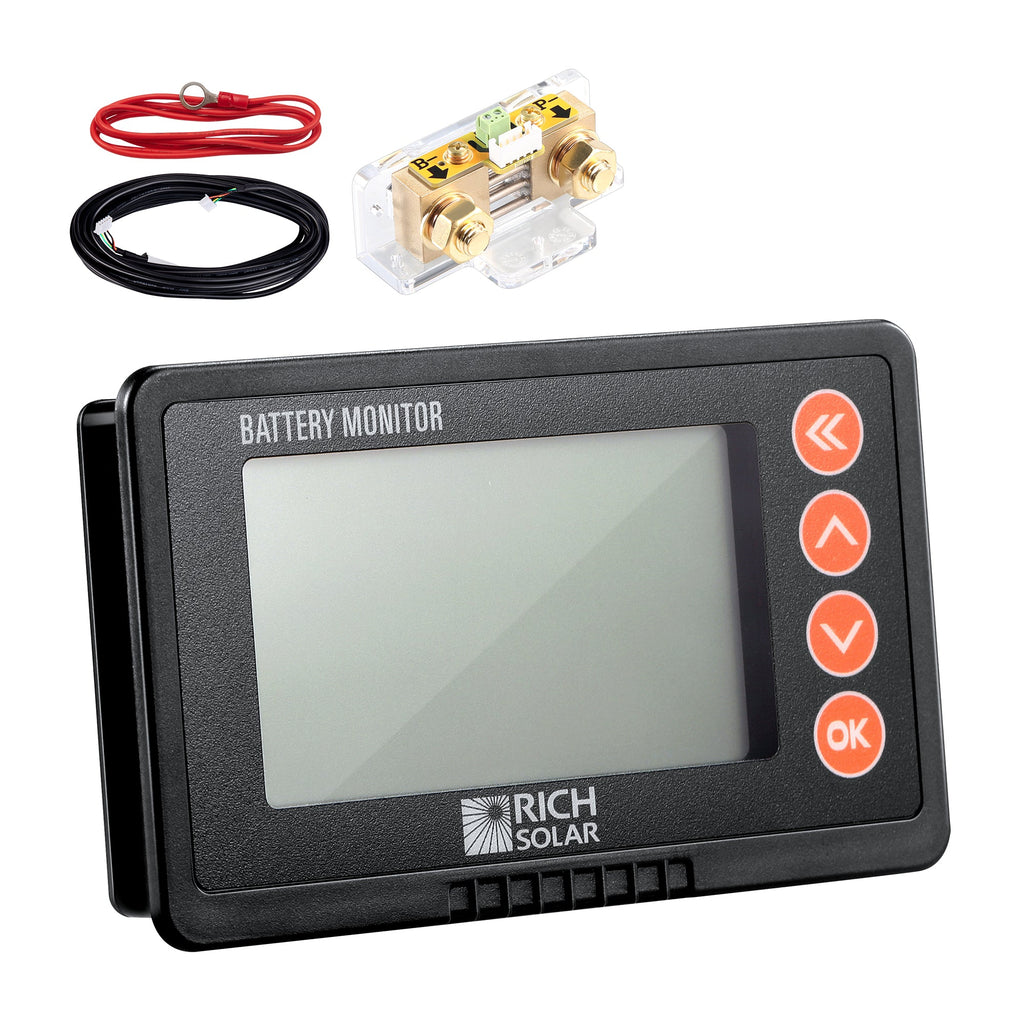

Connections Included: Shunt, B+ lead, shielded cable for remote display
-
Recommended Tools for Installation: Wrench, drill, jigsaw, crimp tool and appropriate-sized ring terminals
