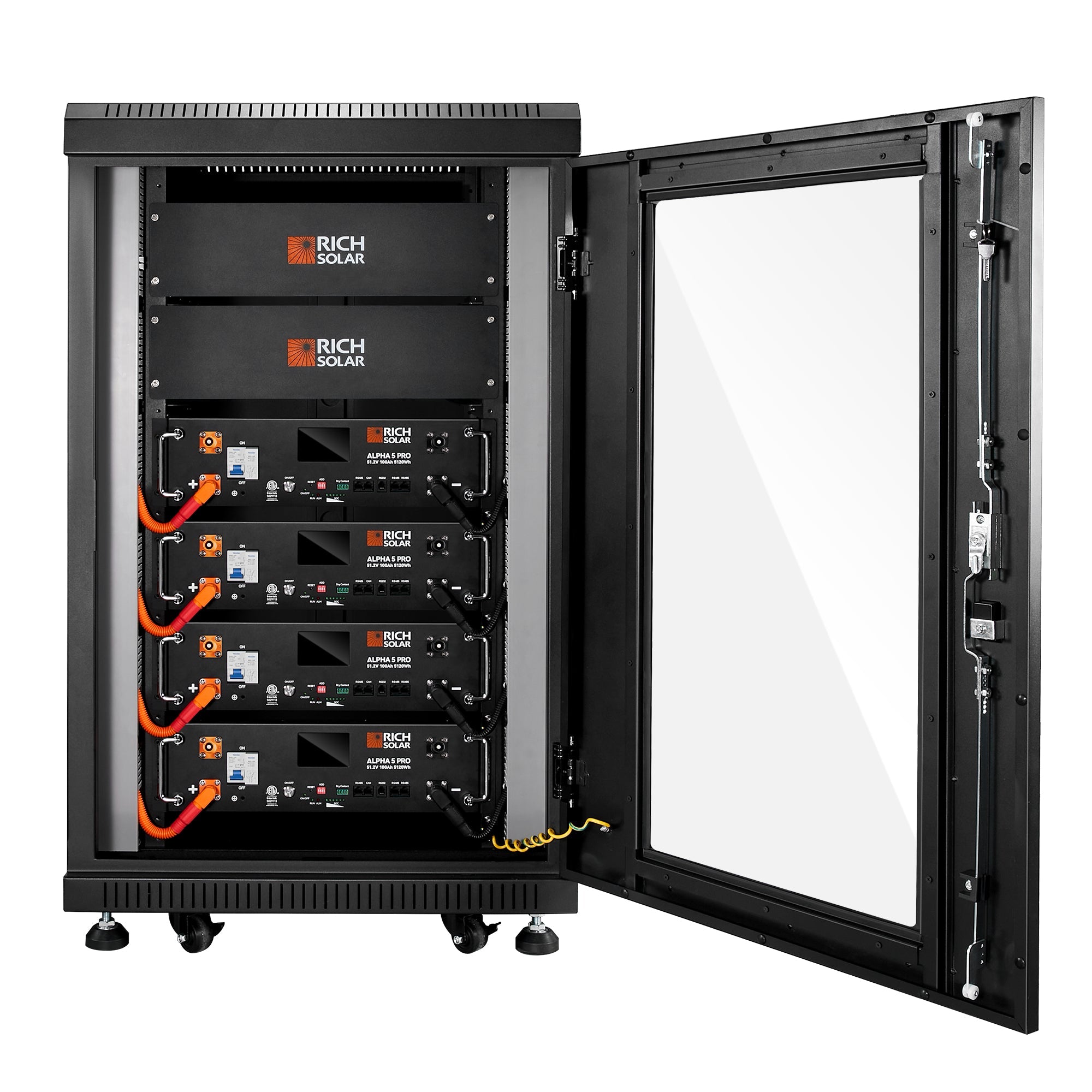

Compact 6?Slot Battery Server Rack for ALPHA 5 Series
Overview
A heavy-duty, mobile server rack that holds up to six ALPHA 5 Series batteries (30.72 kWh total). It’s built for safe, scalable energy systems, simplified installation, and easy access for maintenance.
Benefits
- Scale capacity without a major overhaul — add batteries as your needs grow.
- Reduce installation time with a pre-assembled rack and flexible cable entry points.
- Move and position the rack easily within a facility using swivel casters, then lock it down for stable operation.

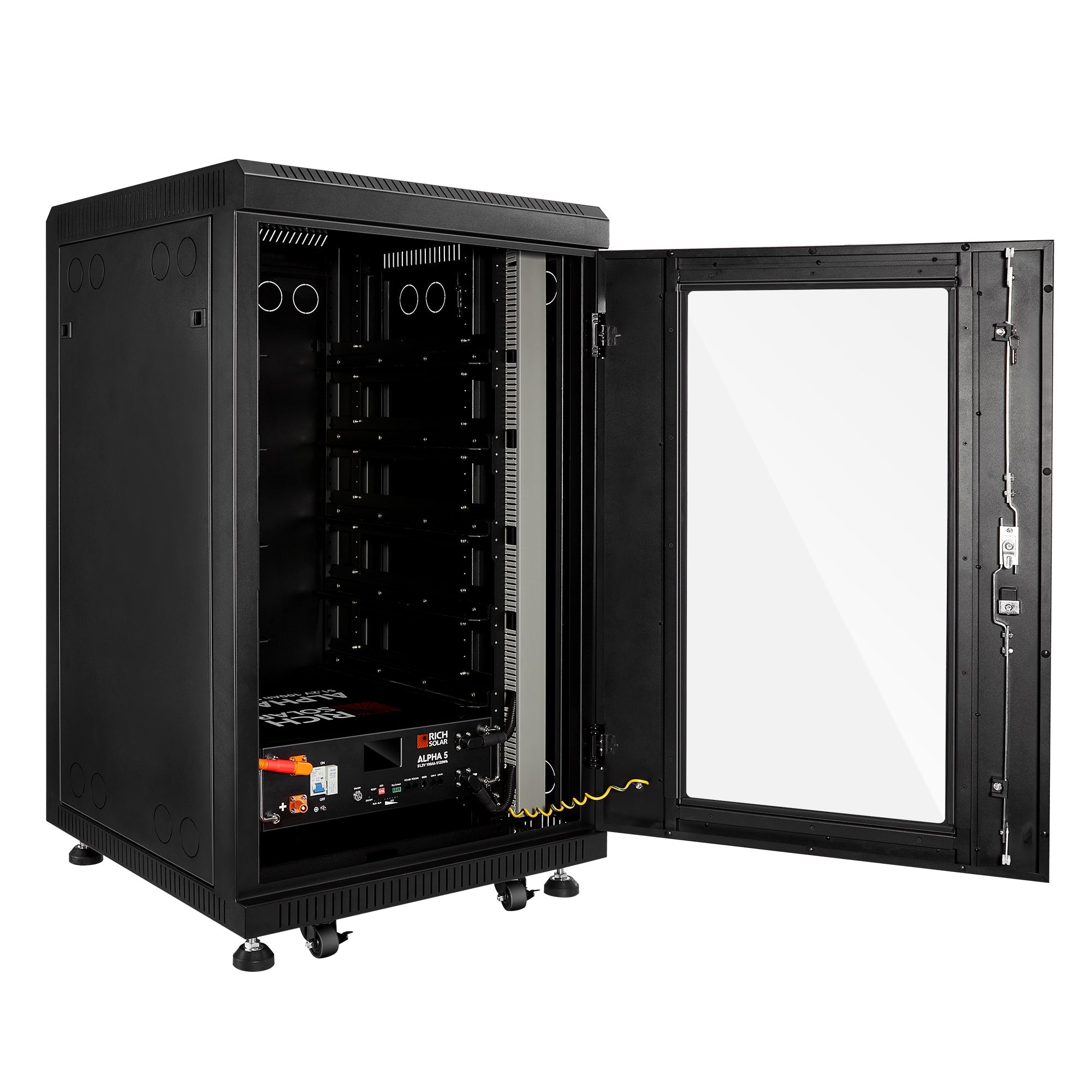

- Lower maintenance effort thanks to four-side access, openable panels, and enhanced ventilation.
- Improve safety and reliability with high-current copper busbars and a rugged steel frame.
Features

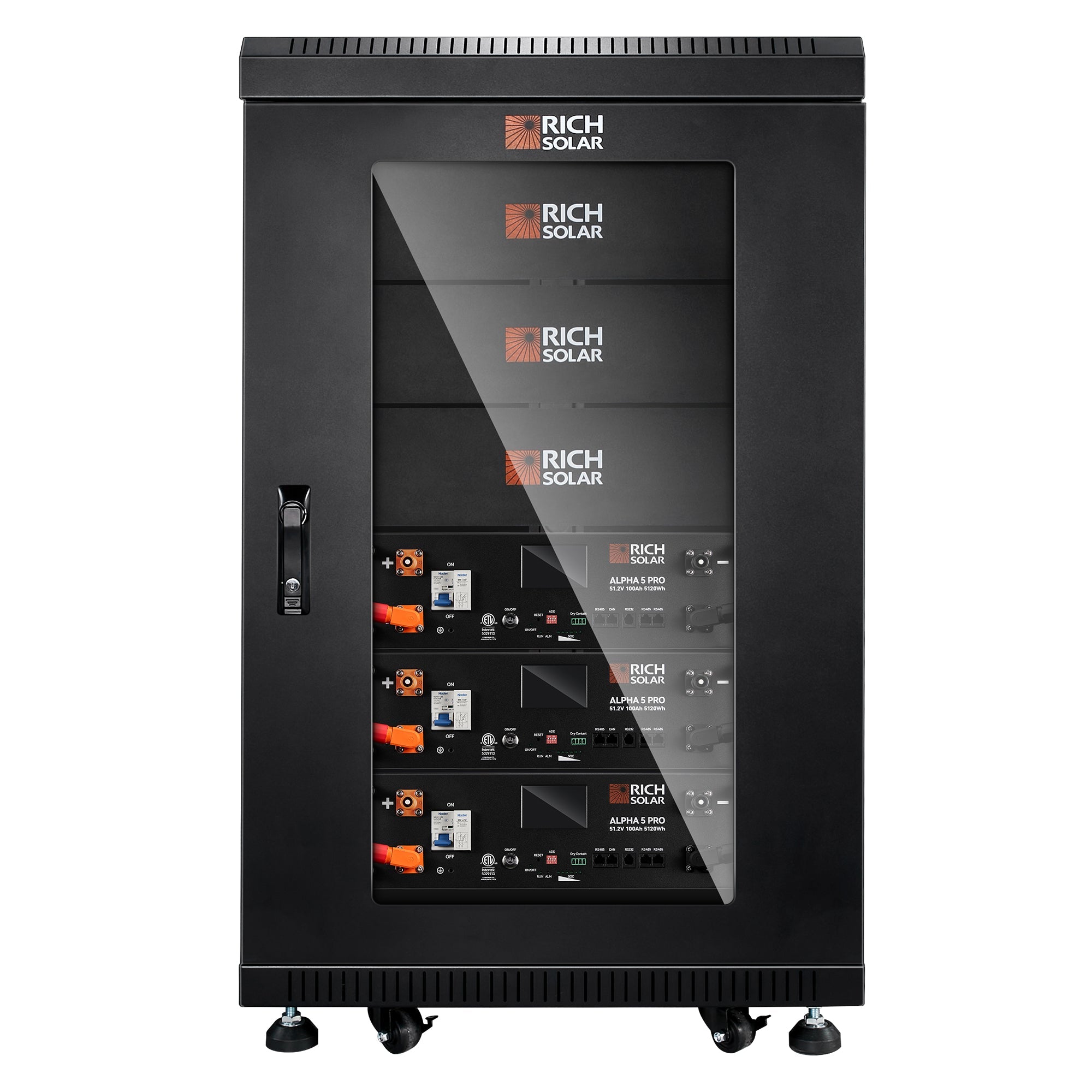

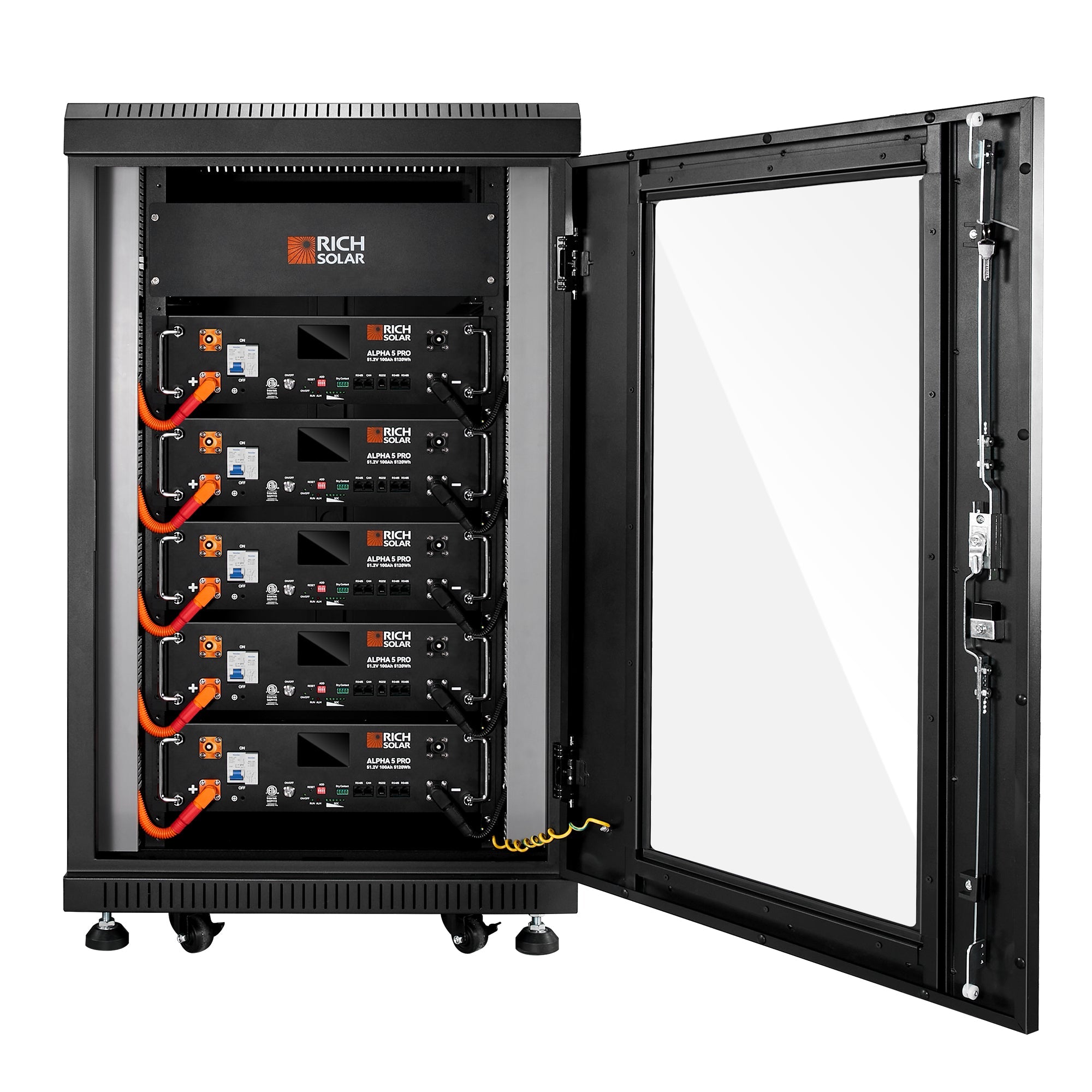

- Holds up to 6× ALPHA 5 Series batteries (30.72 kWh total capacity).
- 600 A copper busbars with protective covers for secure, efficient power distribution.
- Heavy?duty welded steel frame with black powder?coated finish for long?term durability.
- Pre-assembled unit for faster setup on site.

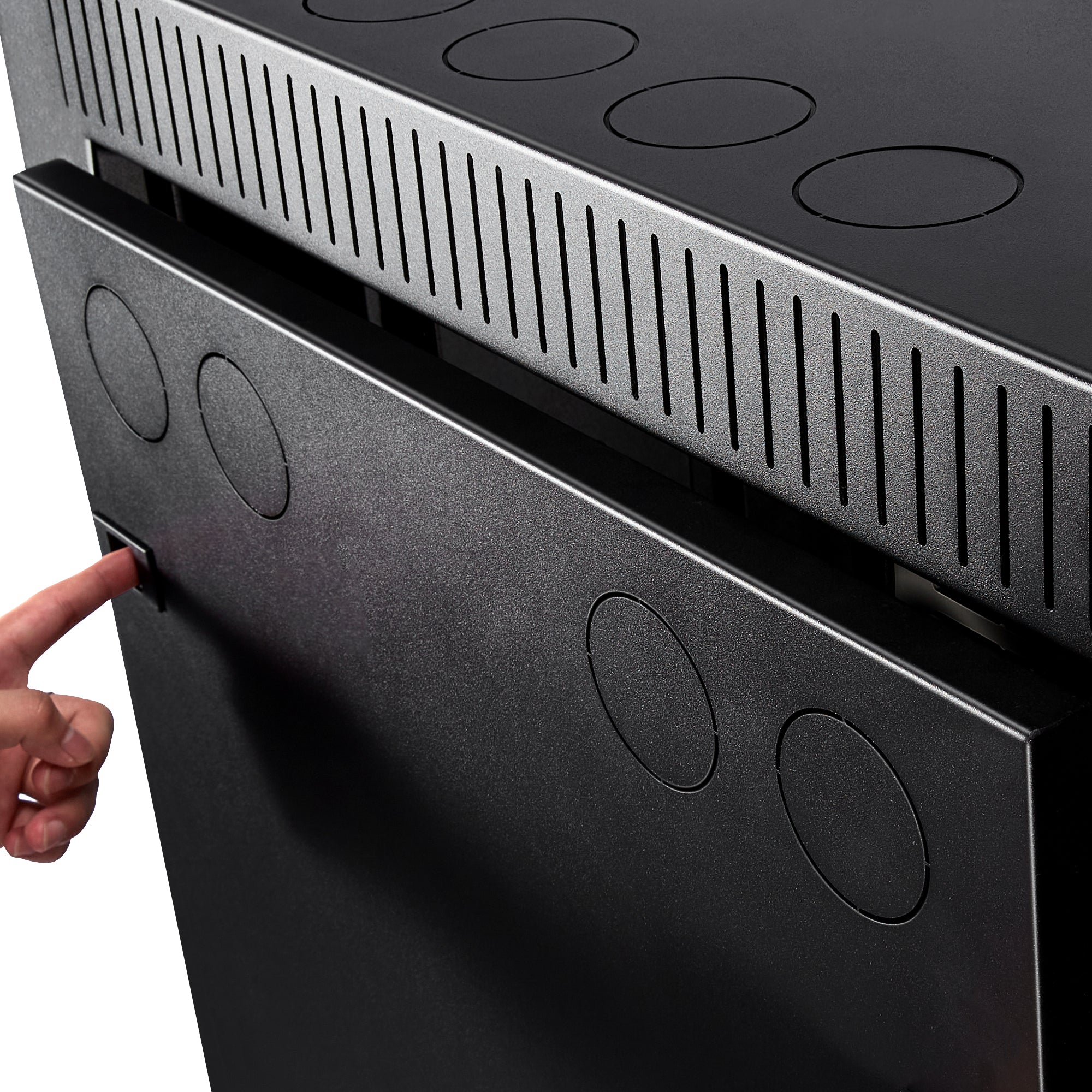

- Top and side cable entry points plus four?side accessibility for flexible wiring and servicing.

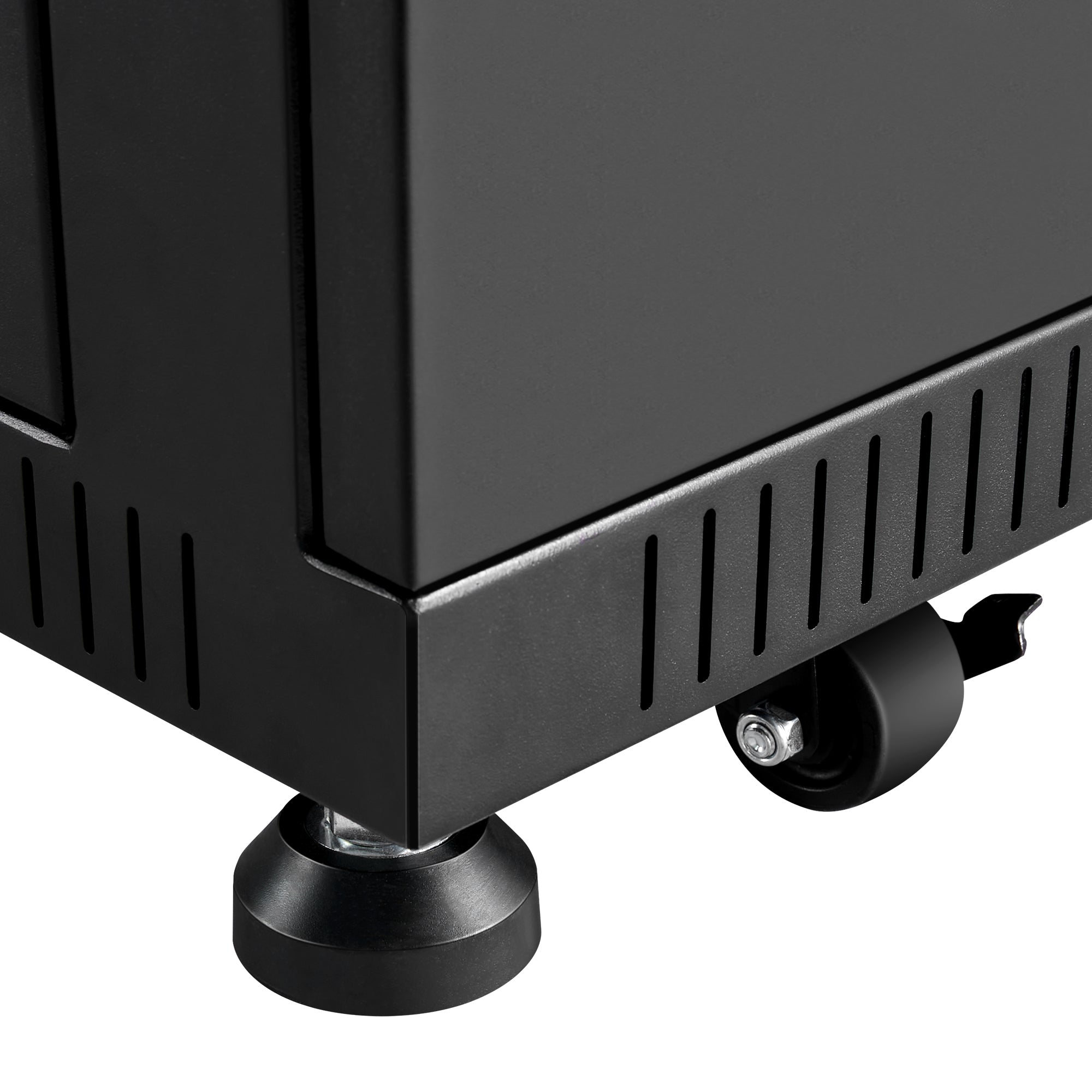

- Four swivel casters (front casters with brakes) for mobility and heavy?duty leveling feet for stability.
- Multiple vents and openable side panels to support cooling and efficient operation.
- Supports parallel battery configurations and daisy?chain communication for system integration with ESS and inverters.
- Delivered as an assembled 6?slot battery server rack with casters; batteries are not included.
Specifications
- Module in parallel: 6
- Supported battery model: ALPHA 5 Series (up to 6 modules, 30.72 kWh total)
- Max busbar current: 600 A (copper busbars with protective covers)
- Frame material: Heavy?duty welded steel; finish: black powder coat

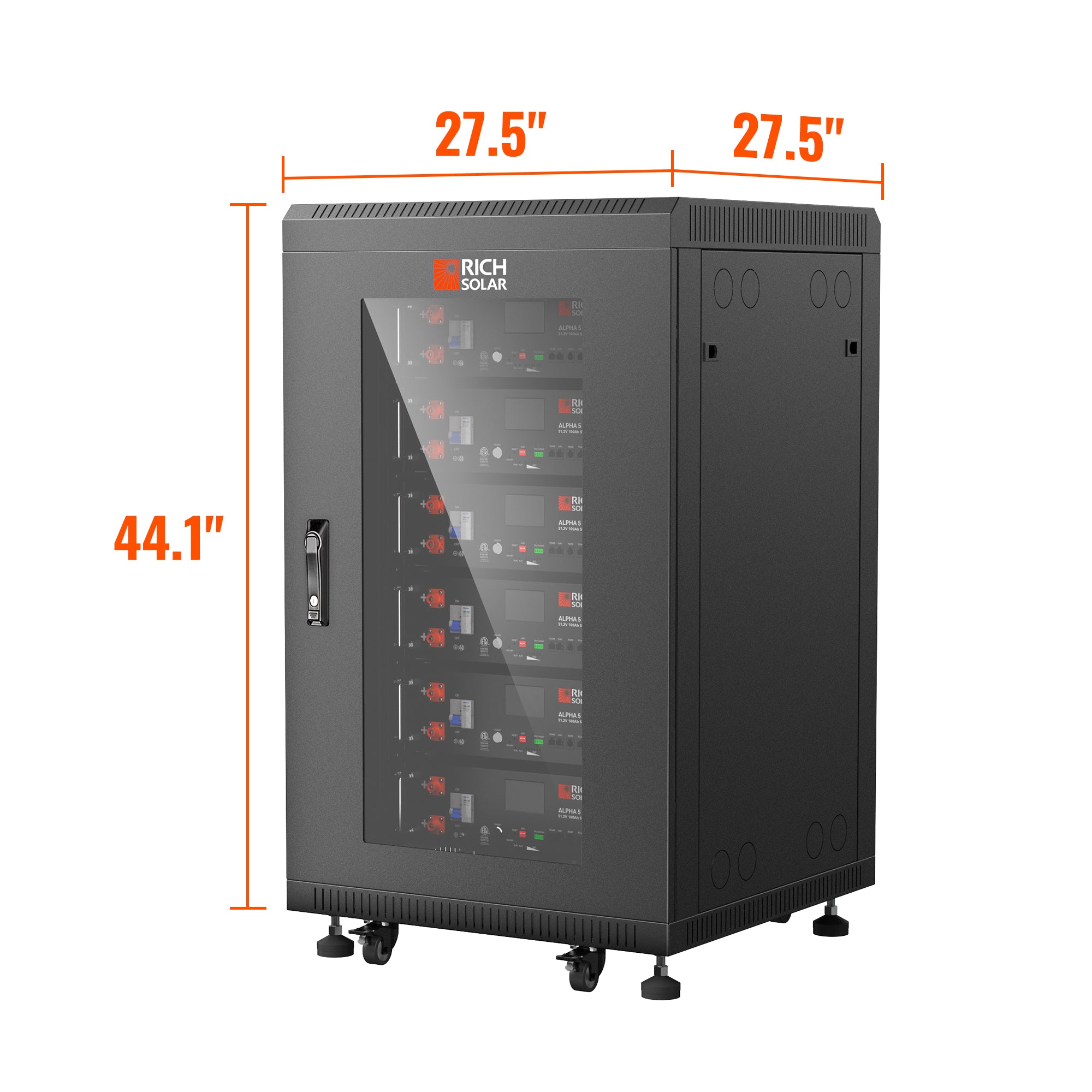

- Dimensions (W × D × H): 27.56 × 27.56 × 44.09 in (70 × 70 × 112 cm)
- Weight (with casters): 224.87 lb (102 kg)
- Mobility: 4 swivel casters (front casters with brakes); heavy?duty leveling feet
- Cable entry: Top and side entry points; accessible from all four sides
- Cooling: Multiple vents and openable side panels
- Integration: Supports parallel setups and daisy?chain communications with ESS/inverters
- Operating temperature: 4°F to 113°F (-20°C to 45°C)
- Warranty: 5 years
- Package includes: Assembled 6?Slot Battery Server Rack + Casters (batteries not included)
