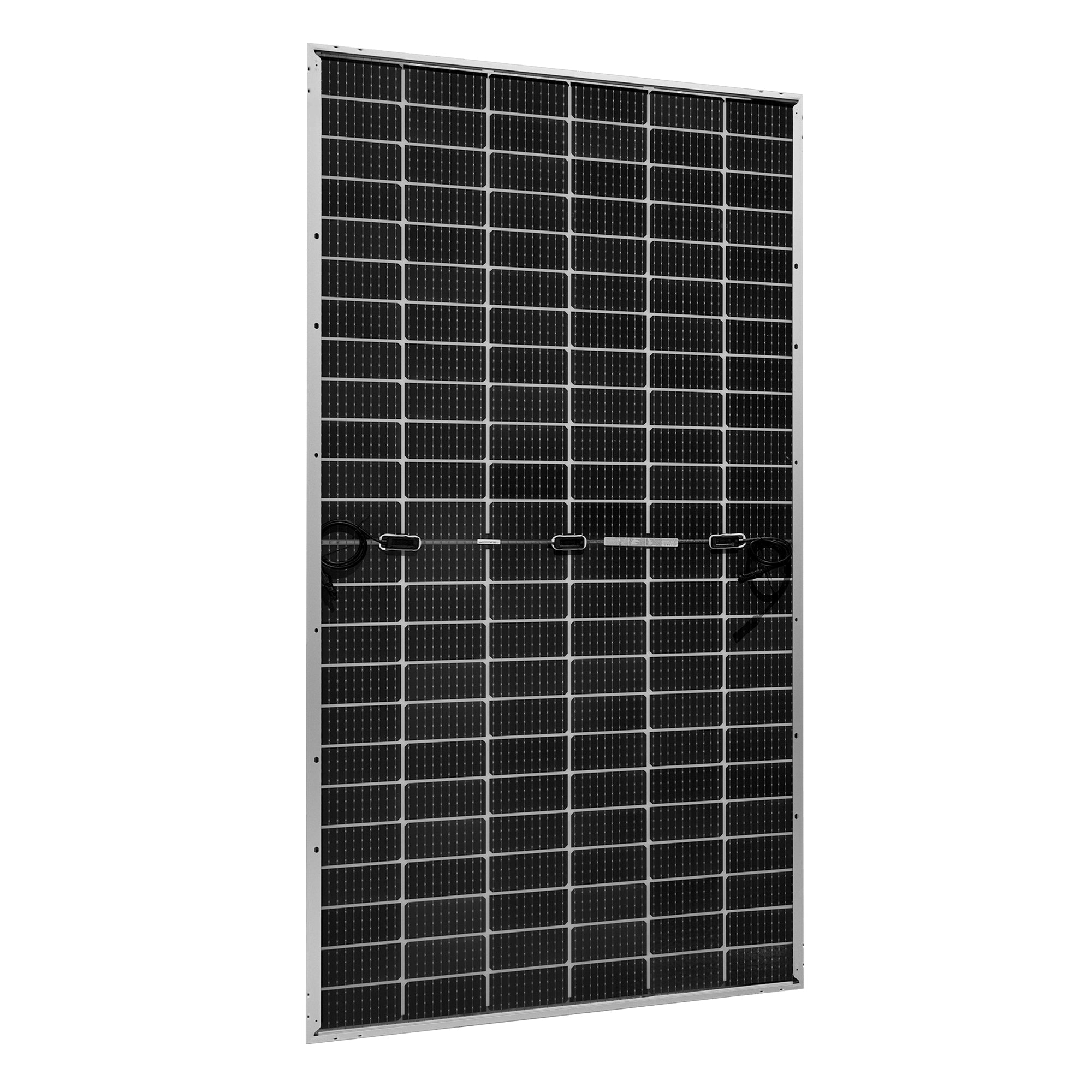

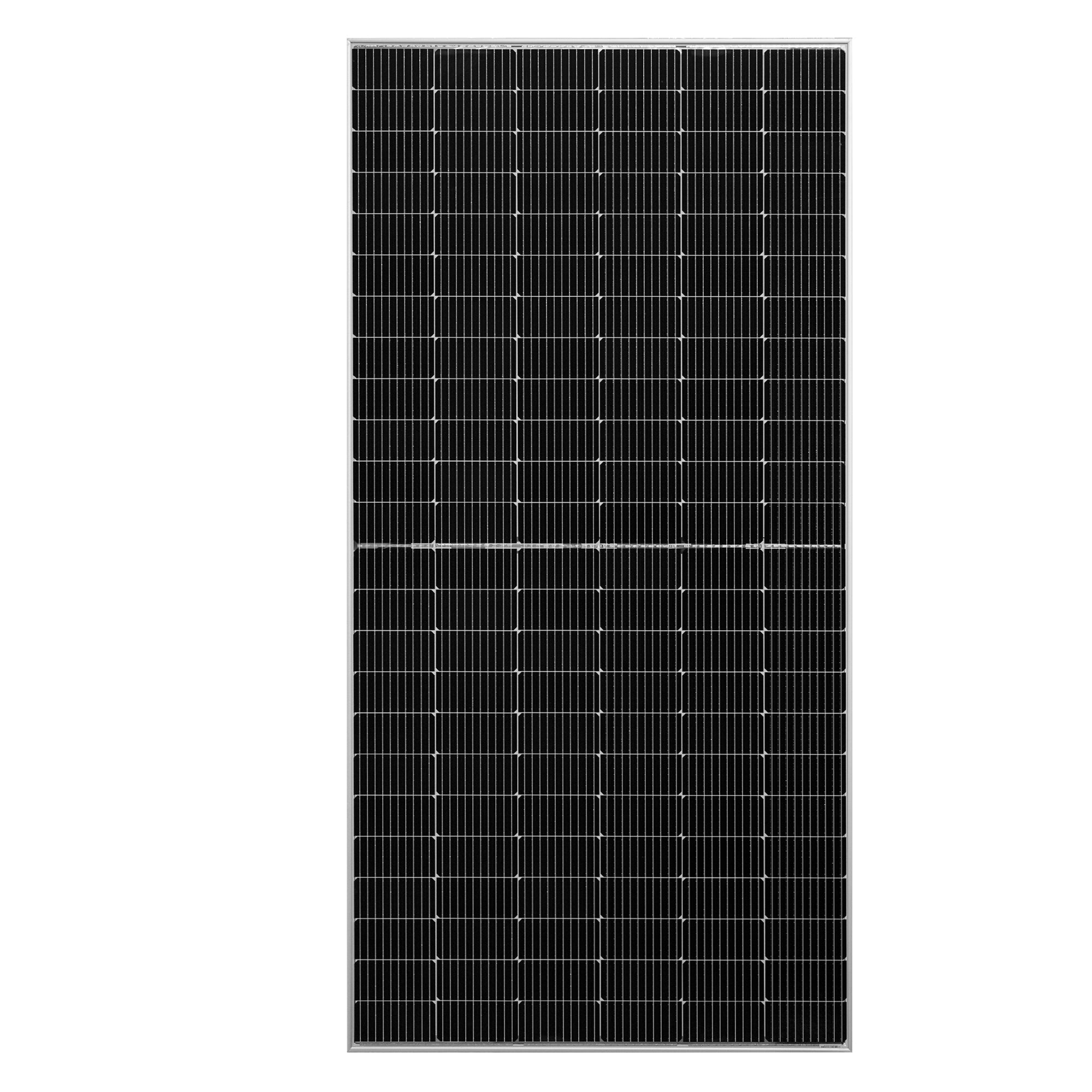

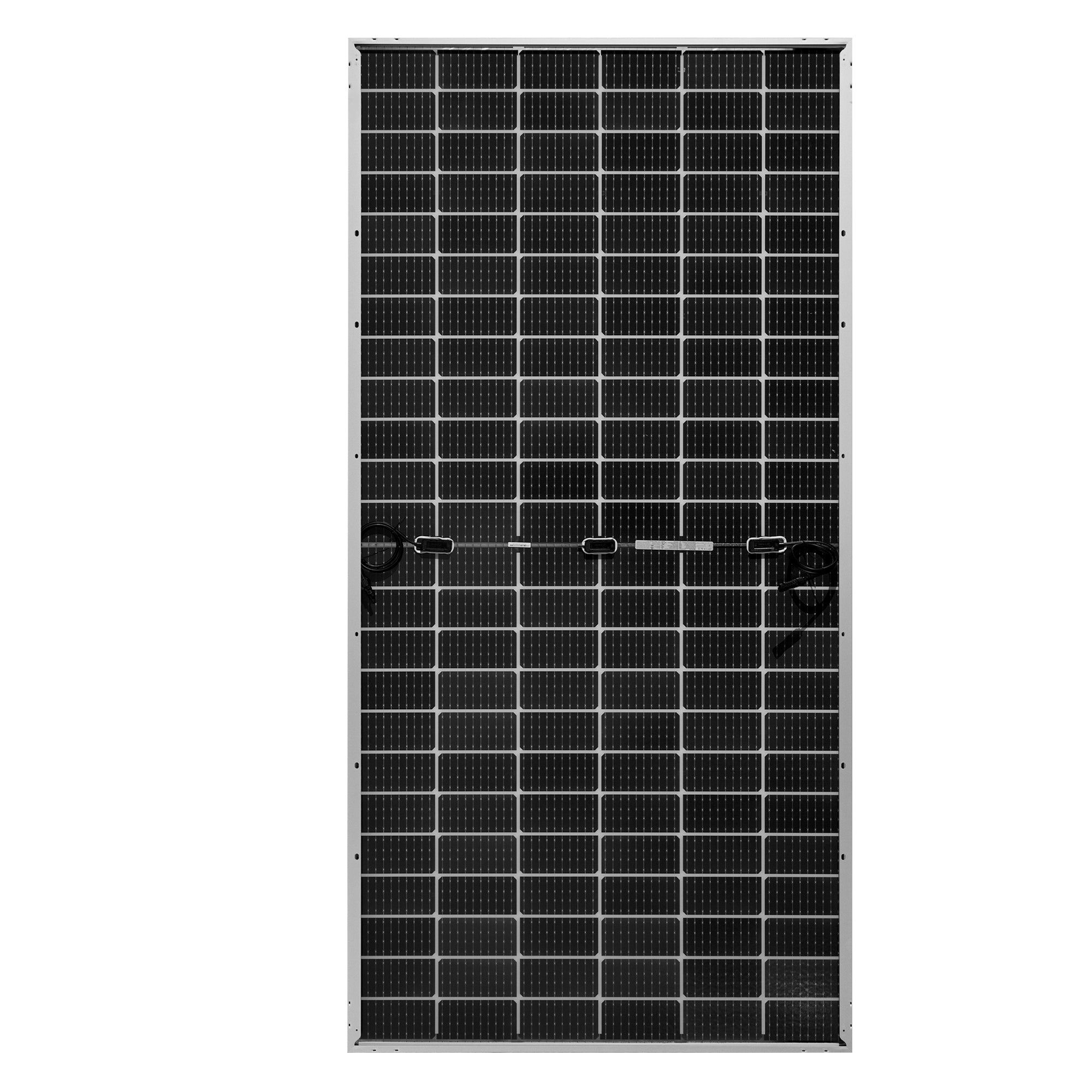

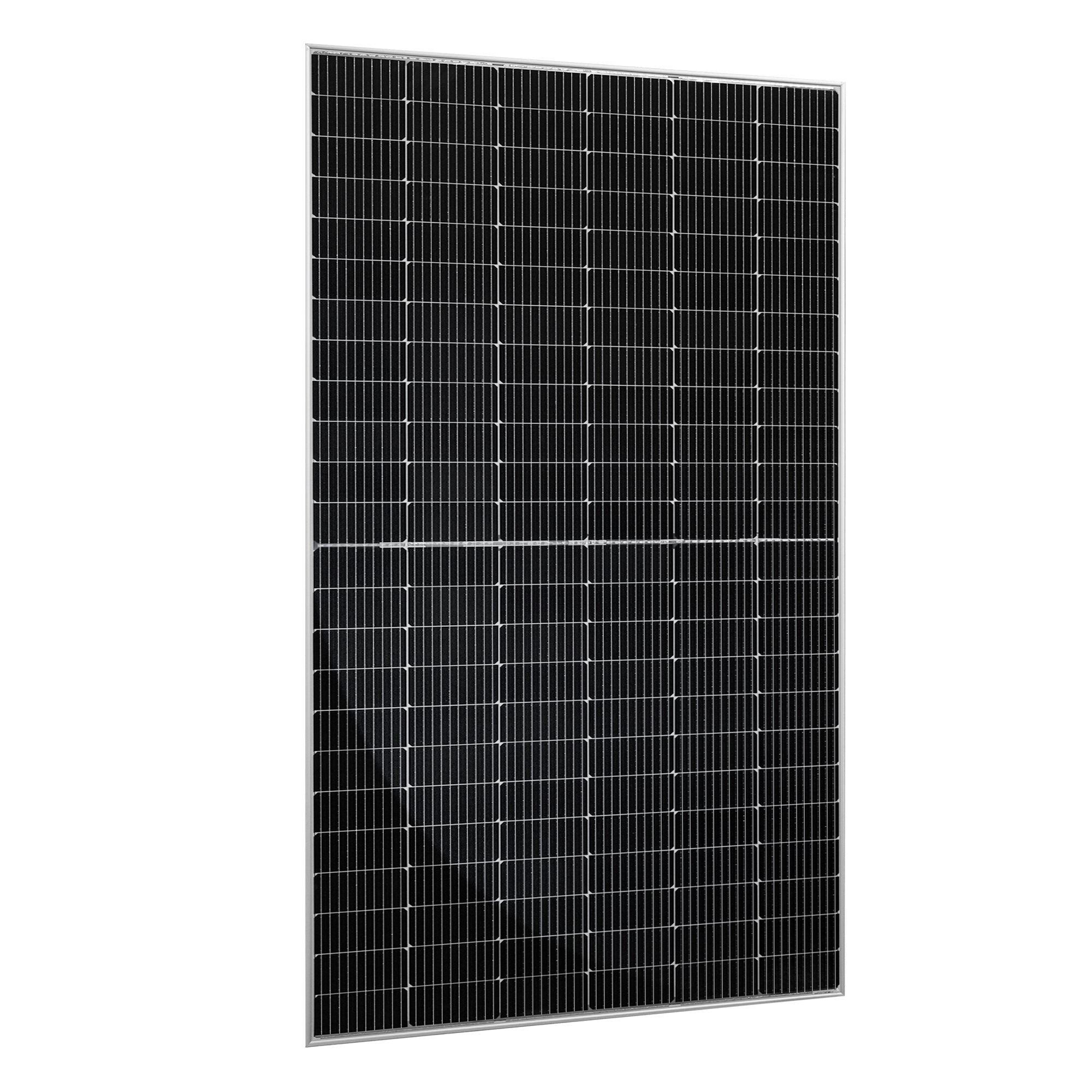

MEGA 550 Solar Panel
MEGA 550 Solar Panel — High?Output, Durable Power for On? and Off?Grid Use
The MEGA 550 is a 550W solar module engineered to deliver high energy output while reducing the space, mounting hardware, and installation time required. Built with TOPCon cell technology, an anodized aluminum frame, and AR-coated tempered glass, it performs well in low light and stands up to harsh weather — making it suitable for residential, agricultural, commercial, and mobile installations.
Benefits
- Produce more energy in less roof or rack space so you need fewer panels.
- Lower electricity costs by maximizing usable solar generation throughout the day and in low-light conditions.
- Reduce maintenance and replacement frequency thanks to durable materials and rigorous quality control.
- Save installation time with pre-drilled mounting points and plug-and-play connectors.
- Gain long-term reliability and predictable performance backed by extended warranties.
Features
- 10-busbar solar cell layout for improved current collection.
- TOPCon cell technology for higher conversion efficiency.
- Lightweight anodized aluminum frame for corrosion resistance and easy handling.
- High-transmission, anti-reflective coated tempered glass for better light capture.
- IP68-rated plug-and-play junction box with built-in bypass diodes.
- Industry-standard IP67 quick-connect solar connectors for series or parallel wiring.
- Excellent low-light performance for cloudy mornings, evenings, and overcast days.
- Stringent in-house quality testing (30+ tests including UV, thermal cycling, humidity/freezing) and 100% EL double inspection; PID resistant.
- Certified to withstand challenging environmental loads (wind, snow, hail).
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts.
- Compatible with both on-grid and off-grid inverter systems.
Specifications
- Maximum Power (PMAX): 550 W
- Maximum Power Voltage (VMP): 42.0 V
- Maximum Power Current (IMP): 13.1 A
- Open Circuit Voltage (VOC): 49.8 V
- Short Circuit Current (ISC): 14.0 A
- Module Efficiency: 23%
- Max Series Fuse Rating: 30 A
- Weight: 73.2 lb (33.2 kg)

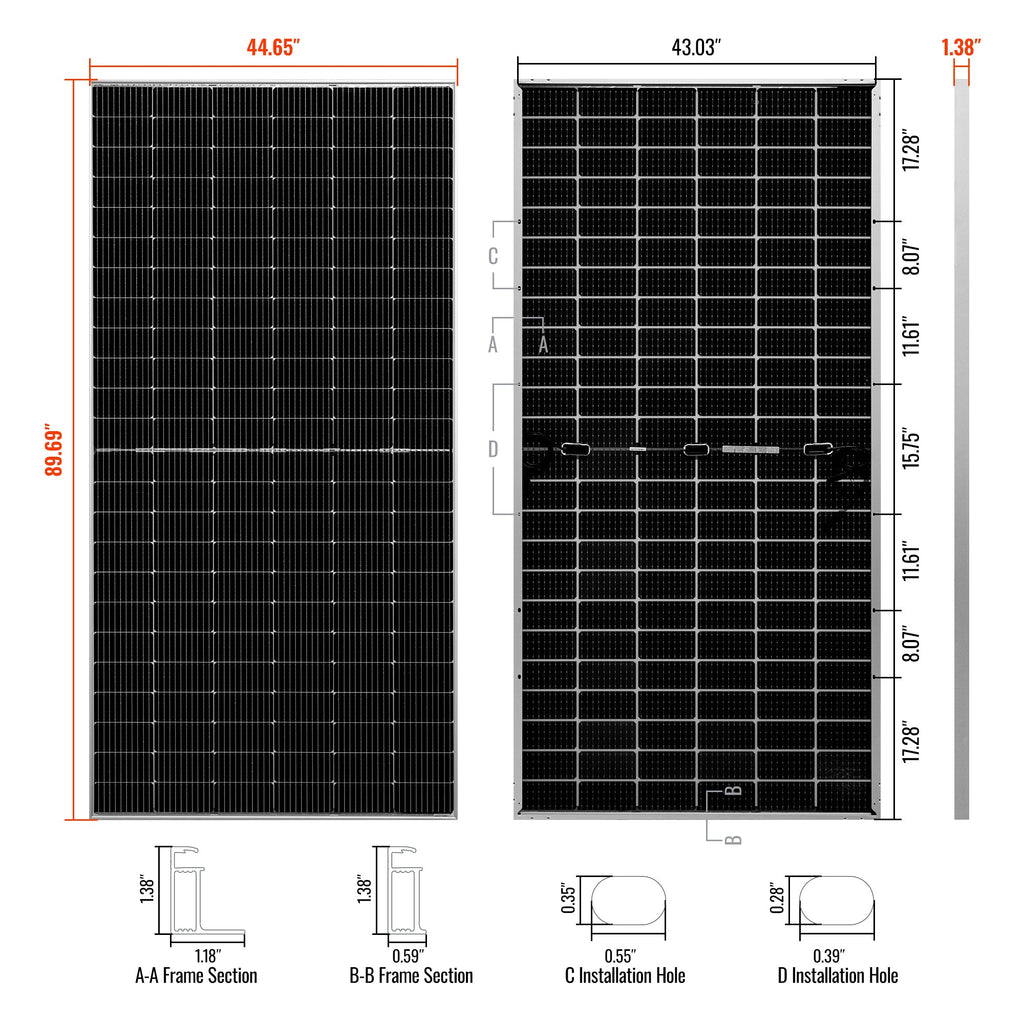

- Dimensions: 89.7 × 44.7 × 1.4 in
- Frame Material: Anodized aluminum
- Glass: High-transmission, AR-coated tempered glass
- Cell Technology: TOPCon; 10-busbar configuration
- Junction Box Rating: IP68 (waterproof)
- Connectors Rating: IP67 quick-connect solar connectors
- Panel Leads: Pair, 4 ft (each)
- Bypass Diodes: Integrated in junction box
- Environmental Ratings: 2400 Pa wind load; 5400 Pa snow load; withstands 35 mm hail at 97 km/h
- Warranty: 25-year limited power output warranty; 10-year workmanship warranty

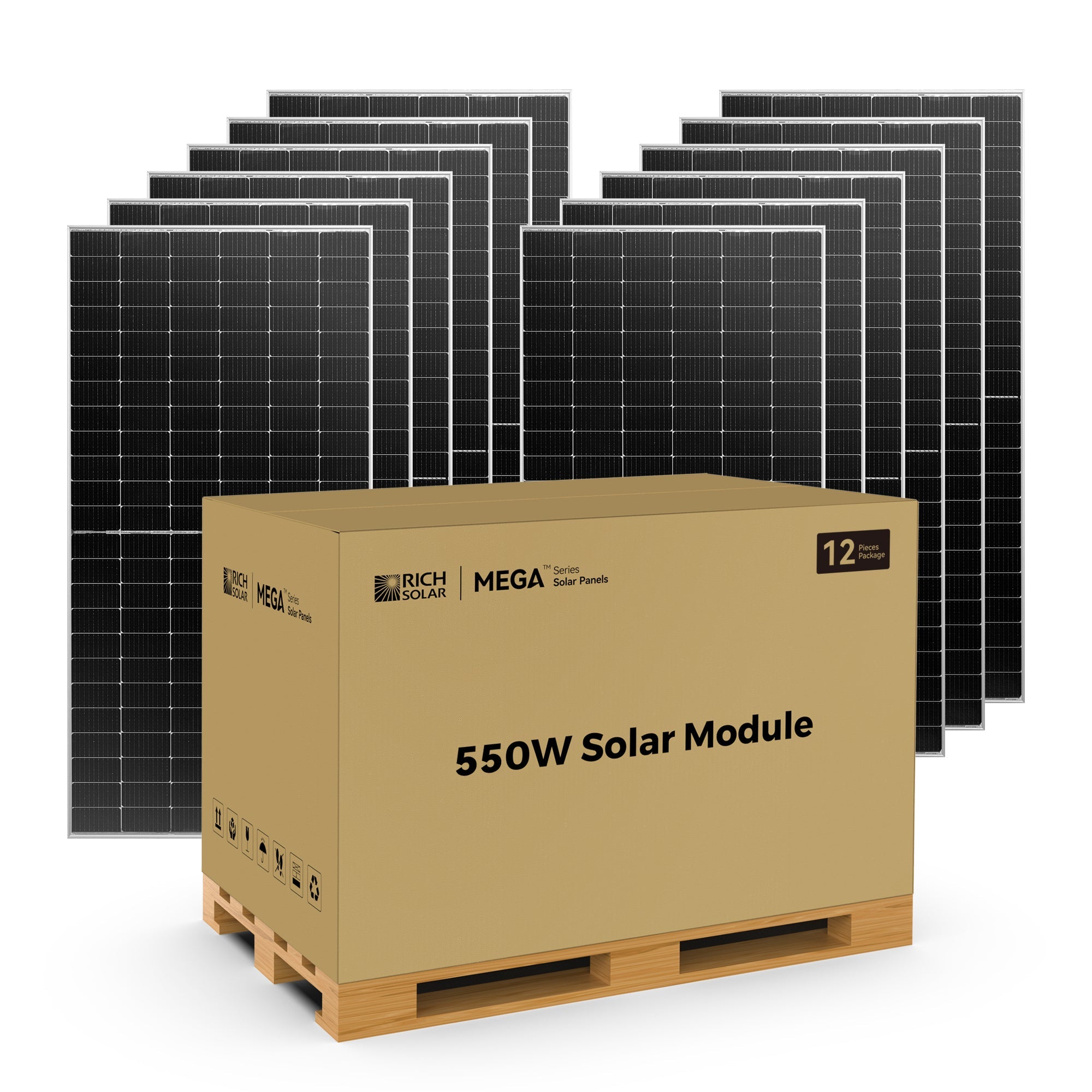

- Shipping: Pallet shipping only. For other quantities, contact sales at 1-800-831-9889 or sales@richsolar.com.
