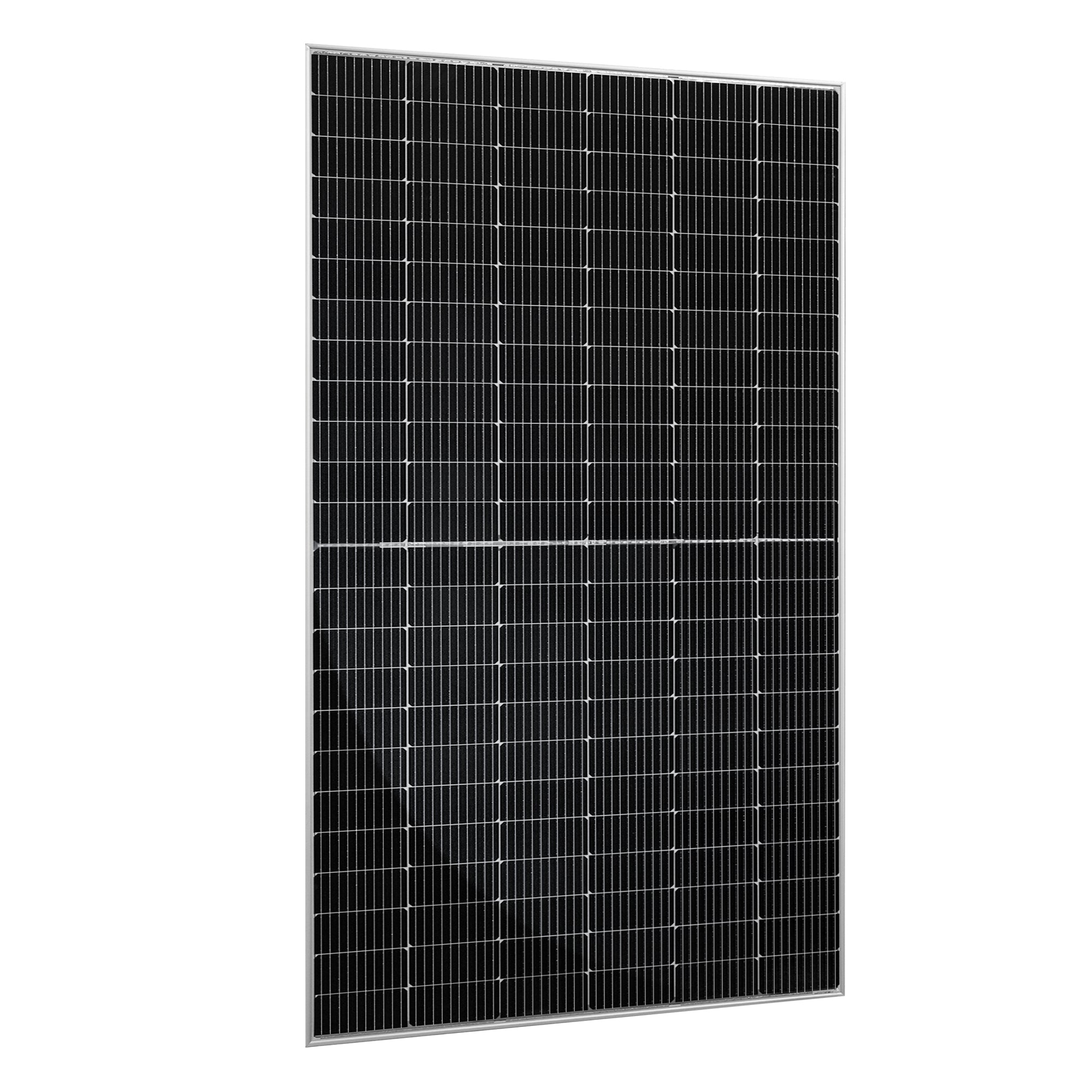

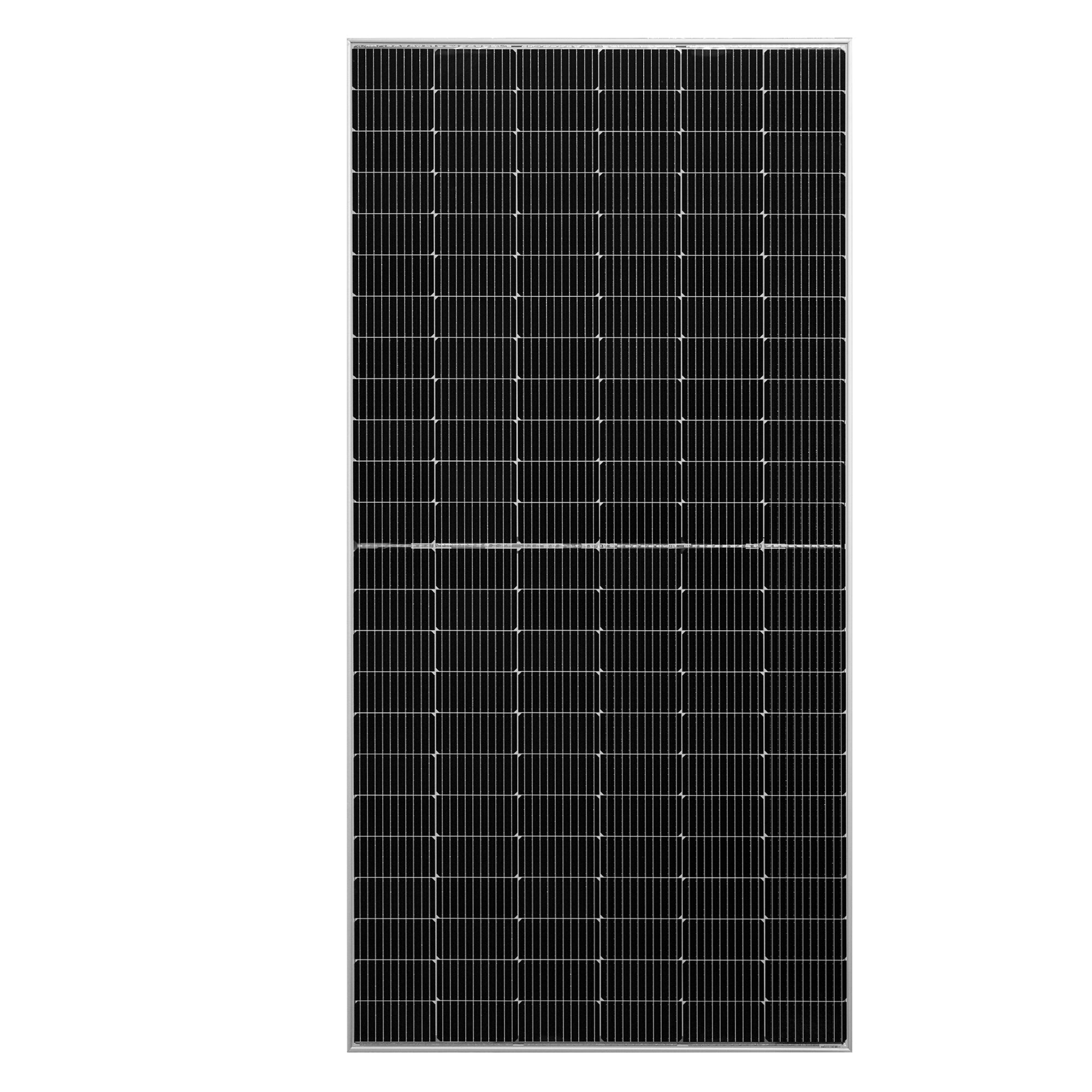

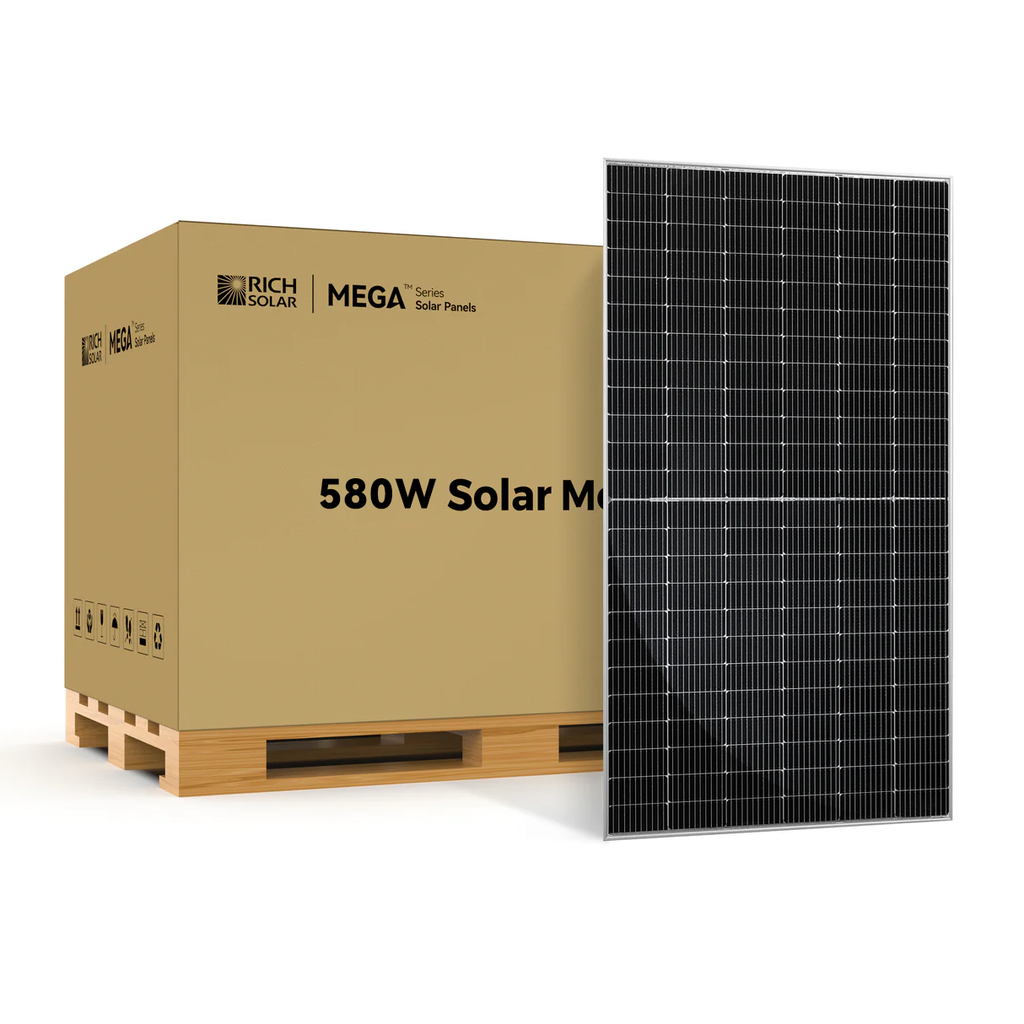

MEGA 580 Solar Panel — 580W High-Efficiency (PALLET SHIPPING ONLY)
The MEGA 580 is a compact, high-output solar module designed to deliver reliable power for residential, agricultural, and commercial off-grid systems. Built with TOPCon cell technology, anti-reflective tempered glass, and a lightweight anodized aluminum frame, it balances strong performance with durable, weather-resistant construction.
Benefits
- Generate more usable energy in less space so you can power more devices or reduce array footprint.
- Reduce system maintenance and downtime thanks to robust weather resistance and stringent quality testing.
- Faster installation and integration with standard mounts and connectors, saving labor time on-site.
- Better energy harvest in low-light conditions, giving more usable power during cloudy days, mornings, and evenings.
- Long-term output stability with a 12-year product warranty plus a 30-year linear power guarantee for predictable performance.
Features
- 16-busbar solar cell configuration for improved current collection and reliability
- TOPCon (Tunnel Oxide Passivated Contact) cell technology for higher efficiency
- Lightweight anodized aluminum frame for corrosion resistance and easier handling
- High-transmission, anti-reflective (AR) coated tempered glass to boost light capture

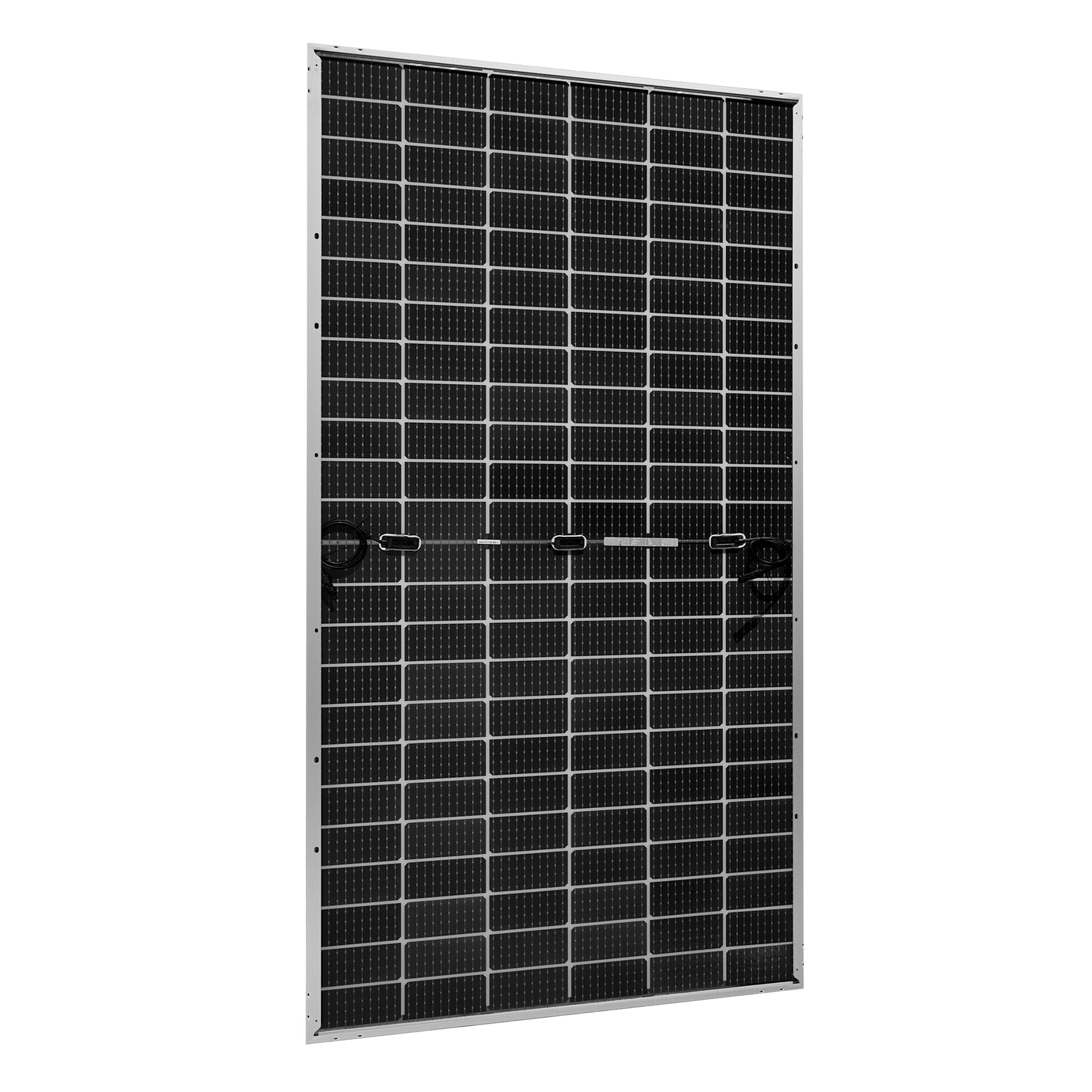

- Plug-and-play IP68-rated junction box with built-in bypass diodes
- Industry-standard IP67-rated quick-connect solar connectors and pre-attached 2 ft leads for fast wiring
- Pre-drilled mounting holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Works with on-grid and off-grid inverters; supports series or parallel wiring with standard connectors
- Over 30 in-house quality tests (UV, TC, HF, and more), PID resistant, and 100% EL double inspection
- Certified to withstand challenging conditions: high wind, heavy snow, and hail impacts
Specifications
- Maximum Power (PMAX): 580 W
- Maximum Power Voltage (VMP): 42.7 V
- Maximum Power Current (IMP): 13.6 A
- Open Circuit Voltage (VOC): 51.4 V
- Short Circuit Current (ISC): 14.3 A
- Maximum System Voltage: 1500 VDC
- Module Efficiency (?m): 22.5%
- Max Series Fuse Rating: 30 A
- Weight: 68.8 lb (31.2 kg)

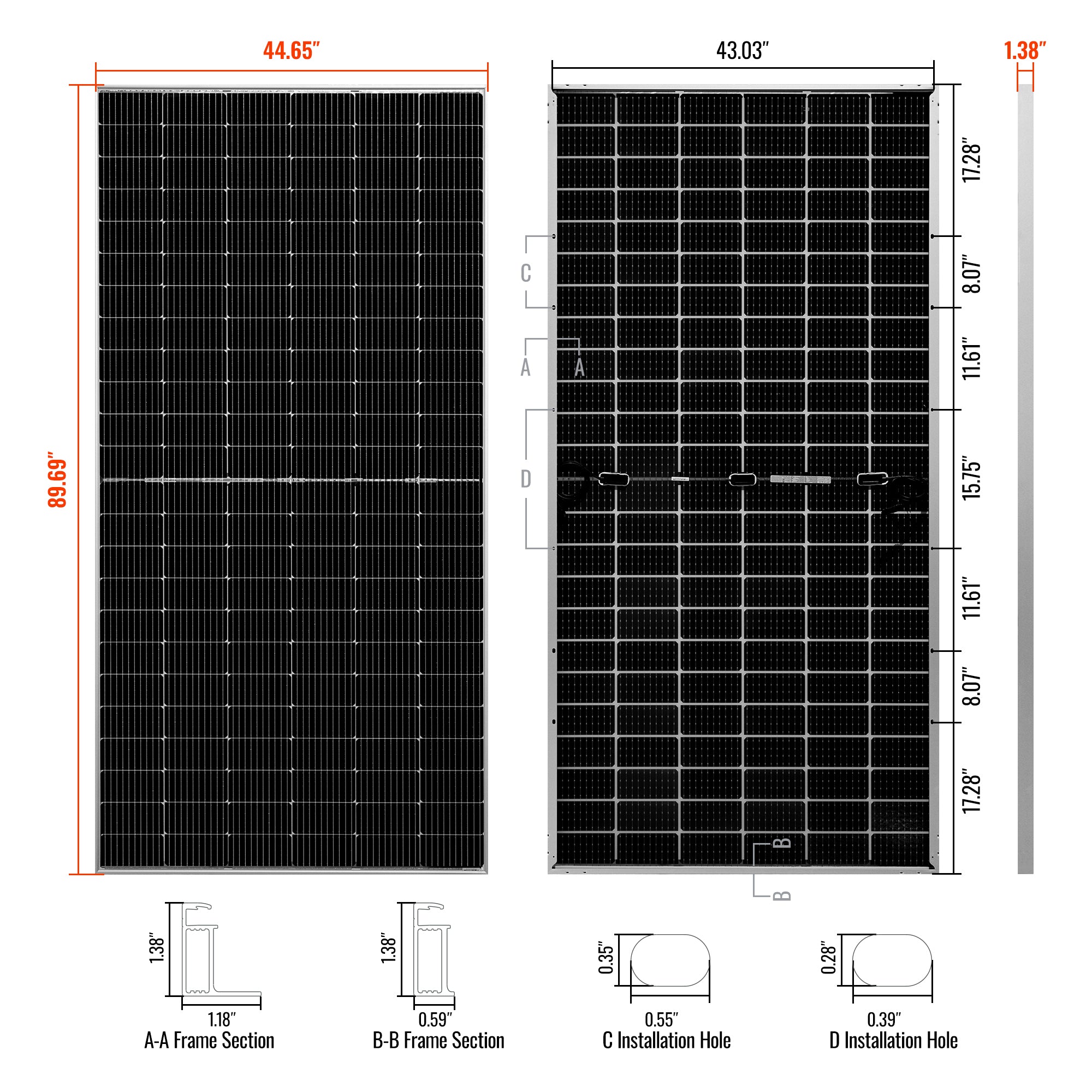

- Dimensions: 89.7 × 44.7 × 1.2 in
- Warranty: 12-year product warranty + 30-year linear power output guarantee (?0.4% annual degradation)
- Environmental ratings: 2400 Pa wind load, 5400 Pa snow load, 35 mm hailstones at 97 km/h
- Built-in components: panel leads (pair) 2 ft each, IP68 junction box, IP67 solar connectors, bypass diodes in junction box

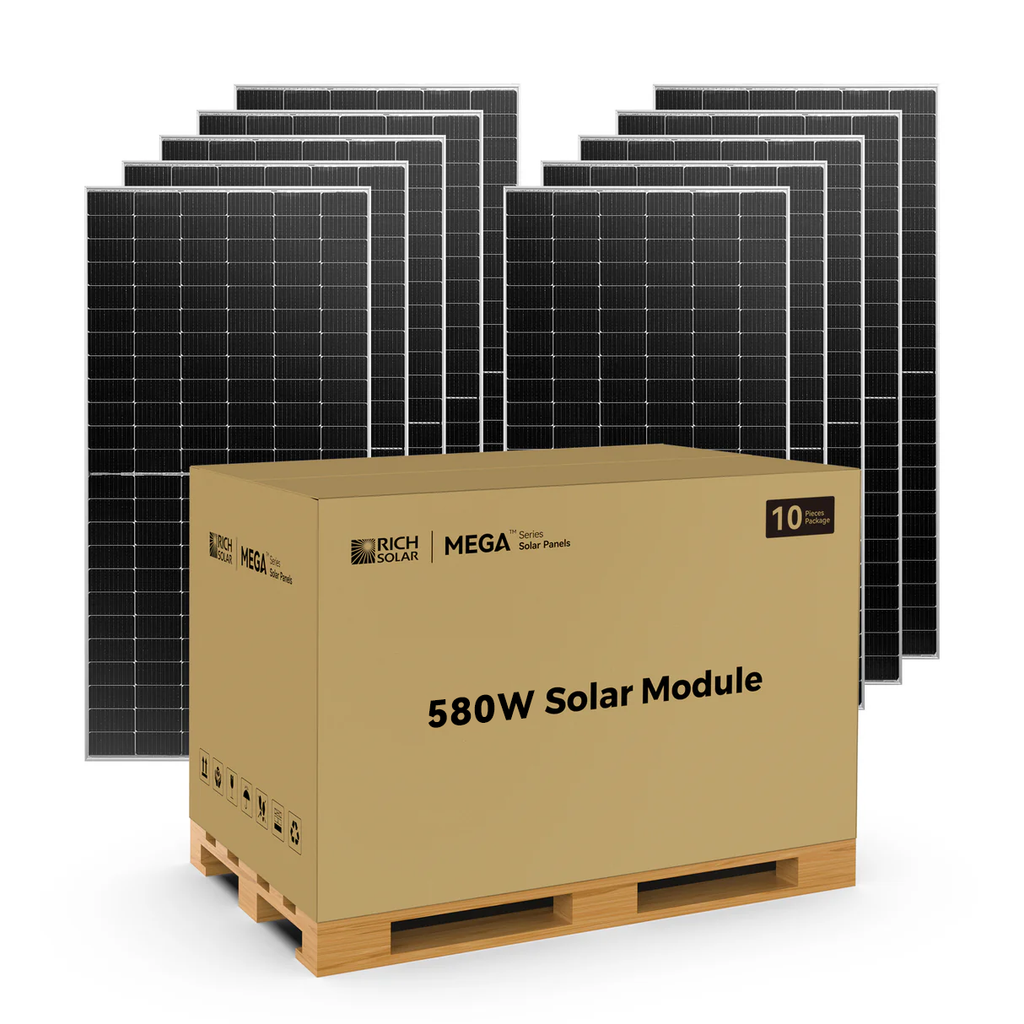

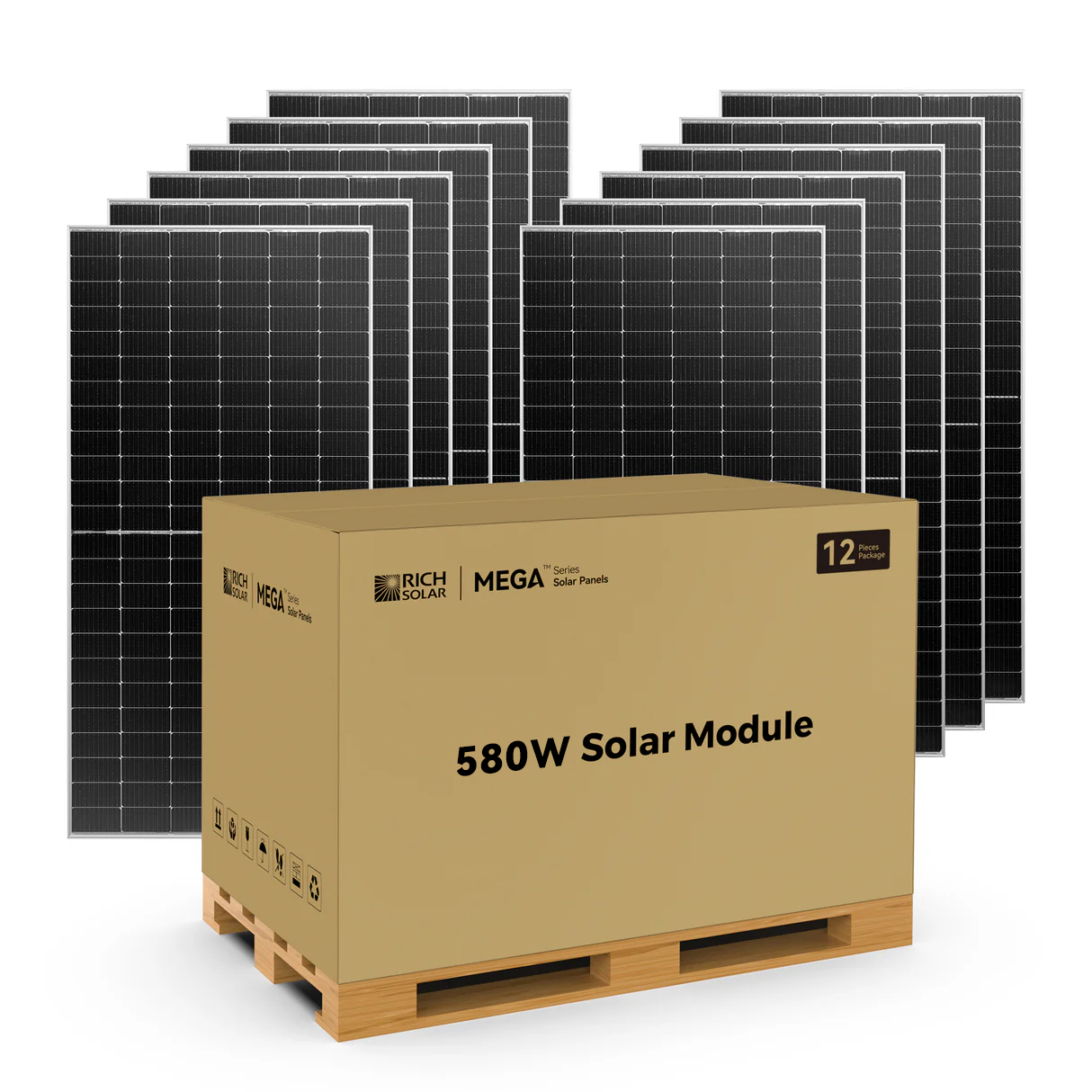

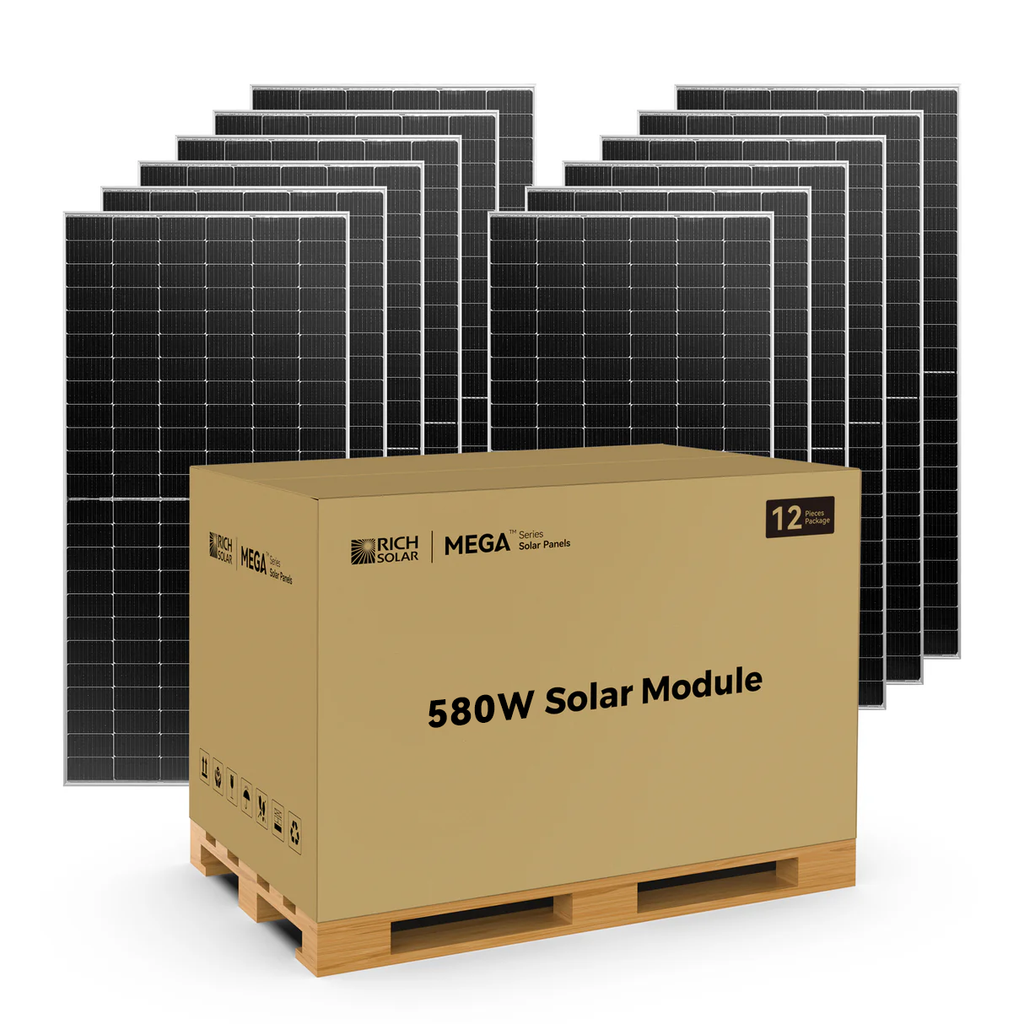

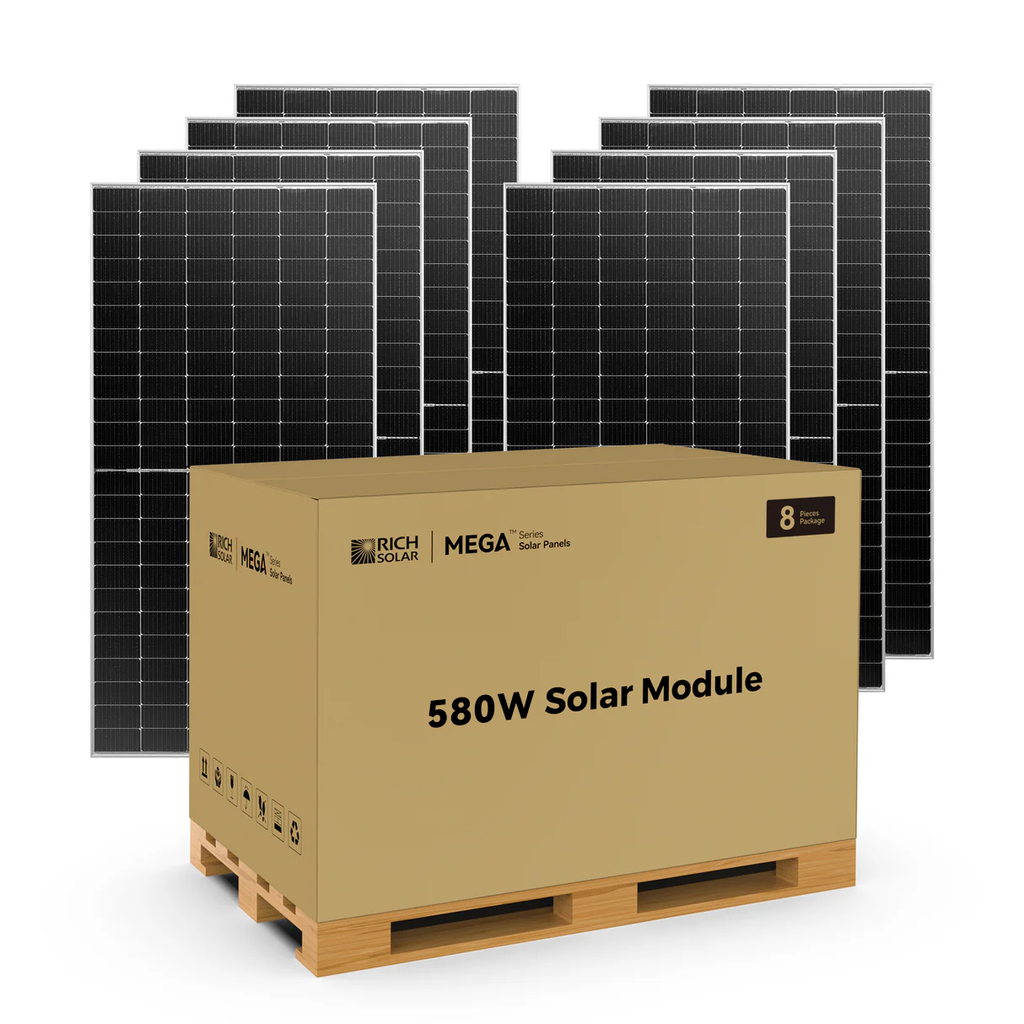

- Shipping: PALLET SHIPPING ONLY — for other quantities, contact sales at 1-800-831-9889 or sales@richsolar.com
