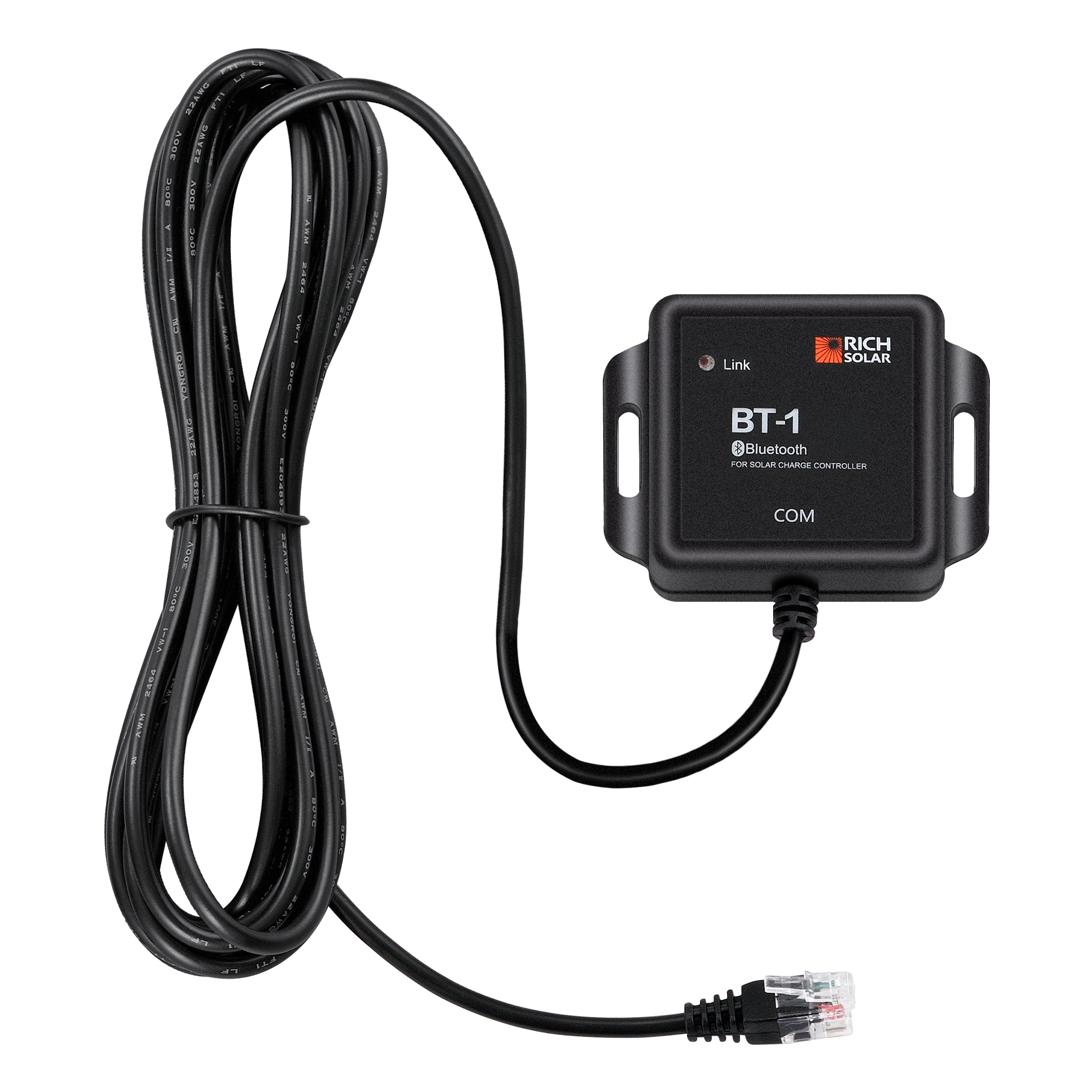

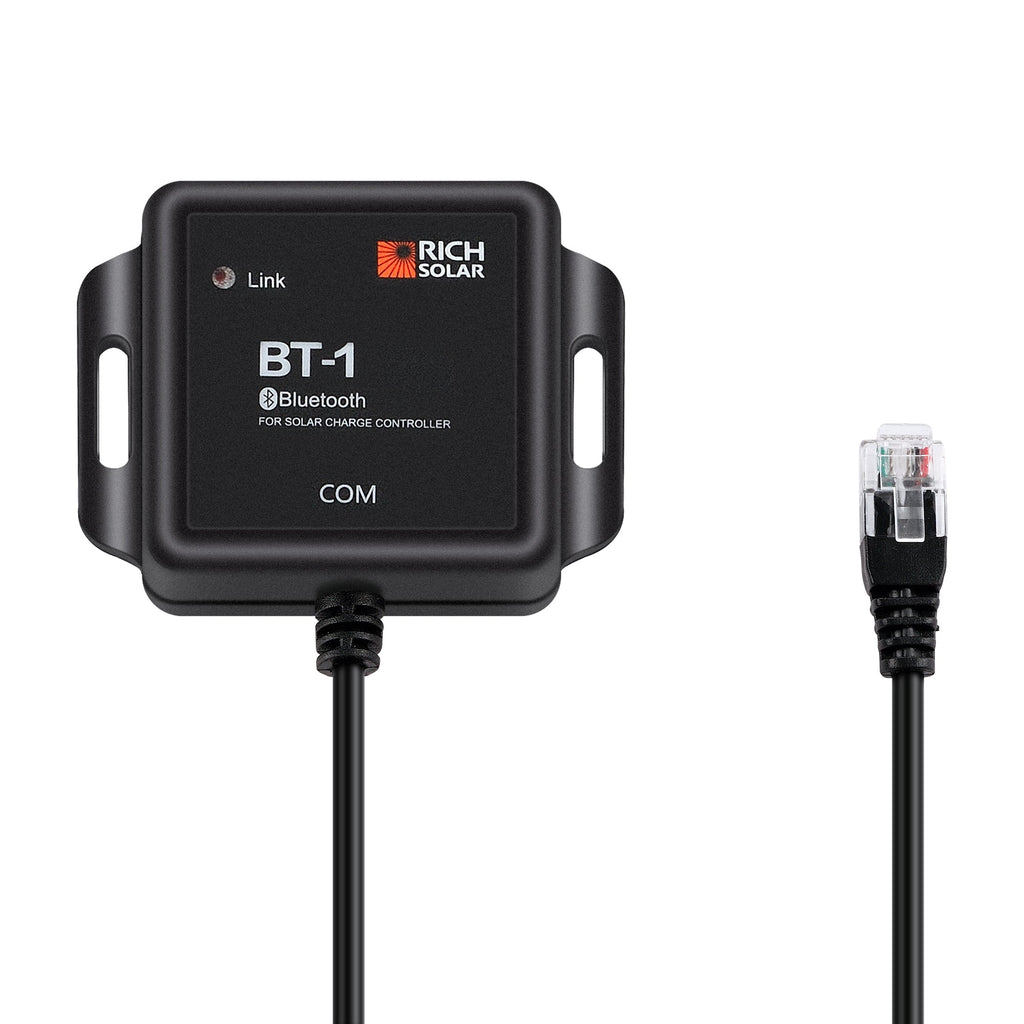

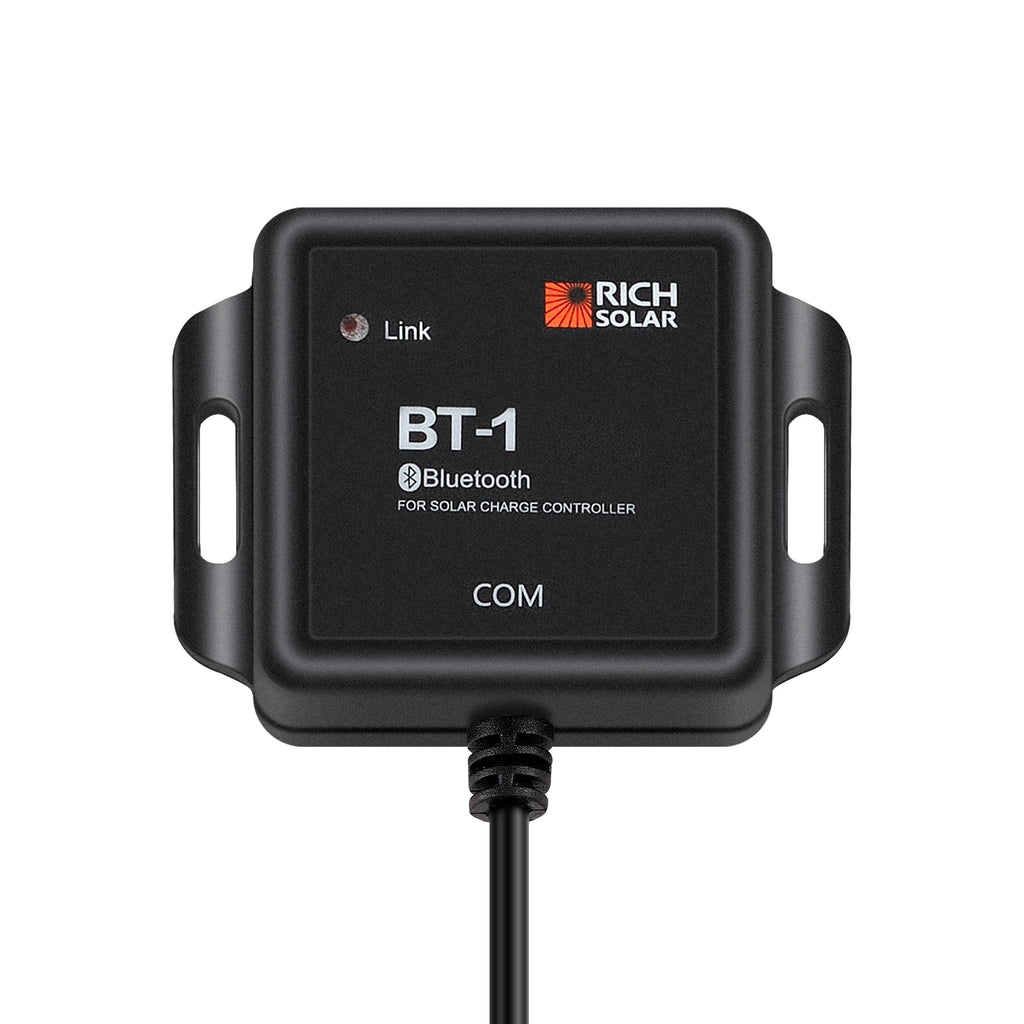

Bluetooth Solar Controller Adapter (BT-1)
A compact Bluetooth adapter that lets you monitor and control compatible solar charge controllers from your smartphone. It provides low-energy, reliable wireless communication and draws power directly from the controller’s RJ12 port for a neat, simple installation.
Benefits
- Check system status and make adjustments from your phone, saving trips to the controller location.
- Reduce energy waste with continuous, low-power monitoring so your battery system stays healthier longer.
- Quick setup and a single-cable installation keep your system tidy and easy to maintain.
- Reliable short-range wireless connection lets you manage equipment even when it’s out of direct sight.
Features
- Wireless monitoring and control of compatible solar charge controllers via Bluetooth.
- Connects to a user-friendly smartphone app to view system data and change settings.
- Embedded high-efficiency Bluetooth chip designed for low energy consumption.
- Bluetooth 4.0 with BLE for fast, uninterrupted communication.
- Powered directly through the RJ12 communication port—no separate power cable required.
- Wireless signal range up to 15 m (approximately 50 ft).
Specifications
-
Model: BT-1
-
Input Voltage: 5 V – 12 V
-
Standby Power Consumption: 0.04 W
-
Operating Power Consumption: 0.05 W
-
Communication Range: Up to 15 m (-50 ft)
-
Serial Baud Rate: Fixed 9600 bps
-
Cable Length: 5.00 m (16.4 ft)
-
Dimensions: 2.6 × 2.01 × 0.61 in
-
Installation Dimensions: 57.5 mm; mounting hole diameter -3.2 mm (2.26 in; -0.13 in)
-
Protection Grade: IP67
-
Weight: 120 g (4.2 oz)
