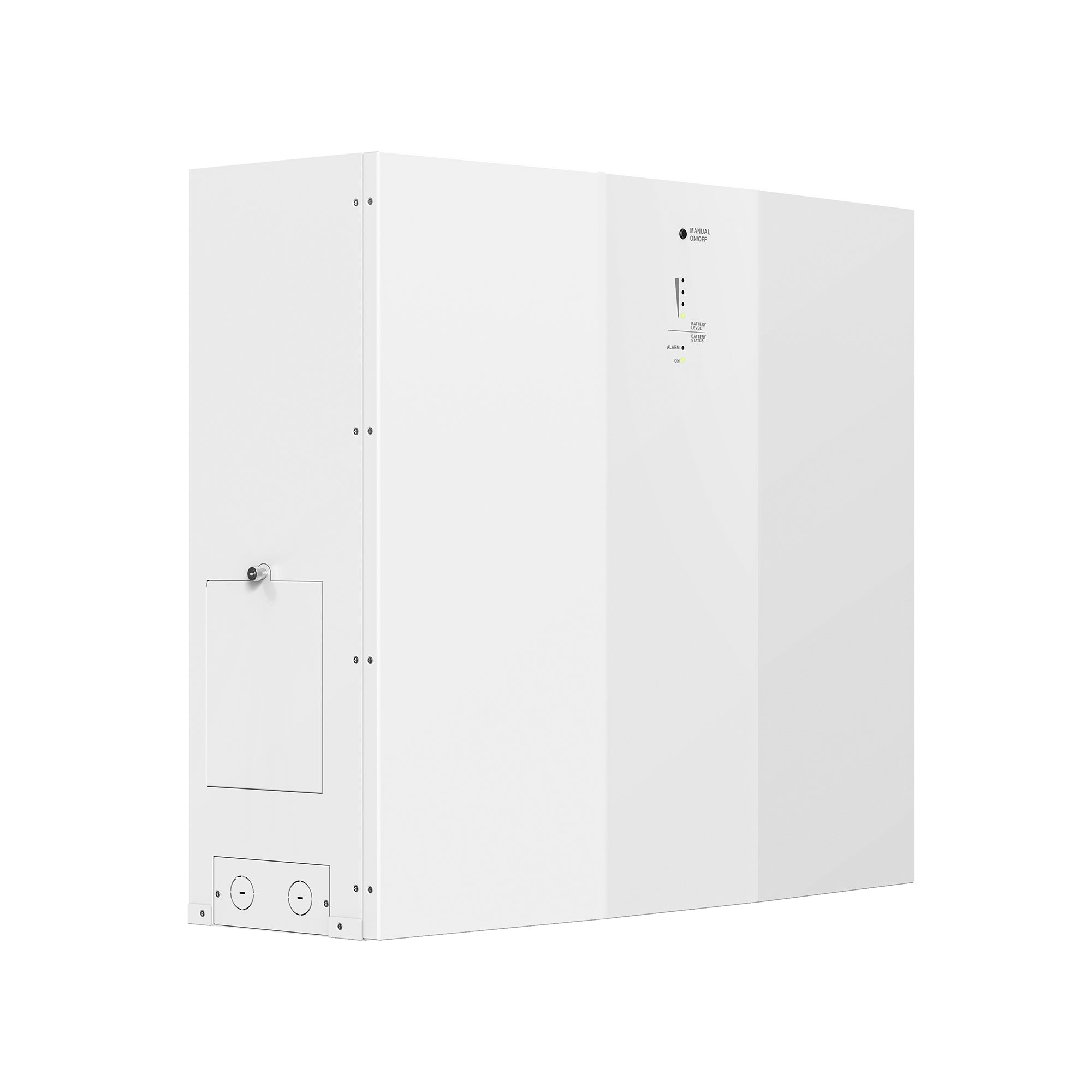

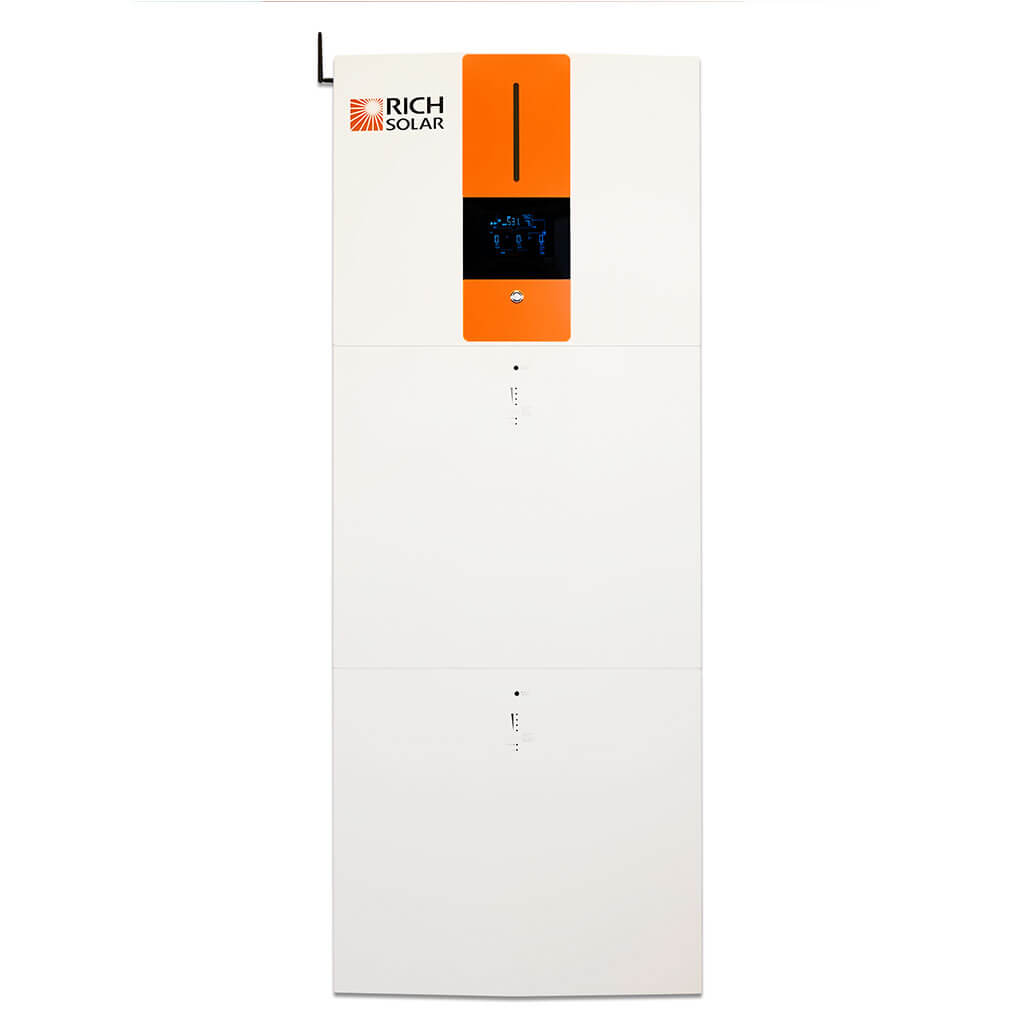

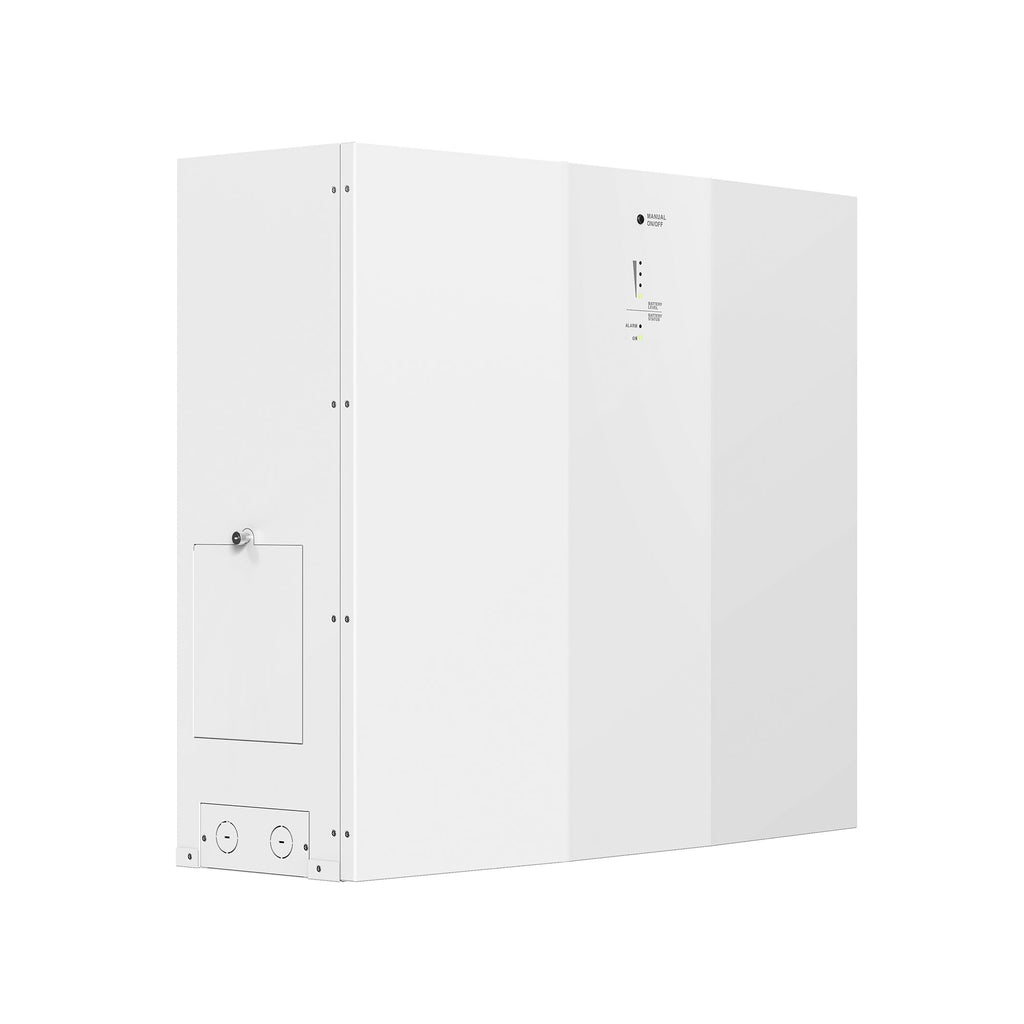

RICH SOLAR All-in-One Energy Storage System — RS-A10
Overview
The RICH SOLAR RS-A10 is an integrated energy storage unit that combines inverter, batteries, and charge controller in a single compact cabinet. It delivers clean, pure-sine power for off-grid or backup use, offers multiple communication and monitoring options, and supports scalable Li-ion battery expansion and generator/utility compatibility.
Benefits
- Reliable backup power so essential devices stay on during outages.
- Saves space with a single cabinet instead of multiple separate components.
- Simplifies installation and maintenance by reducing wiring and separate equipment.
- Gives real-time visibility and control through mobile app monitoring, so you can check status and adjust settings from anywhere.
- Lets you prioritize energy sources (PV, battery, grid) to reduce utility bills and use more self-generated solar energy.
- Scalable battery capacity lets you add storage as your needs grow without replacing the whole system.
Features
- Pure sine wave AC output for stable power to sensitive electronics.
- Off-grid capable for standalone installations or remote sites.
- Programmable supply priority to choose PV, battery, or grid as the primary source.
- User-adjustable battery charging current to match installation needs.
- Battery-independent design that supports different battery configurations and expansion.
- Built-in dual MPPT trackers for improved solar harvest.
- AC/solar charger support up to 120 A maximum charging current.
- Multiple communication interfaces: USB, RS232, SNMP, Modbus, GPRS, and Wi?Fi.

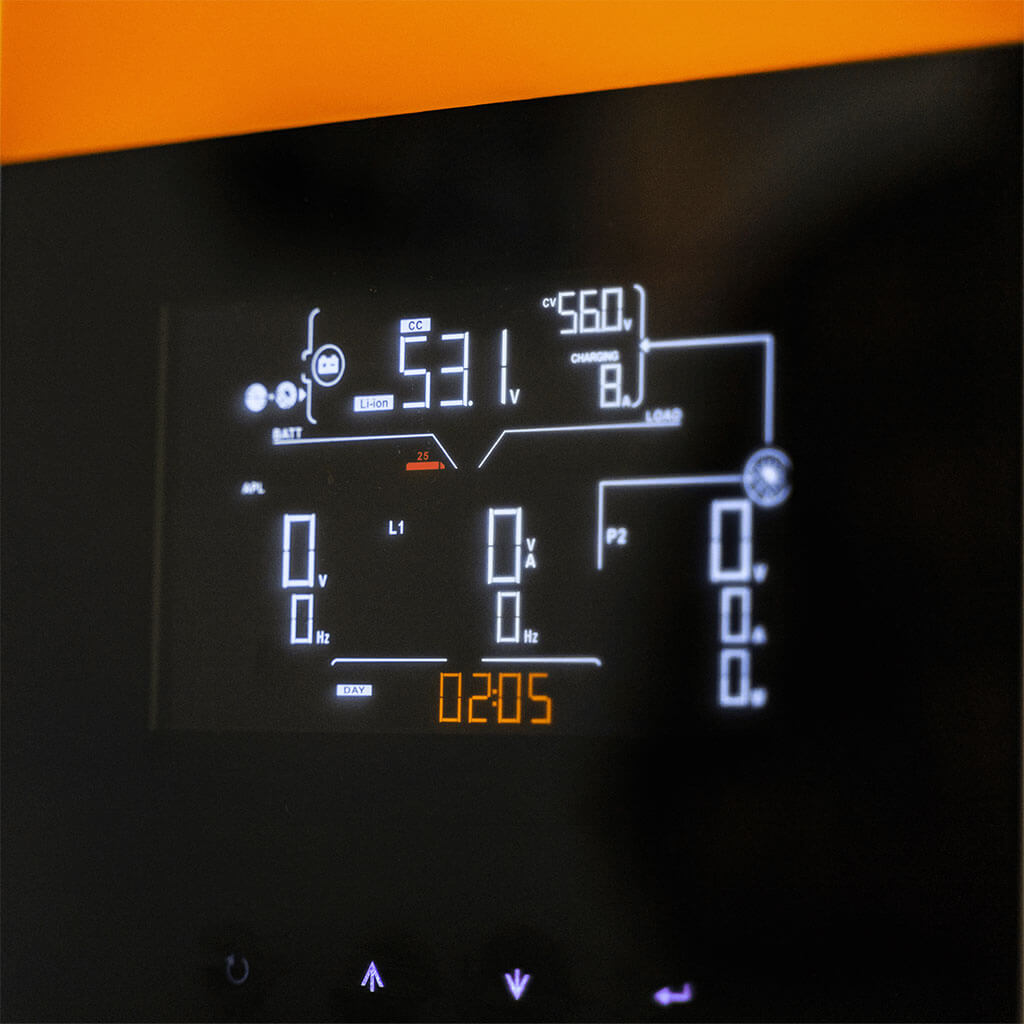

- Mobile monitoring app (Android & iOS) for real-time status and remote control.
- Compatible with utility and generator inputs for mixed-source operation.
Specifications
Battery Info
- Model: RS-A10
- Maximum PV input power: 8000 W
- Rated output power: 6500 W
- Maximum charging power: 6500 W
PV Input (DC)
- MPPT operating voltage range: 90–230 VDC
- Maximum PV array open-circuit voltage: 250 VDC
- Maximum solar charge current: 120 A
- Number of MPP trackers / maximum input current: 2 / 2 × 18 A
AC Input
- Acceptable input voltage range: 90–140 VAC (for computers); 80–140 VAC (for home appliances)
- Maximum AC input current: 60 A
Battery Mode Output
- Nominal output voltage: 120 VAC
- Maximum conversion efficiency (DC ? AC): 93%

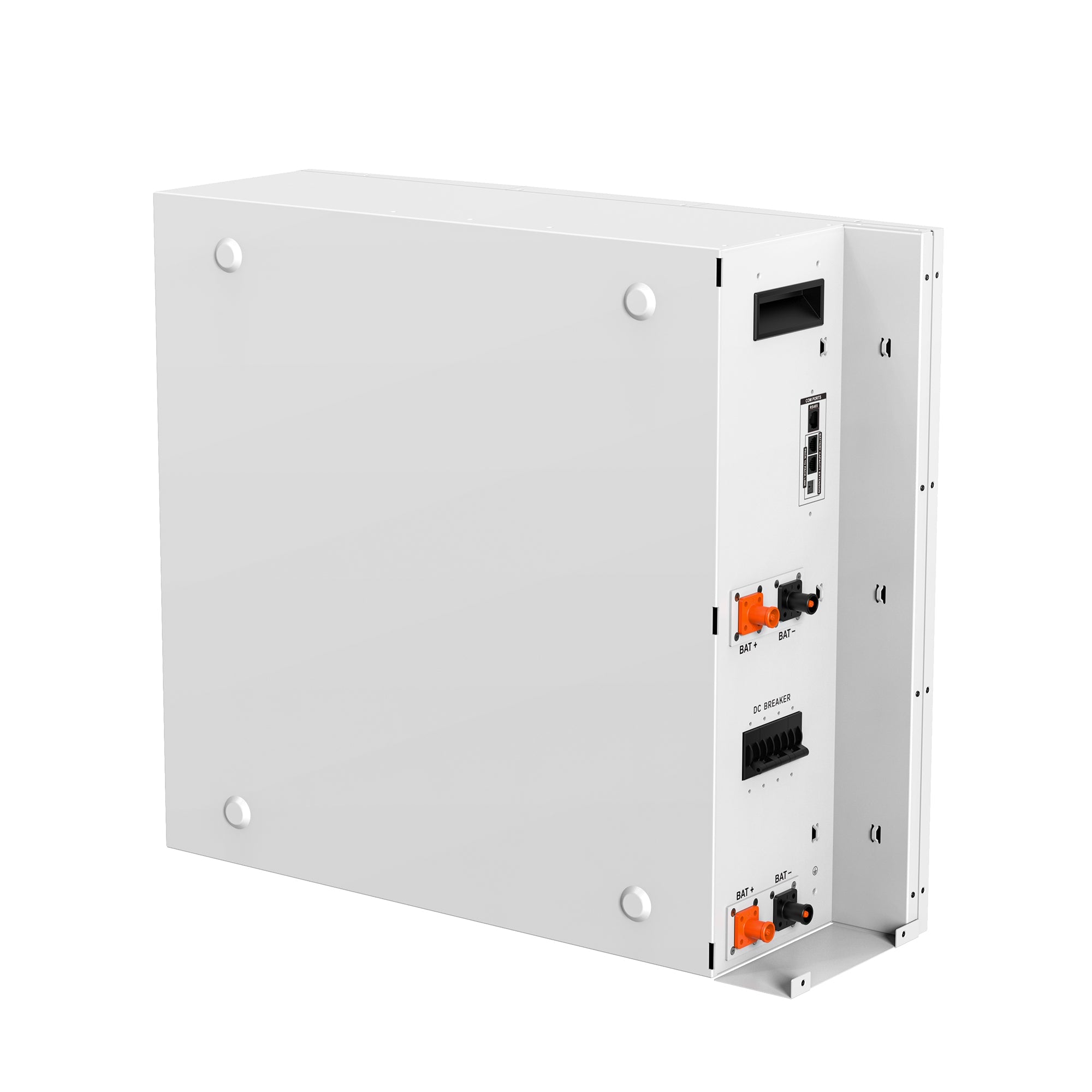

Battery
- Nominal DC voltage: 48 VDC
- Nominal battery voltage (module): 51.2 VDC
- Capacity: 5120 Wh
- Typical capacity: 100 Ah
- Full charge voltage (FC): 56 V
- Full discharge voltage (FD): 42 V
- Maximum charging current: 120 A
- Charge current (standard): 20 A (0.2C)
- Maximum charge current: 50 A (0.5C)
- Standard charge method: 0.2C CC to FC, then CV until current < 0.05C
- Max continuous discharging current: 120 A
- Max discharging current: 192 A (1 minute)
- Protection: BMS and breaker
- Float charge voltage: 52.5 V
- Inner resistance: ?20 m?
- Dimension (battery module D × W × H): 8.4" × 24.4" × 19.7"
- Battery net weight: 99 lb
All-in-One System Physical
- System dimension (D × W × H): 19.7" × 26" × 49.2"
- System net weight: 287 lb
Standards & Compliance
- Compliance / Safety standards: IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC Part 15B
