10kW Hybrid Solar Inverter – Split Phase Power System
This 10kW Hybrid Solar Inverter offers flexible, intelligent, and safe energy management for homes or businesses. With split-phase support, generator input, and real-time WiFi monitoring, it delivers reliable power conversion and advanced control for both grid-tied and off-grid applications.
Benefits
- Power your entire home or business with flexible split-phase support.
- Expand your energy system easily with up to six units in parallel.
- Enjoy seamless monitoring and control from anywhere via WiFi and mobile app.
- Protect your system with advanced built-in safety and fault detection features.
- Maximize efficiency and reliability with 91% DC-to-AC conversion.
Features
-
Power Flexibility
- 120/240V split-phase or 120/208V split-phase operation
- Supports generator input and AC coupling
- Scalable design allows up to 6 parallel units
-
Intelligent Control
- Real-time system monitoring through WiFi and mobile app
- BMS integration with RS485 interface
- External CT sensor enables 100% self-consumption
-
Advanced Safety

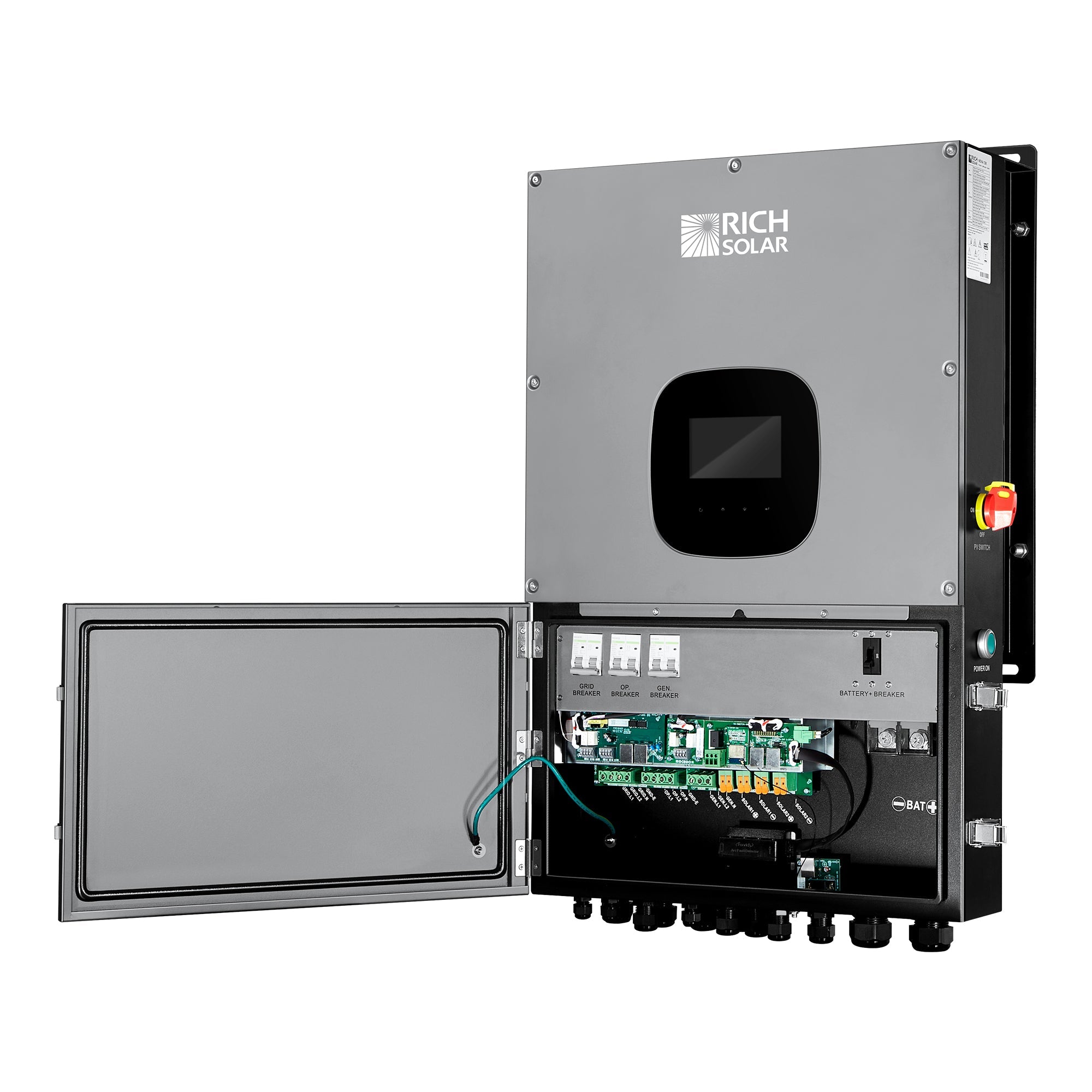

- Integrated 300A DC + 60A AC breaker
- AFD/RSD compliance (NEC 690.11/690.12)
- Ground fault detection (NEC 690.5)
- Built-in PV input lightning protection
-
Premium Performance
- 91% DC-to-AC conversion efficiency
- Pure sine wave output for stable power delivery
- Supports grid-tie, off-grid, and hybrid operation modes
Specifications
- Maximum PV Input Power: 12,000W
- Parallel Capability: Up to 6 units
Input
- Maximum PV Input Power: 12,000W
- Voltage Range: 120–550VDC
- Startup Voltage: 125V
- MPPT: Dual inputs – 2 × 18A (30A peak)
Output
- Rated Output Power: 10,000VA / 10,000W
- Nominal Output Voltage: 120VAC (P-N) / 208VAC (P-P) / 240VAC (P-P)
- Output Voltage Range: 105.5–132VAC per phase
- Nominal Output Current: 41.7A per phase
Battery
- Battery DC Voltage Range: 40–62VDC (Nominal 48VDC)
- Maximum Solar Charging Current: 200A
- Maximum AC Charging Current: 200A
- Total Maximum Charging Current: 200A
Operating Environment
- Operating Temperature Range: -13°F to 140°F (derating above 113°F)
- Protection Degree: IP65 (weather-resistant)

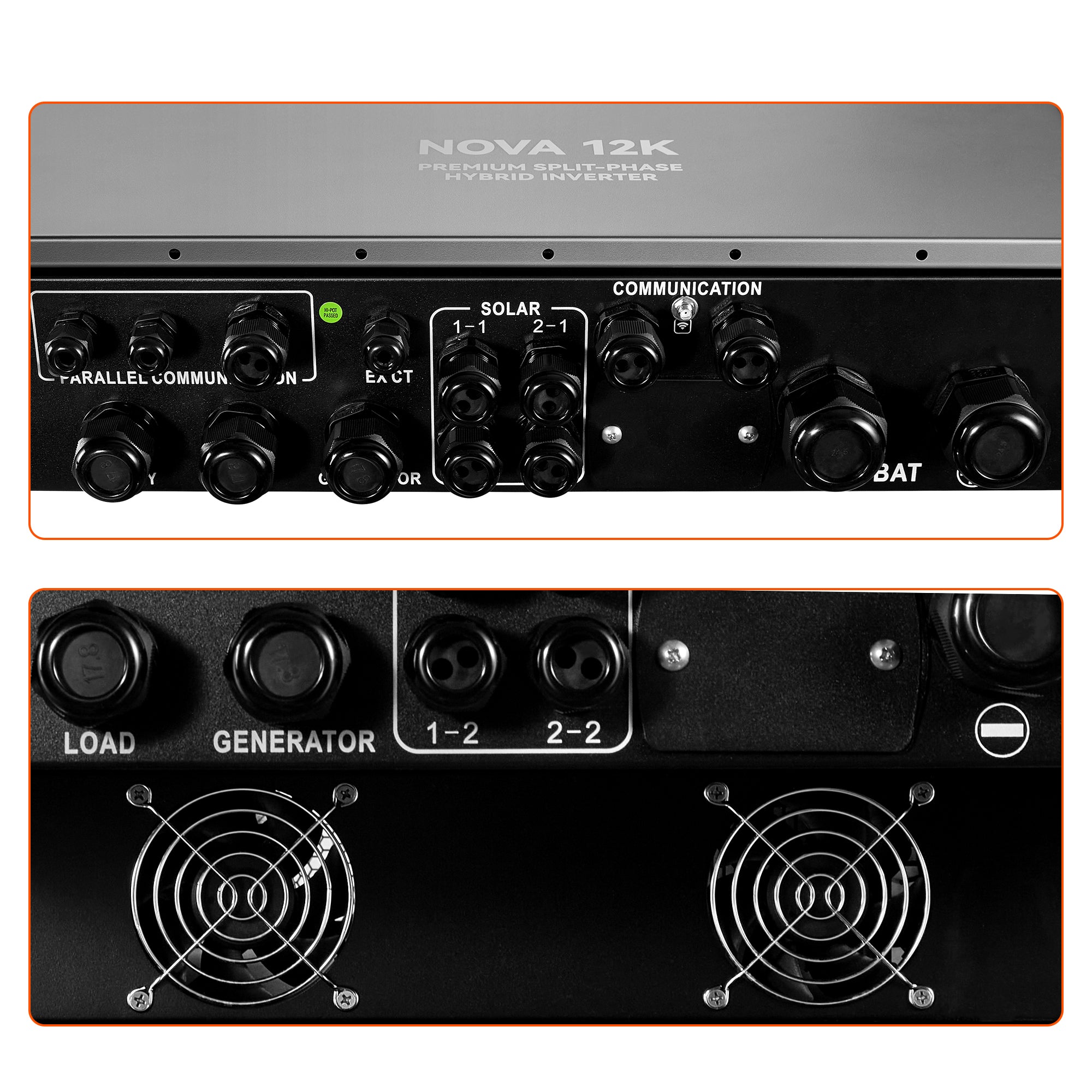

- Communication Ports: RS232, RS485, Wi-Fi, USB
Physical
- Dimensions (L×W×H): 8.5 × 20.3 × 28.1 in (215 × 516 × 714 mm)
- Net Weight: 112 lb (51 kg)
Certification
- UL 1741SA/SB, CSA C22.2 No.107.1, IEEE 1547
- CEC Listed, FCC Part 15 Class B
- Compliant with California Rule 21 and HECO Rule 14H
