Reliable 3kVA Pure Sine Wave Inverter with Integrated MPPT
Overview
This compact 3000VA/3000W inverter delivers clean, pure sine wave power for sensitive electronics while combining an integrated MPPT solar charger and flexible input options. It supports remote monitoring, BMS communication, parallel expansion and built-in protections so you get dependable, easily managed backup or off-grid power.
Benefits
- Keep devices running reliably—clean pure sine output protects sensitive electronics and appliances.
- Monitor and control remotely (Wi-Fi/GPRS optional) to reduce site visits and respond faster to issues.
- Choose the best power source—automatic priority between grid and solar saves energy and reduces costs.
- Scale capacity by adding up to six units in parallel for larger needs without replacing equipment.
- Save space and simplify installation thanks to a high-frequency design that is compact and lightweight.
- Protect equipment and batteries with built-in overload, short-circuit and deep-discharge safeguards.
Features
- Pure sine wave inverter output for clean, stable AC power
- Integrated MPPT solar charge controller with wide MPPT range

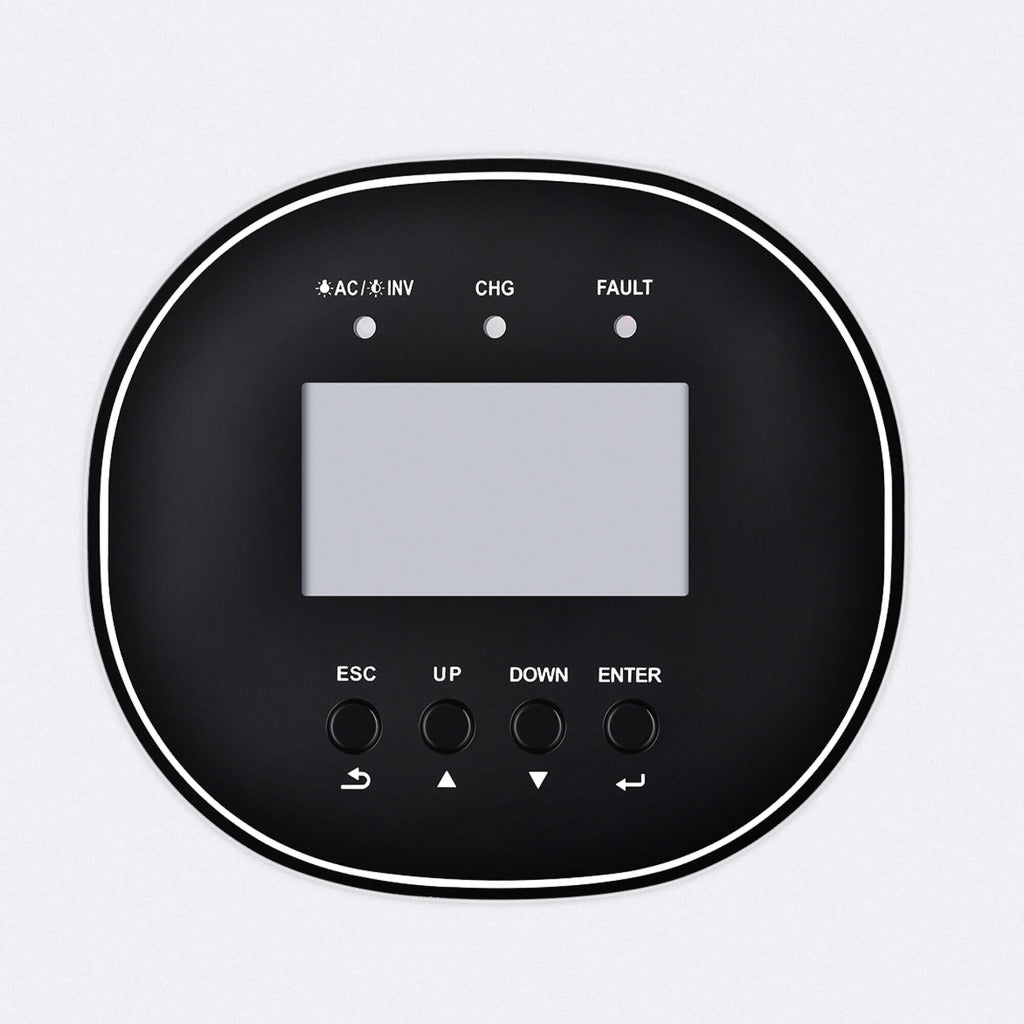

- LED display for status and settings
- Optional Wi-Fi/GPRS remote monitoring
- CAN and RS485 ports for BMS communication
- Configurable input priority between grid and solar
- Supports 48V battery systems
- Compatible with mains or generator input
- High-frequency design for smaller size and lower weight
- Protections: overload, short circuit and deep discharge
- Parallel operation: expand up to 6 units for higher power and off-grid capability
Specifications
- General
- Rated Power: 3000 VA / 3000 W
- Parallel Capability: Yes (up to 6 units)
- AC Voltage Regulation (Battery Mode): 120 VAC
- Waveform: Pure Sine Wave
- Efficiency (Peak): 90%
- Transfer Time: 10 ms typical, 20 ms max (single); <30 ms (parallel)
- Weight: 25.4 lb
- Dimensions: 13.8" L x 5.1" W x 17.9" H
- Solar Charger Input
- PV Array MPPT Voltage Range: 60 VDC – 115 VDC
- Maximum PV Array Open Circuit Voltage: 145 VDC
- Max Solar Charge Current: 80 A
- Maximum MPPT Efficiency: 98%
- Standby Power Consumption: <50 W
- AC Charger / Grid Input
- Charge Current: Default 30 A, Max 40 A
- AC Input Voltage: 120 VAC
- Selectable Input Voltage Range: 95–140 VAC (PC); 65–140 VAC (home appliances)
- Frequency Range: 50 Hz / 60 Hz (auto sensing)
- Communication & Compatibility
- Remote Monitoring: Optional Wi-Fi / GPRS
- BMS Communication: CAN / RS485
- Battery System Voltage: 48 V
- Compatible with mains voltage or generator power
- Environment & Safety
- Operating Temperature: 0 °C – 55 °C
- Storage Temperature: -15 °C – 60 °C
- Humidity: 5% – 95% RH (non-condensing)
- Protections: Overload, short circuit, deep discharge
