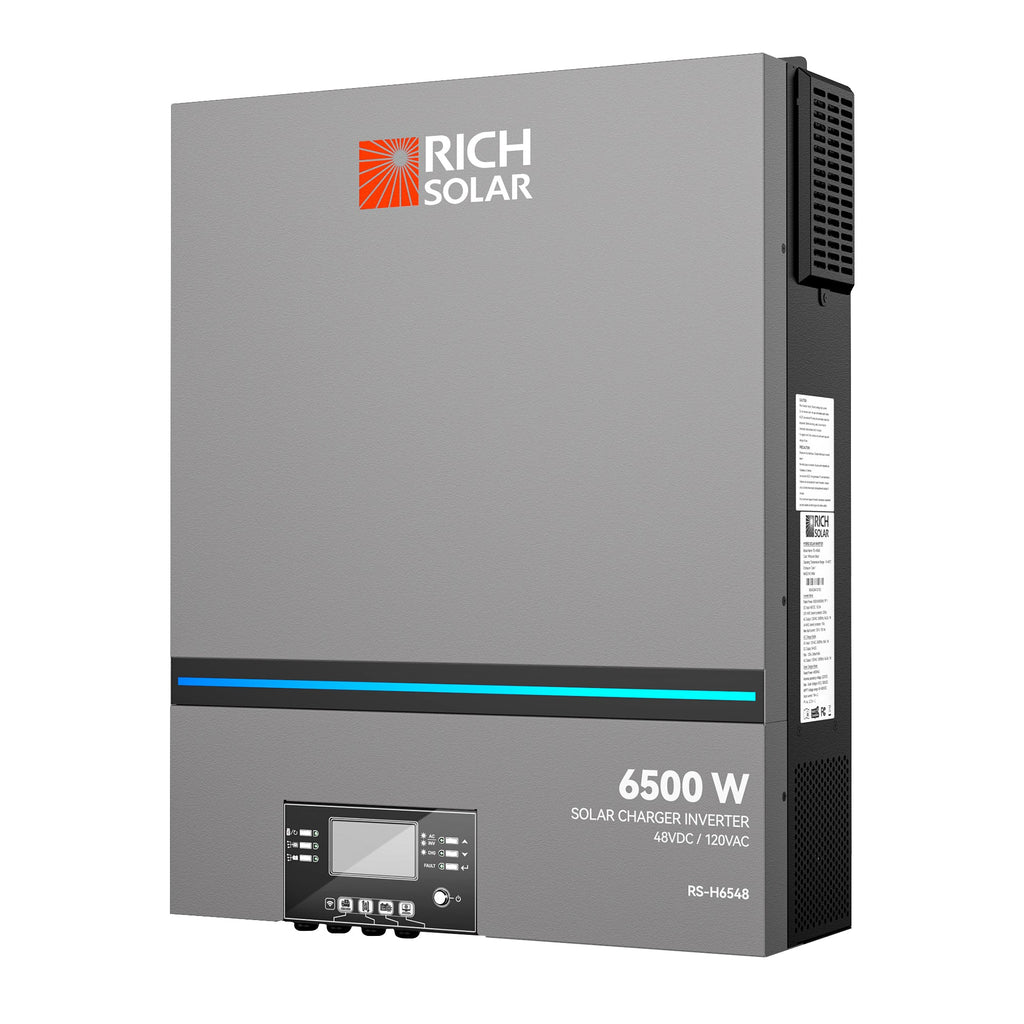

RS-H6548V5 6500W Pure Sine Wave Inverter — Smart 48V Hybrid Inverter
Overview
The RS-H6548V5 is a 6500W pure sine wave inverter designed for reliable, clean power in homes or off-grid systems. It combines configurable charging and output priorities, built-in Wi?Fi monitoring, a detachable LCD control module with multiple BMS ports, and expandable parallel capability for larger systems.
Benefits
- Protects sensitive electronics with a true pure sine wave output so devices run quietly and reliably.
- Makes system growth easy — connect up to six units in parallel to increase capacity without complex rewiring.
- Lets you monitor and control settings remotely via Wi?Fi and locally with the detachable LCD, reducing maintenance trips.
- Reduces downtime by prioritizing AC, solar, or battery use to keep essential loads powered when supply changes.
- Extends battery life with configurable charging currents and a smart charger design tuned for long-term performance.
- Provides dependable emergency startup with a cold start function when AC mains are unavailable.
Features
- Pure sine wave inverter output for clean power delivery.
- Built-in RGB LED bar with configurable colors for visual status indication.
- Integrated Wi?Fi for mobile monitoring (mobile app required).
- USB On-The-Go support for direct device connection.
- Built-in anti-dusk kit for automatic dusk/dawn sensing.
- Detachable LCD control module with RS485, CAN?BUS, and RS232 communication ports for BMS integration.
- Configurable input voltage ranges via the LCD to protect home appliances and computers.
- Programmable AC/PV output timer and prioritization to control when each source supplies loads.
- Adjustable AC/solar charger priority through the LCD control panel.
- Configurable battery charging current to match different battery types and applications.
- Compatible with utility mains or generator power for flexible installations.
- Auto restart when AC power is recovered.
- Built?in protections for overload, over?temperature, and short circuit conditions.
- Smart battery charger design for optimized battery performance and longevity.
- Cold start capability for powering loads directly from the battery when AC is absent.
Specifications
-
- Model: RS-H6548V5
- Rated Output Power: 6500 W
- Parallel Capability: Yes, up to 6 units
-
- Input
- Input Voltage: 120 VAC
- Efficiency: >95% (rated resistive load, battery fully charged)
- Frequency Range: 50 Hz / 60 Hz (auto detection)
-
- Output
- Rated Output Power: 6500 W
- Output Voltage Waveform: Pure sine wave
- Output Voltage Regulation: 120 VAC ±5%
- Peak Efficiency: 91%
- Surge Capacity: 2× rated power for 5 seconds
- Nominal DC Input Voltage: 48 VDC
- Cold Start Voltage: 46.0 VDC
-
- Battery
- Battery Voltage: 48 VDC
- Float Charging Voltage: 54 VDC
- Overcharge Protection: 66 VDC
-
- Operating Environment
- Operating Temperature Range: 14°F to 104°F
- Storage Temperature: 5°F to 140°F
- Humidity: 5% to 95% relative humidity (non?condensing)
-
- Physical
- Dimensions: 5.8 × 17.0 × 22.66 in (24.43 in with extension box)
- Net Weight: 18.4 kg / 41 lb
