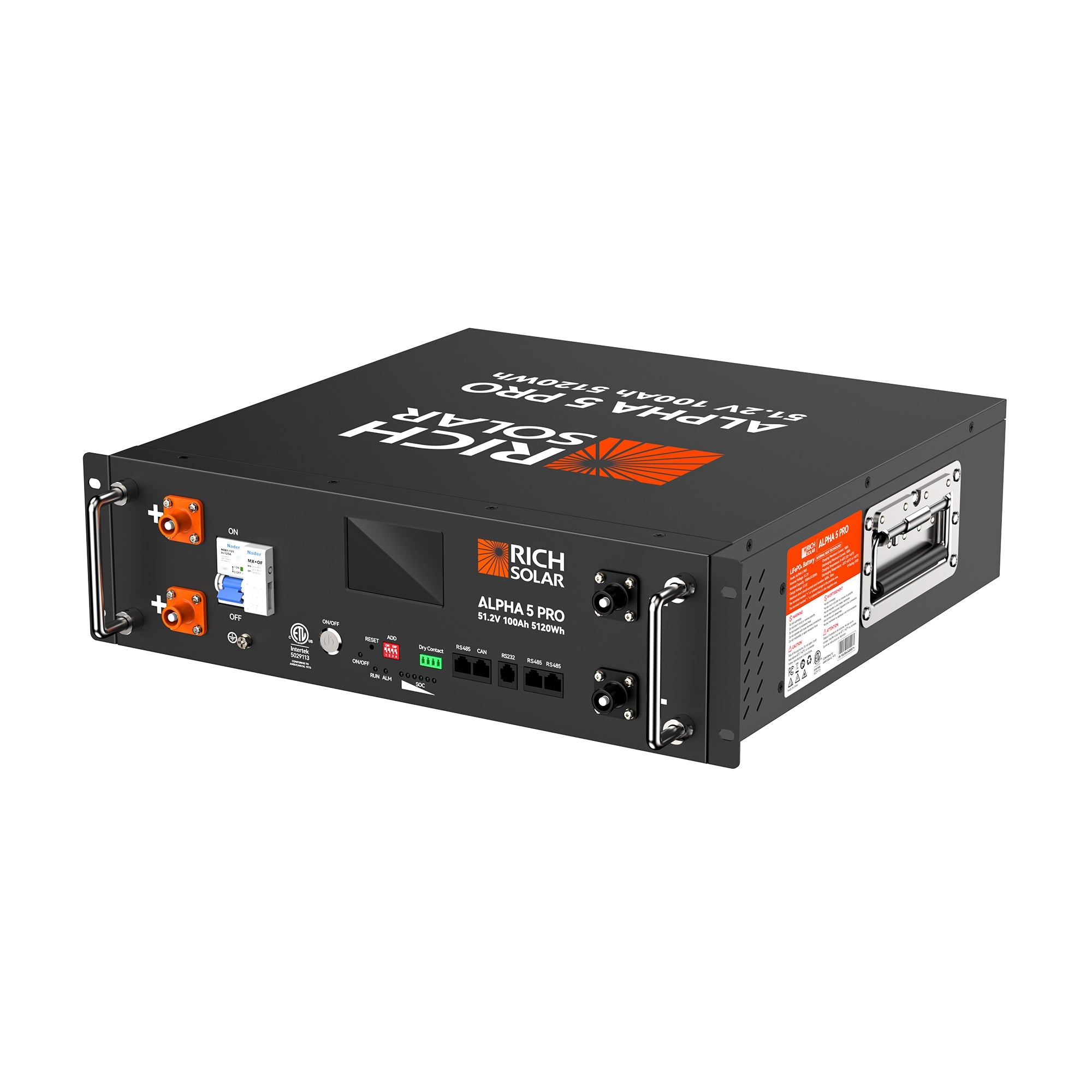

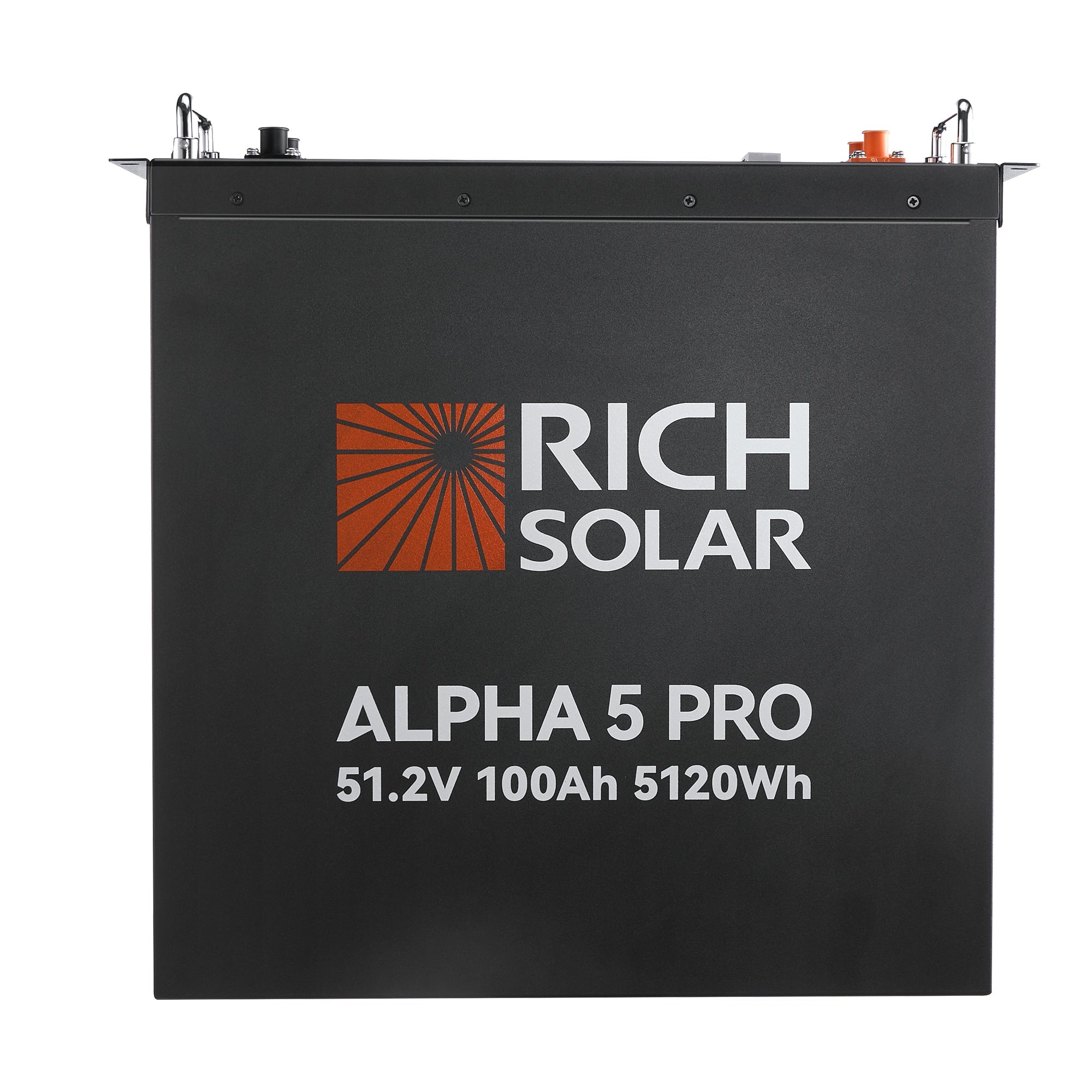

ALPHA 5 PRO — Compact, Rack-Mount LiFePO4 Energy Module
The ALPHA 5 PRO is a rack-mount LiFePO4 battery module designed for home, off-grid, and commercial energy systems. It pairs a 3.5" smart touchscreen and LED status indicators with CAN/RS485 communications so you can monitor and integrate the battery easily with many popular inverters and system controllers.
Benefits
- Simpler upgrades and fewer extra parts — compatible CAN/RS485 communications make it easy to connect to many inverters and existing systems.
- Know status at a glance — the touchscreen and front-panel LEDs give live battery state-of-charge, alarms, and system info so you can respond quickly.

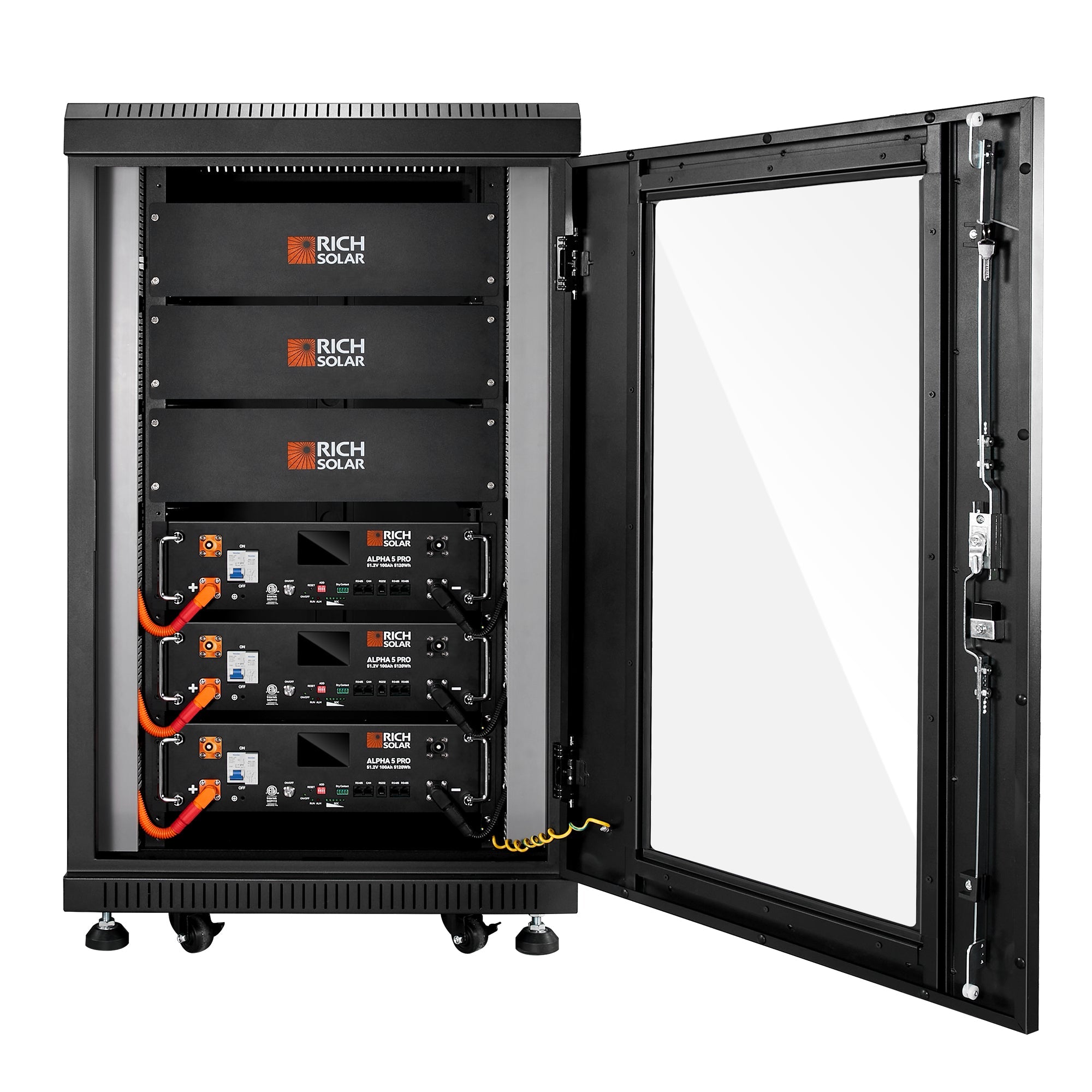

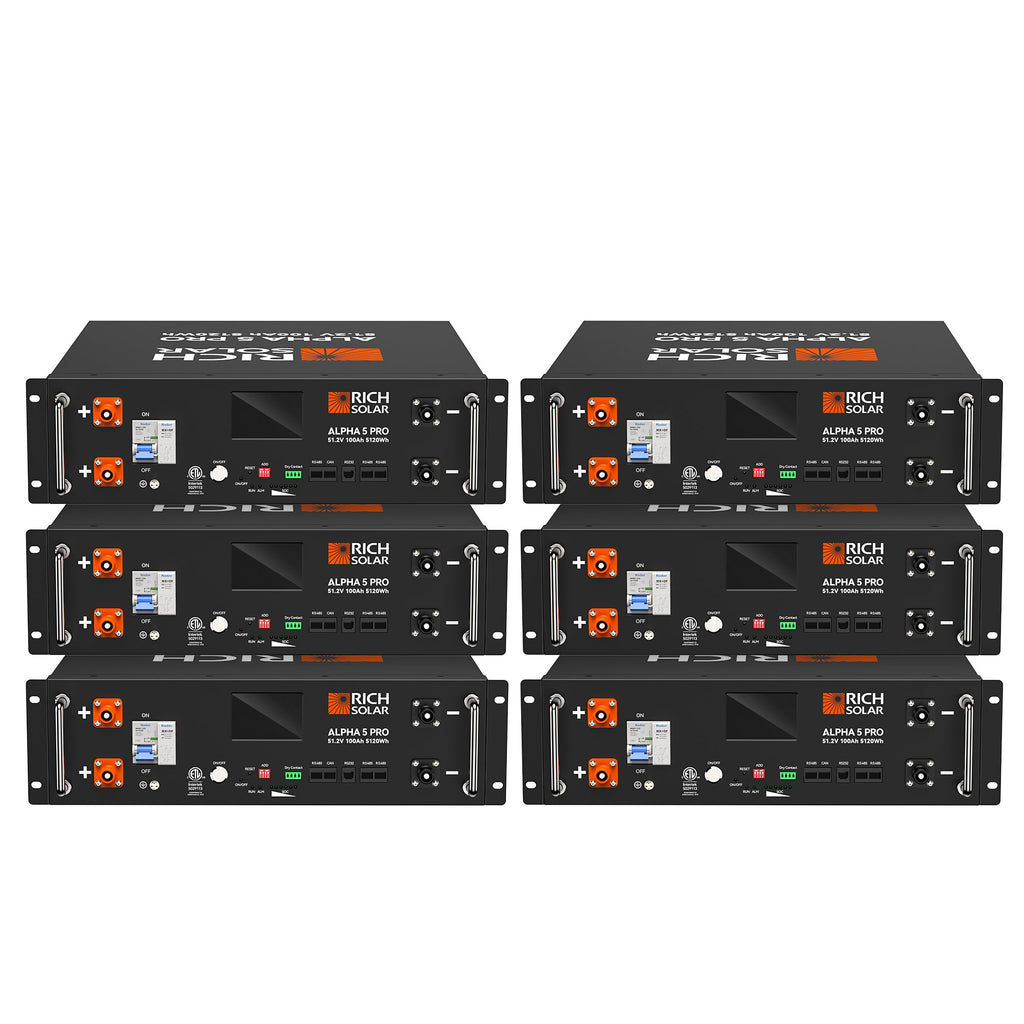

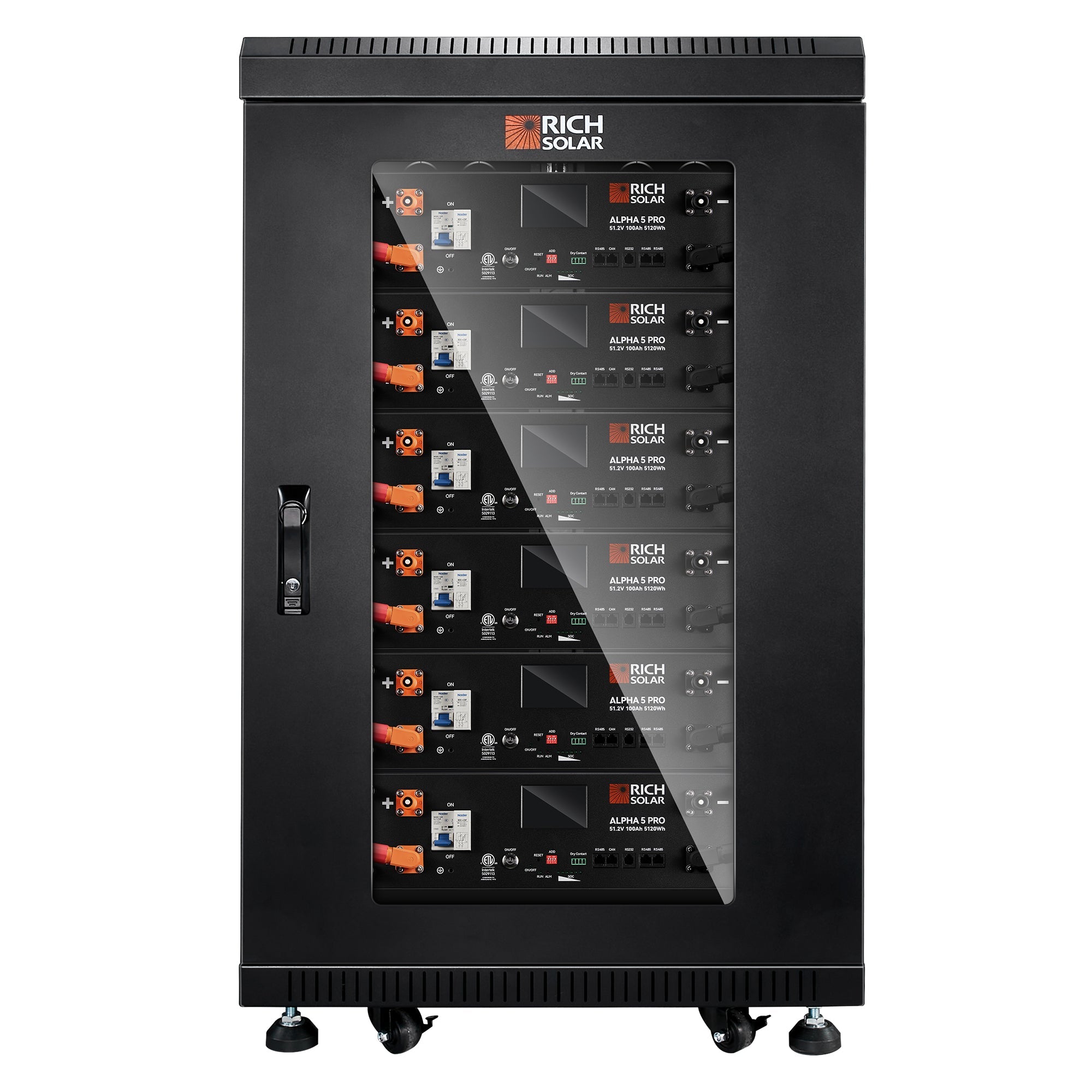

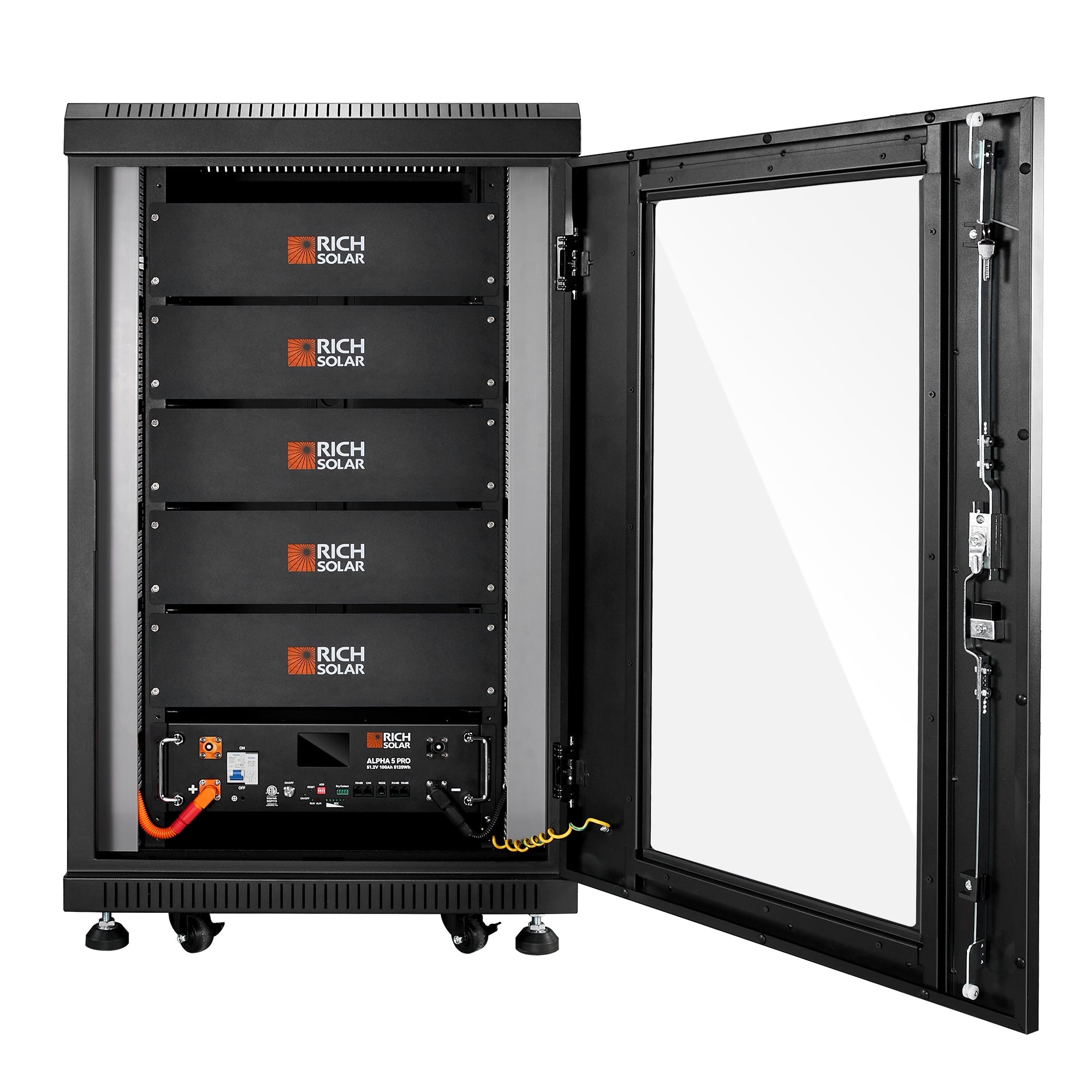

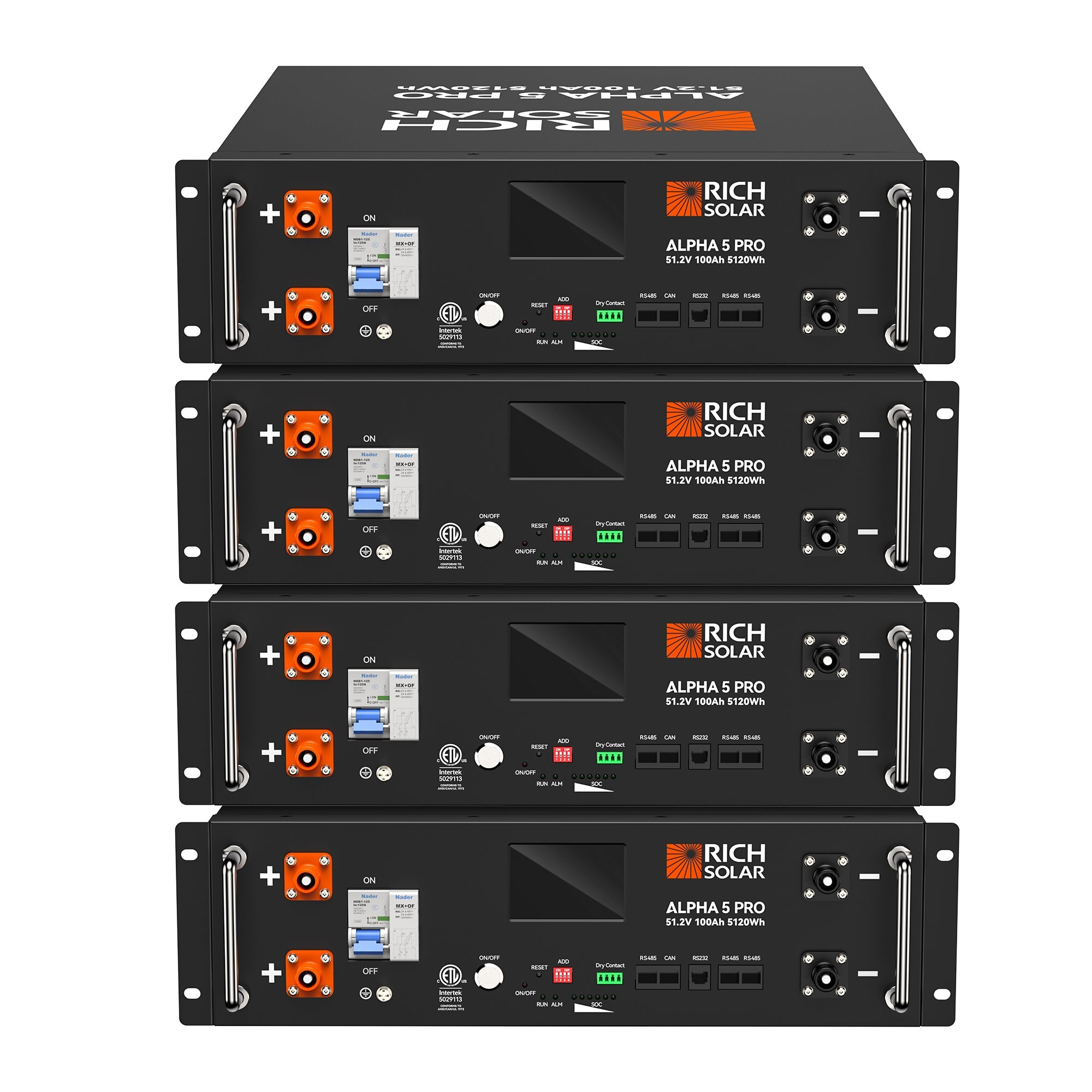

- Scale to fit your needs — expand up to 15 units in parallel to meet growing energy needs without redesigning the system.
- Less maintenance and long service life — premium cells and a robust BMS reduce replacement frequency and unexpected downtime.
- Safer operation in real conditions — built-in protections and controlled charge/discharge behavior reduce operational risk and simplify system management.
Features

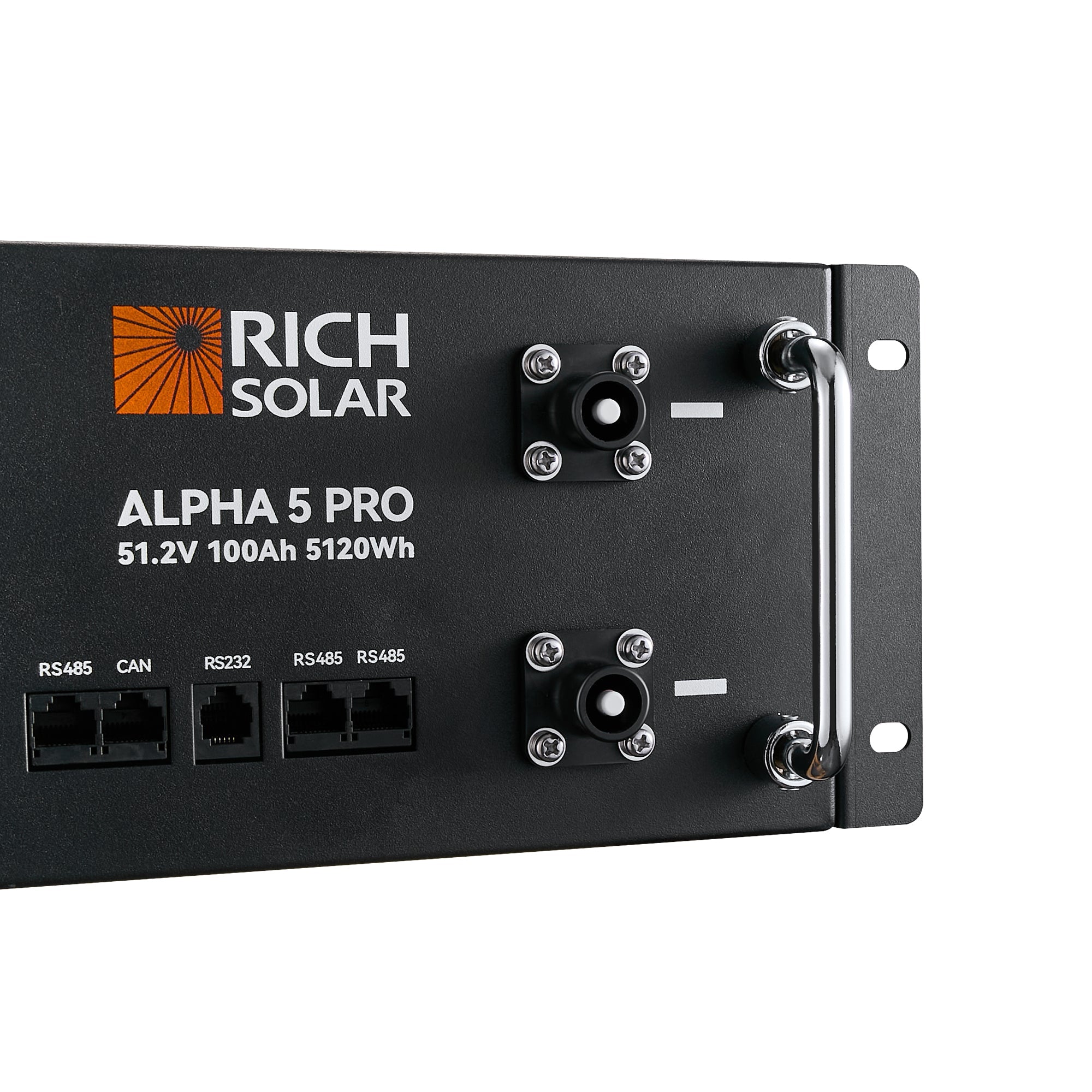

- Communication: CAN and RS485 interfaces for wide inverter and controller compatibility.
- Local monitoring: 3.5-inch smart touchscreen for live data, per-unit status, and settings adjustment.
- Visual indicators: Front-panel LEDs show state-of-charge, operational status, and alarm conditions.

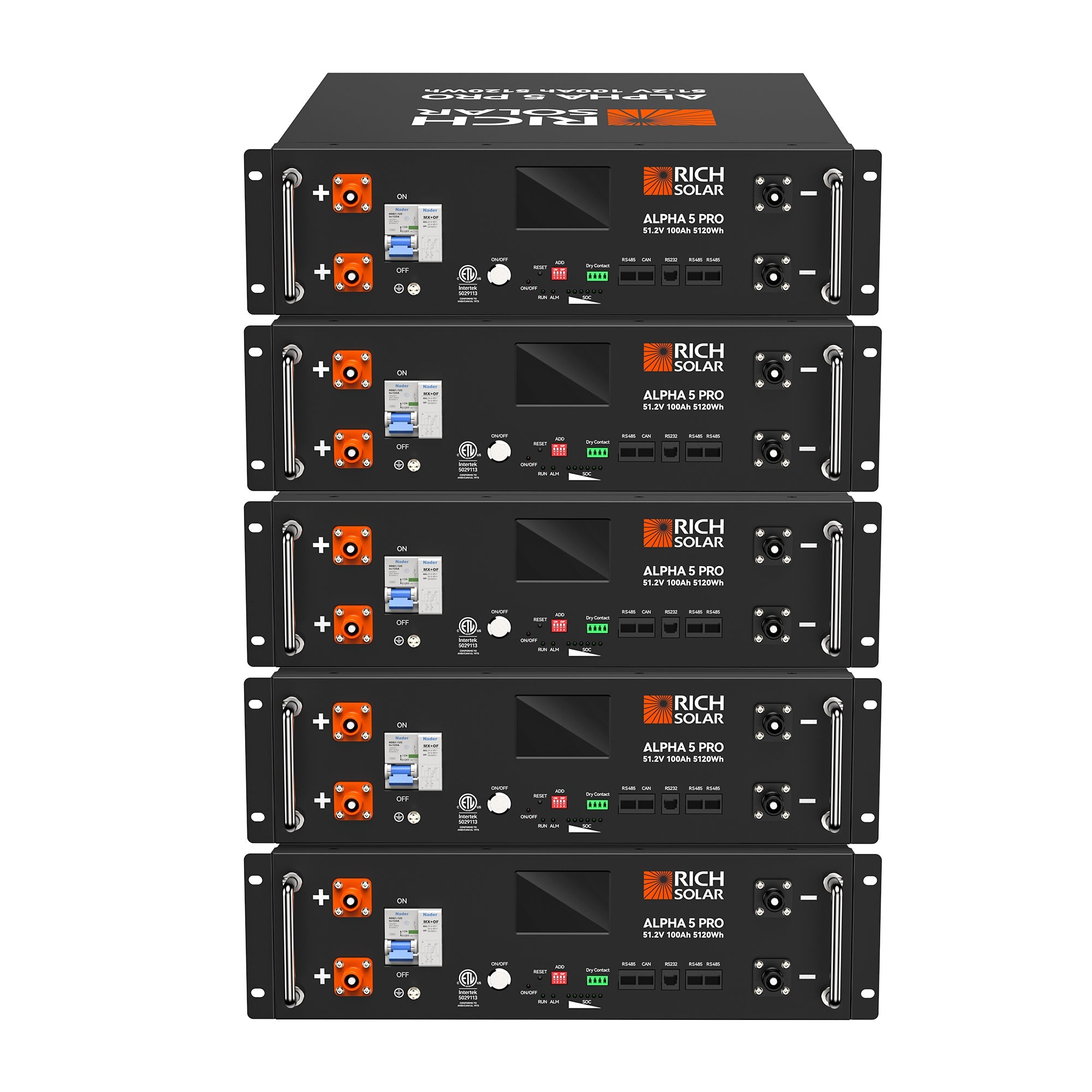

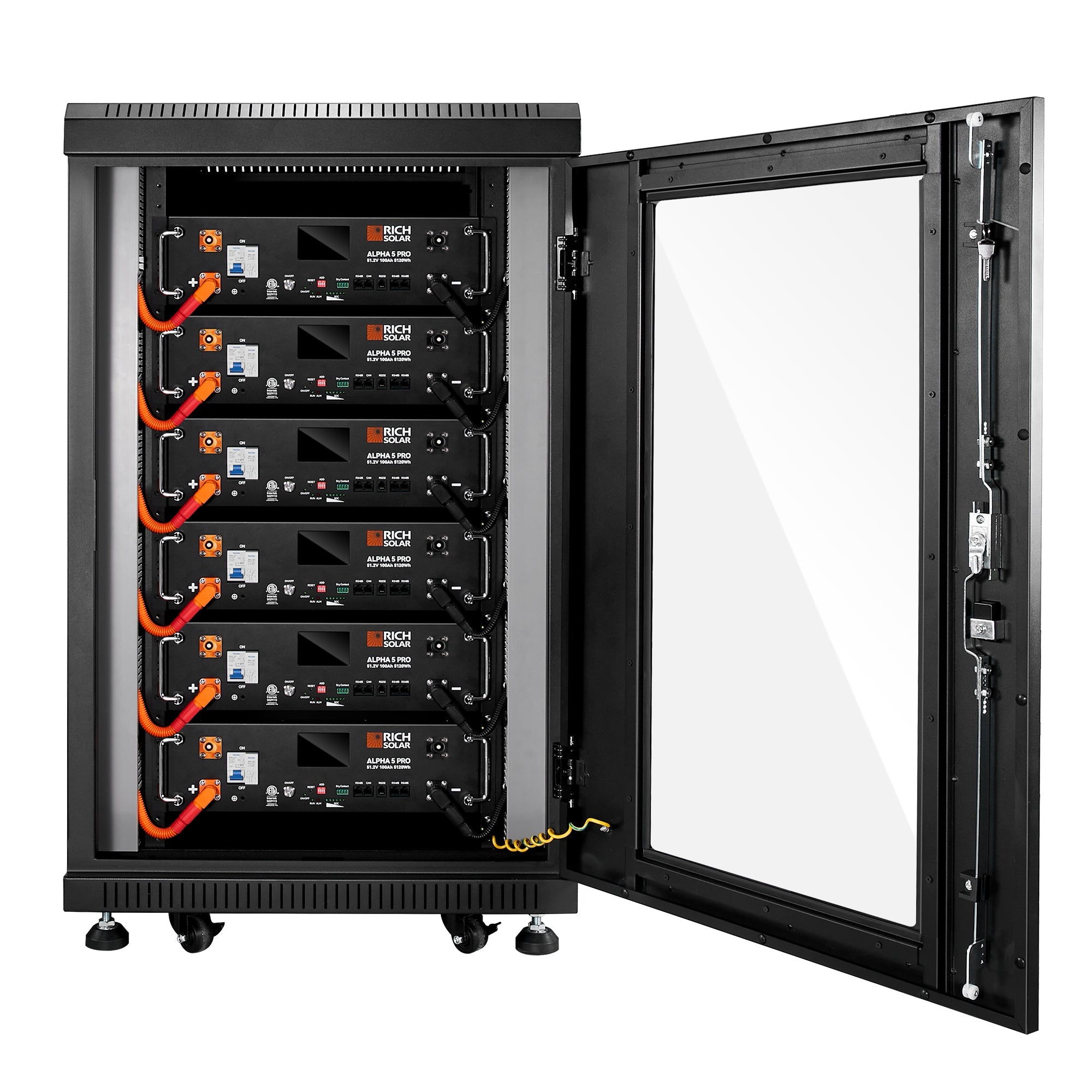

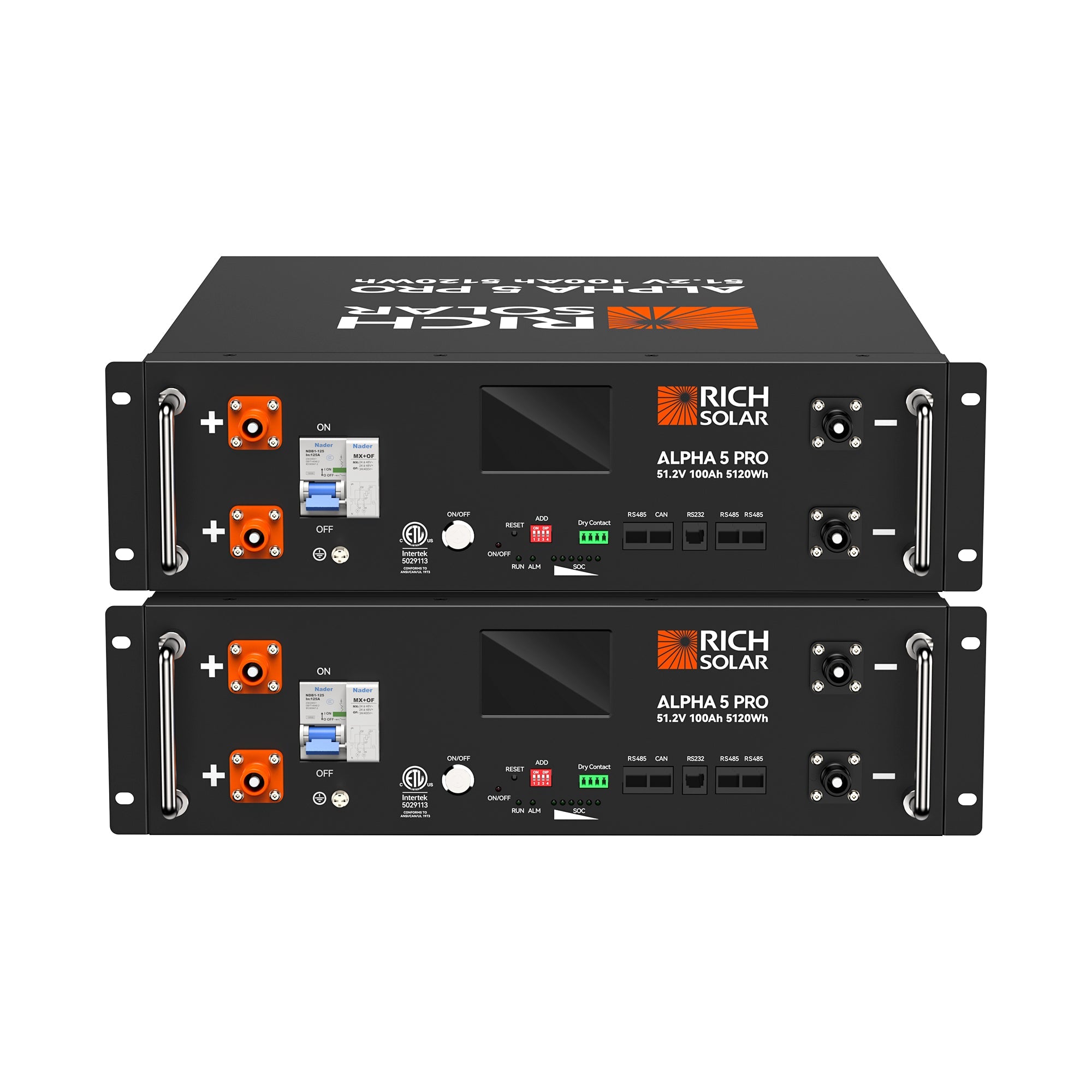

- Parallel expansion: Supports up to 15 units in parallel for higher total capacity.
- Battery chemistry: Uses premium Grade A LiFePO4 cells for energy density and stability.

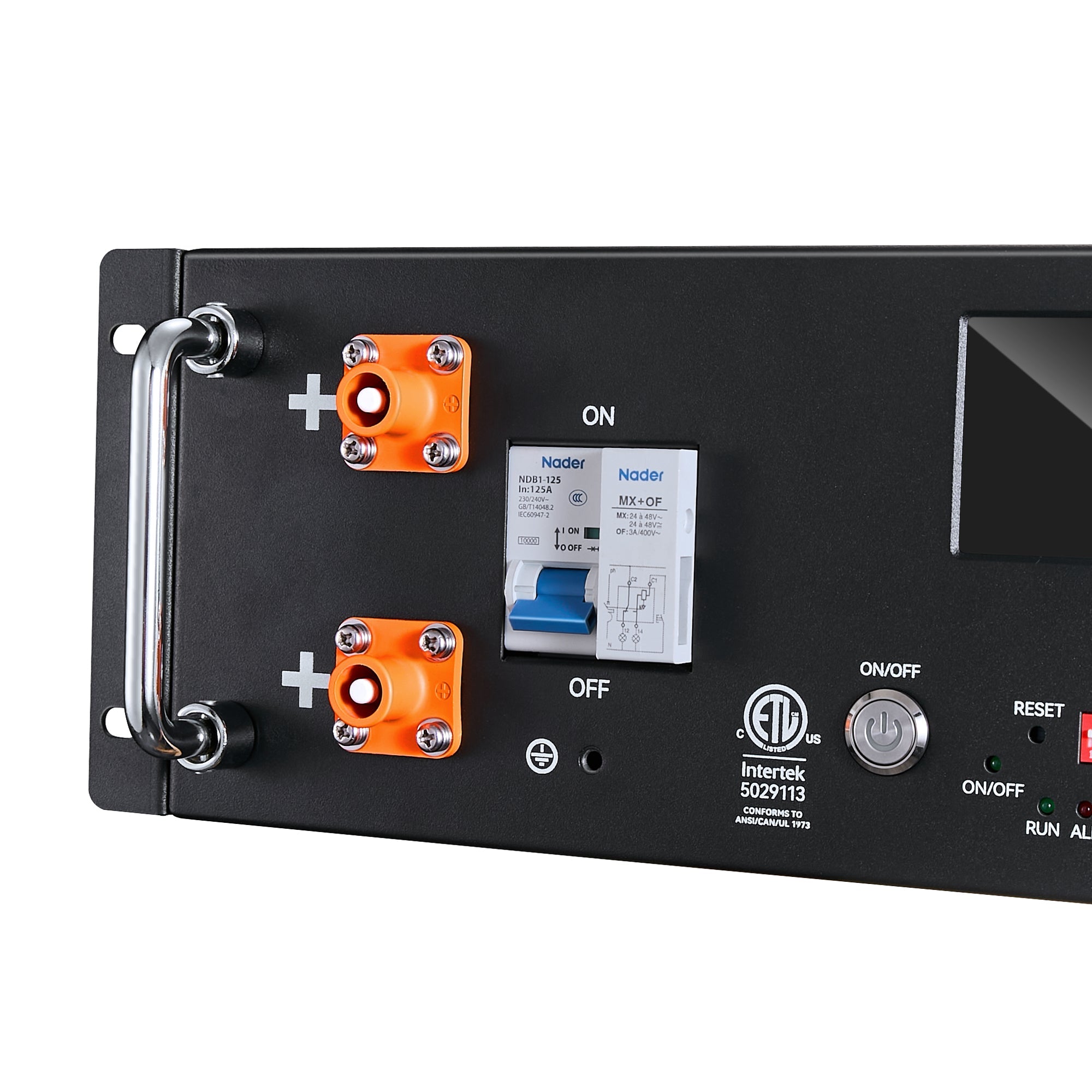

- Integrated BMS and breaker: Onboard Battery Management System with an internal circuit breaker and multiple protections.
- Multiple charging options: Charge via LiFePO4 battery chargers, solar PV, or generators.

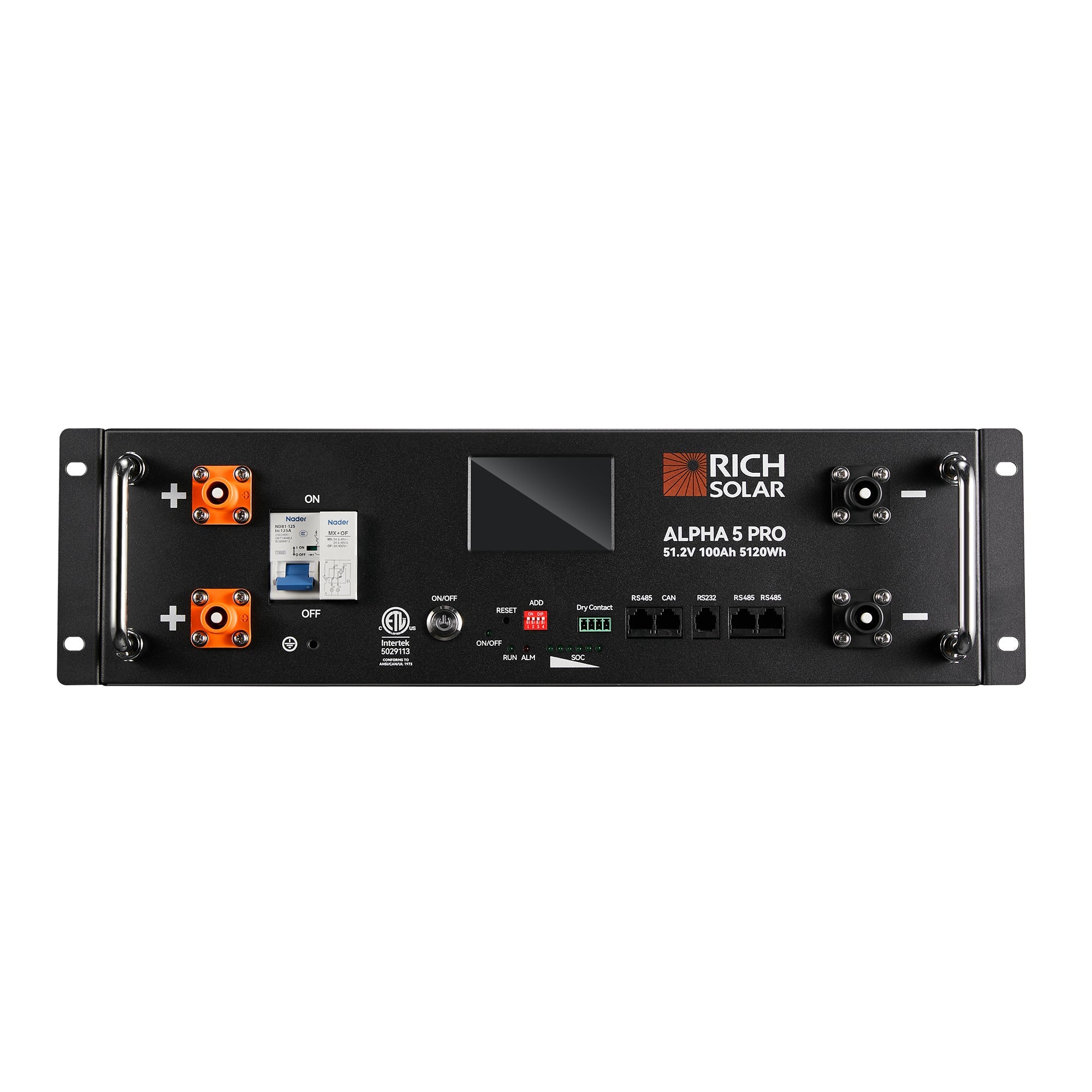

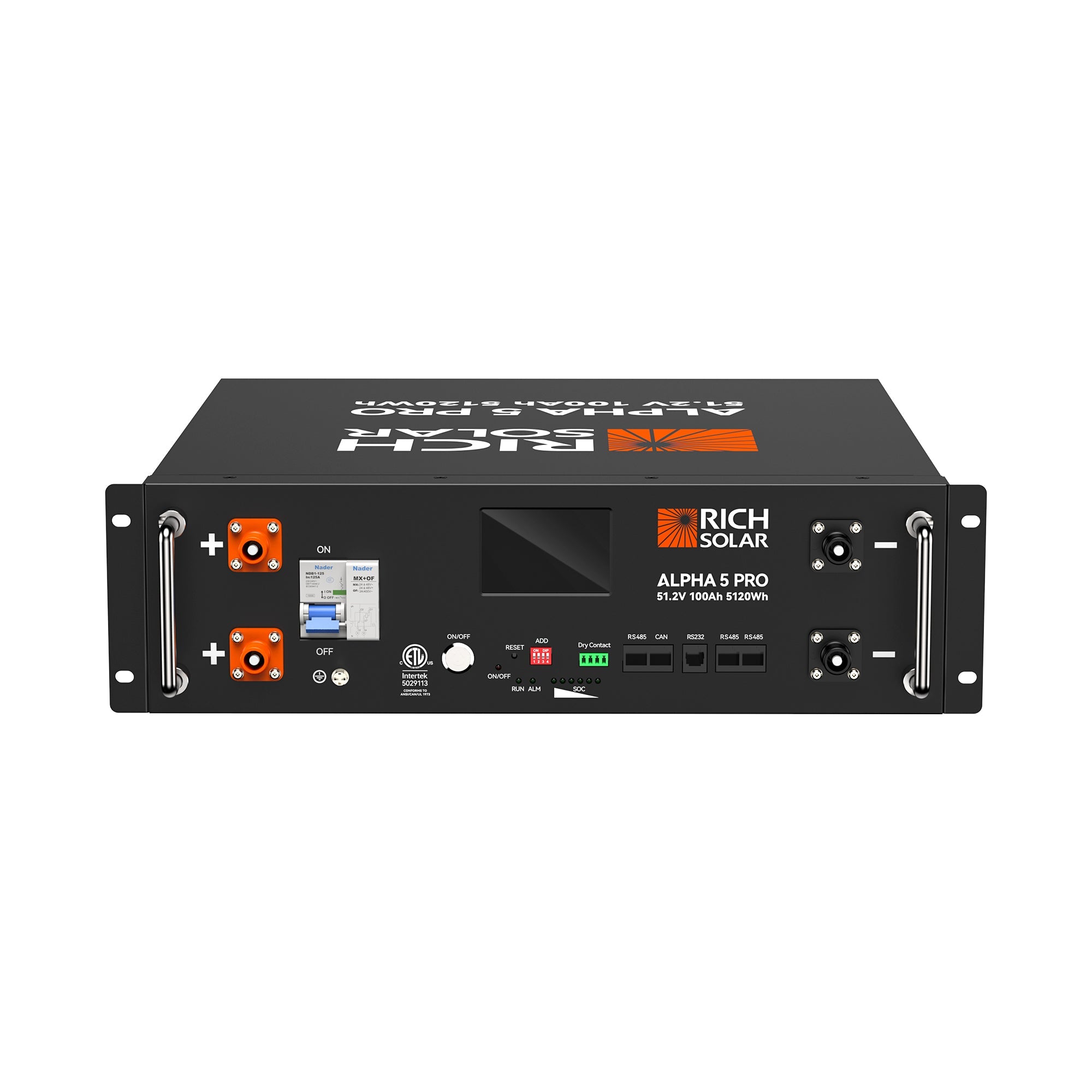

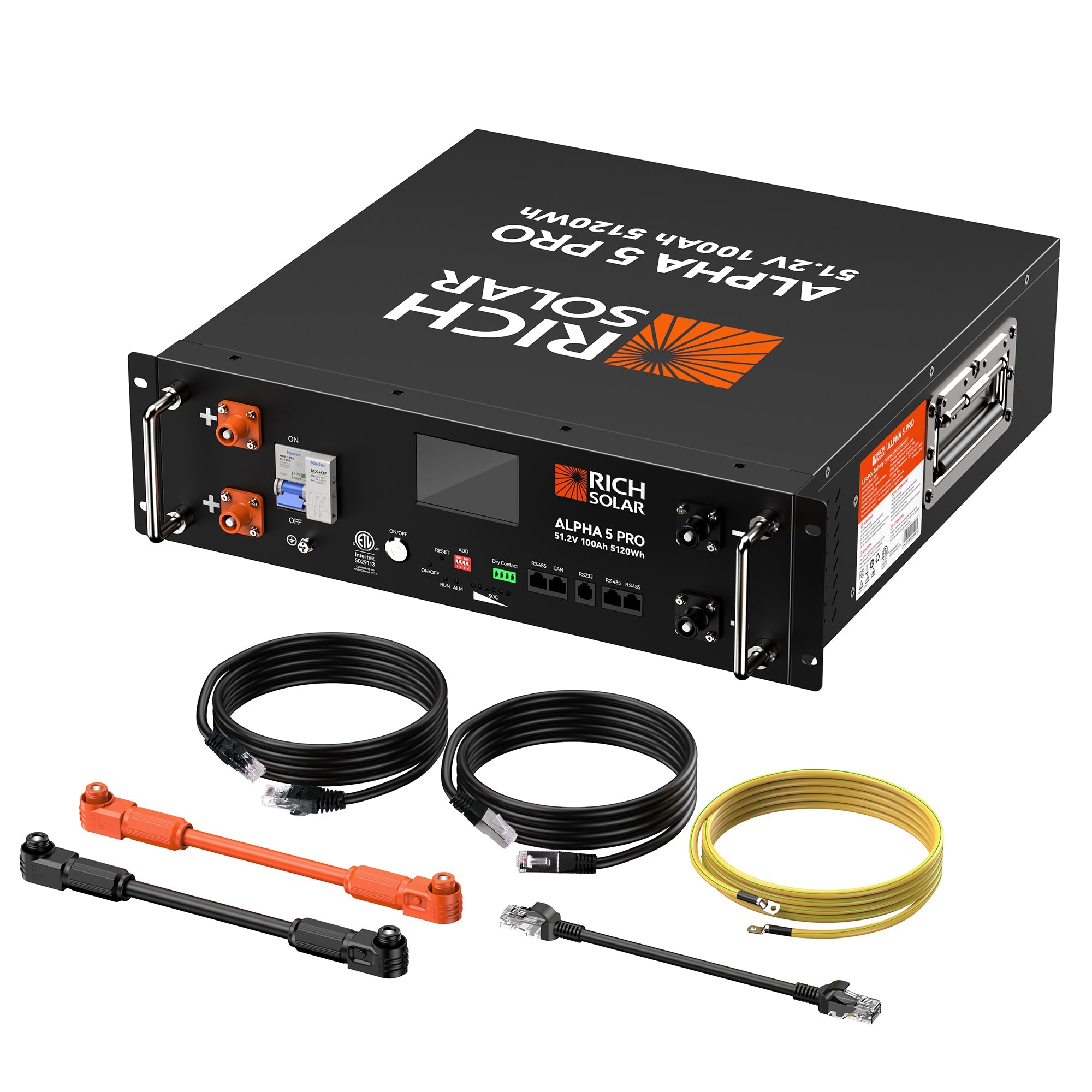

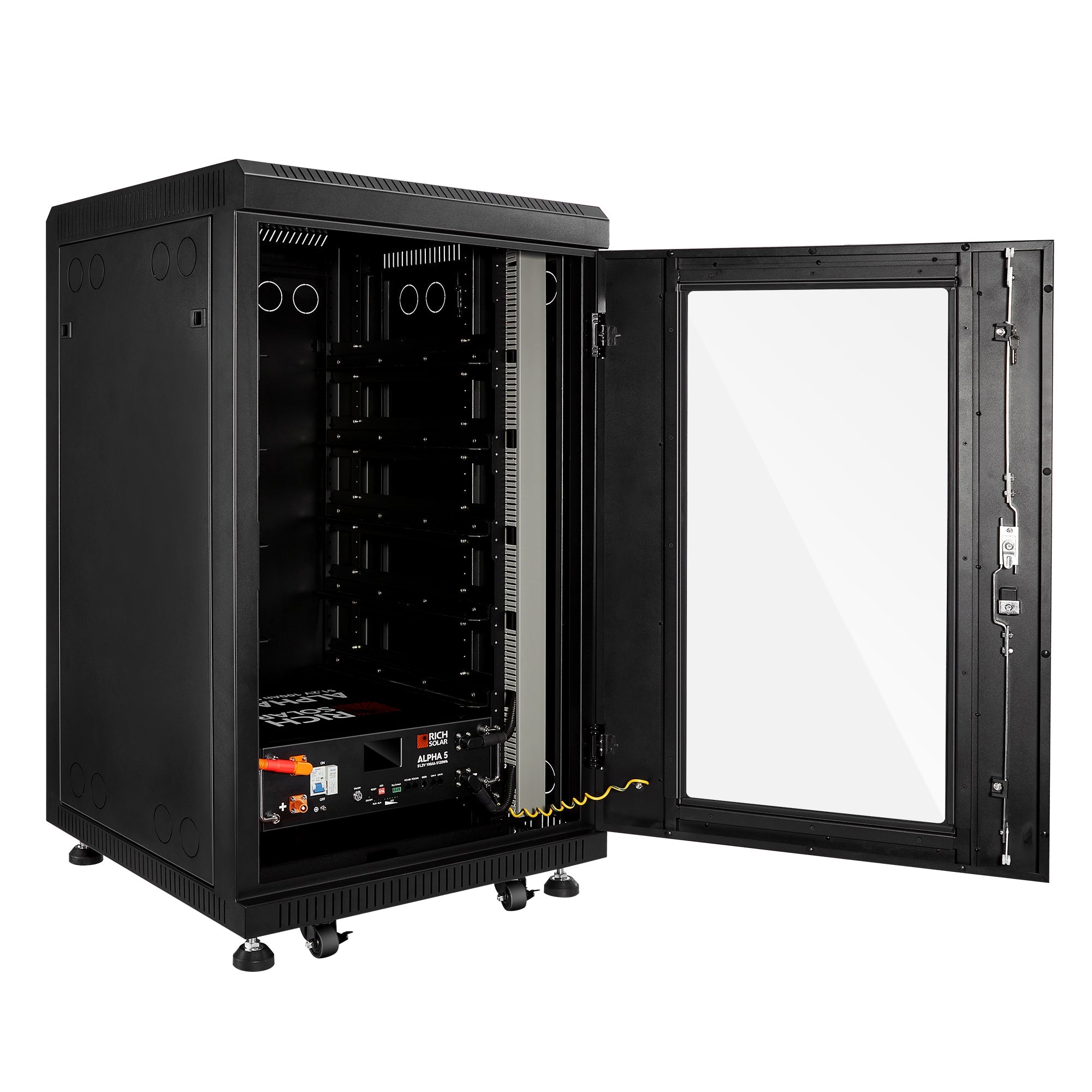

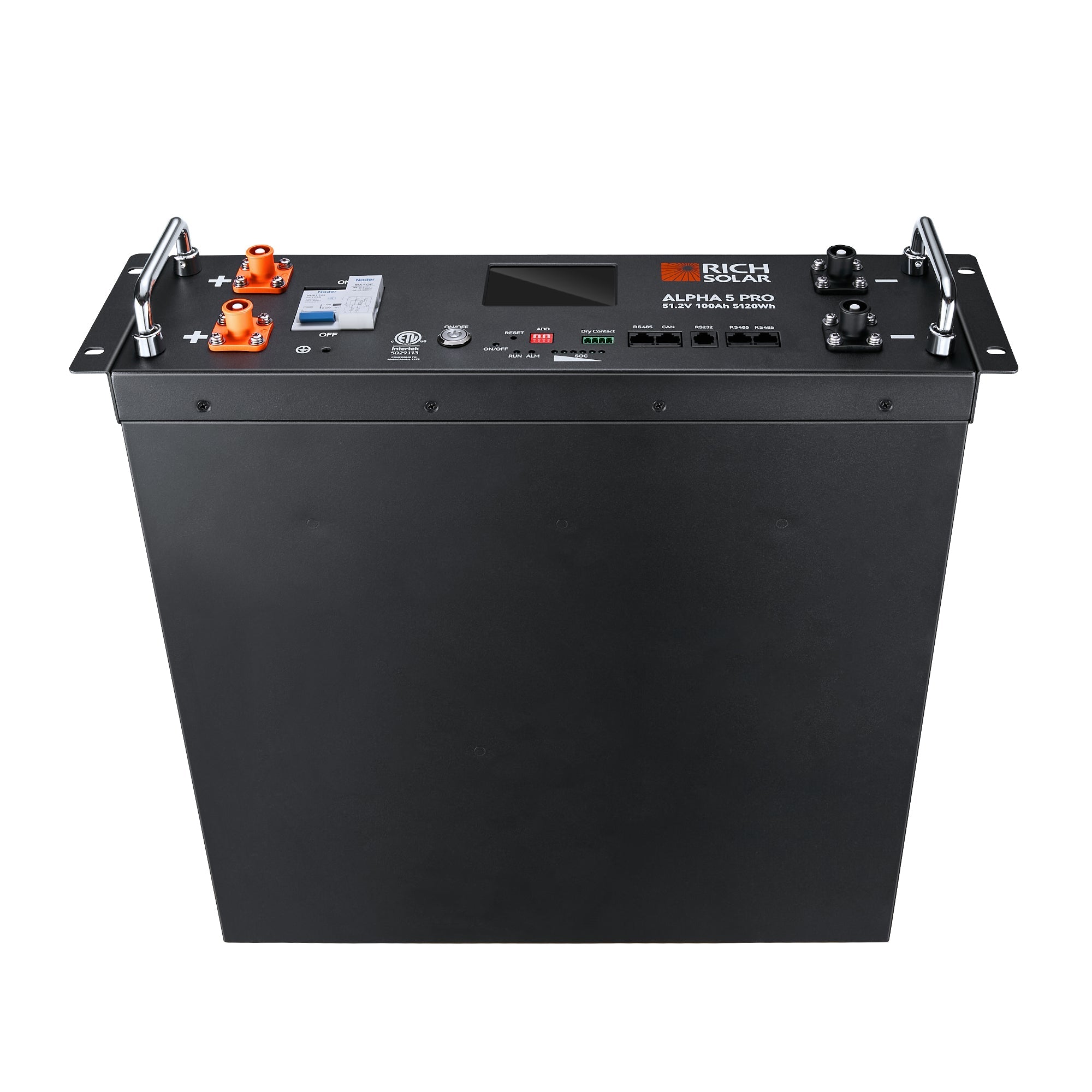

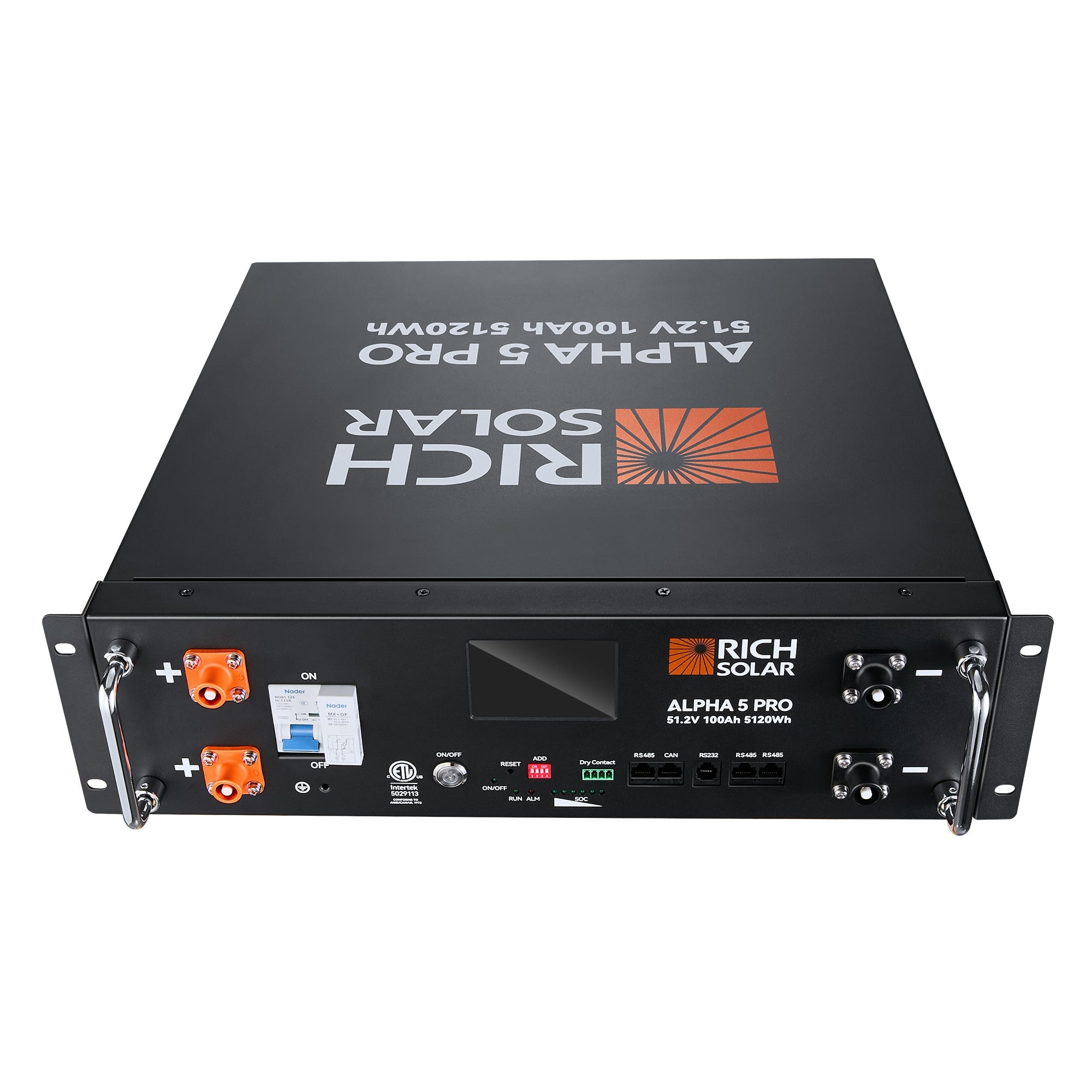

- Form factor: 3U rack-mount design with removable carry handle for rack installation and easier handling.
Specifications
- Maximum parallel units: Up to 15 units (total system capacity up to 76.8 kWh).
- Cell type: Grade A LiFePO4 cells.
- Cycle life: >7000 cycles at 80% Depth of Discharge (DOD).
- Expected service life: 10+ years (typical use and conditions).
- Display: 3.5-inch smart touchscreen for live monitoring and settings.
- Communications: CAN, RS485.
- BMS protections: Overcharge, over-discharge, over-current, short circuit, high/low temperature, and protection against certain hardware faults; includes built-in circuit breaker.
- Operating temperature range: -4°F to 140°F (-20°C to 60°C).
- Charge/discharge behavior by temperature: Stops charging below 32°F (0°C); stops discharging below -4°F (-20°C); automatic shutdown above 140°F (60°C).
- Form factor and materials: 3U rack-mount module with robust sheet metal casing and removable carry handle for transport and installation.
- Compatible charging sources: LiFePO4 chargers, solar panels, generators.
- Environmental note: Designed for reliable operation in a wide range of ambient conditions; follow installation and ventilation guidelines for best life and safety.
