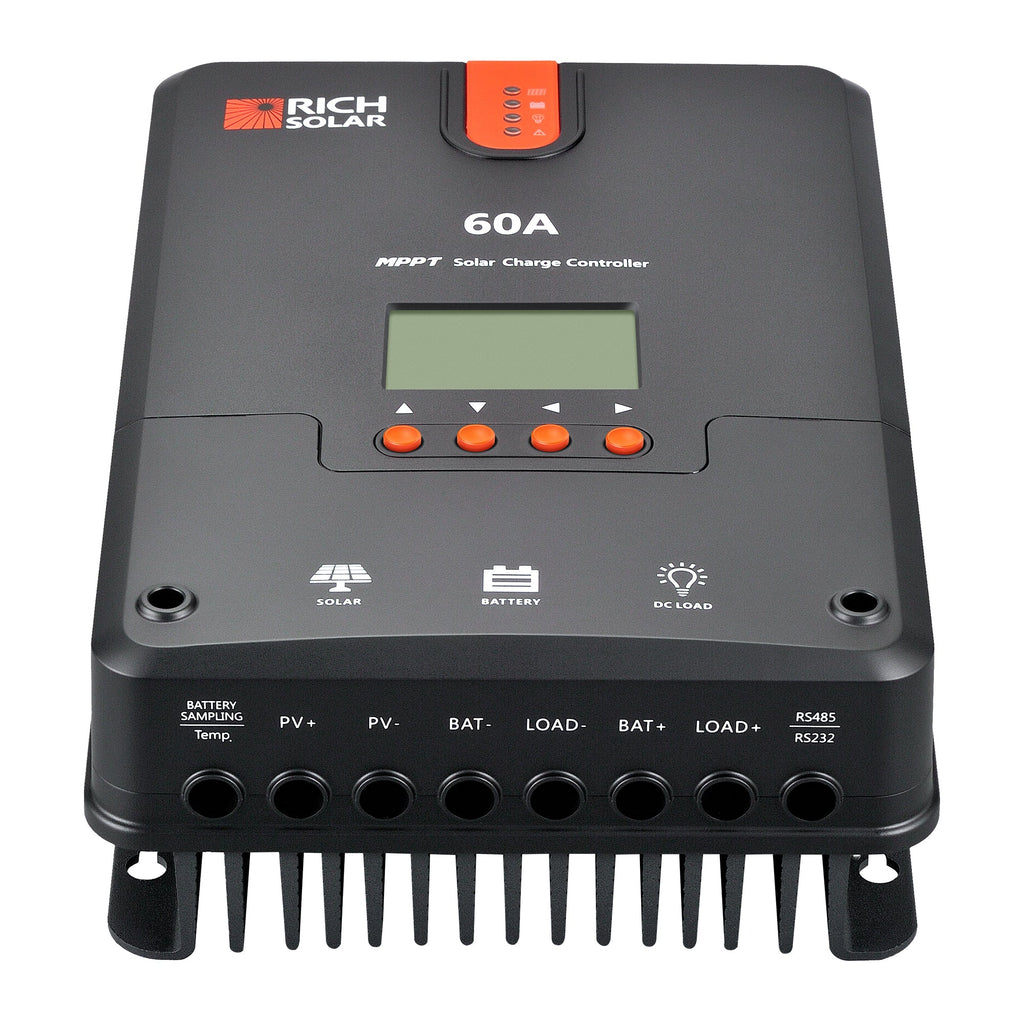

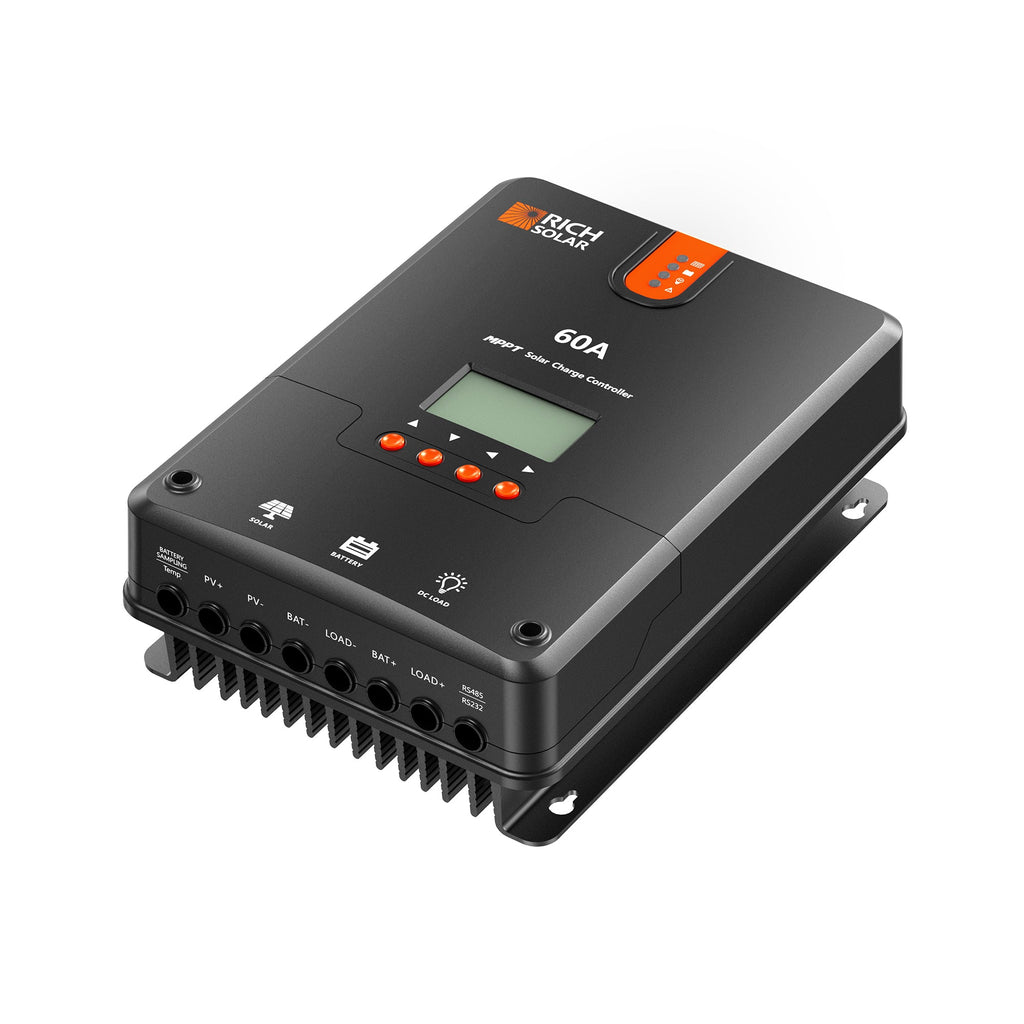

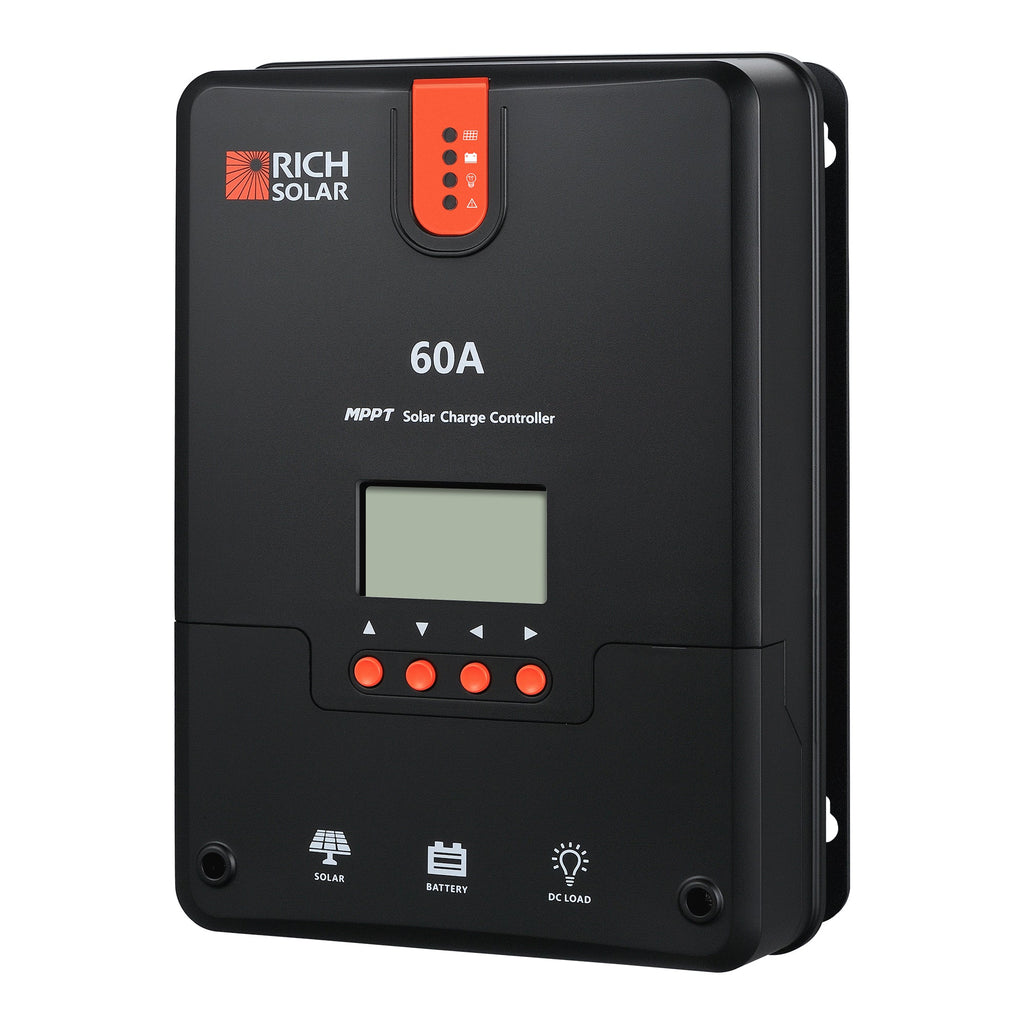

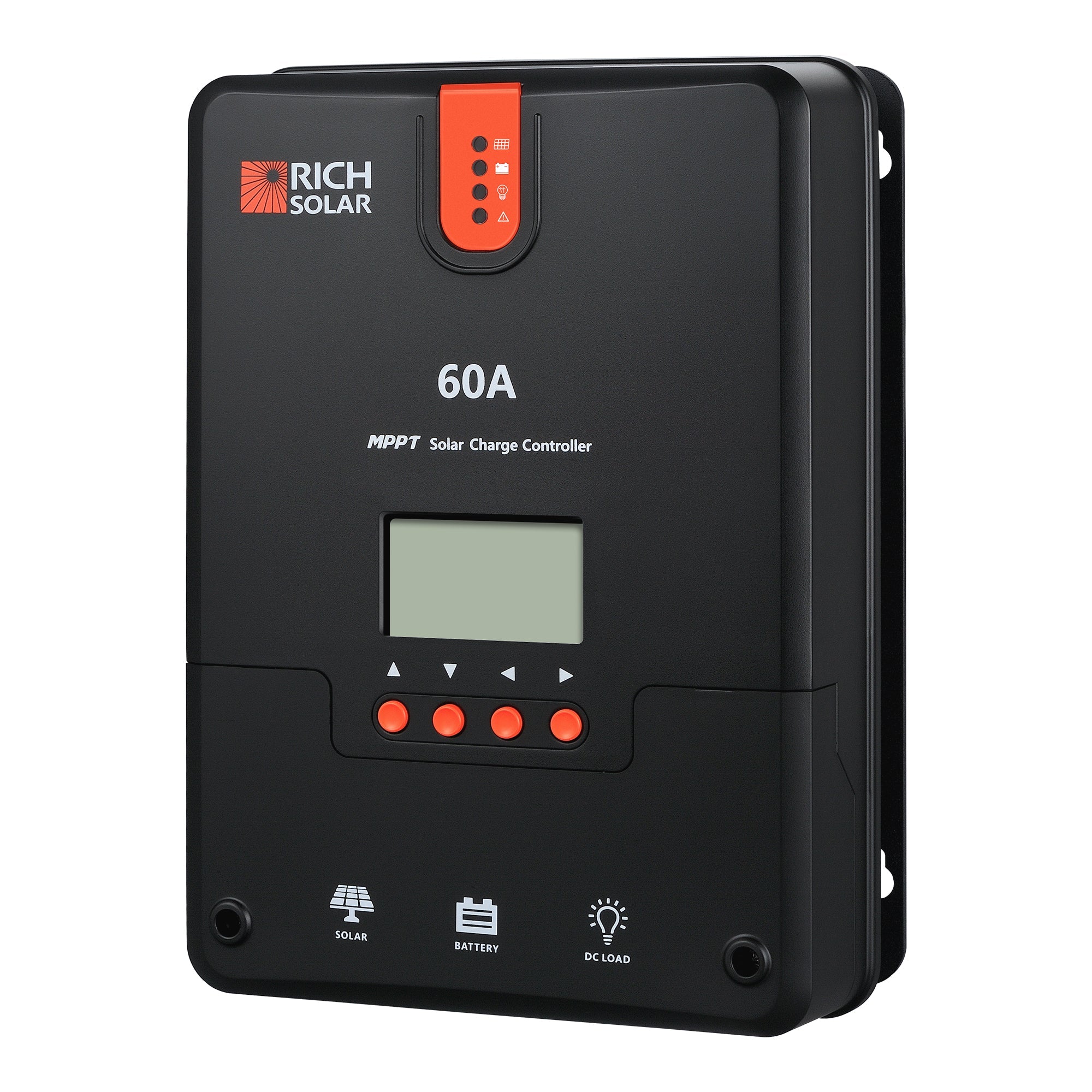

MPPT Solar Charge Controller — 60A Smart Regulator (12/24/36/48V)
Overview
This MPPT solar charge controller automatically detects 12V, 24V, 36V, or 48V systems and optimizes solar charging for a wide range of battery types. It combines high-efficiency tracking, built-in protections, a clear LCD/LED interface, and durable die-cast aluminum construction to deliver reliable, easy-to-monitor performance for off-grid and mobile power systems.
Benefits
- Capture more solar energy so your batteries charge faster and you get more usable power each day.
- Reduce worry about battery damage with automatic protections against reverse polarity, overcharge, over-discharge, overloads and short circuits.
- Simplify system setup and monitoring with automatic system voltage detection and a clear LCD plus LED status indicators.
- Use the controller with different battery chemistries (sealed, gel, flooded, lithium) without extra hardware or guesswork.
- Lower maintenance and longer component life thanks to efficient heat dissipation from the die-cast aluminum housing.
- Monitor and adjust system settings remotely when paired with the BT-1 Bluetooth module via the RS232 port.
Features
- Automatic detection of 12V / 24V / 36V / 48V DC system voltages.
- Compatible with Sealed, Gel, Flooded and Lithium deep-cycle batteries.
- MPPT technology with up to 99% tracking efficiency and up to 98% peak conversion efficiency.
- Electronic protection: reverse polarity, overcharging, over-discharging, overload, short-circuit, and reverse current protection.

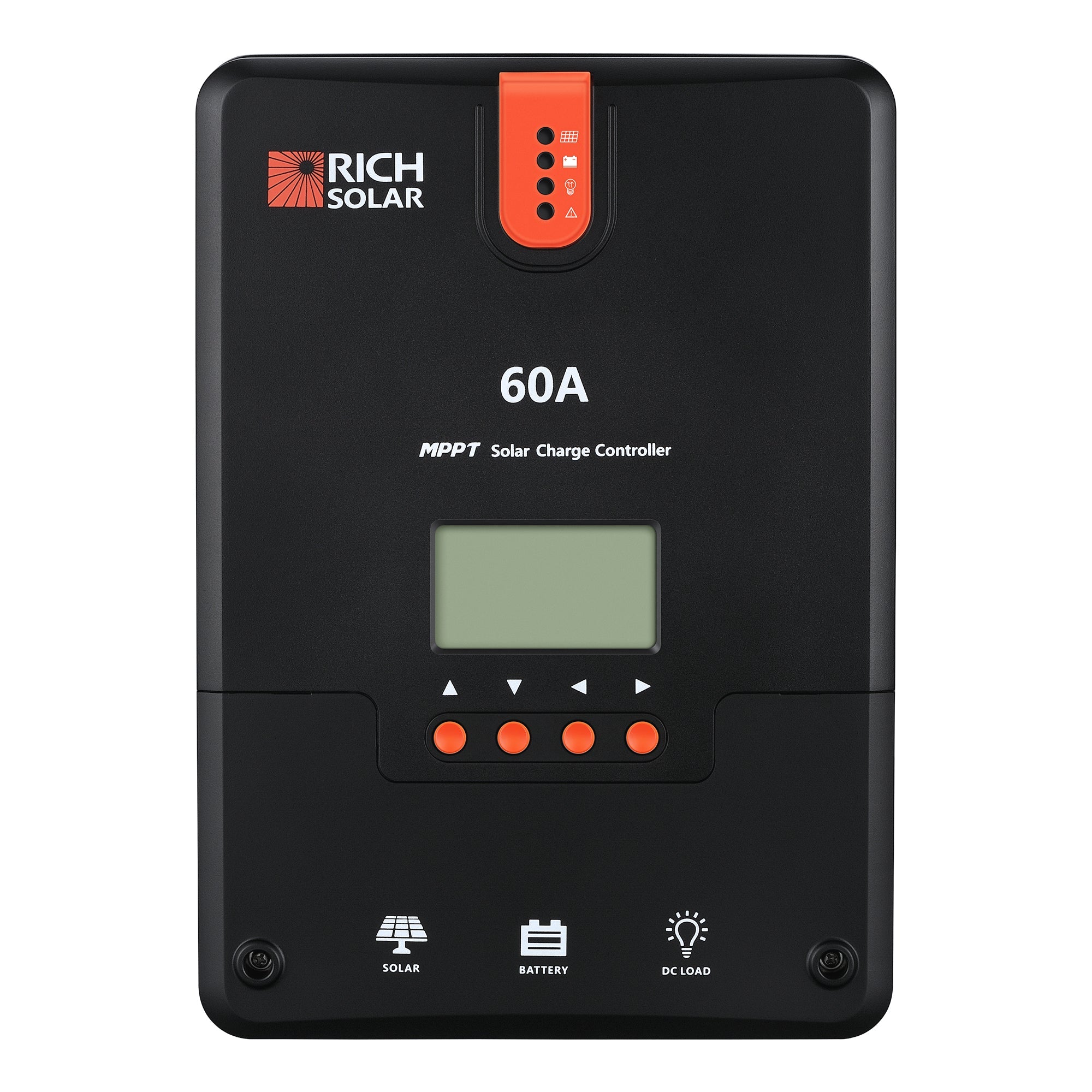

- LCD screen and multiple LED indicators for system status, parameter adjustments and error codes.
- Flexible load control options and the ability to charge over-discharged lithium batteries.

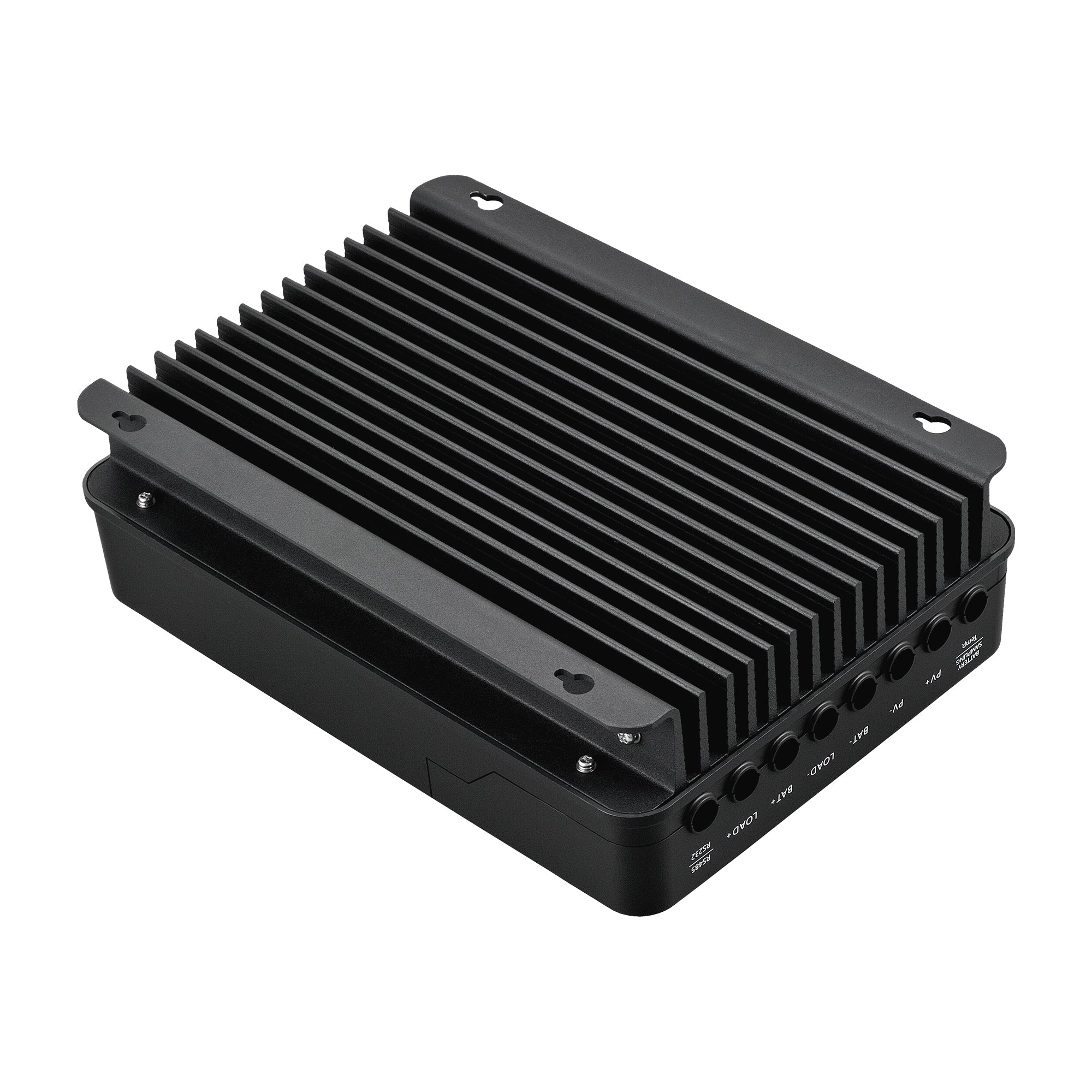

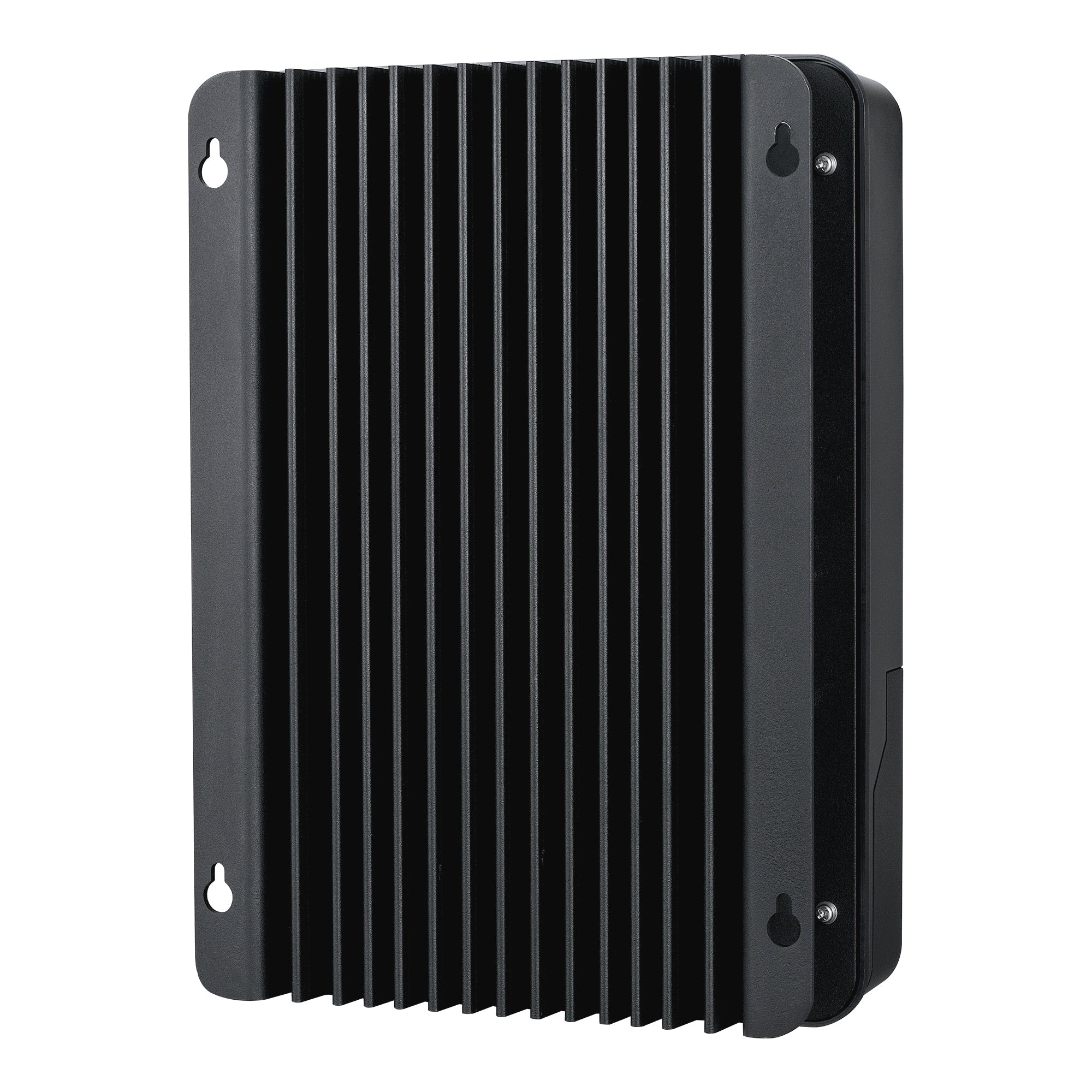

- Die-cast aluminum housing for effective heat dissipation.
- RS232 port for communication with the BT-1 Bluetooth module for remote monitoring.
Specifications
- Rated Battery Current: 60 A
- Rated Load Current: 20 A
- Max Solar Input Voltage: 150 V (77°F); 145 V (-13°F)
- Max Solar Input Power: 800 W @ 12 V; 1600 W @ 24 V; 2400 W @ 36 V; 3200 W @ 48 V
- Charge Circuit Voltage Drop: ? 0.26 V
- Discharge Circuit Voltage Drop: ? 0.15 V
- Operating Temperature: -31°F to 113°F
- Max Terminal Size: < 11 mm
- Overall Dimensions: 11.2 × 8.1 × 3.7 in
- Net Weight: 7.94 lb
