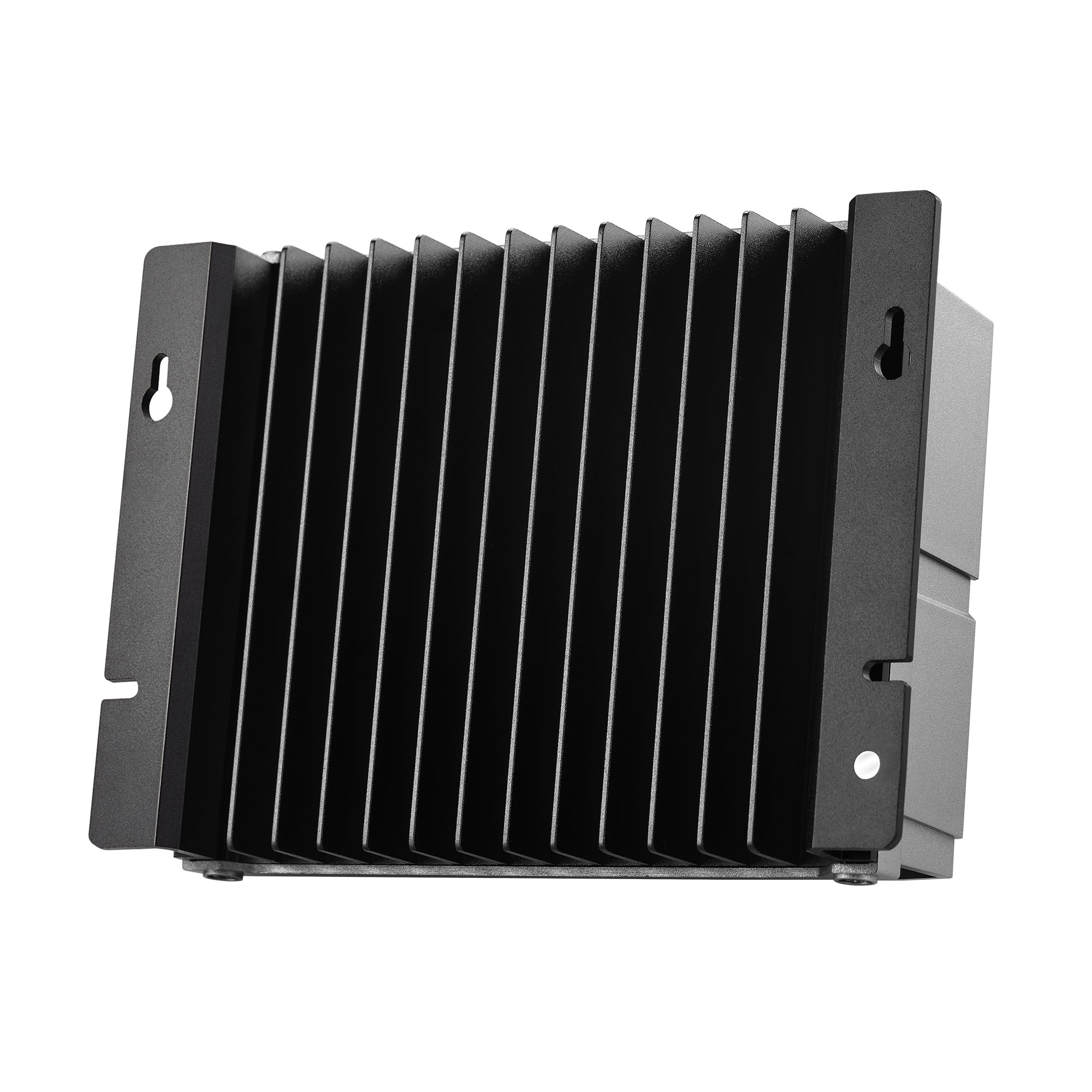

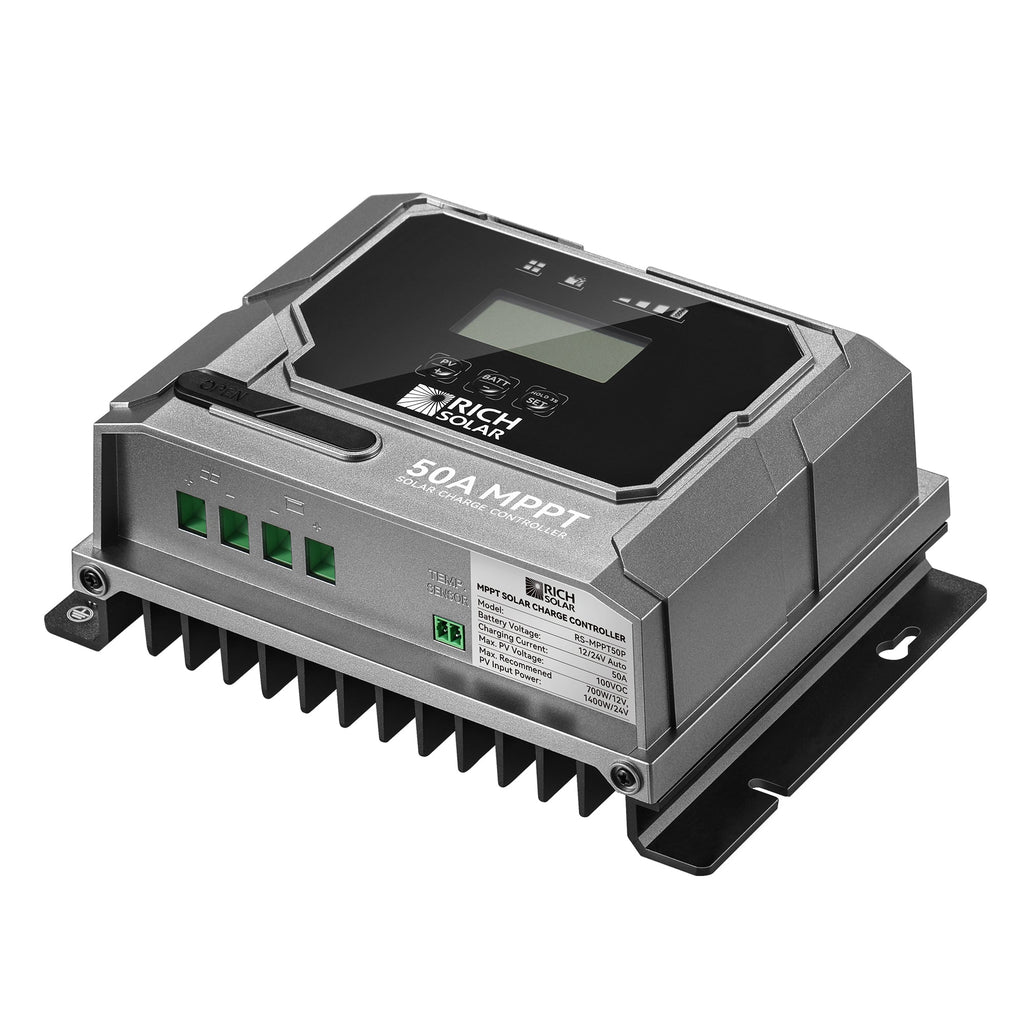

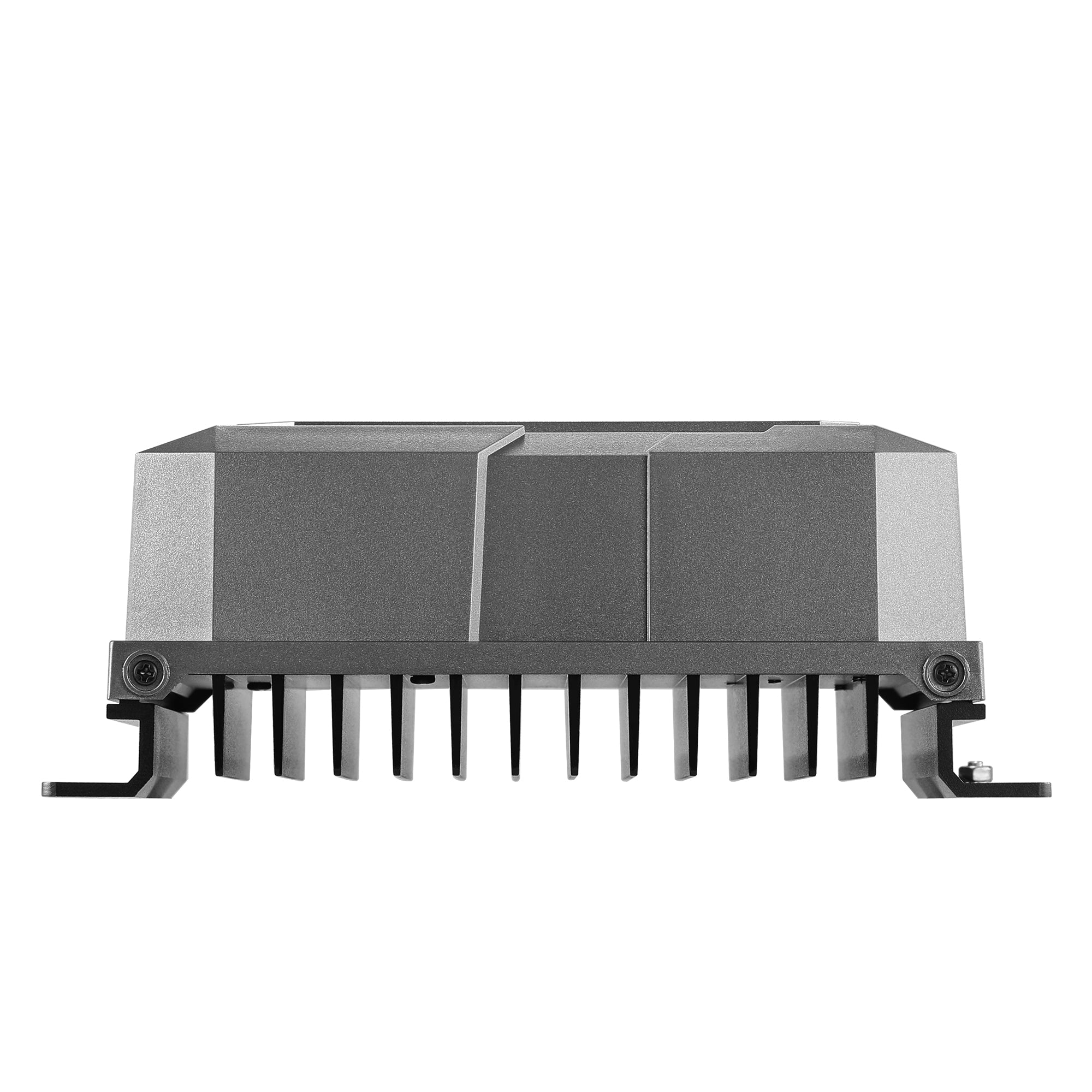

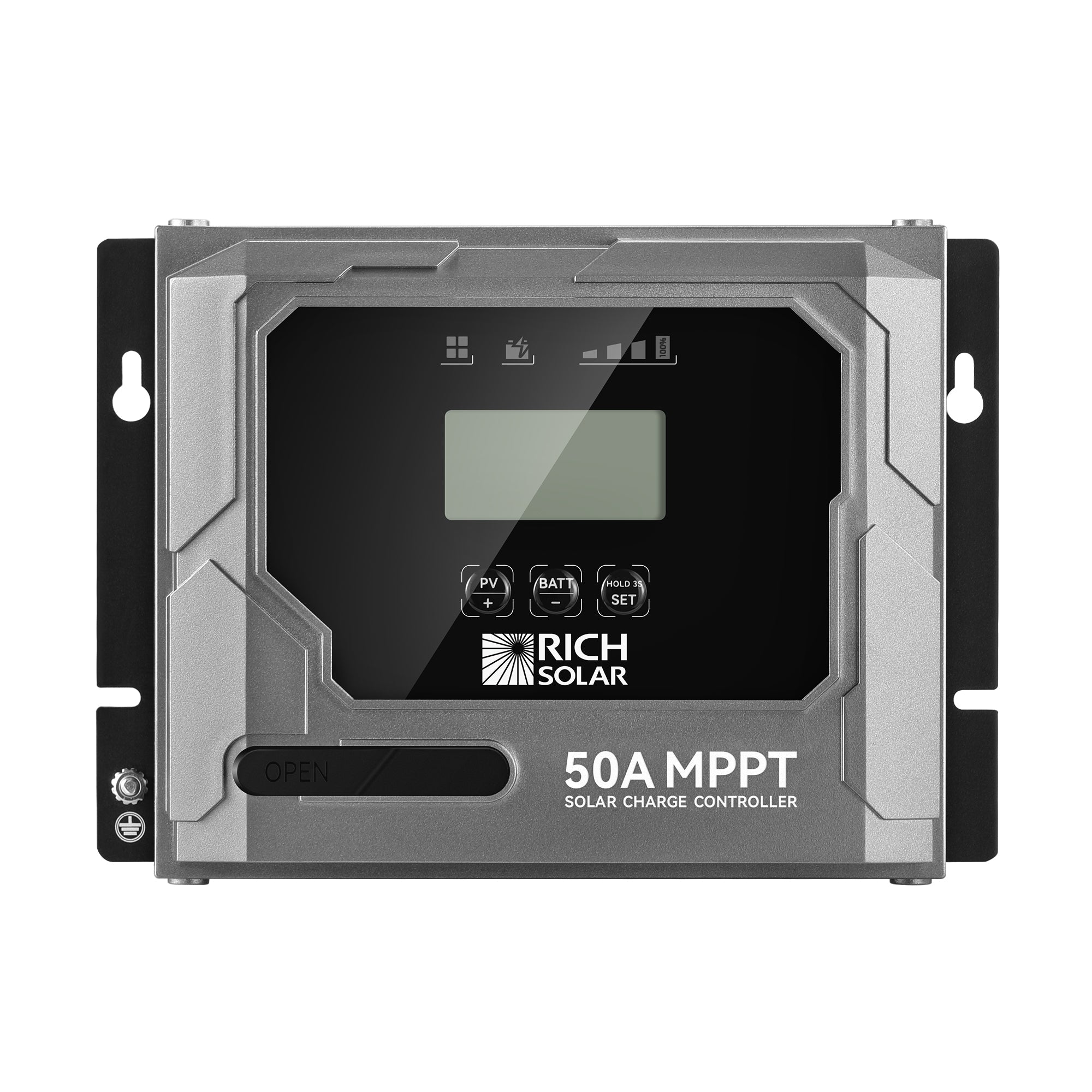

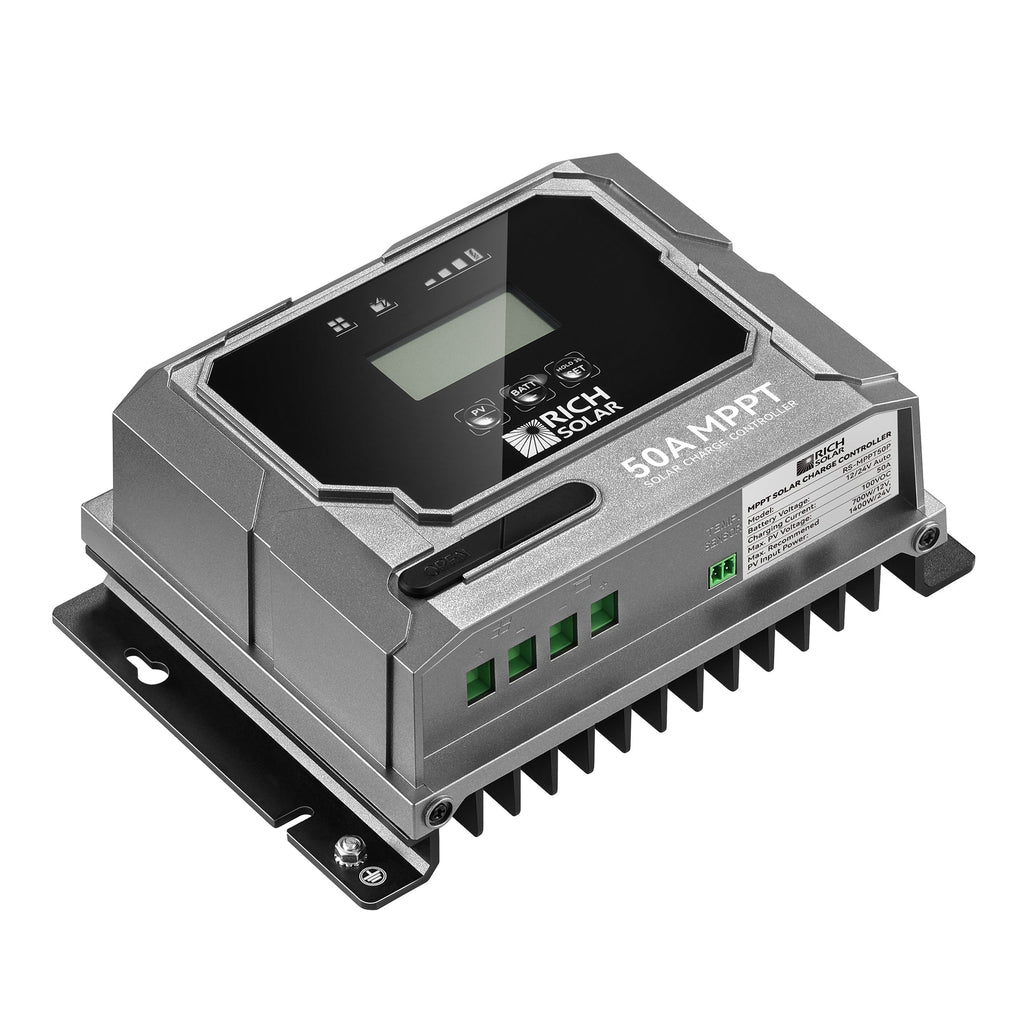

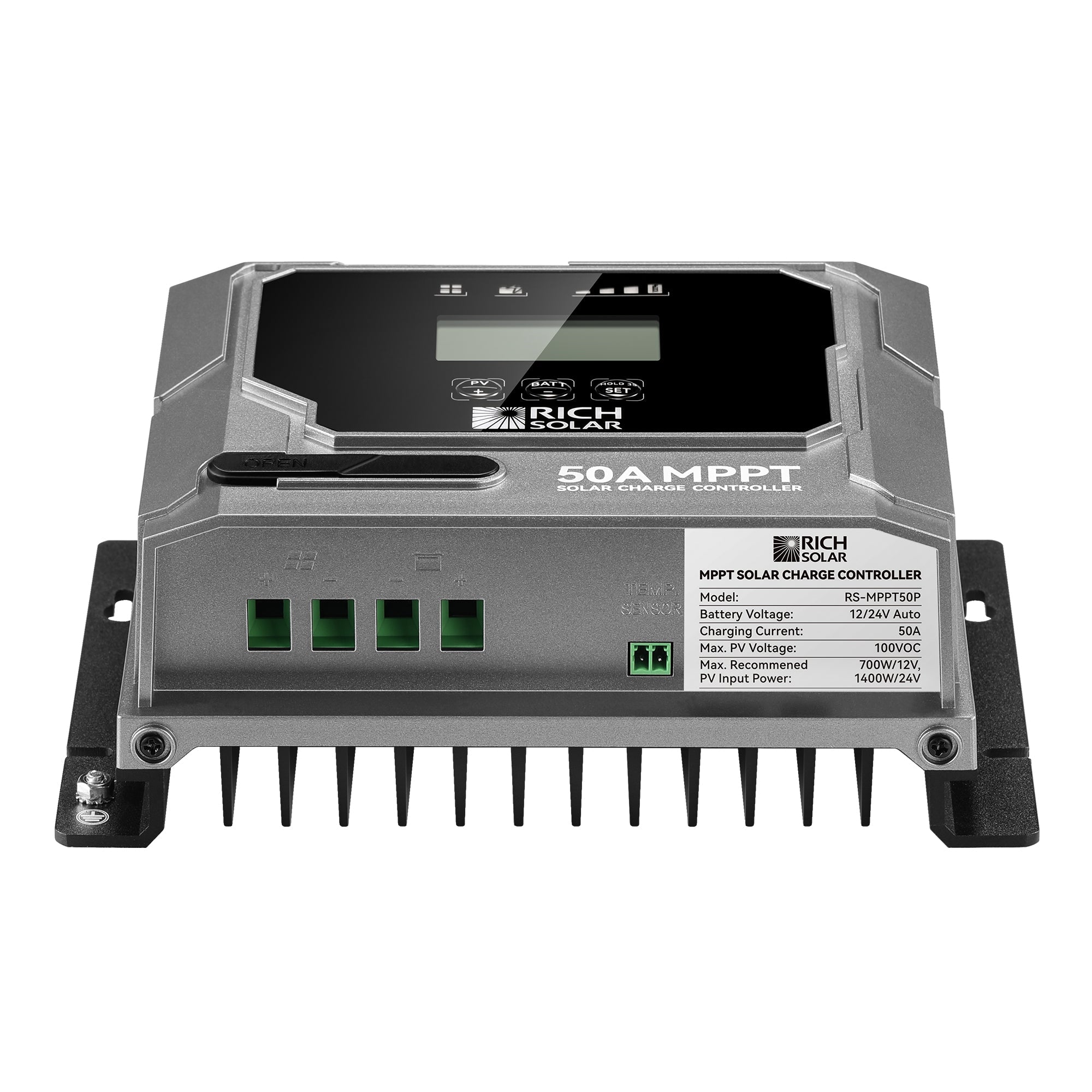

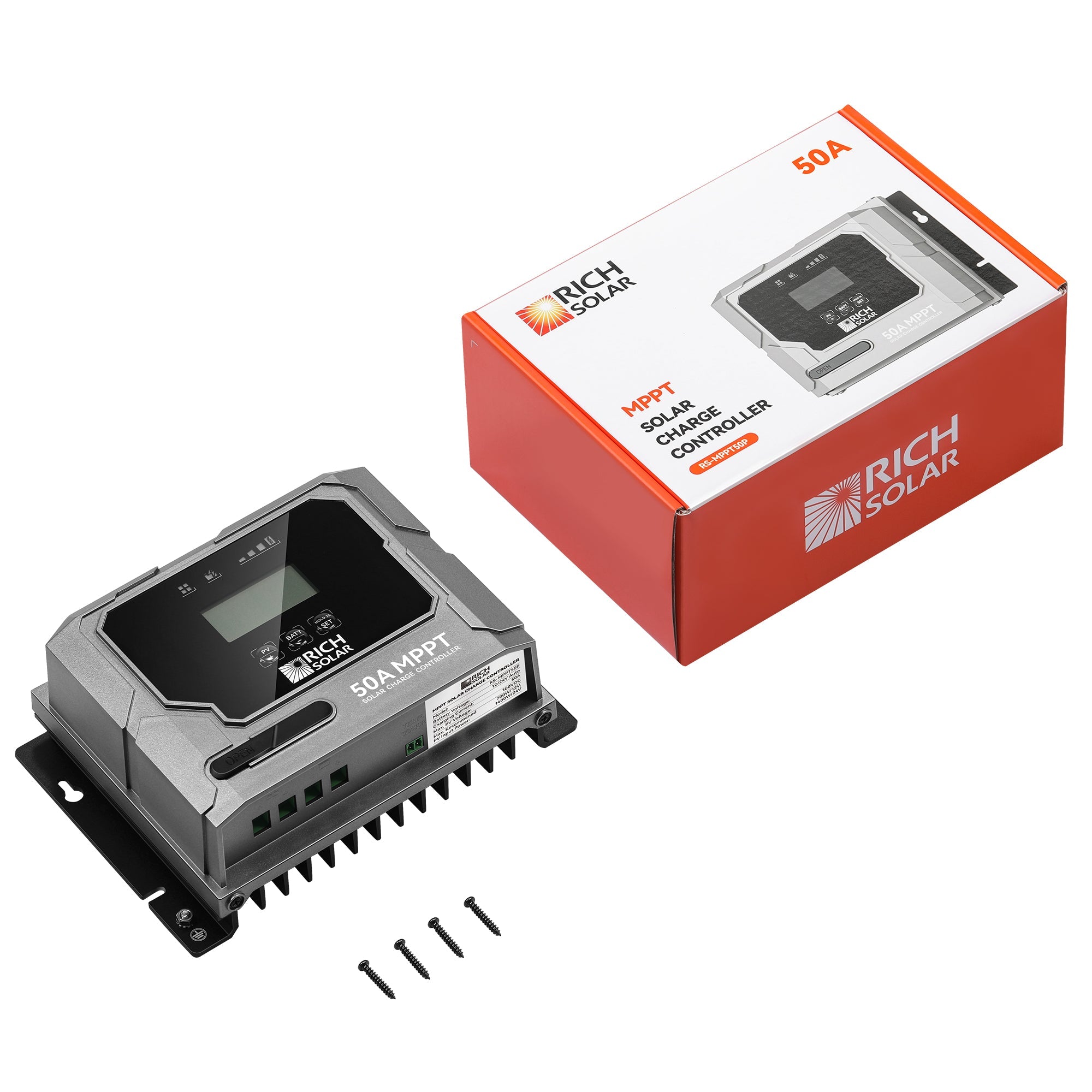

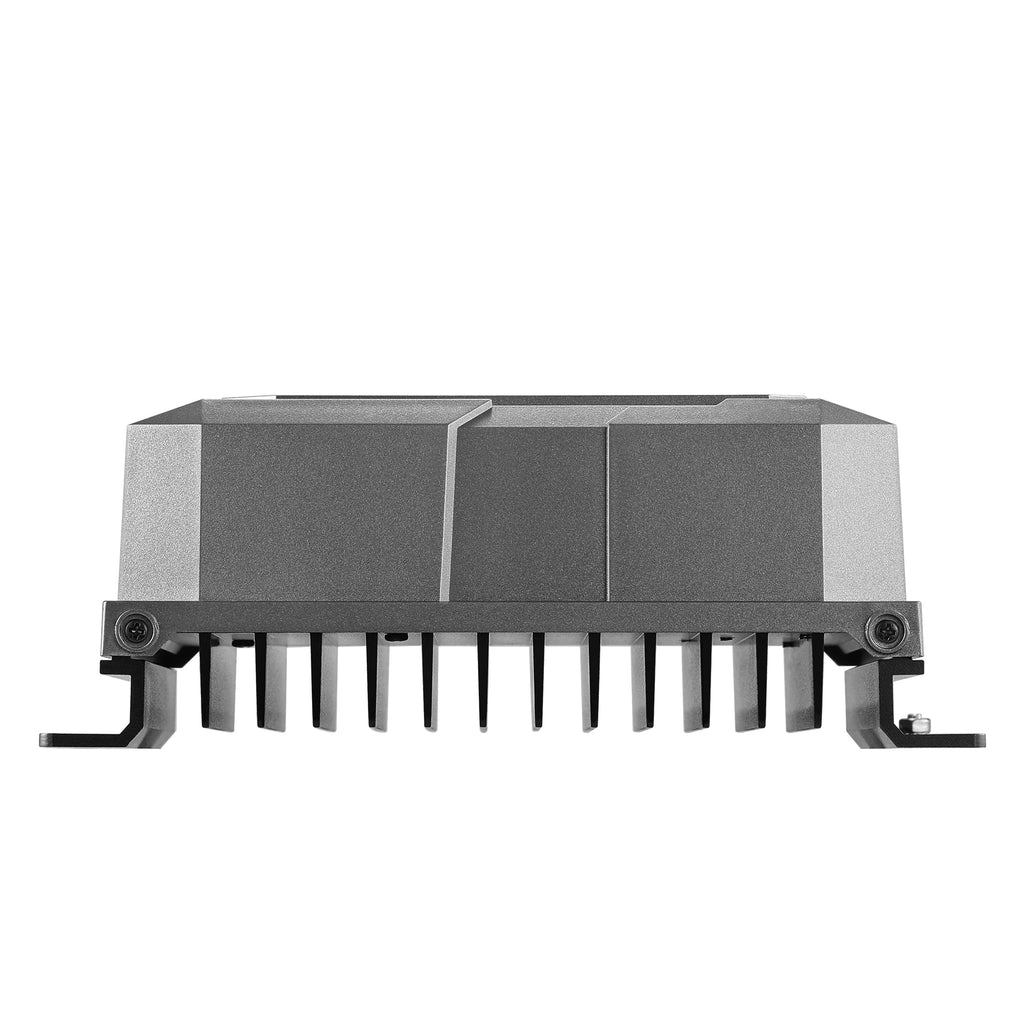

MPPT Solar Charge Controller — 50A, 12/24V Auto
Overview
This compact MPPT solar charge controller maximizes solar harvest and protects your battery battery bank. It automatically adapts to 12V or 24V systems, stores charging data, and includes multiple safety protections to keep your setup reliable and maintenance-light.
Benefits
- Get more usable energy from the same panels by tracking and converting power efficiently, so devices run longer between charges.
- Protect and extend battery life with tailored charging profiles for lead?acid and lithium chemistries, reducing the need for early replacements.
- Reduce system downtime and troubleshooting with built?in safety features and stored charging data for quick diagnostics.
- Simplify installation and system compatibility through automatic 12V/24V adaptation and a common negative connection.
- Increase reliability in varied environments thanks to conformal?coated electronics and multiple in?circuit protections.
Features
- True MPPT charging algorithm for optimal solar tracking.
- Tracking efficiency greater than 99.5% to capture more solar energy.
- Charge conversion efficiency up to 98% to minimize losses.
- Automatic 12V / 24V DC system detection and self?adaptation.
- Reverse discharge protection to prevent battery drain at night.
- Overvoltage protection to guard connected batteries and equipment.
- Common negative connection for simpler wiring with compatible systems.
- Charging data storage for performance review and troubleshooting.
- Conformal coating on the internal PCB for improved moisture and dust resistance.
- In?house design and manufacture with extensive internal electronics and in?circuit safety protections.
- Preset charging profiles for multiple battery types: Gel, AGM, WET, Crystal, Calcium, LiFePO4, LTO, and LCO.

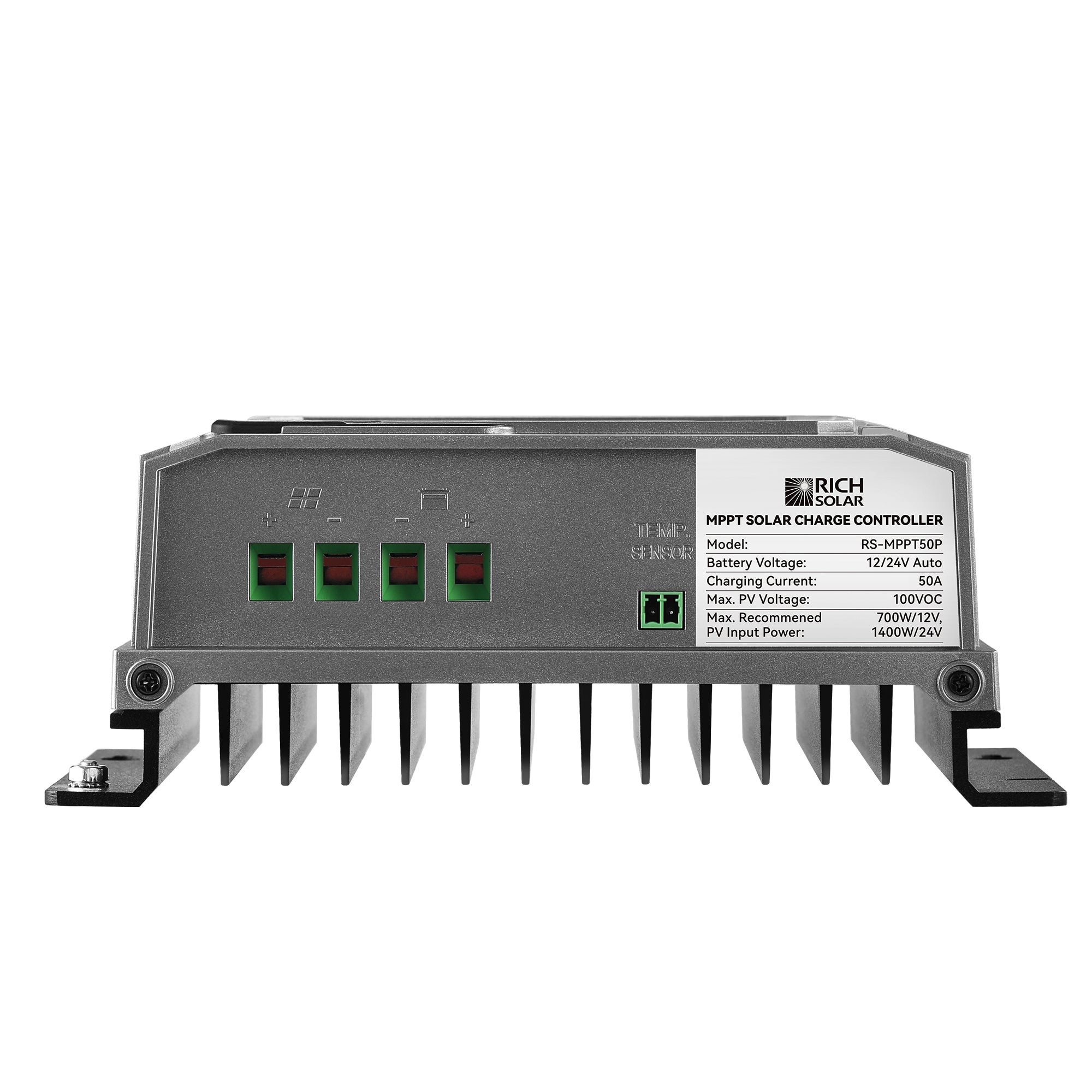

Specifications
- System nominal voltage: 12/24V automatic
- Max PV open circuit voltage (Voc): 100 V DC
- Charging technology: MPPT (Maximum Power Point Tracking)
- Max PV charging current: 50 A
- Max recommended PV input power: 700 W (12V) / 1400 W (24V)
- Charge conversion efficiency: up to 98%
- MPPT tracking efficiency: >99.5%
- Battery type presets: Crystal, Gel, AGM, WET, Calcium; LCO, LFP (LiFePO4), LTO
- Housing color: Black / Grey
- IP grade: IP43 (internal PCBA), IP22 (connection area)
- Net weight: 1.40 kg / 3.09 lb
- Dimensions (L × W × H): 195 × 140 × 74 mm / 7.7 × 5.5 × 2.9 in
