Smart MPPT Solar Charge Controller — 30A
This compact MPPT solar charge controller automatically adjusts between 12V and 24V systems, maximizes solar harvest, and protects your battery with multiple safety features. It’s designed for reliable off-grid charging, easy monitoring, and efficient heat dissipation in a durable die-cast aluminum housing.
Benefits
- Extract more power from your panels so batteries charge faster and you get more usable energy each day.
- Protect batteries and appliances from damage with built-in safeguards, reducing maintenance and unexpected failures.
- Simplify system setup and monitoring with automatic voltage detection, an LCD + LED status display, and optional Bluetooth monitoring.
- Use a single controller for different battery types (sealed, gel, flooded, lithium), avoiding multiple purchases and installations.
- Durable metal housing and wide operating temperature range mean dependable performance in varied environments.
Features
- Auto-detects 12V or 24V DC systems.
- Compatible with Sealed, Gel, Flooded and Lithium deep-cycle batteries.
- MPPT technology with high tracking efficiency (greater than 99%) and conversion efficiency up to 98%.
- Electronic protections for reverse polarity, overcharge, over-discharge, overload, short circuit and reverse current.

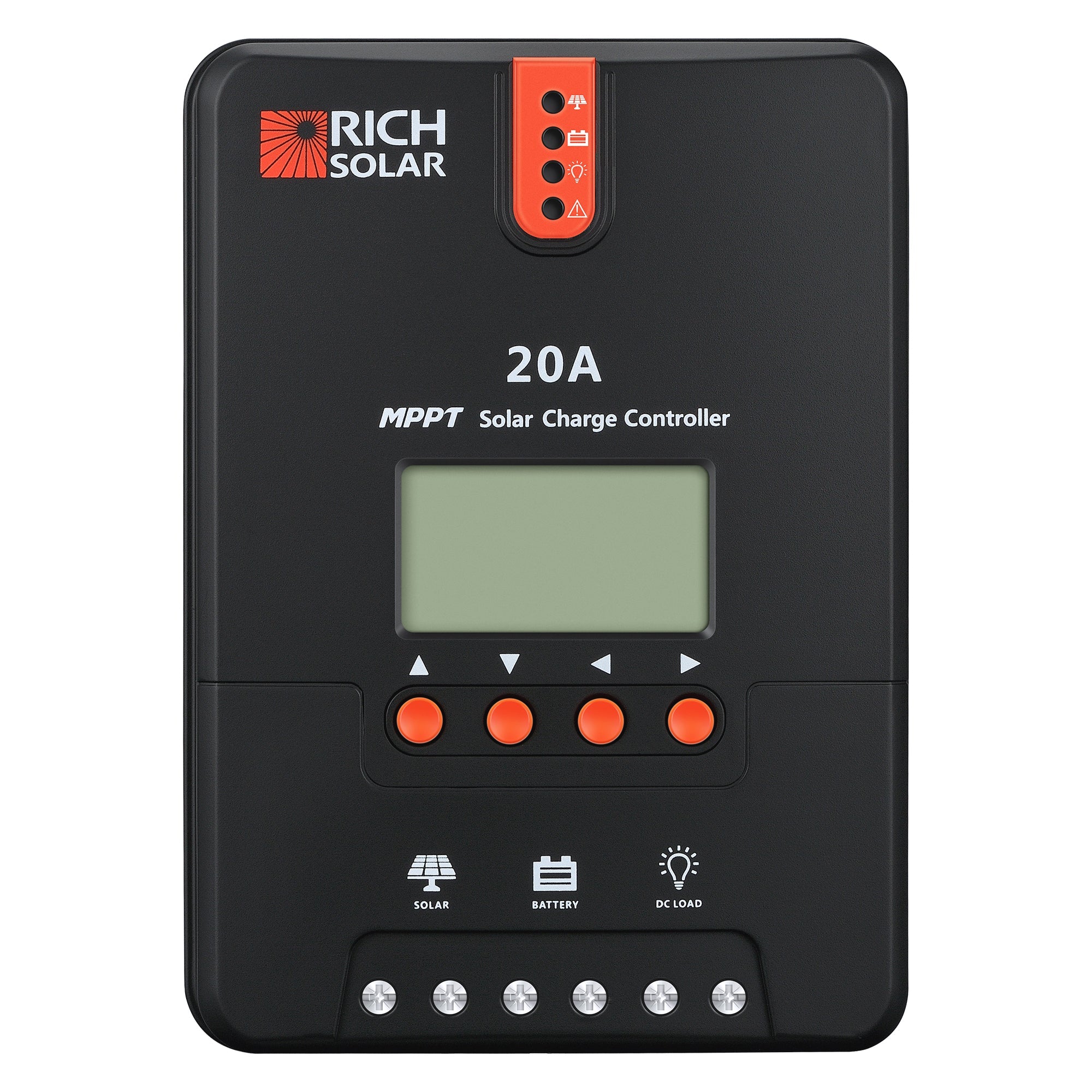

- LCD screen plus multiple LED indicators for system status, adjustable parameters and error codes.
- Flexible load control and ability to charge over-discharged lithium batteries.

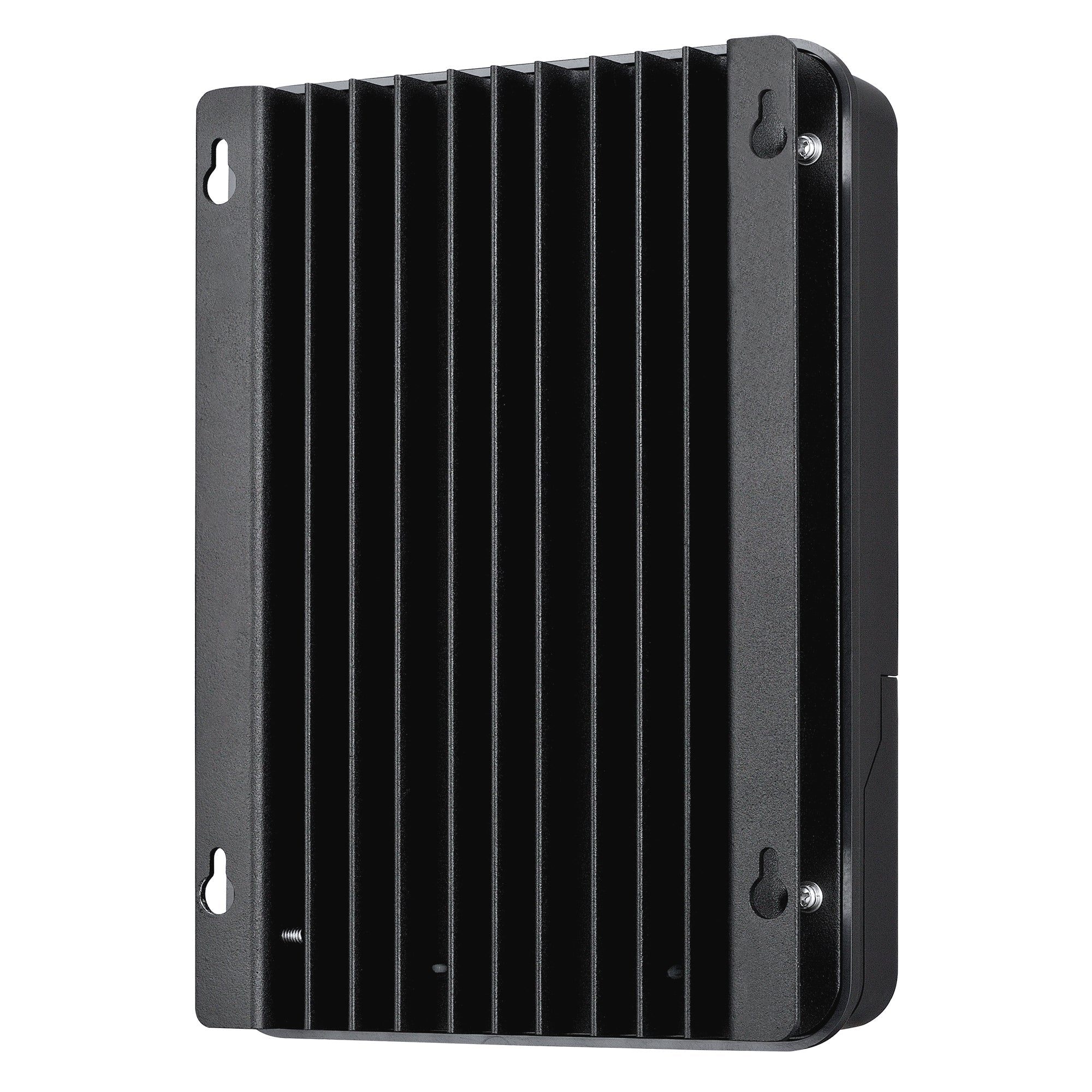

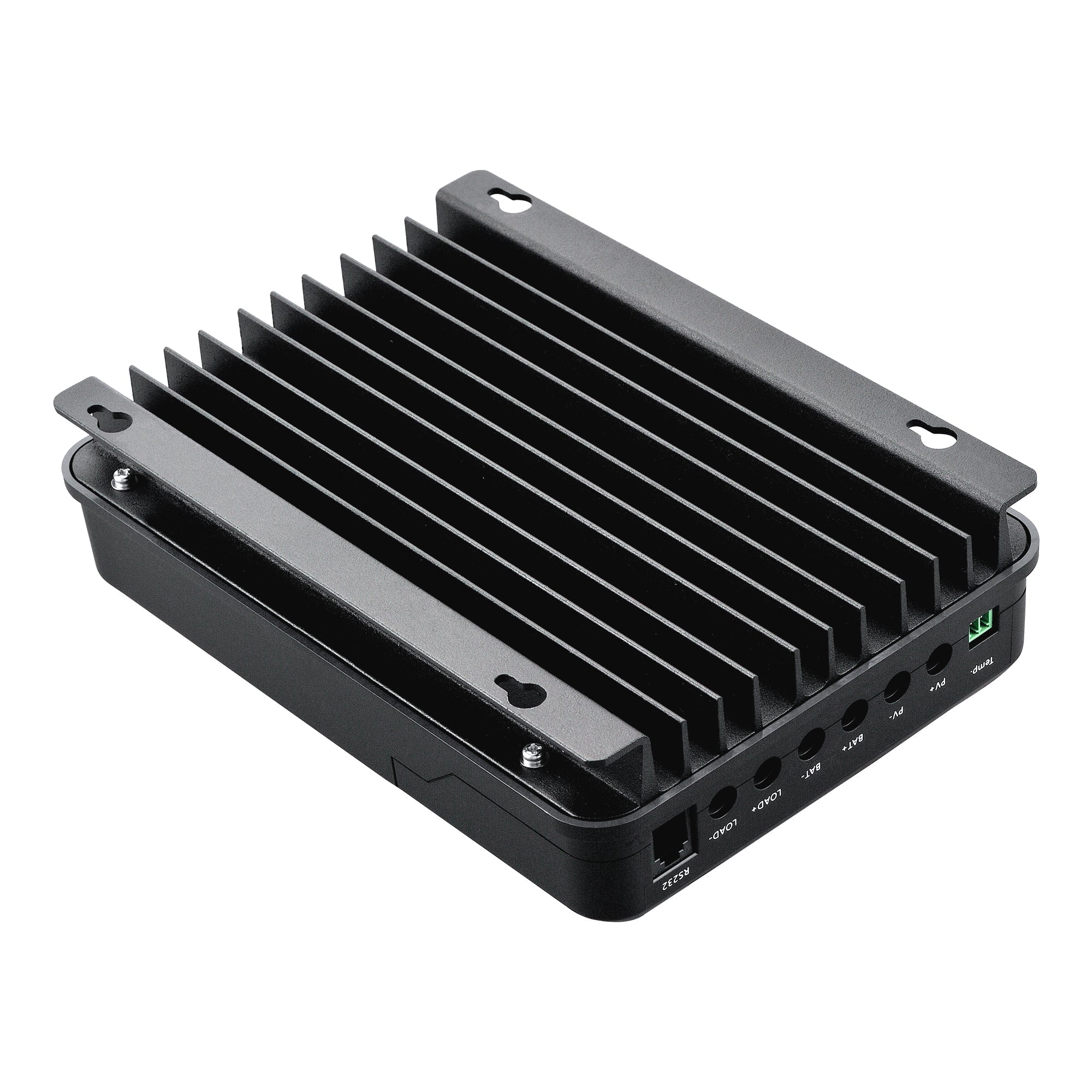

- Die-cast aluminum housing for efficient heat dissipation.
- RS232 communication port for use with the BT-1 Bluetooth module.
- Advanced MPPT algorithm that quickly finds the maximum power point on the I–V curve to improve energy yield.
Specifications
- Nominal system voltage: 12V / 24V (automatic)
- Rated charging current: 30 A
- Rated load current: 20 A
- Max. solar input voltage: 100 V (at 25°C); 90 V (at -25°C)
- Discharge circuit voltage drop: ? 0.15 V
- Net weight: 4.41 lbs
- Overall dimensions: 9.37 × 6.81 × 2.85 in
- Battery wire diameter: 6 mm²
- Load wire diameter: 5 mm²
- No-load power loss: 0.7 W to 1.2 W
- Supported battery voltage range: 9 V to 35 V
- Max. power point voltage range: Battery voltage + 2 V to 75 V
- Max. PV system input power: 400 W (12V), 800 W (24V)
- Conversion efficiency: up to 98%
- MPPT tracking efficiency: >99%
- Temperature compensation (default): -3 mV per 2 V
- Operating temperature: -35°C to +45°C
- Protection degree: IP32

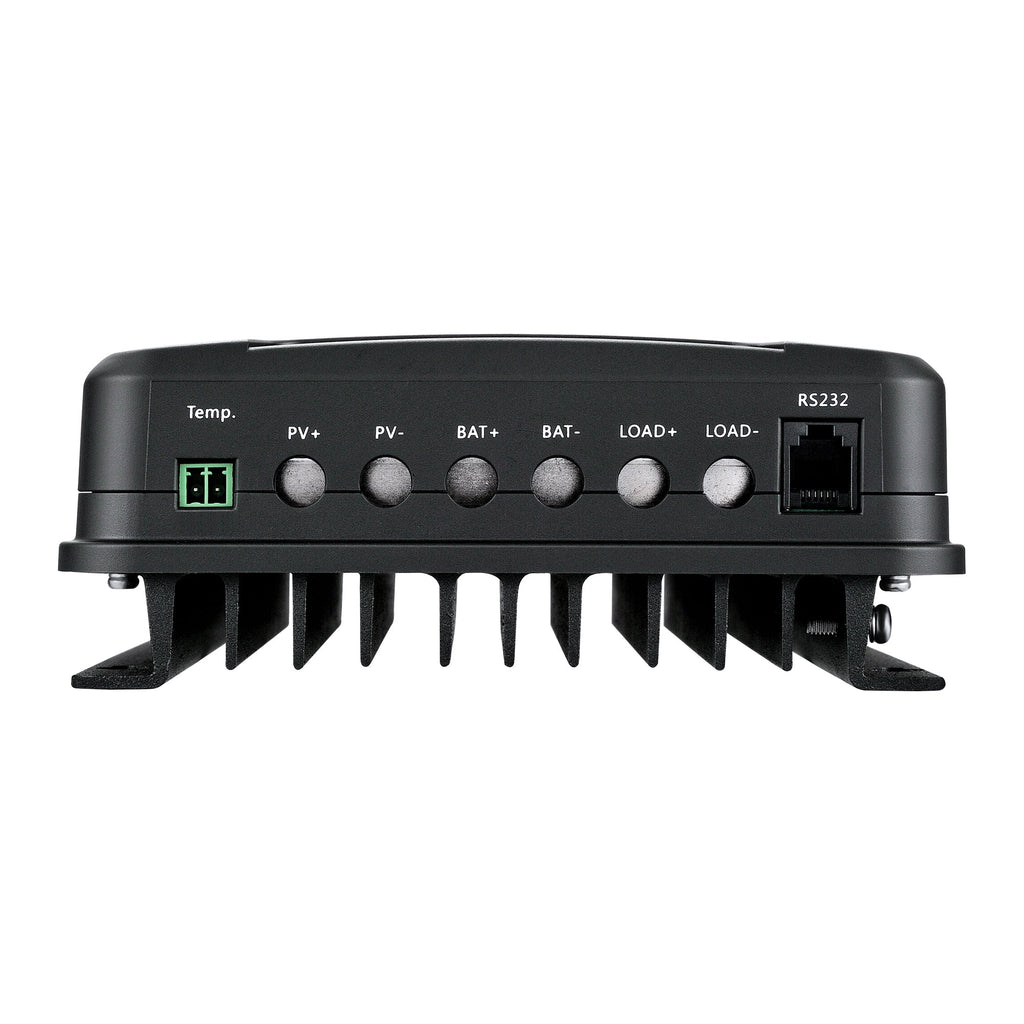

- Communication: RS232 (compatible with BT-1 Bluetooth module)
- Maximum operating altitude: - 3000 m
- Maximum capacitive load capacity: 1000 µF
