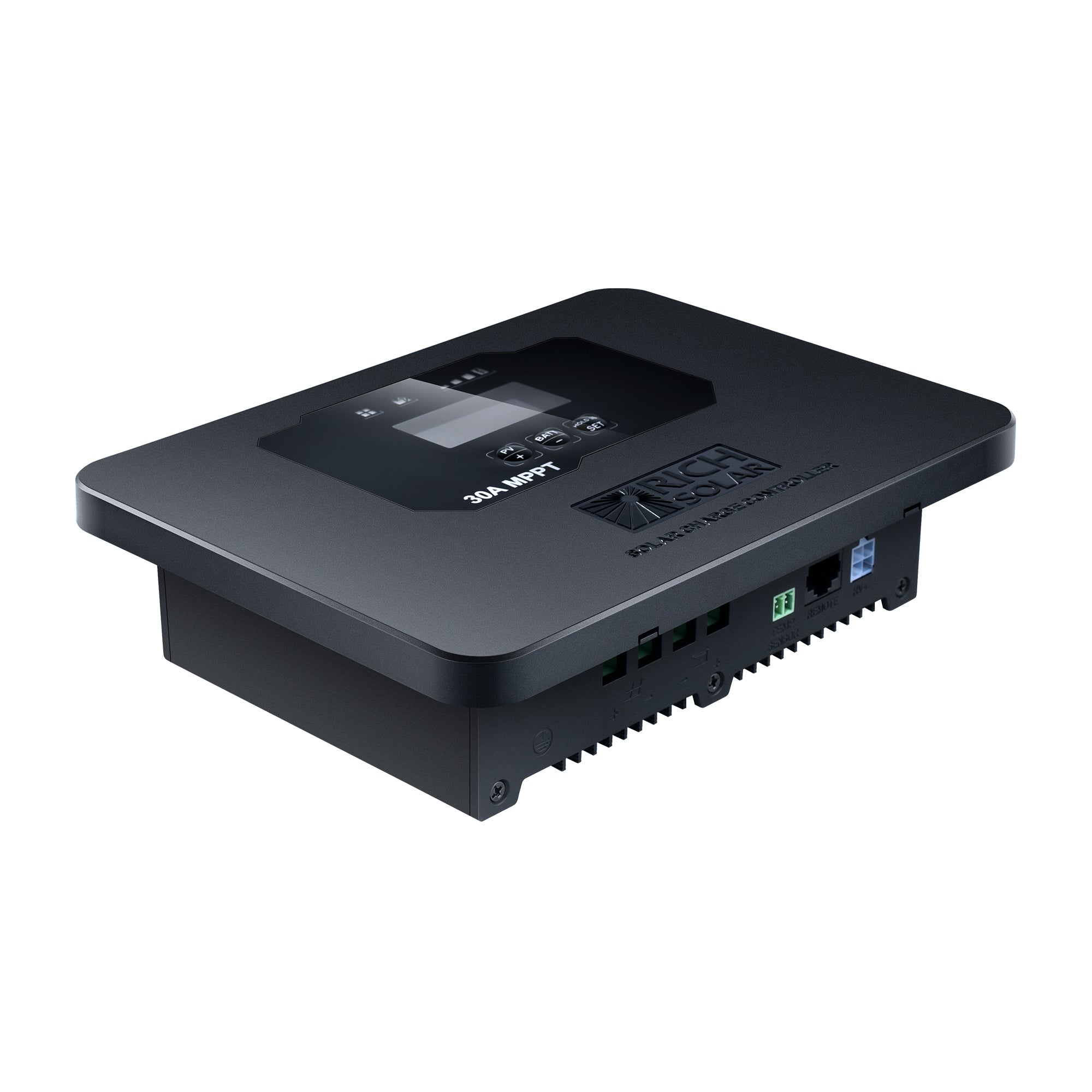

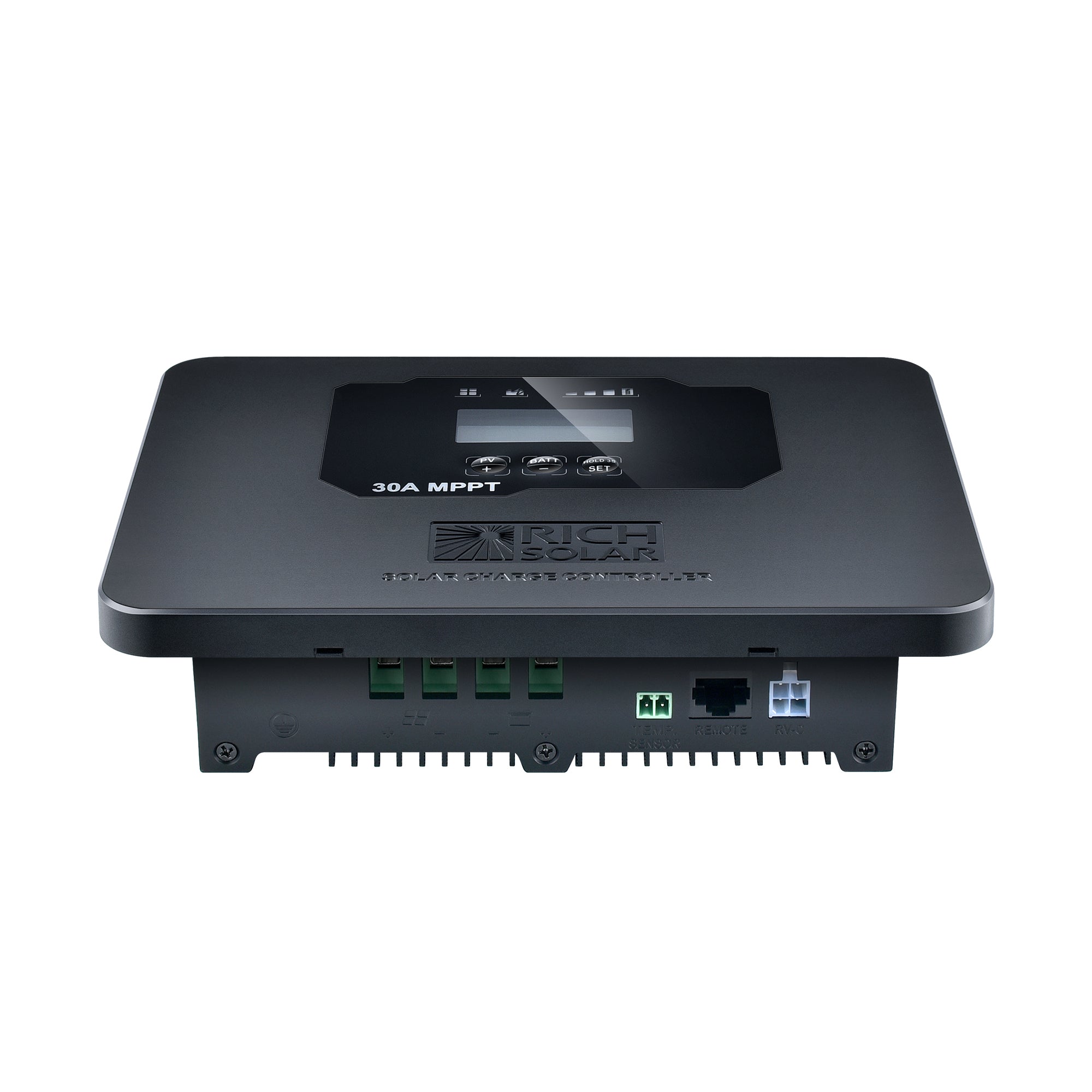

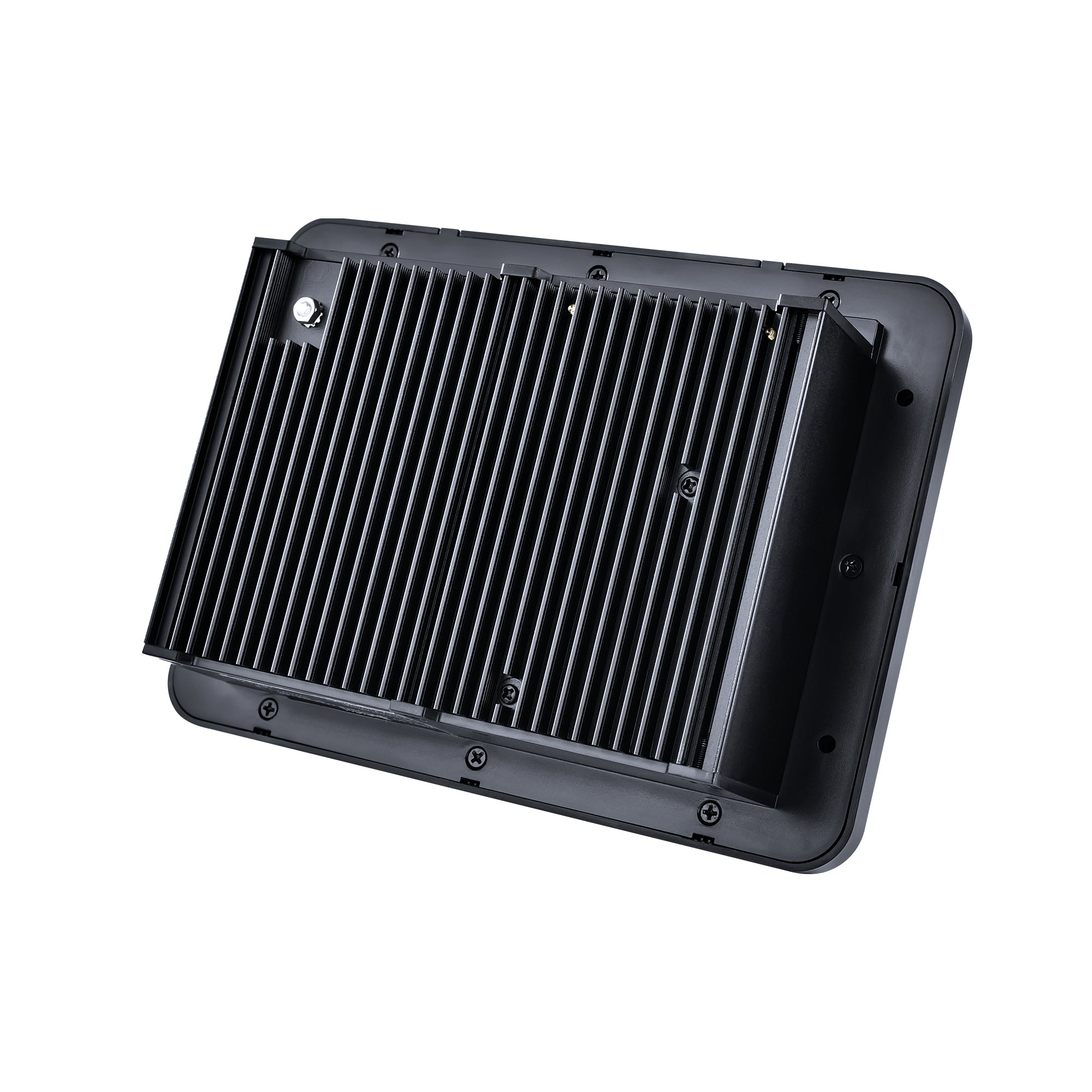

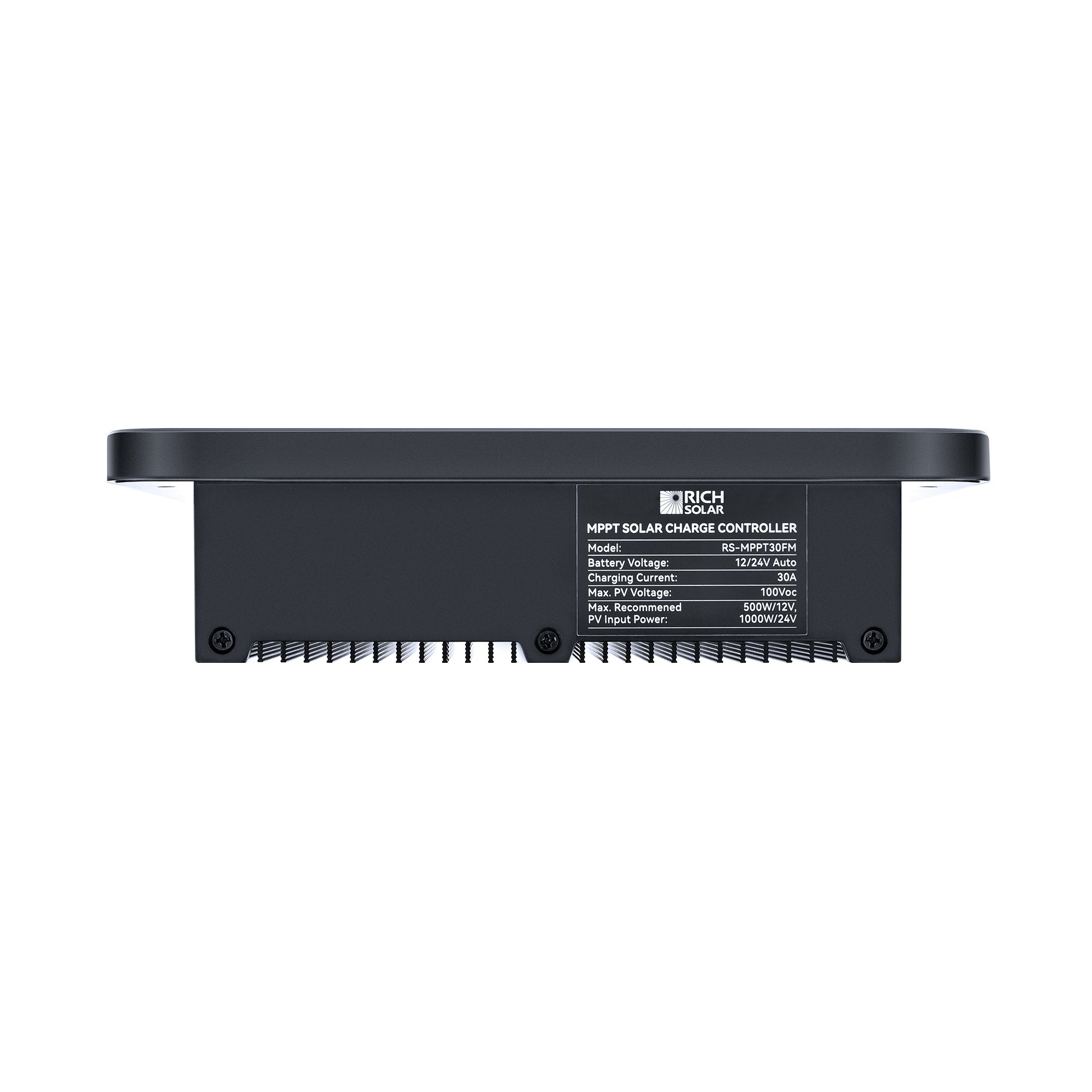

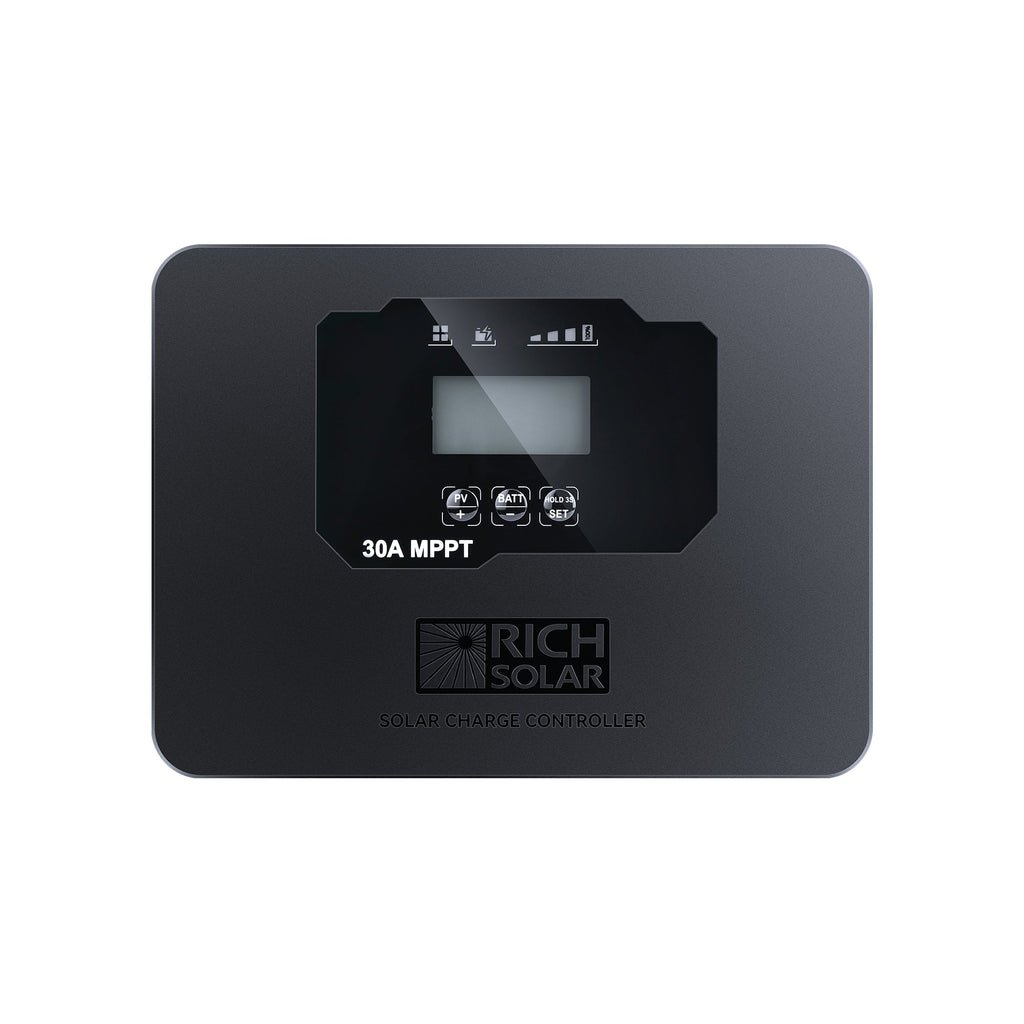

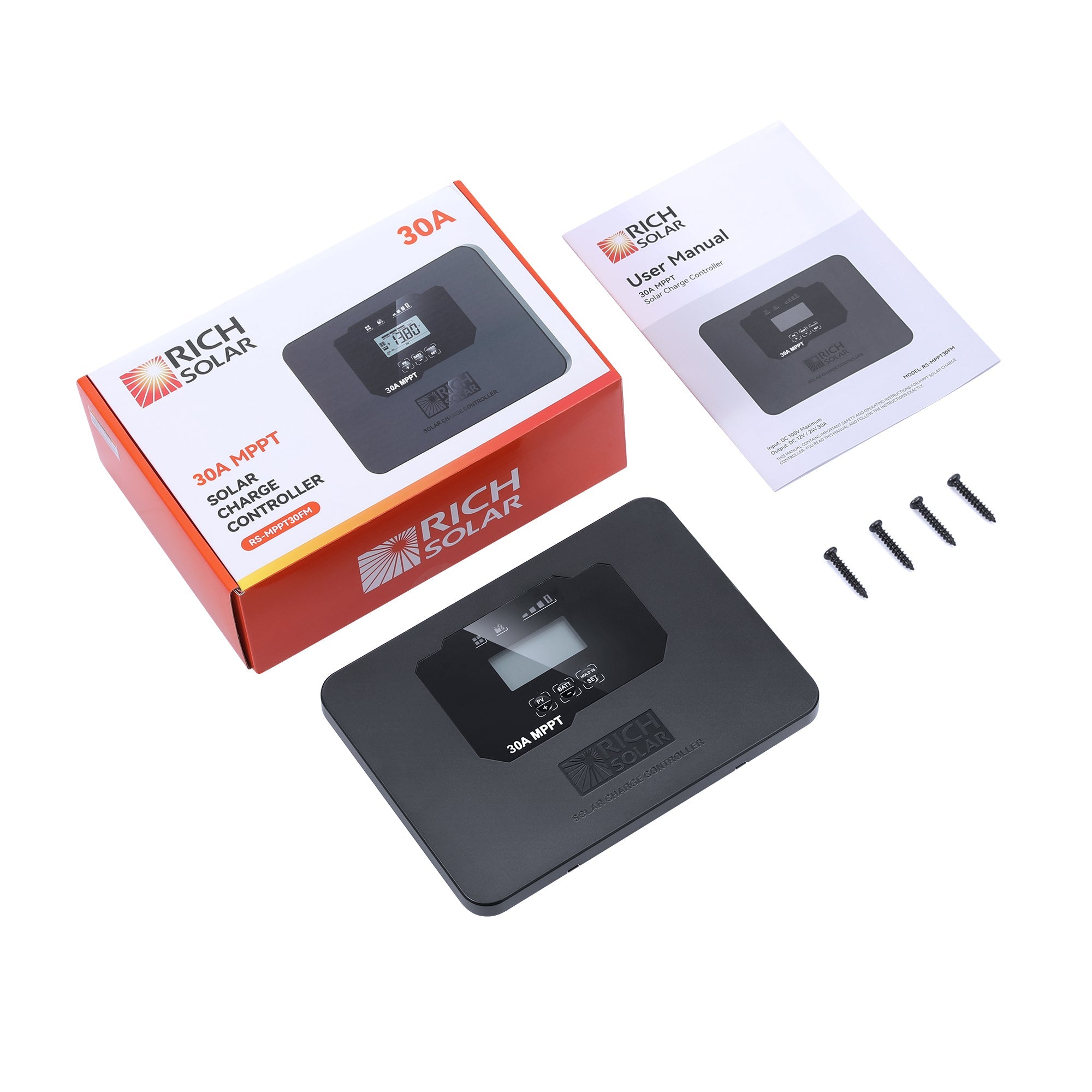

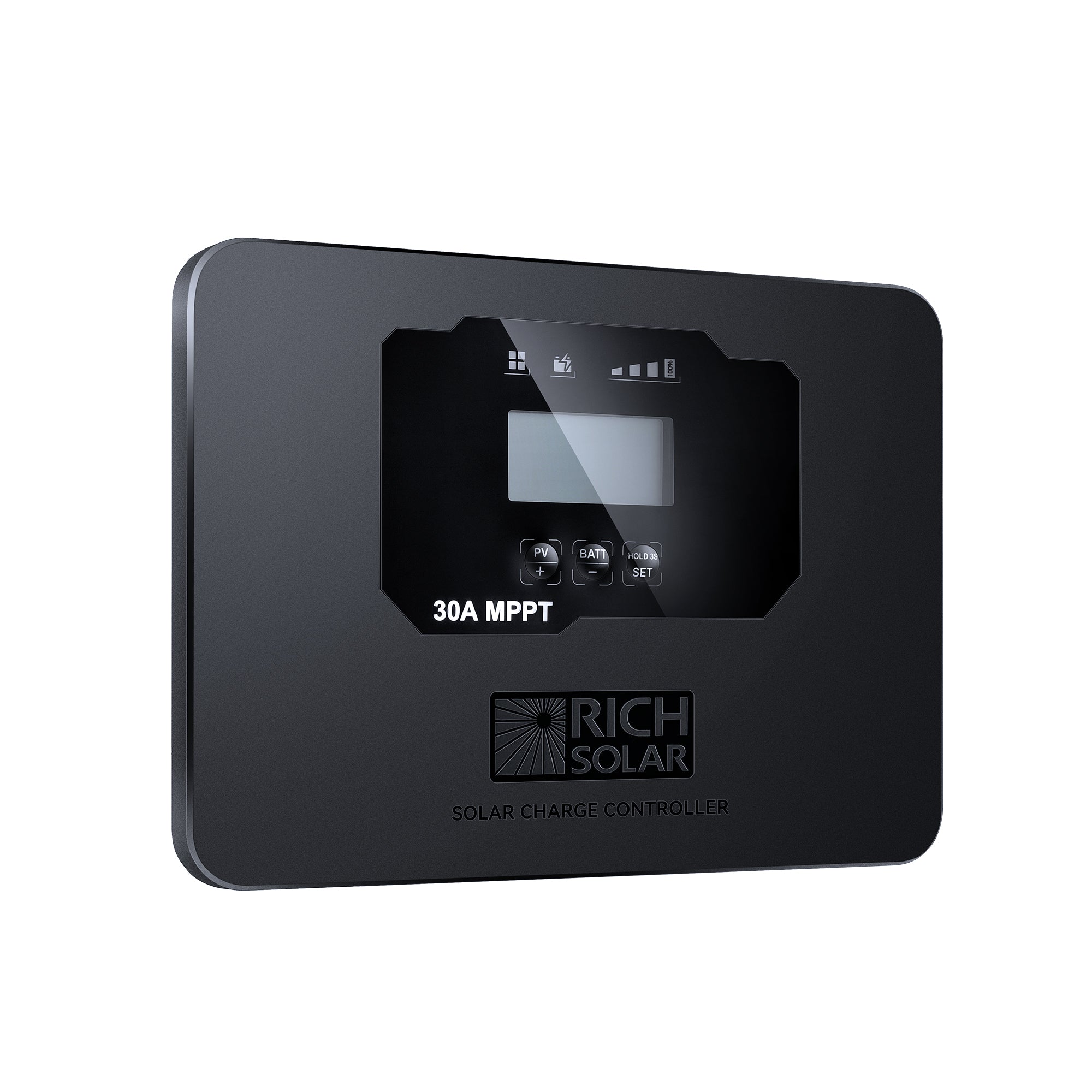

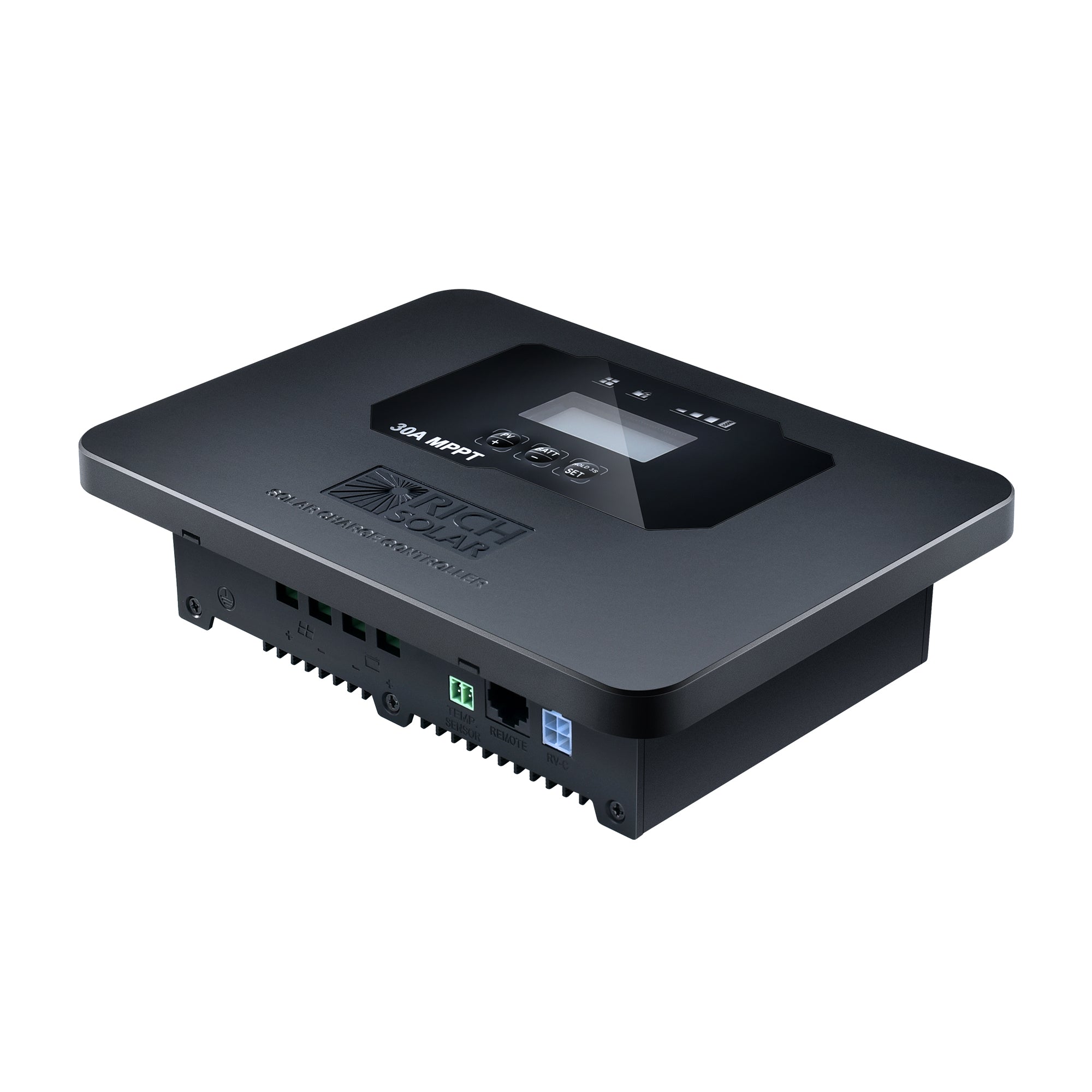

Rich Solar MPPT Solar Controller BRAVO PRO 30

High-Efficiency 30A MPPT Solar Charge Controller (12/24V, IP43)

• This compact MPPT solar charge controller maximizes solar harvest while protecting and extending battery life. It supports 12V or 24V systems, adapts to multiple battery types, and provides clear status feedback through LEDs and an optional remote display.

Benefits

• Capture more solar energy: advanced MPPT and multiple-peak detection increase harvested power so your battery charges faster.
• Keep batteries healthy longer: accurate charging profiles, temperature sensing, and multiple protections reduce stress on batteries.
• Spend less time troubleshooting: clear on-board display, LED status bar, and fault codes make it easy to see what’s happening.
• Flexible and ready to install: auto-detects 12V/24V, supports common battery types and custom settings, and mounts on any flat surface.
• Safer operation: built-in protections (overcharge, undercharge, short, reverse polarity, thermal) reduce risk and maintenance needs.

Features

• MPPT control with the latest algorithm and unique multiple-peak detection for unstable PV arrays.
• High MPPT tracking efficiency (?99.5%) and up to 98% conversion efficiency for better energy conversion.
• Supports PV open-circuit voltages up to 100 VDC and normal input up to 92 VDC.
• Automatically detects and operates in 12V or 24V DC systems.
• Preset support for nine common battery types plus a custom battery-setting option.
• Comprehensive protections: overcharge/undercharge, short circuit, reverse polarity, and thermal protection.
• Concise LED bar for instant solar and charging status visibility plus a large display for parameters and fault codes.
• Optional plug-in remote digital display and optional external battery temperature sensor.
• Splash-proof IP43 enclosure, rubber terminal covers, and conformal-coated internal boards for added durability.
• Designed and tested to relevant safety and EMI standards (UL1741, EN/IEC 62109-1, EN61000-6-1/6-3, FCC 47 CFR Part 15 Subpart B).

Specifications

• Max. PV Open Circuit Voltage: 100 VDC
• Max. Normal Input PV Voltage: 92 VDC
• Max. PV Input Current: 30 A
• Max. PV Short Circuit Current: 35 A
• Max. Conversion Efficiency: 98%
• Min. Tracking Efficiency (MPPT): 99.5%
• Nominal PV Power: 500 W @ 12V / 1000 W @ 24V
• Min. Battery Start Charging Voltage: 5 VDC
• Soft Start Charging Voltage: 5–10 ±0.2 VDC
• Soft Start Charging Current: 15 A
• Max. Bulk Charge Current: 30 A
• Controller Material: Plastic (PC)
• Mounting: Surface mounting
• IP Grade: IP43 (splash-proof)
• Net Weight: 1.87 lb
• Operating Temperature: -13 to 122 °F
• Storage Temperature: -40 to 185 °F
• Operating Humidity Range: 0–85% RH
