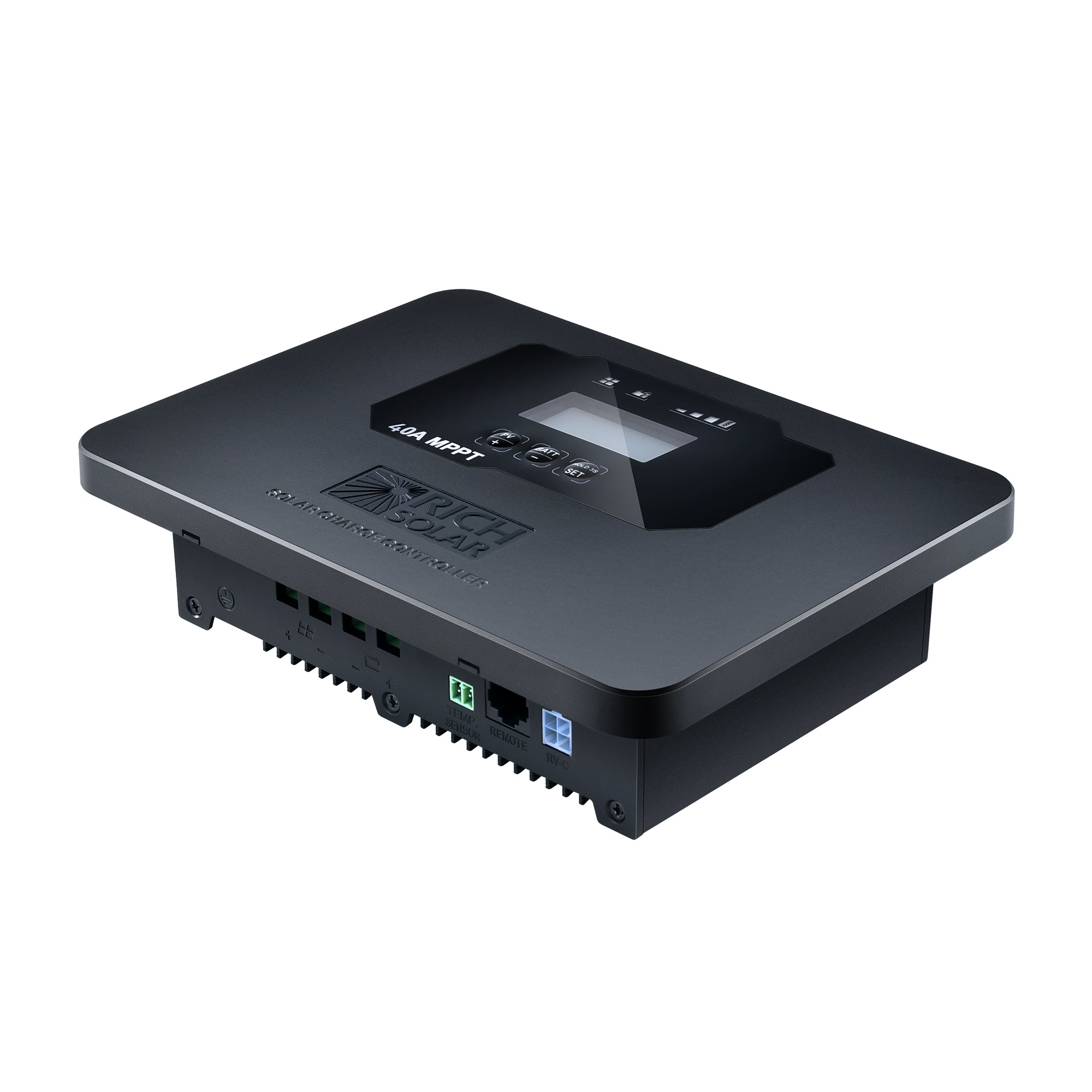

Solar MPPT Charge Controller — Reliable, efficient battery charging
Overview
This compact MPPT solar charge controller optimizes solar harvest and protects your battery system. It uses an advanced MPPT algorithm with multiple-peak detection, supports common 12V/24V systems, and includes clear status indicators and safety protections for reliable, low-maintenance operation.
Benefits
- Get more usable energy from the same solar array so your battery stays charged longer.
- Protect your battery and electronics automatically — less worry about overcharge, short circuits, or reverse wiring.
- Install quickly and with fewer configuration steps because the controller detects 12V or 24V systems automatically.
- See system status at a glance with a simple LED bar and an informative display, or add a remote meter for convenient monitoring.
- Work in a variety of environments thanks to splash protection, conformal-coated electronics, and wide operating temperatures.
- Use with many battery chemistries — several presets plus custom settings reduce guesswork and improve battery life.
Features
- Advanced MPPT algorithm for maximum power extraction from PV panels.
- Multiple-peak detection technology to find the true maximum power point in complex arrays.
- MPPT tracking efficiency above 99.5% and up to 98% conversion efficiency.
- Supports common negative grounding for simplified wiring.
- Preset support for up to 9 battery types plus custom battery configuration.
- Automatic detection of 12V or 24V DC system voltages.

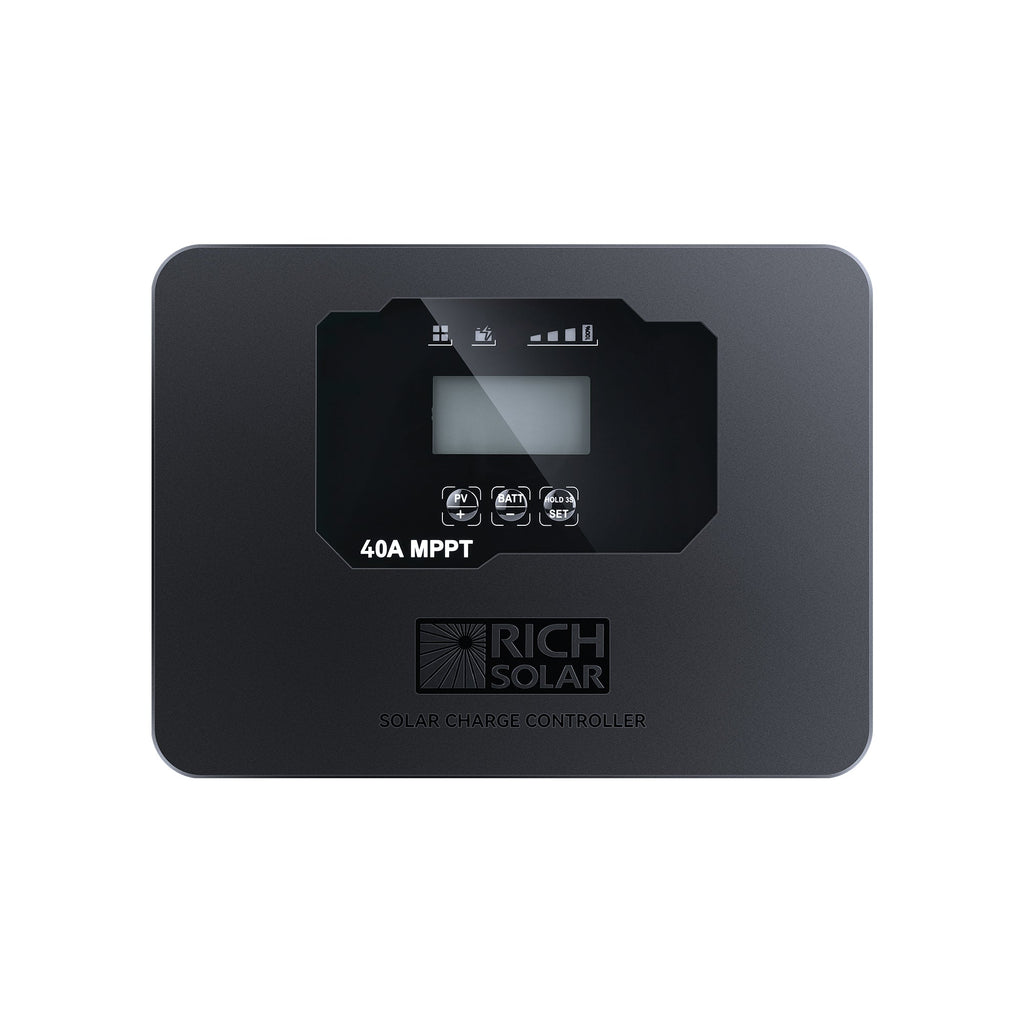

- Concise LED bar for quick solar and battery status; large display for detailed parameters and fault codes.
- Optional plug-in remote digital display meter and external battery temperature sensor.
- Comprehensive safety protections: overcharge, undercharge, short circuit, reverse polarity, and thermal protection.
- Durable construction: splash-proof IP43 rating, rubber terminal cover, and conformal coating on internal boards.
- Designed to international safety and EMI standards (UL1741, EN/IEC 62109-1, EN61000-6-1/6-3, FCC 47 CFR Part 15 Subpart B).
Specifications
- Max. PV Open Circuit Voltage: 100 VDC
- Max. Normal Input PV Voltage: 92 VDC
- Max. PV Input Current: 40 A
- Max. PV Short Circuit Current: 45 A
- Max. Conversion Efficiency: 98%
- Min. MPPT Tracking Efficiency: 99.5%
- Nominal PV Power: 600 W @ 12V / 1200 W @ 24V
- Min. Battery Start Charging Voltage: 5 VDC
- Soft Start Charging Voltage: 5 ~ 10 ± 0.2 VDC
- Soft Start Charging Current: 20 A
- Max. Bulk Charge Current: 40 A
- Controller Material: Plastic (PC)
- Mounting: Surface mounting
- IP Grade: IP43 (splash-proof)
- Net Weight: 1.87 lb
- Operating Temperature: -13 °F to 122 °F
- Storage Temperature: -40 °F to 185 °F
- Operating Humidity Range: 0–85% RH
- Optional accessories: plug-in remote digital display meter, external battery temperature sensor
- Protections: overcharge, undercharge, short circuit, reverse polarity, thermal protection
- Standards: UL1741, EN/IEC 62109-1; EMI: EN61000-6-1 / EN61000-6-3; FCC: 47 CFR Part 15, Subpart B
