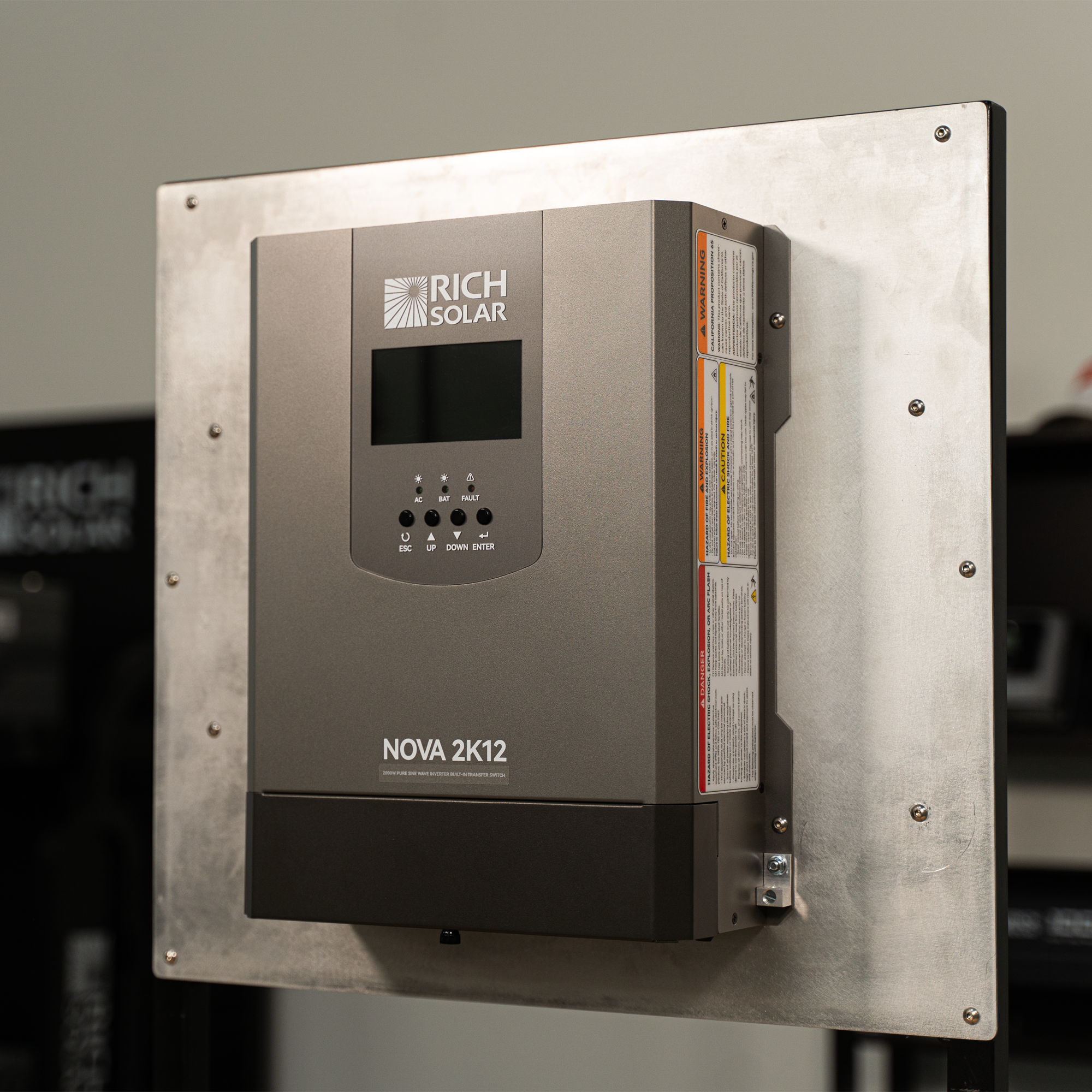

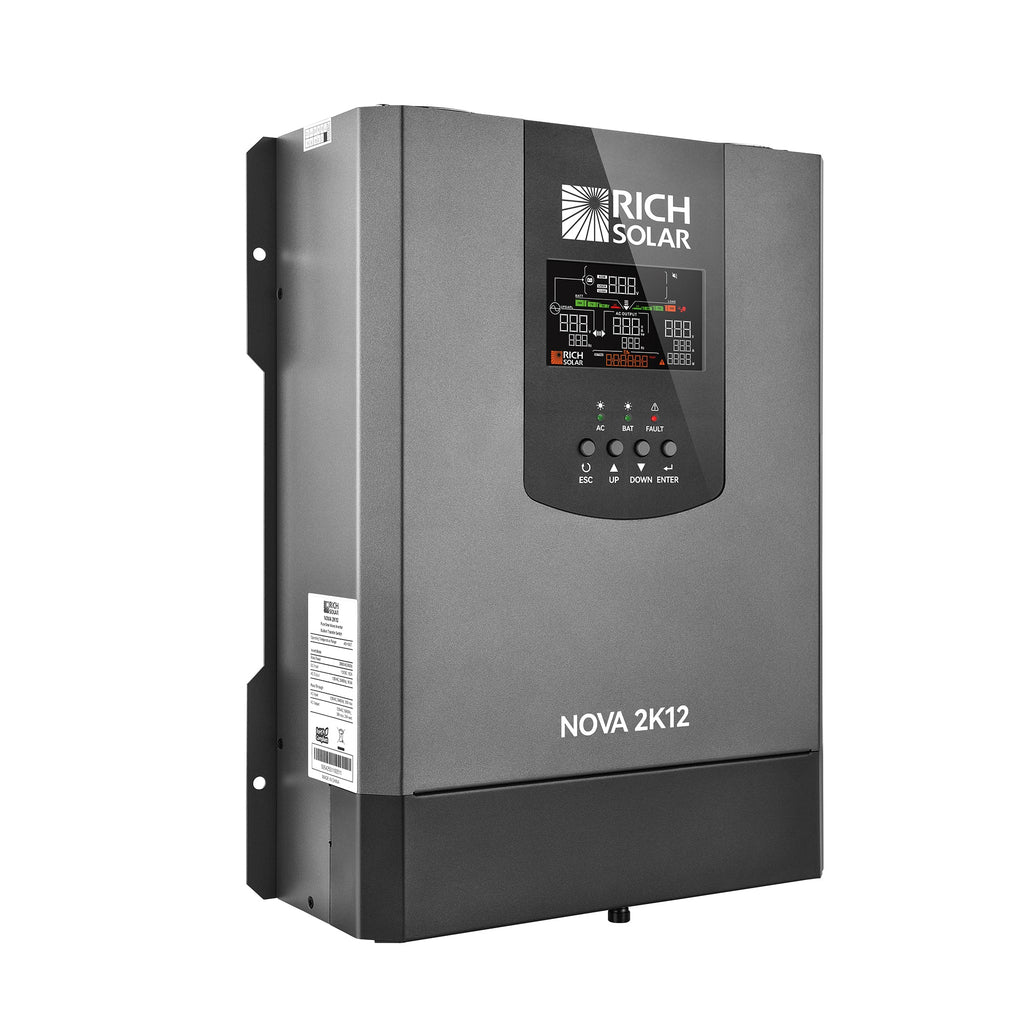

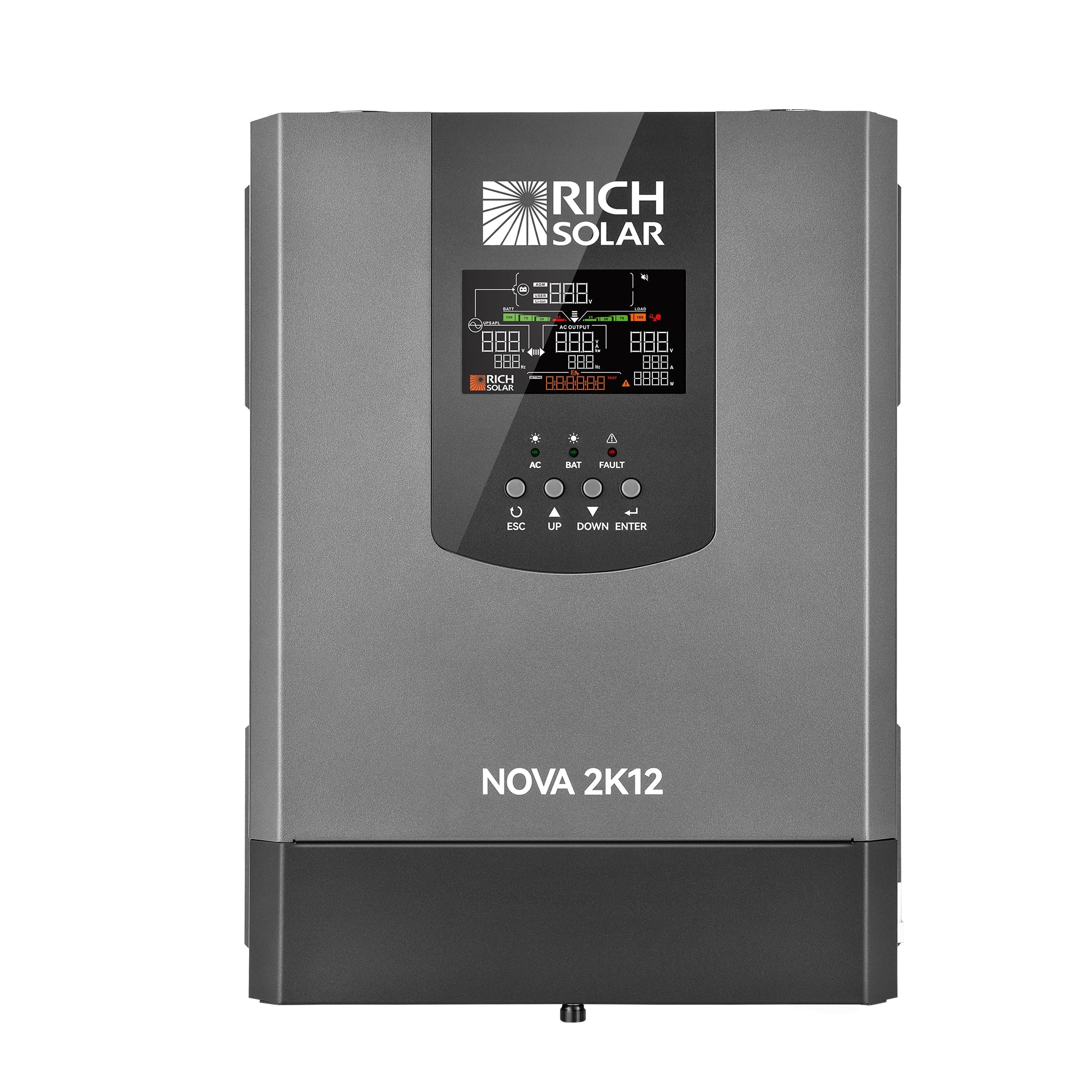

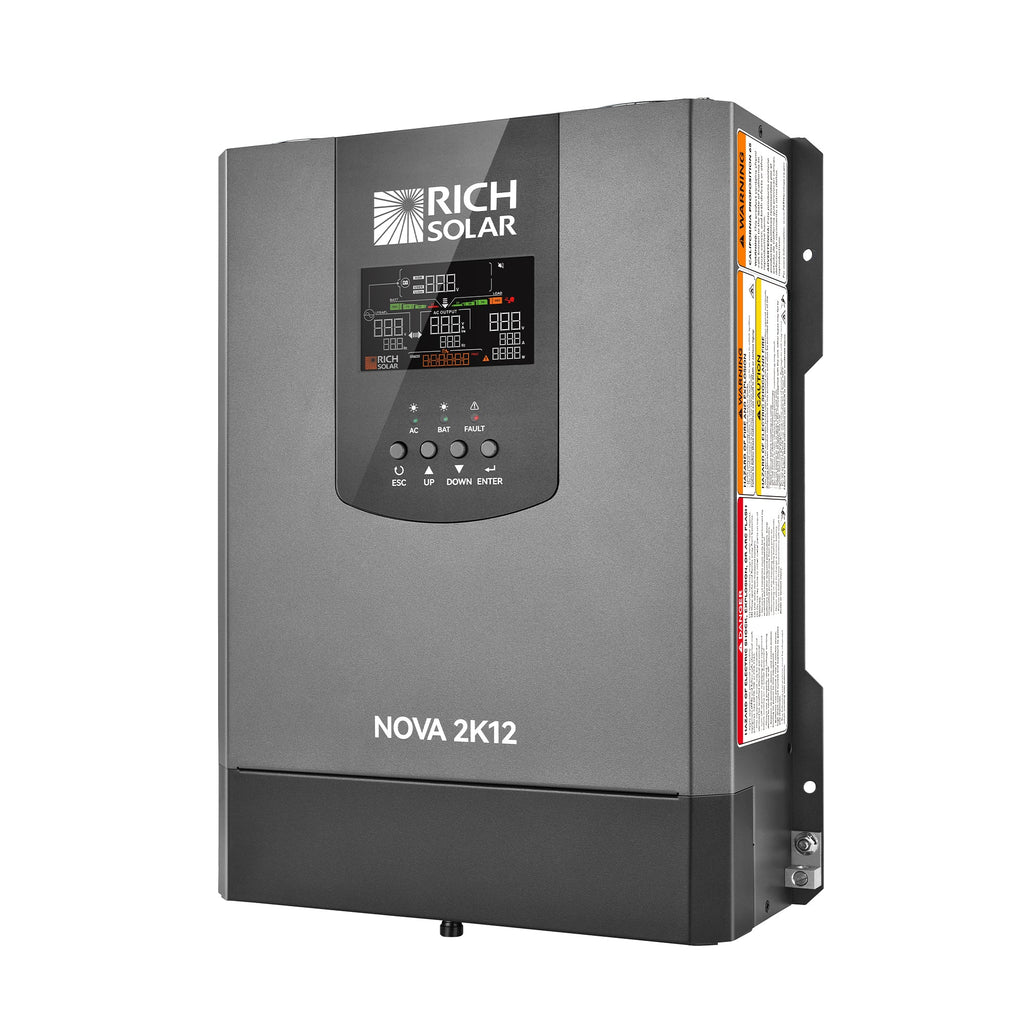

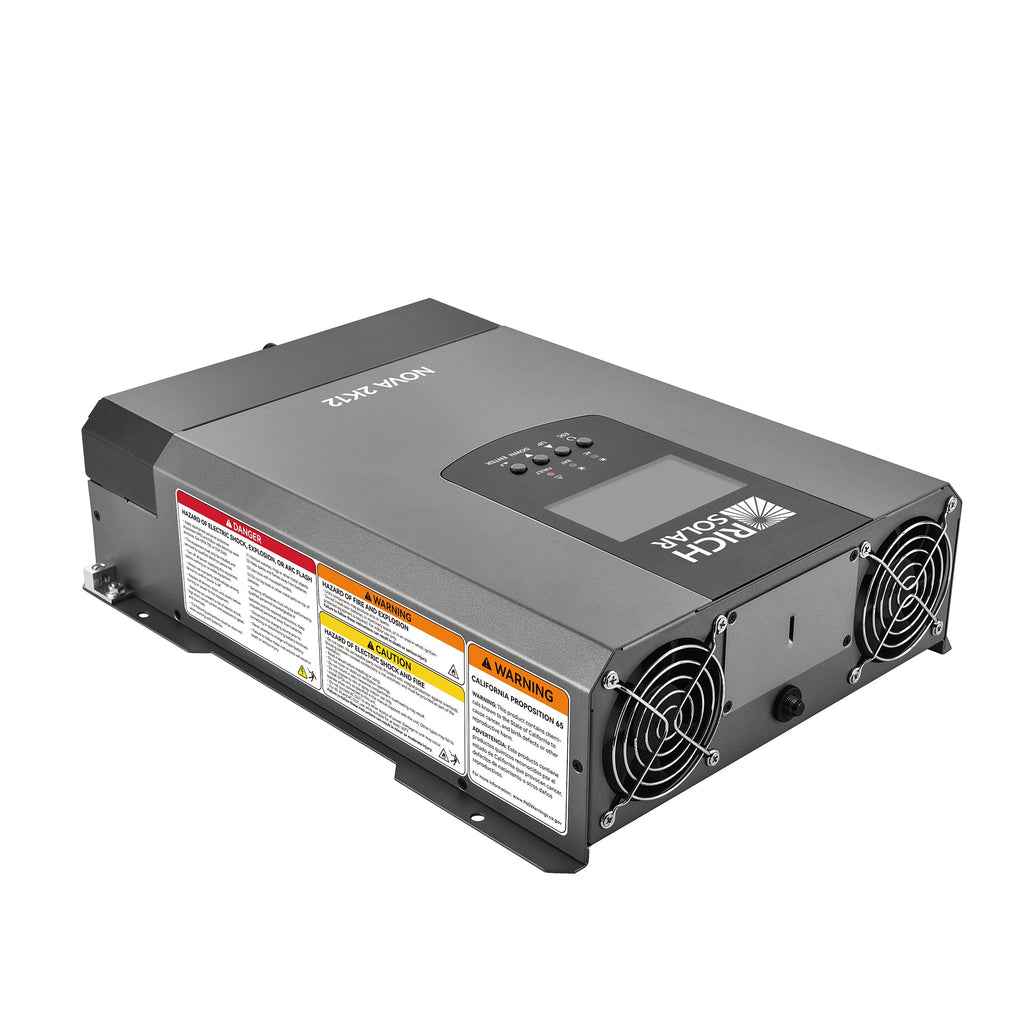

NOVA 2K12 Pure Sine Wave Power Inverter
Power your critical devices with confidence using the NOVA 2K12 Pure Sine Wave Inverter. Engineered for high efficiency and clean output, it provides reliable backup power for sensitive electronics, medical equipment, and professional setups, even in demanding environments.
Benefits
- Protect sensitive electronics with clean, stable pure sine wave power.
- Maximize battery life with over 90% energy efficiency.
- Maintain uninterrupted operation during power outages with seamless transfer switching.
- Operate safely and confidently with multiple built-in protection systems.
- Monitor performance easily through a clear, real-time LCD display.
Features
- Pure sine wave output (<5% THD) for clean, reliable energy.
- 91% high efficiency with minimal standby consumption.
- Automatic transfer switch with <20ms transfer time.
- Dual transfer modes: Normal (for appliances and tools) / Fast (for computers and servers).
- Adjustable low voltage shutdown (10.5V–12.8V).
- Overload, short-circuit, and overheat protection.

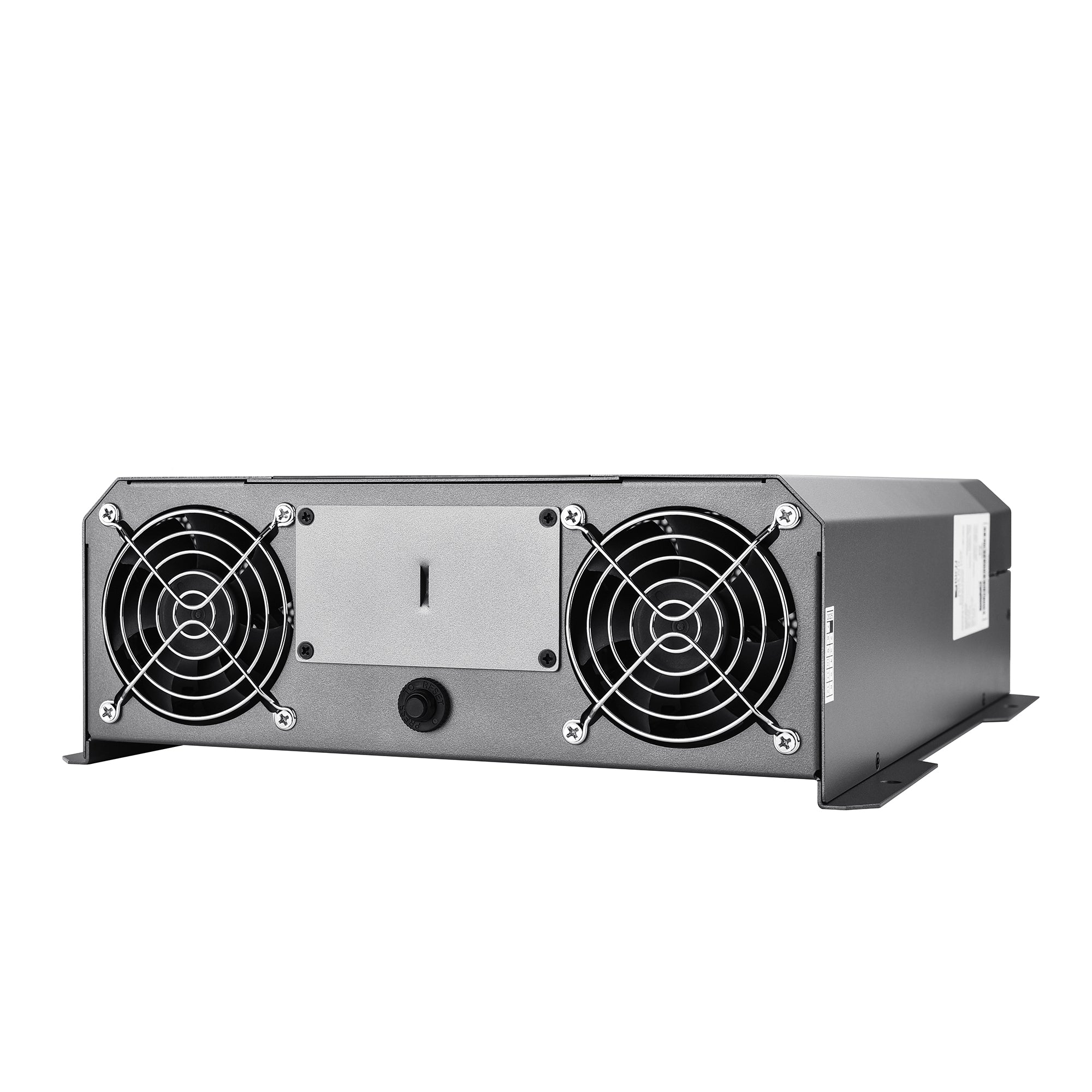

- Optional drip shield and temperature-controlled cooling fan.

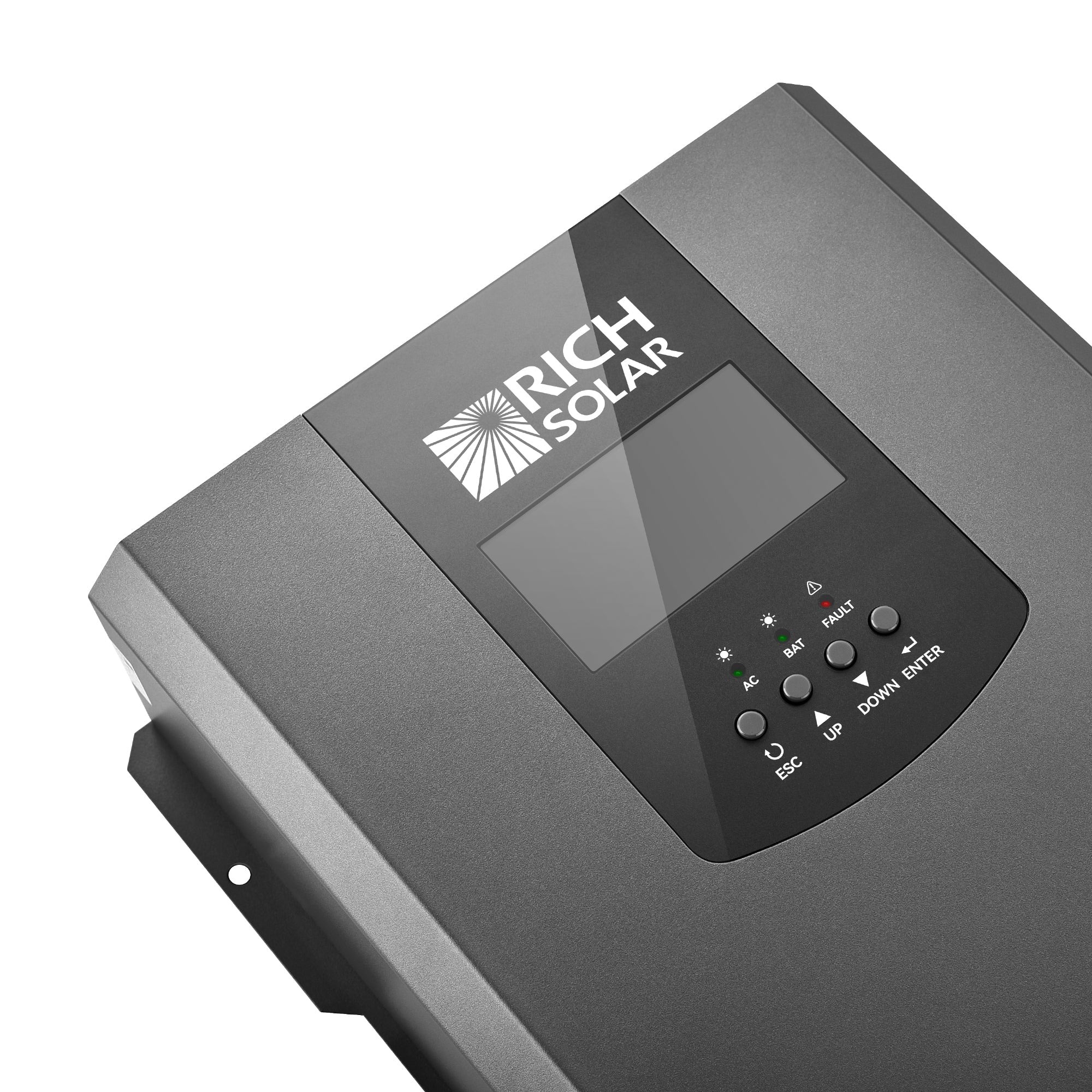

- Smart LCD display showing voltage, load, and system status.
- UL-compliant design, compatible with 12V deep-cycle and lithium (BMS) batteries.
Specifications
- Model: NOVA 2K12
- Rated Output Power: 2000W
- Peak Power: 4000W (5 seconds)
- DC Input Voltage: 12VDC (Max 18V)

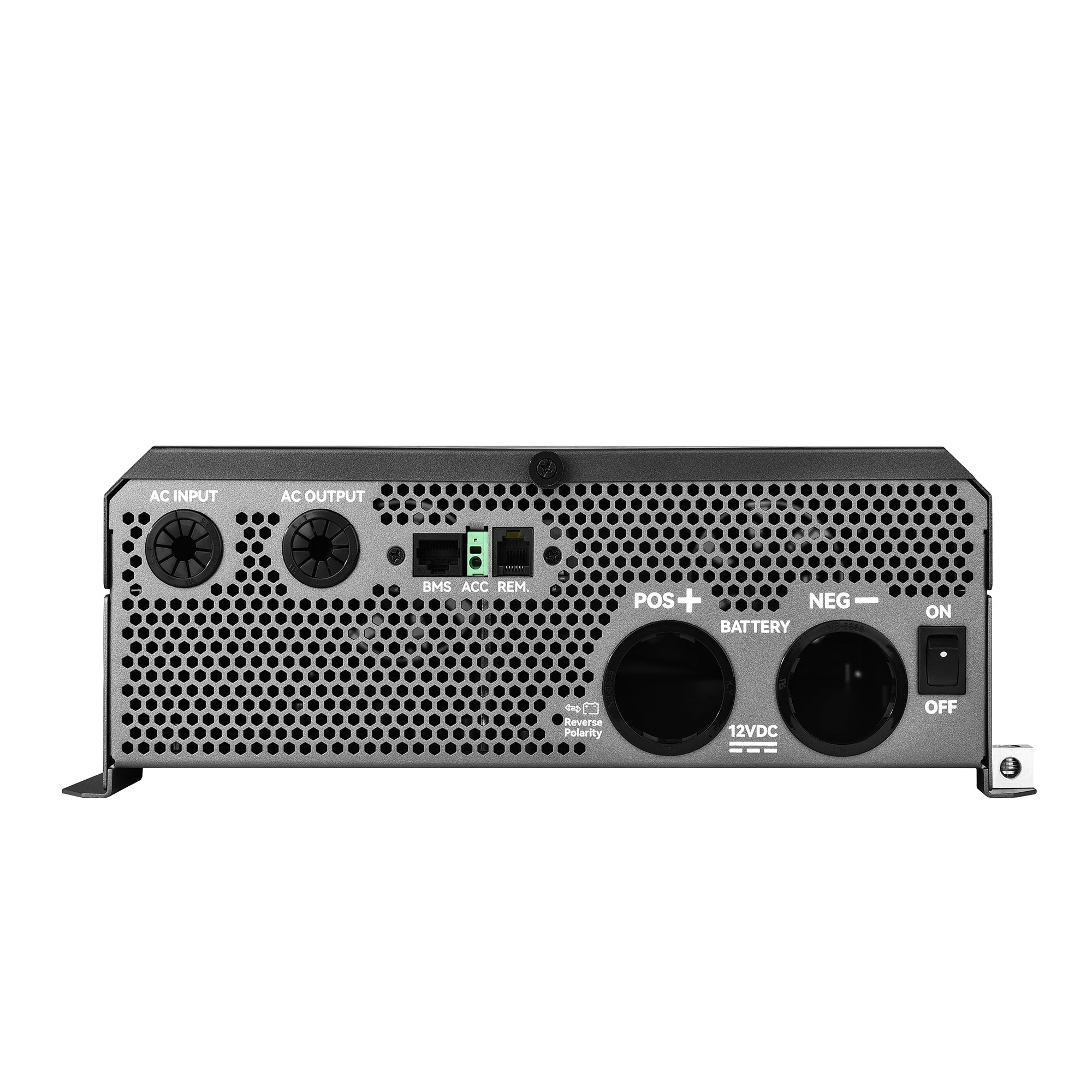

- Communication Ports: RS232 / RS485

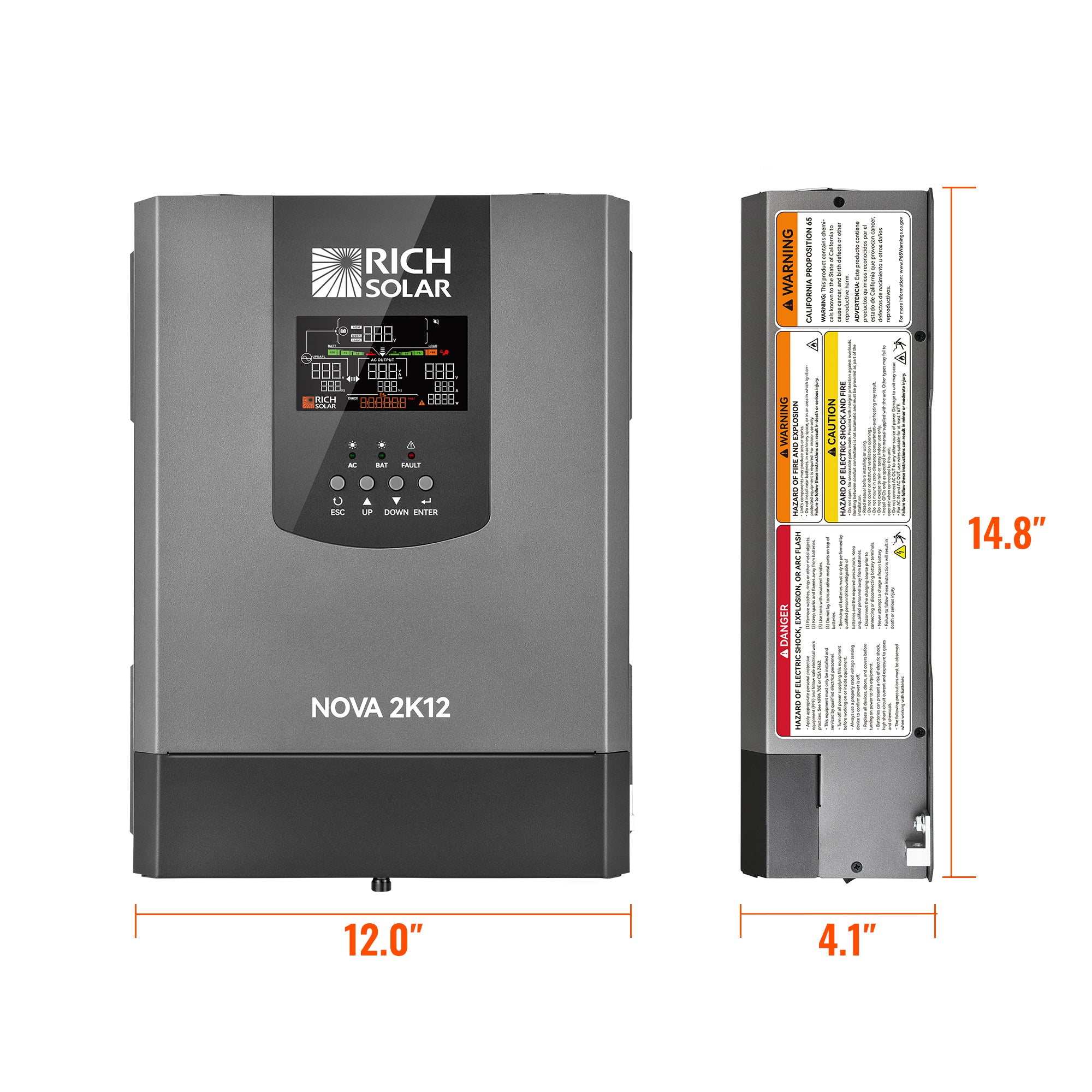

- Dimensions (L×W×H): 14.8 × 12.0 × 4.1 in
- Net Weight: 15.9 lb
AC Input
- Nominal Voltage: 120VAC
- Operating Range: 80–140VAC (full power)
- Input Frequency: 50/60Hz selectable
- Frequency Range: 45–70Hz
AC Output
- Nominal Voltage: 120VAC
- Voltage Regulation (Battery Mode): 120VAC ± 5%
- Output Frequency: 50Hz or 60Hz selectable ± 1%
- Total Harmonic Distortion (Battery Mode): <5%
- Peak Efficiency: 91%
- Waveform: Pure sine wave
- Transfer Time: ?20ms
- Transfer Modes: Normal / Fast
Battery
- Nominal DC Voltage: 12VDC
- Operating Voltage Range: 10–17VDC
- Battery Compatibility: 12V deep-cycle (min. 100Ah) or LiFePO4 (with BMS)
Indicators
- Line Mode: Green LED on
- Battery Mode: Amber LED on
- Warning (with output): Red LED flashing
- Fault (no output): Red LED on
Operating Environment
- Humidity: 5%–95% (non-condensing)
- Operating Temperature: -40°F ~ 160°F (-4°F ~ 122°F at full power)
Certification
- EMC Compliance: UL458, FCC Part 15
