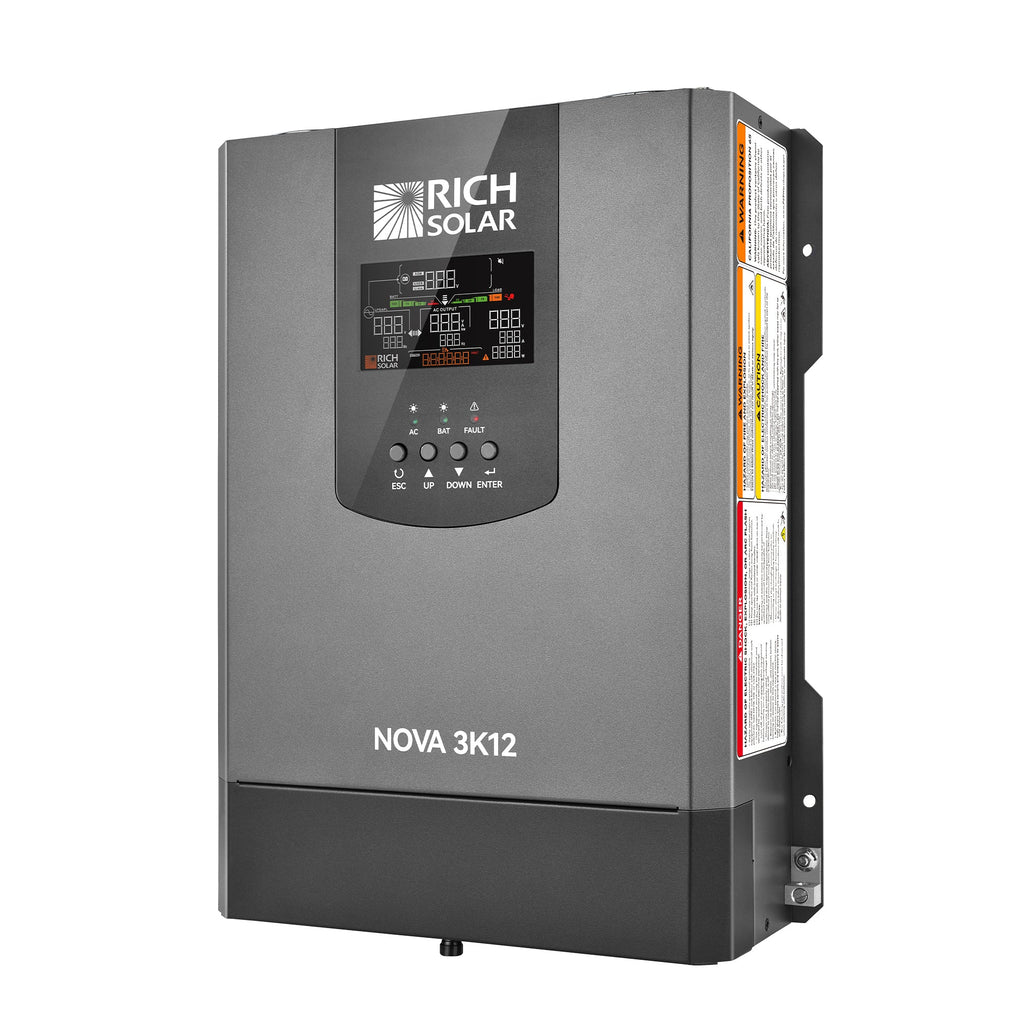

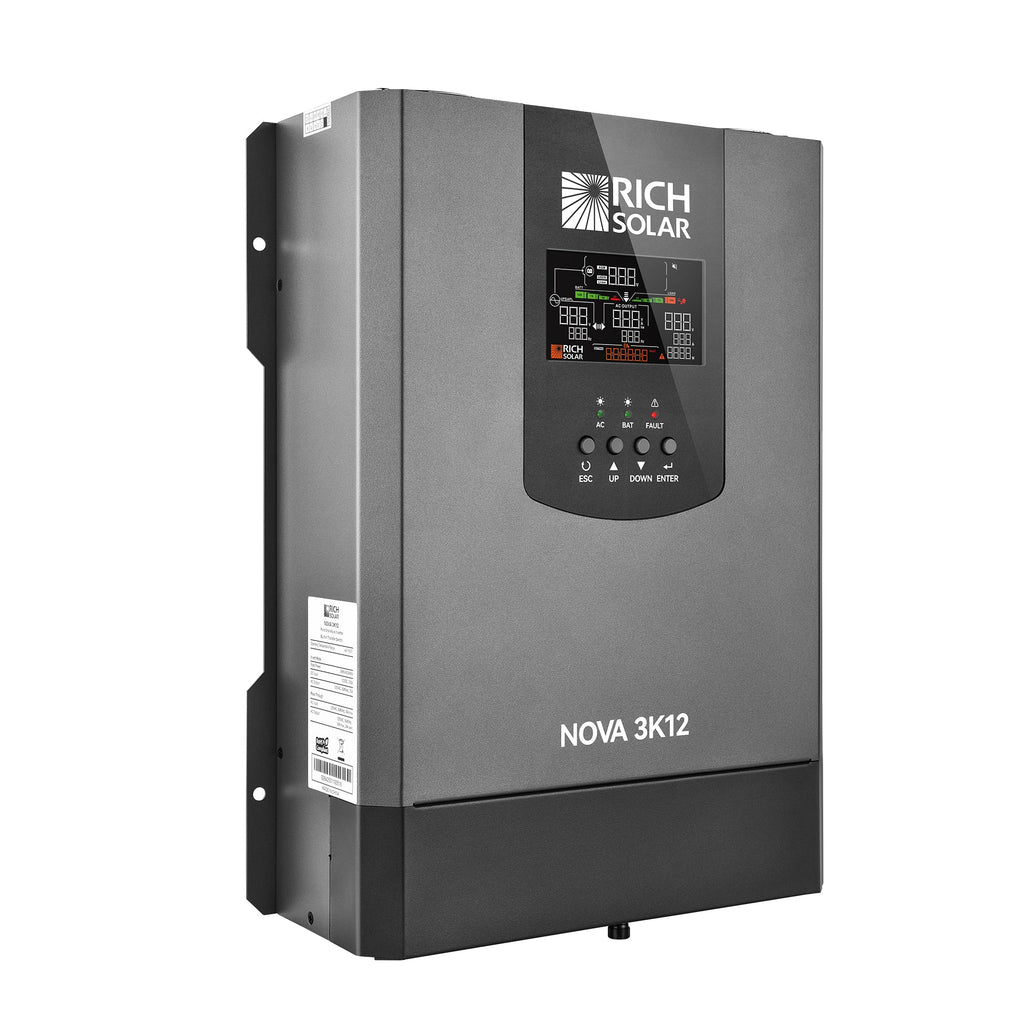

NOVA 3K12 Pure Sine Wave Inverter — 3000W Reliable Power
Overview
The NOVA 3K12 delivers clean, efficient AC power from a 12V battery source. It produces a pure sine wave with low distortion, switches automatically during outages, and includes protections and monitoring for safe, dependable use in homes, RVs, boats, or backup setups.
Benefits
- Protect sensitive equipment — clean (<5% THD) pure sine output keeps medical devices, servers and electronics running reliably.
- Extend battery run-time — up to 91% peak efficiency and low standby draw mean longer operation between charges.
- Avoid interruptions — automatic transfer (?20 ms) and selectable Fast/Normal modes keep refrigerators, computers and tools running without user intervention.
- Reduce worry about faults — adjustable low-voltage shutdown and built-in overload/short-circuit/overheat protection minimize risk to batteries and loads.
- Use it outdoors or at sea — optional drip shield and temperature-managed cooling fan increase durability in harsh or marine environments.
- Know what’s happening — the smart LCD and LED indicators show voltage, load and system status so you can act quickly if needed.
- Install with confidence — UL-listed compliance and compatibility with 12V deep?cycle and LiFePO4 (with BMS) batteries simplify integration.
Features
- Pure sine wave AC output with total harmonic distortion <5% for clean power delivery.
- High efficiency design — up to 91% peak efficiency to conserve battery energy.
- Automatic transfer switch with ?20 ms transfer time and two transfer modes: Normal (appliance/tool friendly) and Fast (computers/servers).
- Adjustable low-voltage shutdown (10.5V–12.8V) plus overload, short-circuit and overheat protection.

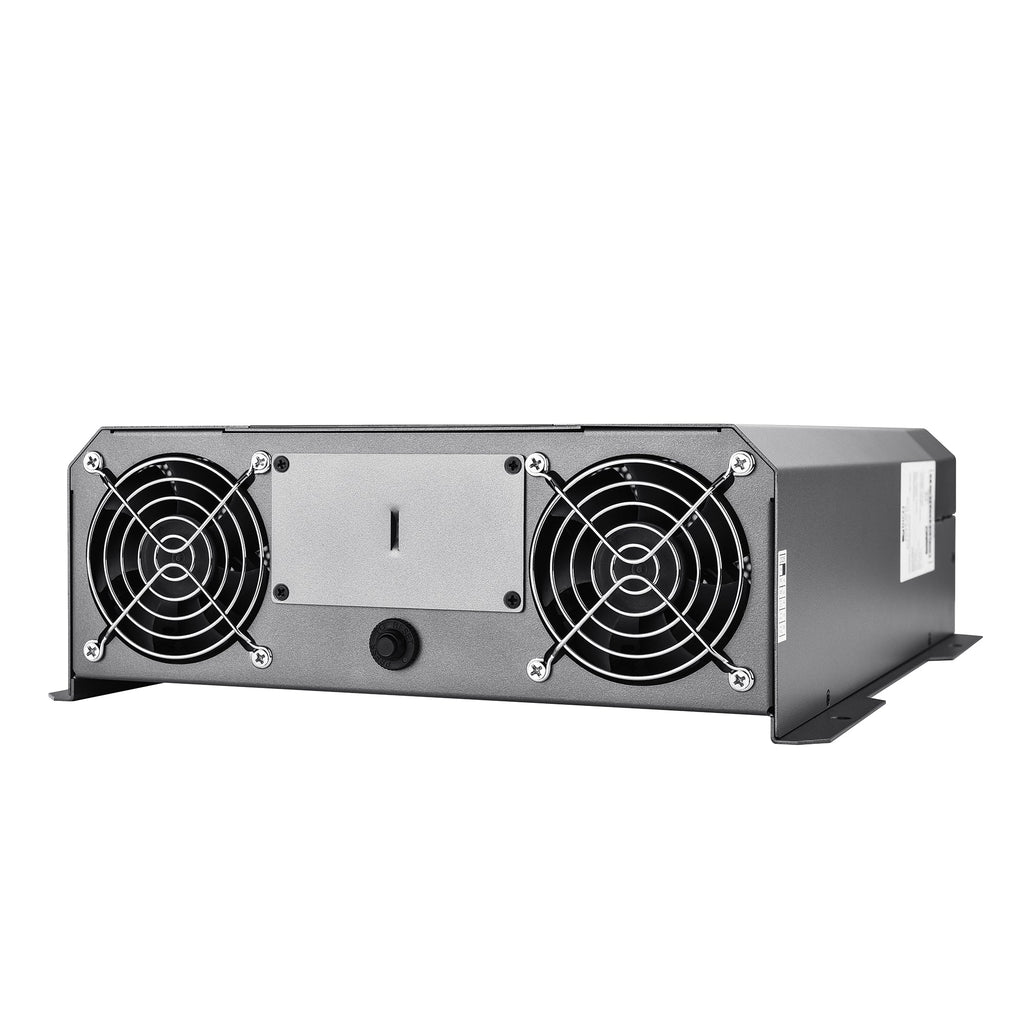

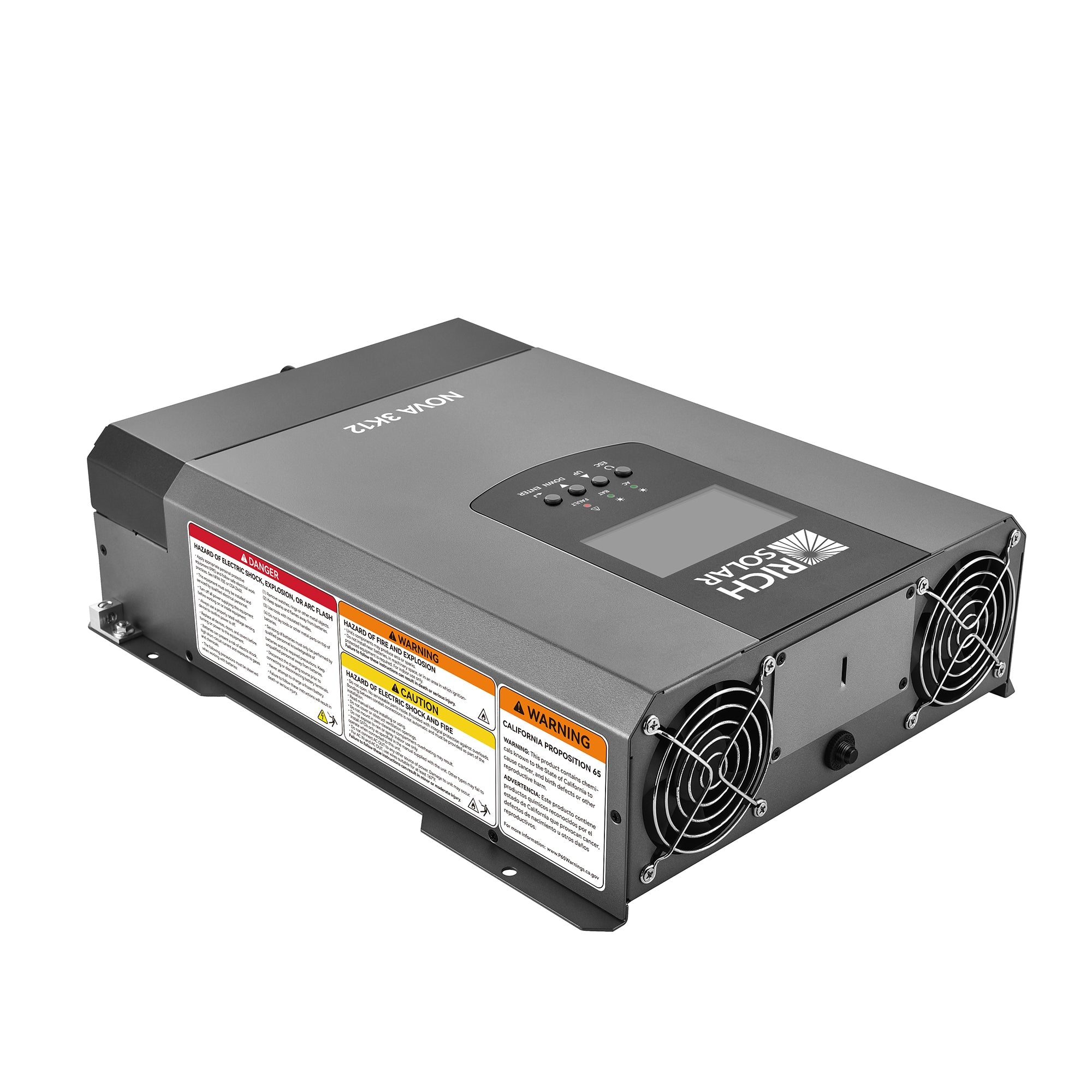

- Optional marine-grade drip shield and temperature-regulated cooling fan for harsh environments.

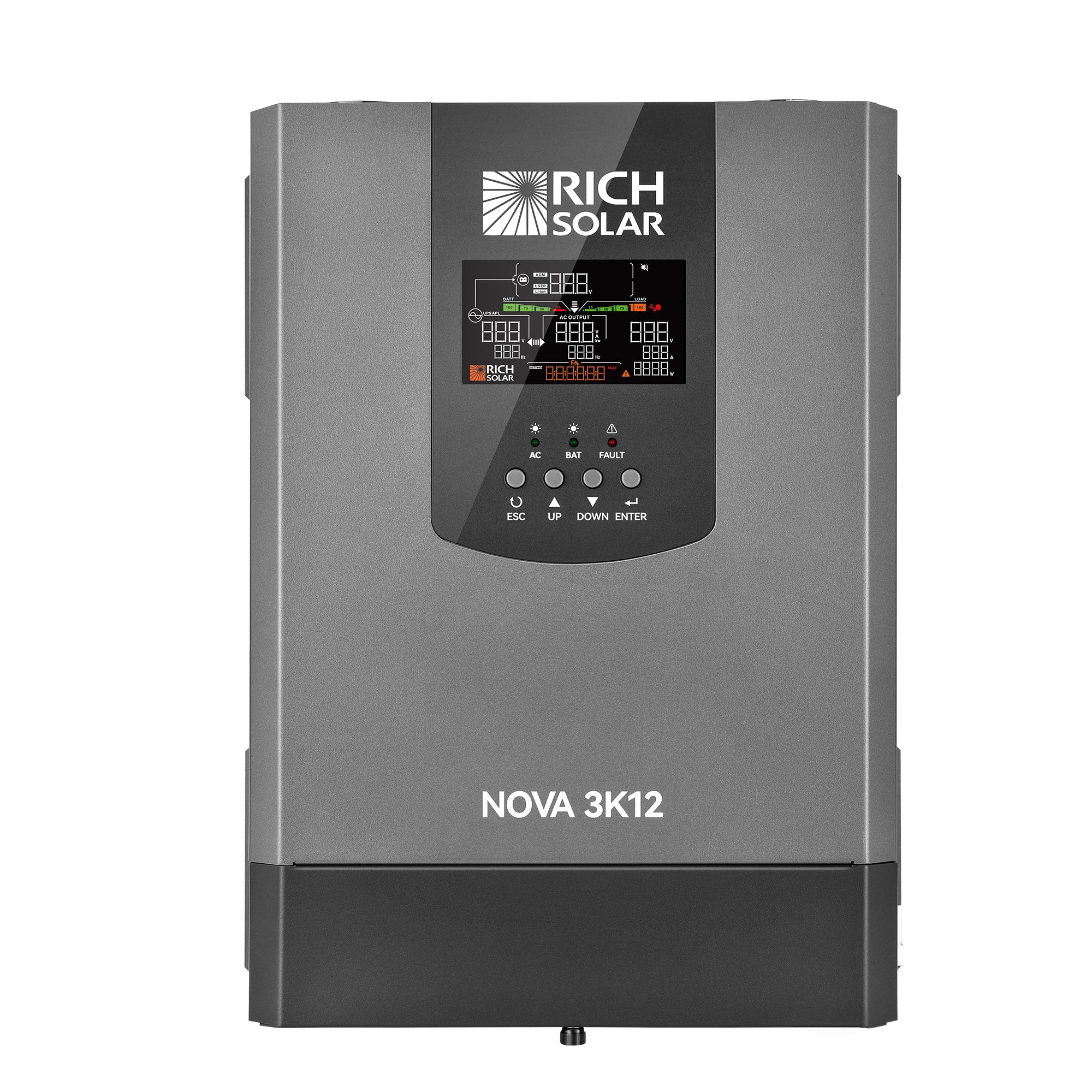

- Smart LCD display showing real-time voltage, load and system status; LED indicators for Line, Battery, Warning and Fault conditions.

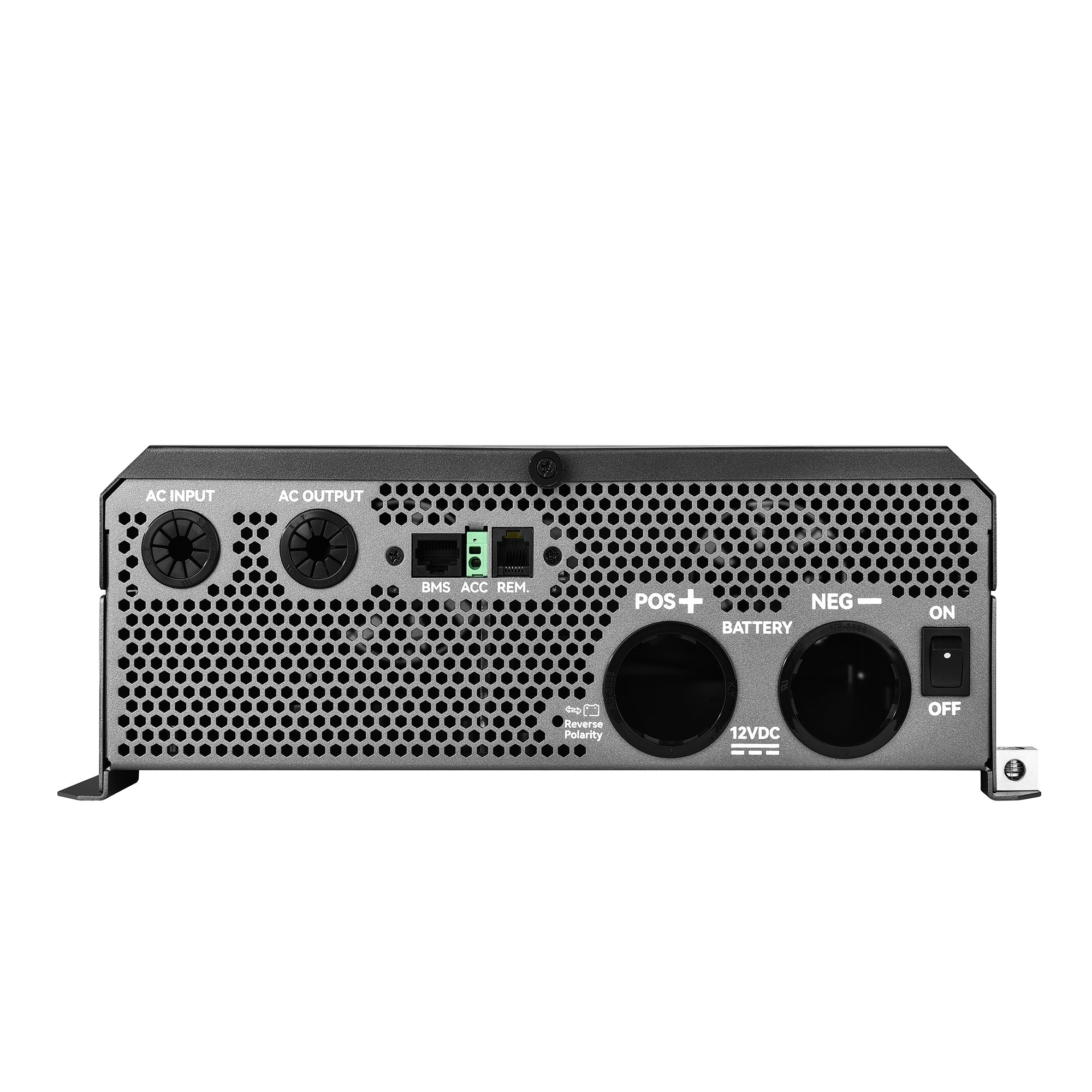

- Communication ports: RS232 and RS485 for monitoring and integration.
- Compatible with 12V deep-cycle batteries (recommended min. 100Ah) and LiFePO4 with BMS.
Specifications
- Model: NOVA 3K12
- Rated output power: 3000 W
- Peak power: 6000 W (5 s)
- DC input voltage: 12 VDC (maximum 18 V)
- Nominal DC voltage (battery): 12 VDC
- DC input operating voltage range: 10–17 VDC
- Low-voltage shutdown adjustable range: 10.5 V–12.8 V
- Battery compatibility: 12V deep-cycle (min. 100 Ah), LiFePO4 (with BMS)
- Communication: RS232 / RS485

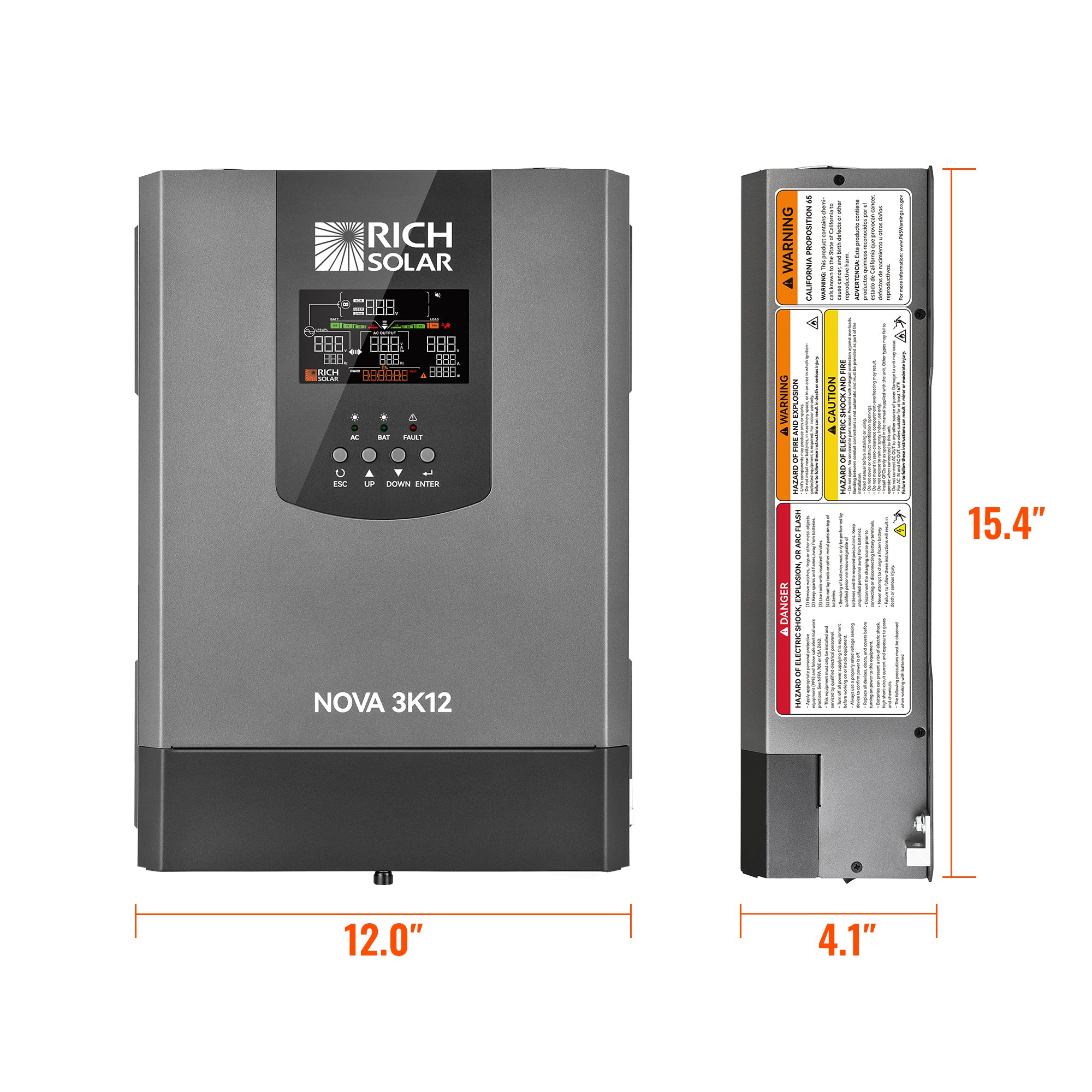

- Dimensions (L x W x H): 15.6 x 12.0 x 4.1 in
- Net weight: 17.6 lb
- AC input nominal voltage: 120 VAC
- AC input operation range: 80–140 VAC (full power)
- AC input frequency: 50/60 Hz selectable (range 45–70 Hz)
- AC output nominal voltage: 120 VAC
- Voltage regulation (battery mode): 120 VAC ±5%
- Output frequency: 50 Hz or 60 Hz selectable (±1%)
- THD (battery mode): <5%
- Waveform: Pure sine wave
- Transfer time: ?20 ms
- Transfer modes: Normal / Fast
- Peak efficiency: 91%
- Indicators: Line mode (green LED on), Battery mode (amber LED on), Warning with output (red LED flashing), Fault without output (red LED on)
- Operating humidity: 5% to 95% relative humidity (non-condensing)
- Operating temperature: -40°F to 160°F (–4°F to 122°F at full power)
- Protections: Overload, short-circuit, overheat, adjustable low-voltage shutdown
- Certifications: EMC/UL compliance — UL458 and complies with FCC Part 15
