Compact 30A PWM Solar Charge Controller — Smart Battery Management
Overview
A compact PWM solar charge controller with MOSFET switching that manages charging for a wide range of batteries. It offers smart charging control, clear LED and digital indicators, multi-layer protection, and a slim, corrosion-resistant design for reliable, low-power operation in small solar systems.
Benefits
- Protects and extends battery life by applying the right charge profile and preventing damaging conditions.
- Reduces energy waste and keeps systems running longer with high efficiency and low standby draw.
- Makes monitoring simple — LED indicators and a digital display show battery condition and charging status at a glance.
- Minimizes installation hassle with common positive grounding and corrosion-resistant terminals for durable connections.

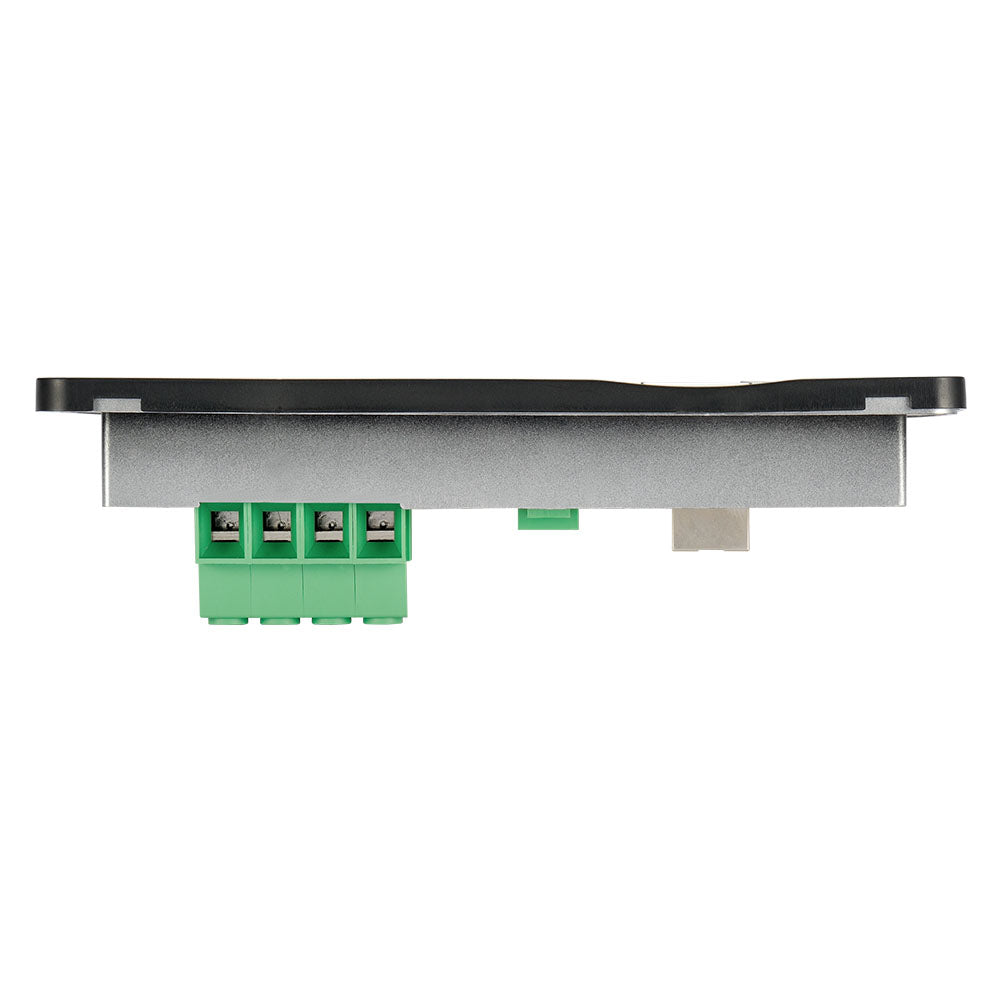

- Fits into tight spaces thanks to an ultra-thin, compact form factor for easy wall mounting.
- Improves safety and uptime with automatic protections (over-voltage, short-circuit, reverse polarity, thermal) and no-spark connections.
Features
- PWM charging control using MOSFET switching for efficient regulation.
- Common positive grounding connection for simpler wiring in many systems.
- Selectable battery type and clear battery-condition indication.
- Smart charging control with managed charging time and automatic adjustments.

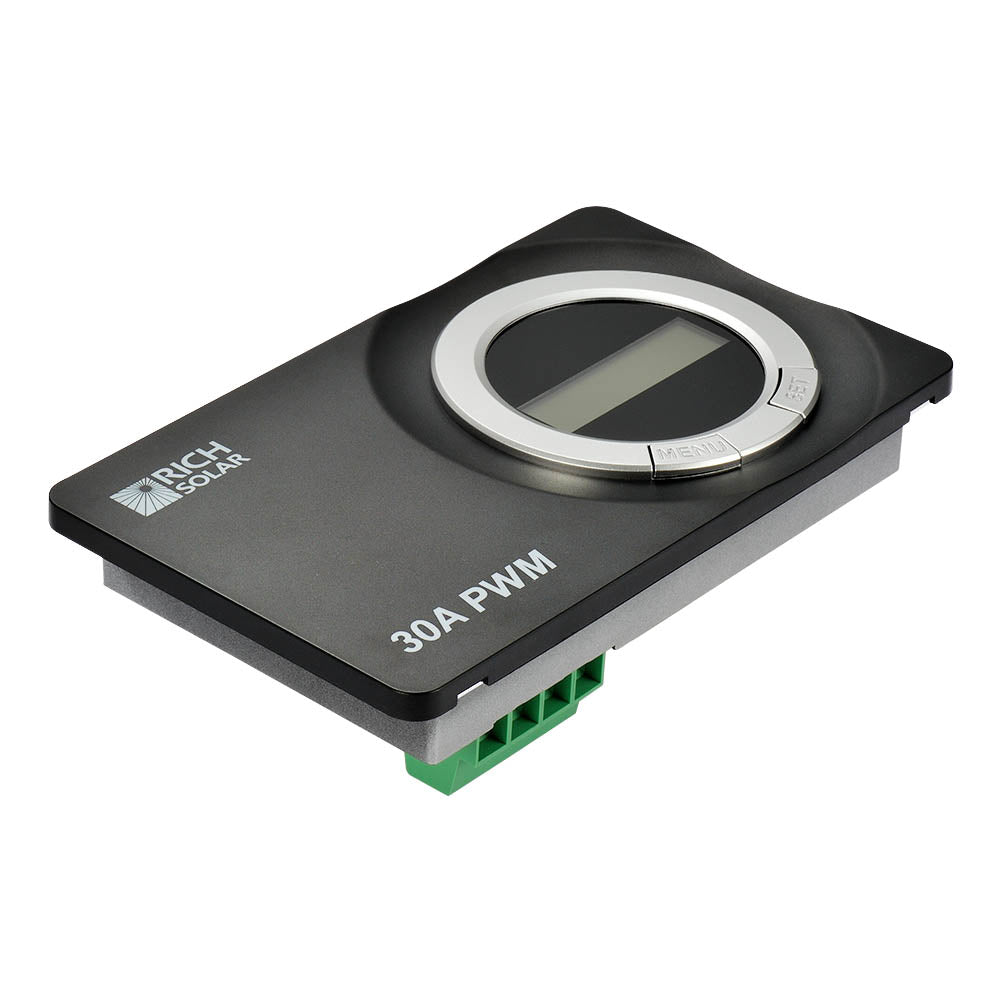

- LED indicators and a digital display for charging parameters and battery settings.
- Automatic activation of Lithium batteries that are protected by a BMS.
- Thermal protection and safeguards against over-voltage, short circuit, and reverse polarity.

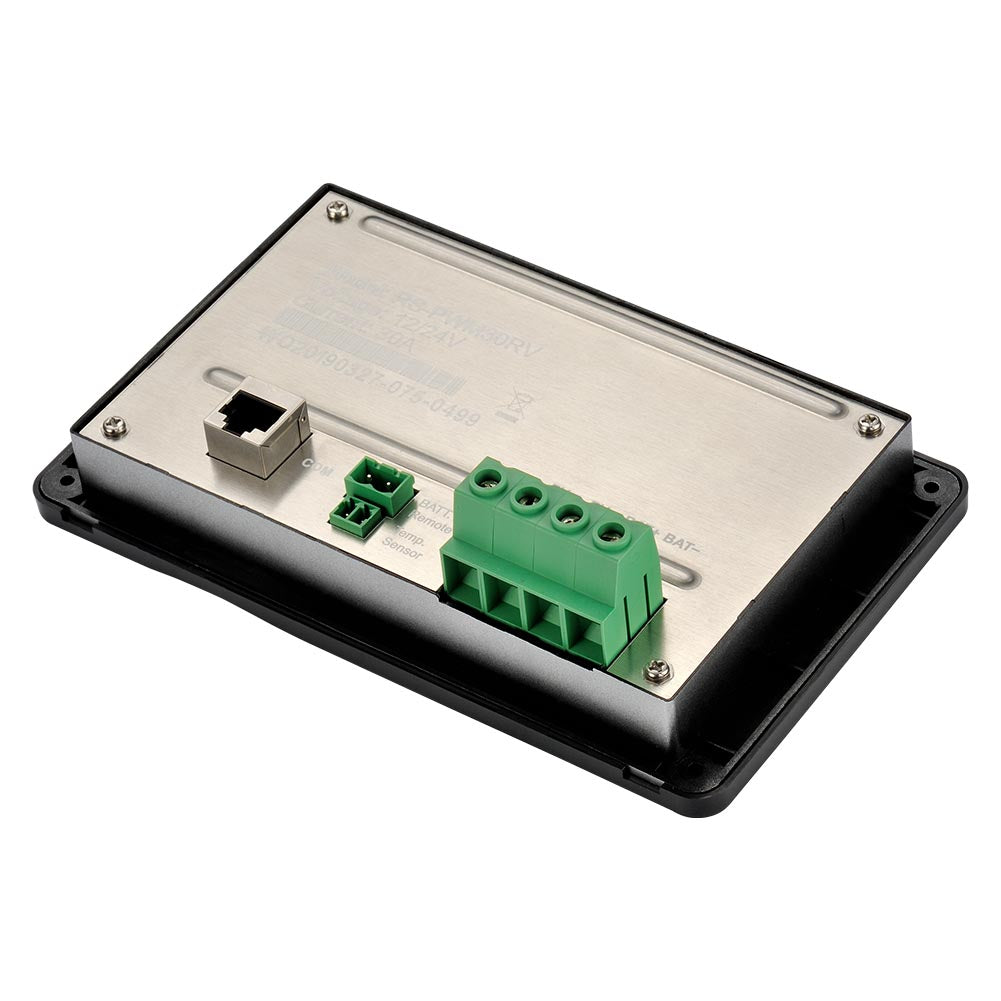

- No-spark design and corrosion-resistant terminals and connectors for safer, longer-lasting hookups.
- Conformal coating on the internal board to resist moisture.

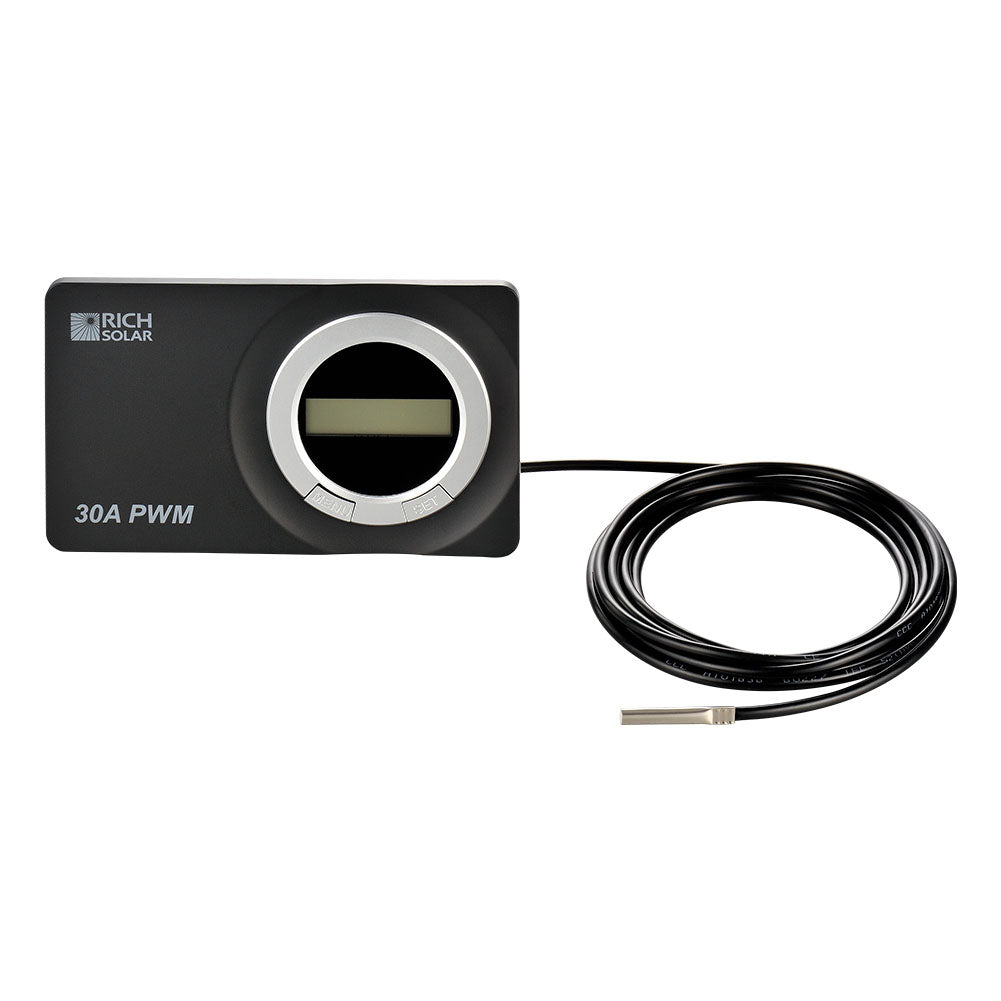

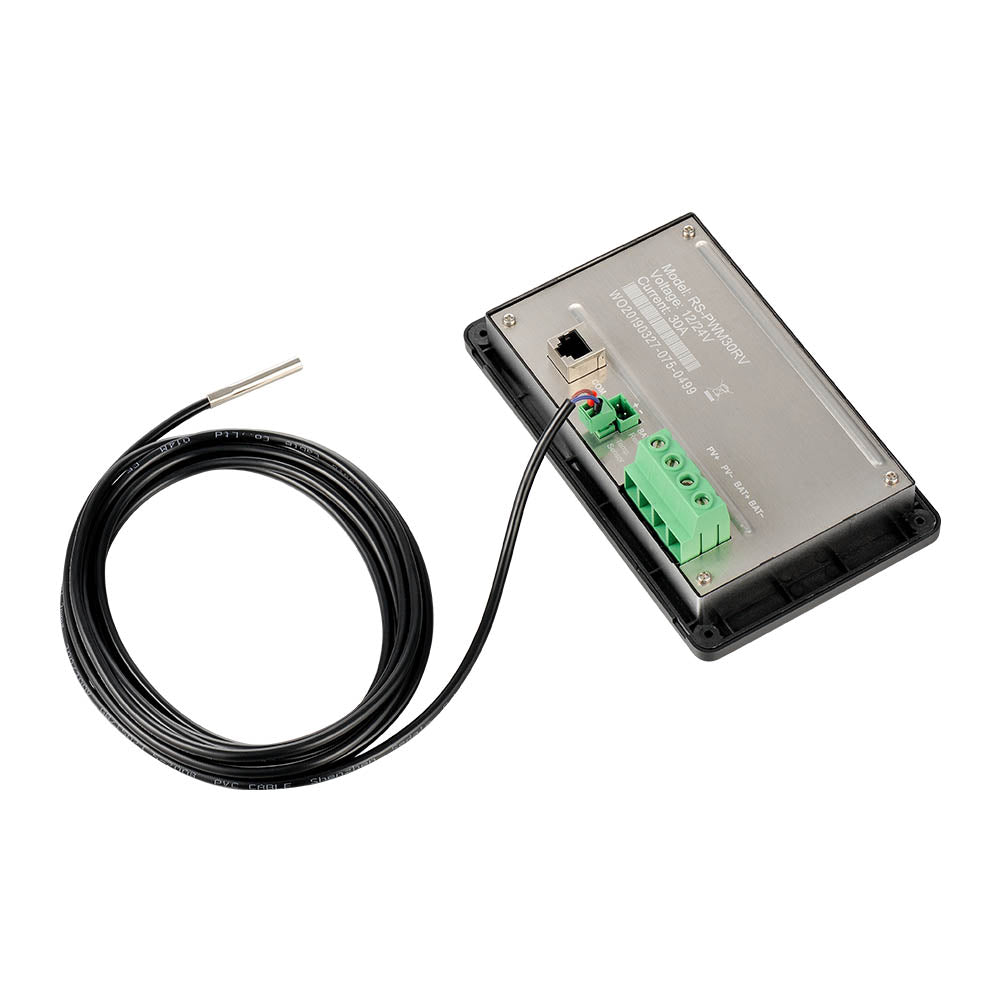

- External battery temperature sensor (BTS) port for improved temperature-compensated charging (sensor optional).
- Compatible with most rechargeable lead-acid batteries (Flooded/WET, AGM, GEL, Calcium) and Lithium batteries.
- Designed to meet CE standards and comply with EMC and FCC regulations.
Specifications
-
Rated solar panel current: Max. 30 A
-
Normal input solar array voltage: 15–22 V DC
-
Maximum open-circuit solar array voltage (no load): Max. 25 V DC
-
Lowest operating voltage (solar or battery side): Min. 8 V DC
-
Standby current consumption at night: Max. 5 mA
-
Maximum voltage drop (solar panel to battery): Max. 0.25 V DC
-
Controller material: Standard ABS plastic
-
Power terminal maximum stranded wire size: #8 AWG stranded (0.2 in²)
-
Power terminal torque: Up to 17 in-lb (1.92 N·m)
-
Mounting: Vertical wall mounting
-
IP rating: IP22
-
Net weight: Approx. 10.6 oz / 300 g
-
Safety & compliance: CE standard design; complies with EMC and FCC regulations
