100W Compact Monocrystalline Solar Panel (34?Cell, 25.1% Eff.)
Overview
This compact 100W solar panel uses 16-busbar monocrystalline cells and a 34-cell layout to deliver dependable power for RVs, vans, truck campers, overland rigs, and marine systems. Built with AR-coated tempered glass, a corrosion-resistant frame, and IP67 components, it’s designed for easy installation and long-term outdoor use.
Benefits
- Reliable off-grid power for camping and marine use so you can run lights, fridges, and devices without shore power.
- Better charging in low light — keeps batteries topped up at dawn, dusk, and on cloudy days.
- Durable construction and weather testing reduce the need for repairs and give greater confidence outdoors.
- Pre-attached cables and pre-drilled holes save installation time and fit a variety of mounting options.
- IP67 waterproof components and long warranties minimize maintenance and long-term cost worries.
Features

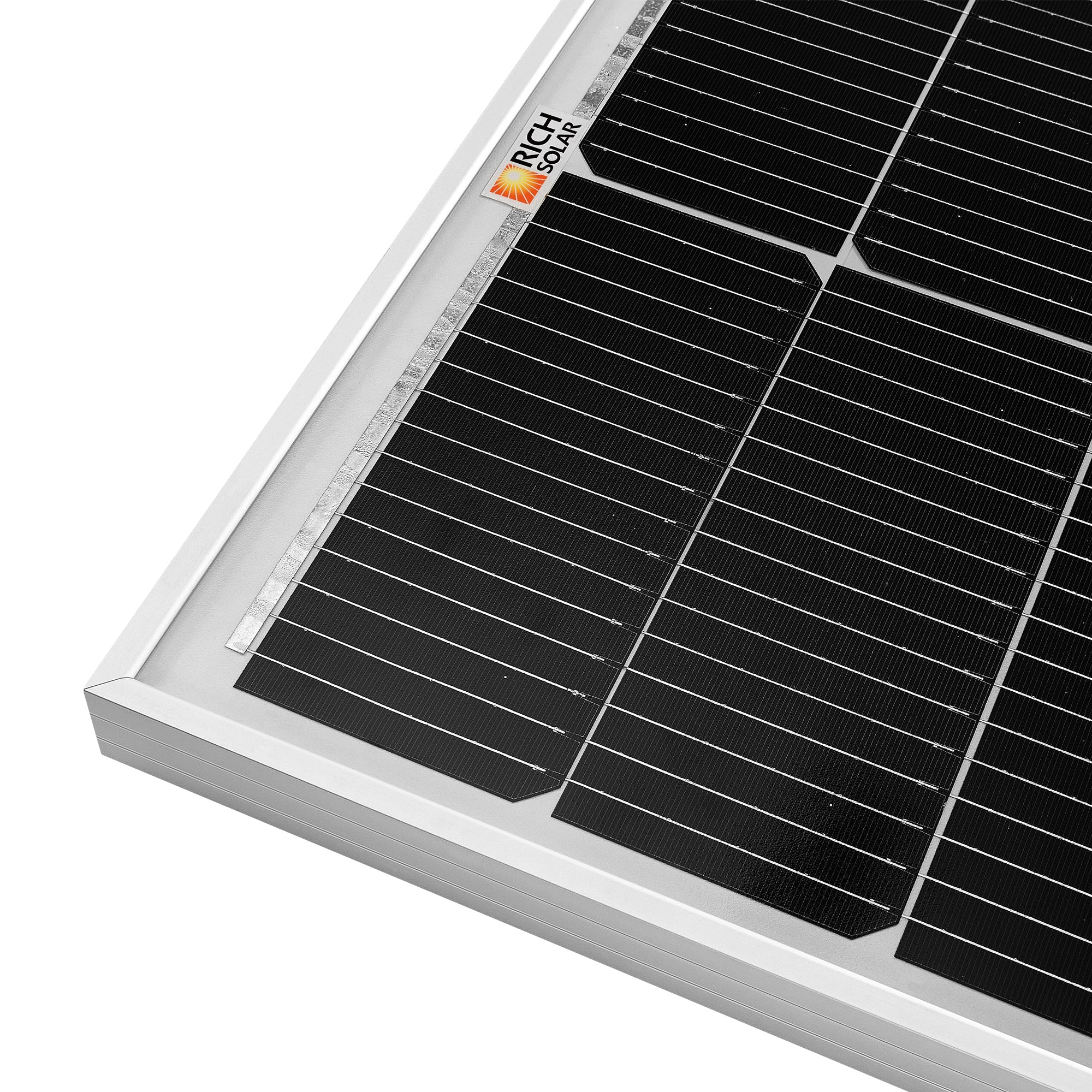

- 16-busbar monocrystalline cells with up to 25.1% cell efficiency

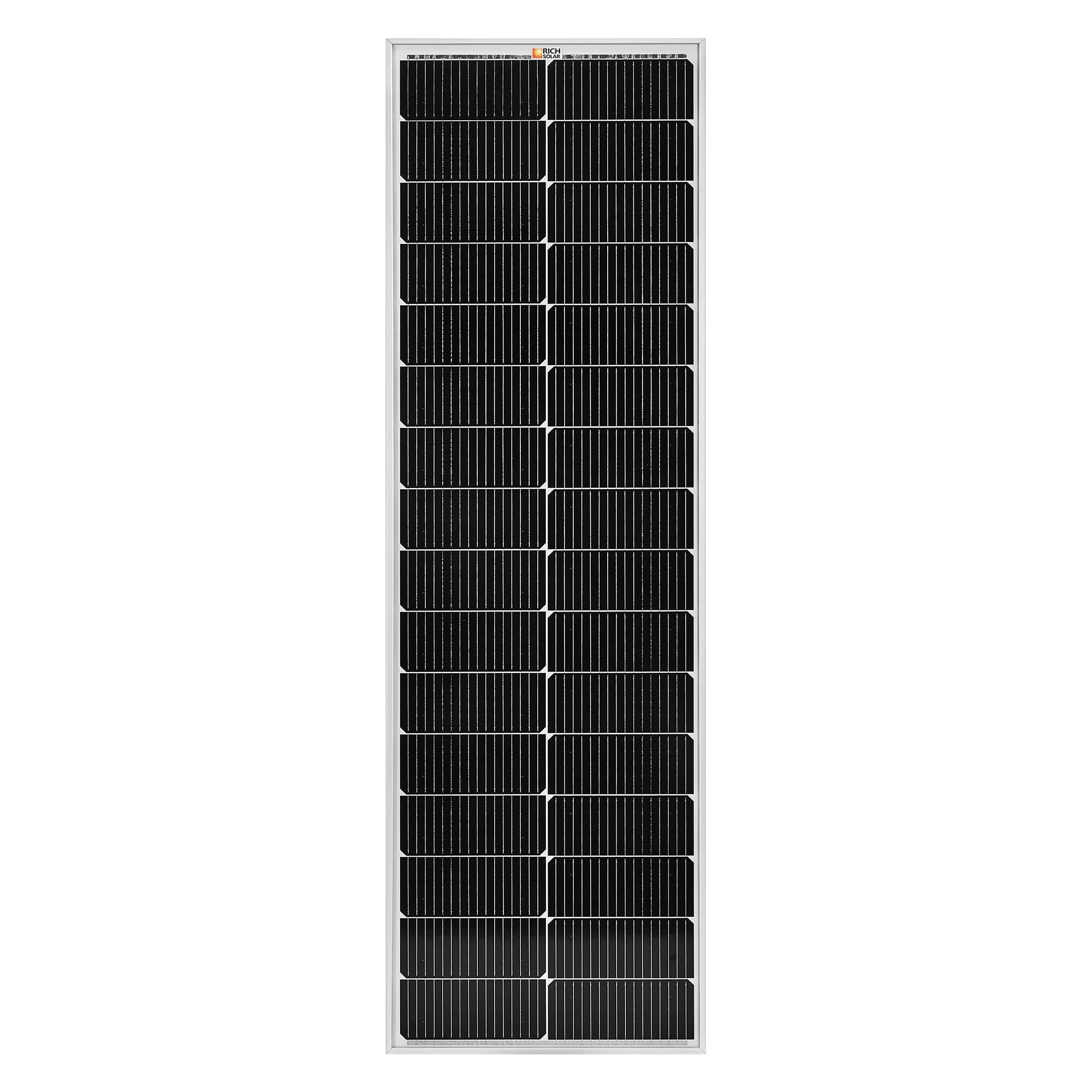

- 34-cell configuration providing a reliable 100W output
- 3.2 mm AR-coated tempered glass for improved sunlight capture and impact resistance
- Power tolerance 0 to +5W to ensure at least the rated output
- Strong low-light performance for better energy harvest at dawn, dusk, and on cloudy days
- Tested for UV exposure, thermal cycling, humidity freeze, and other environmental stresses
- PID-resistant and 100% EL-inspected to prevent microcracks and degradation
- Structural ratings: withstands 2400 Pa wind, 5400 Pa snow load, and 35 mm hail at 97 km/h
- Designed for mobile and marine applications: RVs, vans, truck campers, overland rigs, and boats

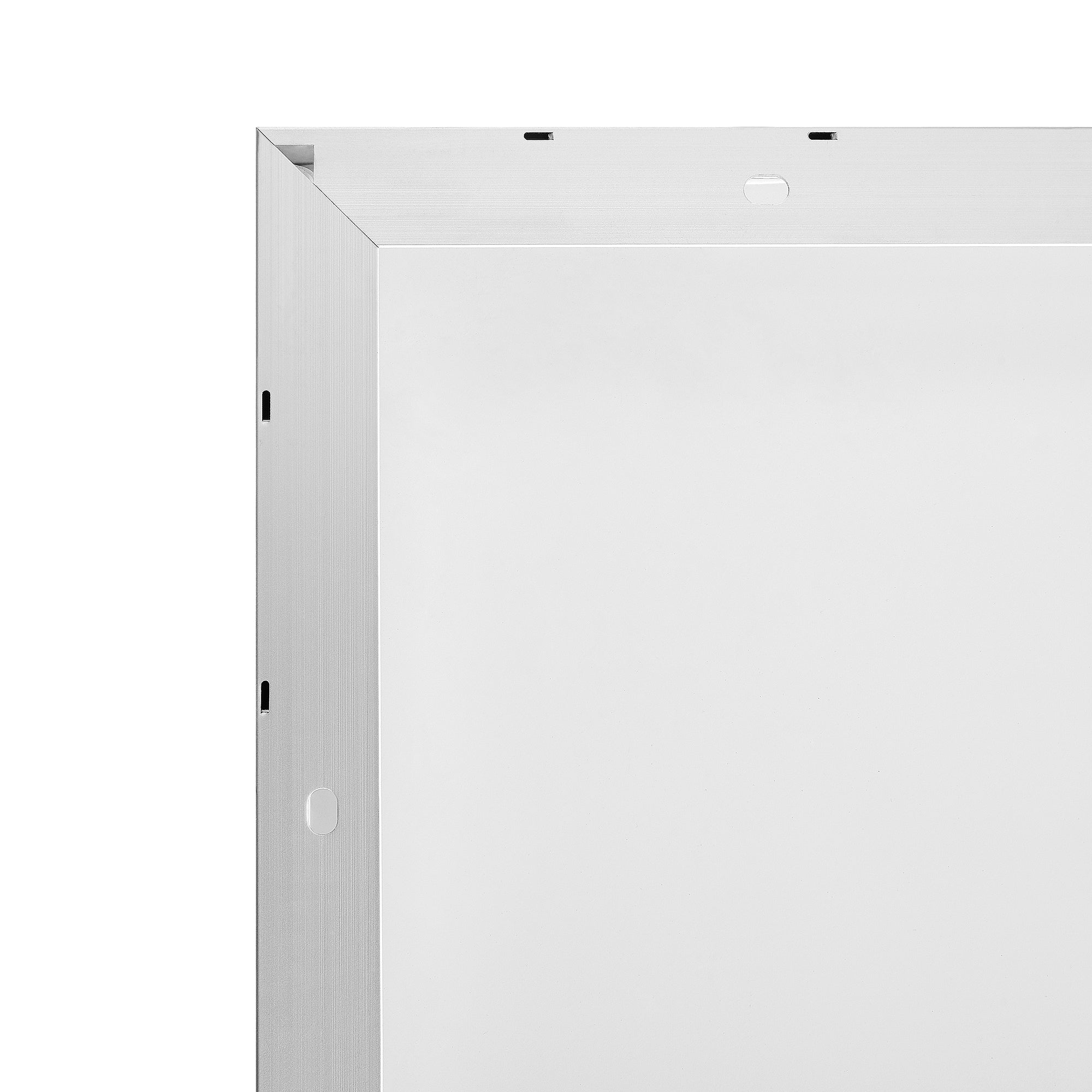

- Durable anodized aluminum frame — lightweight and corrosion-resistant
- 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation

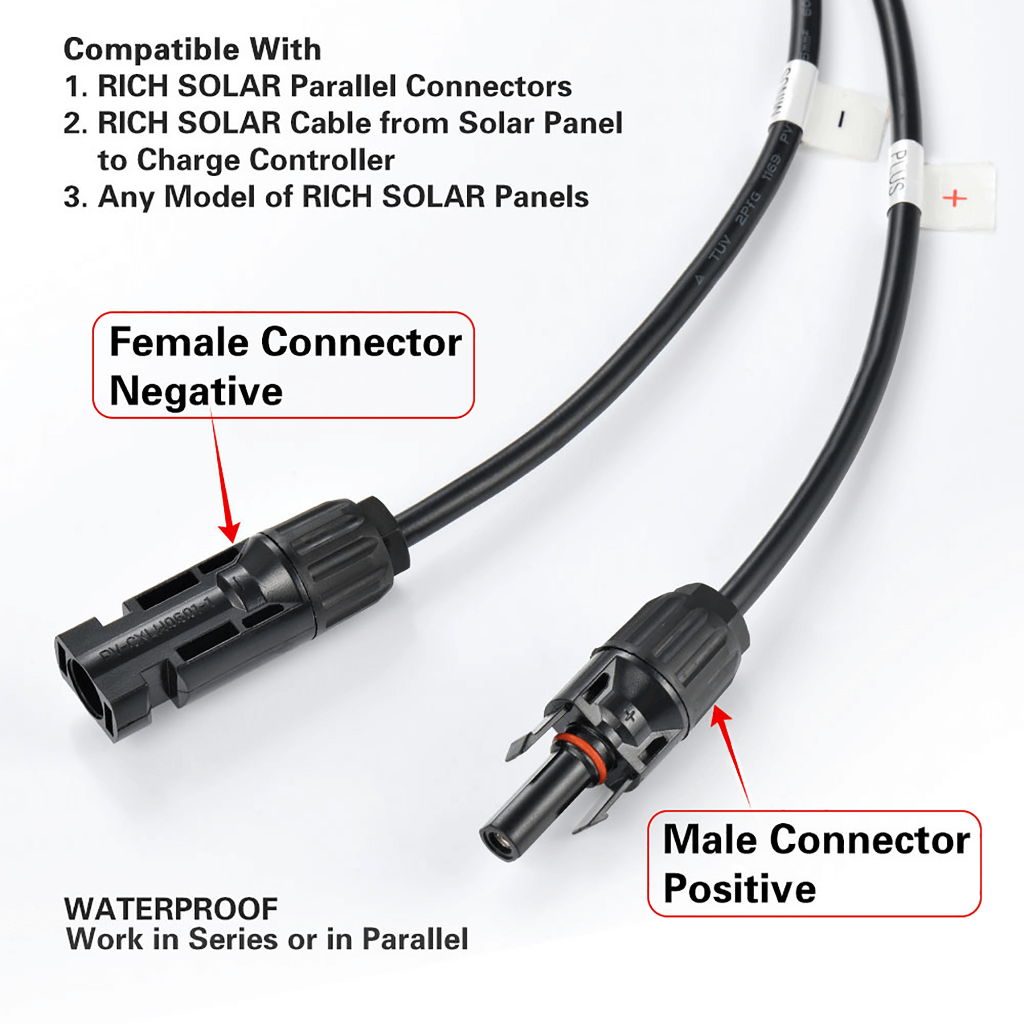

- MC4 connectors with 3 ft pre-attached cables for straightforward panel-to-panel or system connections
- Compatible with both on-grid and off-grid inverters
Specifications
- Maximum Power (Pmax): 100W
- Maximum Power Voltage (Vmp): 19.6V
- Maximum Power Current (Imp): 5.1A
- Open Circuit Voltage (Voc): 23.6V
- Short Circuit Current (Isc): 5.38A
- Maximum System Voltage (Vmax): 1000 VDC
- Maximum Series Fuse Rating: 15A
- Weight: 12.4 lb
- Dimensions: 50.0 x 15.8 x 1.2 in
- Panel Leads (pair): 12 AWG, 3 ft each

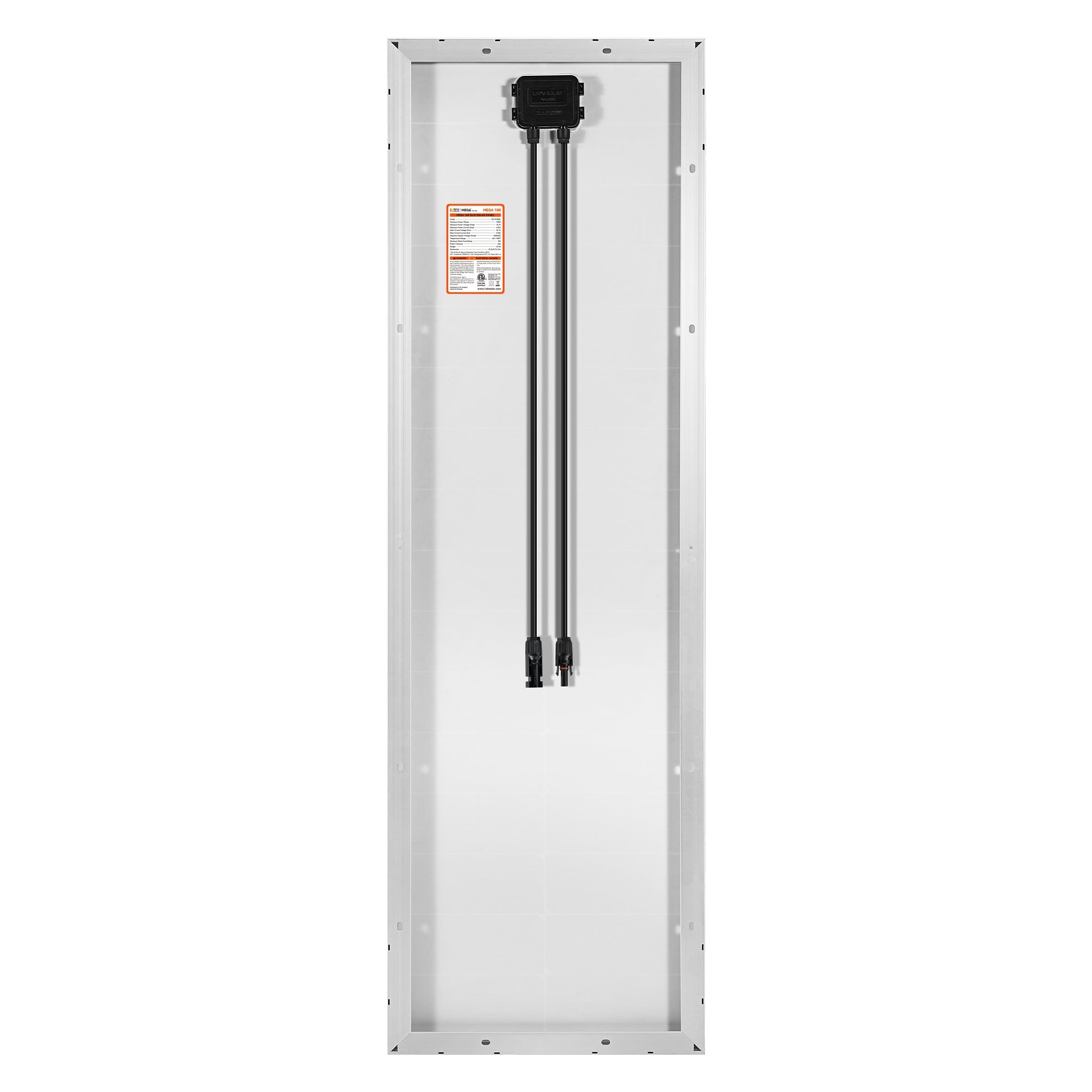

- Junction Box: IP67-rated waterproof
- Solar Connectors: IP67-rated waterproof MC4-style connectors
- Warranty: 25-year output warranty; 10-year workmanship warranty
