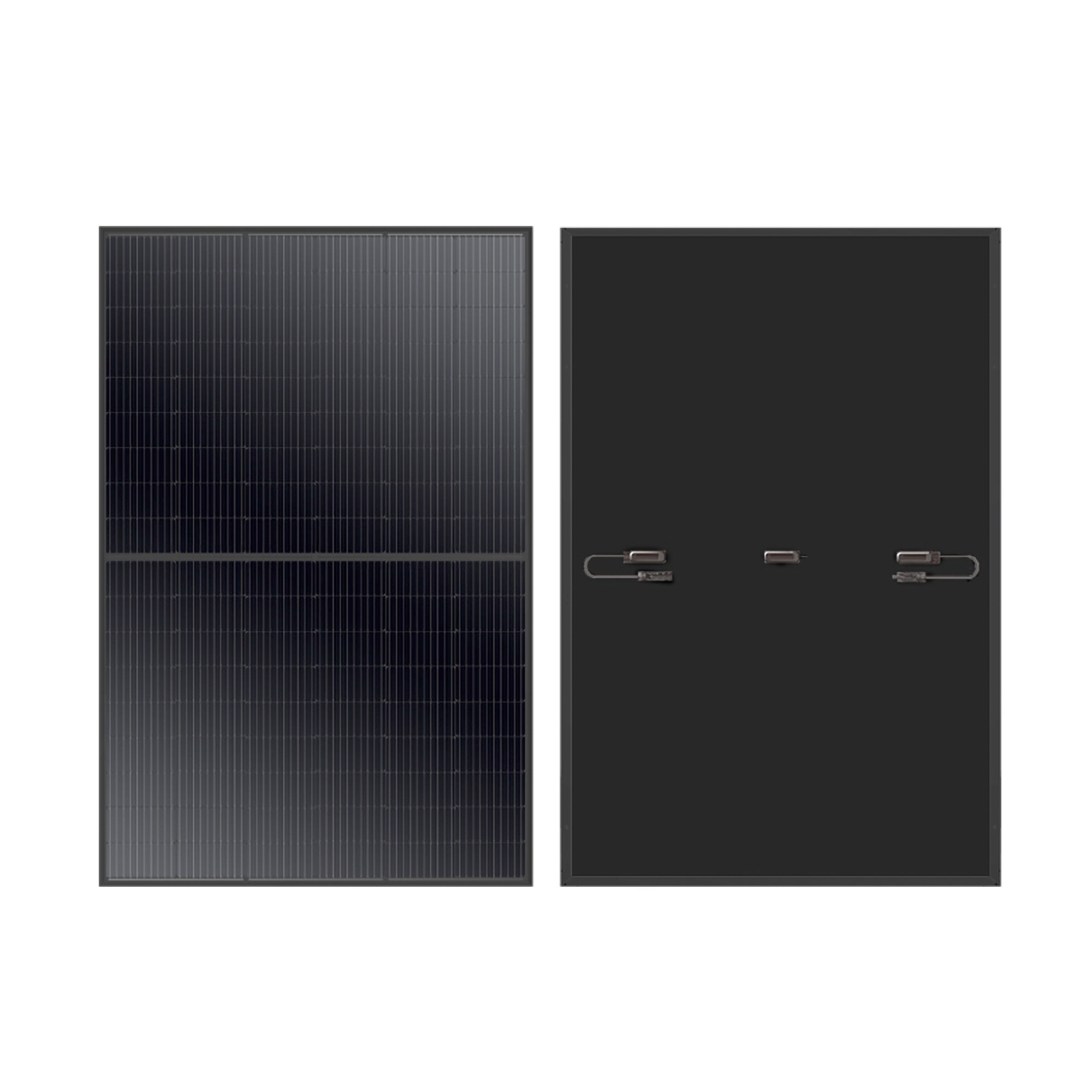

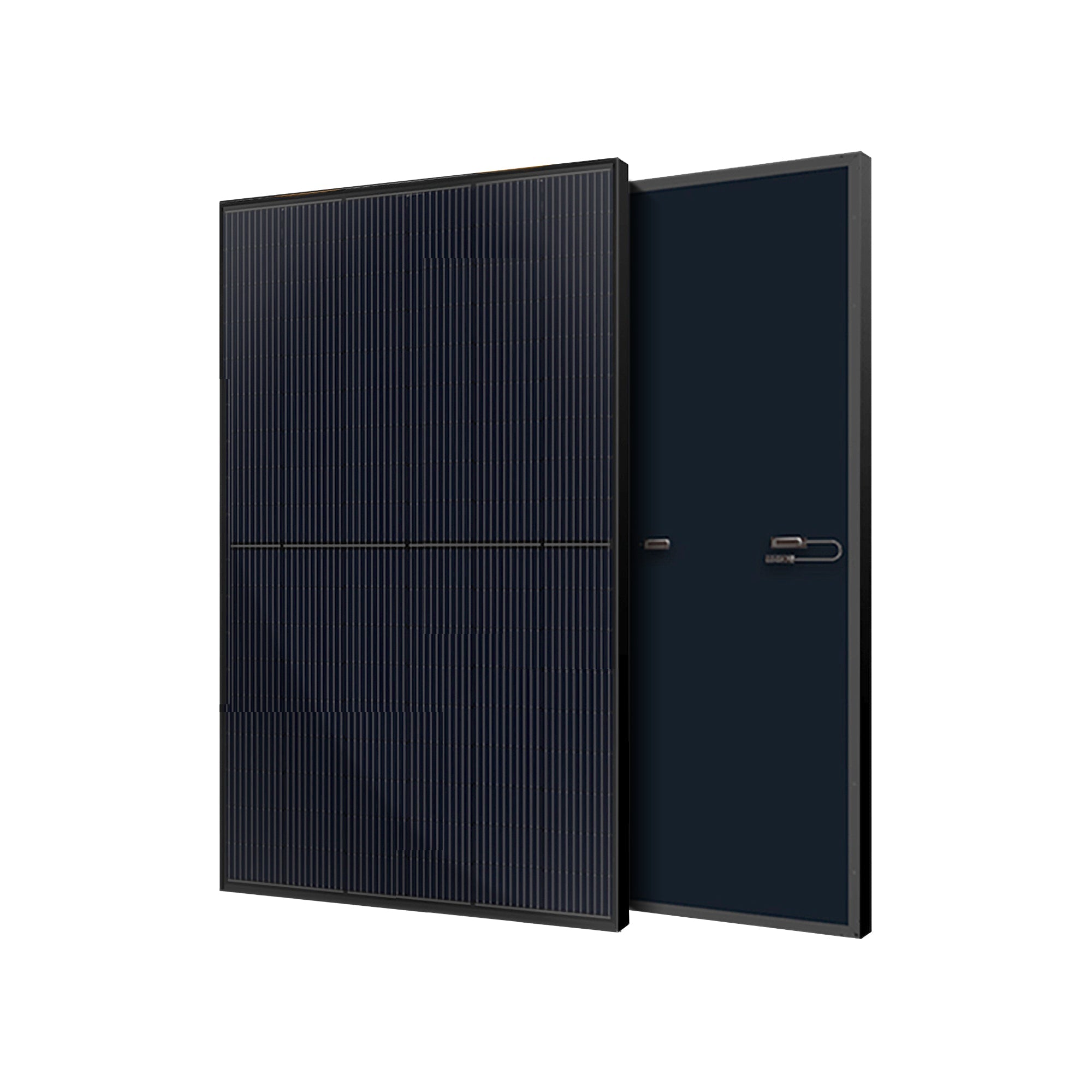

400W Mono PERC Solar Panel (10?Busbar) — 67.9 x 44.6 x 1.2 in
A high-efficiency, rugged 400W monocrystalline solar panel designed for residential, off-grid and mobile use. It combines Mono PERC cells and a 10-busbar layout for reliable energy output, easy installation, and strong low-light performance.
Benefits
- Generate consistent power to lower energy costs and reduce reliance on the grid.
- Reliable performance in mornings, evenings and cloudy conditions so you get usable energy longer each day.
- Simple, fast installation and handling save time on setup and maintenance.
- Durable construction means fewer interruptions and less worry about weather-related damage.
- Long-term coverage with a 25-year limited power warranty and a 10-year workmanship warranty for peace of mind.
Features
- 10-busbar monocrystalline PERC cell configuration for improved efficiency and lower resistive loss.
- Lightweight anodized aluminum frame for corrosion resistance and easier handling.
- High-transmission, anti-reflective coated tempered glass to maximize light capture.
- Plug-and-play junction box with industry-standard quick-connect cables for series or parallel connections.
- Pre-drilled mounting holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts.
- Compatible with on-grid and off-grid inverter systems.
- Certified to withstand challenging environmental conditions for dependable outdoor use.
Specifications
- Maximum Power (Pmax): 400 W
- Maximum Power Voltage (Vmp): 31.0 V
- Maximum Power Current (Imp): 12.9 A
- Open Circuit Voltage (Voc): 37.1 V
- Short Circuit Current (Isc): 13.7 A
- Maximum System Voltage: 1500 VDC
- Maximum Series Fuse Rating: 25 A
- Dimensions: 67.9 x 44.6 x 1.2 in
- Weight: 45.2 lbs
- Panel Cable Length: ? 47 in
- Material: Tempered Glass, Anodized Aluminum Frame, Monocrystalline Silicon
- Temperature Range: -40 to +185 °F
- Warranty: 25-year limited power output warranty; 10-year workmanship warranty
- Installation notes: Pre-drilled holes for multiple mounting options; works with both on-grid and off-grid inverters
