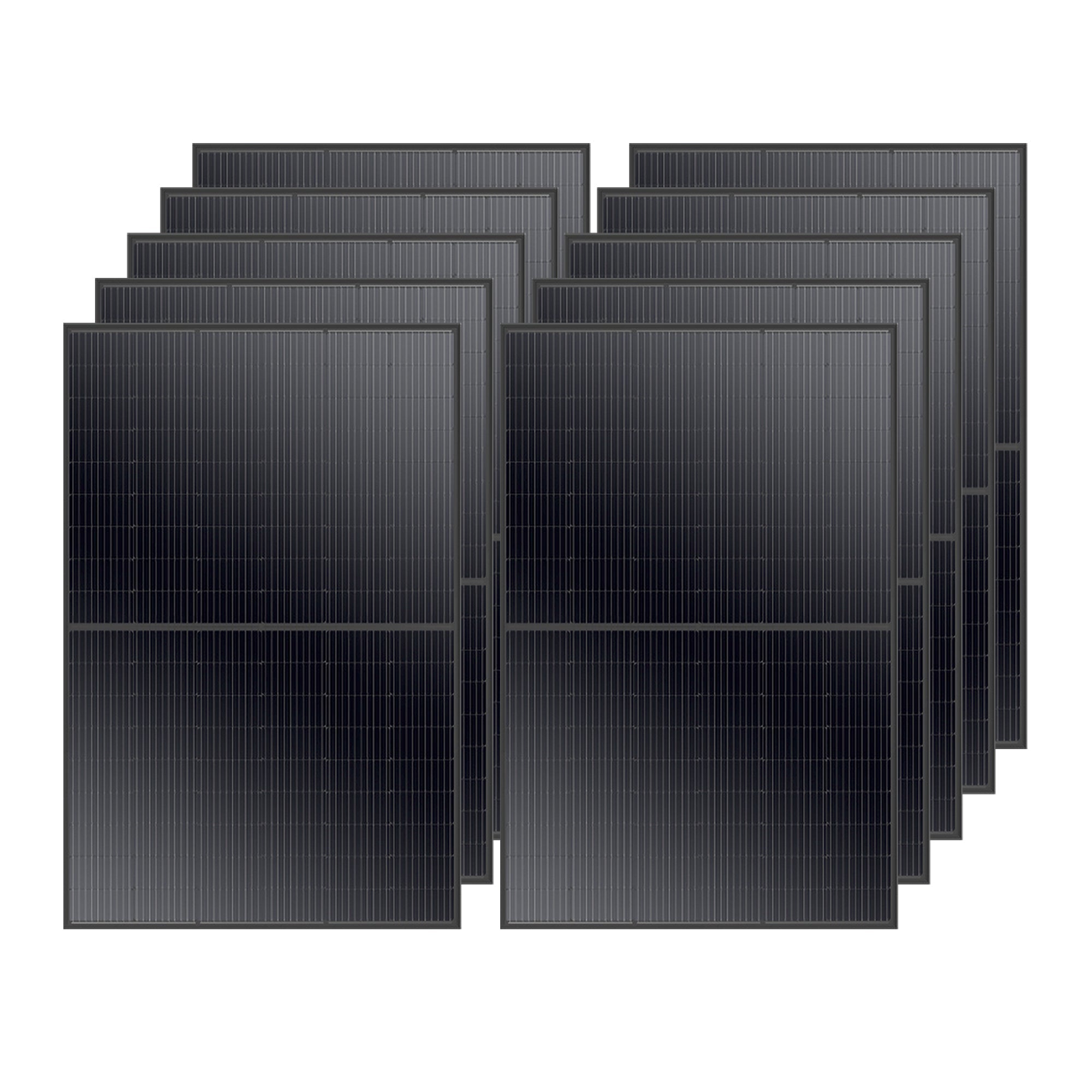

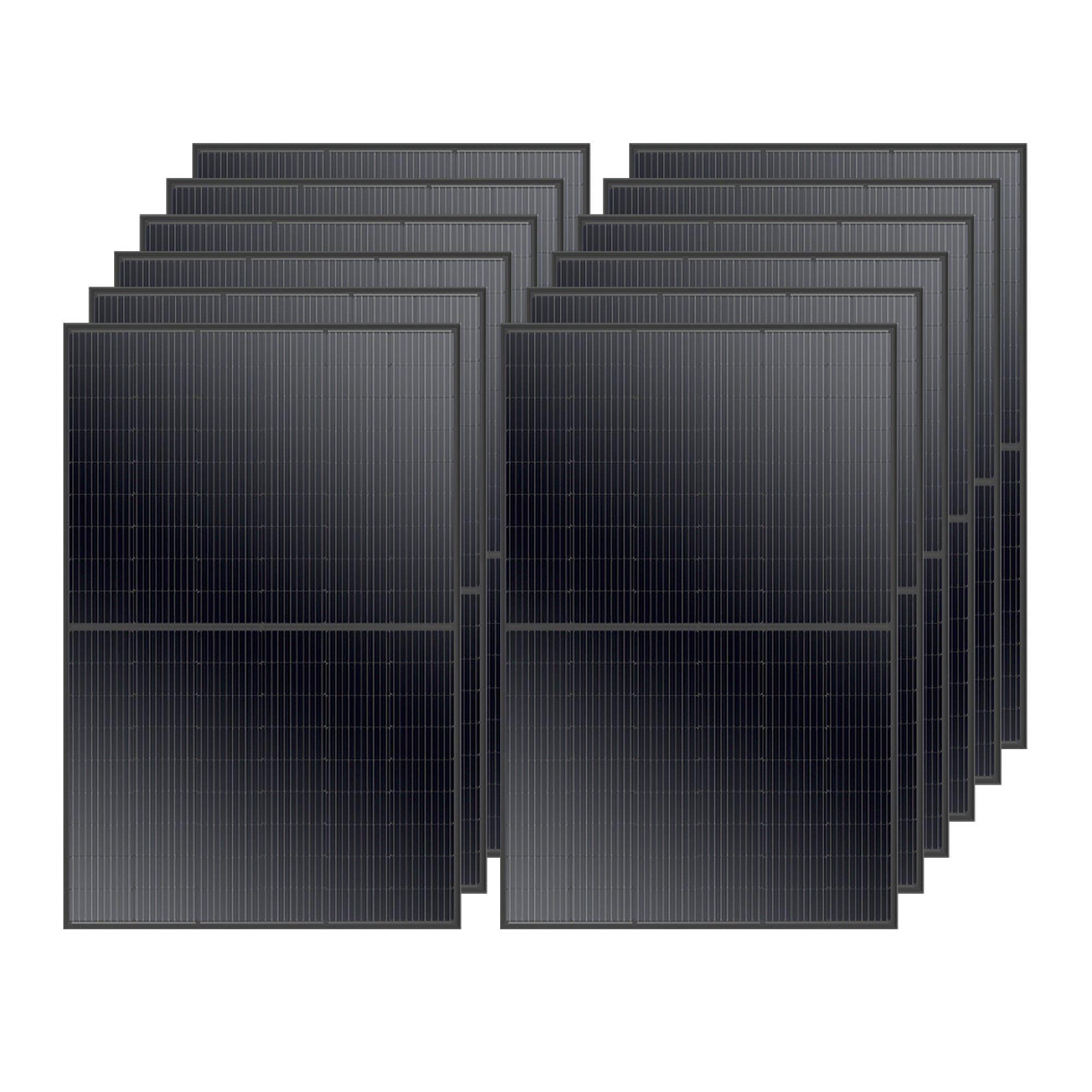

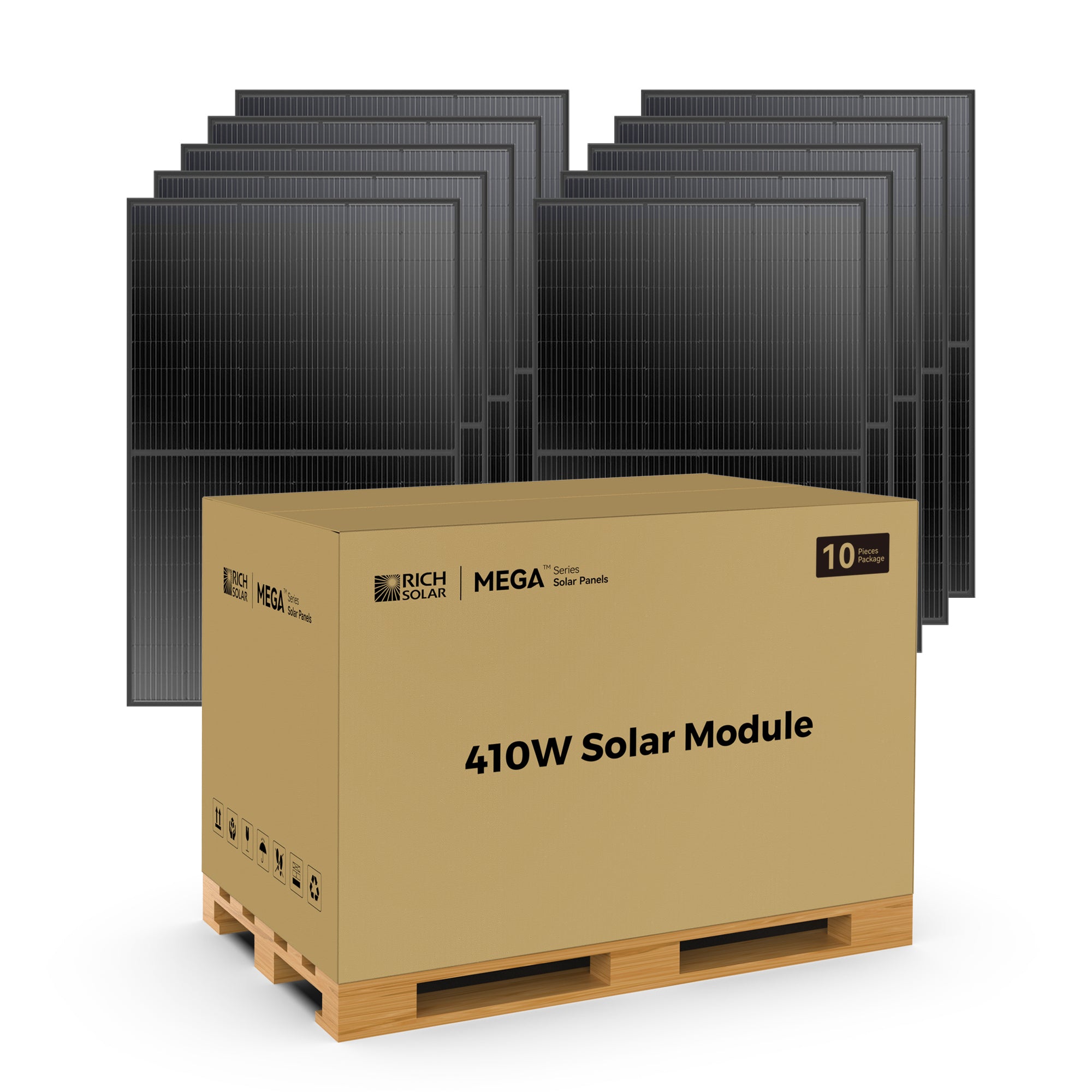

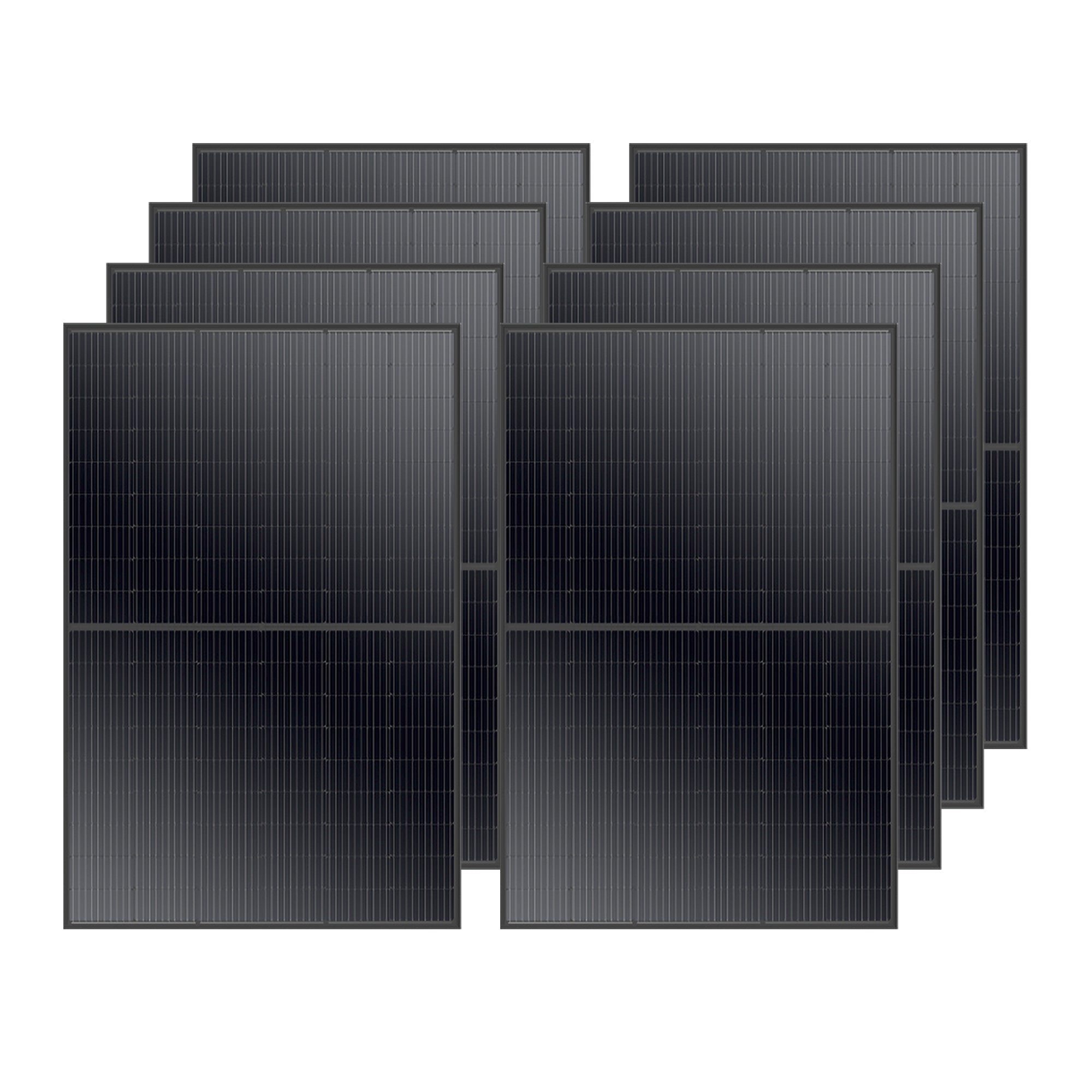

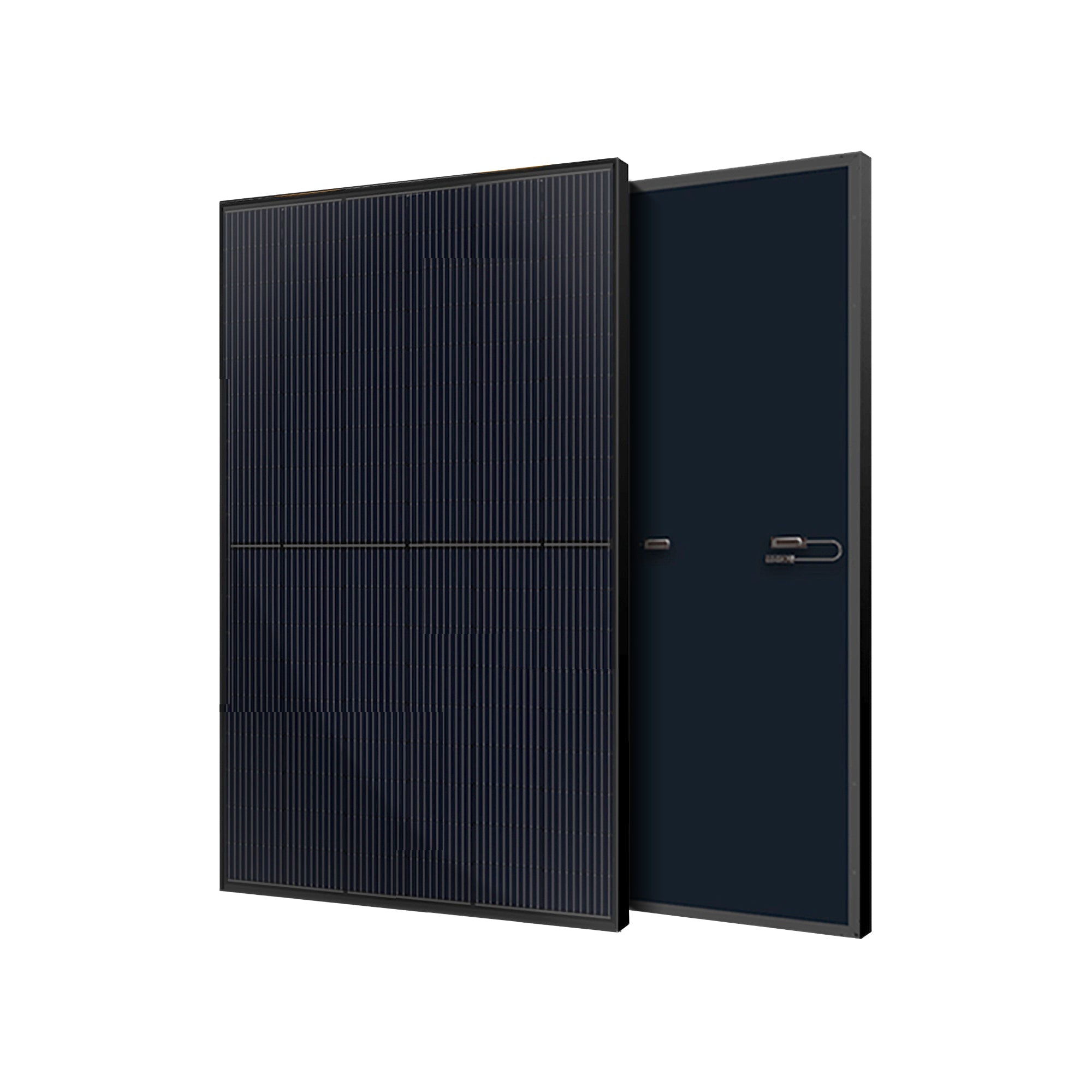

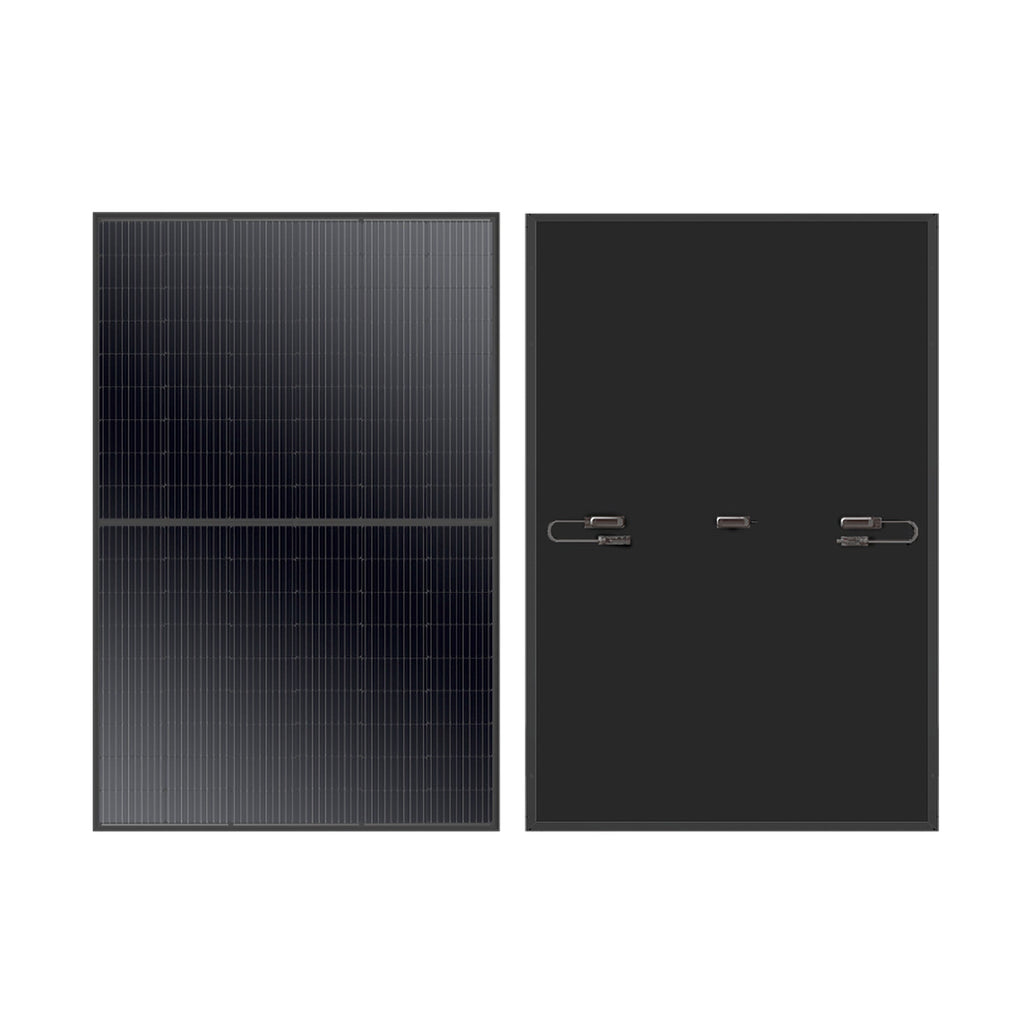

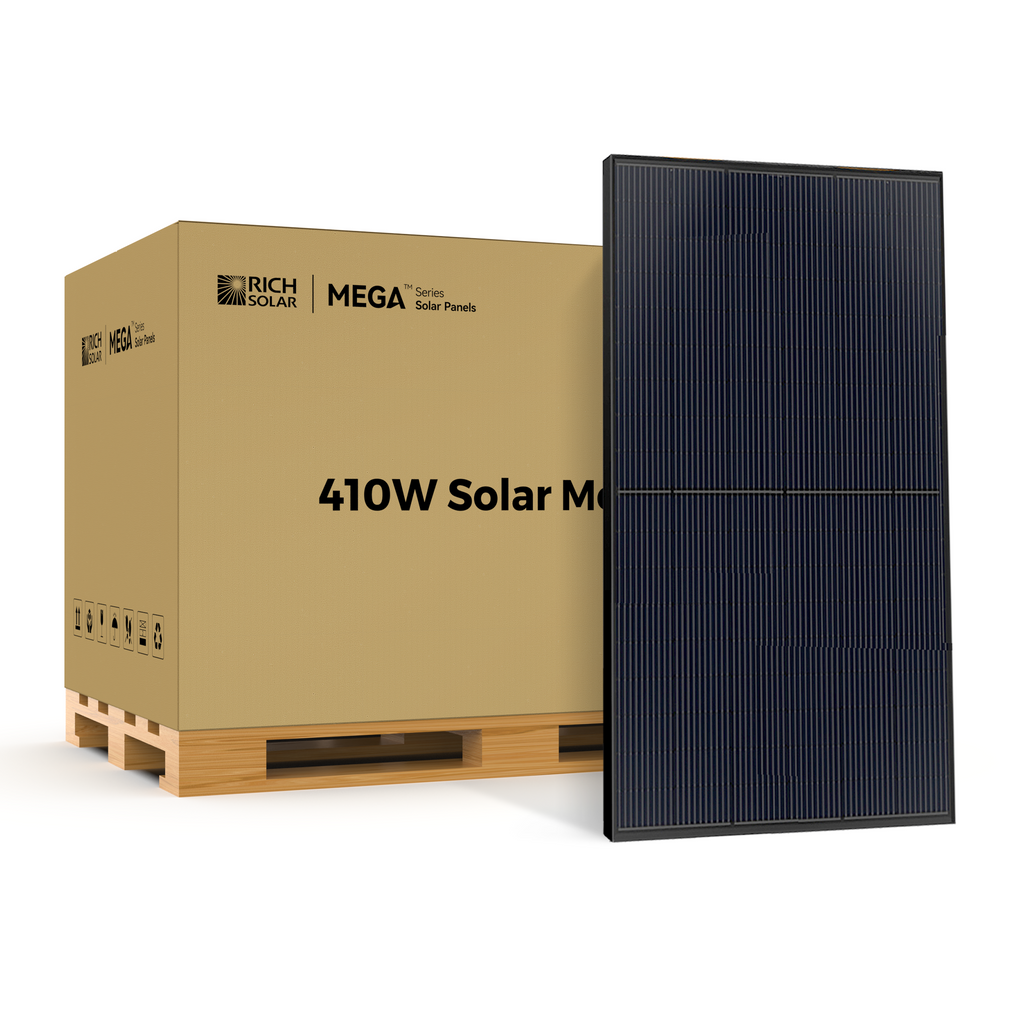

MEGA 410 Solar Panel — High?Output 24V Module (Pallet Shipping Only)
The MEGA 410 delivers 410W of reliable solar power in a compact 24V-compatible panel. It’s built for off-grid homes, agricultural sites, and commercial installations that need strong output, durable construction, and straightforward installation. Note: this item ships by pallet only. For other quantities or shipping options, call 1-800-831-9889 or email sales@richsolar.com.
Benefits
Lower your electricity bills by generating up to 410W per panel, reducing reliance on the grid.
Save space — high output per panel means fewer panels to meet your energy needs.
Spend less time on installation with pre-drilled holes and plug-and-play connectors.
Count on consistent performance in varied light — good low-light output for mornings, evenings, and cloudy days.
Reduce maintenance and replacements thanks to durable tempered glass, anodized aluminum framing, and long-term warranties.
Features
410W maximum power output at 24V systems.
Mono PERC solar cell technology with a 10-busbar configuration for efficient energy capture.
Tempered, anti-reflective (AR) coated glass to improve transmission and durability.
Lightweight, anodized aluminum frame for corrosion resistance and easier handling.
IP68-rated waterproof junction box with built-in bypass diodes.
IP67-rated quick-connect solar connectors and 4 ft panel leads (pair) for plug-and-play wiring.
Industry-standard quick-connect cables compatible with series or parallel installations.
Pre-drilled mounting holes for ground mounts, Z brackets, pole mounts, and tilt mounts.
Compatible with both on-grid and off-grid inverters.
Certified to withstand challenging environmental conditions and wide temperature ranges.
Specifications
Maximum Power (Pmax): 410W
Maximum Power Voltage (Vmp): 31.3V
Maximum Power Current (Imp): 13.1A
Open Circuit Voltage (Voc): 37.5V
Short Circuit Current (Isc): 13.8A
Maximum System Voltage (Vmax): 1500 VDC
Maximum Series Fuse Rating: 25A
Temperature Range: -40°F to 185°F
Weight: 45.2 lb
Dimensions: 67.9 x 44.7 x 1.2 in
Panel leads (pair): 4 ft each
Junction box: IP68-rated, with bypass diodes
Solar connectors: IP67-rated quick-connect
Warranty: 25-year limited power output warranty; 10-year workmanship warranty
Shipping: Pallet shipping only; contact 1-800-831-9889 or sales@richsolar.com for other quantity or delivery options
