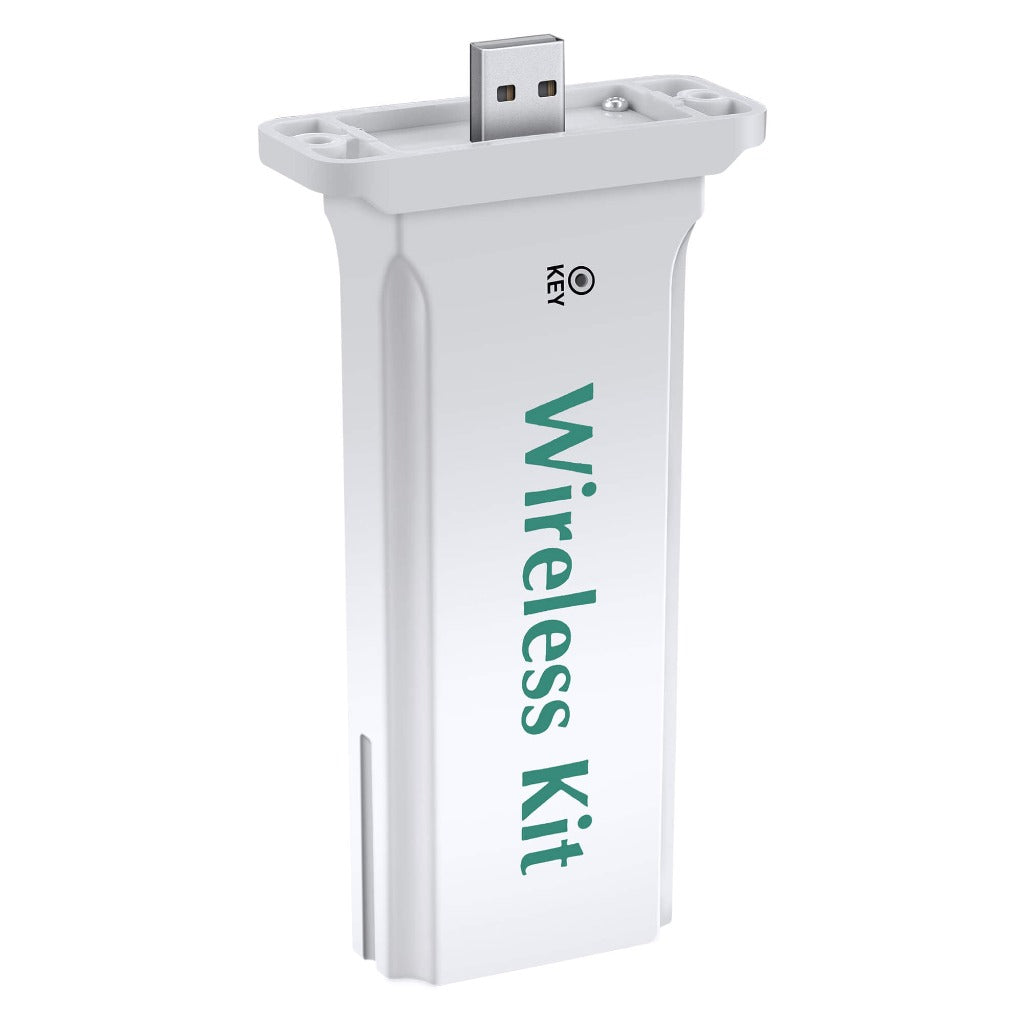

WiFi-F USB Monitoring Device for RICH SOLAR RS-H3048 / H3000
The WiFi-F is a plug-and-play USB monitoring module designed for RICH SOLAR off-grid inverters (models RS-H3048 and H3000). It mounts on the inverter or controller to upload and receive system data to a remote server, giving you convenient remote visibility and simple web-based configuration.
Benefits
- Monitor your PV system remotely to spot issues early and reduce unplanned downtime.
- Avoid site visits by checking system status and historical data from any browser.
- Quick, simple installation saves setup time so your system is online faster.
- Secure data transmission helps protect system information during remote access.
- Regular 5-minute updates keep you informed without constant manual checks.
Features
- Plug-and-play USB A-type connection to the inverter for data exchange.
- Uploads and receives data to/from a remote server using WiFi (Modbus TCP).
- Supports both access point (AP) and station modes, with a built-in soft AP option.
- Web-based configuration via any Internet browser—no special software required.
- Compatible with common wireless routers, including 3G-capable routers.
- Five-minute data transmission interval for regular system updates.
- Designed to work with ShineServer and defaults to server.pvbutler.com.
Specifications
-
General Data
- Dimensions (L × W × H): 135 × 79 × 29 mm
- Weight: 63 g
- Manual language: English
-
Wireless Parameters
- Wireless type: WiFi
- Wireless standard: IEEE 802.11 b/g/n
- Transmit power:
- 802.11b: +20 dBm (Max.)
- 802.11g: +18 dBm (Max.)
- 802.11n: +15 dBm (Max.)
- Receiver sensitivity:
- 802.11b: -89 dBm (Max.)
- 802.11g: -81 dBm (Max.)
- 802.11n: -71 dBm (Max.)
-
Hardware Parameters
- Data interface: UART 9600 bps; Ethernet 100 Mbps
- Operating voltage: 5 V (±15%)
- Operating current: 1 A
- Operating temperature: -4 °F to +149 °F
- Storage temperature: -40 °F to +158 °F
- Network type: Access Point (AP) and station mode (with soft AP)
- Security mechanisms: WEP / WPA-PSK / WPA2-PSK
- Encryption: WEP64 / WEP128 / TKIP / AES
-
Application Parameters
- Supported servers: ShineServer
- Inverter communication: USB A-type
- Server communication: WiFi via router using Modbus TCP protocol
- Supported routers: Wireless routers (including 3G routers)
- User configuration interface: Wireless web server (Internet browser)
- Maximum communication range: 100 m
- Data transmission interval: 5 minutes
- Default server URL: server.pvbutler.com
