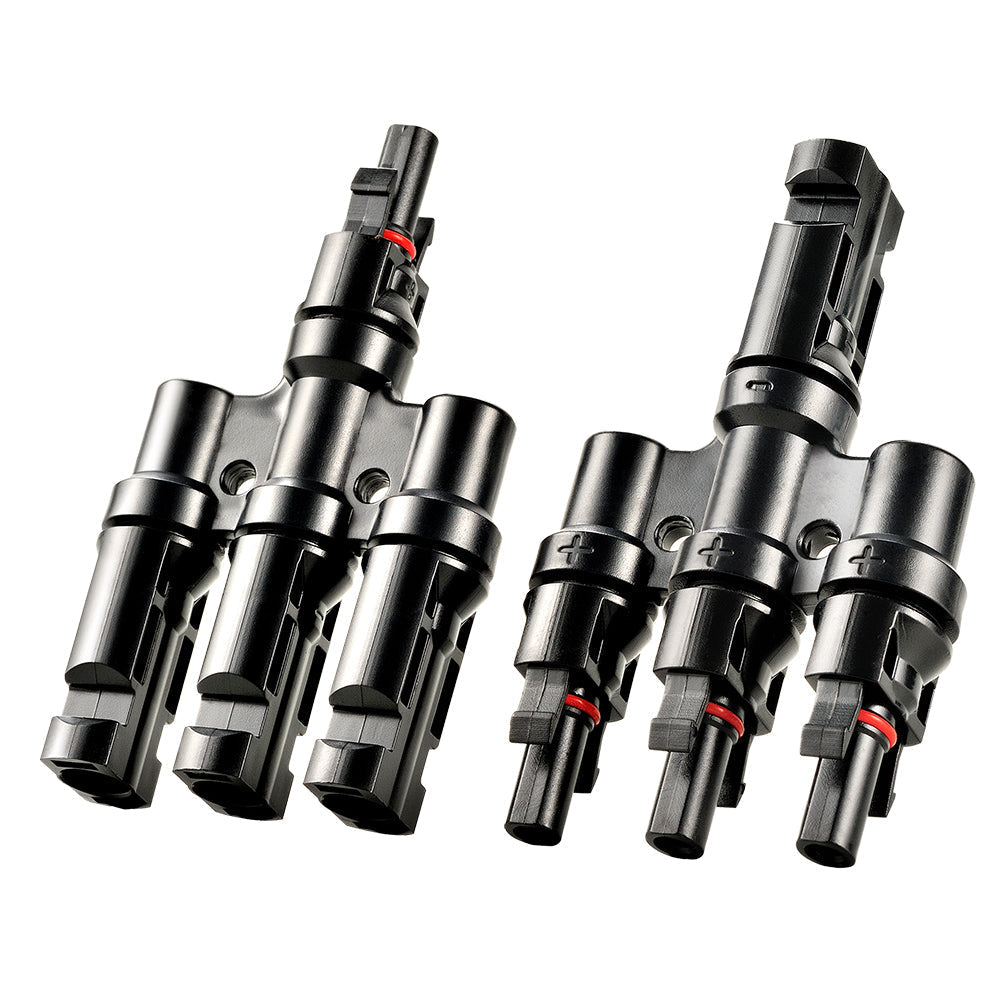

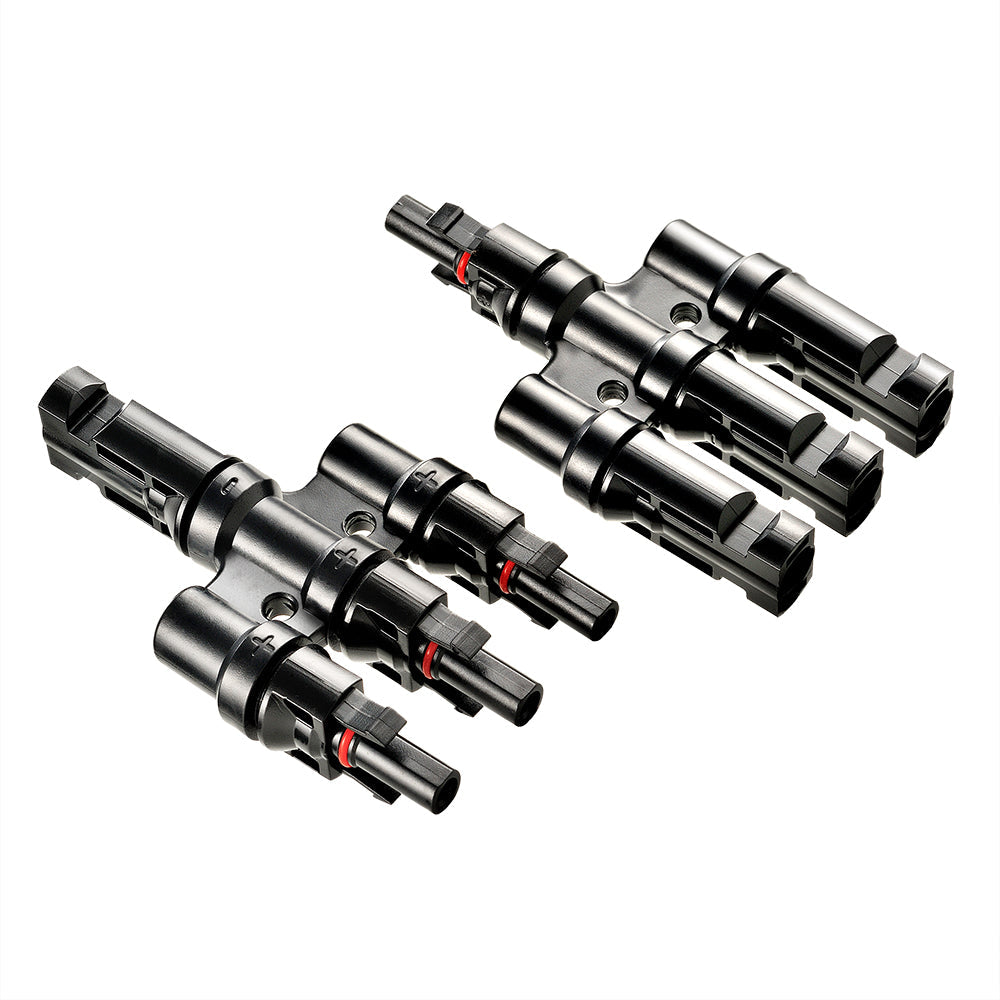

Solar Parallel Connector — 30A IP67 Waterproof Splitter
Compact, weatherproof parallel wiring solution for solar panels that makes connecting multiple modules fast and reliable. Built for outdoor photovoltaic systems, it simplifies installation and keeps connections secure in harsh conditions.
Benefits
- Saves installation time by allowing quick parallel connections without complex wiring.
- Reduces service visits because IP67 protection and robust materials withstand dust, water, and mechanical stress.
- Makes maintenance easier with tool-free plug removal and assembly.
- Improves system performance and reliability through lower contact resistance.
- Minimizes compatibility issues by working with standard solar connectors and common wire sizes.
Features
- Quick parallel wiring solution for solar panels
- Compatible with standard solar connectors
- Designed for photovoltaic systems with high mechanical requirements and extreme weather resistance
- Tool-free assembly and simple plug removal
- Low contact resistance for efficient power transfer
- Waterproof and dustproof construction (IP67)
Specifications
- Rated Current: 30 A
- Maximum Voltage: 1000 VDC
- Waterproof Rating: IP67
- Wire Range: 10 AWG, 12 AWG
- Insulation Material: PPO + PA
- Contact Material: Tinned Copper
- Temperature Range: -40°F to +194°F
- Safety Class: II
