All-in-One Solar Hybrid Inverter
Overview

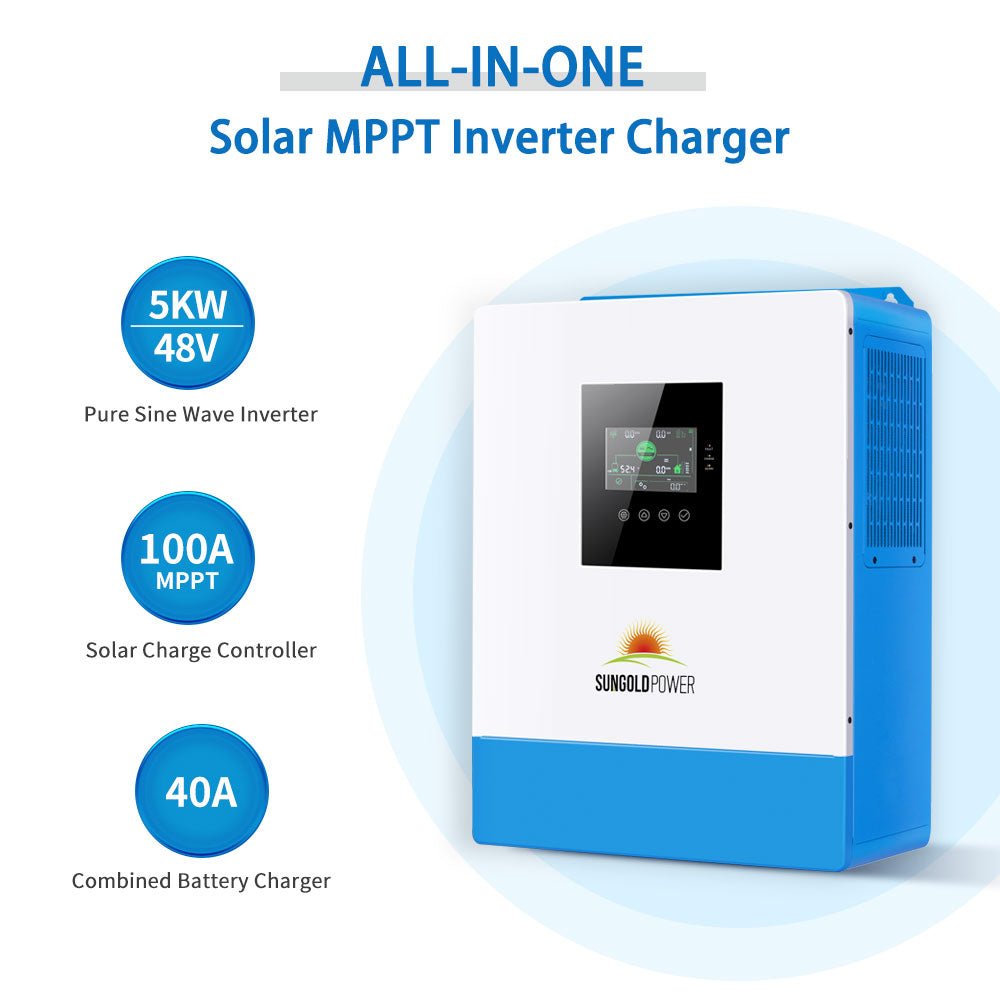

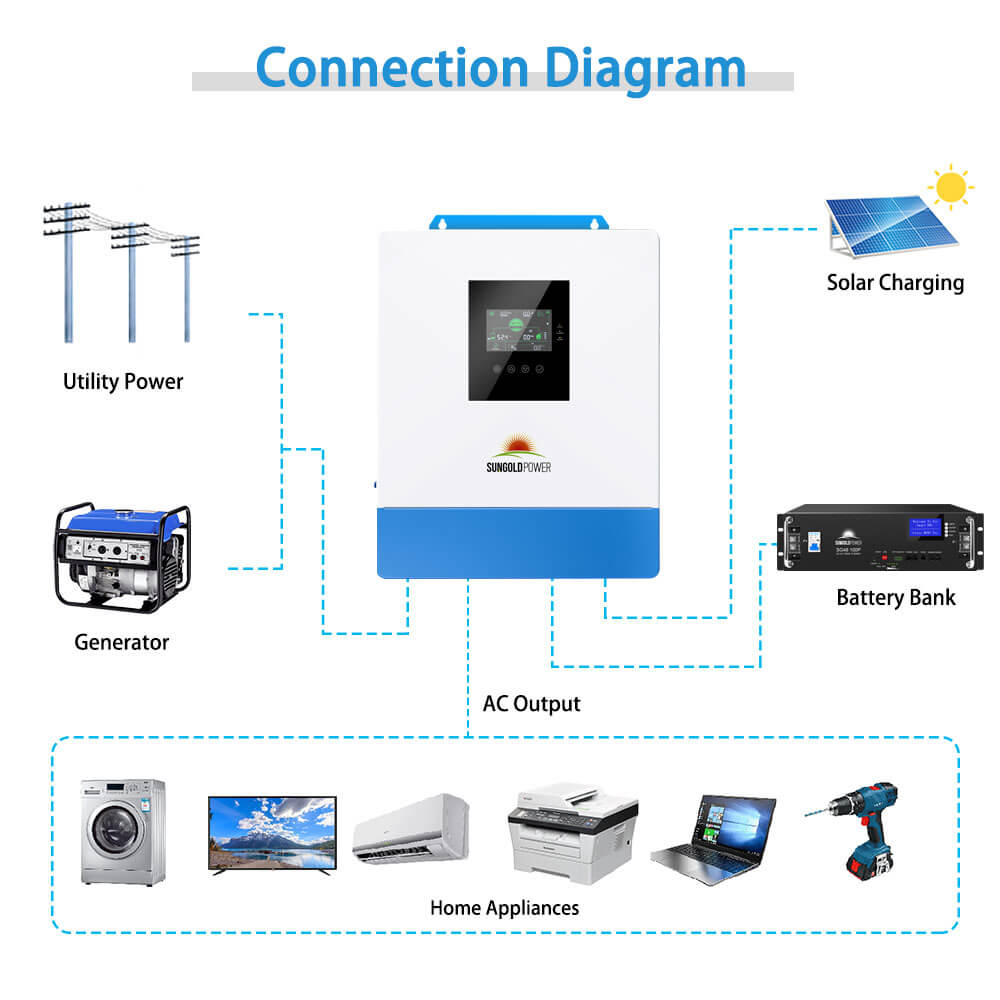

Power meets flexibility. This all-in-one solar hybrid inverter blends grid-tied and off-grid capabilities in a single unit. It features a 5000W pure sine wave inverter with up to 100A battery charging (Solar+AC) and supports a maximum 5500W PV input from a 500V array. UL1741 listed by ETL.
Benefits
- Single solution for grid-tied and off-grid needs.

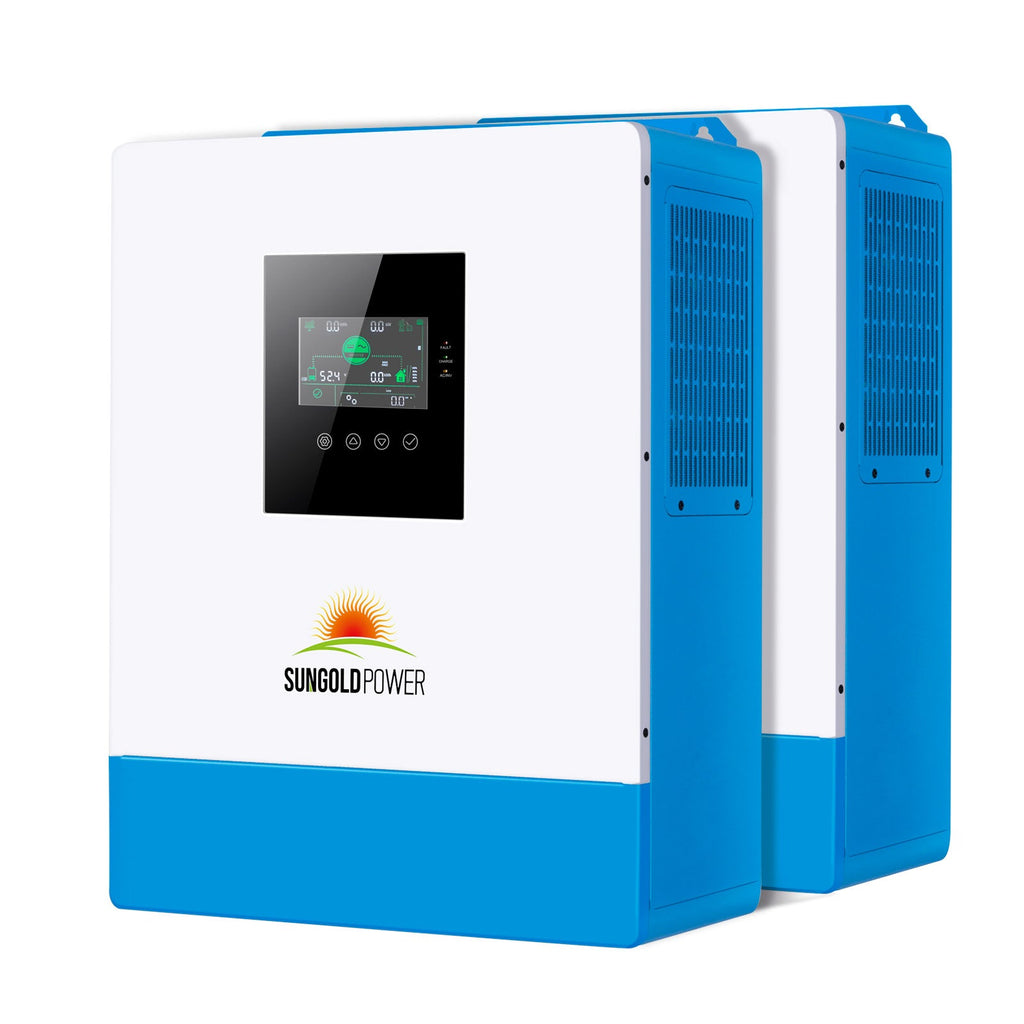

- Scales with your setup using parallel kits for more power and surge capacity.
- Reliable AC output for common household and office loads.
- Flexible charging and output options to fit different setups.
- Broad battery compatibility with configurable charging voltage.
Features
- Inverter: 5000W pure sine wave, 110V AC output, overload protected; supports 4HP loads.
- Charging: up to 100A battery charging (Solar+AC).
- PV input: up to 5500W from a 500V PV array.

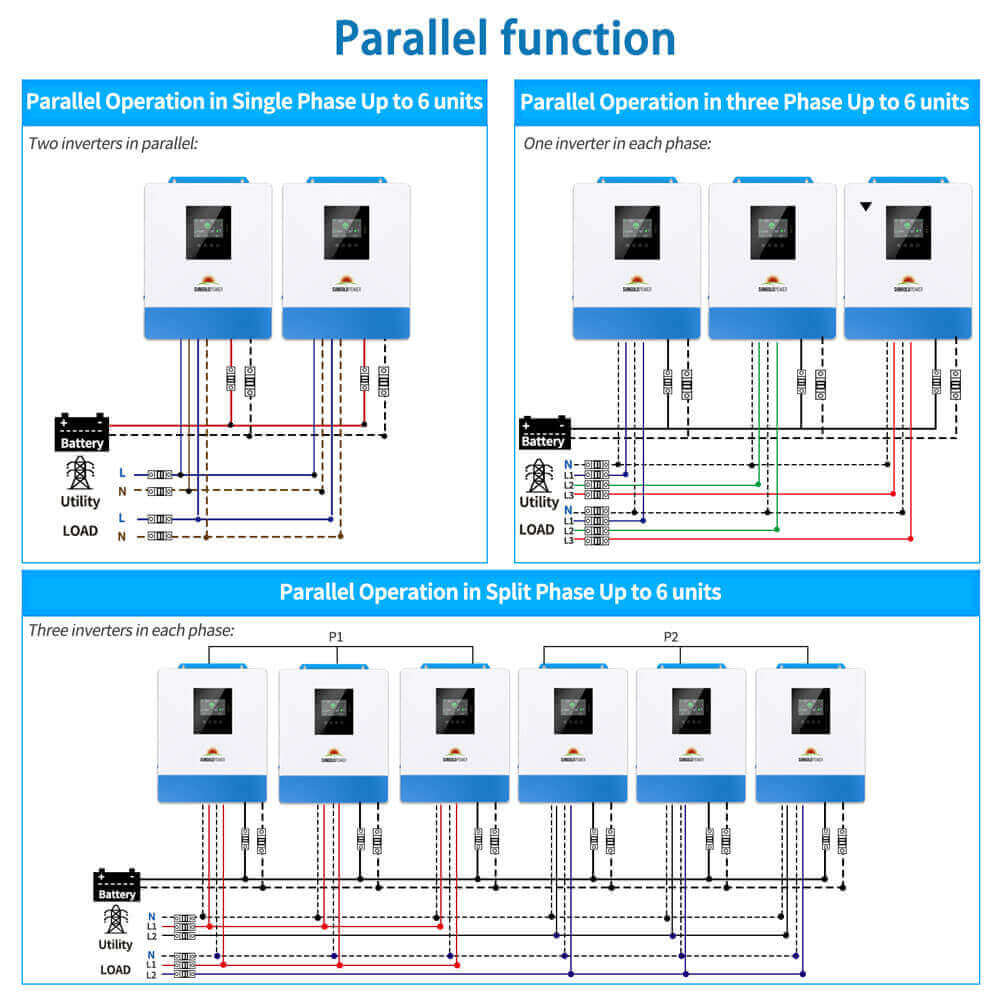

- Parallel capability: up to 6 units in parallel (up to 30kW); 120V single phase, 120/240V split phase, 208V 3-phase.

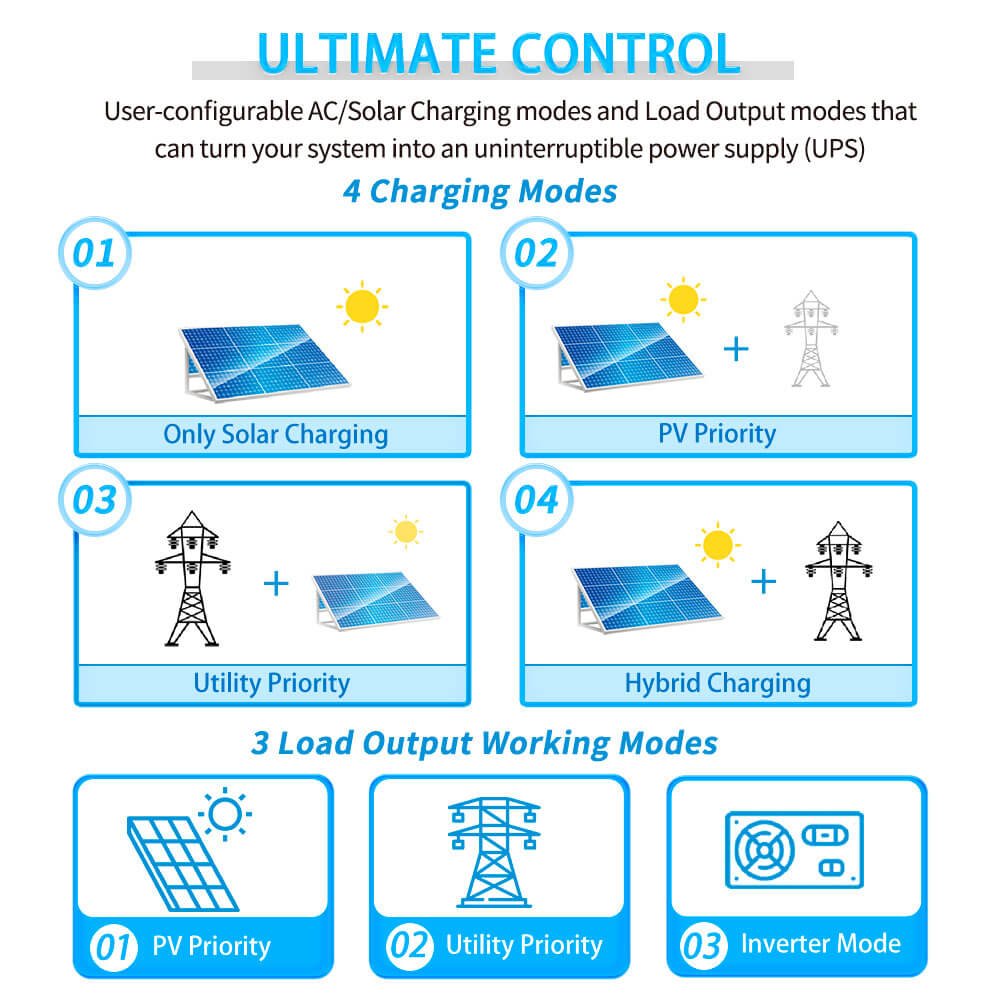

- Charging and output modes: 4 charging modes and 4 output modes (AC Priority, Solar Priority, Only Solar, Mains & Solar); PV priority, utility priority, inverter priority, and hybrid with grid connection.

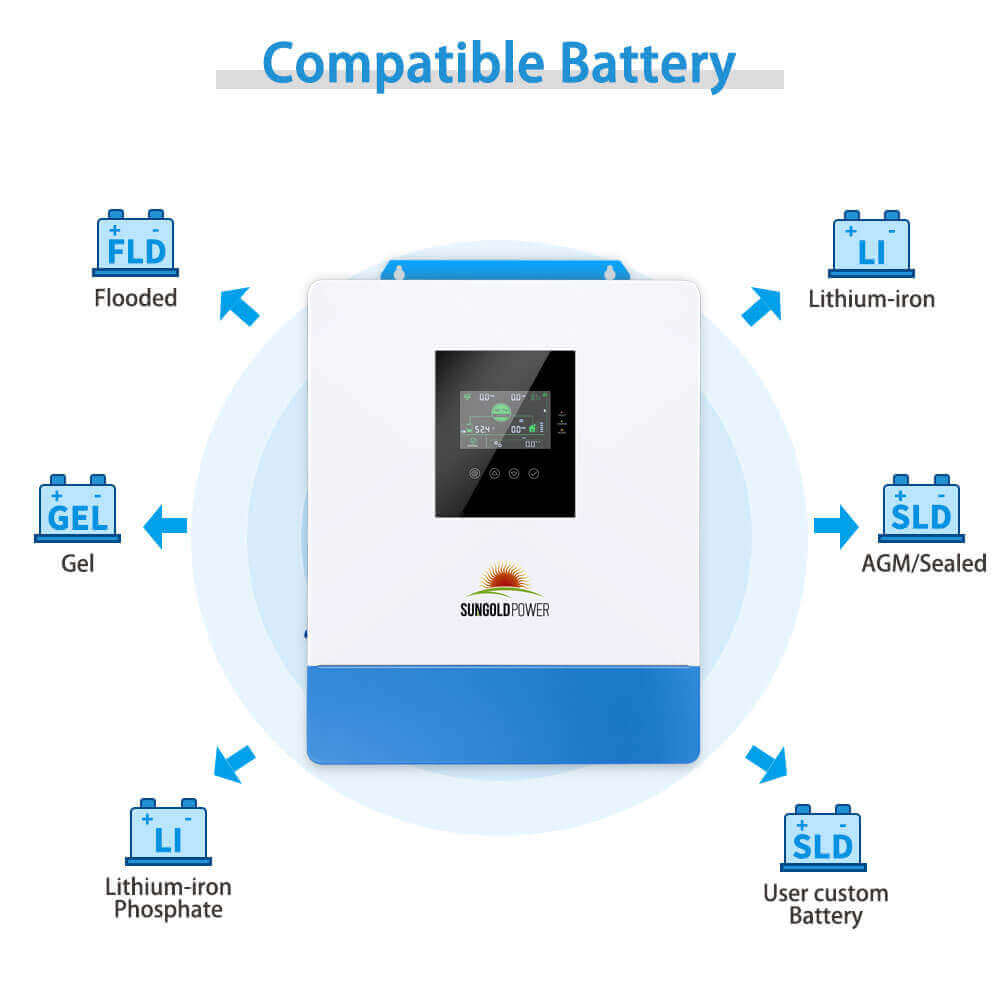

- Battery flexibility: supports 48V AGM/Sealed, Gel, Flooded, and Lithium batteries; User Mode for custom inputs; RS485 port for BMS communication.
- Certification: UL1741 listed by ETL.
Specifications
- Inverter rating: 5000W continuous, pure sine wave.
- Battery charging: up to 100A (Solar+AC).
- PV input: max 5500W, 500V array support.
- Parallel expansion: up to 6 units, up to 30kW; output options: 120V single phase, 120/240V split phase, 208V 3-phase.
- AC output: 110V; 4HP motor capability; overload protected.
- Battery types supported: 48V AGM/Sealed, Gel, Flooded, Lithium; includes User Mode.
- Battery charging voltage range: 40-60V.

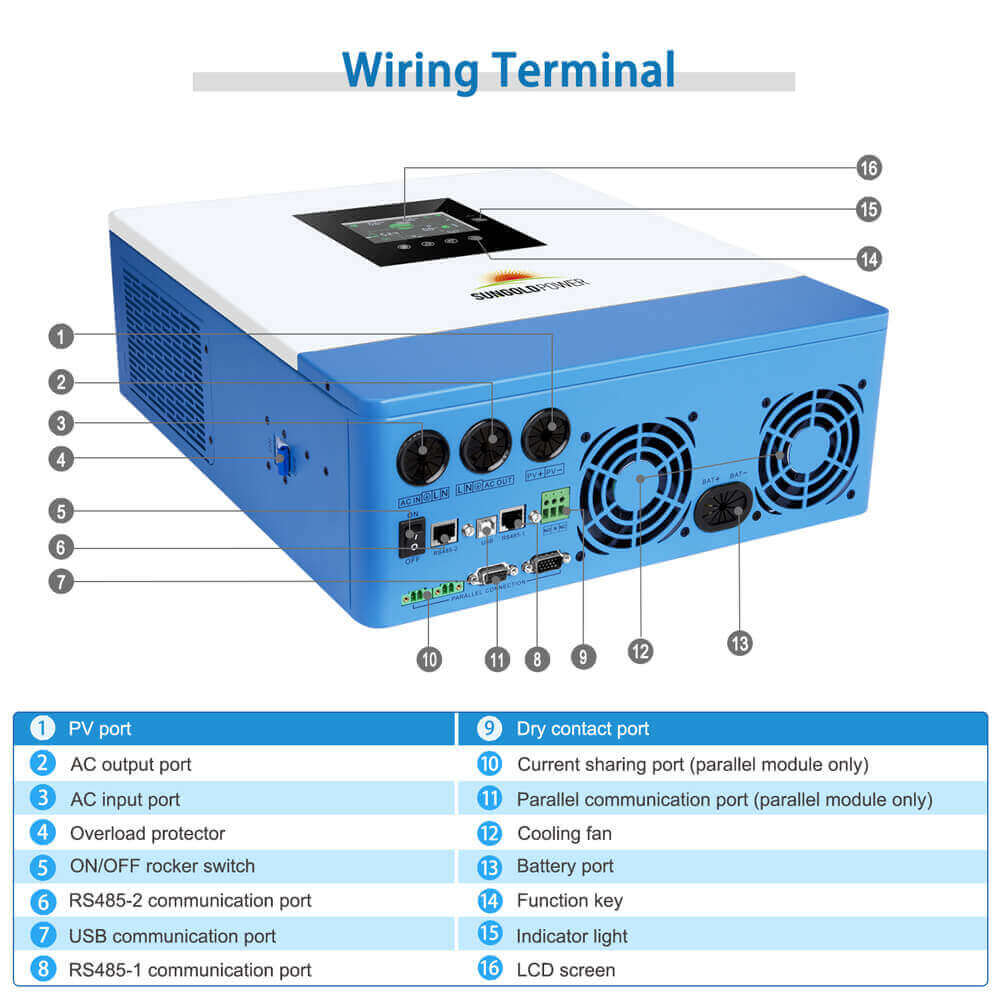

- Communication: RS485 port for BMS.
- Certification: UL1741 Listed by ETL.
