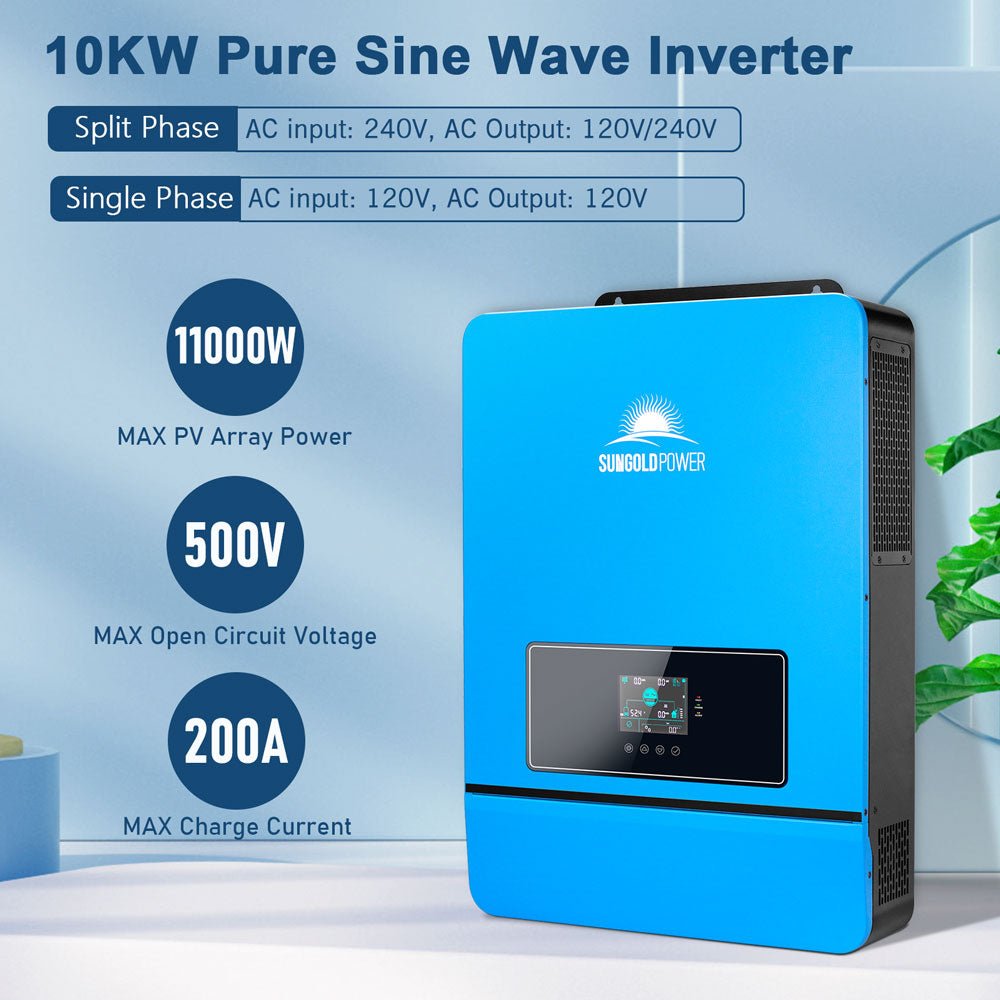

All-in-One 10KW Pure Sine Wave Solar Inverter with Battery Charging
Overview
All-in-one solar inverter with built-in battery charging, dual MPPT, and flexible output options. Includes wifi for monitoring and setup. UL 1741 by ETL certified for off-grid solar systems.
Benefits
- All-in-one power kit: 10 kW inverter plus up to 200 A charging.
- Two MPPT inputs with up to 500 VDC open-circuit per input.
- Output options: split-phase 120/240 V or single-phase 120 V.
- Wifi module for monitoring and control via a mobile app.
- UL 1741 by ETL certification for off-grid solar systems.
- Parallel capability: up to 6 units for 60 kW total power.
- Multiple protections to guard PV, AC, and battery circuits.
- Four charging/output modes for flexible operation.
- Time-slot charging/discharging to align with tariffs.
- Broad battery compatibility with flexible activation options.
Features

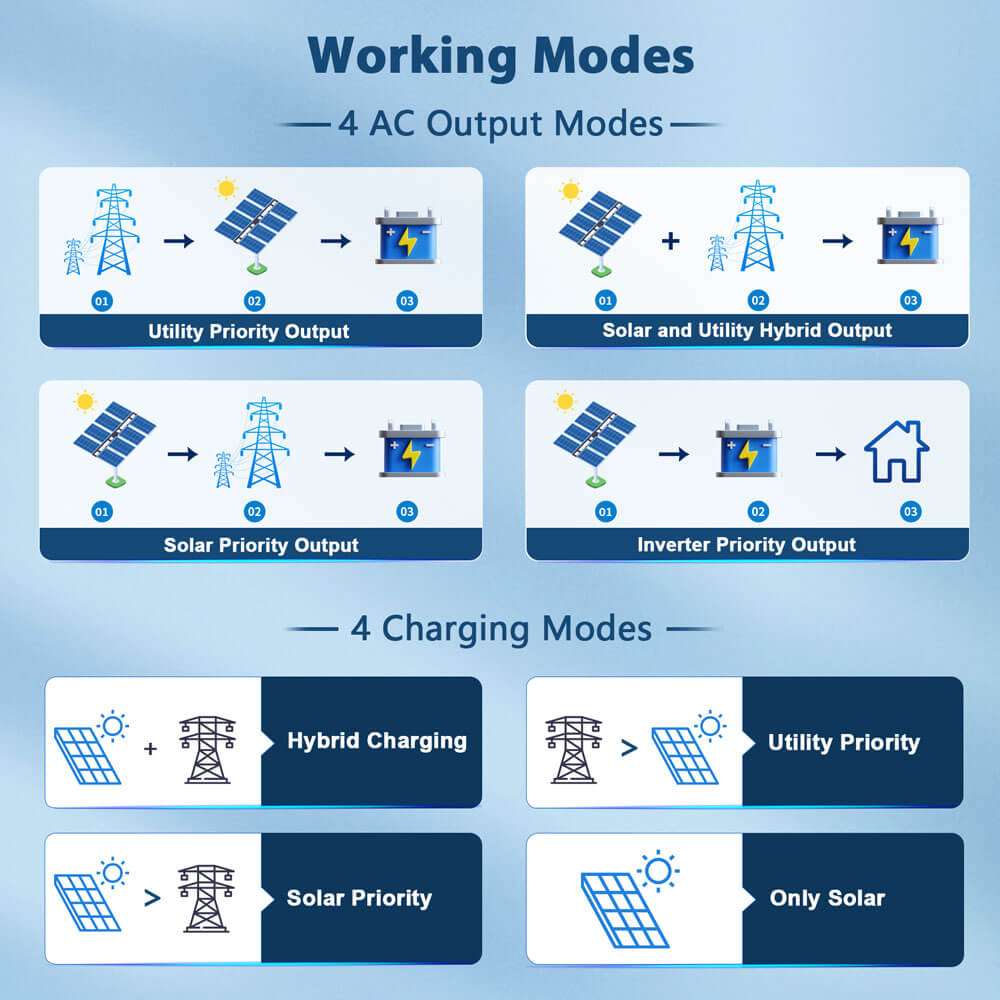

- Four charging / output modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, Solar-only Charging. AC output modes include Utility Priority, Solar + Utility Hybrid, Solar Priority, Inverter Priority.

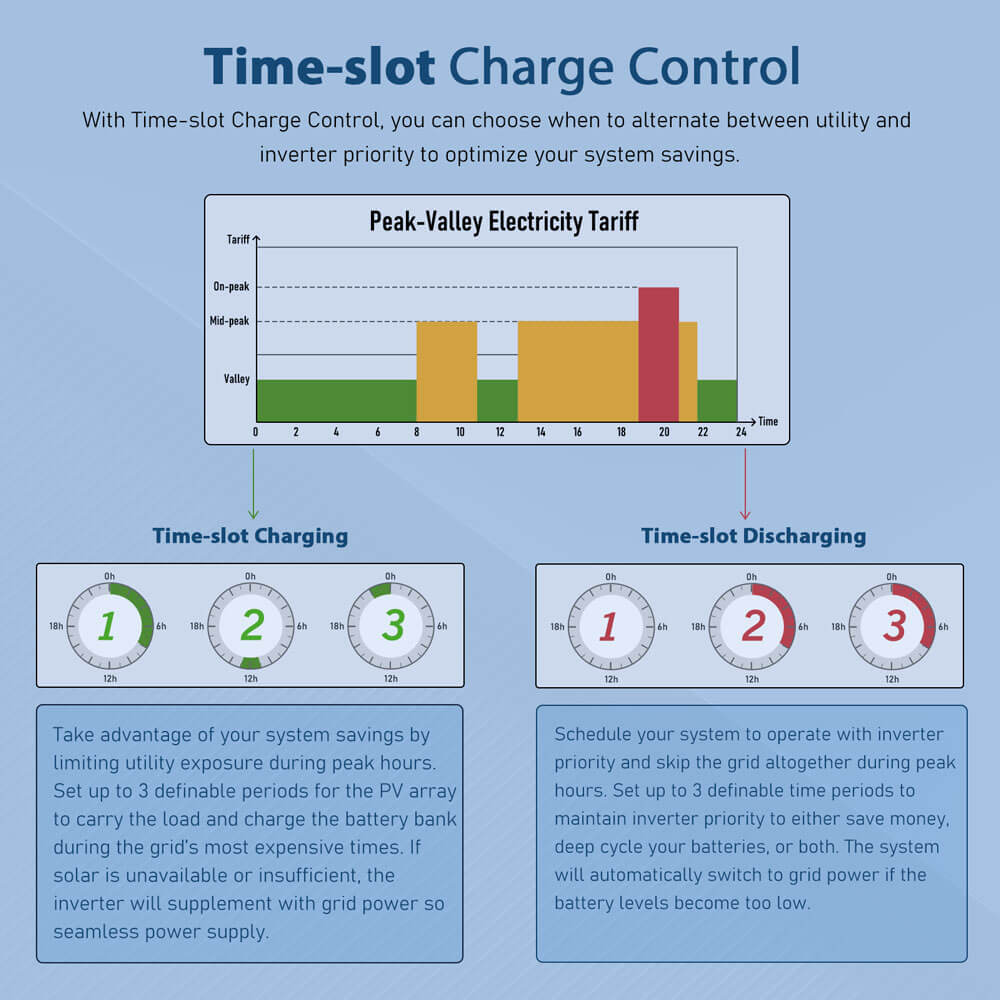

- Time-slot charging/discharging function to match local tariffs.
- CAN and RS485 communication for compatibility with supported batteries.
Specifications
- Rated output power: 10,000 W; Max peak power: 20,000 W.
- Battery charging capacity: up to 200 A.
- PV input: 2 MPPTs; max open-circuit voltage per input: 500 VDC.
- Output configuration: split-phase 120/240 V or single-phase 120 V; 50/60 Hz selectable.
- Protections: PV input over-voltage/current, AC input over-voltage, battery over-voltage, overload.

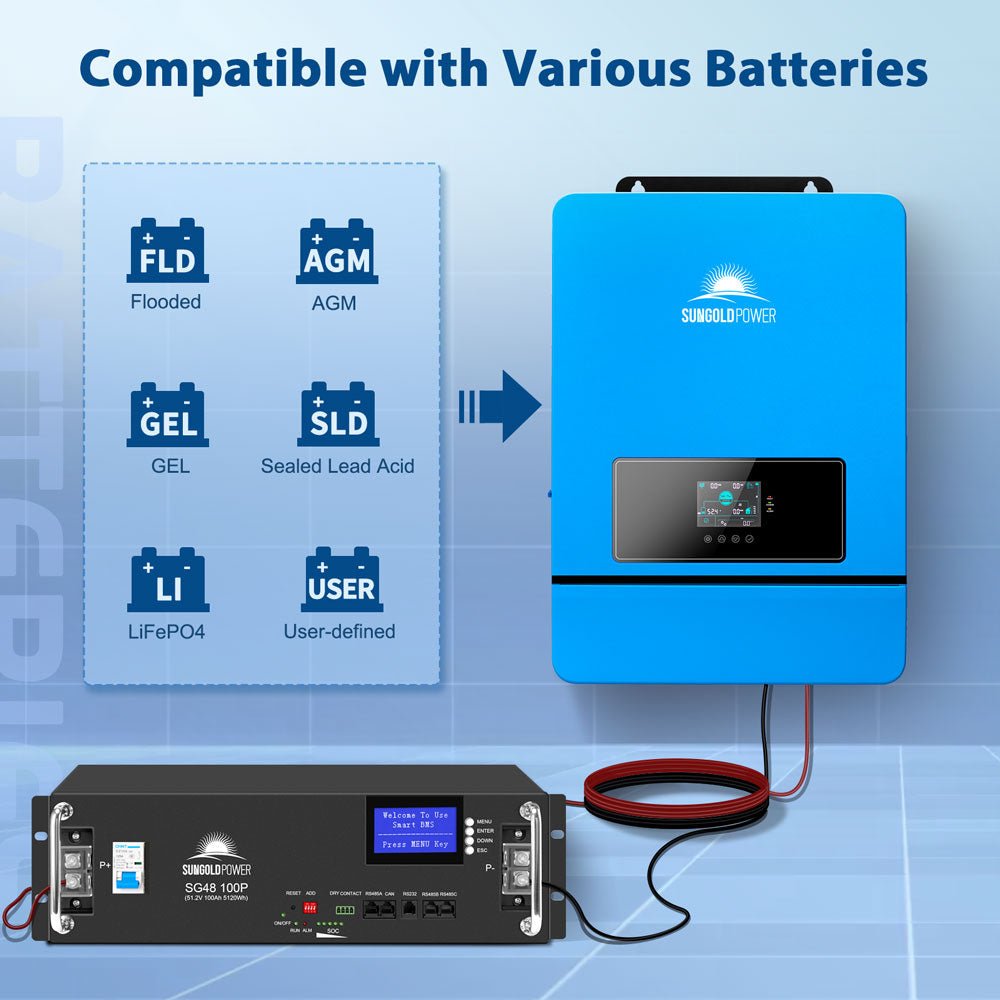

- Battery types supported: all 48 V chemistries (AGM/Sealed, Gel, Flooded, LiFePO4); includes a User Mode for other 48 V chemistries; can activate from grid or PV if battery is deeply discharged.
- Communication: CAN and RS485.

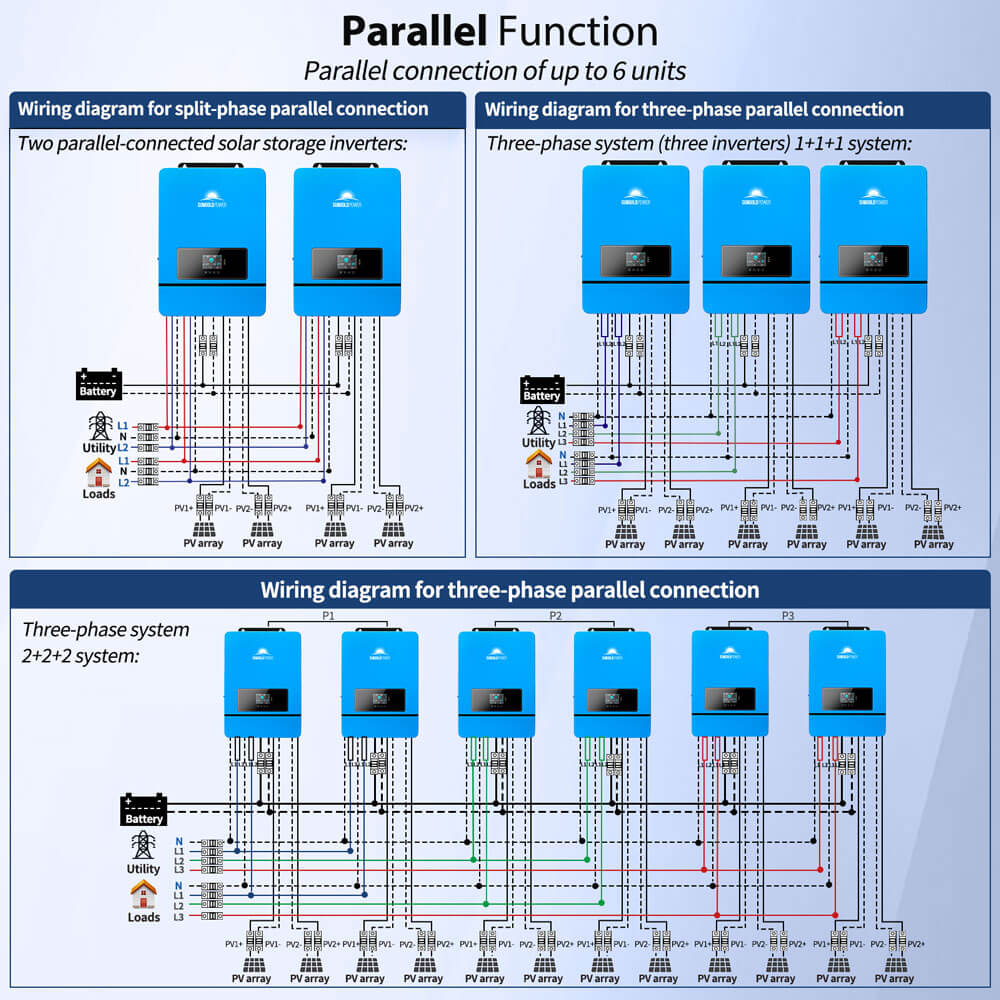

- Parallel capability: up to 6 units for up to 60 kW total (120 V single-phase, 120/240 V split-phase, or 208 V 3-phase support).
- Certification: UL 1741 by ETL for off-grid solar systems.
