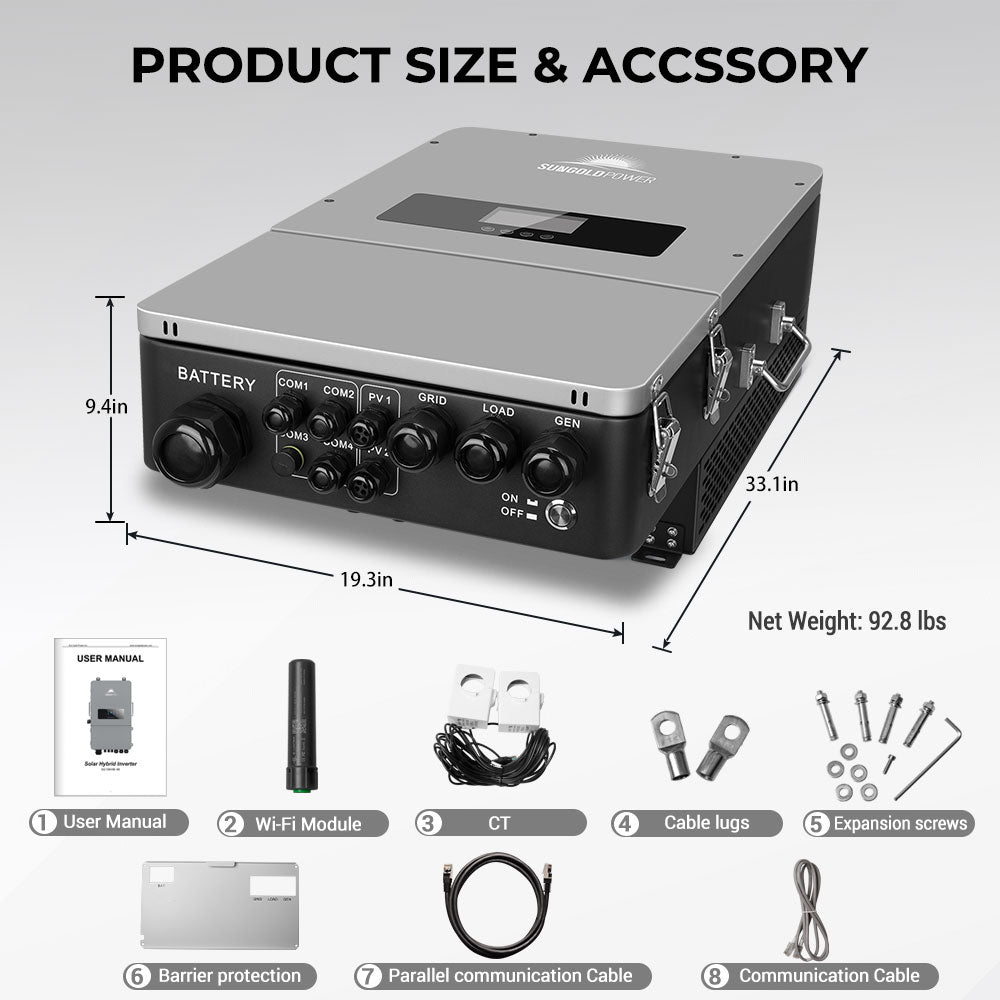

10 kW Hybrid Split-Phase Inverter
Overview
A versatile solar hybrid inverter for home and small business. It runs on 48V DC and outputs 120/240VAC in split-phase. It stores energy from solar and the grid, with smart charging and flexible battery options. It supports multiple communication interfaces for integration.
Benefits
- Pure sine wave output up to 10 kW.

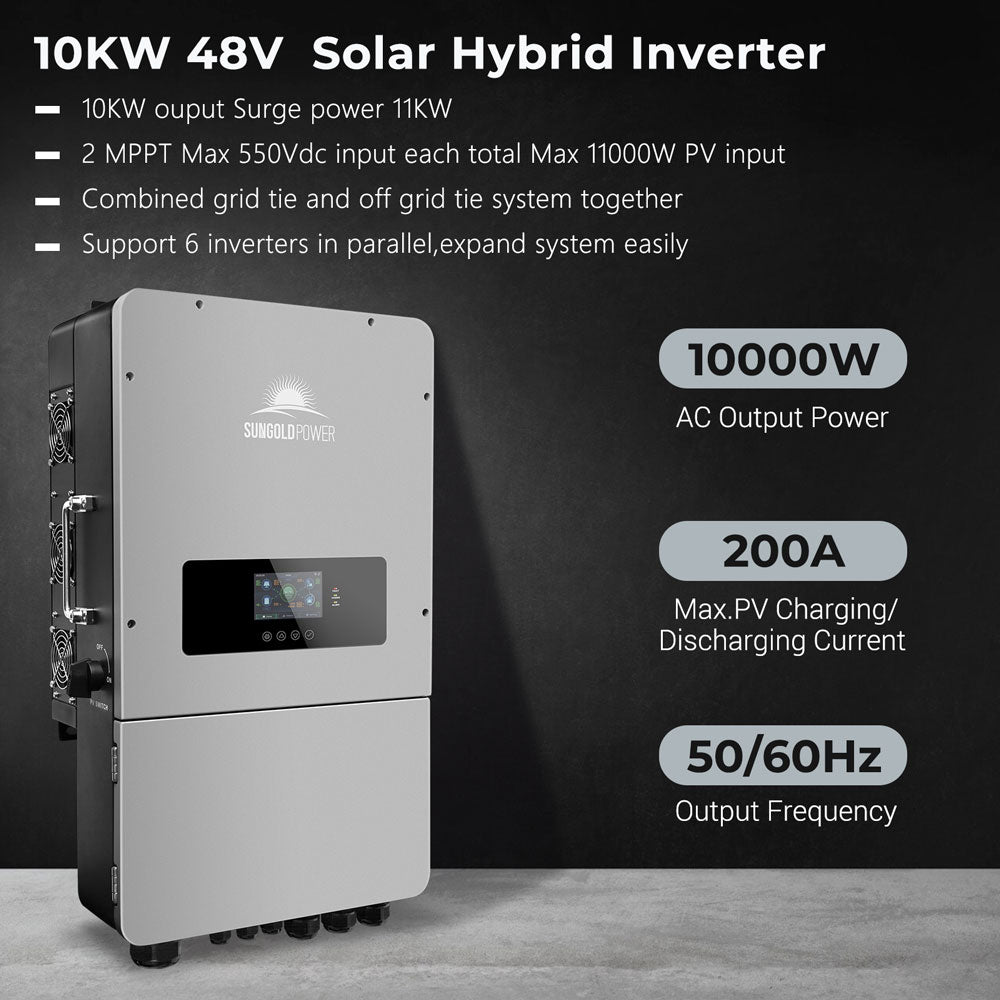

- Two MPPT inputs, up to 550 VDC each; total PV input up to 11 kW.

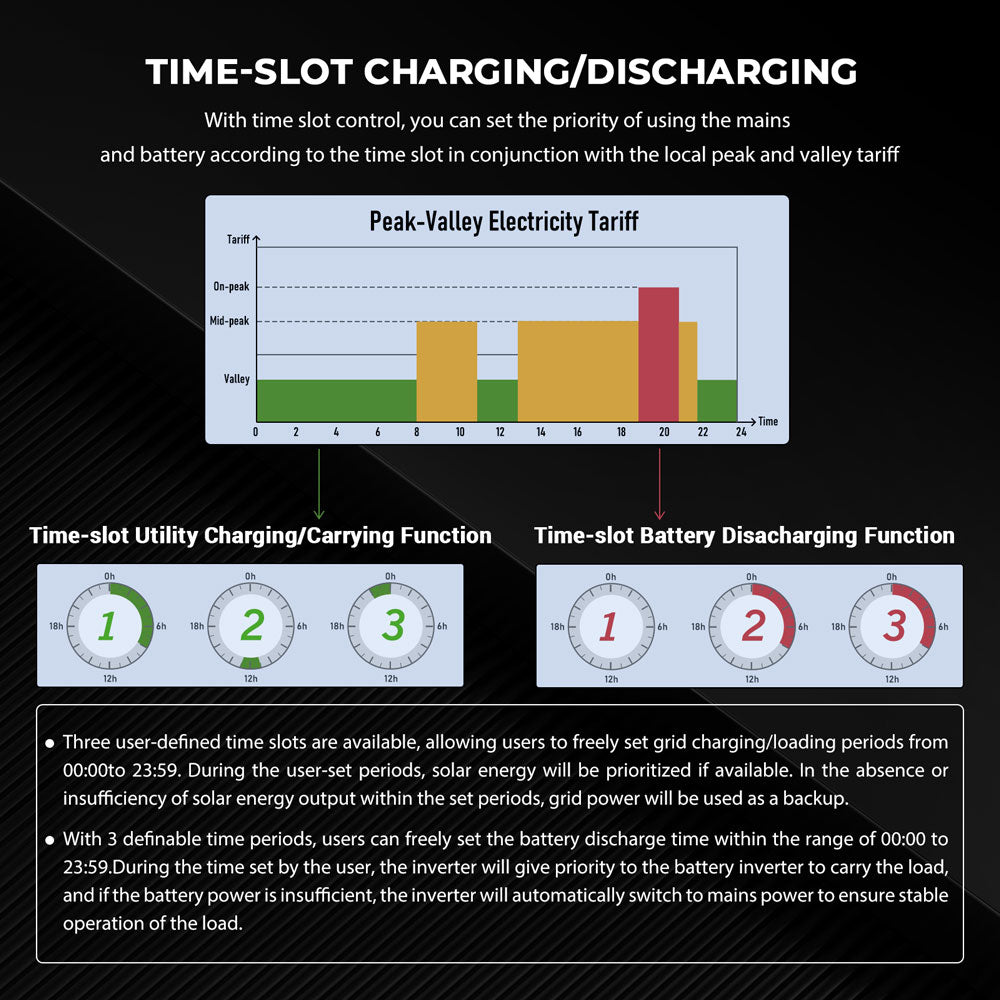

- Four charging modes: Only Solar, Mains First, Solar First, and Mains & Solar hybrid.

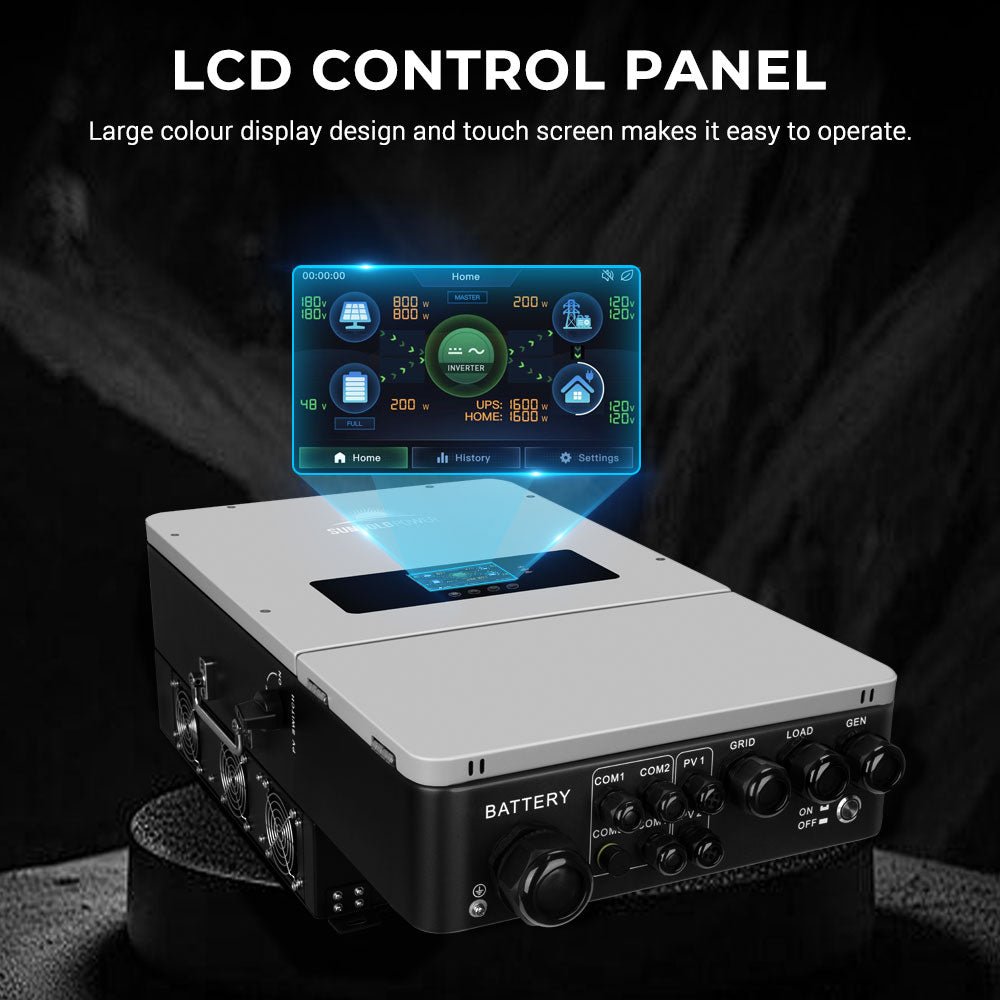

- Large LCD touch screen with dynamic flow chart; easy to read status and adjust settings.
- Battery compatibility: lead-acid, Li-ion, or battery-free. Li-ion activation can trigger from mains or PV power. CAN, USB, and RS485 interfaces.
- Reliability: handles unbalanced loads, bypass up to 100 A, supports up to 6 in parallel, IP65, 5-year warranty.
Features
- Hybrid split-phase inverter architecture with 120/240 VAC output.
- 2 MPPTs for flexible PV harvesting.
- 4 charging modes for energy management.
- Comms: CAN, USB, RS485 for compatible batteries.
- Rugged IP65 enclosure suitable for indoor/outdoor use.
Specifications

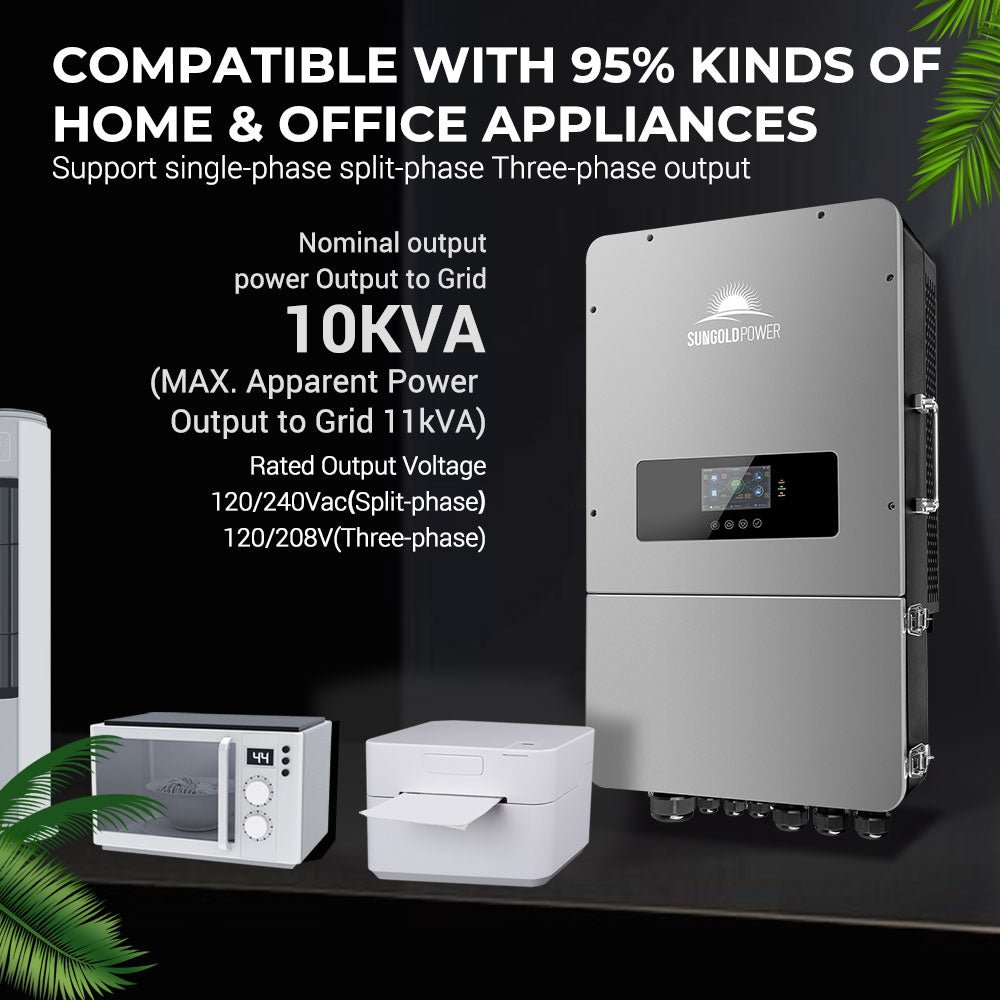

- Output: 120/240 VAC split-phase
- DC input: 48 V
- PV input: 2 MPPTs, up to 550 VDC each; total up to 11 kW

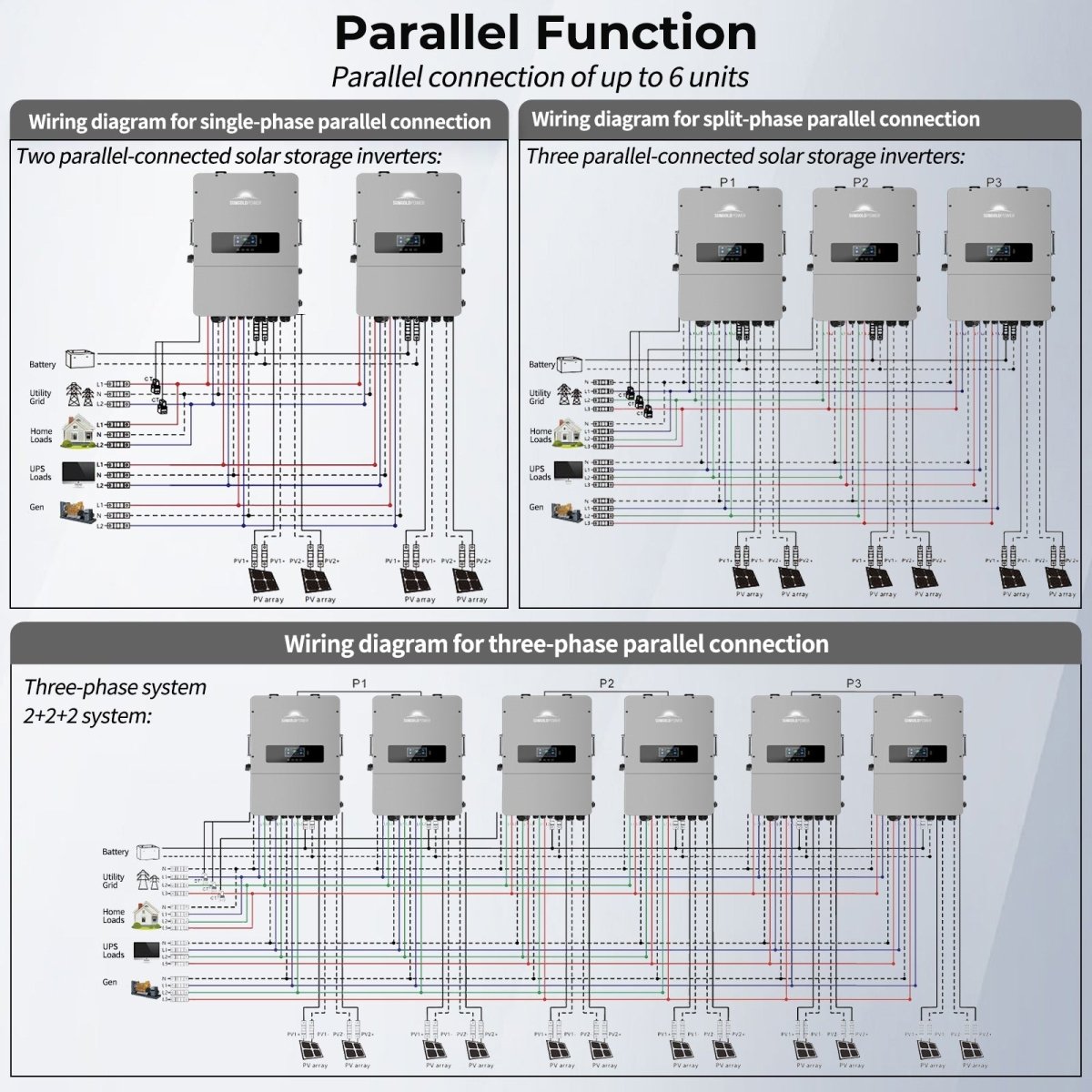

- Parallel: up to 6 units
- Bypass current: up to 100 A
- IP rating: IP65
- Warranty: 5 years
- Communications: CAN, USB, RS485

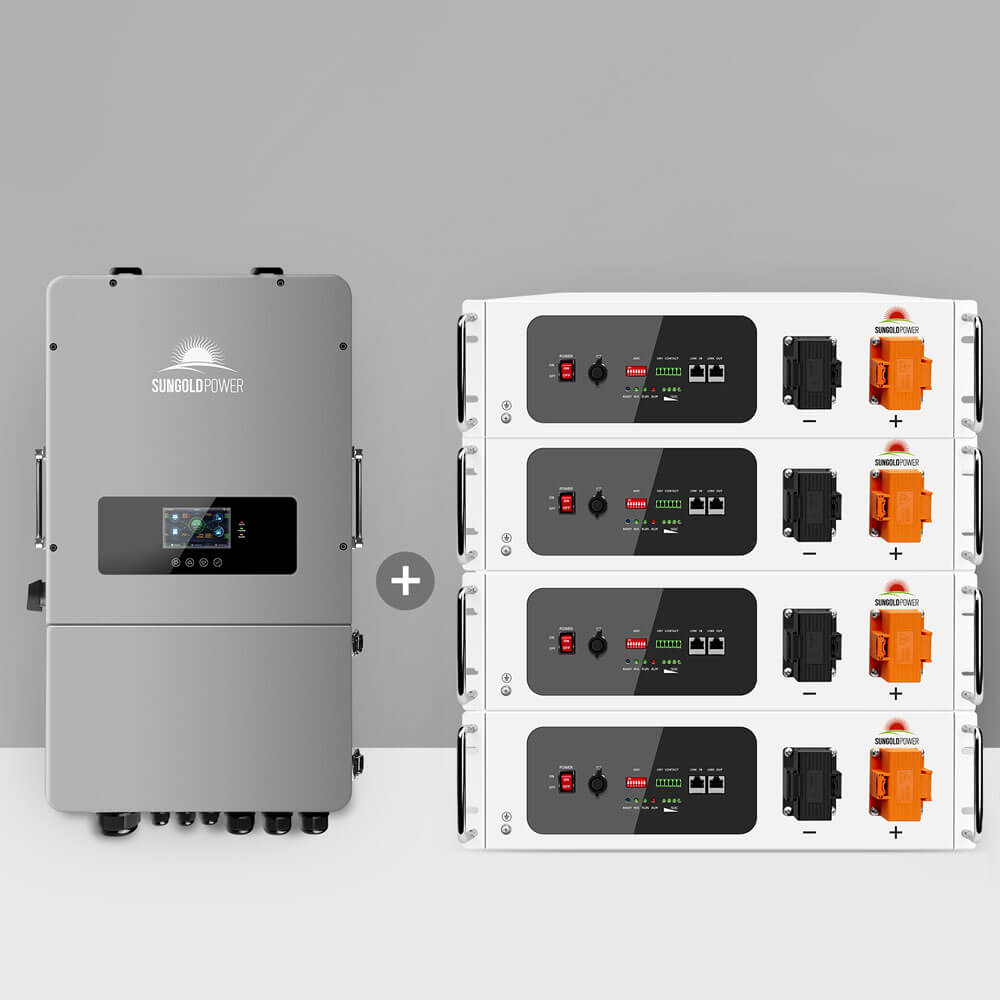

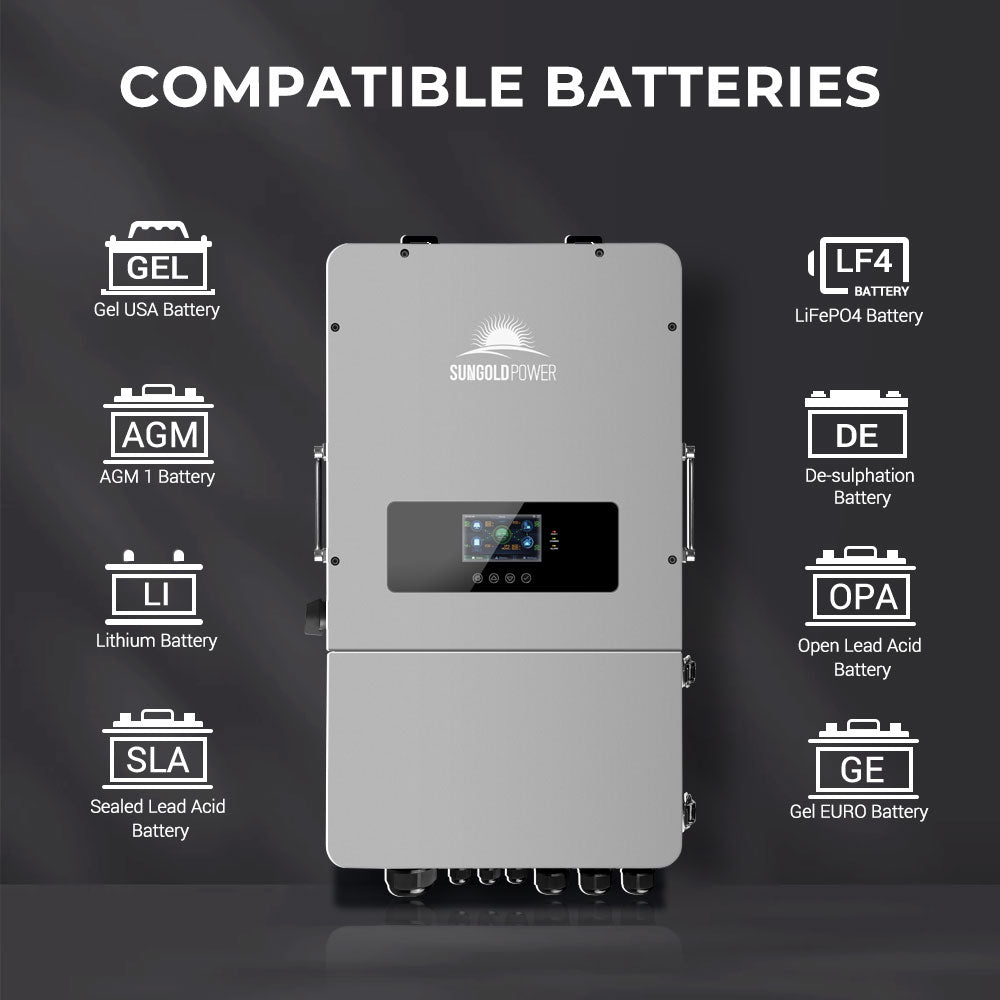

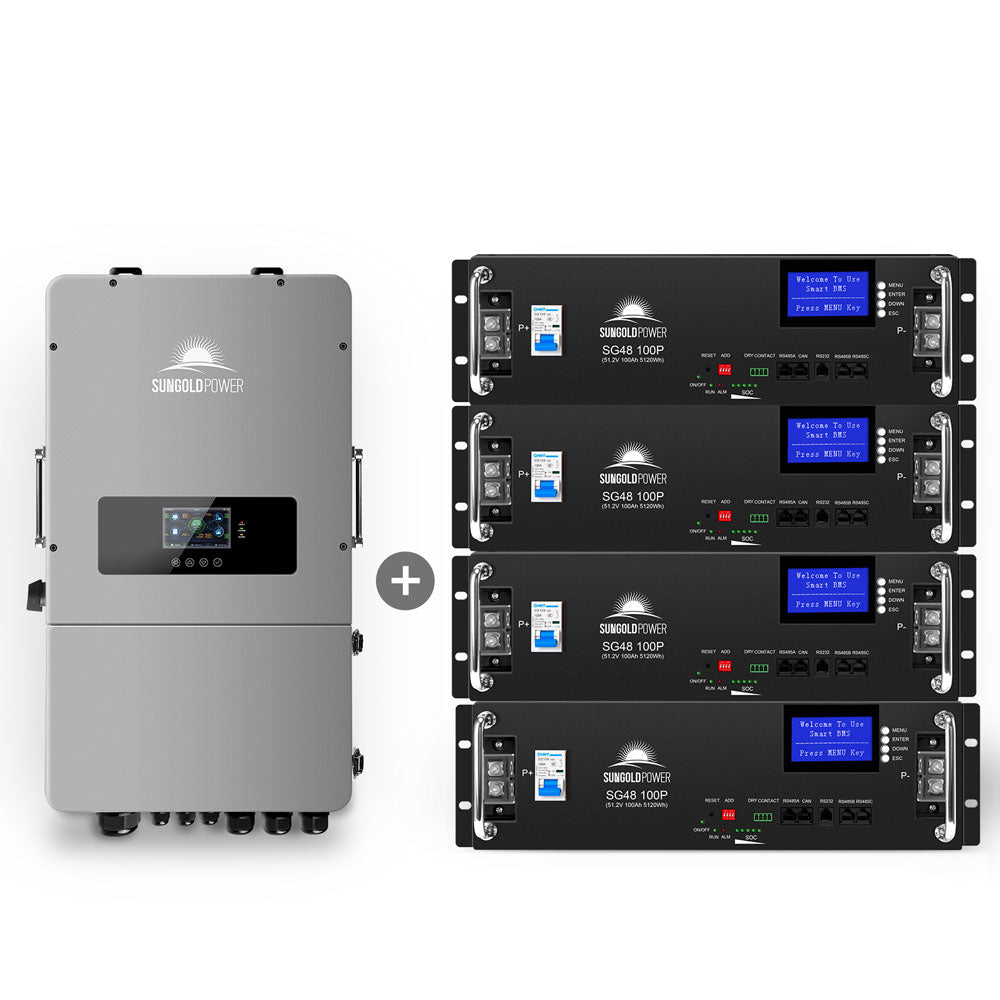

- Battery types: Lead-acid, Li-ion, or battery-free
- Li-ion activation: can activate when dormant via mains or PV
