SPH Series 6.5kW Hybrid Solar Inverter

Overview

All-in-one hybrid inverter for off-grid or hybrid setups. It combines a 6.5kW pure sine wave inverter with up to 140A battery charging, dual MPPT controllers, and multiple output configurations. A wifi module lets you monitor status and parameters from a mobile app. UL 1741 listed for off-grid solar systems.

Benefits

• One compact unit handles the inverter, charger, and MPPT control, reducing wiring and setup time.
• Flexible output options: 120V single phase, 120/240V split-phase, and 208V three-phase when paralleled.
• Wifi monitoring lets you check status from your phone.
• UL 1741 / ETL listed for off-grid solar systems, providing safety and compliance.

Features

• All-in-one 6.5kW pure sine wave inverter with up to 140A charging.
• Two built-in MPPT solar controllers; max open-circuit voltage 550VDC.
• WiFi module included for remote monitoring via a mobile app.

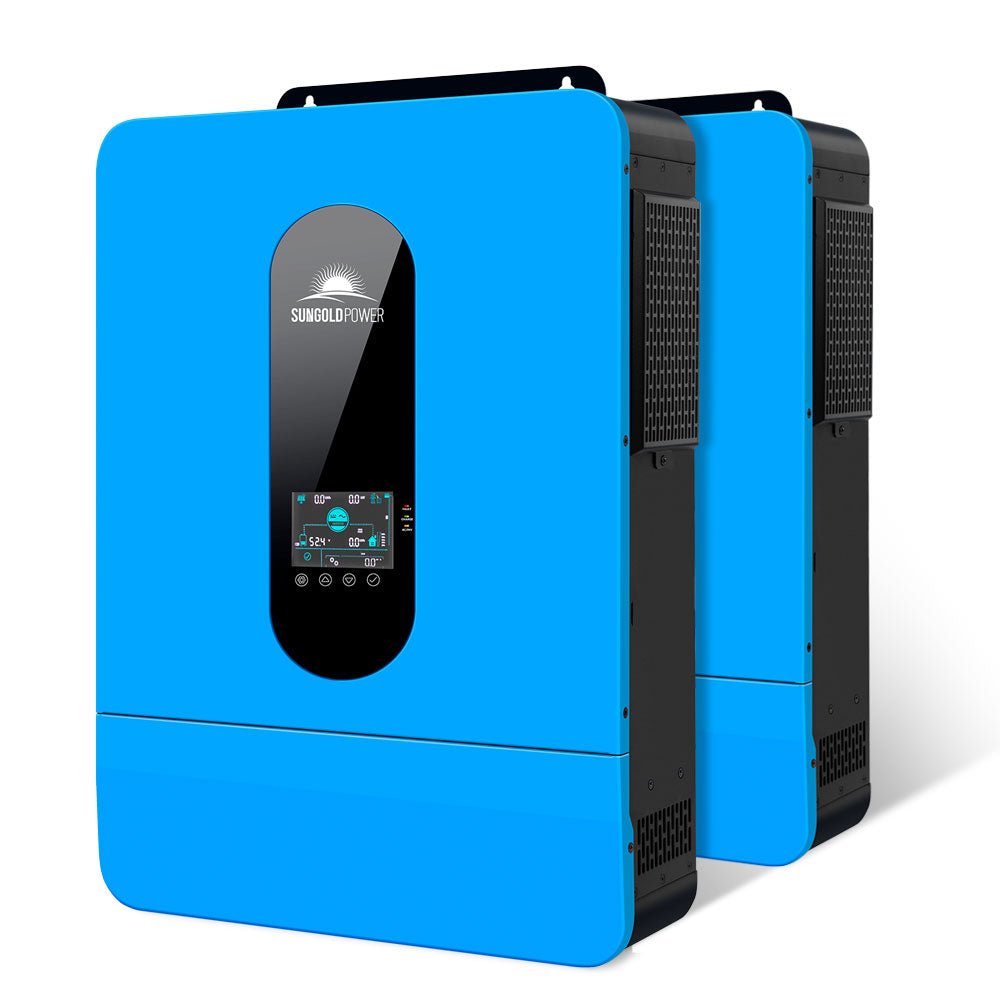

• Parallel kit supports up to 6 units in parallel, up to 39kW total.
• Output options: 120V single phase, 120/240V split-phase, or 208V three-phase when paralleled.
• Smart protections: PV input over-voltage/current, AC input over-voltage, battery over-voltage, overload protection, and more.

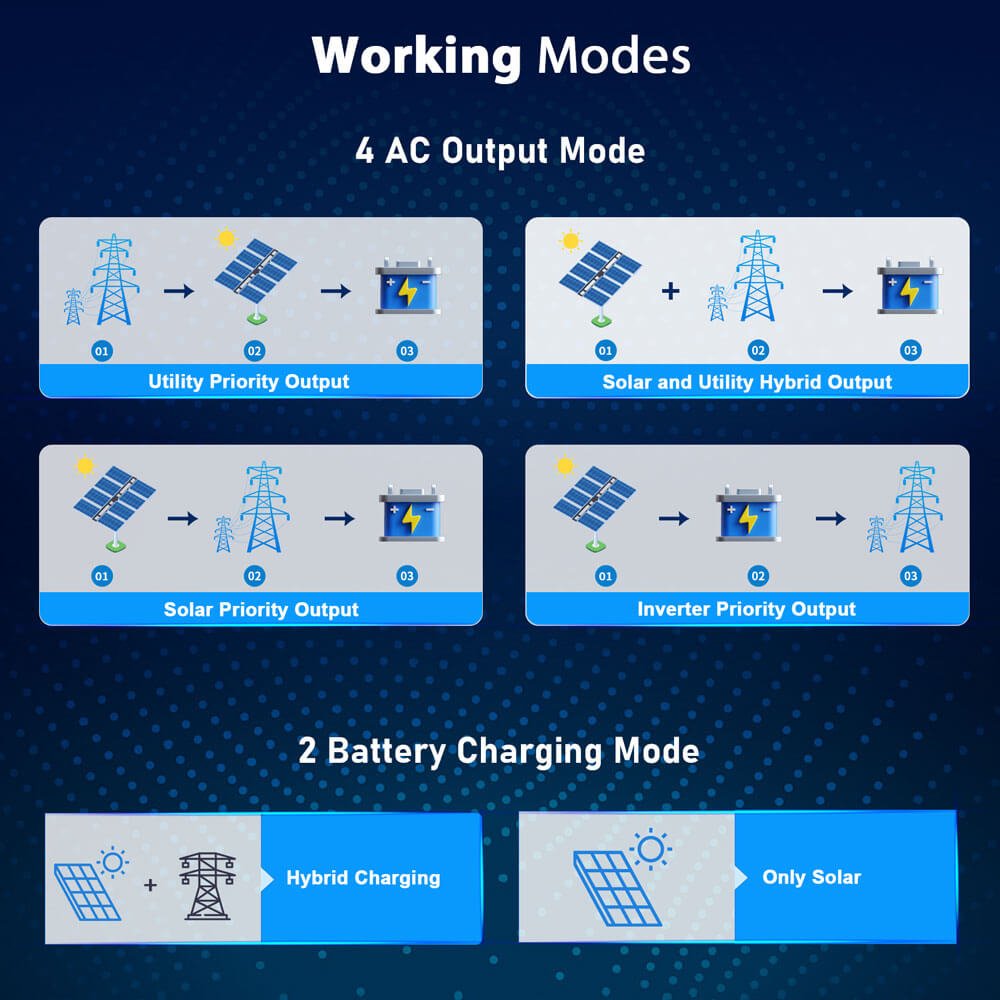

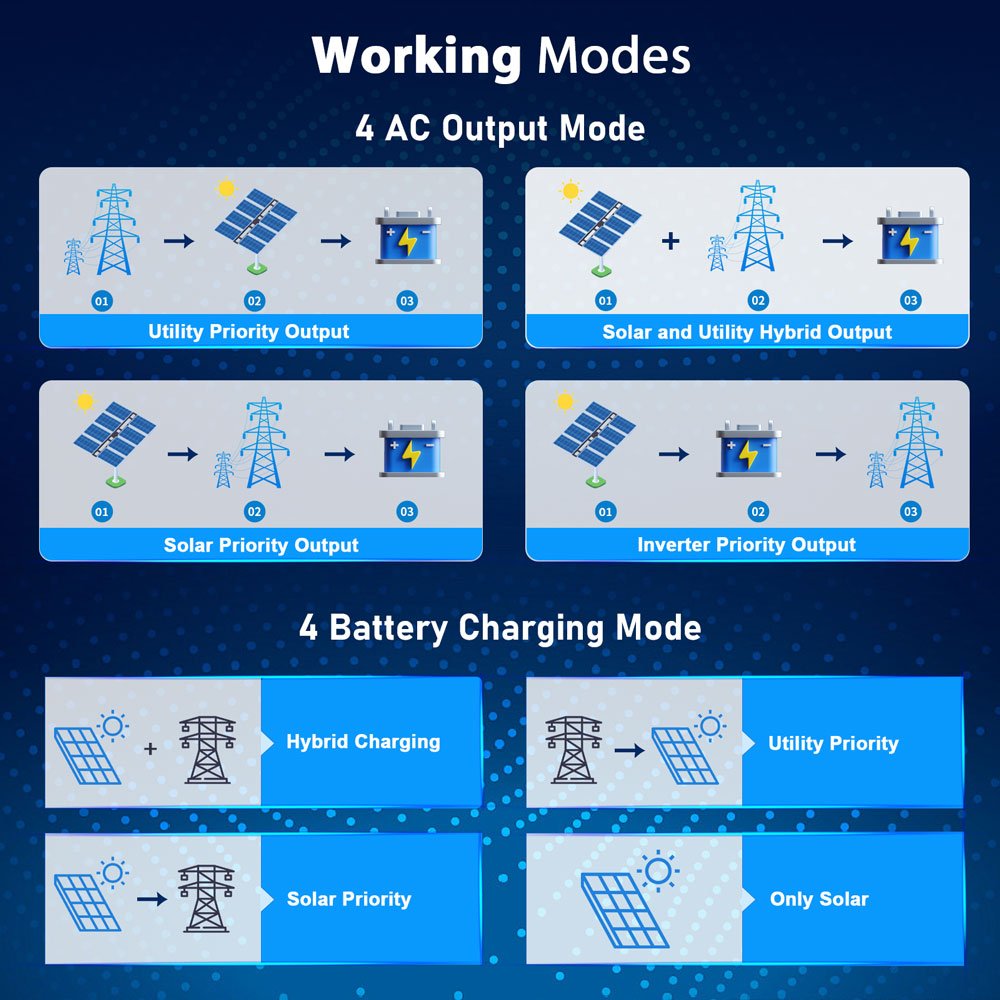

• Four charging/output modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, and Only Solar Charging; with Utility Priority, Solar+Utility Hybrid, Solar Priority, and Inverter Priority outputs.

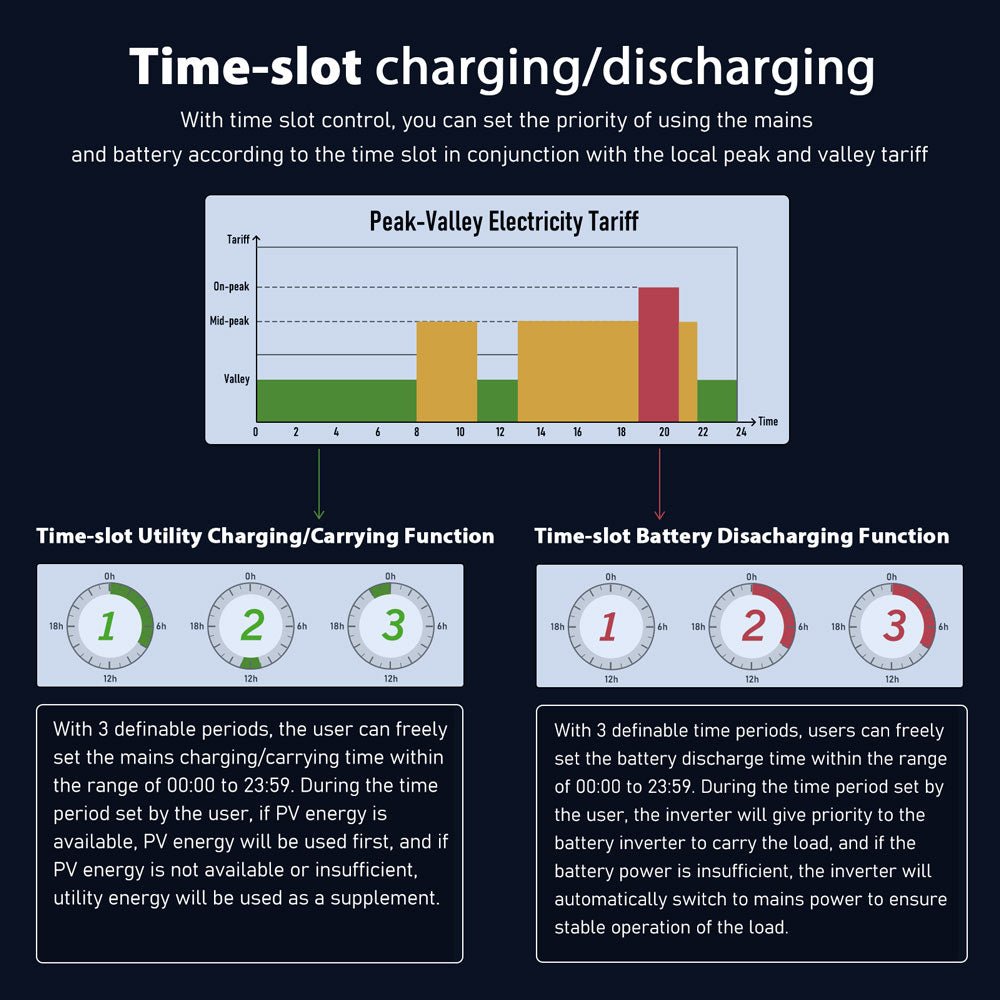

• Time-slot charging/discharging to align with local tariffs.

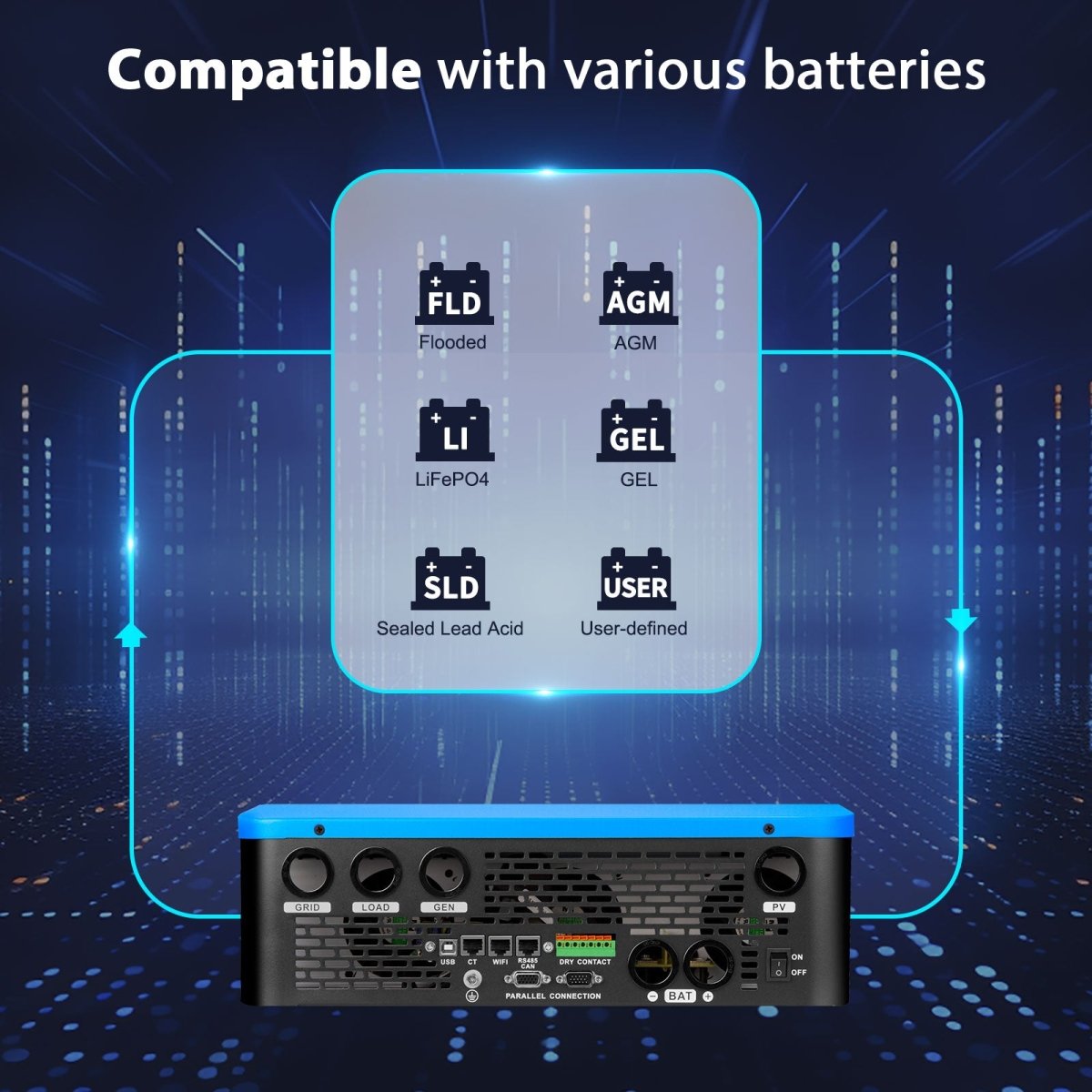

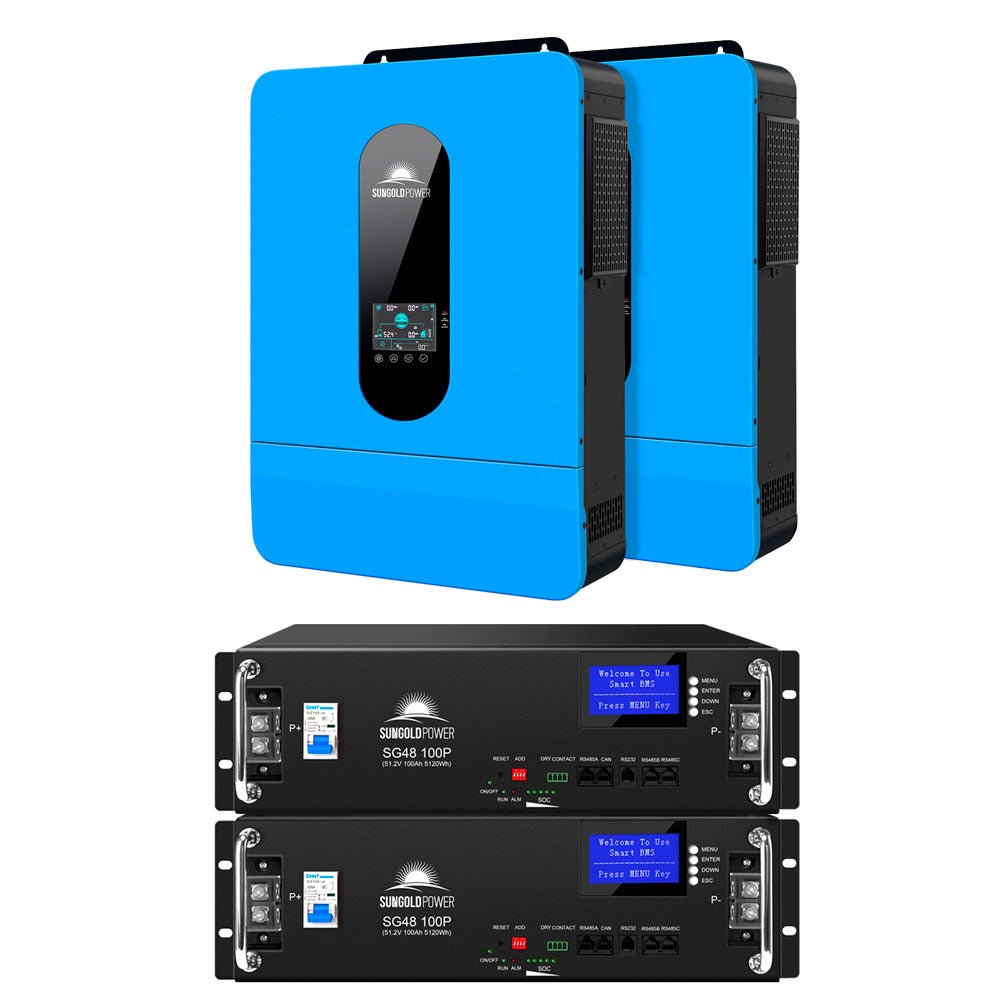

• Battery compatibility: 48V AGM/Sealed, Gel, Flooded, Lithium; a User Mode to work with all battery types; can operate with battery-free setups. 48V split-phase inverter supports CAN and RS485 communication with SunGoldPower batteries.

Specifications

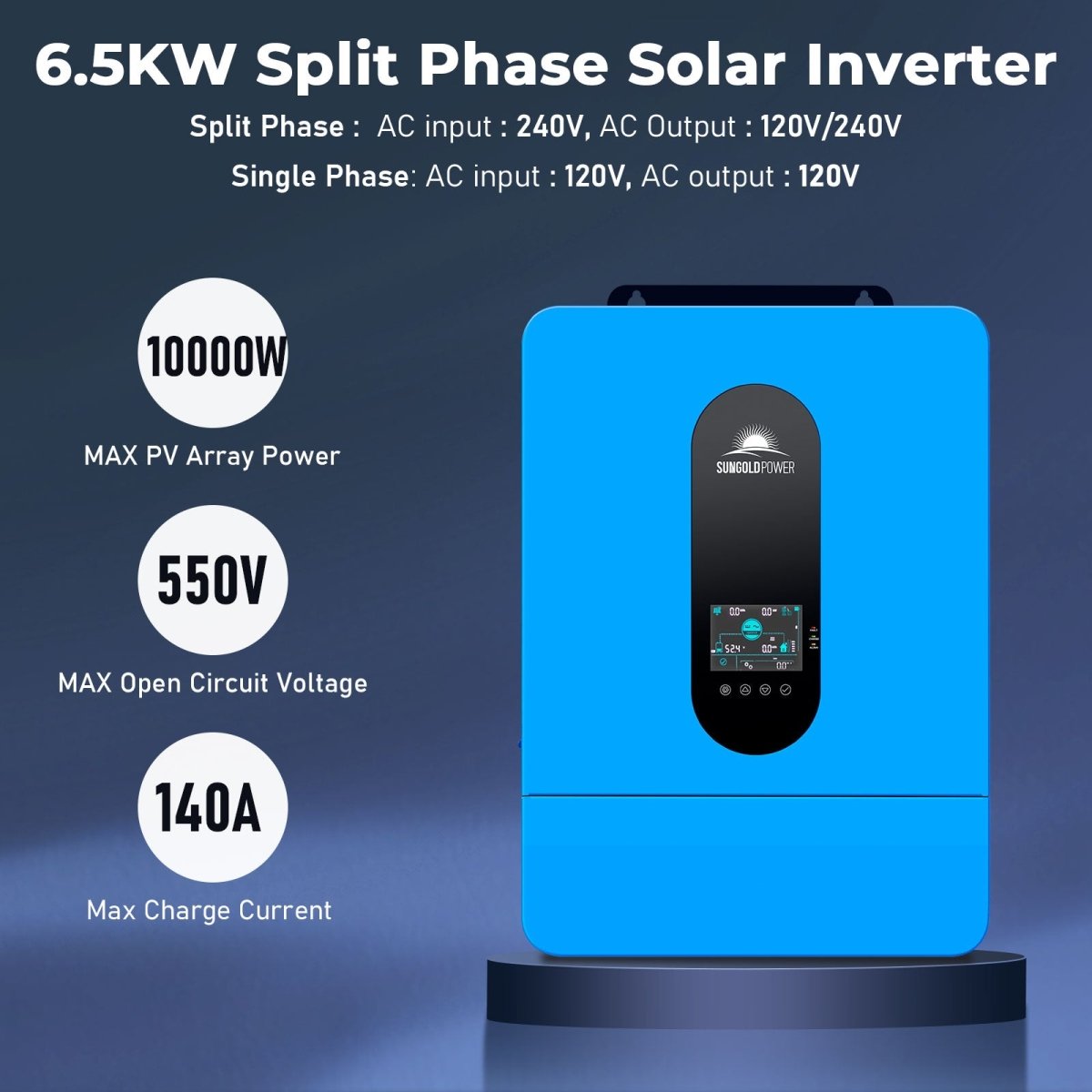

• Inverter rated output: 6500W; max peak power: 13,000VA.
• Battery charging: up to 140A.
• Inverter type: 6.5kW pure sine wave; built-in 2 MPPT controllers; max VOC 550VDC.
• Output configurations: 120V single phase, 120/240V split-phase, or 208V three-phase when paralleled.
• Monitoring: wifi module for app-based status checks.
• Certifications: UL 1741 by ETL for off-grid solar systems.
• Parallel capacity: up to 6 units in parallel (up to ~39kW).
• Protections: PV over-voltage/current, AC over-voltage, battery over-voltage, overload, and more.
• Time-slot charging/discharging function.
• Battery types supported: 48V AGM/Sealed, Gel, Flooded, Lithium; user mode; can work with battery-free setups.
• Communication: CAN and RS485 with SunGoldPower batteries.
