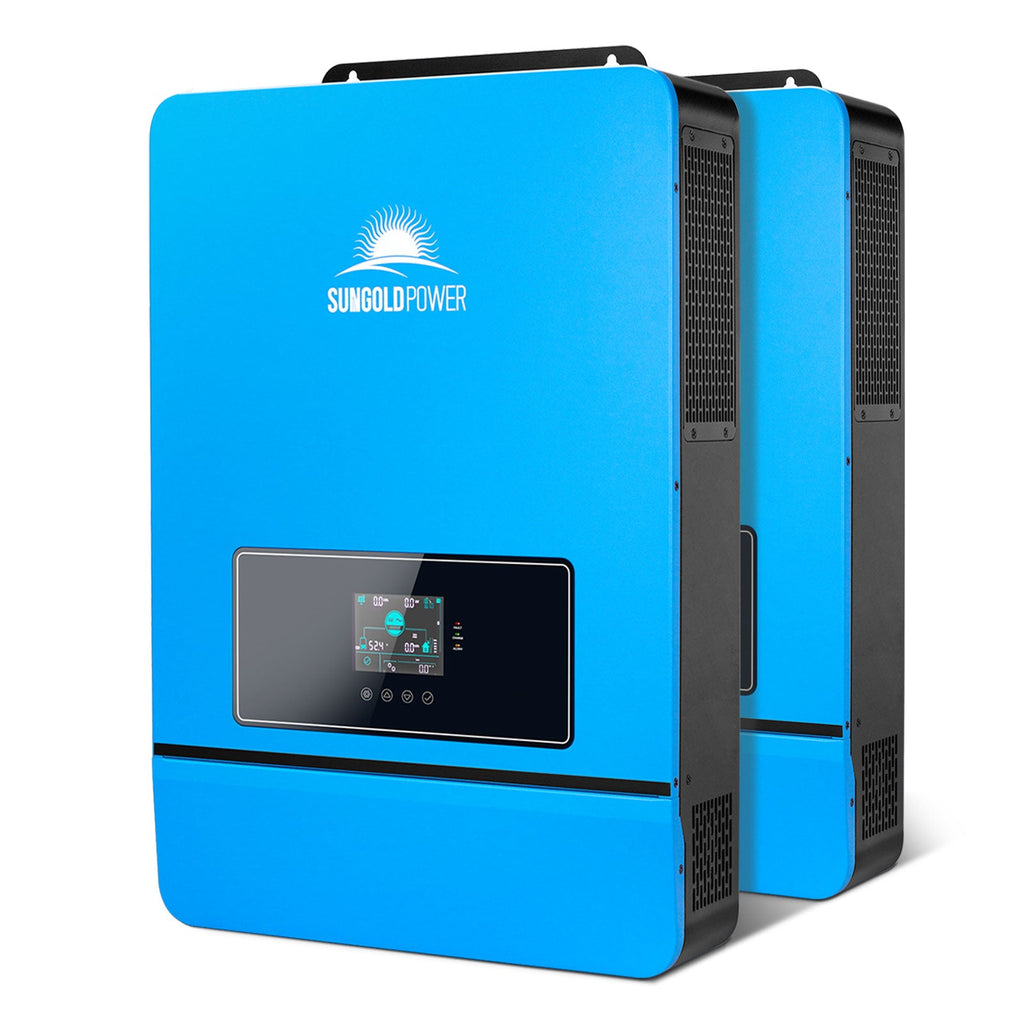

8 kW All-in-One Hybrid Solar Inverter
Overview
A compact, all-in-one option for off-grid and hybrid solar setups. It combines an 8 kW pure sine wave inverter with built-in battery charging, dual MPPT controllers, and flexible outputs. It includes a Wi?Fi module for remote monitoring and is UL 1741 certified for off-grid solar systems.
Benefits
- Fewer boxes. All-in-one design simplifies installation and reduces wiring.
- Scales with you. Parallel up to 6 units for up to 48 kW total output.
- Reliable power. Stable AC output with smart protections for PV, grid, and battery.
- Flexible charging. Four charging/output modes to fit different setups.
- Tariff-aware. Time-slot charging/discharging helps maximize savings.
- Battery options. Supports 48V AGM/Sealed, Gel, Flooded, Lithium, or operate without a battery.

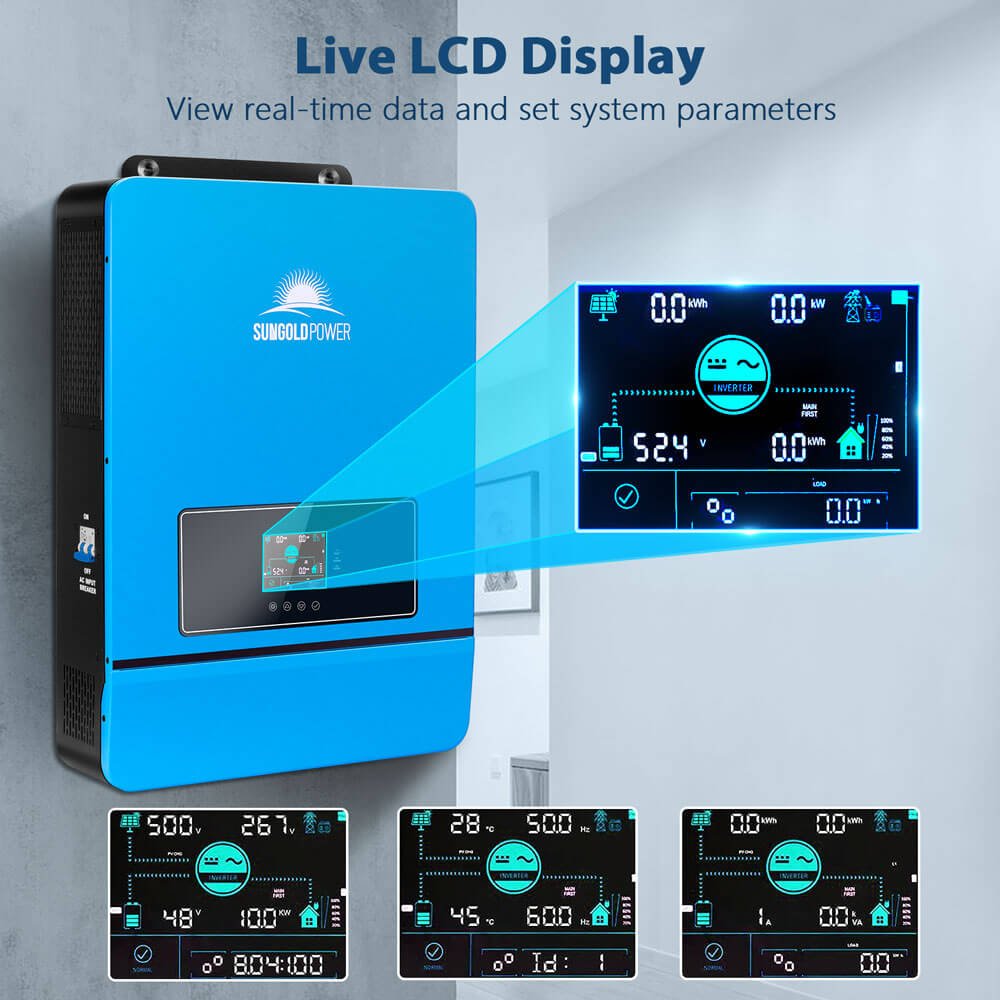

- Remote monitoring. Wi-Fi module lets you view status on a mobile app.
- Certainty. UL 1741 certification for off-grid solar systems.
Features

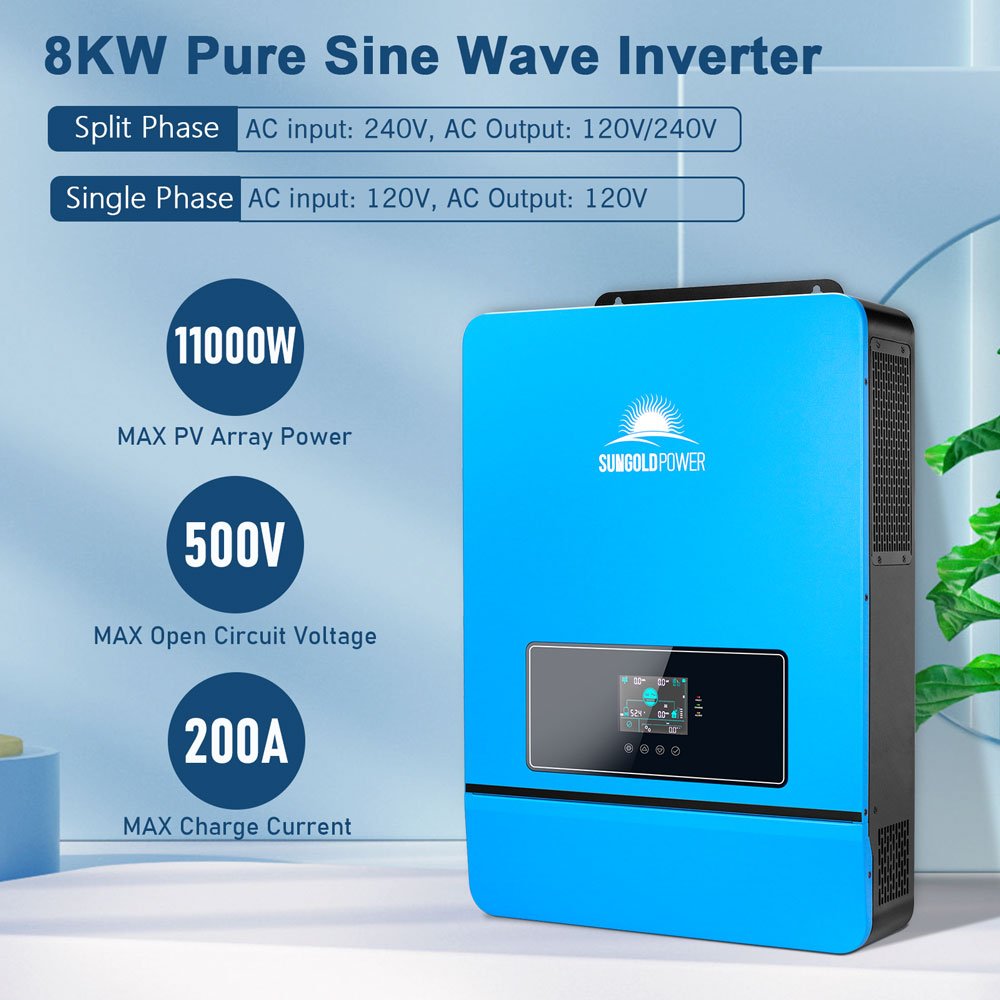

- All-in-one 8 kW pure sine wave inverter with max 200 A battery charging, built-in 2 MPPT controllers, and open-circuit voltage up to 500 VDC. Outputs include split phase (120/240 V) or single phase (120 V). Wi?Fi module included for app monitoring. UL 1741 certified for off-grid use.

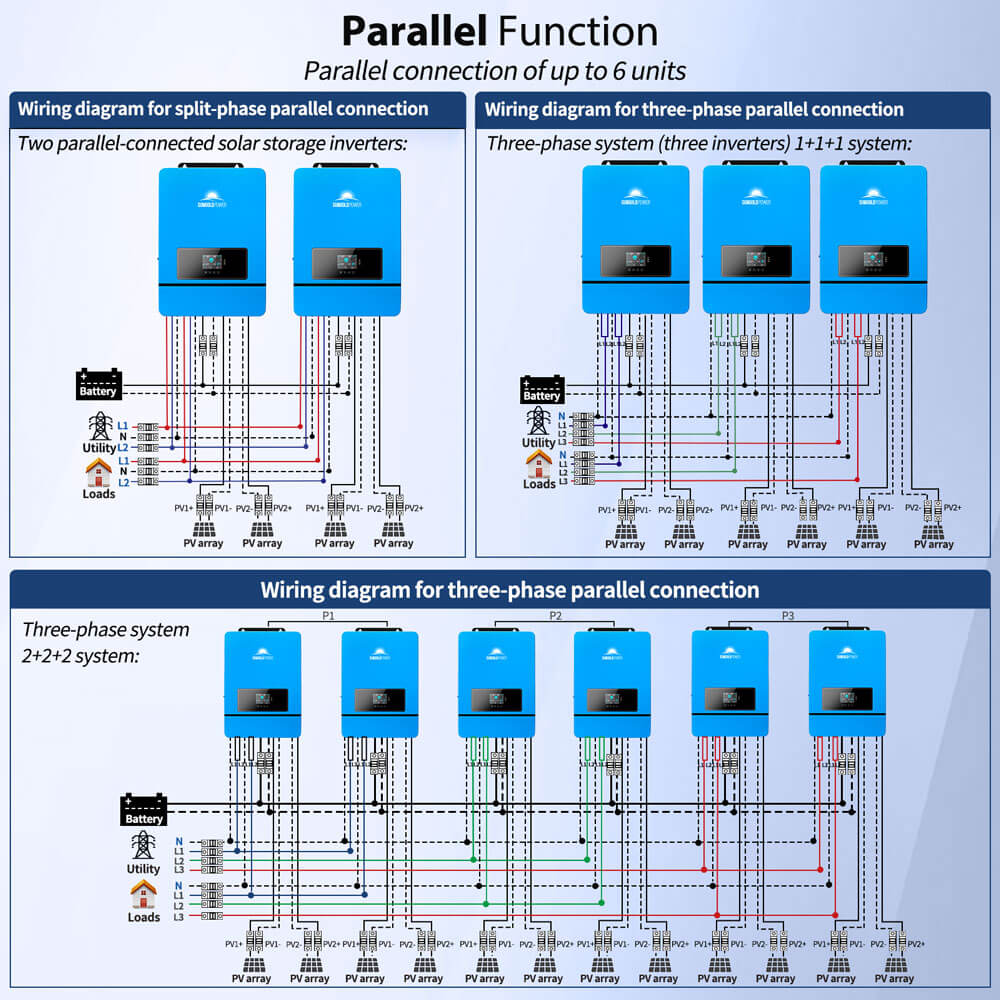

- Parallel Kit supports up to 6 units in parallel, delivering up to 48 kW. Configurations include 120 V single phase, 120/240 V split phase, or 208 V three-phase when paralleled (more than 3 units).
- Stable AC output and smart protections. Rated output 8000 W, max peak 16,000 W, suitable for load like a 6 HP motor. PV input over-voltage/current protection, AC input over-voltage protection, battery over-voltage protection, and overload protections.

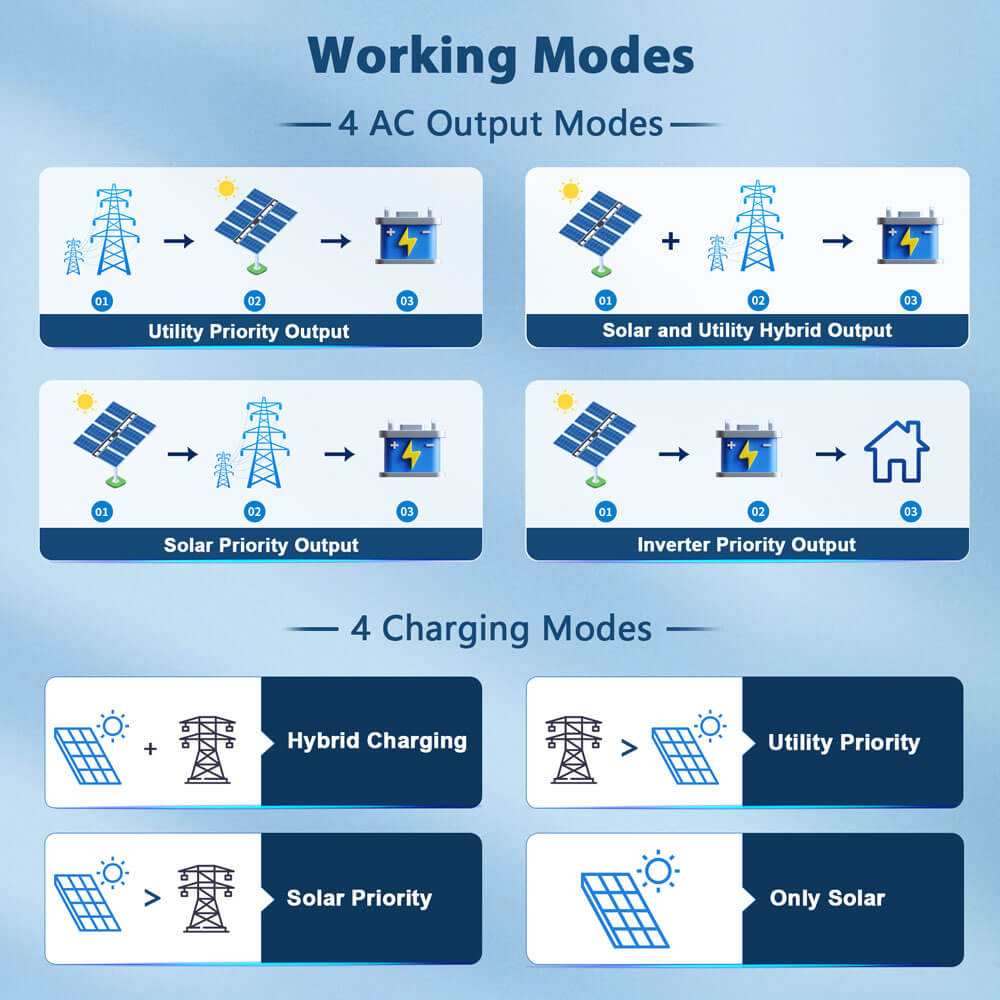

- Four charging/output modes. Hybrid charging, Utility Priority charging, Solar Priority charging, or Only Solar charging. Output modes include Utility Priority, Solar+Utility Hybrid, Solar Priority, and Inverter Priority.
- Time-slot charging/discharging. Schedule charging and discharging periods to align with local tariffs and use PV energy efficiently.

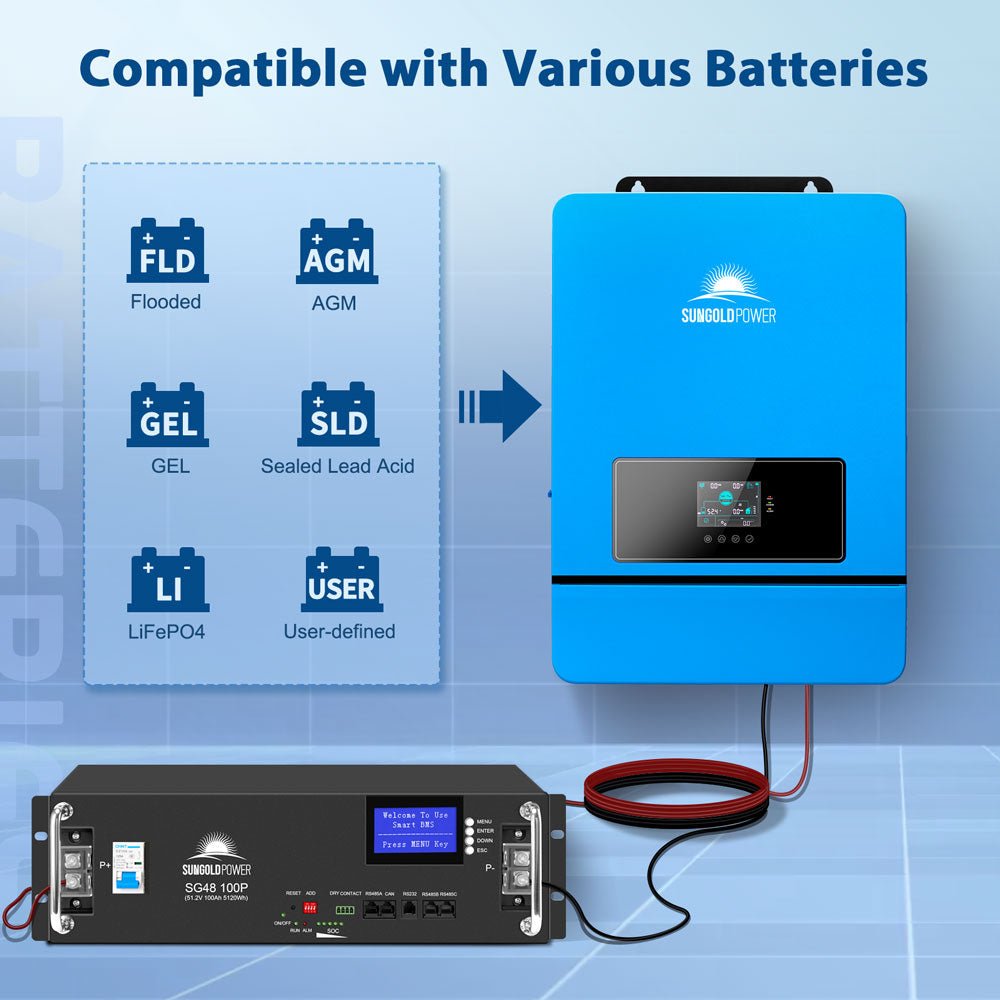

- Battery compatibility. 48 V Nominal; supports AGM/Sealed, Gel, Flooded, Lithium, and a User mode for all battery types. Can operate with or without a battery; lithium can be activated by mains and PV. USB and RS485 communication with SunGoldPower batteries.
Specifications
- Rated Output Power: 8000 W
- Max Peak Power: 16000 W
- Motor load capacity: 6 HP
- Open Circuit Voltage (OCV) max: 500 VDC
- Battery charging: Up to 200 A
- Battery voltage: 48 V nominal
- MPPT: 2 built-in
- Output configurations: 120 V single phase; 120/240 V split phase; 208 V three-phase when paralleled (more than 3 units)
- Parallel capability: Up to 6 units (up to 48 kW)
- Battery types supported: AGM, Sealed, Gel, Flooded, Lithium; also supports battery-free operation
- Protections: PV input over-voltage/current, AC input over-voltage, battery over-voltage, overload
- Communications: USB and RS485
- Wireless: Wi-Fi module for remote monitoring
- Certification: UL 1741 by ETL for off-grid solar systems
