51.2V 100Ah LFP Battery

Overview

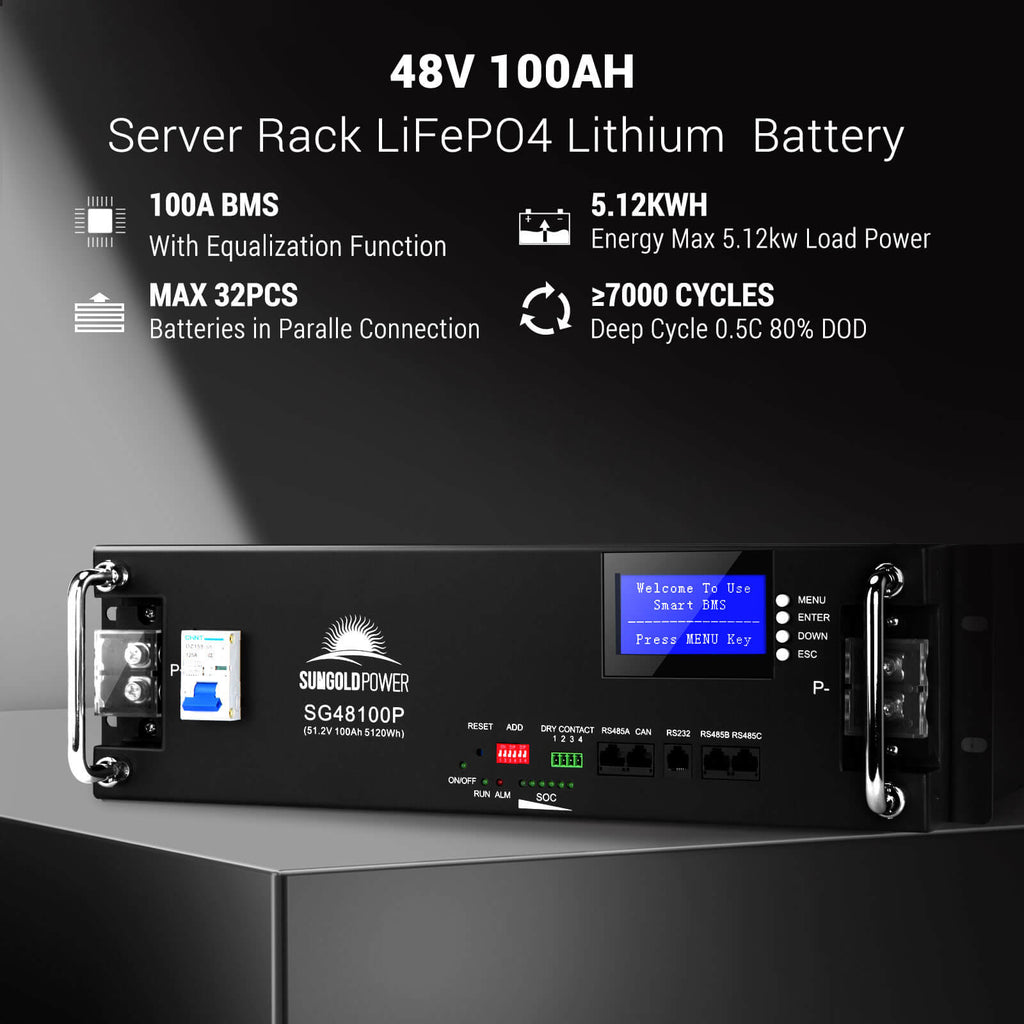

Compact 51.2V lithium iron phosphate battery. LCD display and cable/accessories ready for installation. Built for long life with a target up to 15 years and a 10-year warranty, plus deep-cycle capability of 7000+ cycles. Designed to fit UL1973 and UL9540A standards.

Benefits

• Long life and warranty: ?7000 deep cycles, up to 15-year design life, 10-year warranty.
• Intelligent BMS: monitors voltage, current, and temperature. Protects from overcharge, deep discharge, overloading, overheating, and short circuit.

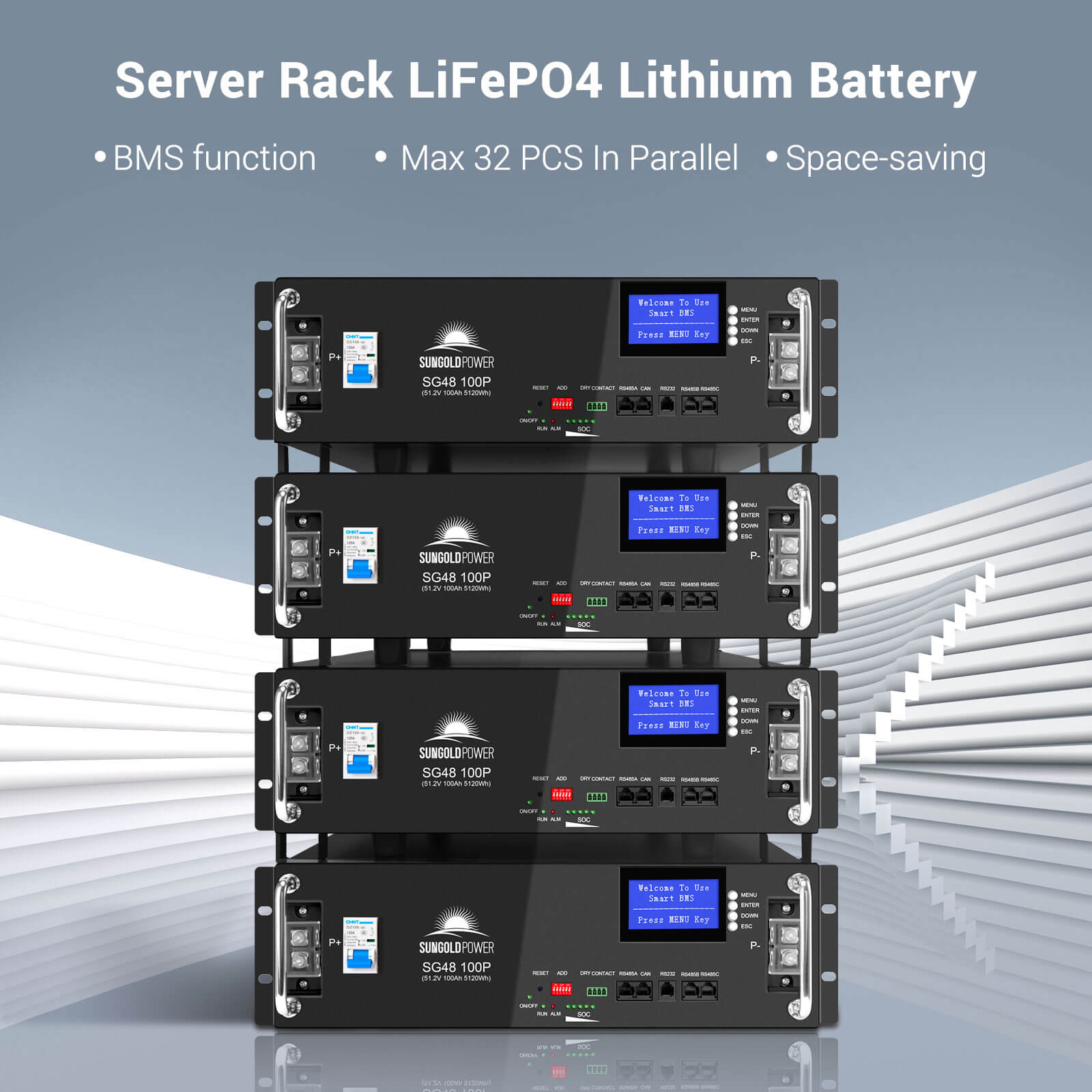

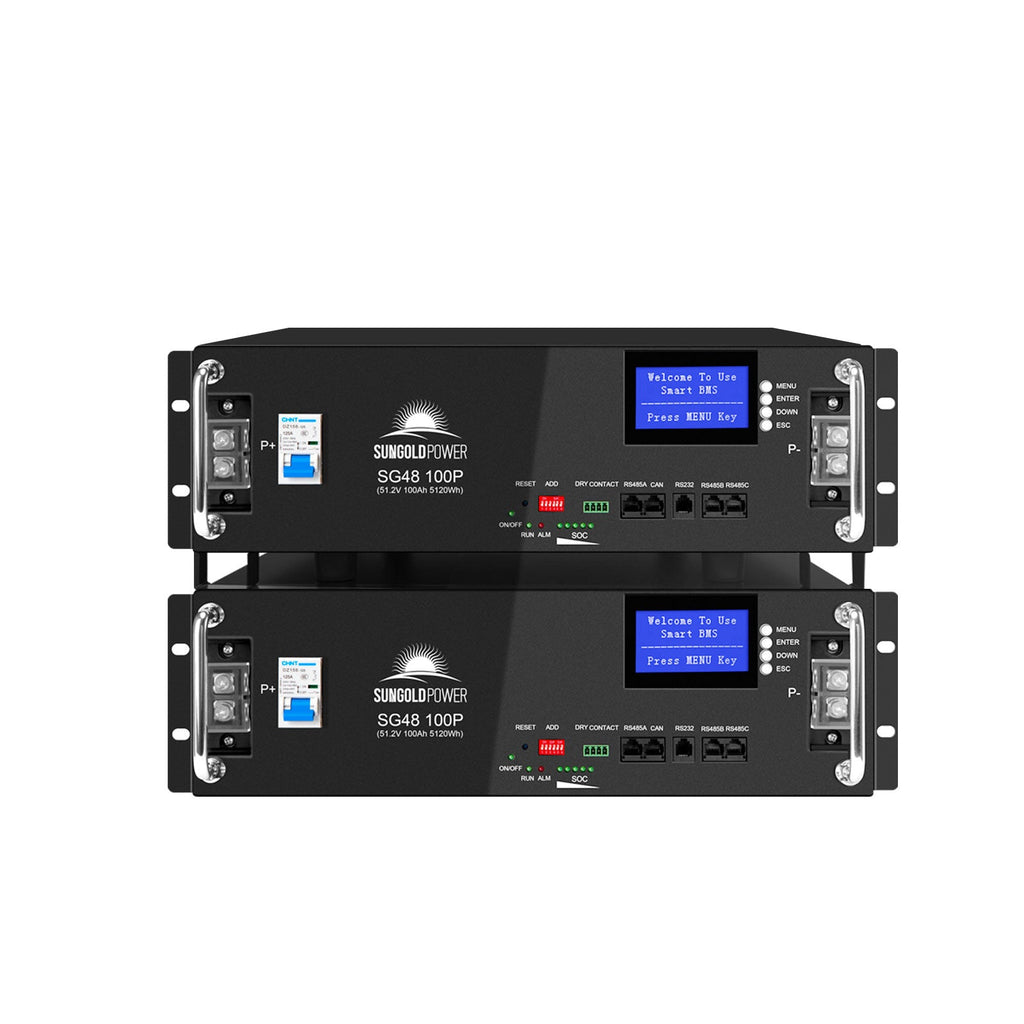

• Flexible: modular design. Up to 32 units in parallel for a total capacity of 163.84 kWh.
• Compatible: CAN/RS485/RS232 communication. Works with most inverters on the market.

Features

• Compact, well-designed unit with LCD display.

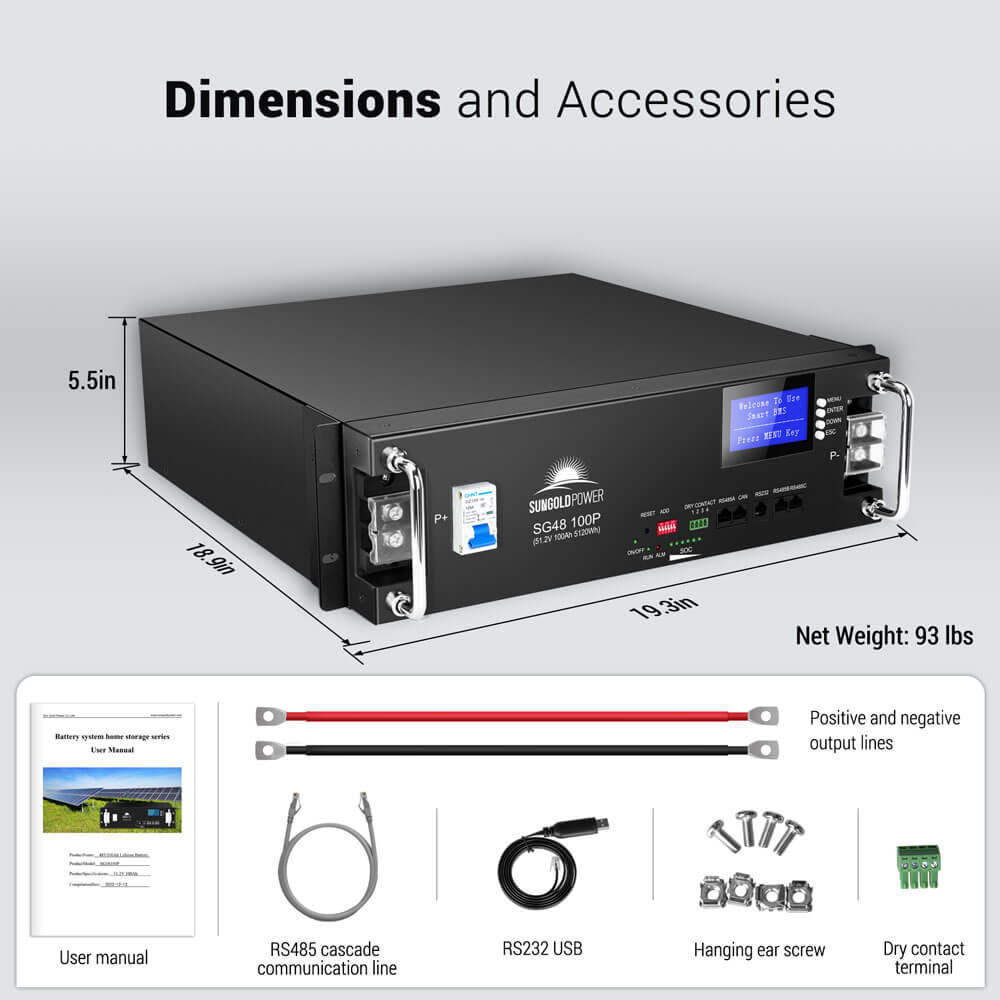

• Cable and accessories included for installation.
• Modular design for easy expansion.
• Intelligent BMS protects and optimizes performance.
• Wide inverter compatibility with common communication protocols.

Specifications

• Model: 51.2V 100Ah LFP Battery
• Nominal voltage: 51.2V
• Capacity: 100Ah
• Energy per unit: 5.12 kWh
• Max parallel units: 32
• Max system energy: 163.84 kWh
• Cycle life: ?7000 cycles
• Warranty: 10 years
• Design life: up to 15 years
• Standards: UL1973, UL9540A
• Display: LCD
• Interface: CAN/RS485/RS232
• Inverter compatibility: Growatt, Deye, SunGoldPower, Luxpower, Victron Energy, Schneider, Phocos, SMK, and others
