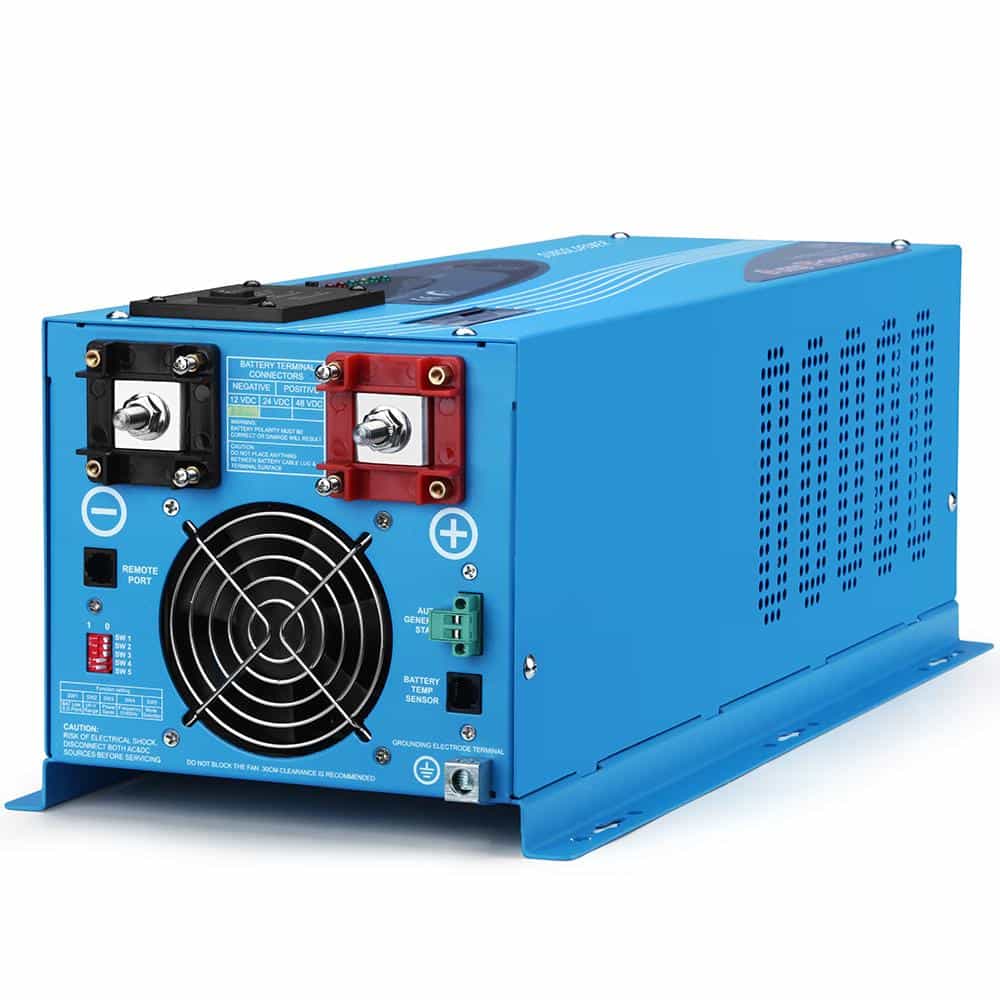

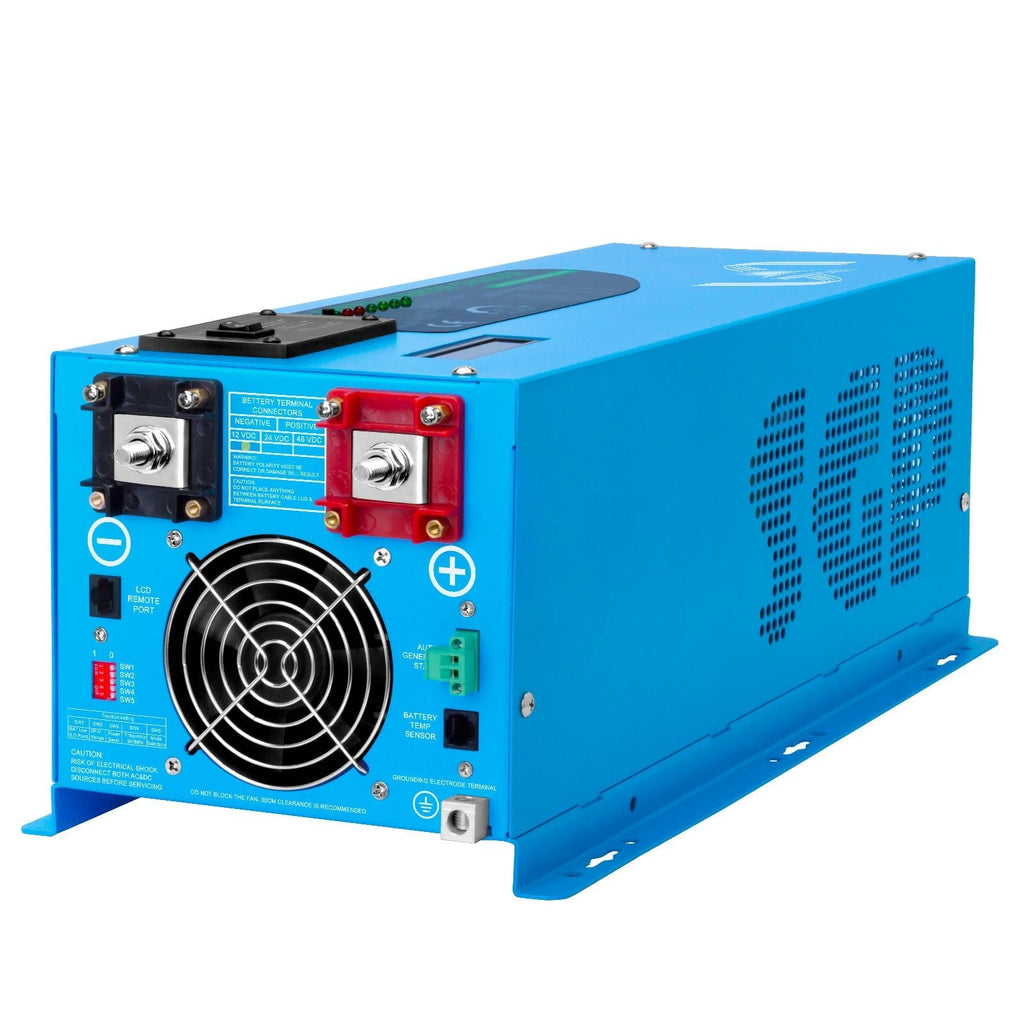

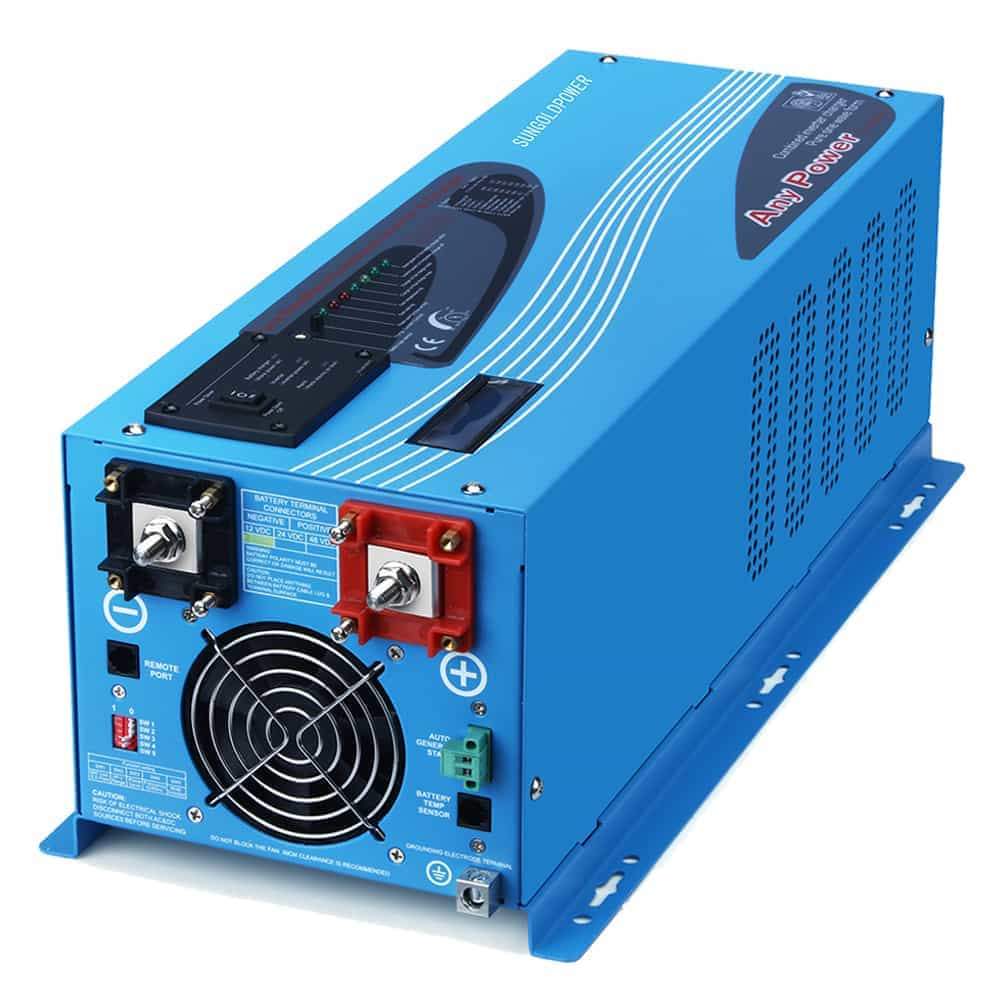

LFP Series 2000W Pure Sine Wave Inverter/Charger

Overview

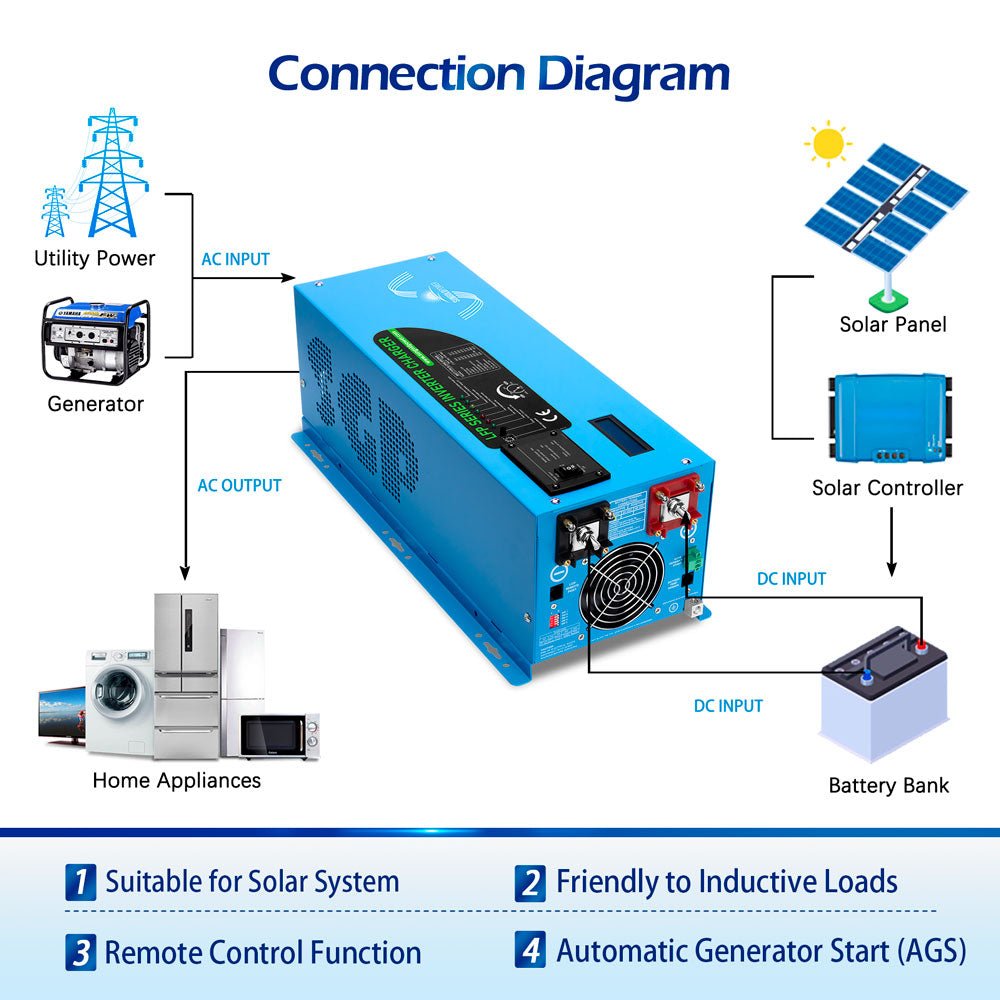

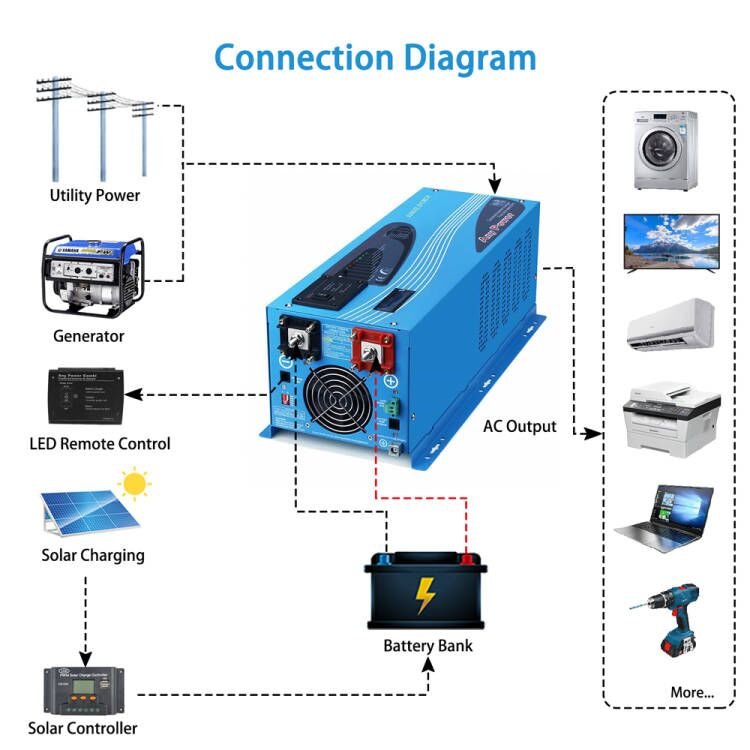

All-in-one power box: inverter, battery charger, and AC auto-transfer switch. Low idle. Remote control. BTS cable included.

Benefits

• All-in-one: inverter, charger, and auto-transfer switch in one unit.

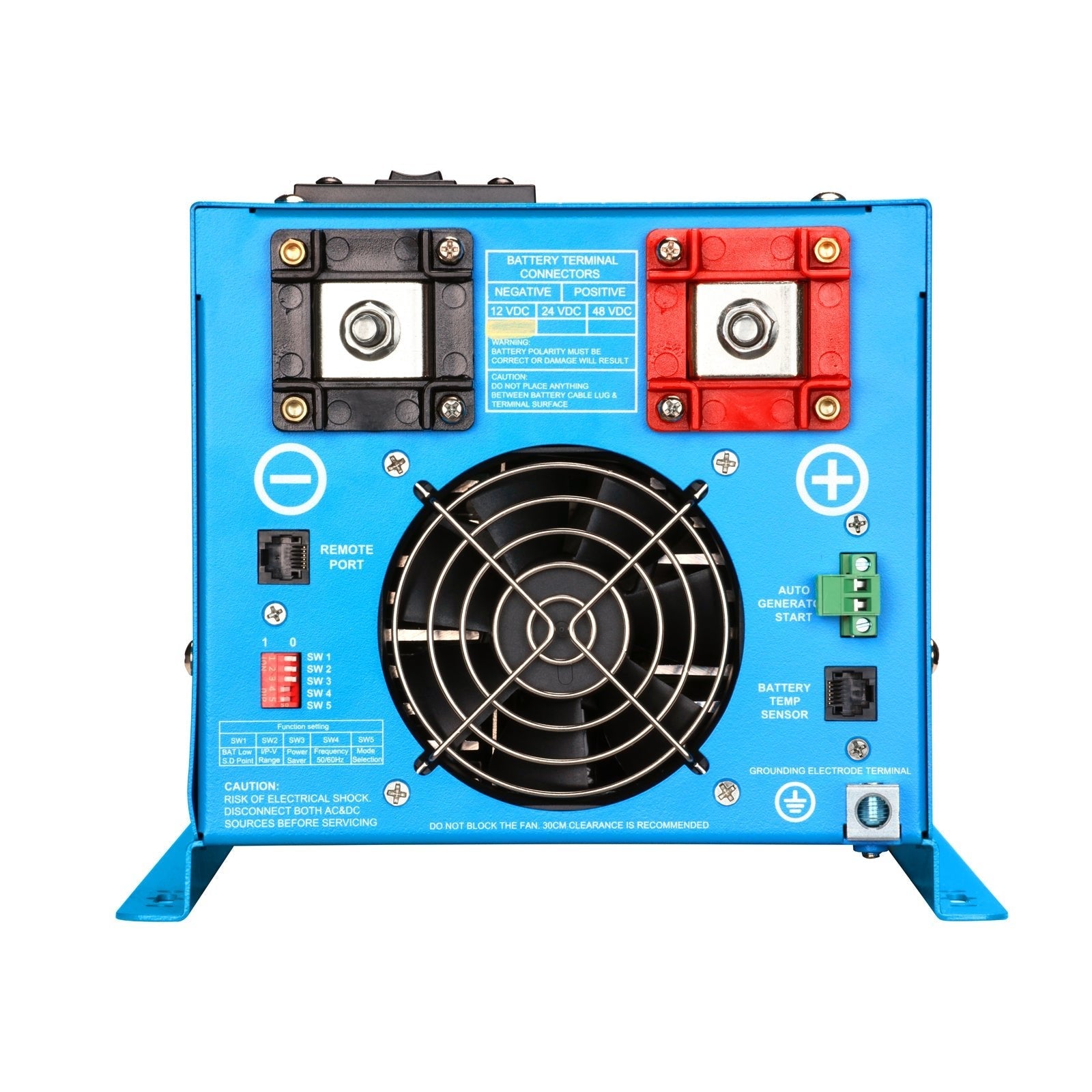

• 120VAC input/output; 50/60Hz selectable with SW4.
• AC priority by default; switch to battery priority with SW5.
• Adjustable charging current from 0% to 100%.
• Auto Gen Start: generator starts when battery is low; stops after charging.
• Remote control and BTS cable included.
• Low idle consumption.

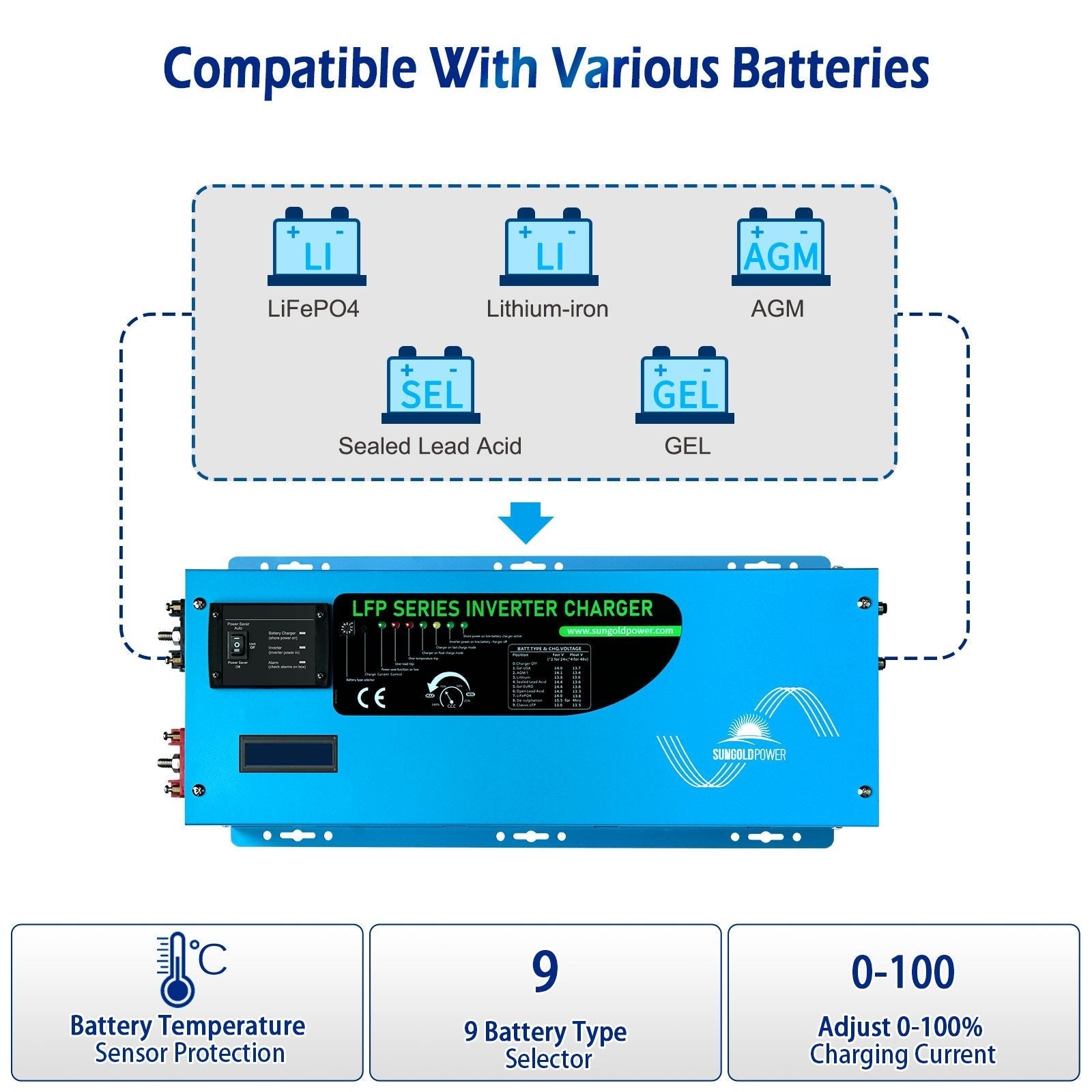

• 7 battery type settings for the charger.
• 10 ms typical transfer time.

Features

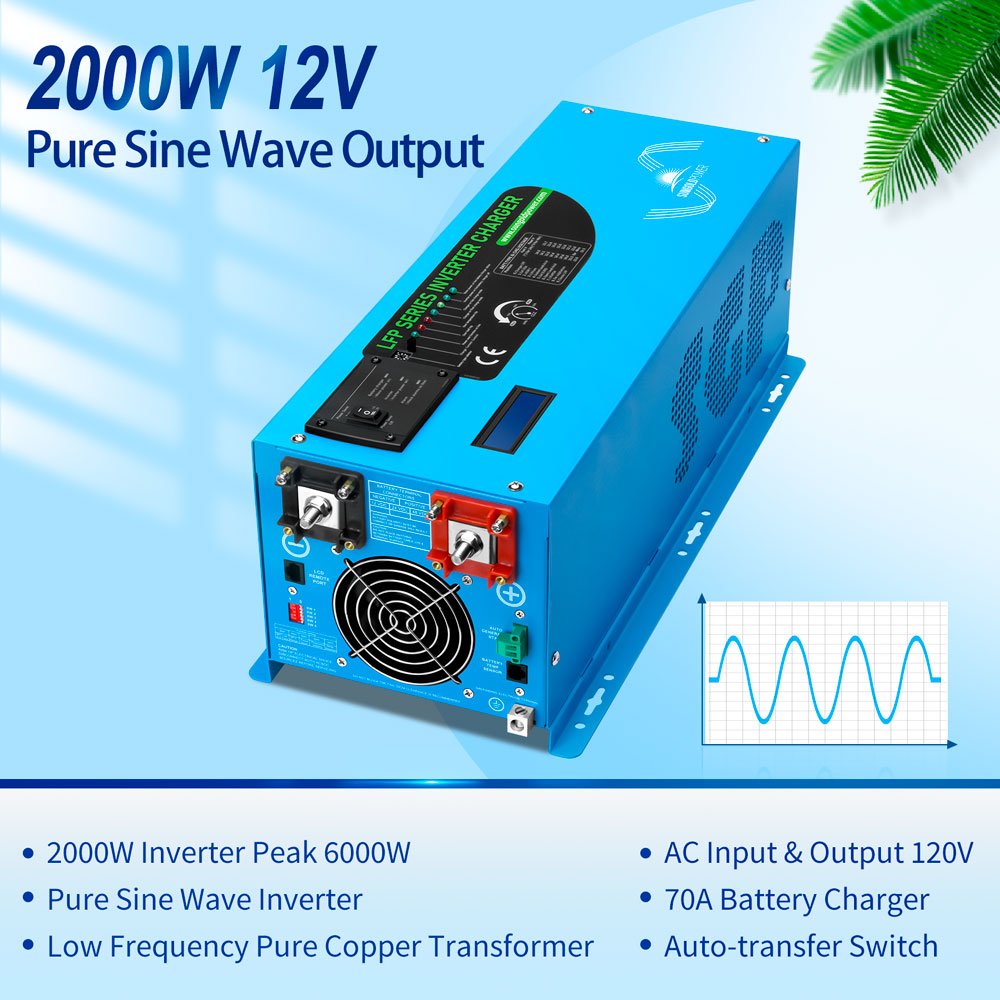

• 2000W LFP low-frequency pure sine inverter with charger.
• AC/Battery priority selector.
• Automatic generator start.

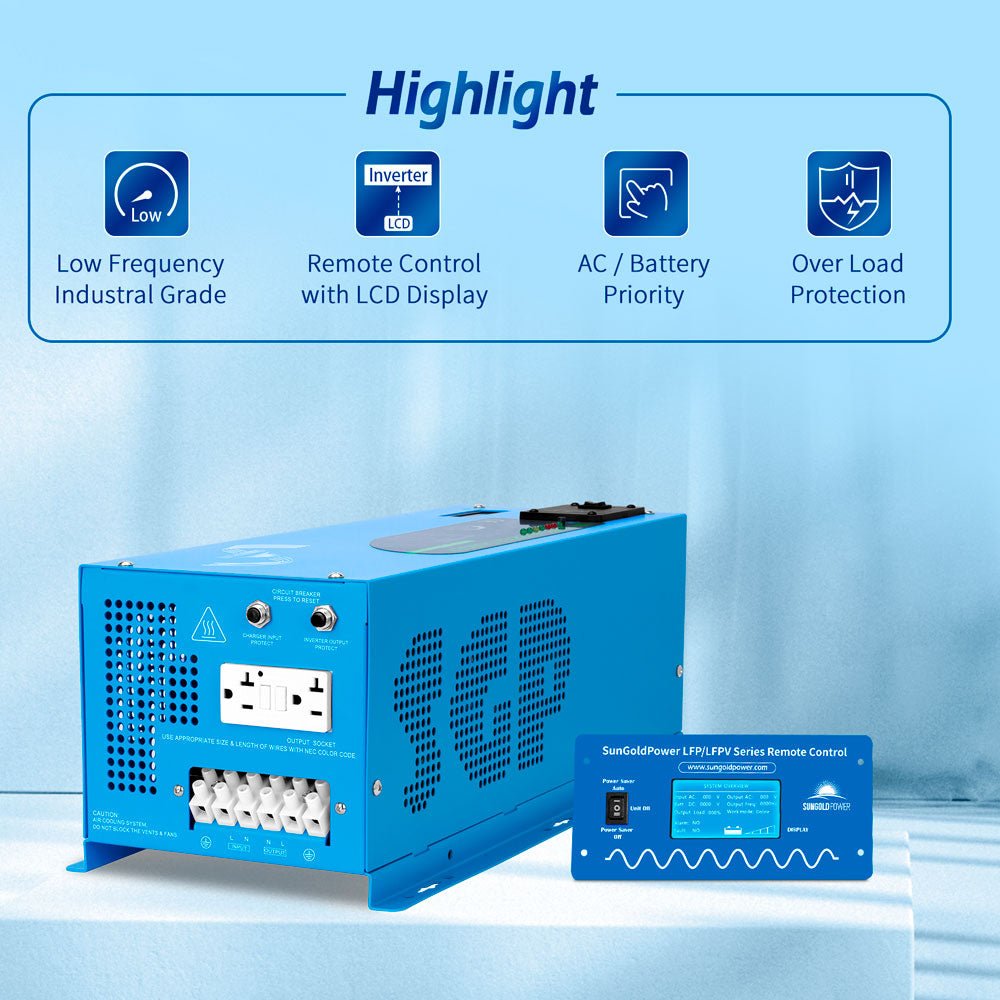

• GFCI socket for safety and convenience.
• Low-frequency inverter can power a wide range of appliances.
• LCD display, remote control, BTS included.
• Low idle consumption.
• 7 battery type settings for the charger.
• Multi-stage smart charger 70±5A; charger can be disabled.
• 10 ms typical transfer time.

Specifications

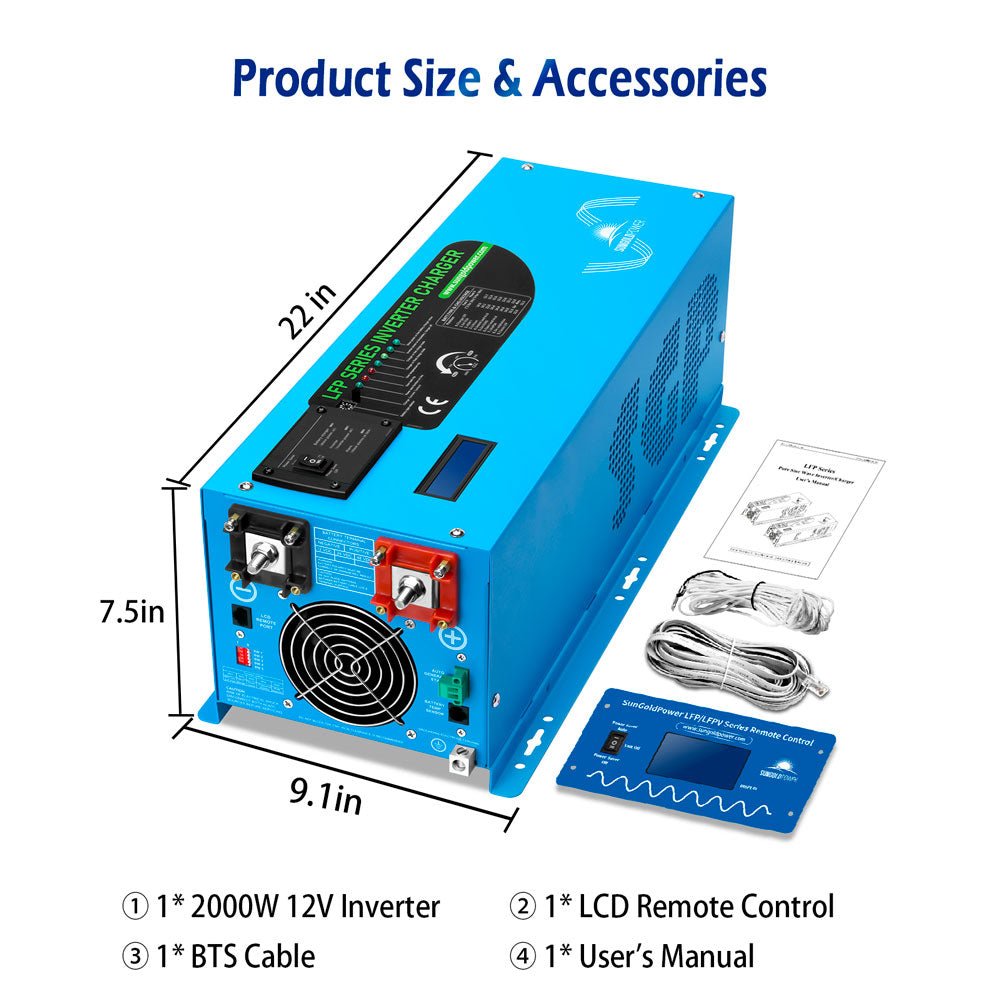

• Packaging:
  • 2000W 12V Low-Frequency Pure Sine Inverter
  • English Manual
  • Remote Control
  • BTS Cable
  • Unit Weight: 53LB
  • Unit Size: 17.4 x 9.5 x 7.8 inch
  • Shipping Weight: 57LB
  • Shipping Size: 23 x 12.6 x 12.0 inch
• Inverter Output:
  • Continuous Output Power: 2000W
  • Surge Rating: 6000W (20 Seconds)
  • Output: 120VAC, 60Hz
  • Output Wave: Pure Sine Wave (bypass mode)
  • Typical Transfer Time: 10ms (MAX)
  • Nominal Efficiency: >88%
• DC Input:
  • Nominal Input Voltage: 12.0Vdc
  • Minimum Start Voltage: 10.0Vdc
  • Low Battery Alarm: 10.5Vdc-11.0Vdc
  • Low Battery Trip: 10.0Vdc-10.5Vdc (select by SW1)
  • High Voltage Alarm: 16.0Vdc
  • Low Battery Voltage Restart: 13Vdc
  • Idle Consumption: 25W
  • Power Saver Mode Idle Consumption: 12W
• AC Charger:
  • Charger Rate: 70±5A
  • AC Input Range (Grid or Generator): 90-135VAC / 100-135VAC (select by SW2)
  • Over Charge Protection Shutdown: 15.7V
  • Selectable Charge Setting: off 0%-100%
  • 3-step intelligent battery charger
