SPH Series Solar Inverter System
Overview

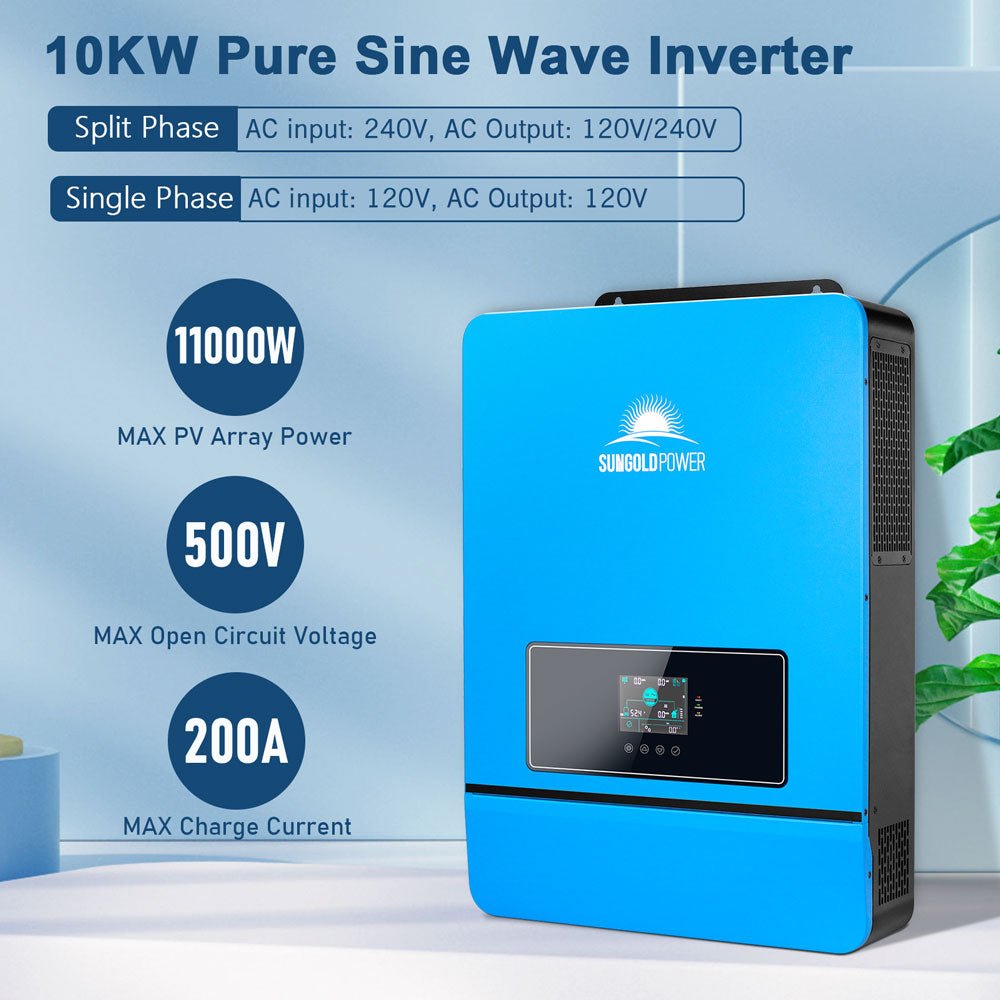

10 kW pure sine wave inverter with up to 200 A battery charging, built-in 2 MPPT solar controllers, and a max open-circuit voltage of 500 VDC. Supports split-phase (120/240 V) or single-phase (120 V) output. Includes a WiFi module for monitoring via a mobile app. UL 1741 by ETL for off-grid solar systems.
Benefits
- All-in-one unit reduces setup: 10 kW inverter with charging, MPPT controllers, and monitoring in one box.

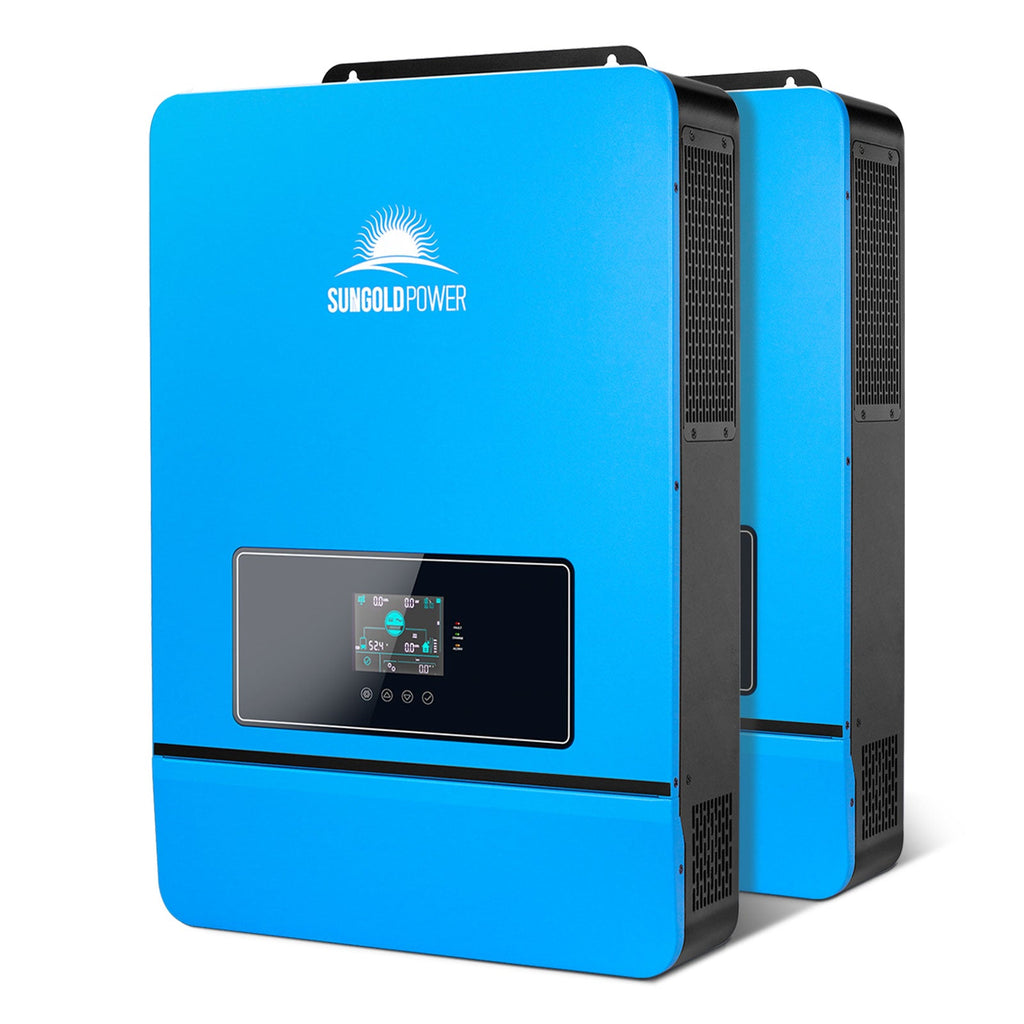

- Scales with a parallel kit up to 48 kW. Supports 120 V single phase, 120/240 V split-phase, and 208 V 3-phase (more than 3 units).
- Stable output and smart protections: 10,000 W rated, up to 20,000 W peak; PV input, AC input, battery, and overload protections.
- Flexible charging modes: Hybrid, Utility Priority, Solar Priority, or Only Solar; multiple output modes to fit needs.
- Time-slot charging/discharging to align with tariffs and optimize energy use.
- Battery type flexibility: supports 48 V AGM/Sealed, Gel, Flooded, Lithium; user mode; can operate with battery-free setups; supportsCAN, USB, and RS485 communications.
Features
- 10 kW pure sine wave inverter.
- Max 200 A battery charging.
- Built-in 2 MPPT solar controllers.
- Max open-circuit voltage: 500 VDC.
- Output options: split-phase 120/240 V or single-phase 120 V.

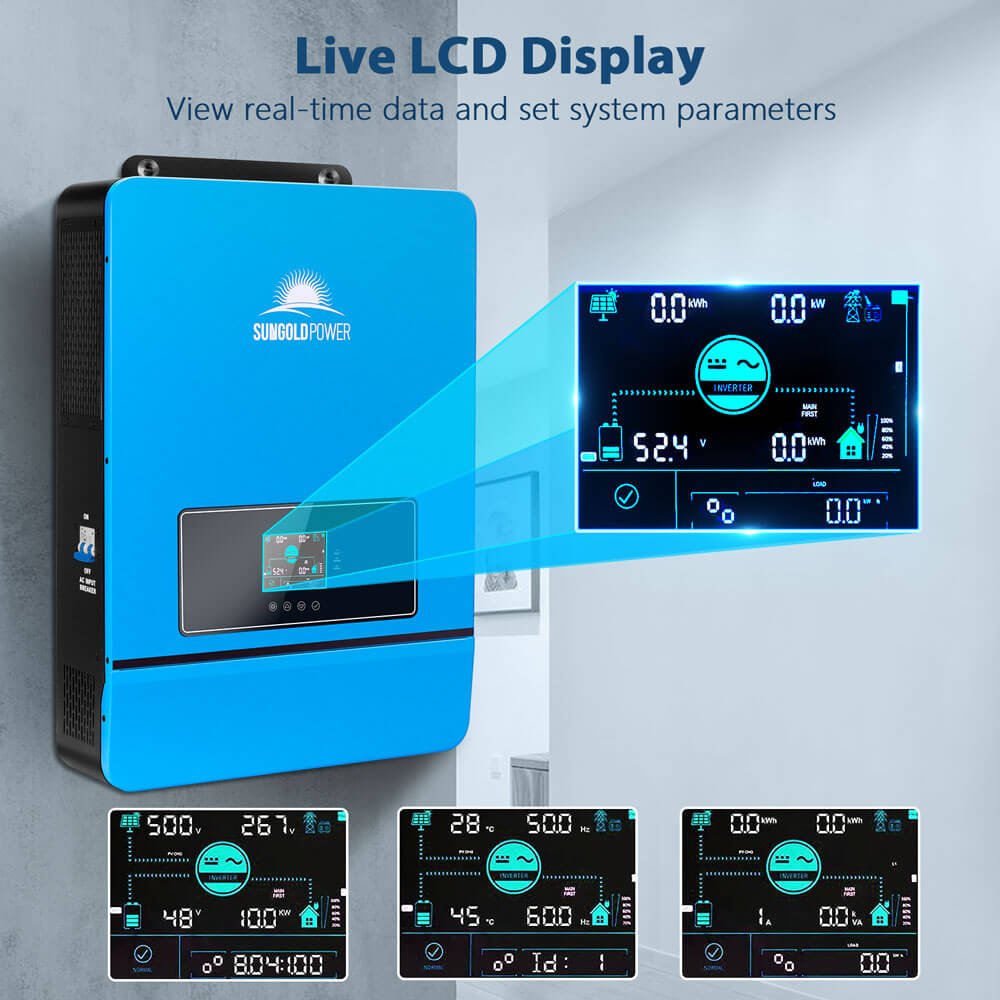

- WiFi module for remote monitoring via mobile app.
- UL 1741 by ETL for off-grid solar systems.

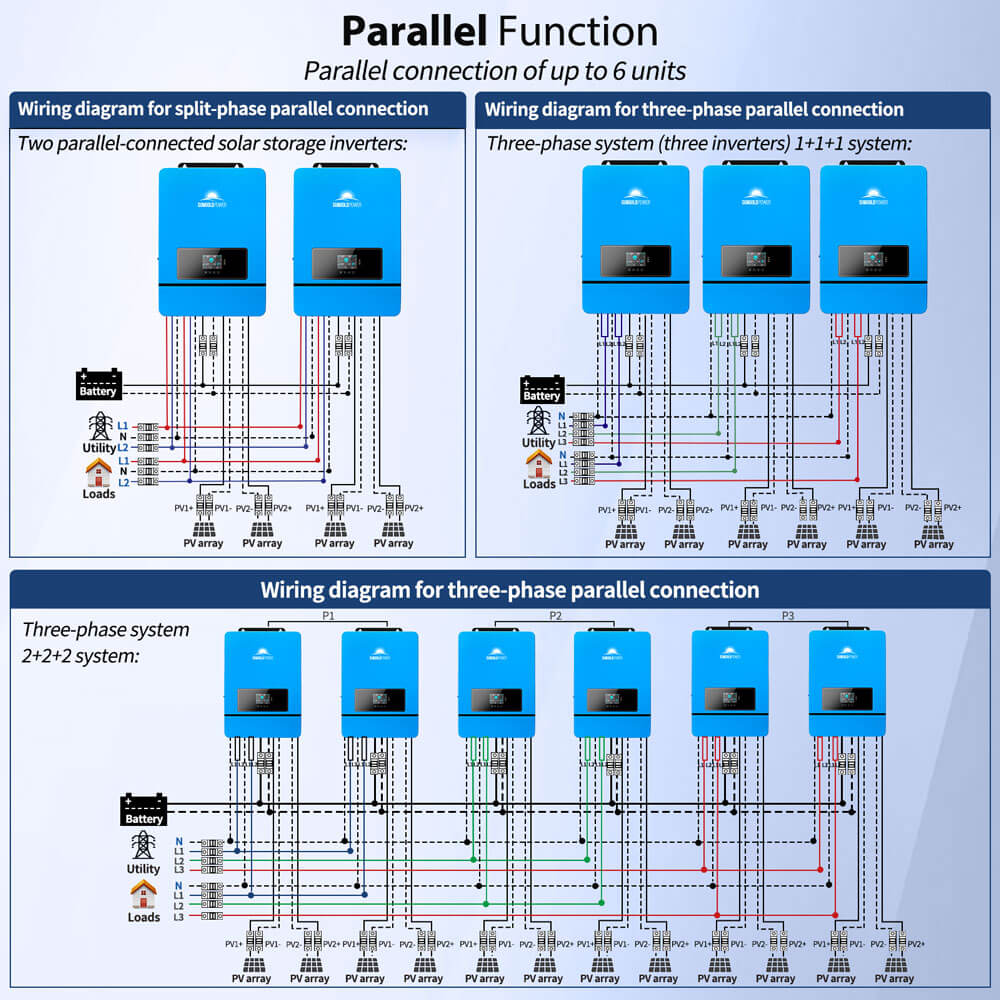

- Parallel capability: up to 6 units for up to 48 kW; supports 120 V single-phase, 120/240 V split-phase, and 208 V 3-phase.
- Rated output power: 10 kW; max peak power: 20 kW; suitable for up to 6 HP motors.
- Protections: PV input over-voltage/current, AC input over-voltage, battery over-voltage, overload protection.

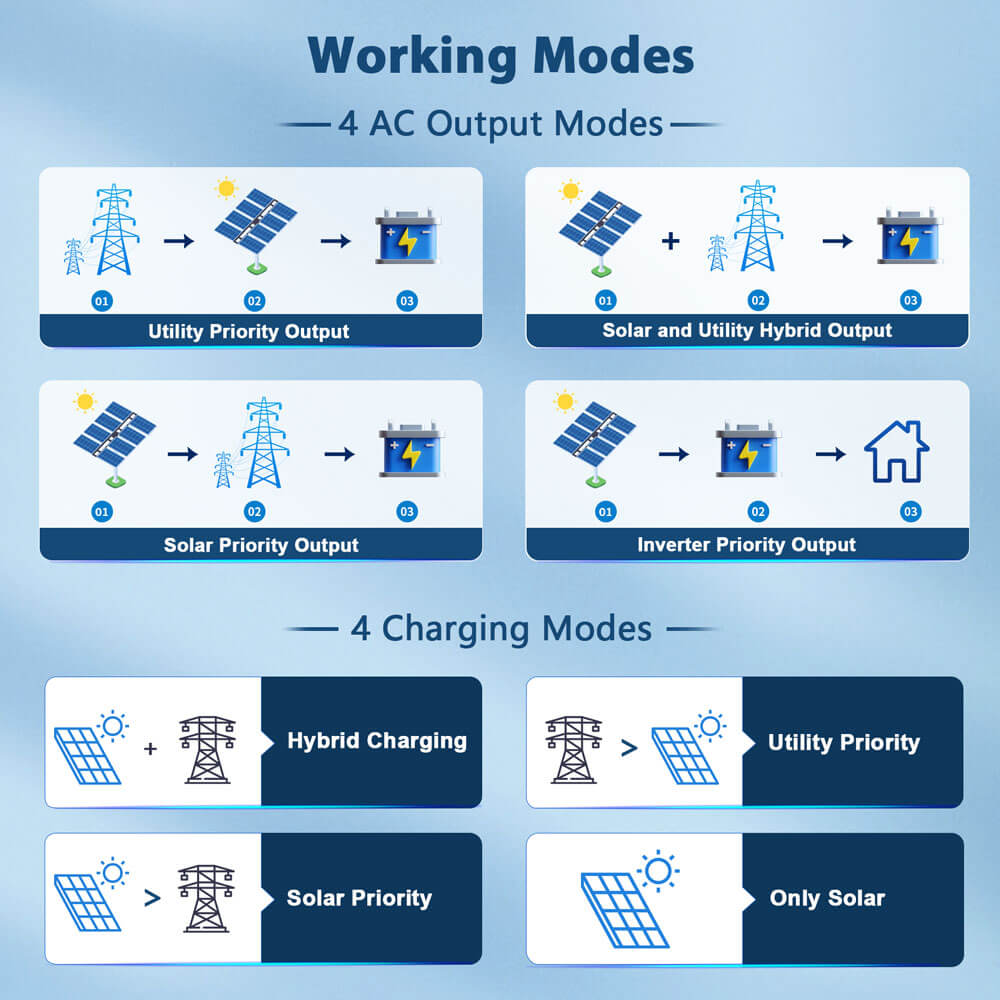

- Four charging/output modes: Hybrid, Utility Priority, Solar Priority, Only Solar.

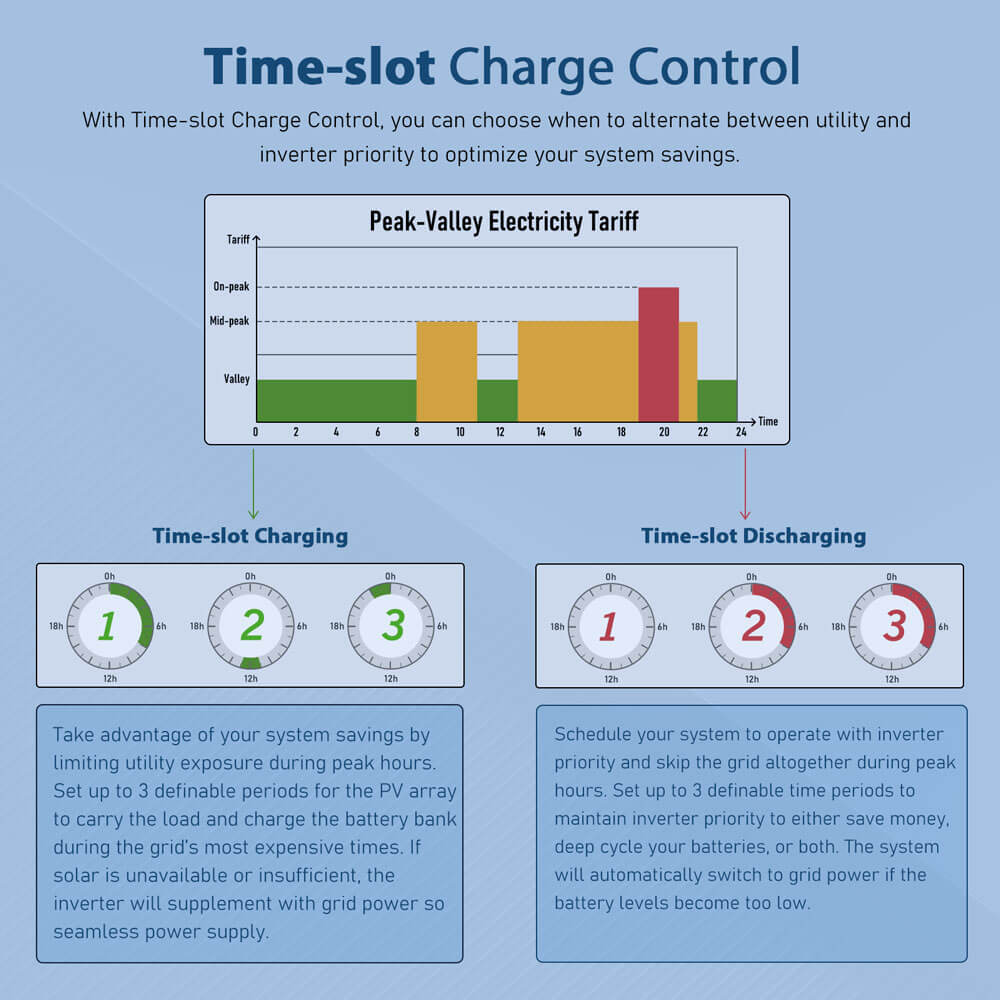

- Time-slot charging/discharging function.
- Battery compatibility: 48 V AGM/Sealed, Gel, Flooded, Lithium; user mode; battery-free option; can activate dormant lithium with mains and PV; supports CAN, USB, RS485 communications.
Specifications
- Rated output power: 10,000 W
- Max peak power: 20,000 W
- Battery voltage: 48 V
- Open-circuit voltage: 500 VDC
- Output voltages: 120 V single-phase; 120/240 V split-phase; 208 V 3-phase (via parallel)
- Motor load capacity: 6 HP
- Battery types: AGM/Sealed, Gel, Flooded, Lithium; user mode; battery-free option
- Parallel units: up to 6 (total up to 48 kW)
- Interfaces: CAN, USB, RS485
- Monitoring: WiFi module for app connectivity
- Certification: UL 1741 by ETL
