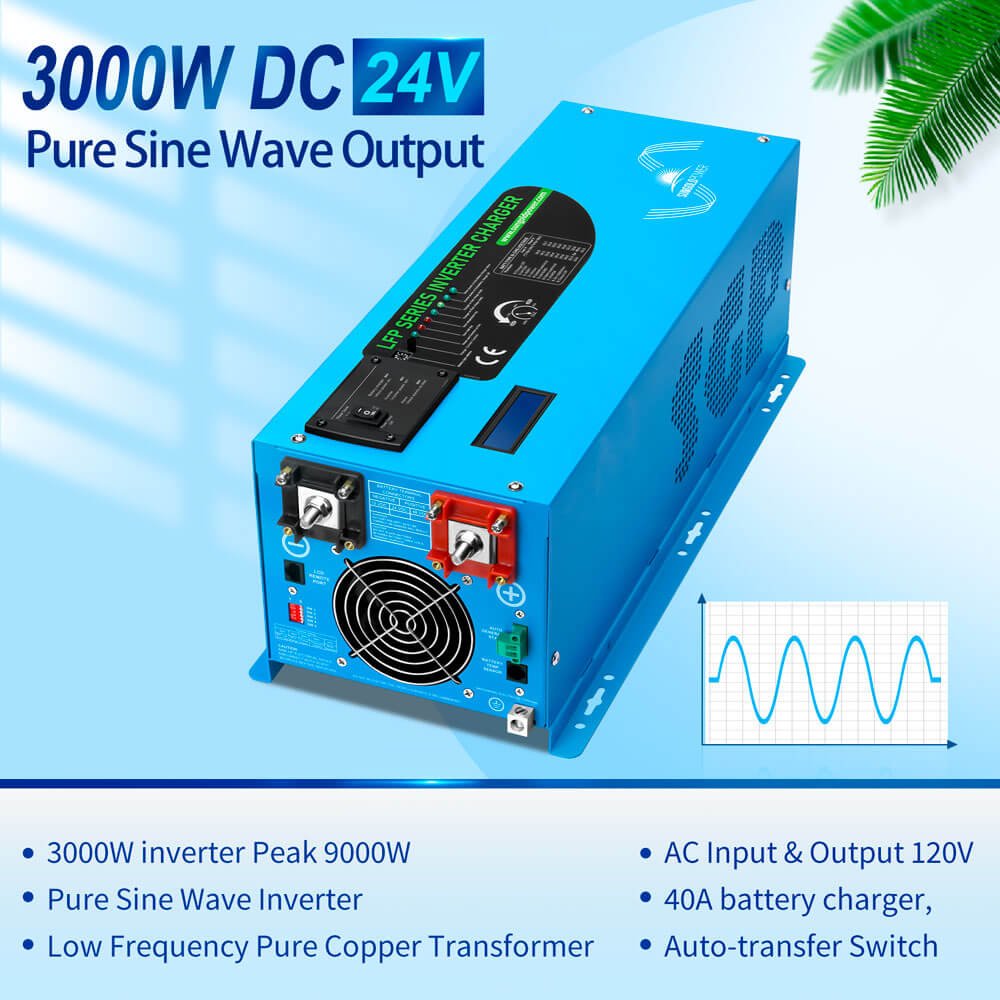

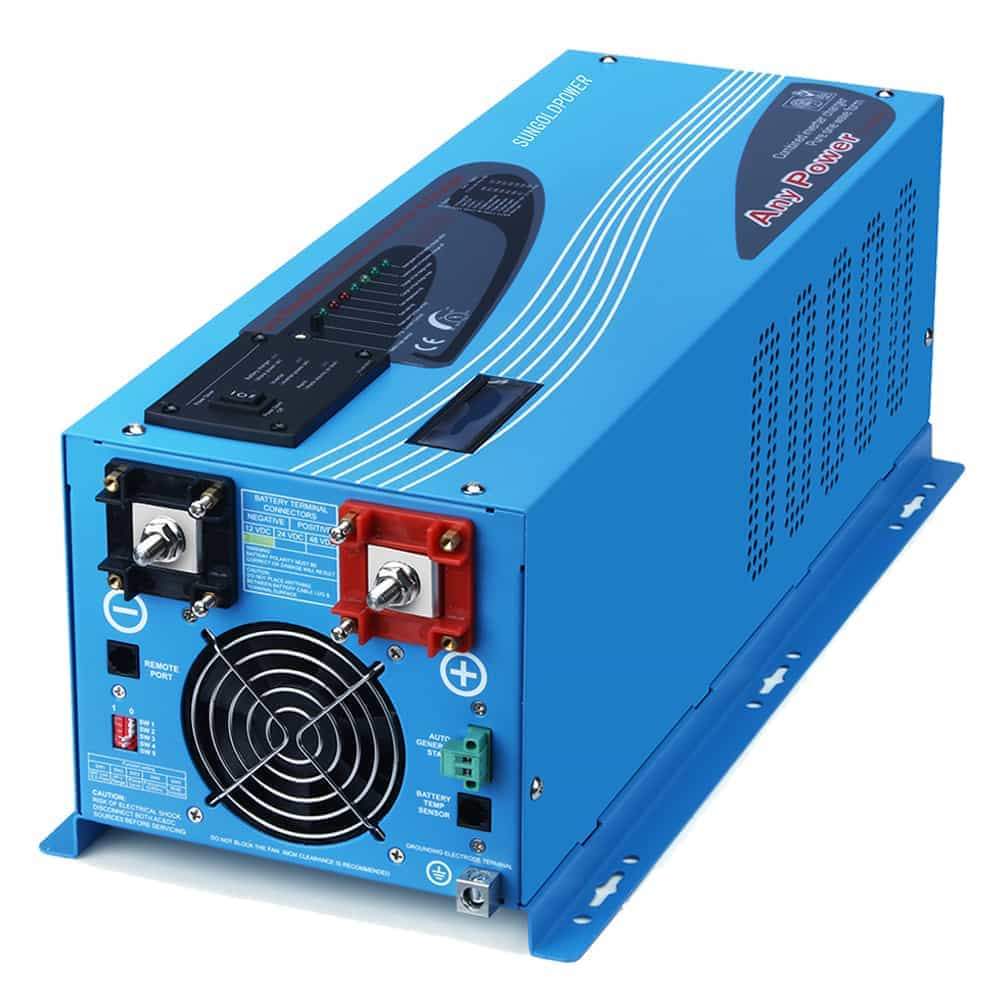

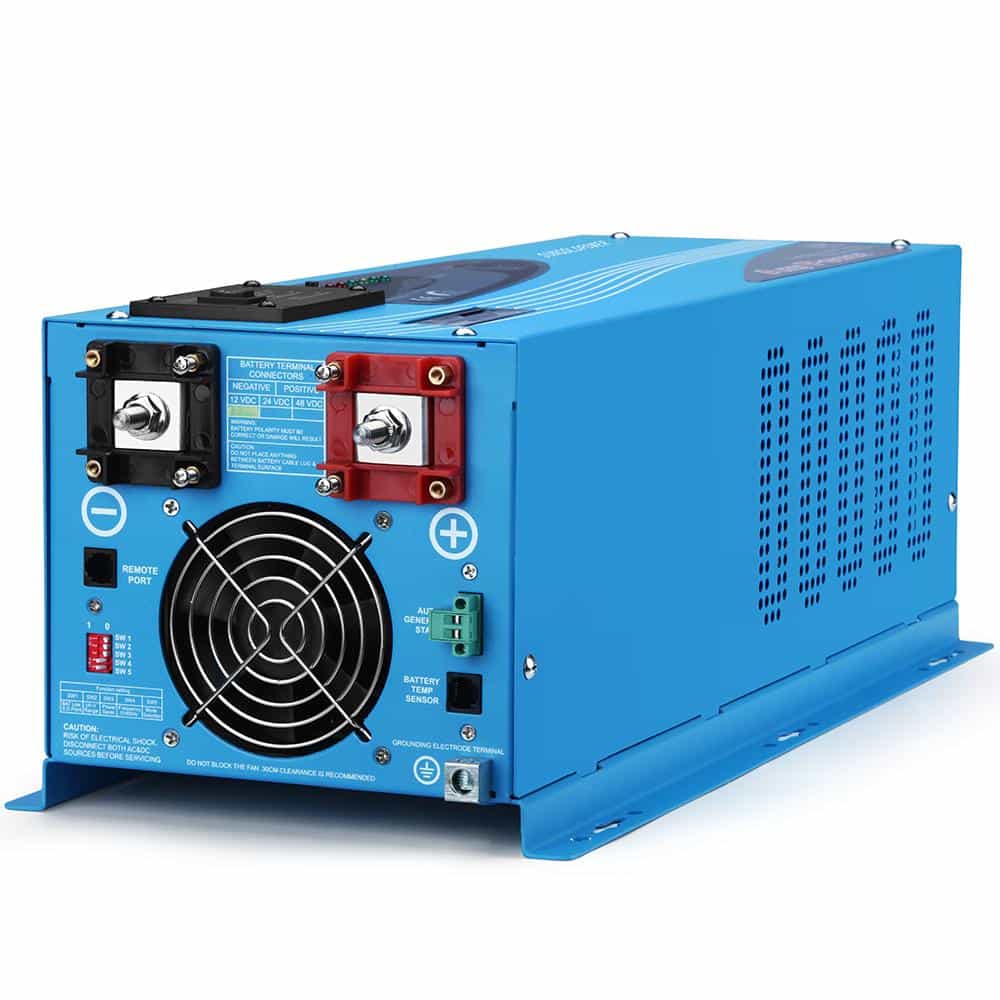

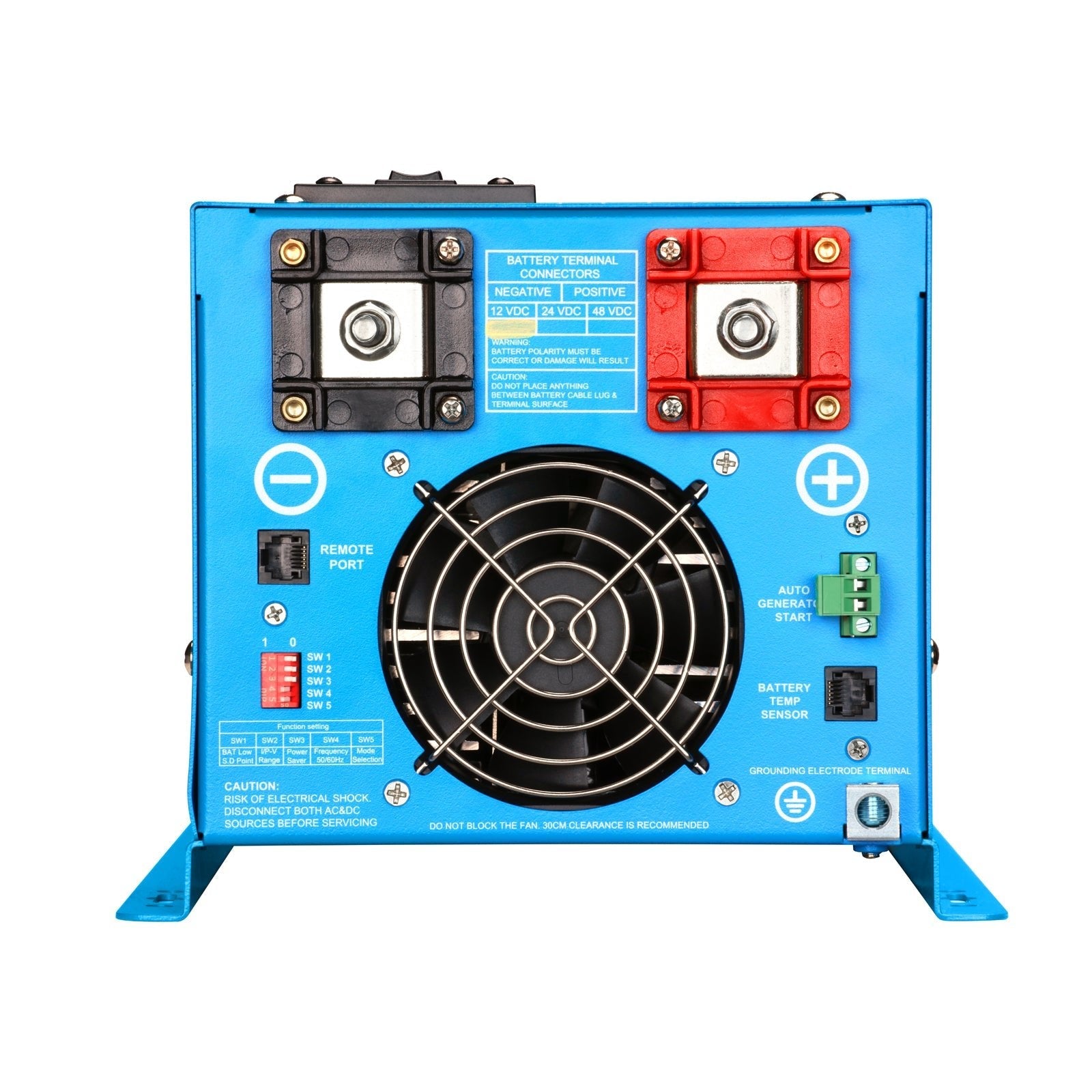

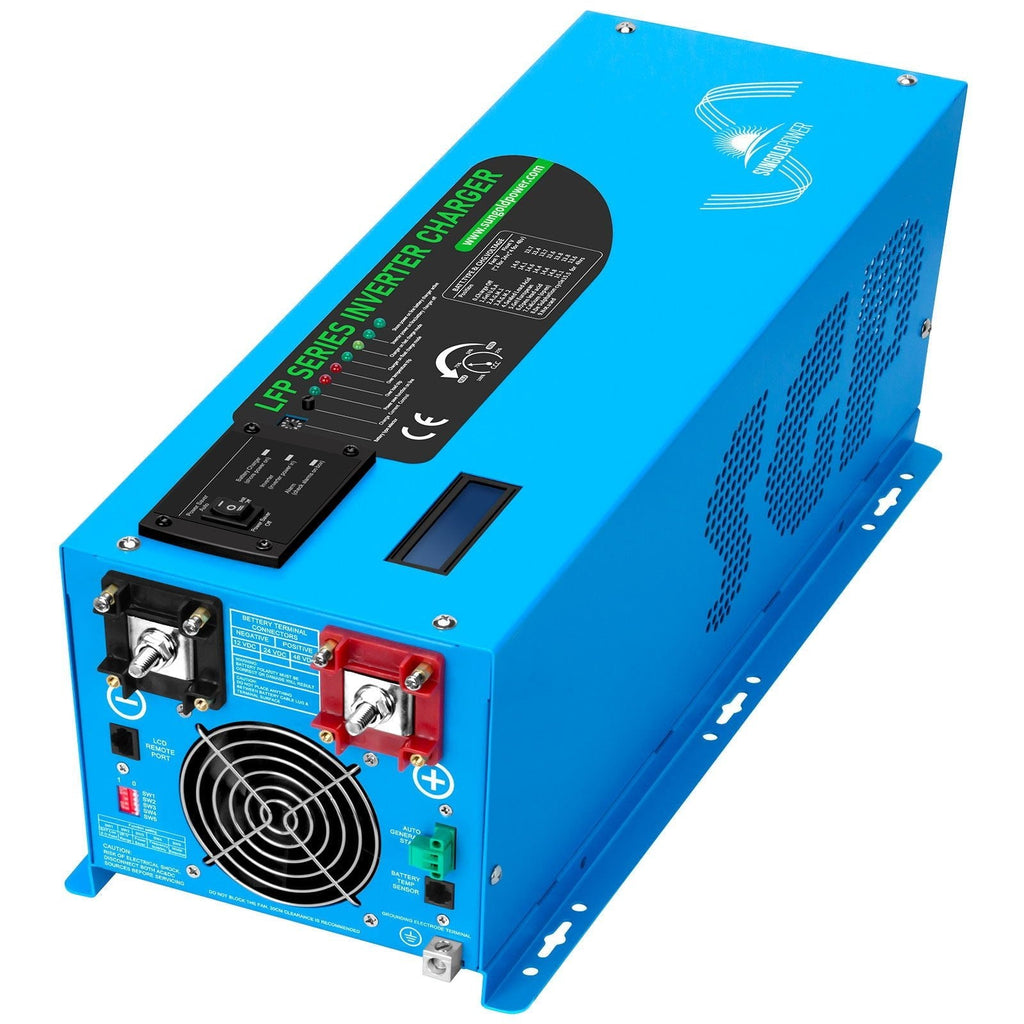

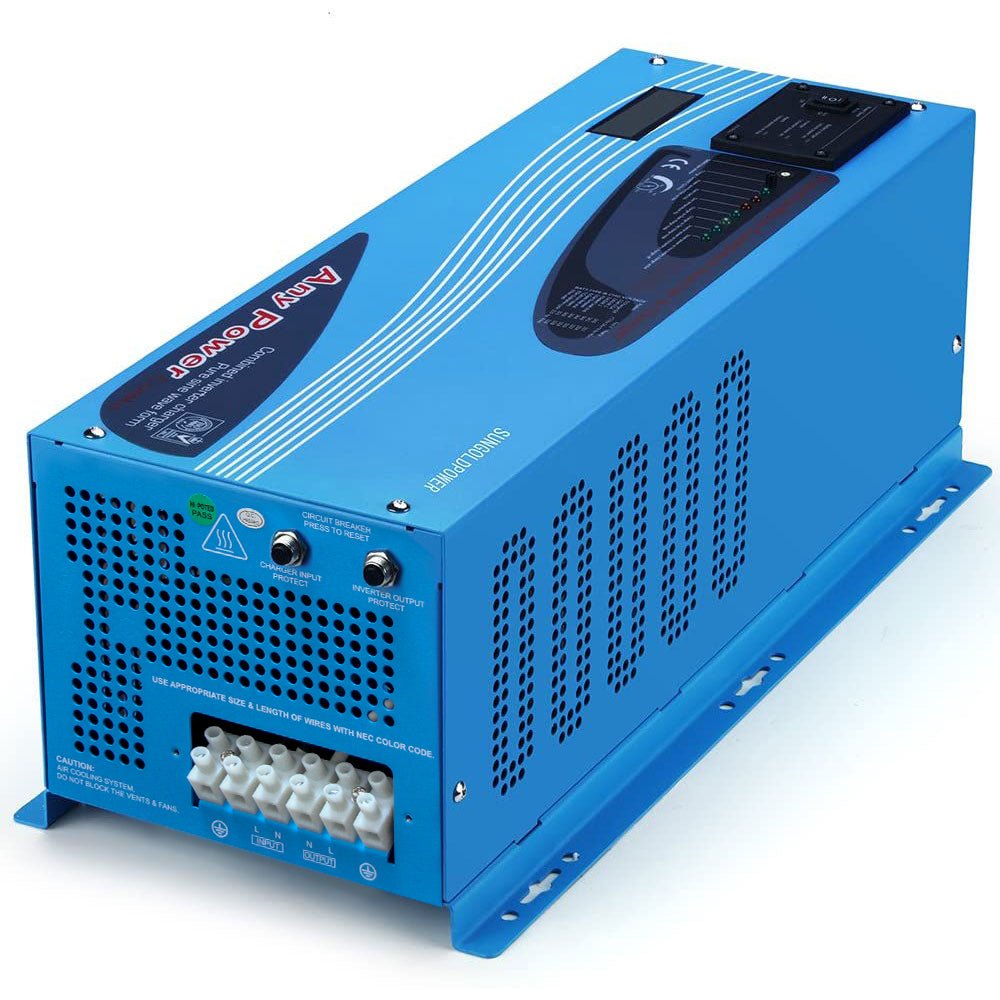

LFP Series 3000W Low-Frequency Pure Sine Inverter with Charger
Overview

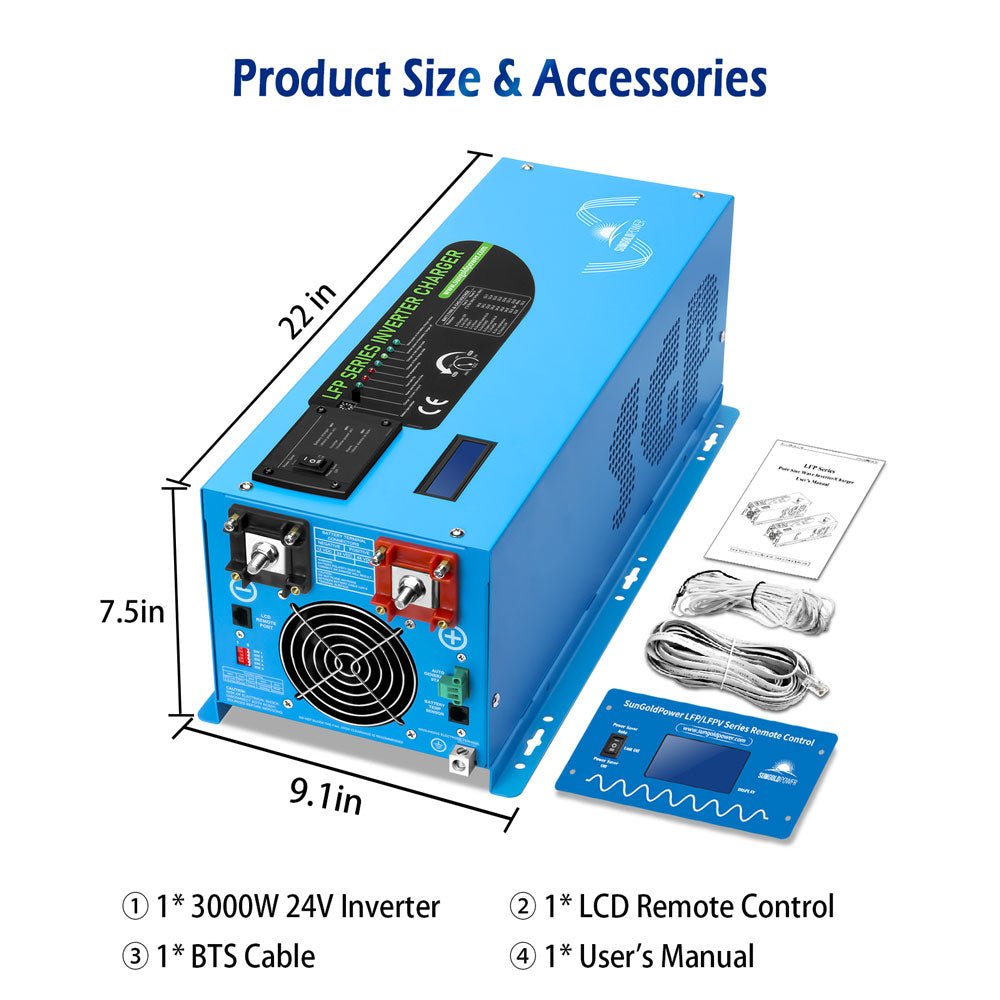

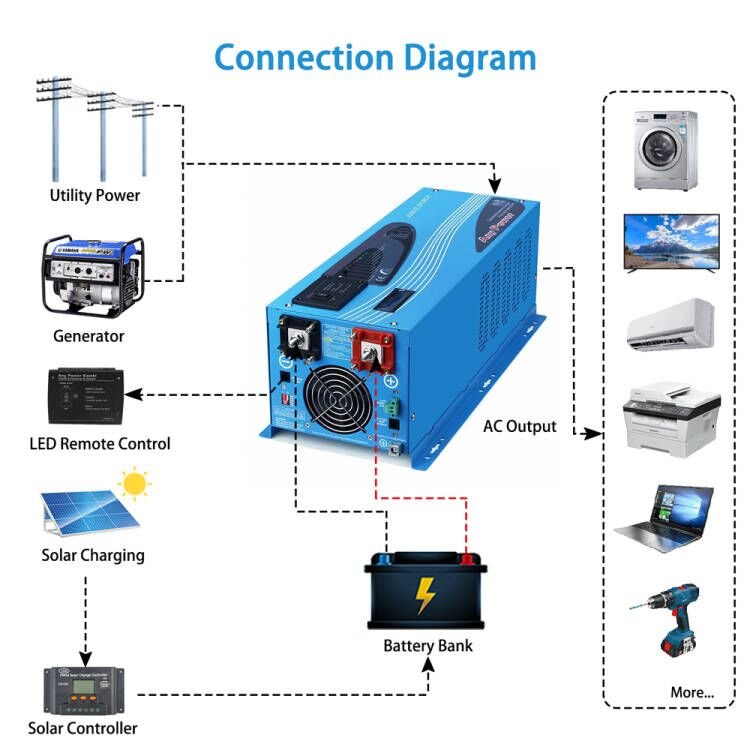

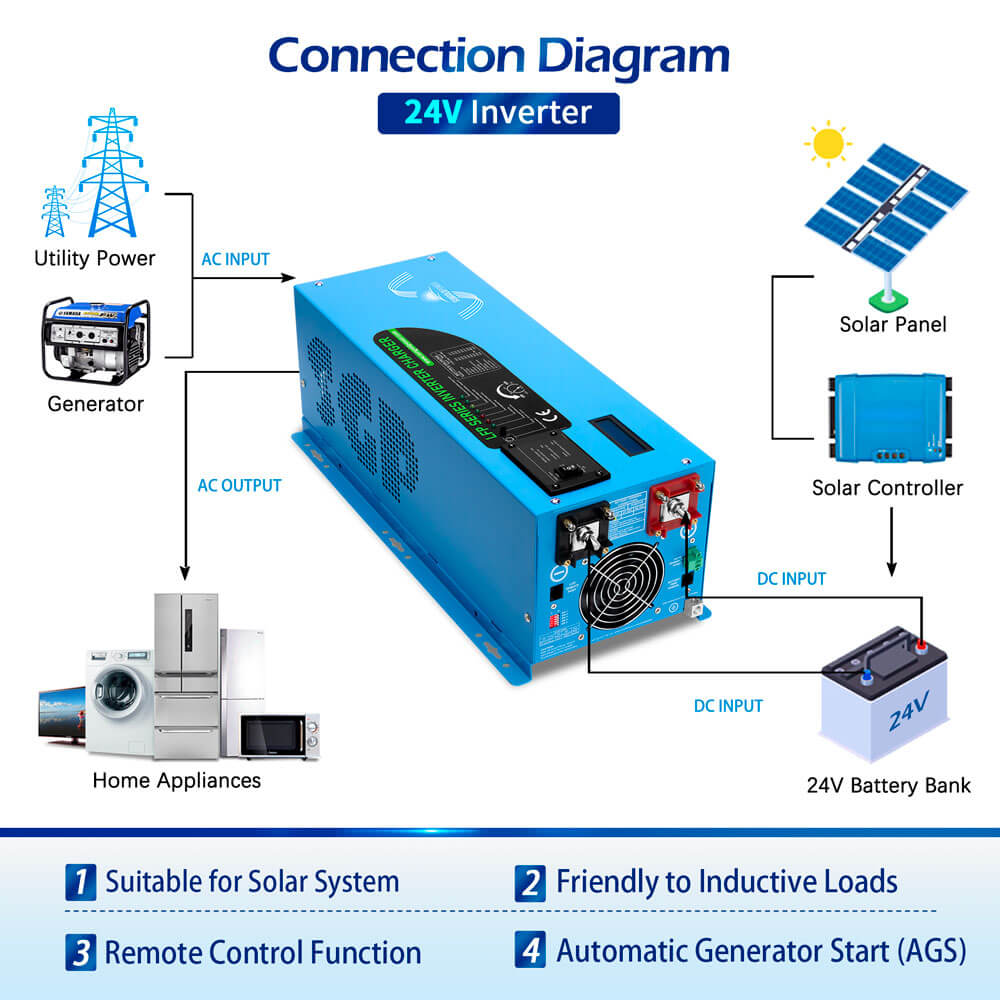

This 3000W inverter combines an inverter, battery charger, and AC auto-transfer switch. It’s a low-frequency pure sine device with low idle current. Includes BTS cable and remote control for easy setup. It switching between grid and battery and can auto-start a generator when needed.
Benefits
- 3-in-1 power: inverter, charger, and AC auto-transfer switch. Low idle current. BTS cable. Remote control.
- 120VAC input and 120VAC output. 50/60Hz output selectable via SW4.
- AC/Battery Priority by default; switch to Battery Priority with SW5.
- Adjustable charging current from 0 to 100% via a dial switch.
- Auto Gen Start: generator starts when battery is low and stops after charging.
Features
- 3000W LFP Series Low-Frequency Pure Sine Inverter With Charger.
- AC/Battery Priority Selector.
- Automatic Generator Start.

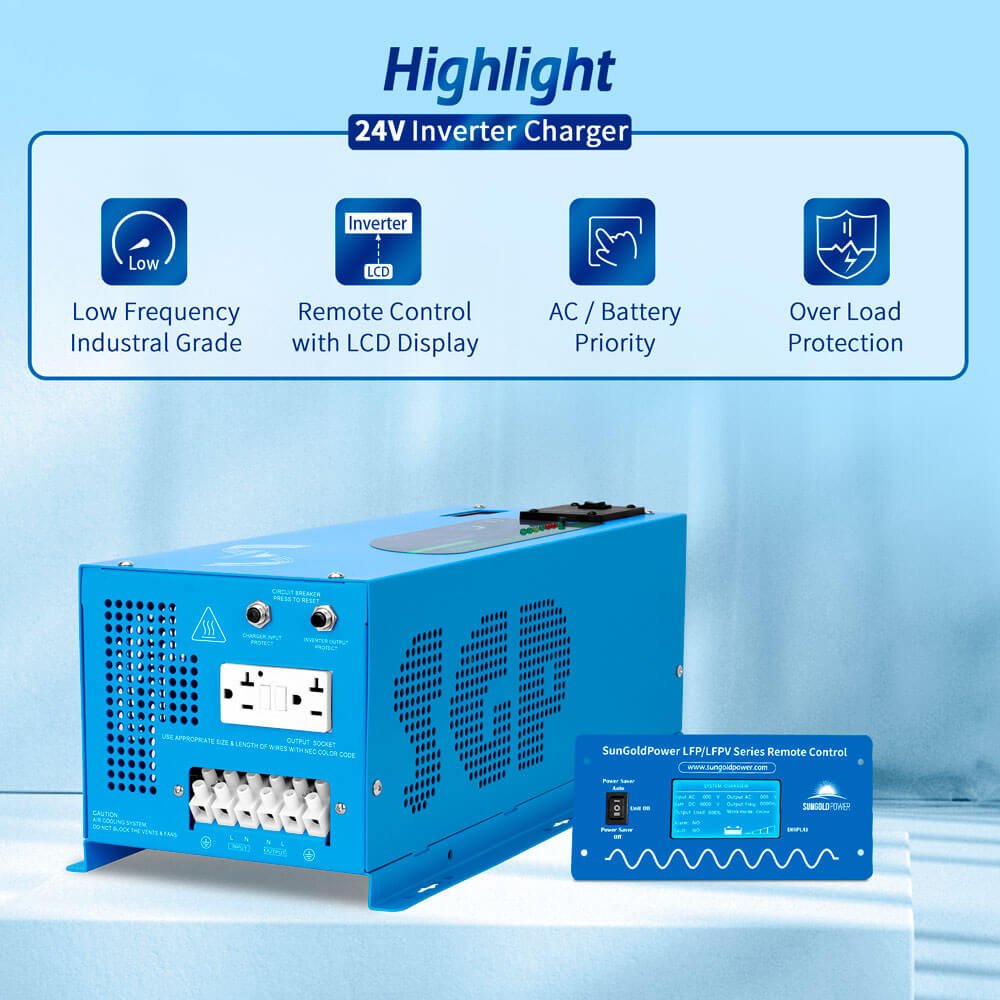

- GFCI Socket for safety and convenience.
- Marine coated and protected.

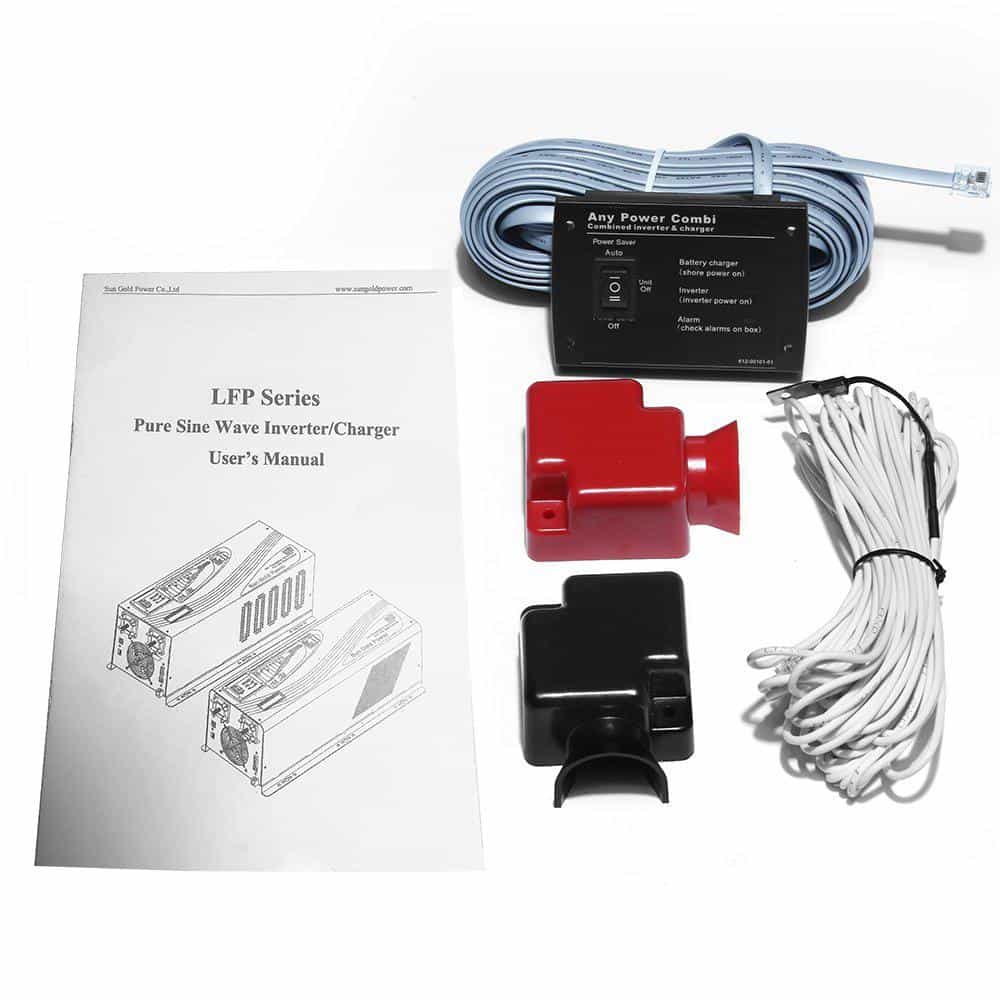

- LCD Display, Remote Control, BTS included.
- Low Idle Consumption.
- 7 battery type settings for the charger.
- Multi-Stage Smart Charger up to 40A; charger can be disabled.
- 10 ms typical transfer time.
Specifications
-
Inverter Output
- Continuous Output Power: 3000W
- Surge Rating: 9000W (20 seconds)
- Output: 120VAC, 60Hz
- Output Wave: Pure Sine Wave (bypass mode)
- Typical Transfer Time: 10ms (MAX)
- Nominal Efficiency: >88%
-
DC Input
- Nominal Input Voltage: 24.0Vdc
- Minimum Start Voltage: 20.0Vdc
- Low Battery Alarm: 21.0Vdc-22.0Vdc
- Low Battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
- High Voltage Alarm: 32.0Vdc
- Low Battery Voltage Restart: 26Vdc
- Idle Consumption: 39W
- Power Saver Mode Idle Consumption: 16W
-
AC Charger
- Charger Rate: Max 40A
- AC Input Range (Grid or Generator): 90V-135VAC/100V-135VAC (selected by SW2)
- Over Charge Protection Shutdown: 31.4V
- Selectable Charge Setting based on battery type: Adjustable current from off-20%-100%
- 4-step intelligent battery charger
