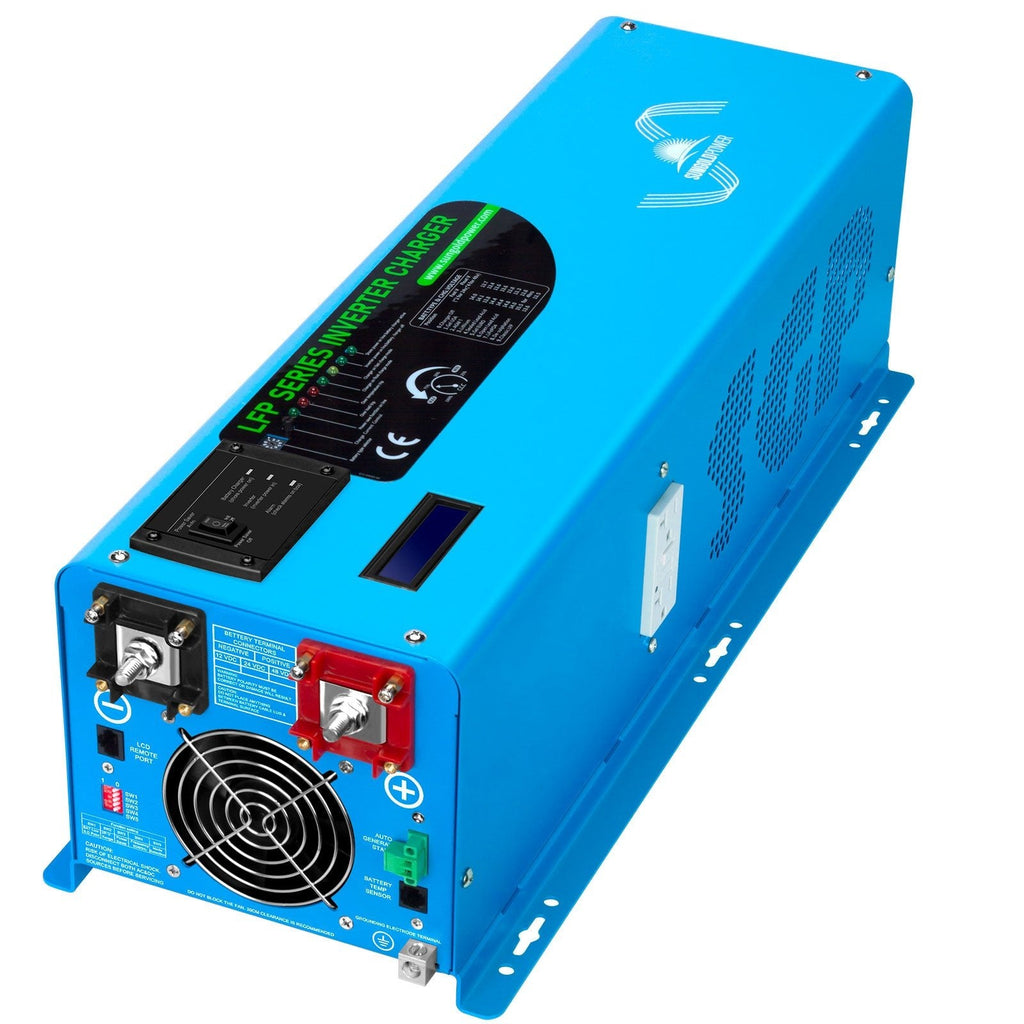

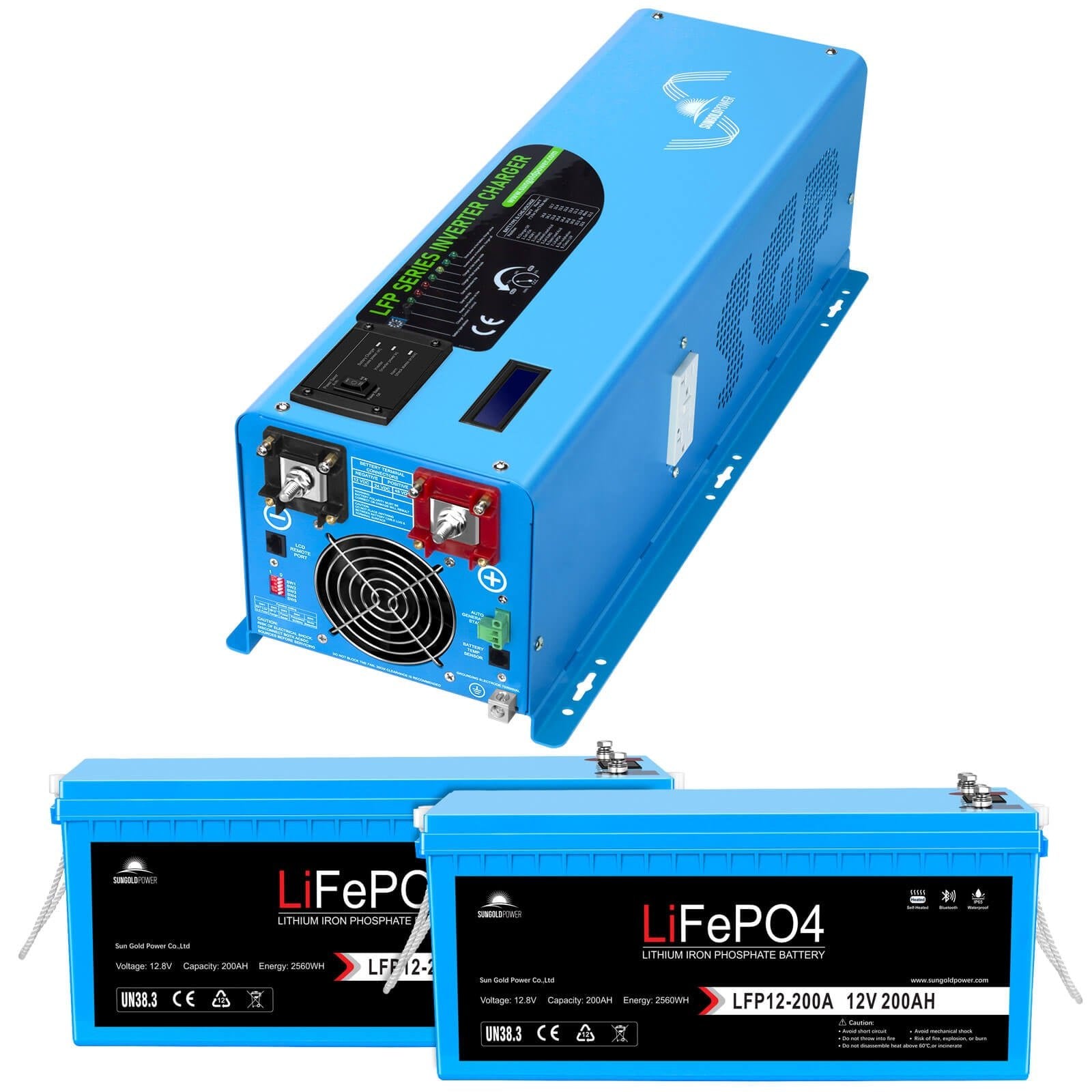

LFP Series 4000W Pure Sine Wave Inverter/Charger

Overview

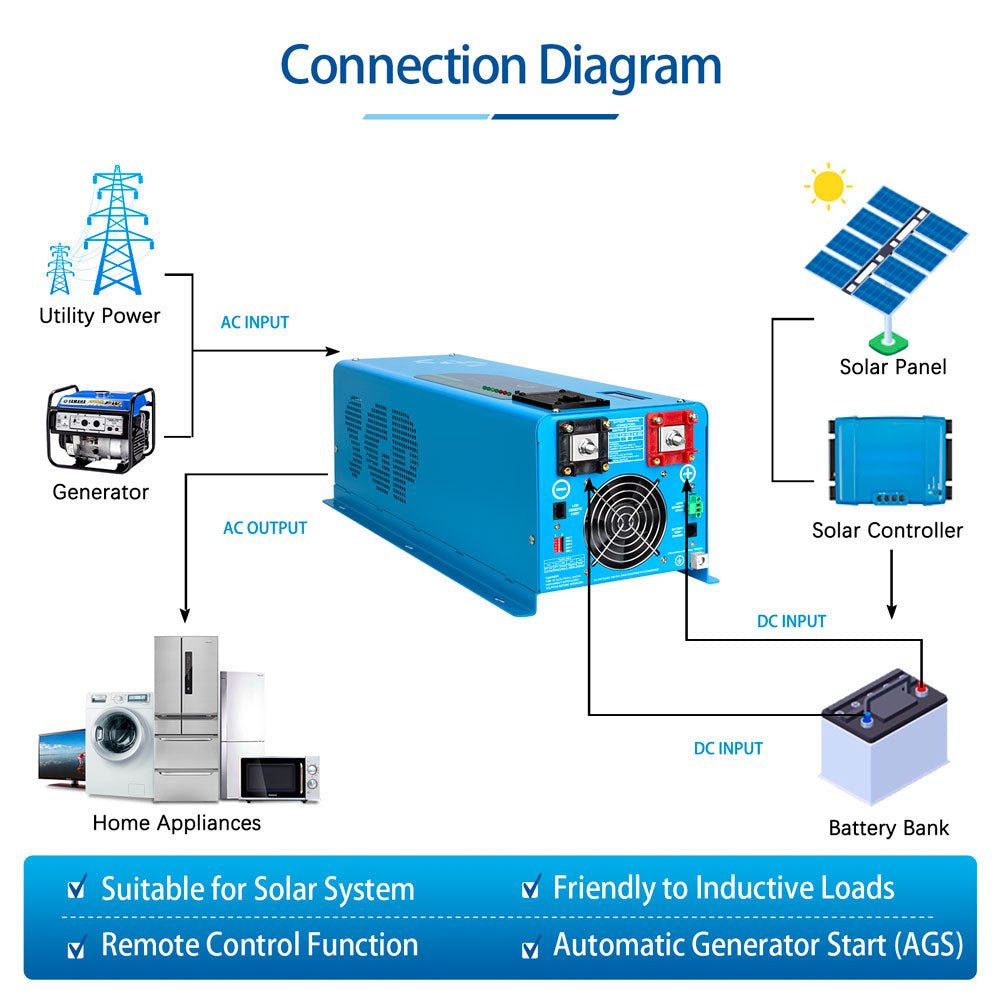

A compact, all-in-one power solution. This LFP series unit combines an inverter, battery charger, and AC auto-transfer switch. It runs from a 12V battery, accepts 240V input, and can output 120V or 240V with 50/60Hz options. It’s designed for efficiency, remote control, and easy integration into off-grid or backup systems.

Benefits

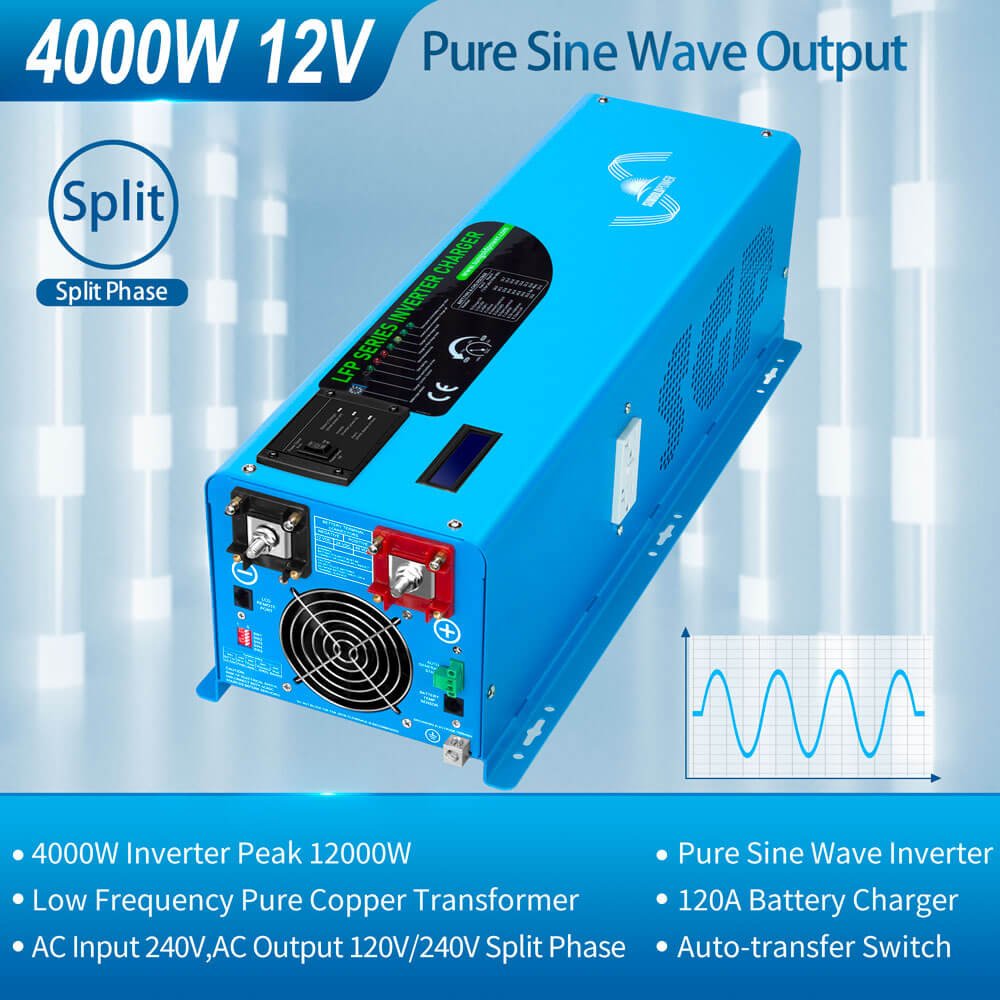

• 4000W continuous power with high surge capability for startup peaks.
• Output selectable as 120V or 240V, plus 50/60Hz support.
• AC priority by default, switchable to battery priority when needed.
• Auto generator start on low battery, and stop after charging completes.
• Adjustable charging current from 0% to 100% and 7 battery type settings.
• Low idle consumption for energy savings (18W in saver mode, 45W saver-off).
• 10 ms typical transfer time for seamless power transfer.
• LCD display and remote control for easy monitoring and control.

Features

• 4000W Low-Frequency Pure Sine Inverter With Charger.
• AC/Battery Priority Selector.
• Automatic Generator Start.
• Safety and Convenience.
• The low-frequency inverter can power a wide range of appliances.

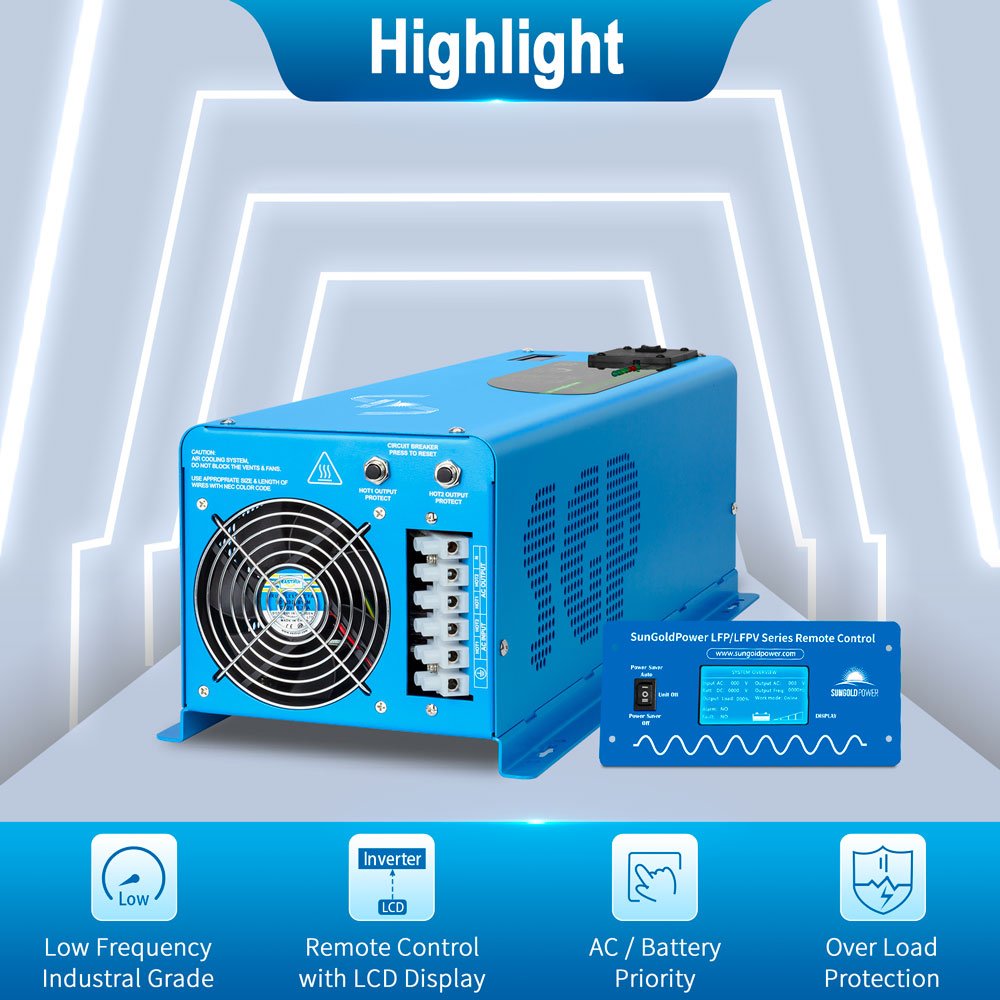

• LCD Display, Remote Control.
• Low Idle Consumption.

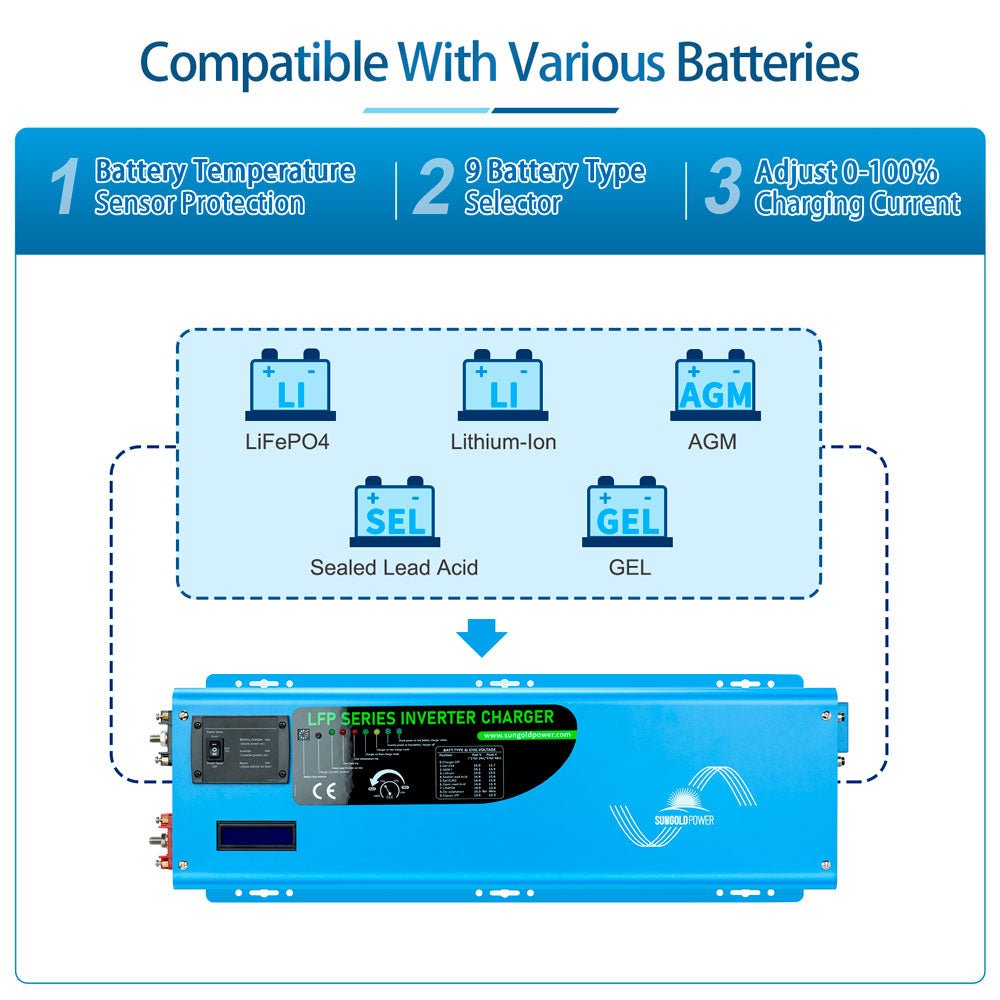

• 7 battery type settings for the charger.
• Multi Stage Smart charger 120+/-5A; charger can be disabled.
• 10 ms typical transfer time.

Specifications

• Inverter Output
  • Continuous Output Power: 4000W
  • Surge Rating: 12000W (20 seconds)
  • Output: AC120V and AC240V, 60Hz
  • AC Input: 240V
  • Output Wave: Pure Sine Wave (bypass mode)
  • Typical Transfer Time: 10 ms (MAX)
  • Nominal Efficiency: >88%
• DC Input
  • Nominal Input Voltage: 12.0Vdc
  • Minimum Start Voltage: 10.0Vdc
  • Low Battery Alarm: 10.5Vdc–11.0Vdc
  • Low Battery Trip: 10.0Vdc–10.5Vdc (select by SW1)
  • High Voltage Alarm: 16.0Vdc
  • Low Battery Voltage Restart: 13Vdc
  • Idle Consumption: 45W
  • Power Saver Mode Idle Consumption: 18W
• AC Charger
  • Charger Rate: 120+/-5A
  • AC Input Range (Grid or Generator): 90–135VAC/100–135VAC (select by SW2), 140–270VAC/184–253VAC (select by SW2)
  • Over Charge Protection Shutdown: 15.7V
  • Selectable Charge Setting based on battery type
  • Adjustable charge current: off 0%–100%
  • 3-step intelligent battery charger

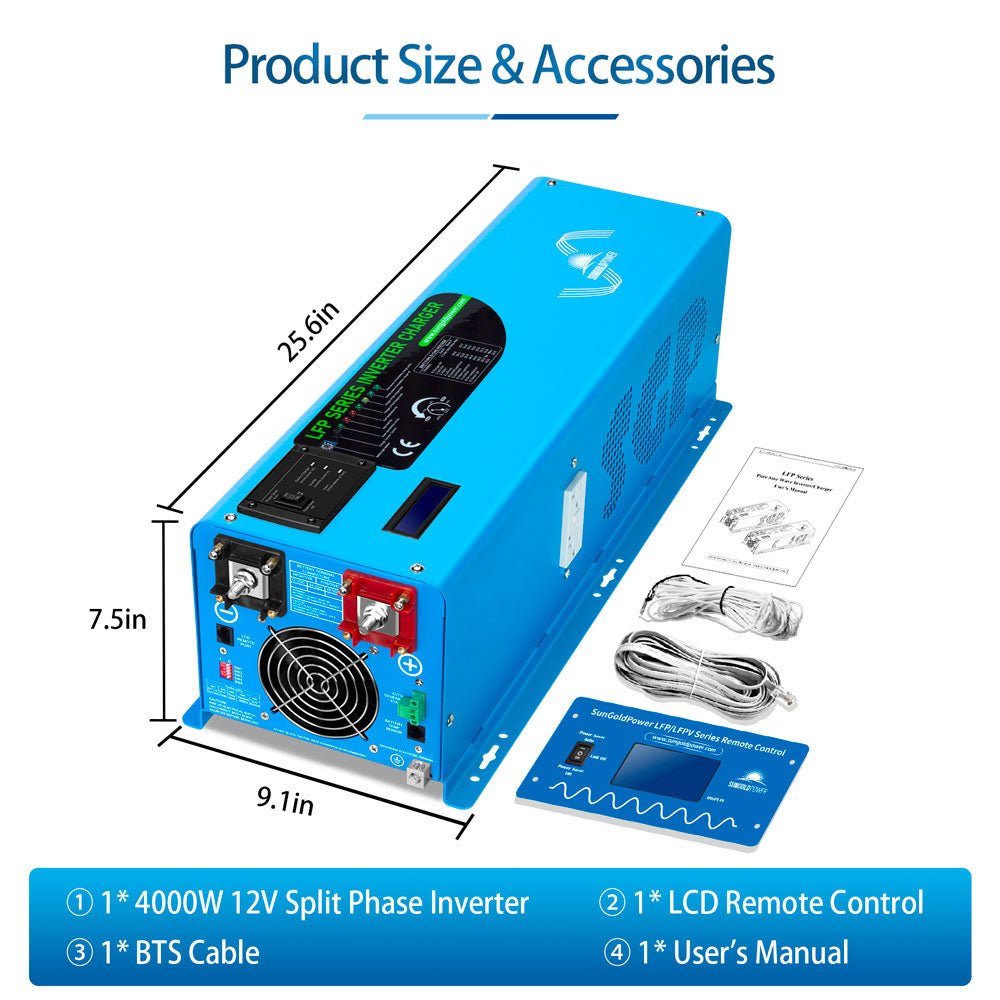

• Packaging
• 4000W 12V Low-Frequency Pure Sine Inverter
• English Manual
• Remote Control
• BTS Cable
• Unit Weight: 53LB
• Unit Size: 17.4 x 9.5 x 7.8 inch
• Shipping Weight: 57LB
• Shipping Size: 26 x 12.6 x 12.0 inch
