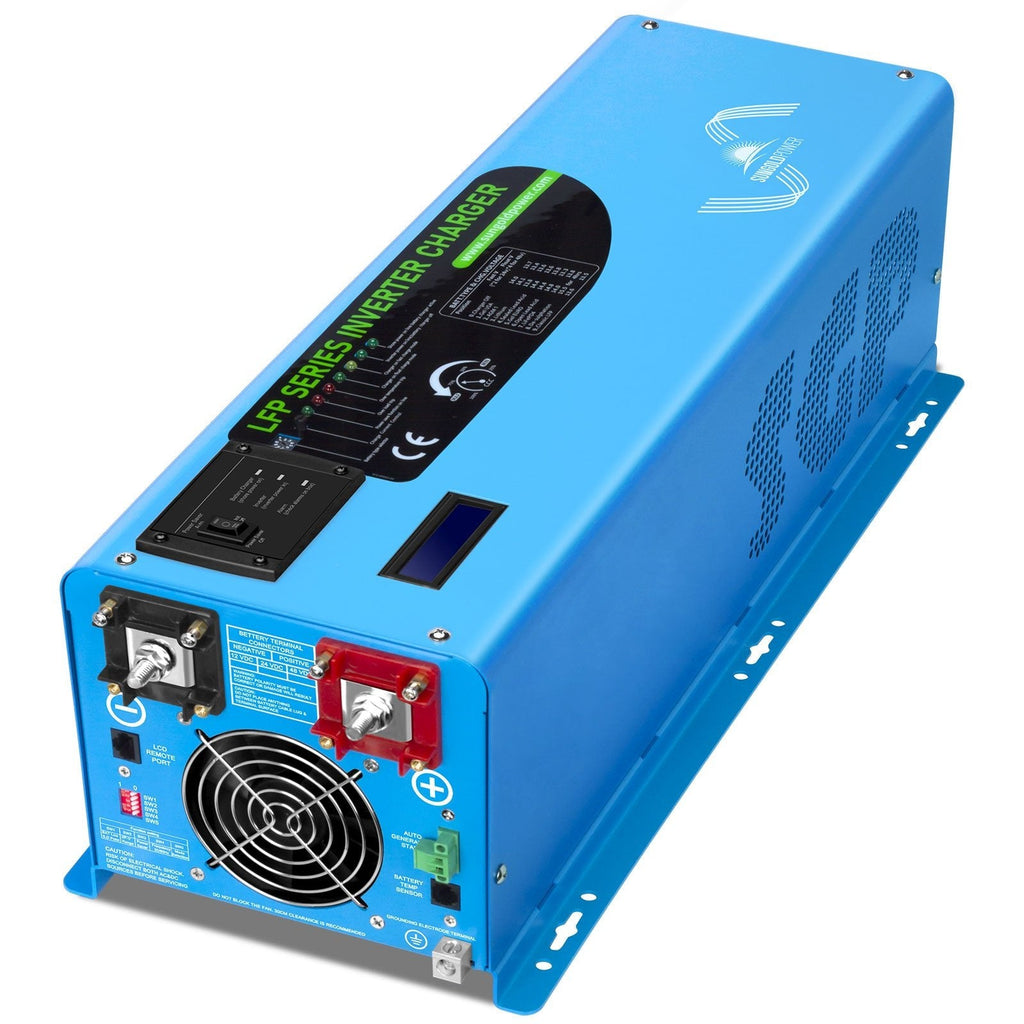

LFP Series 4000W Pure Sine Wave Inverter
Overview
All-in-one power hub: inverter, battery charger, and AC auto-transfer switch. Low-frequency design with low idle current, BTS cable support, and remote control. UL1741 listed.

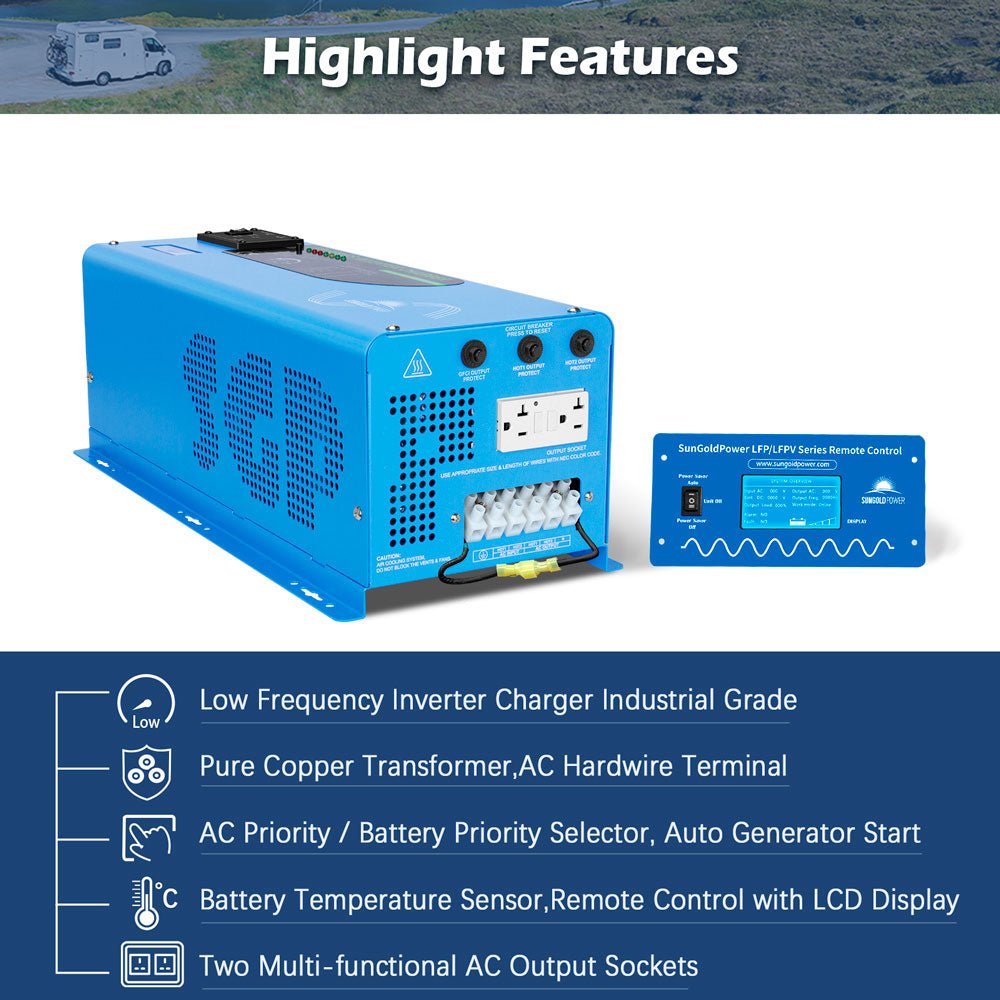

Benefits
- All-in-one solution: inverter, charger, and auto-transfer switch in one unit.
- Low-frequency design keeps idle draw down.
- UL1741 compliant for safety and reliability.
- Remote control support for easy setup and monitoring.
Features
- Split-phase 4000W inverter requires 240VAC input and can provide 120VAC or 240VAC output for a wide range of appliances; outputs 50 or 60Hz via SW4.
- AC priority by default; battery priority selectable via SW5 switch.
- Adjustable charging current from 0% to 100% using a switch.
- Auto Gen Start: generator can start when battery voltage is low and stop after charging completes.

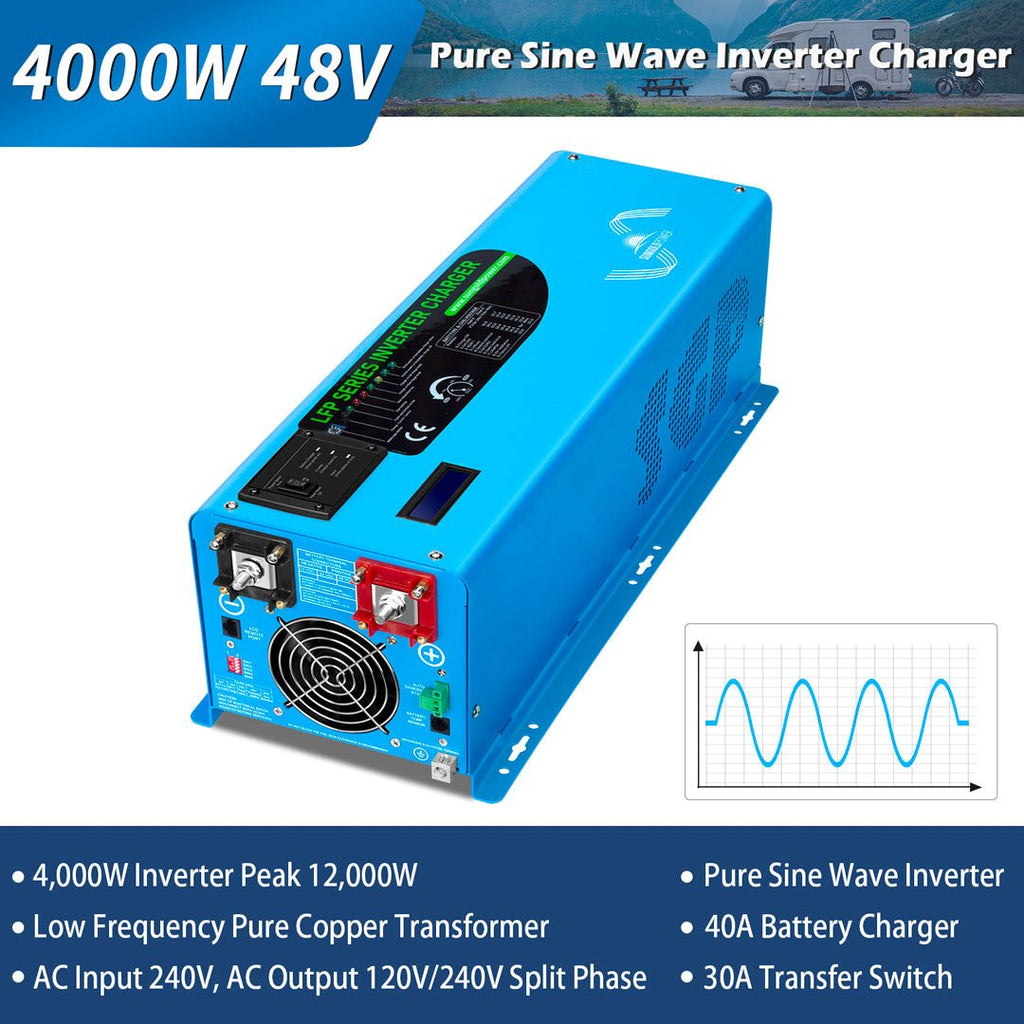

Specifications
- Power: 4000 W (split-phase)
- Input: 240 VAC
- Output: 120 VAC or 240 VAC; 50/60 Hz (via SW4)
- AC/Battery priority: default AC priority; battery priority via SW5
- Charging: adjustable current 0–100%
- Auto Gen Start: yes
- Standards: UL1741
- Notes: low frequency, low idle current, BTS cable, remote control
