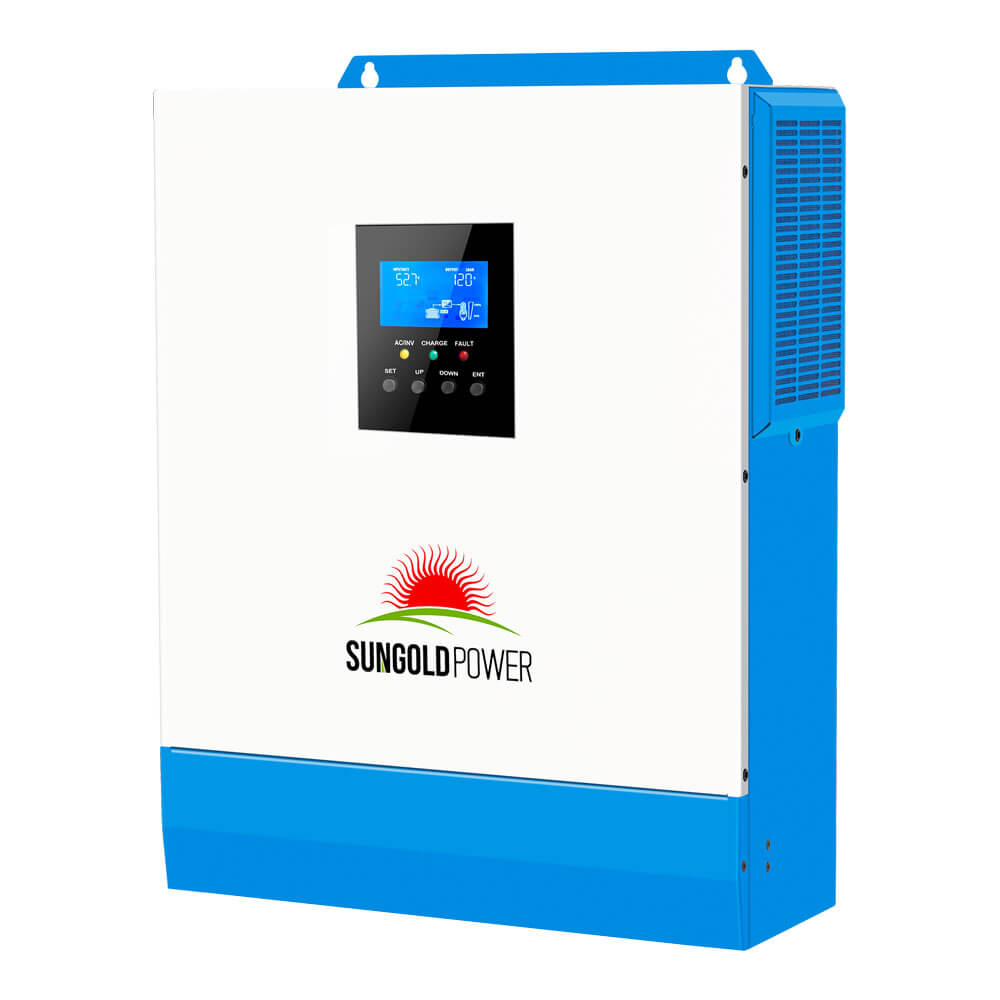

All-in-One Solar Hybrid Inverter System
Overview

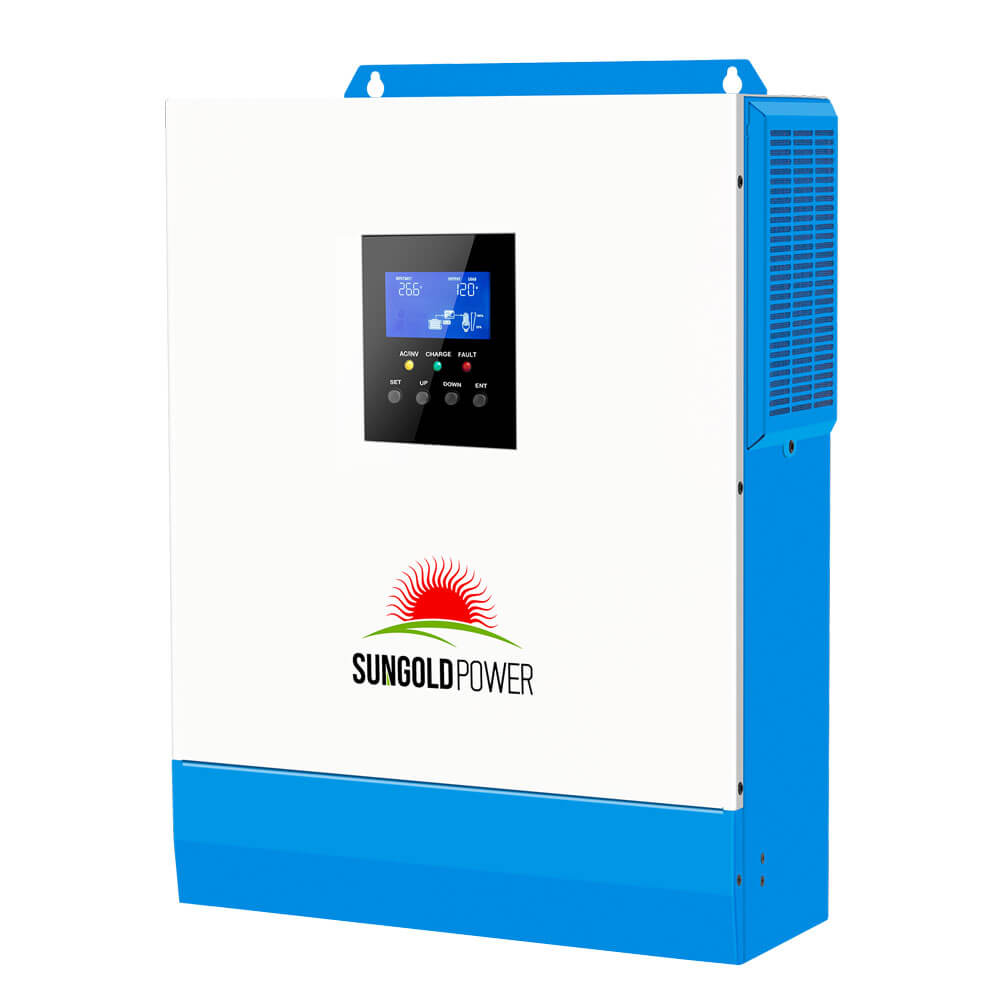

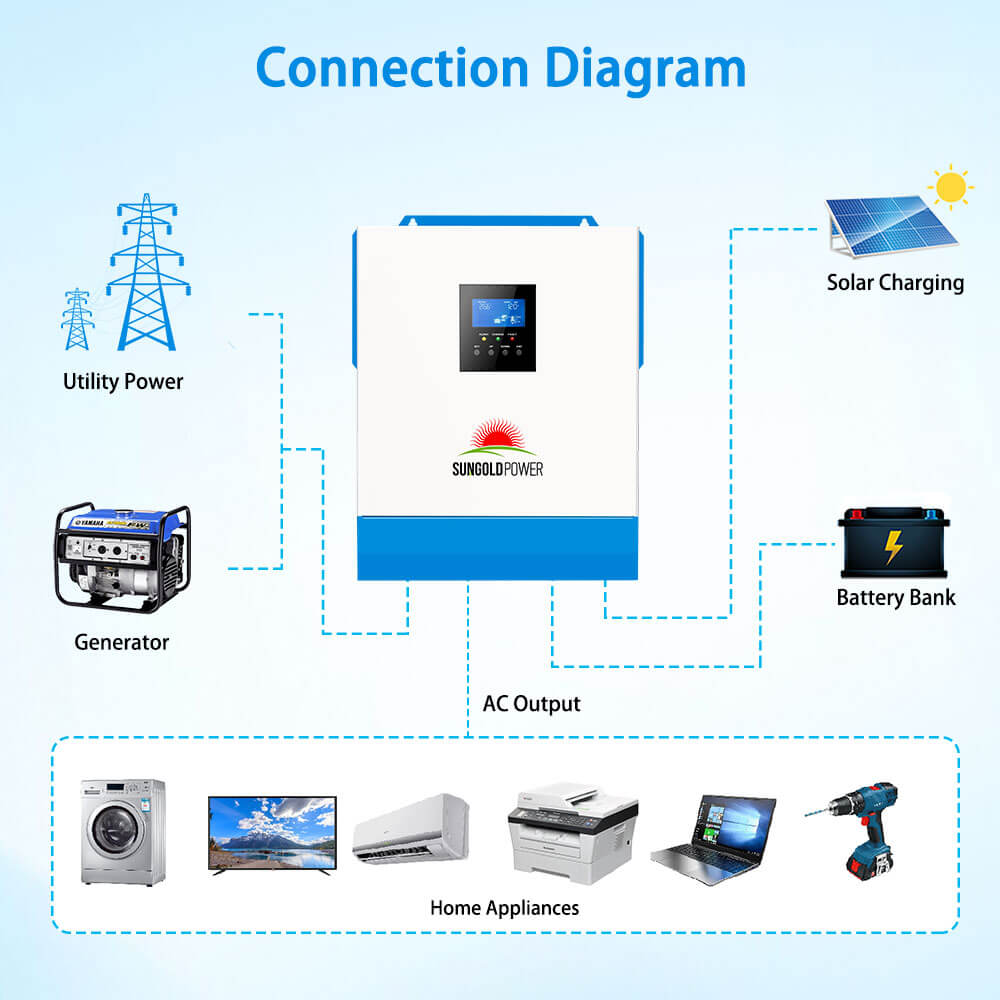

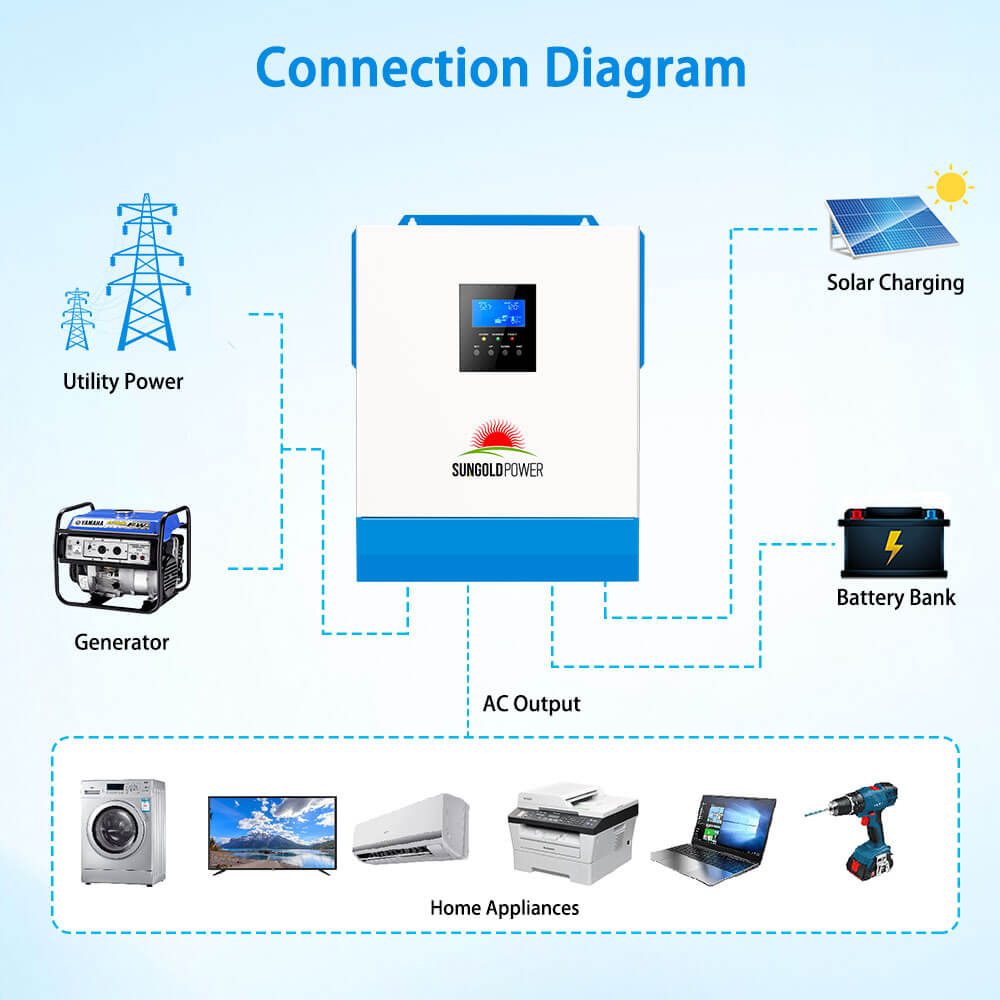

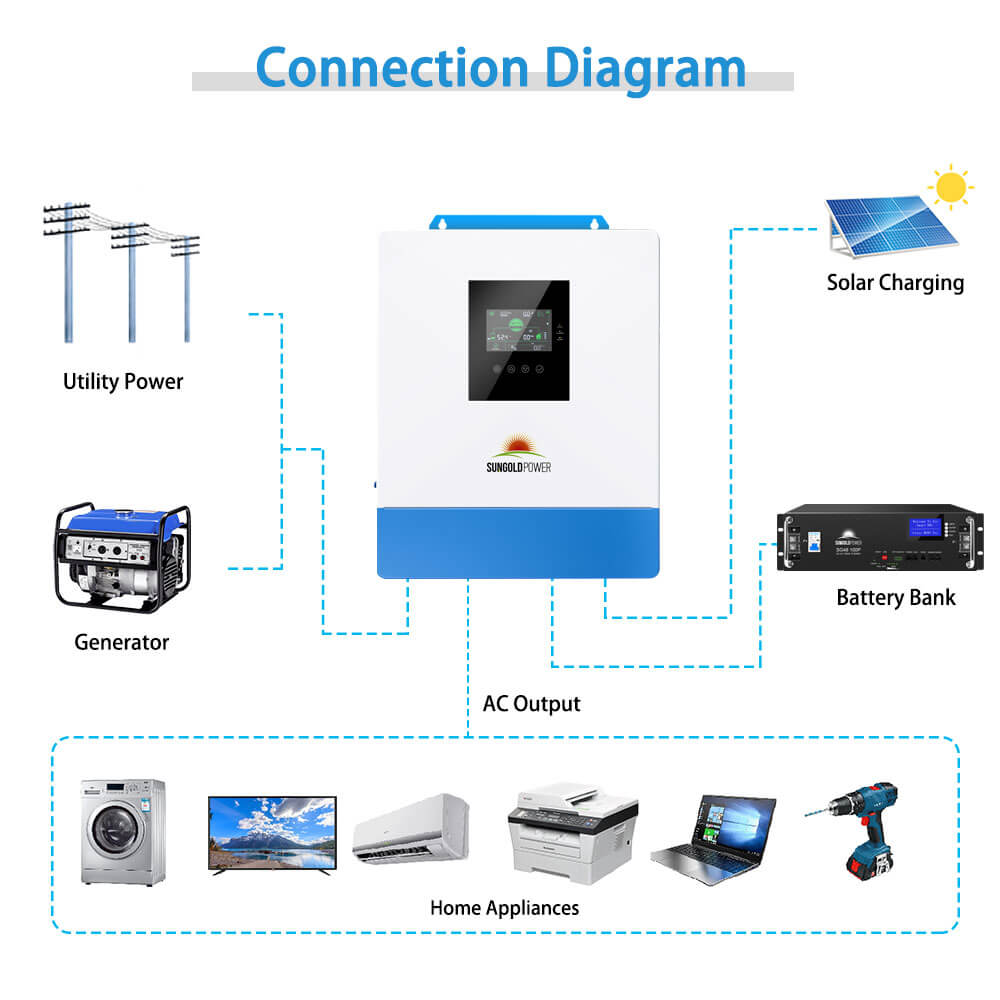

A 5000W pure sine wave inverter with MPPT solar charging. It runs on solar, AC, or both. Max 5500W from a 500V PV array. Works as a grid-tied and off-grid system in one unit. Parallel capability lets you scale up as needed.
Benefits
- All-in-one solution that blends grid-tied and off-grid operation.
- Parallel kit SPH5048P lets you grow up to 30 kW by connecting multiple units.
- Stable 110V AC output and overload protection for common loads like refrigerators, computers, TVs, ovens, and ACs.
- Flexible charging and output options to fit different setups and priorities.
- Wide battery compatibility with a built?in User Mode for custom inputs and RS485 BMS communication.
Features

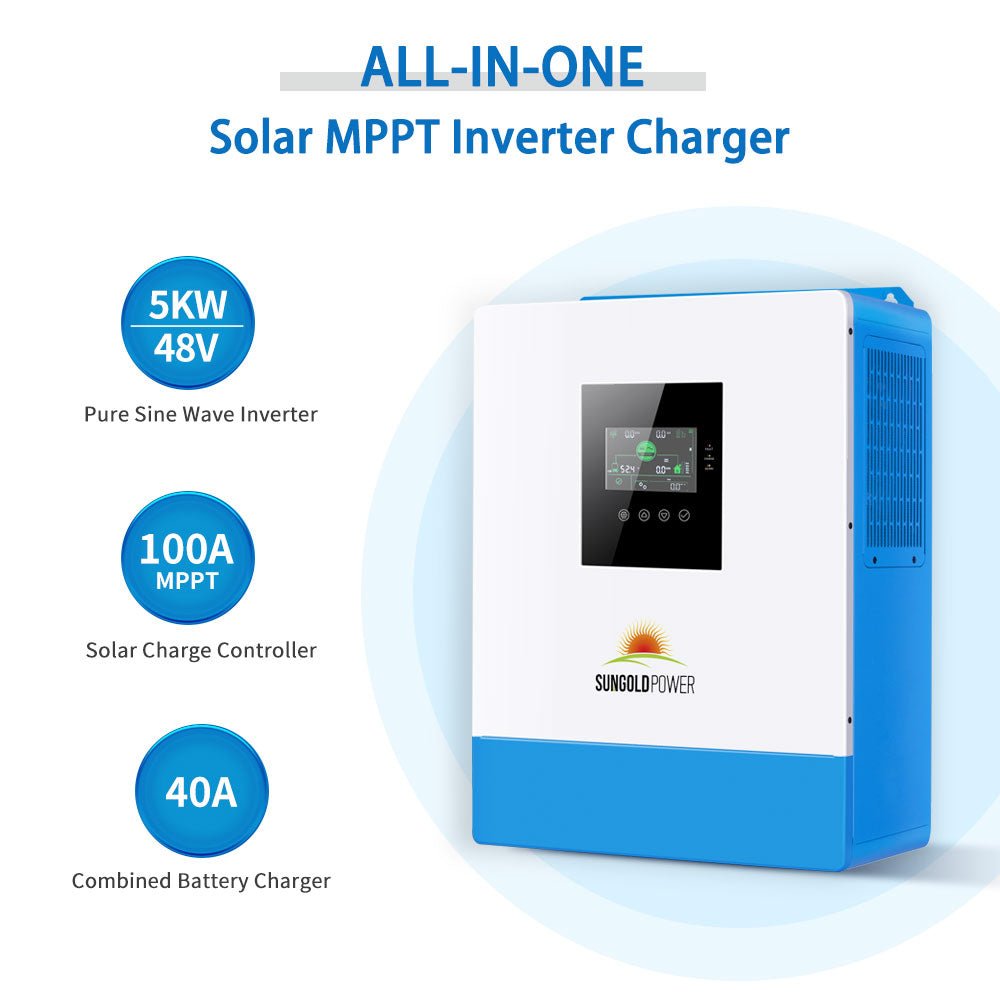

- 5000 Watt Pure Sine Wave inverter with up to 5500W PV input capacity.
- MPPT solar charging with up to 100A or 80A MPPT options.
- Solar + AC charging, supporting SOLAR+AC operation.

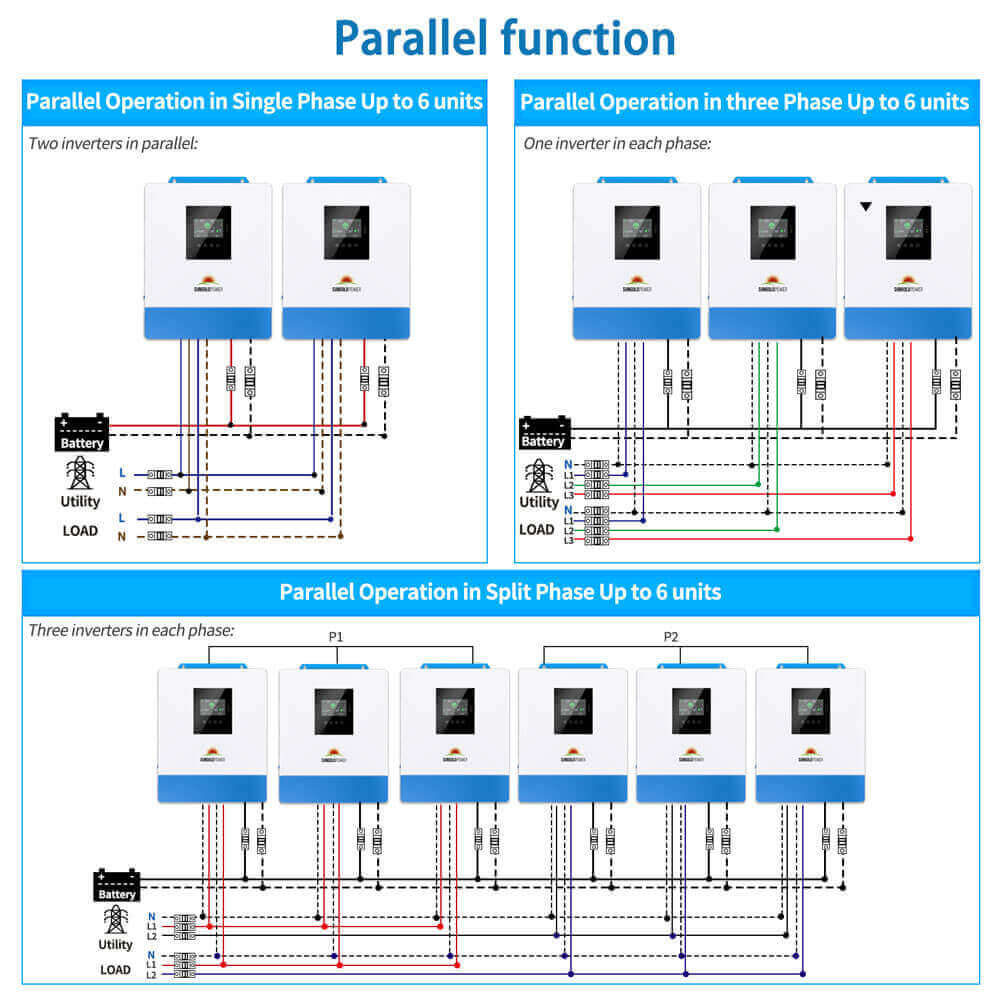

- Parallel up to 6 units with SPH5048P kit, enabling 120V single phase, 120/240V split phase, and 208V 3-phase configurations.
- Stable AC output suitable for motors up to 4HP and a range of home and office loads.

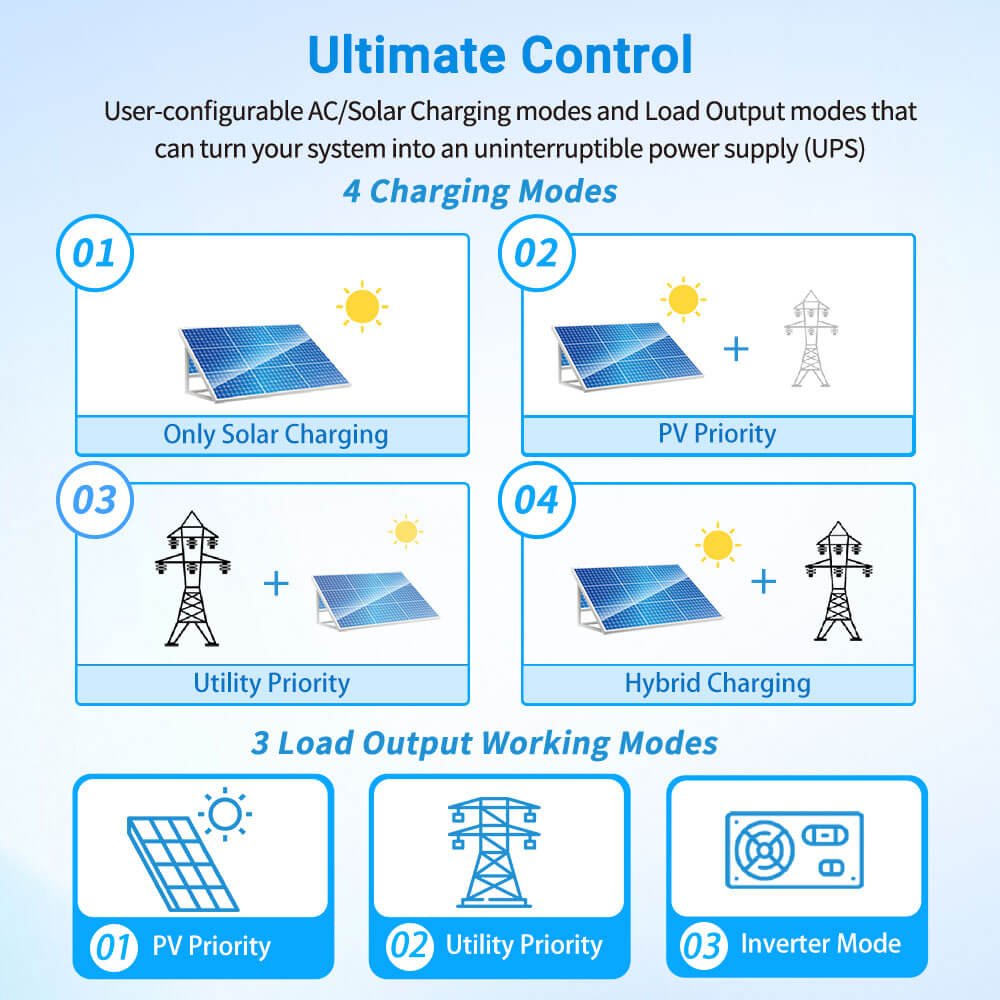

- Four charging modes: AC Priority, Solar Priority, Only Solar, and Mains & Solar Hybrid.
- Four output modes: PV priority, Utility priority, Inverter priority, and Hybrid output.
- Supports a variety of battery chemistries with a 40–60V charging voltage range.
- RS485 port for BMS communication and a User Mode for custom battery setups.
Specifications
- Inverter: 5000 W pure sine wave, 110V AC output.

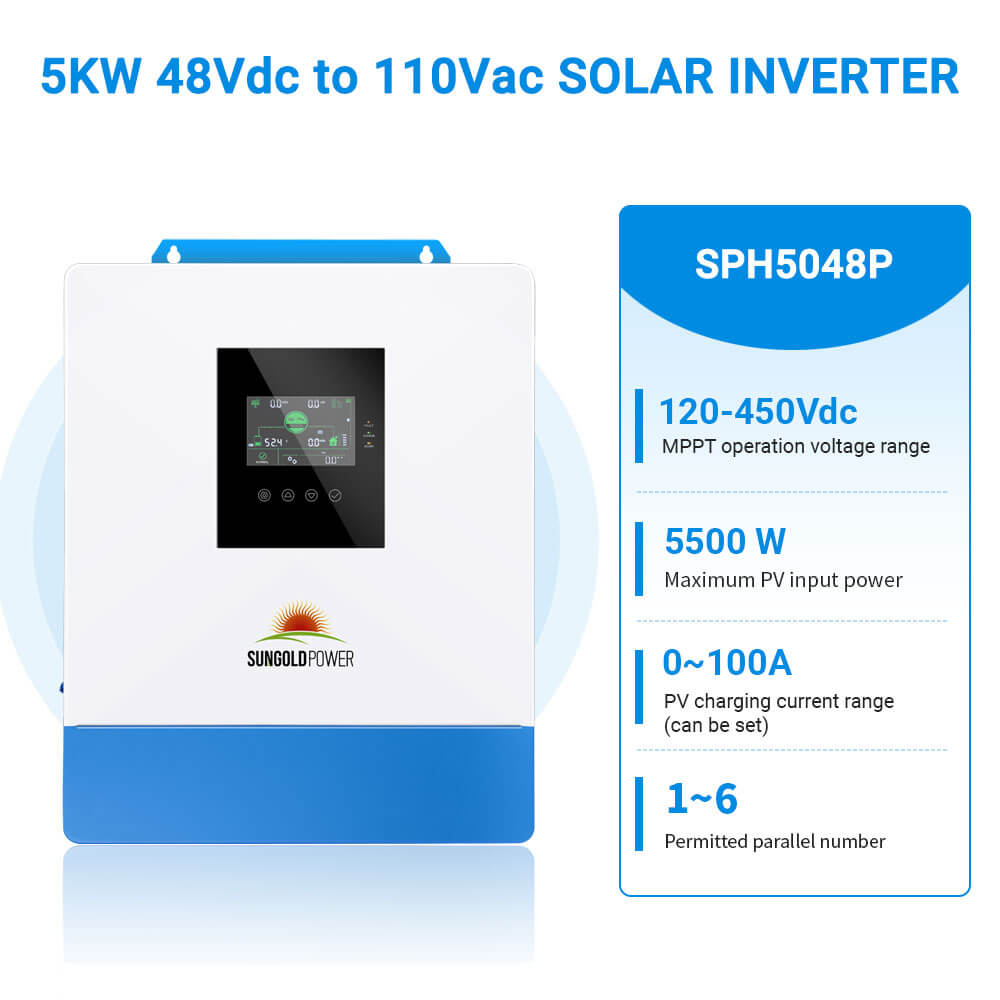

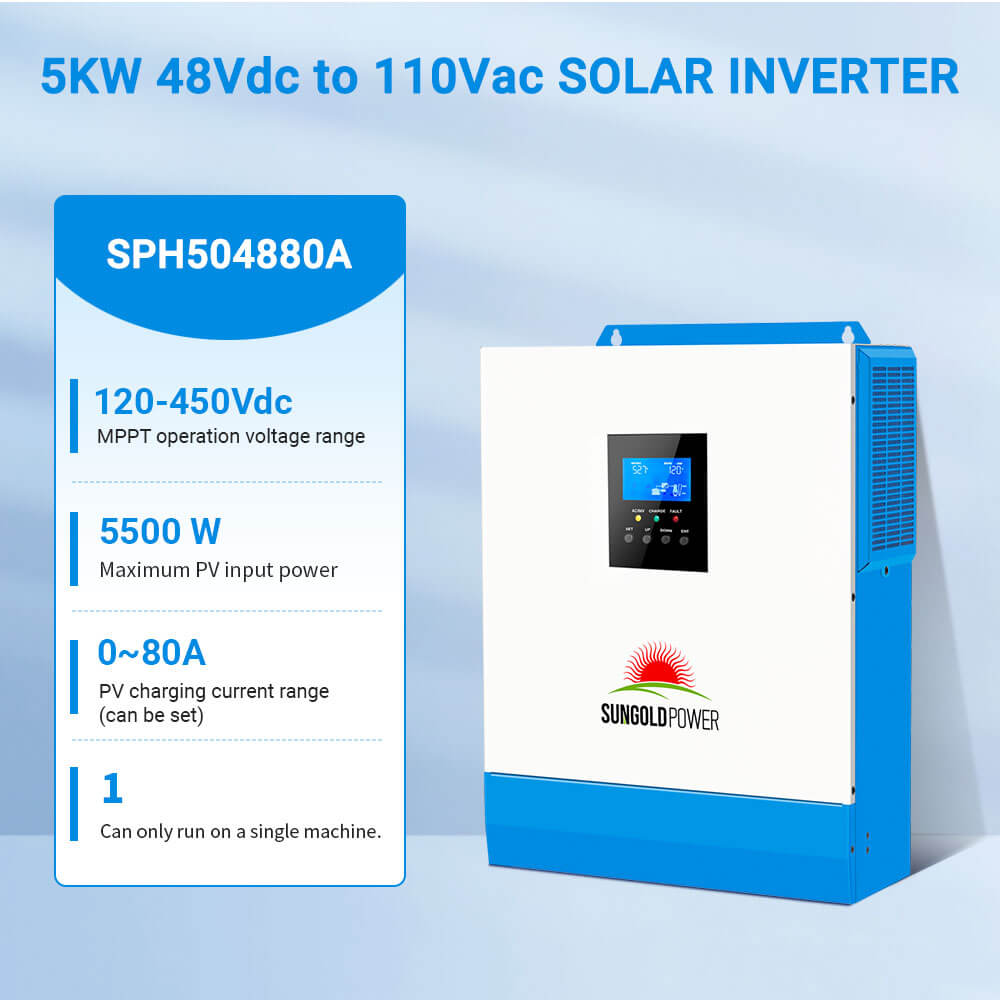

- PV charging: up to 5500W from a 500V PV array; MPPT options up to 100A or 80A.

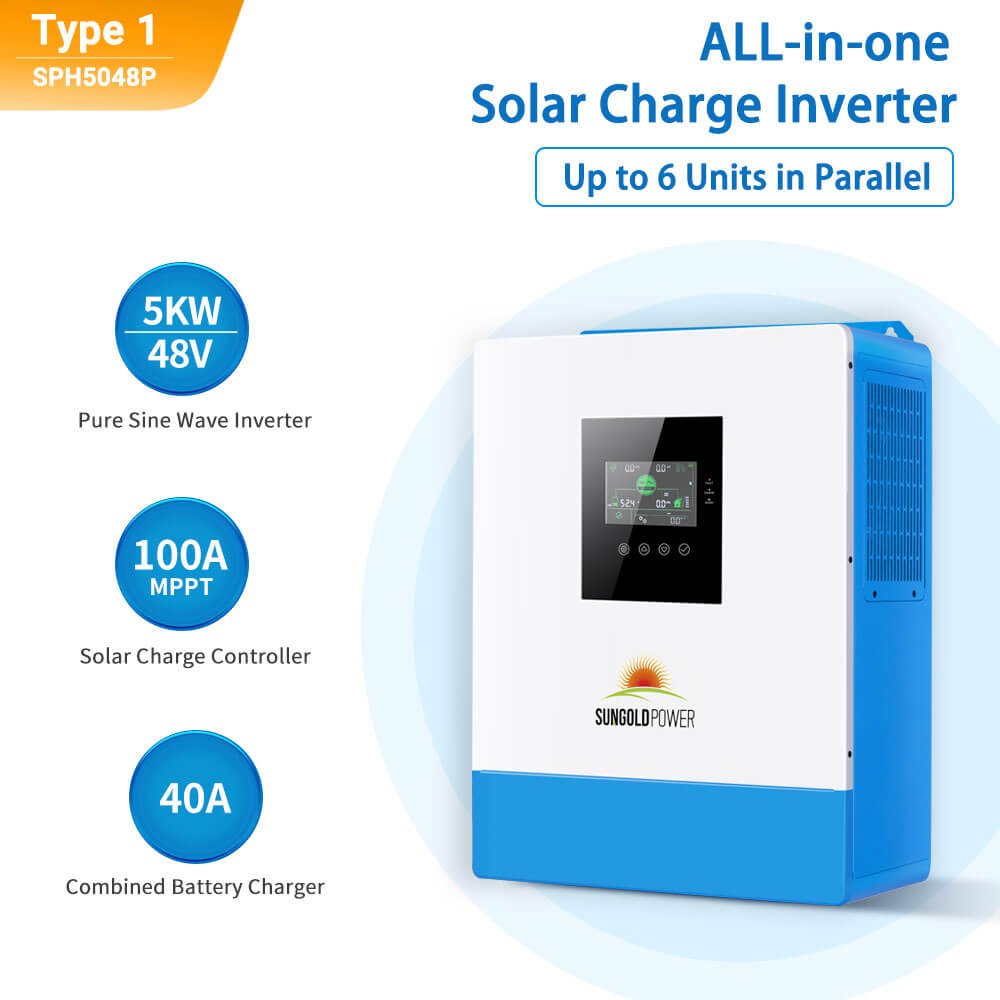

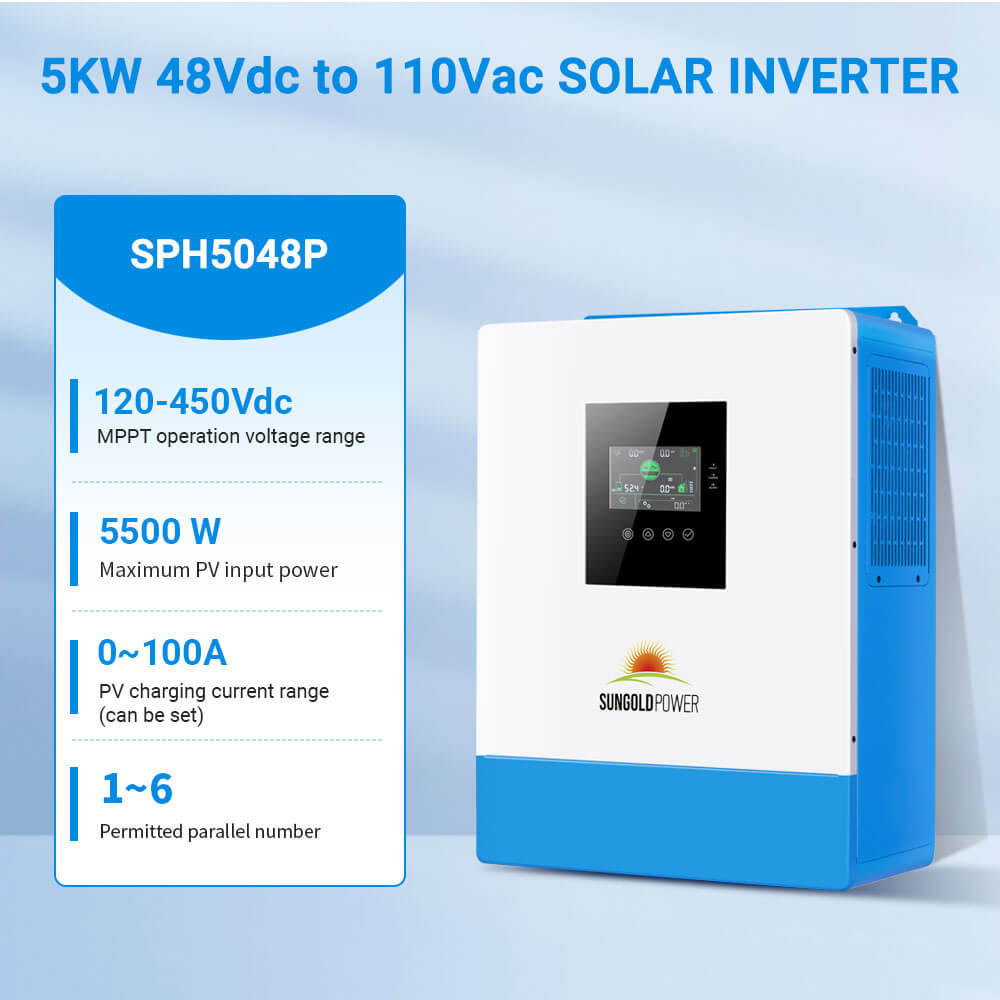

- Parallel capability: SPH5048P allows up to 6 units in parallel, up to 30 kW total power.
- Parallel outputs: 120V single phase, 120/240V split phase, 208V 3-phase (multi-unit parallel).
- Motor load capacity: capable of powering loads like refrigerators, computers, TVs, ovens, and air conditioners.
- Charging modes: AC Priority, Solar Priority, Only Solar, Mains & Solar Hybrid.
- Output modes: PV priority, Utility priority, Inverter priority, Hybrid output.

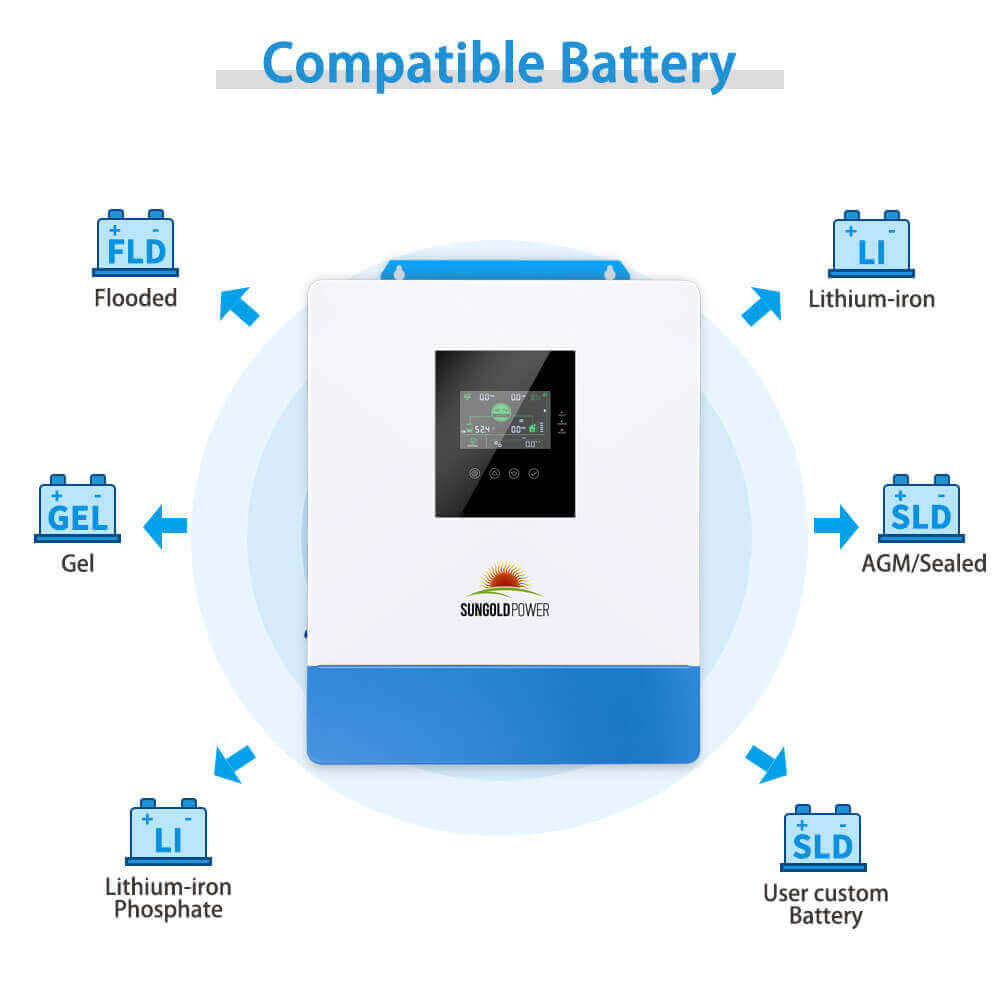

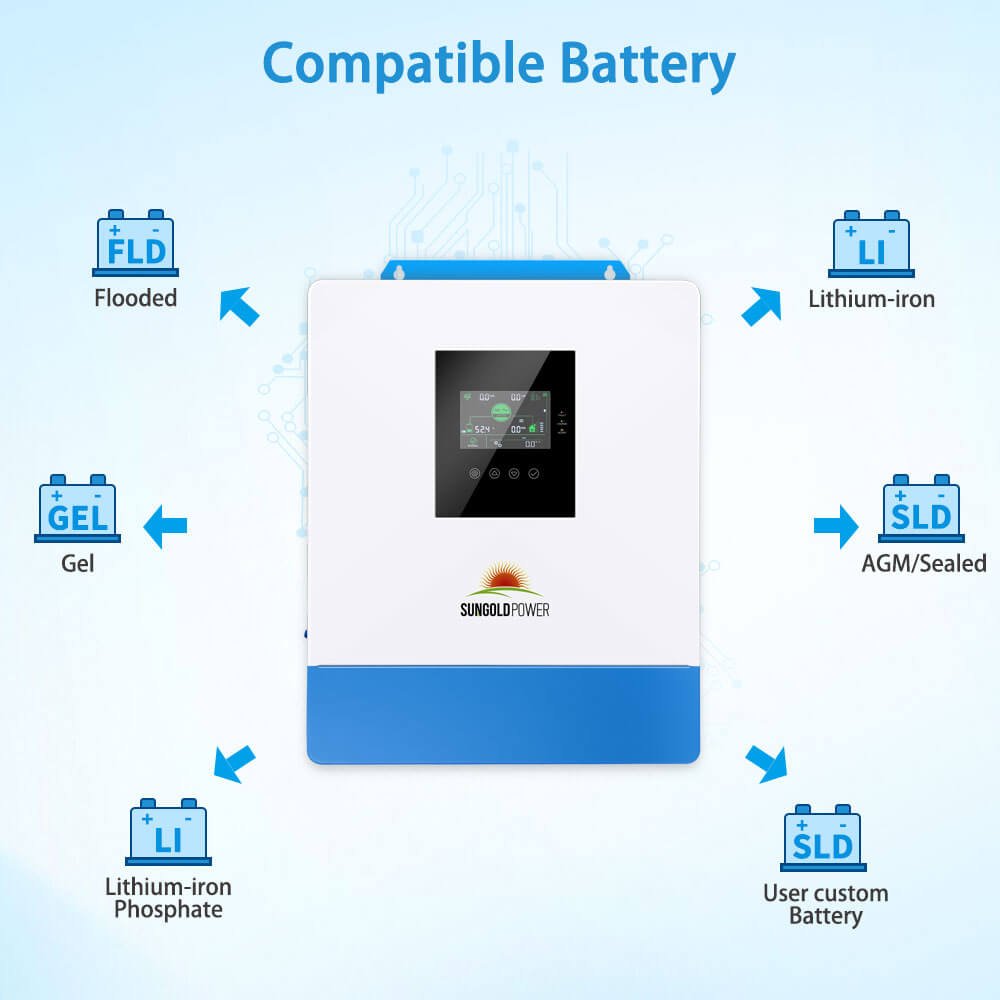

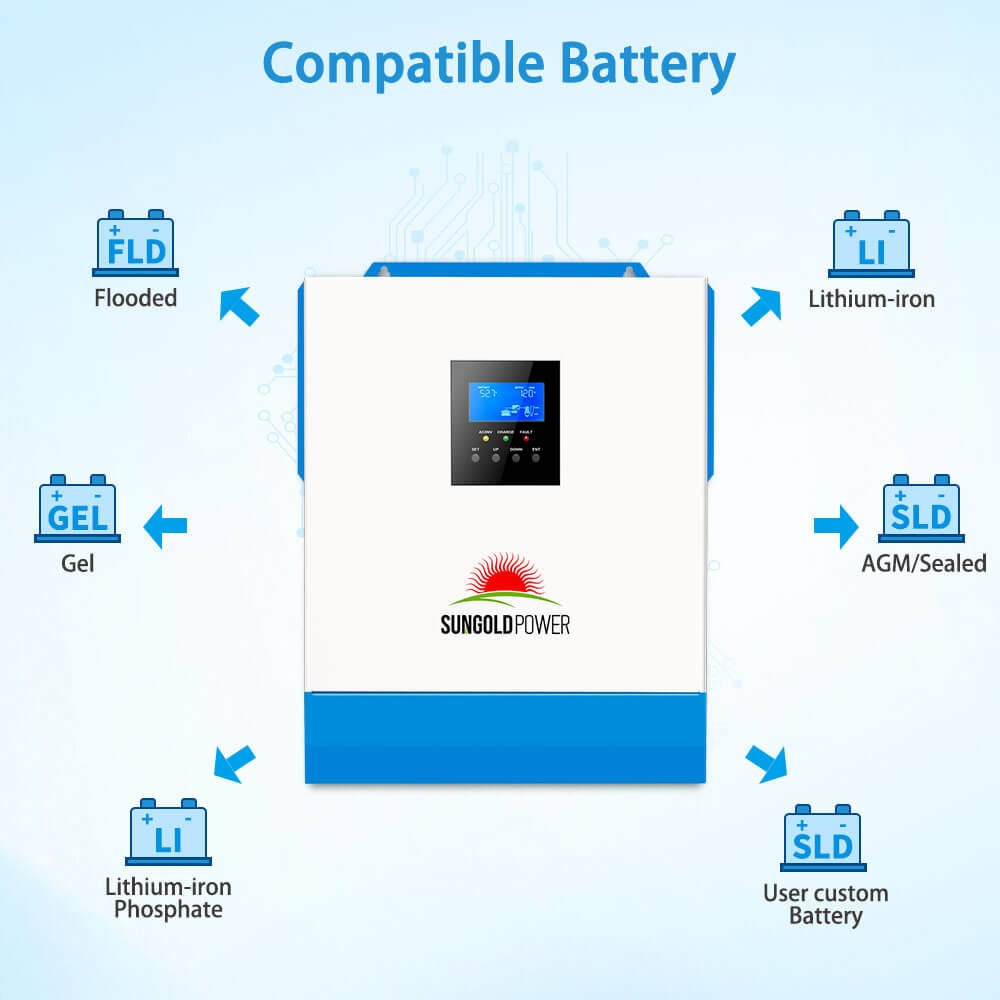

- Battery types: 48V AGM/Sealed, Gel, Flooded, Lithium; User Mode for custom inputs.
- Battery charging voltage range: 40–60V.

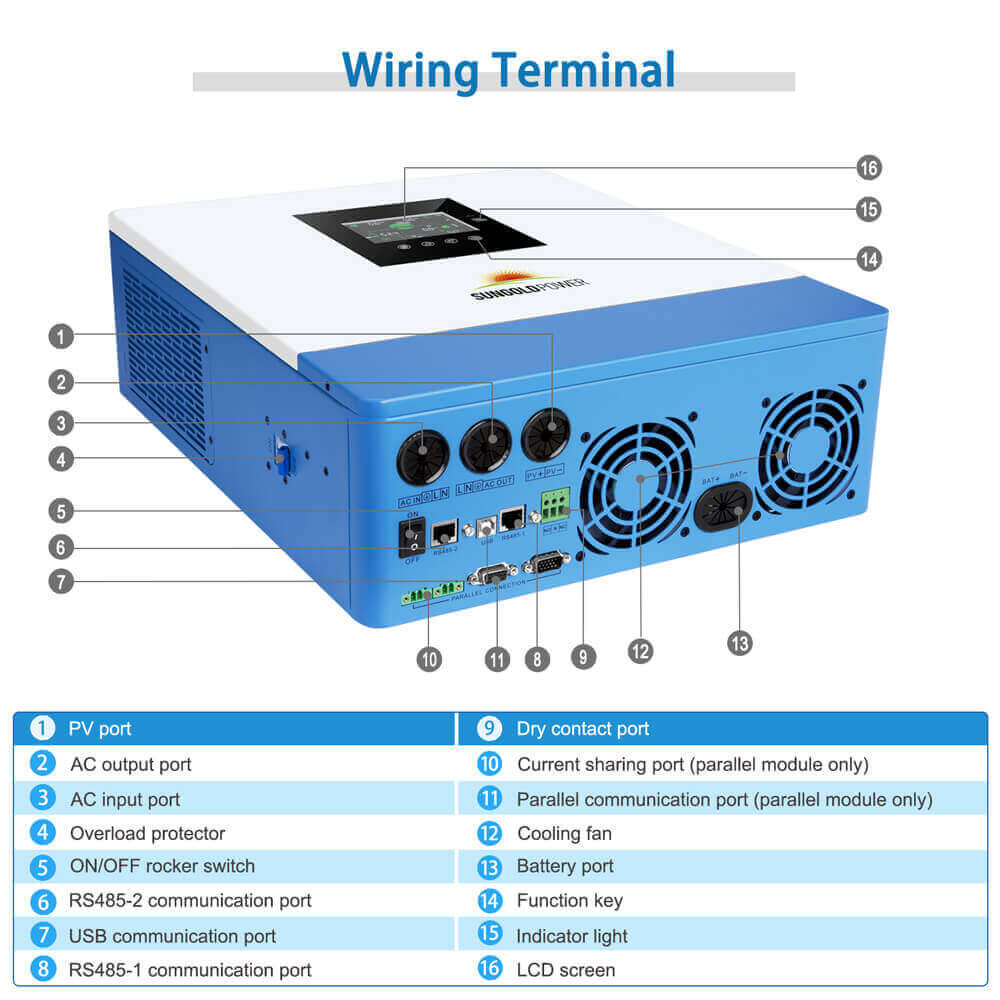

- BMS communication: RS485 port.
