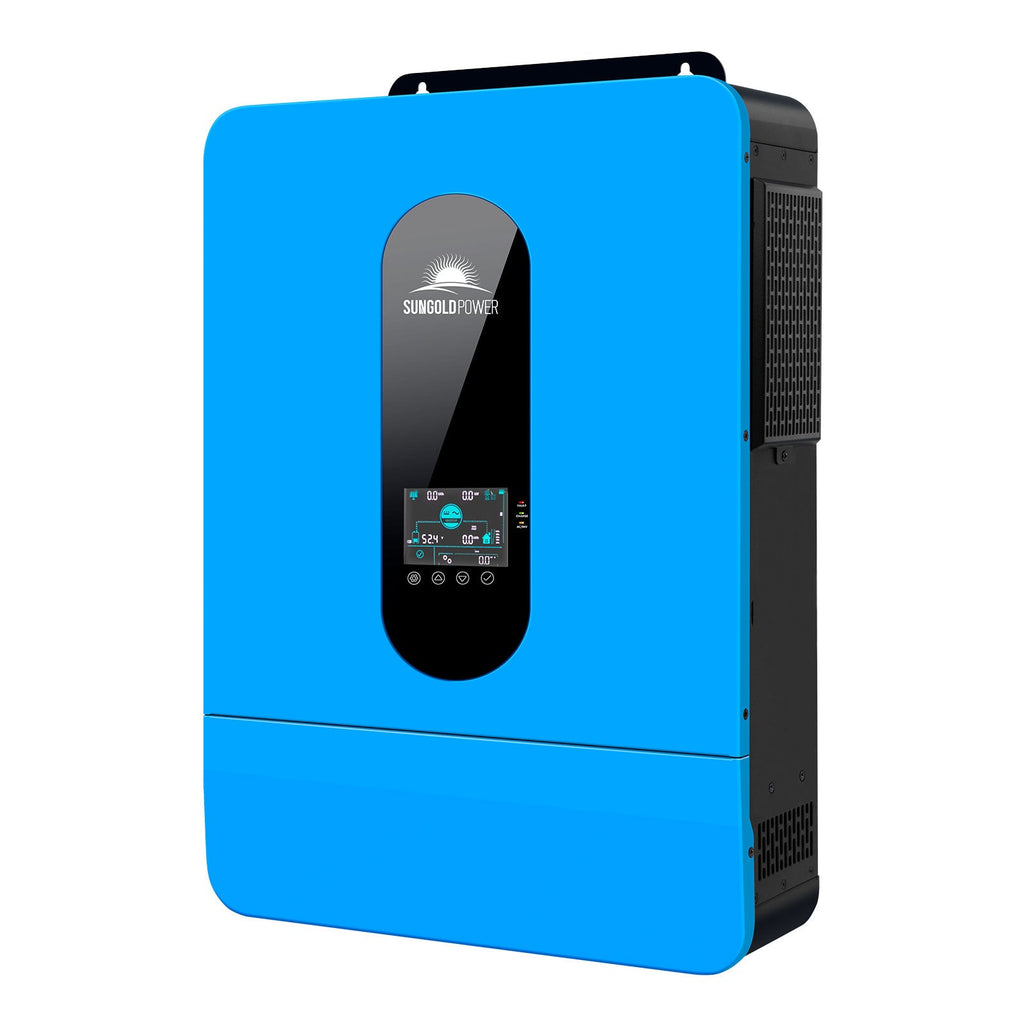

SPH 6500W Hybrid Solar Inverter
Overview

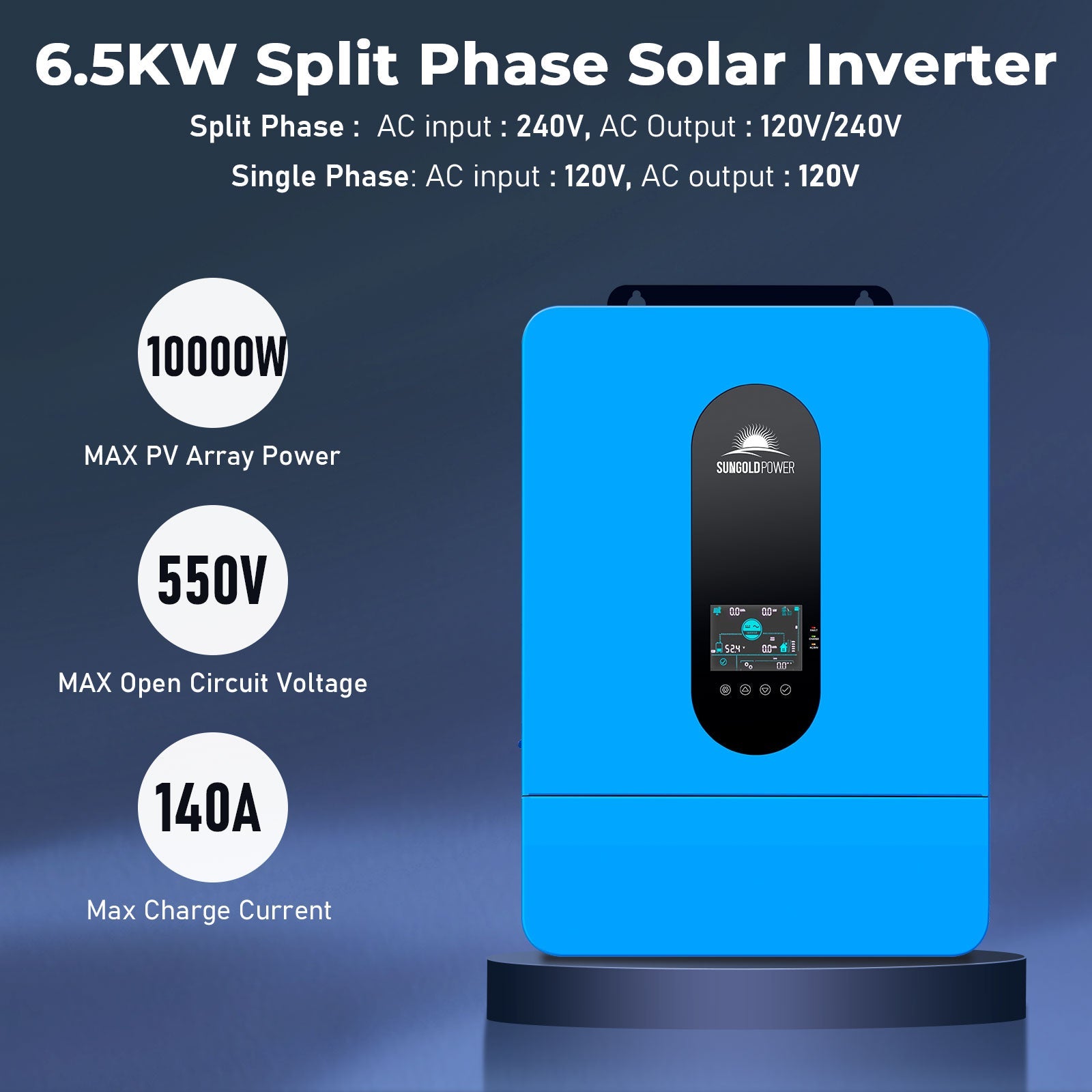

6.5 kW pure sine wave inverter with 140 A max battery charging, 2 built?in MPPT controllers, and a WiFi module for monitoring via a mobile app. Outputs include split phase 120V/240V or single?phase 120V. UL 1741/ETL listed for off?grid solar systems. Parallel up to six units for higher power when needed.
Benefits
- All?in?one unit: inverter, charger, and controllers in one box.

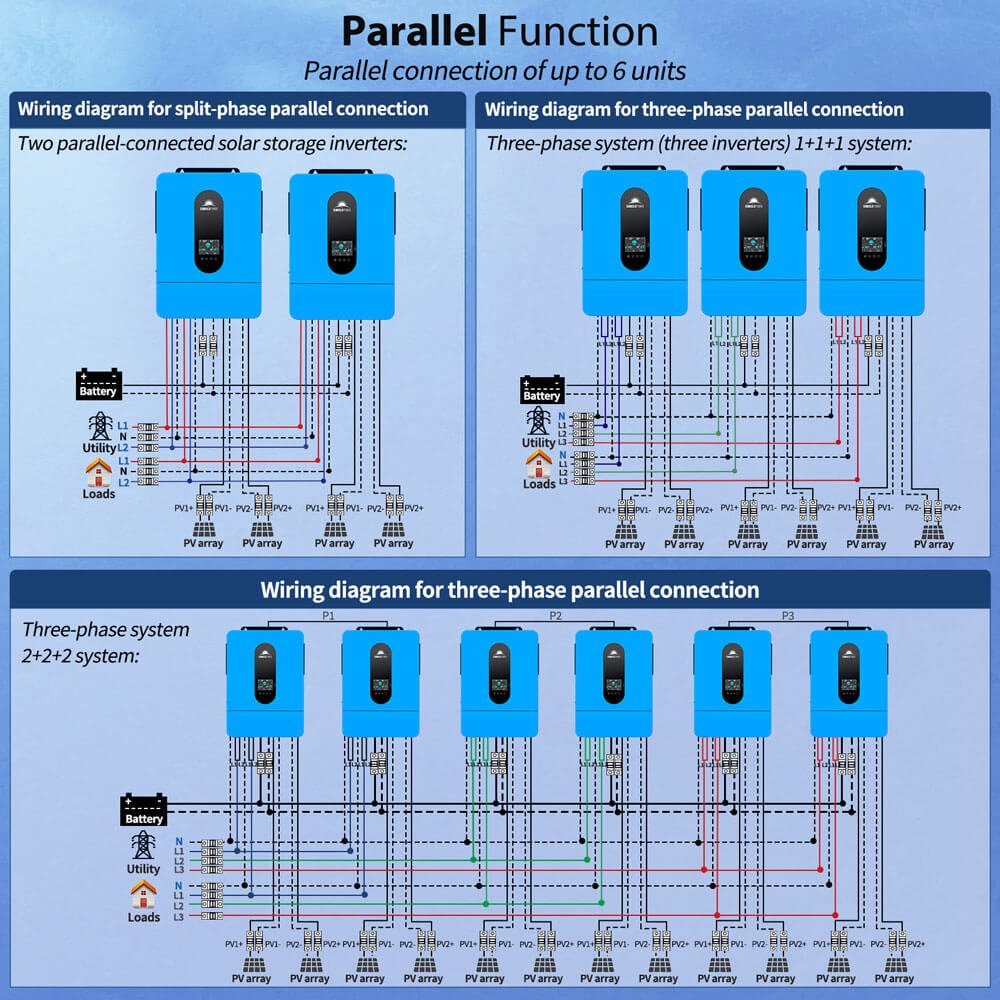

- Flexible output: 120V single phase or 120/240V split phase; parallel up to 6 units for more power.

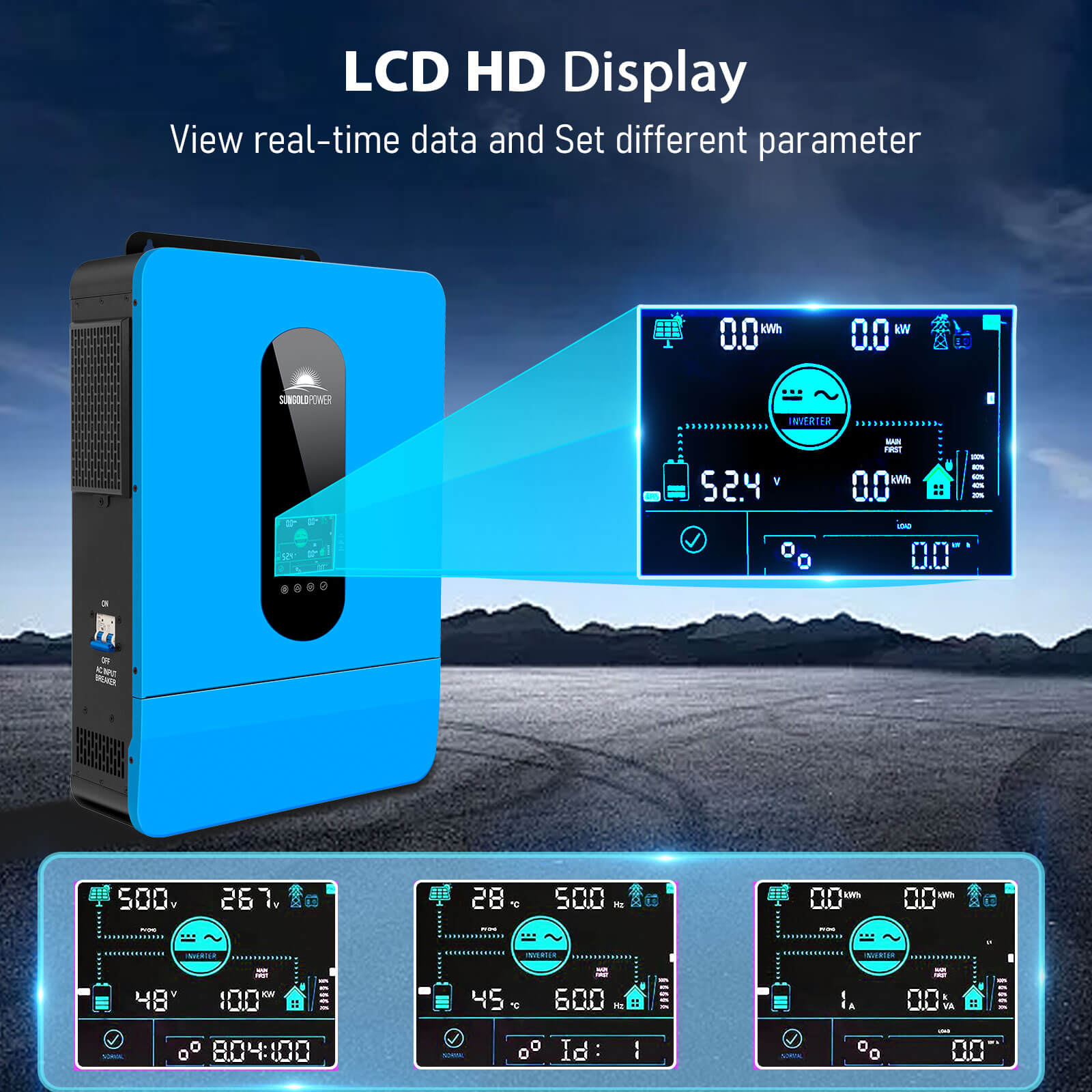

- Remote monitoring: WiFi module lets you view status and parameters on your phone.
- Smart protection: protections guard PV input, AC input, battery, and load.
Features
- 6500W rated output; 13000VA peak power.
- 2 MPPT solar controllers built in; PV open?circuit voltage up to 550VDC.

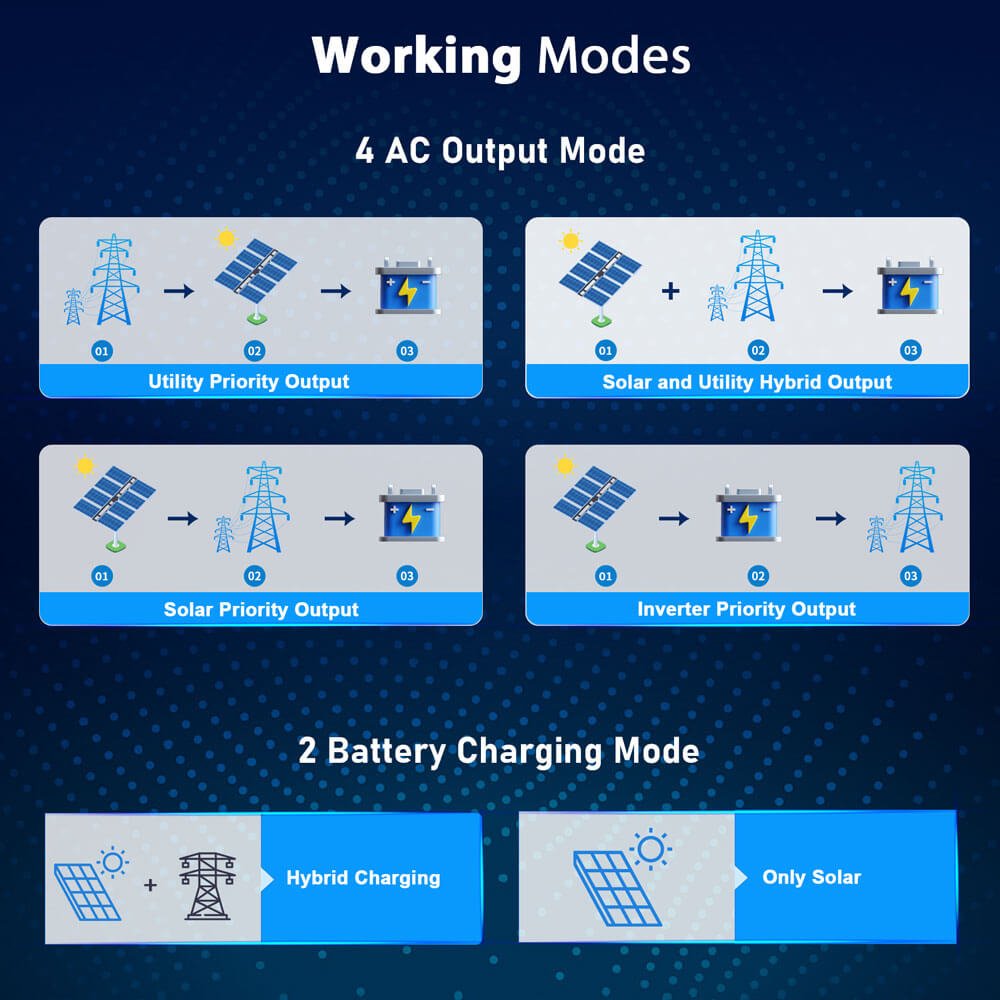

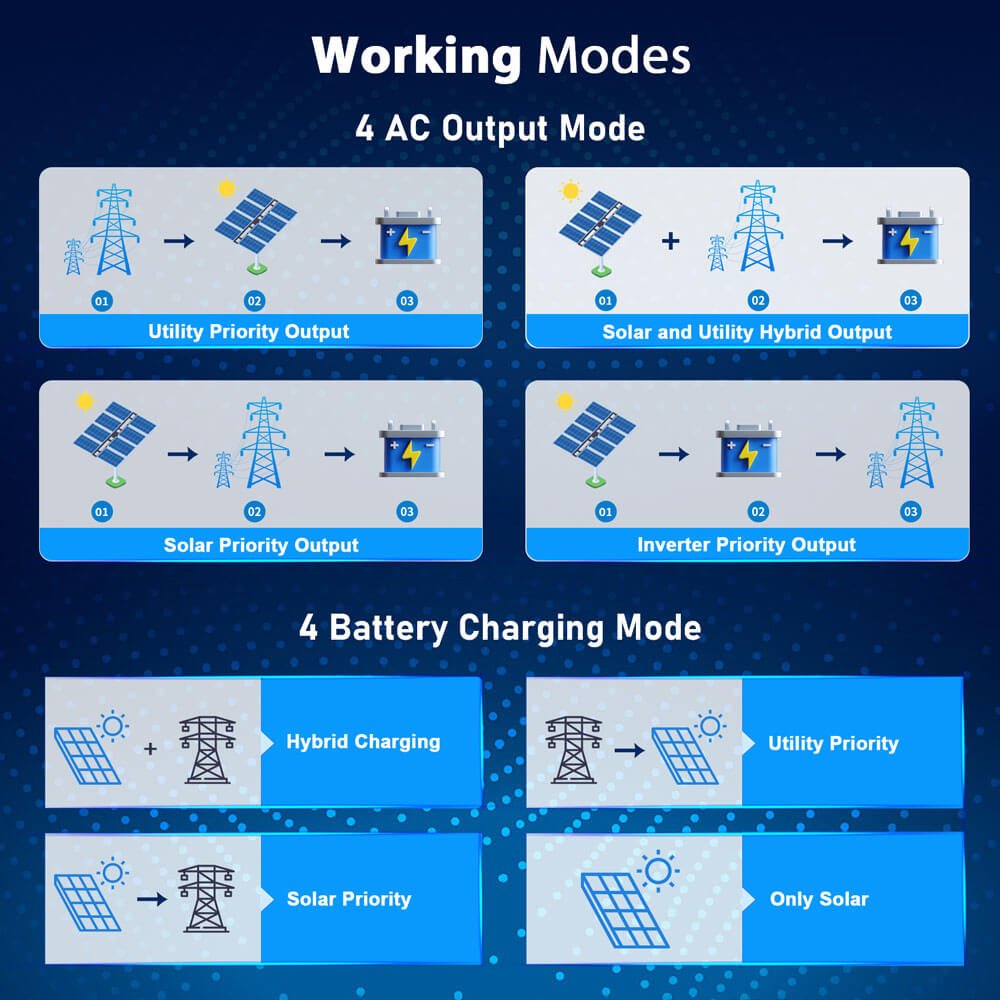

- Four charging/output modes: Hybrid, Utility Priority, Solar Priority, and Solar Only.

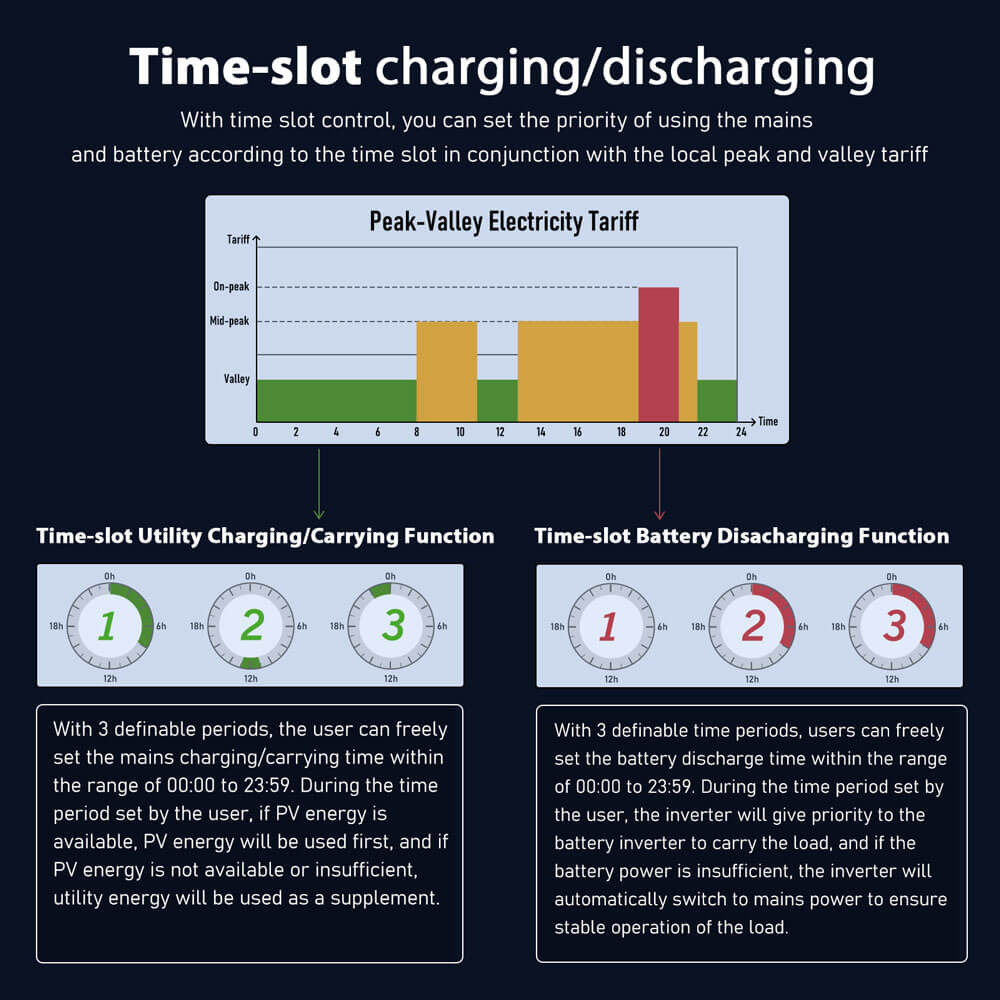

- Time-slot charging/discharging to align with tariffs and usage patterns.

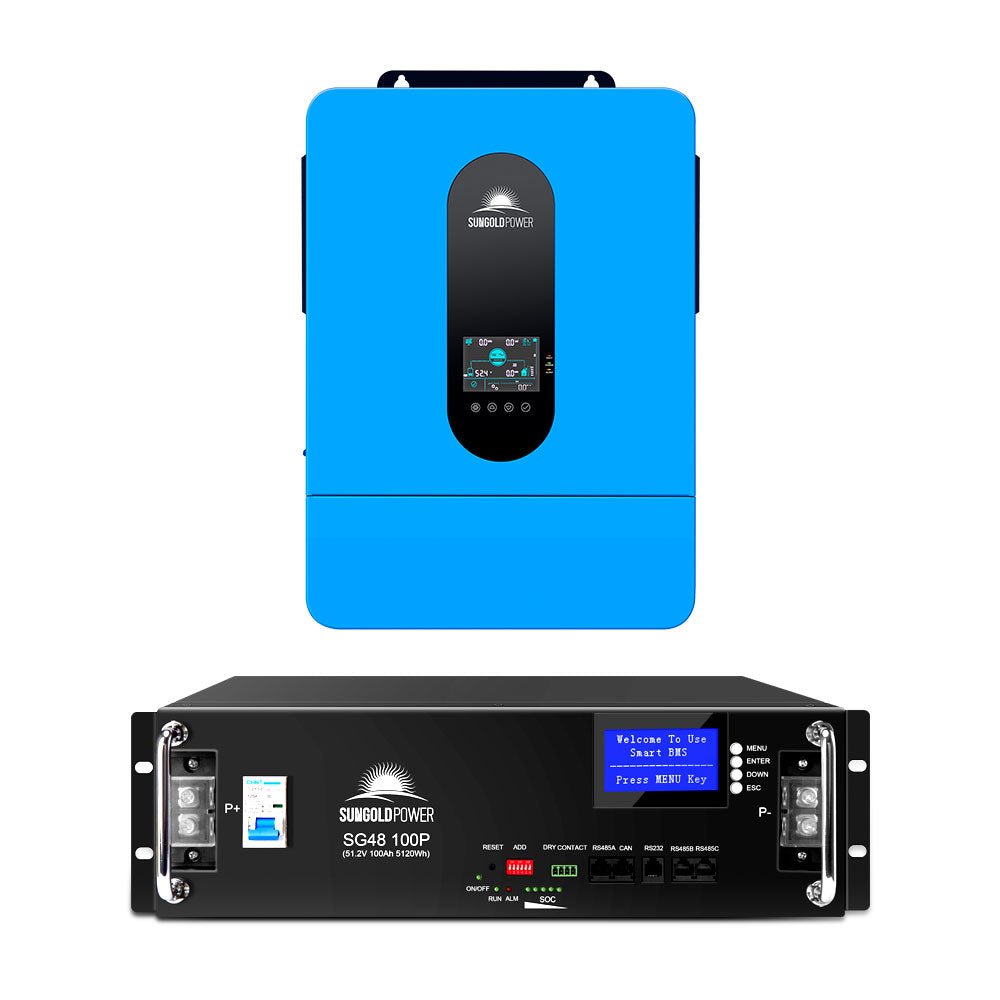

- Battery compatibility: 48V AGM/Sealed, Gel, Flooded, Lithium; includes a User Mode; can operate with or without a battery; CAN/RS485 communication with SunGoldPower batteries.
Specifications
- Rated output power: 6500W
- Max peak power: 13,000 VA
- PV input protection: over?voltage / over?current
- AC input protection: over?voltage
- Battery protection: over?voltage
- PV input open?circuit voltage: up to 550VDC
- Battery charging current: up to 140A
- Output options: 120V single phase or 120/240V split phase (paralleling enables 208V 3?phase)
- Battery types: 48V AGM/Sealed, Gel, Flooded, Lithium; user mode; battery?free operation possible
- Communications: CAN and RS485 for compatible batteries
- Certifications: UL 1741 / ETL listed for off?grid solar systems
