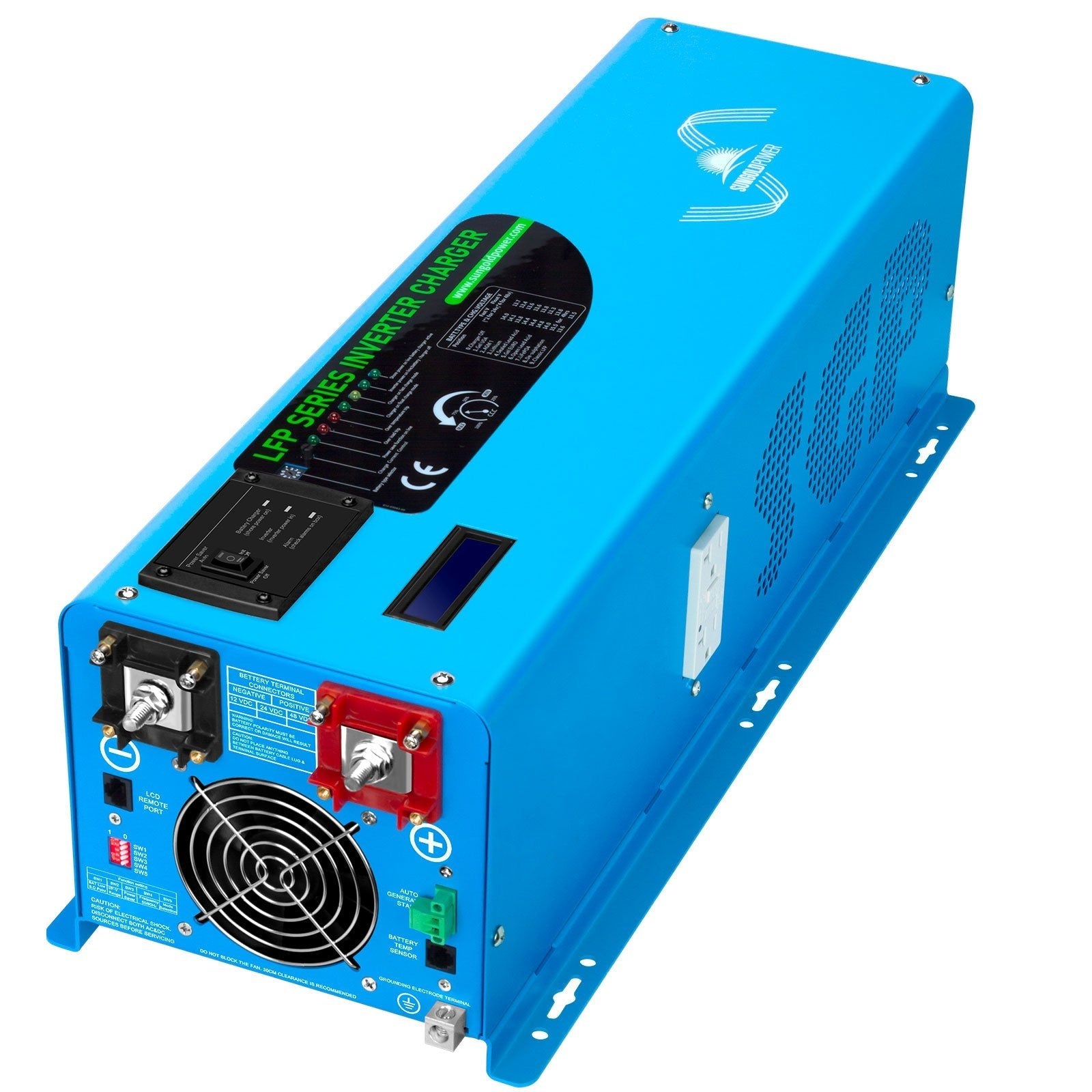

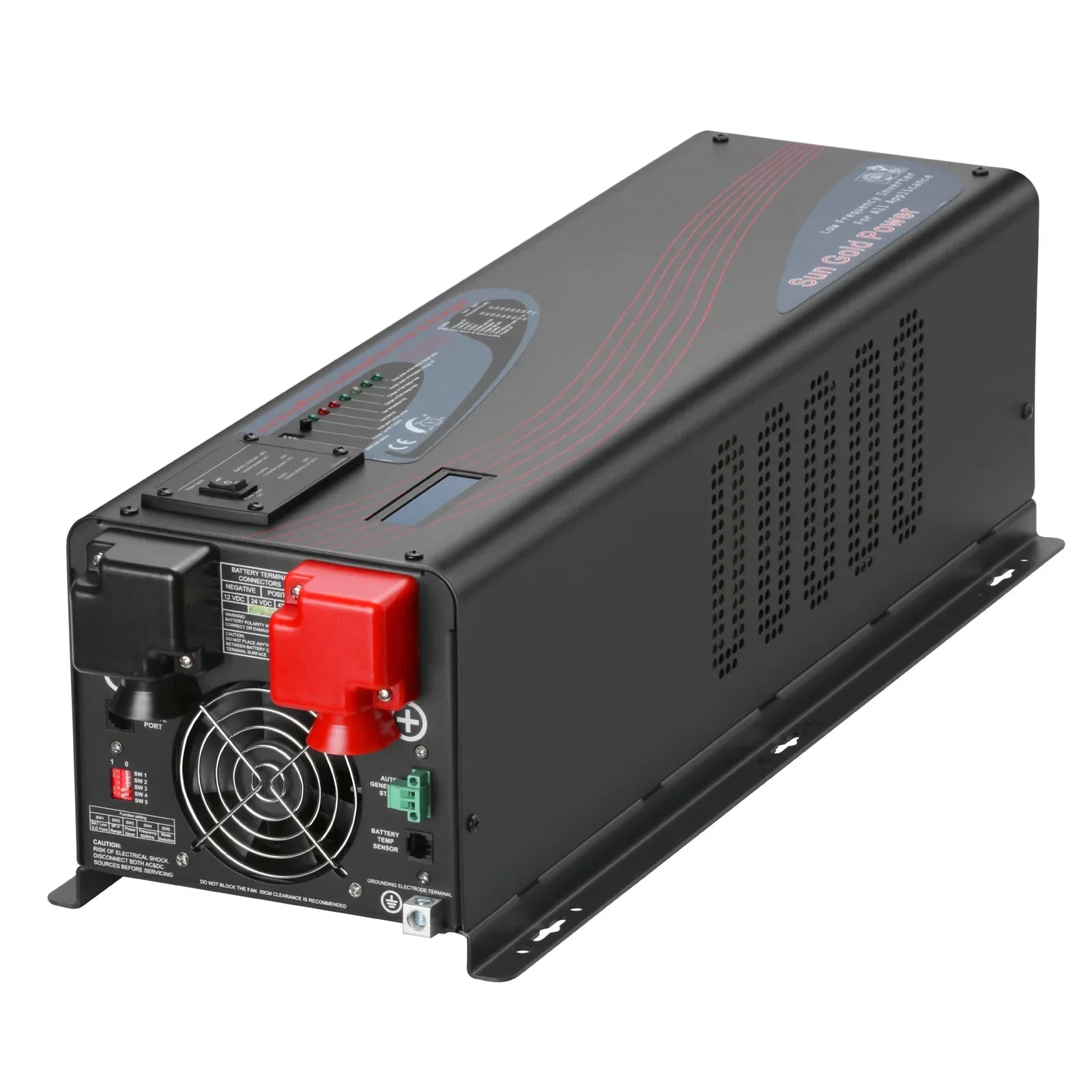

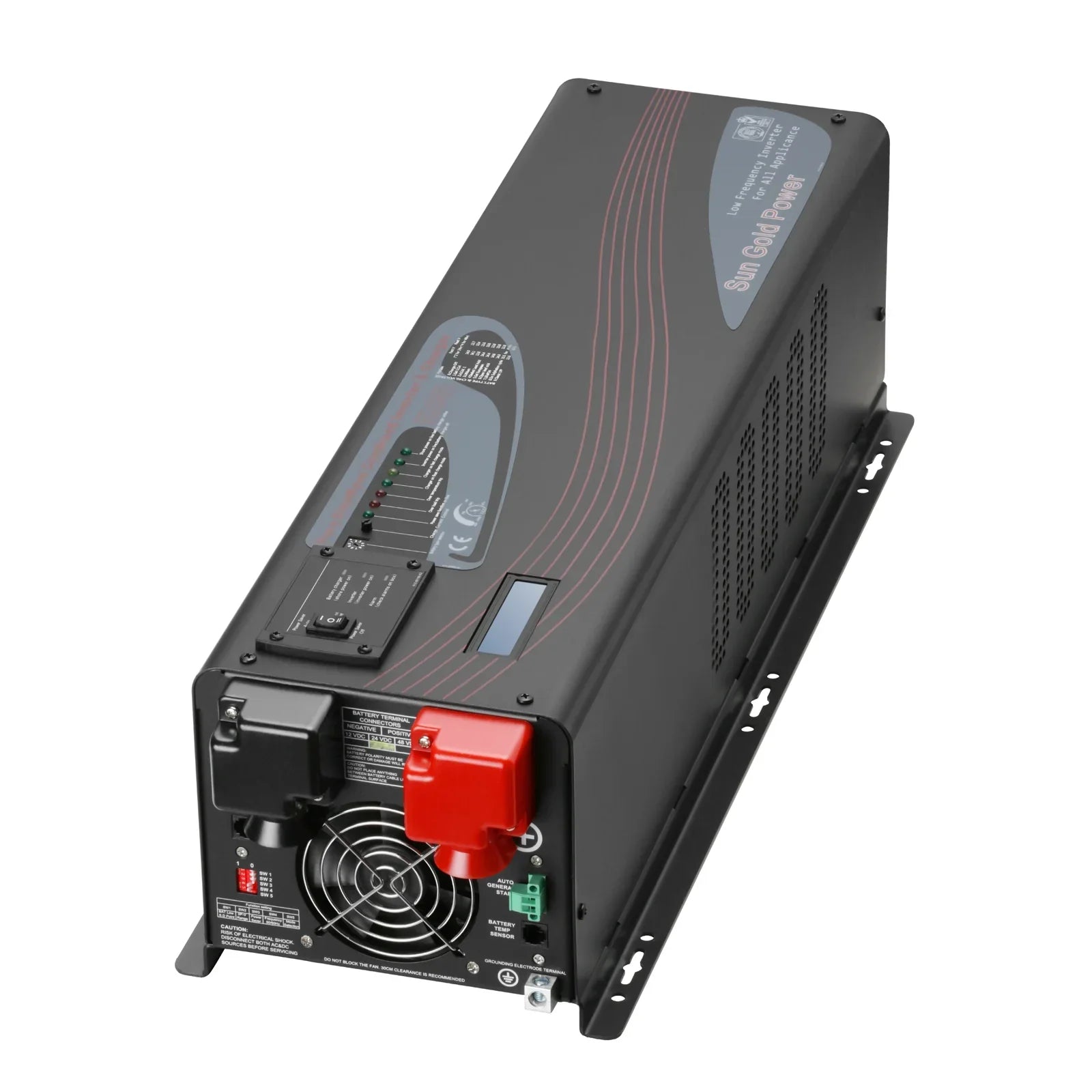

6000W 48V LFP Inverter Series
Overview

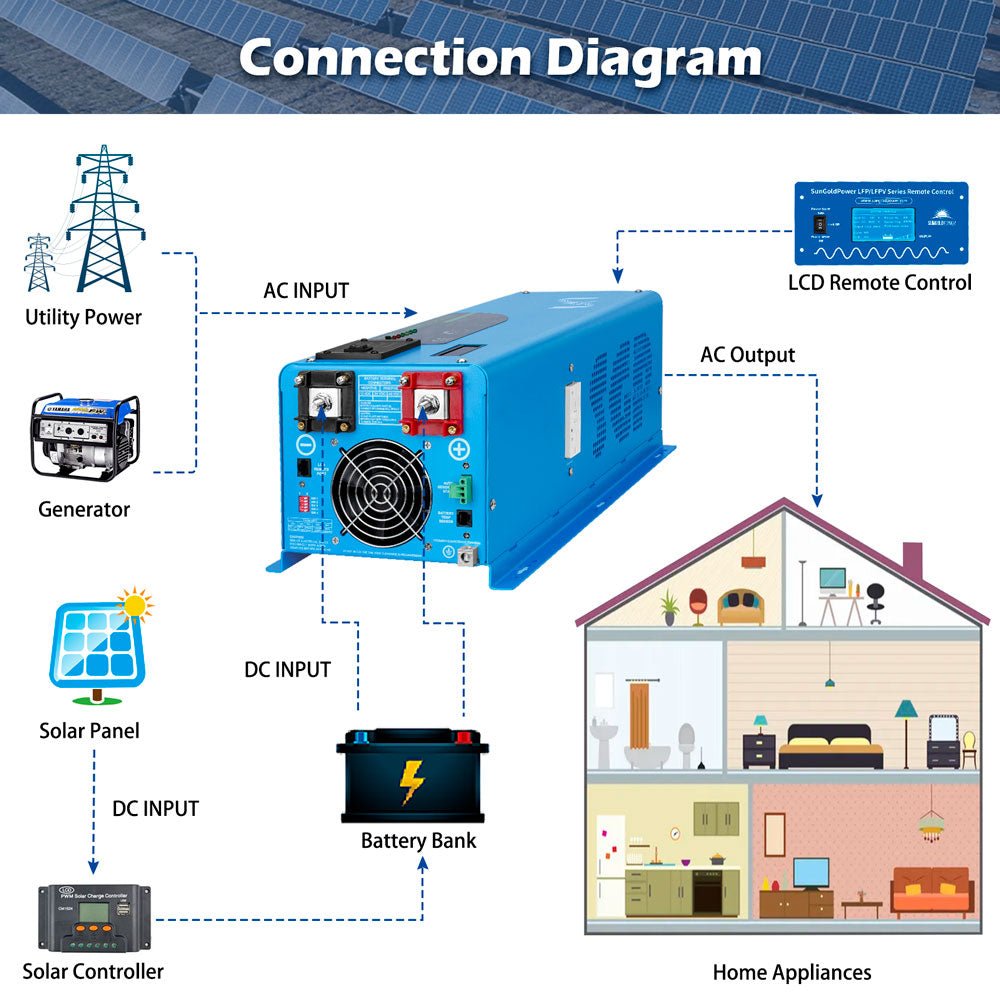

This unit combines an inverter, a battery charger, and an AC auto-transfer switch. It uses a low-frequency design, has low idle current, and supports a BTS cable and remote control.
Note: The 6000W 48V inverter is UL1741 standard.
Benefits
- All-in-one power solution: inverter, charger, and auto-transfer switch.

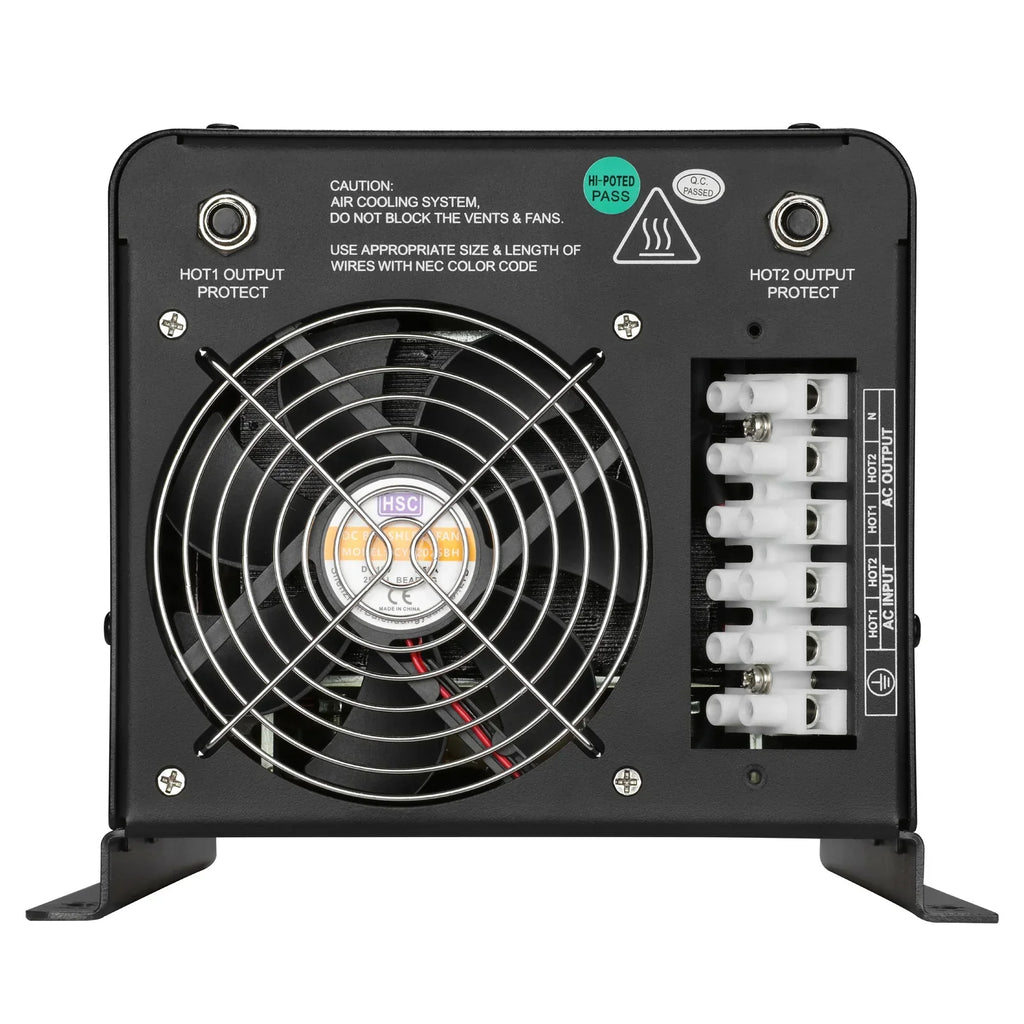

- Split-phase design. It accepts 240VAC input and can output 120VAC or 240VAC. It supports 50Hz or 60Hz via SW4.
- AC Priority by default with a battery-priority option via SW5.
- Adjustable charging current from 0% to 100% using a linear switch.
- Auto Gen Start: starts a generator when the battery is low and stops after charging is finished.

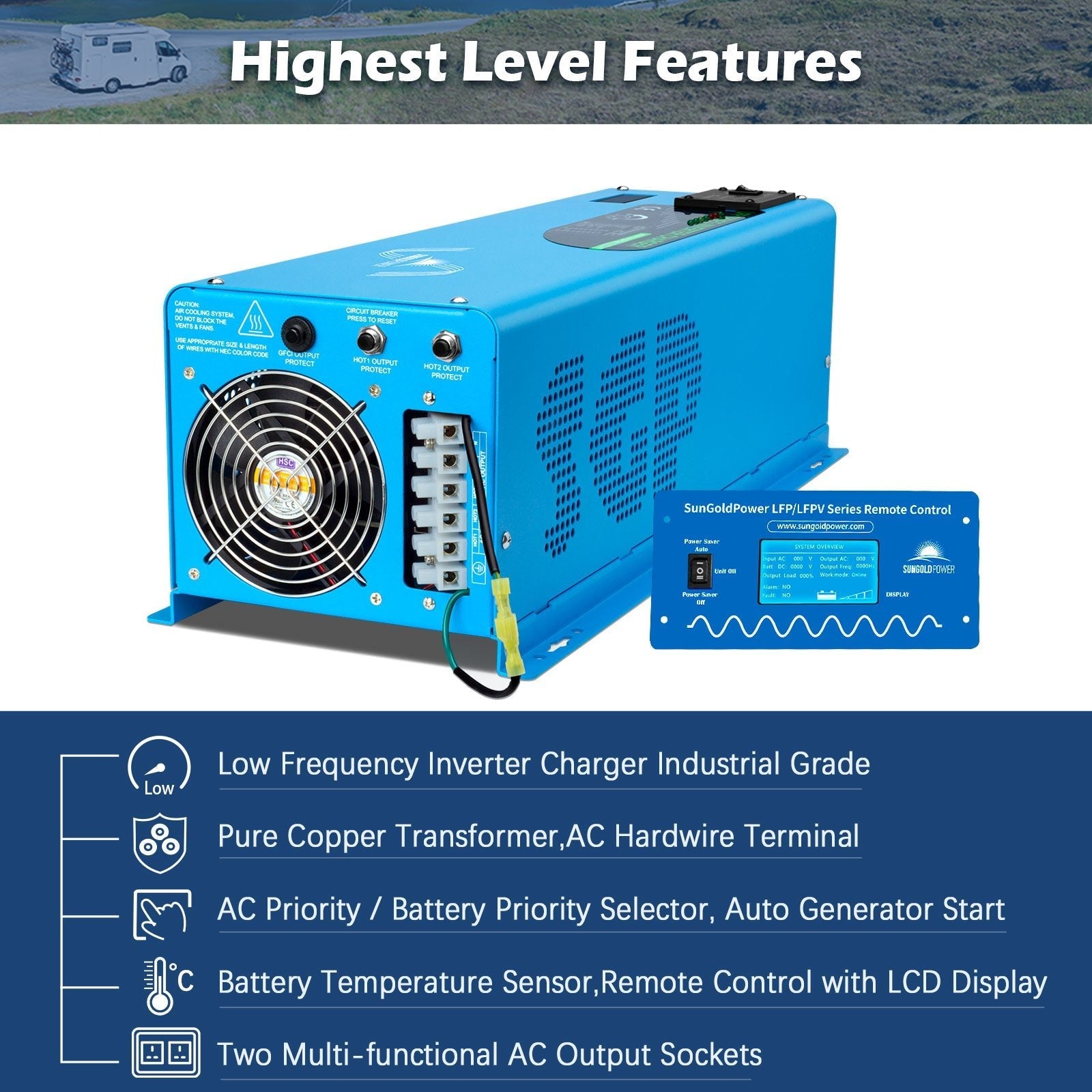

Features
- 6000W pure sine wave inverter.
- 48V split-phase system.
- Low idle current for efficiency.

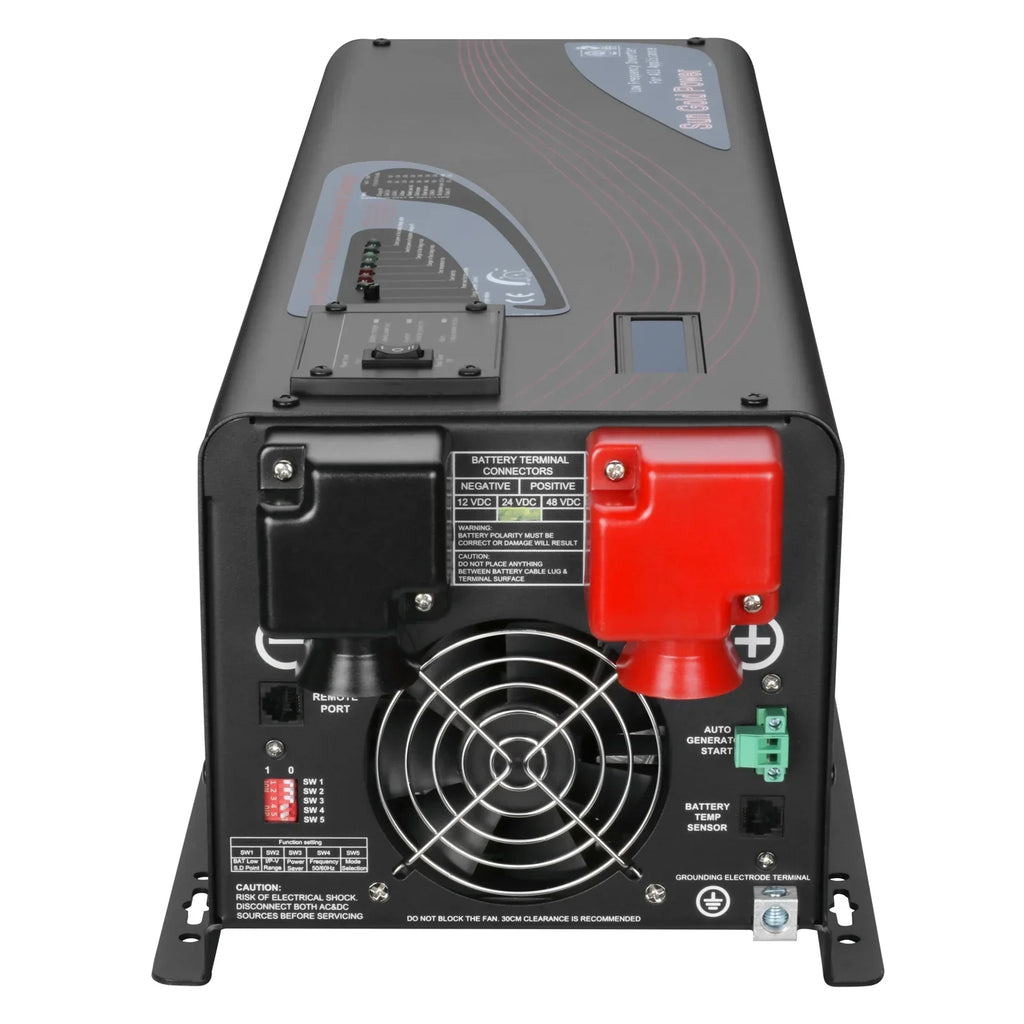

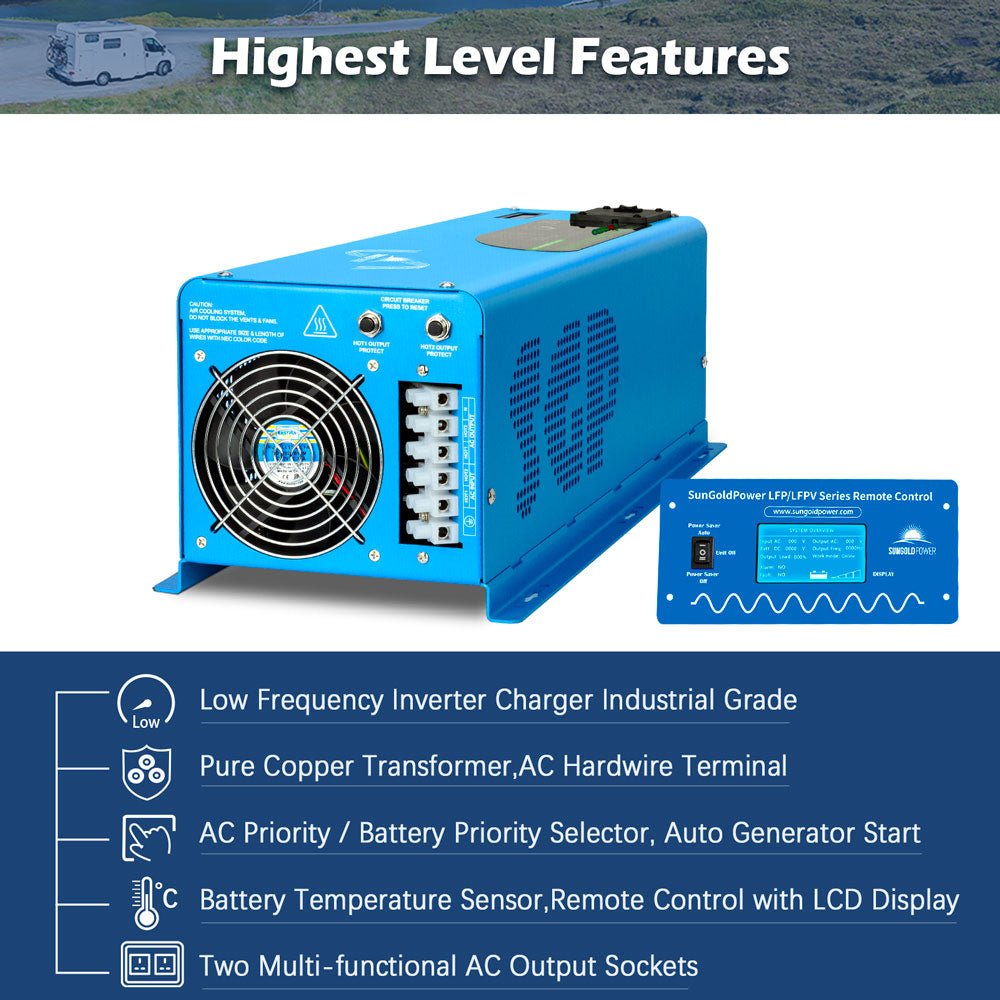

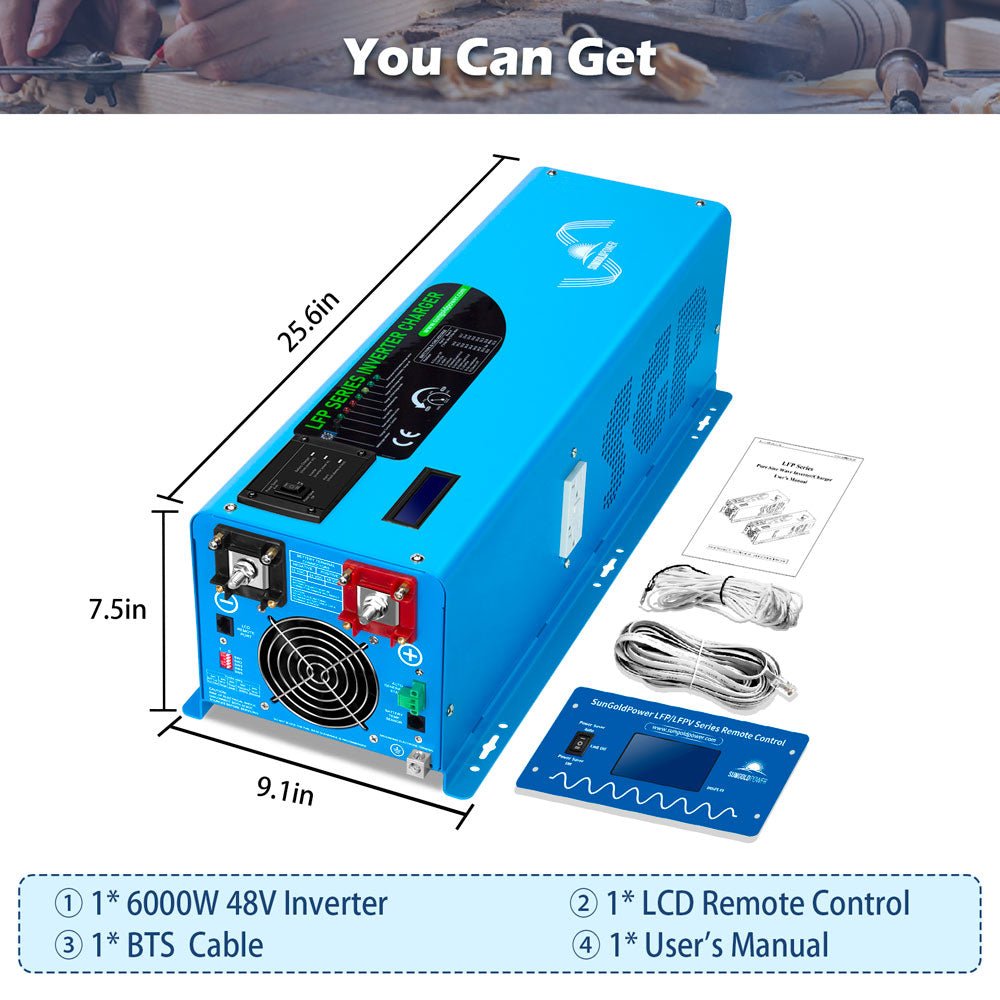

- Remote control support and BTS cable compatibility.
Specifications

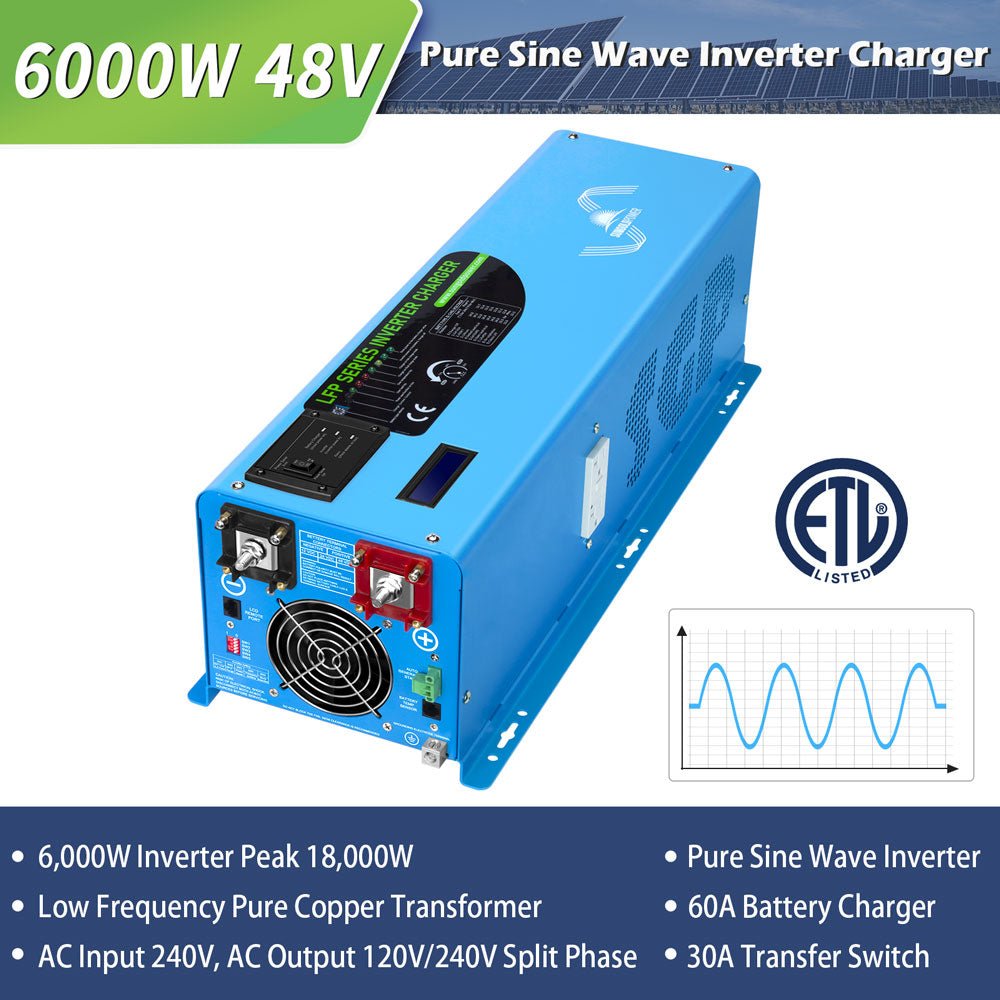

- Inverter: 6000W pure sine wave.
- Input: 240VAC.
- Output: 120VAC or 240VAC, 50/60Hz (SW4).
- System voltage: 24V/48V split-phase.
- Priority: AC default priority; battery priority selectable via SW5.
- Charging: adjustable max charging current 0-100% via linear switch.
- Gen start: Auto Gen Start; generator starts when battery is low and stops after charging.
- Standard: UL1741.
