SPH Series Hybrid Solar Inverter — 8kW All-in-One, Parallel Ready
Overview

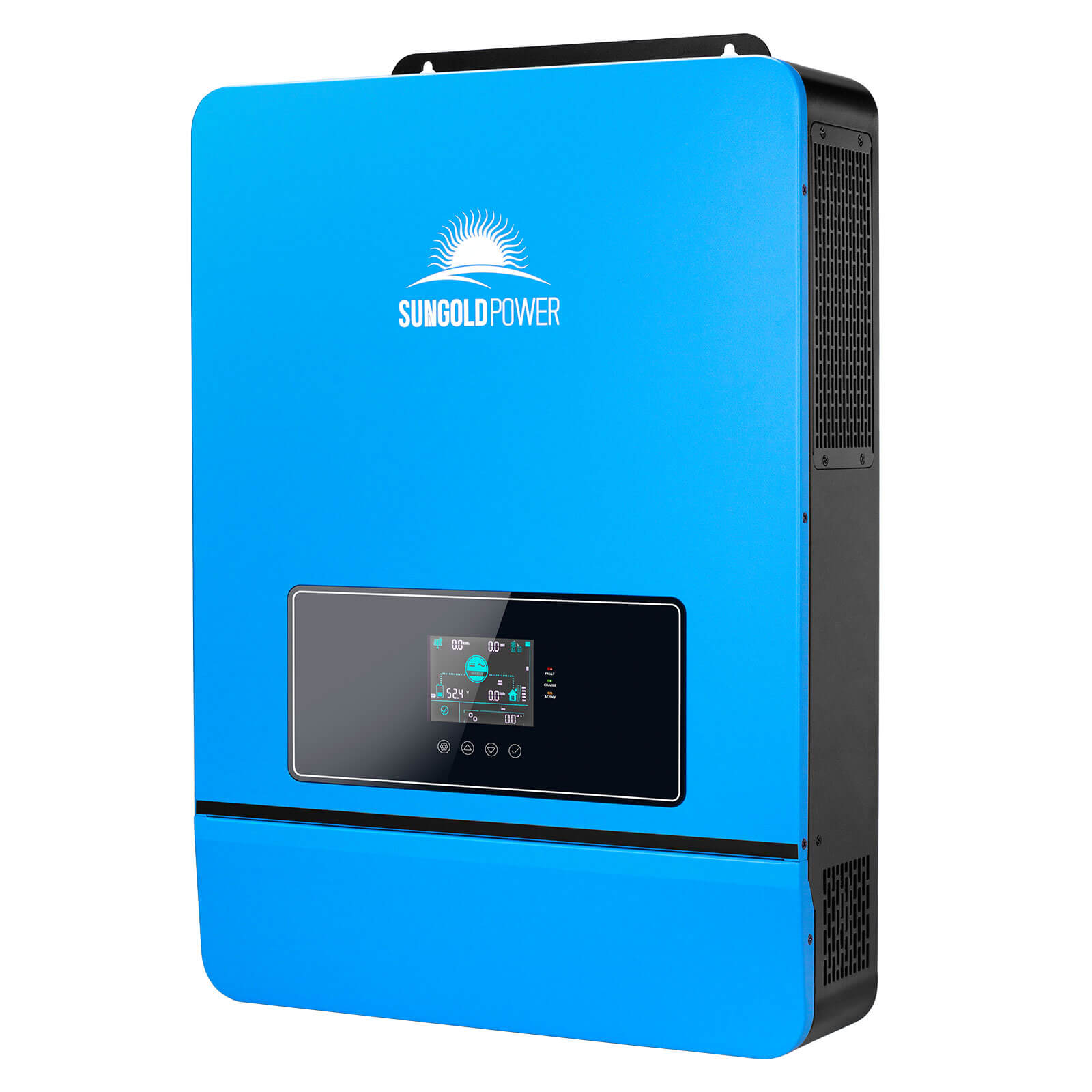

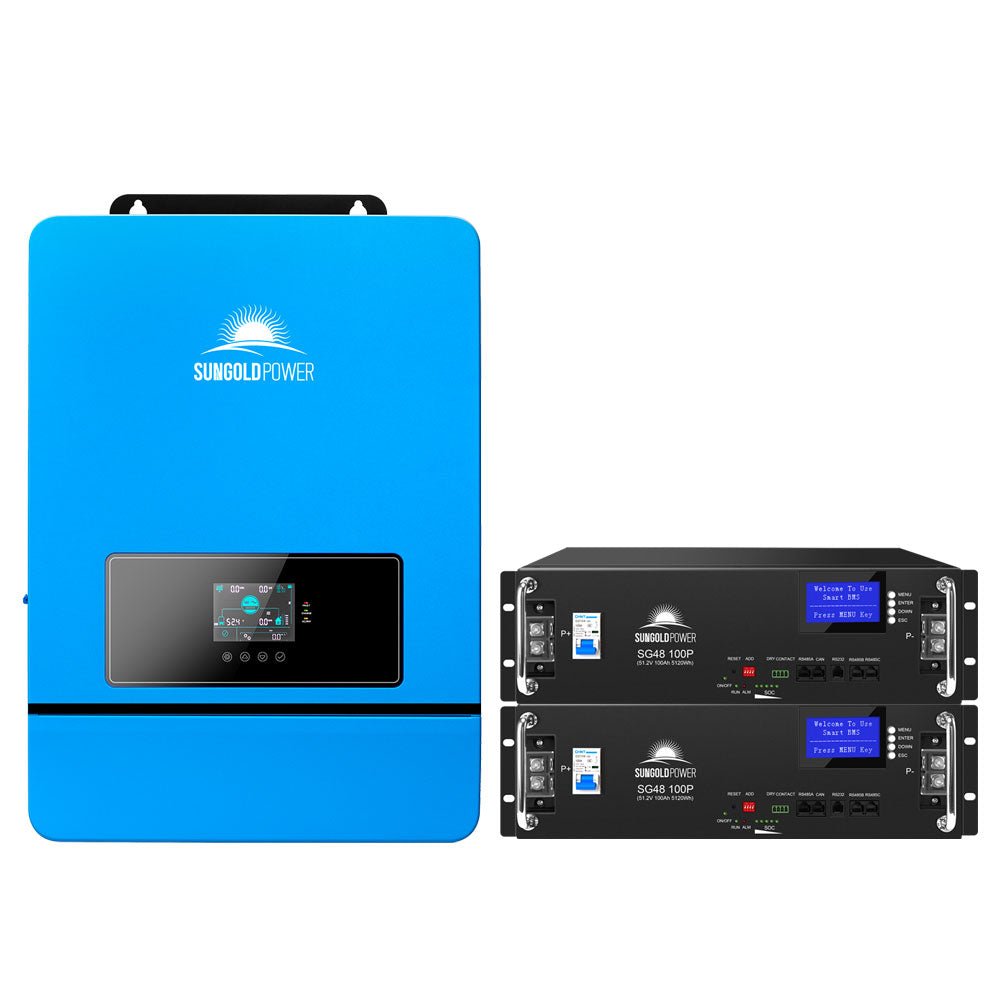

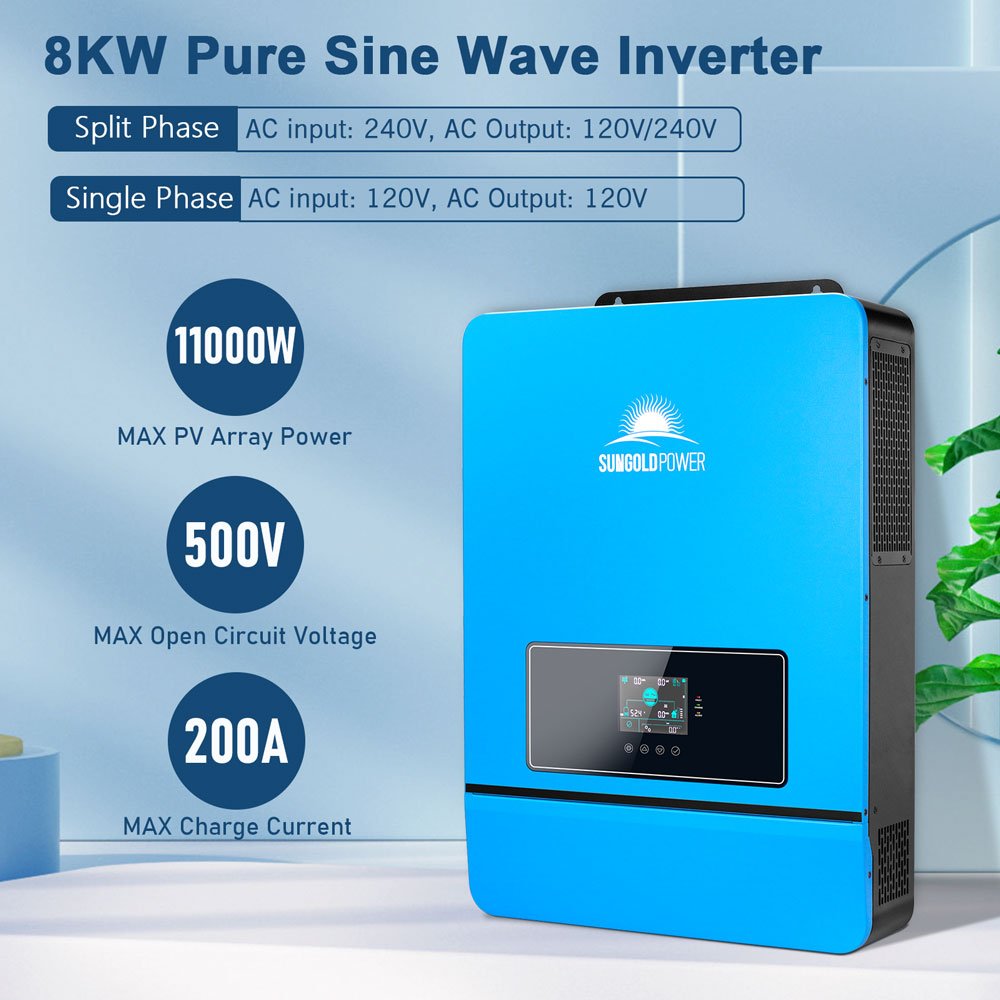

A compact, all-in-one hybrid solar inverter with 8kW of pure sine wave output. It includes up to 200A battery charging, built-in 2 MPPT controllers, and a 500VDC open-circuit rating. Output options include split-phase 120V/240V or single-phase 120V. It has a wifi module for monitoring and is UL 1741 certified for off-grid use. Parallel operation with up to 6 units is supported for up to 48kW.
Benefits
- All-in-one unit: 8kW pure sine wave inverter with high charging capacity and built-in MPPT controllers.

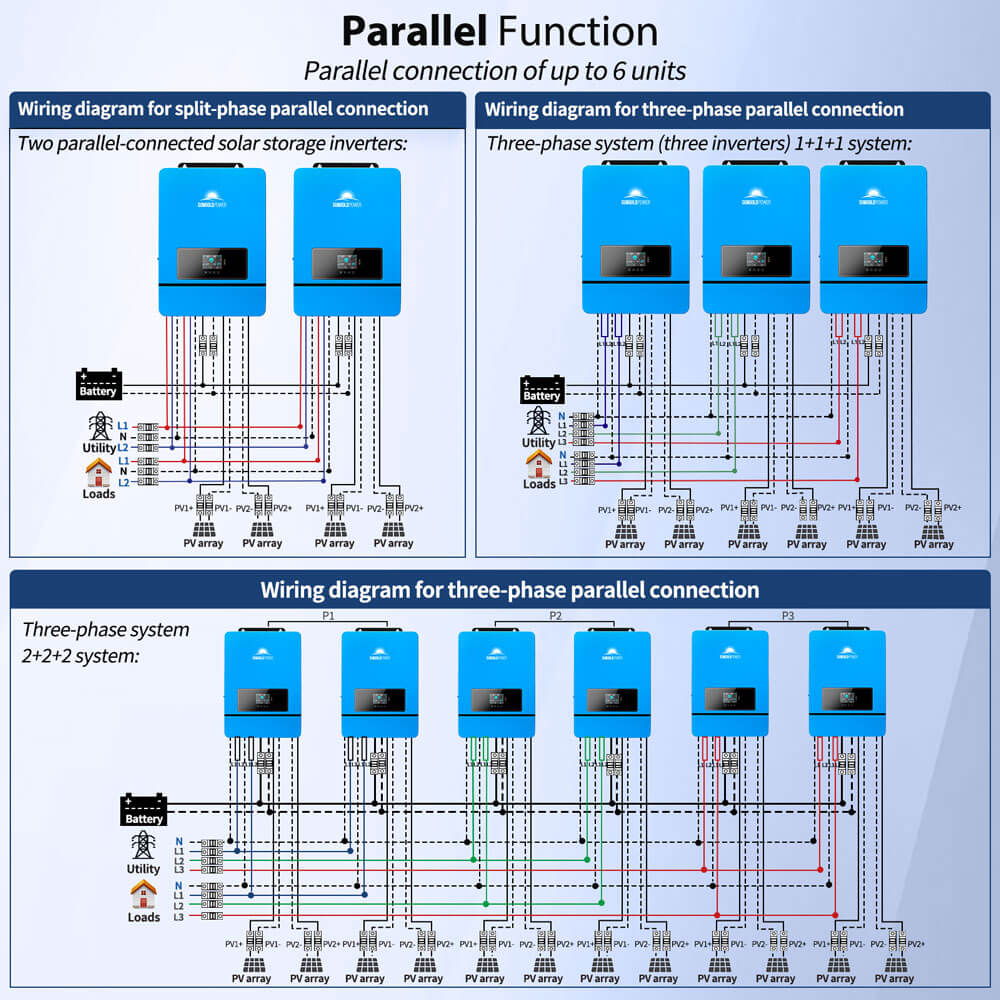

- Parallel capability: connect up to 6 units for up to 48kW total, with 120V single-phase, 120/240V split-phase, or 208V 3-phase options.
- Stable output and smart protections: reliable AC output with protections for PV input, AC input, battery voltage, and overload.

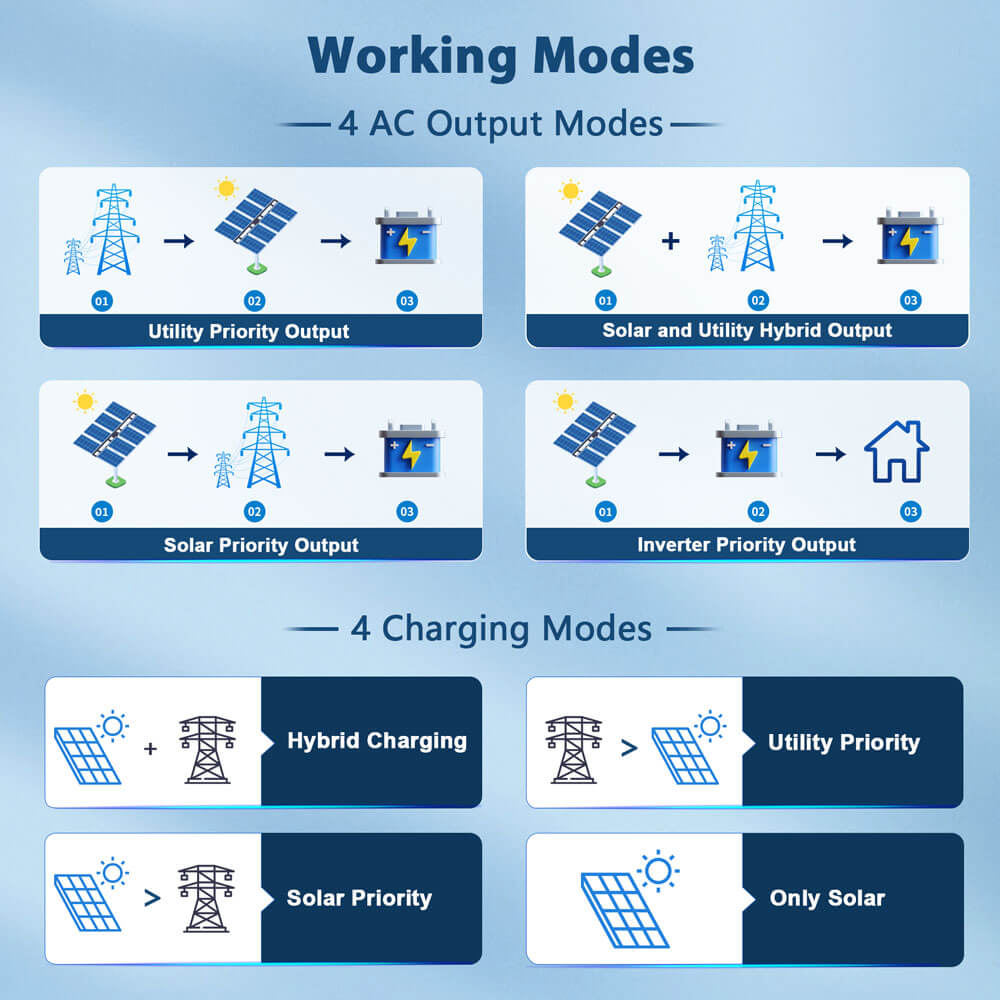

- Multiple charging/output modes: Hybrid charging, utility priority, solar priority, or only solar; four output modes to fit different needs.

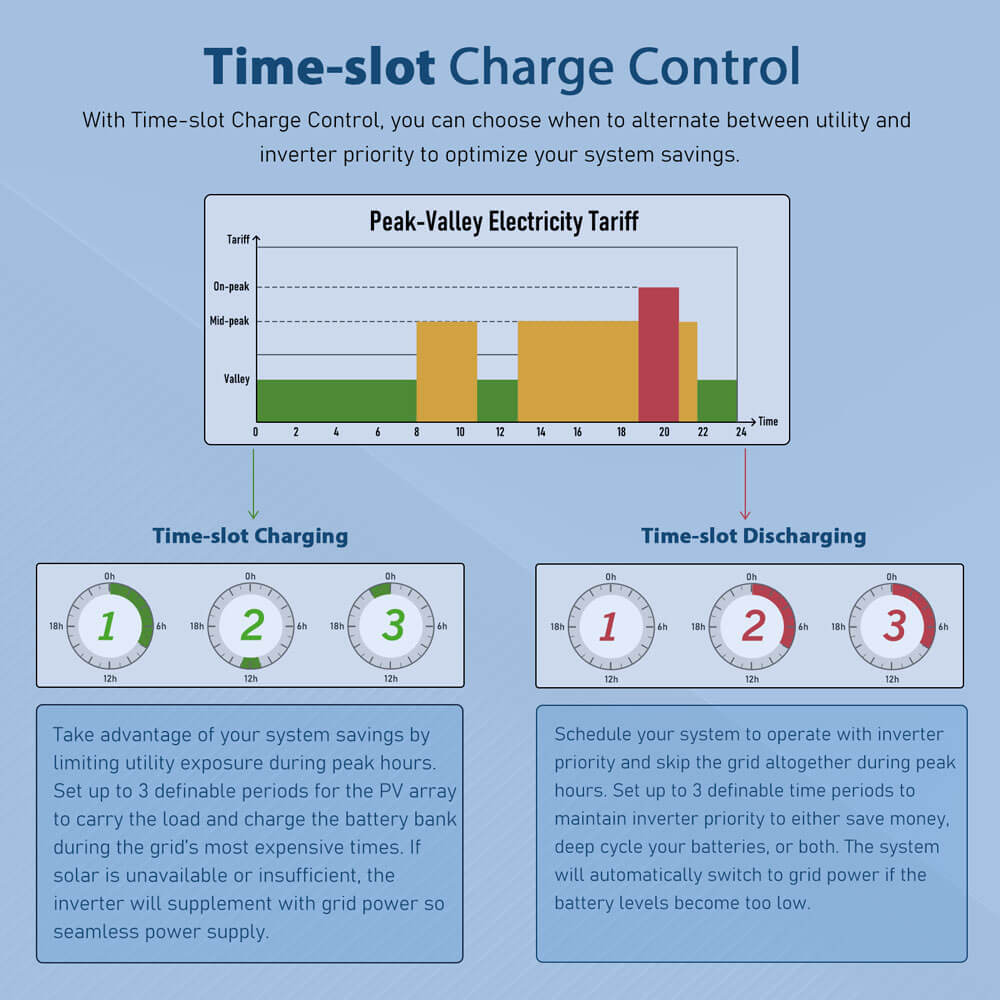

- Time-slot charging/discharging: schedule charging and discharging to match peak/valley tariffs and optimize energy use.

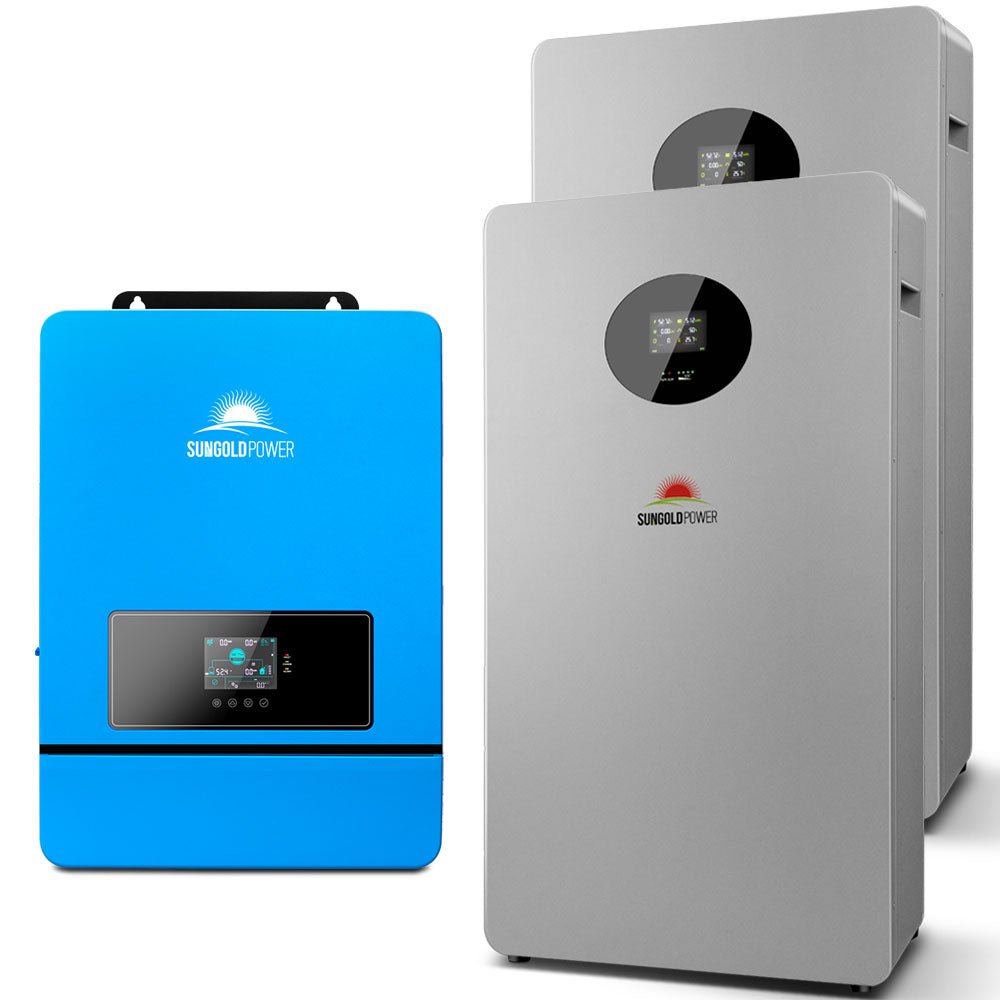

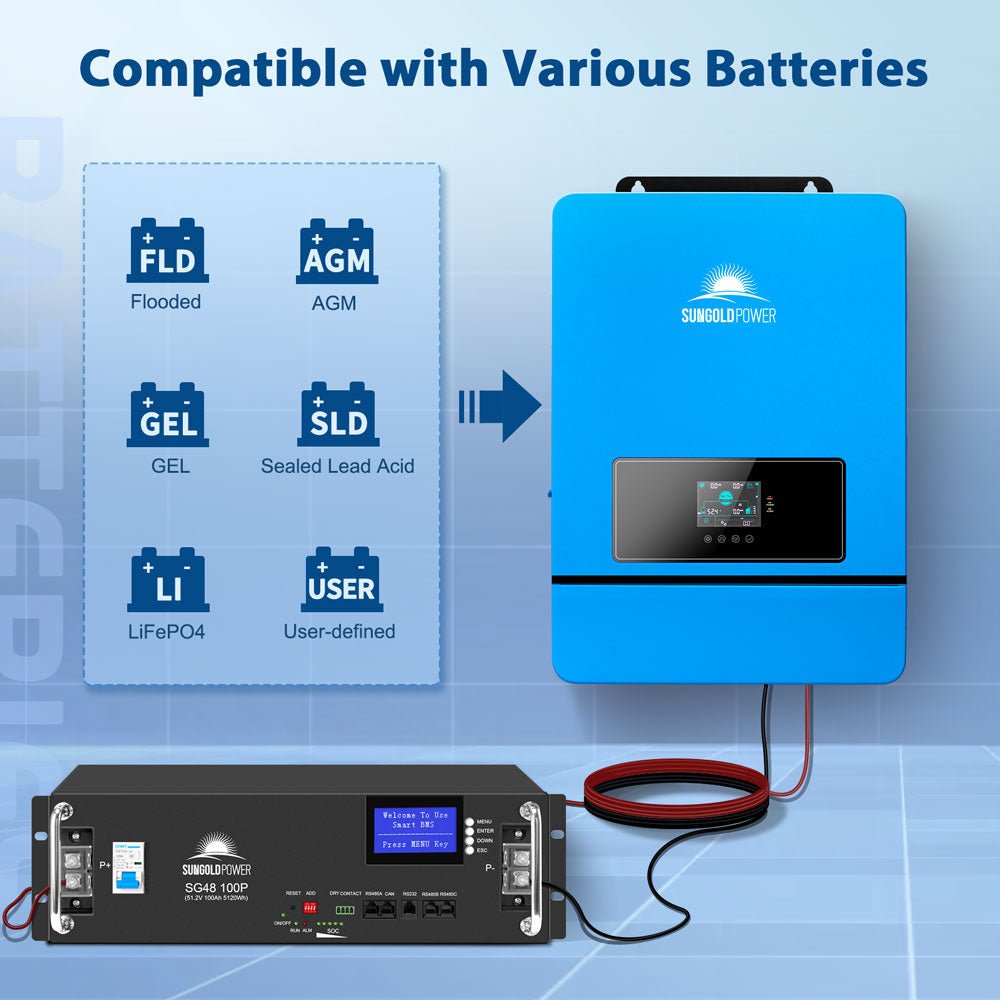

- Battery compatibility: supports 48V AGM/Sealed, Gel, Flooded, and Lithium batteries; includes a user mode for broad compatibility and can operate in battery-free configurations.
Features
- All-in-one design with 8kW pure sine wave inverter, up to 200A battery charging, 2 MPPT controllers, and 500VDC open-circuit voltage.
- Flexible output: split-phase (120V/240V) or single-phase (120V).
- Built-in wifi module for monitoring via mobile app; UL 1741 certification for off-grid solar systems.
- Parallel kit support: up to 6 units in parallel, enabling up to 48kW and expanded surge capacity.
- Four charging/output modes: Hybrid, Utility Priority, Solar Priority, and Only Solar; multiple output configurations for different scenarios.
- Time-slot charging/discharging: programmable periods to match local tariffs and energy use patterns.
- Battery options and interfaces: supports 48V AGM/Sealed, Gel, Flooded, Lithium batteries; user mode for broad compatibility; CAN, USB, and RS485 communication with compatible batteries.
Specifications
- Rated output power: 8000W; Max peak power: 16000W.
- Motor capacity support: up to 6HP.
- PV input protections: over-voltage and over-current protection.
- AC input protection: over-voltage protection.
- Battery protections: over-voltage protection; general overload protection.
- Charging: up to 200A battery charging capability.
- Output/configuration: 120V single-phase or 120/240V split-phase; parallel operation enables 208V three-phase when using more than three units.
- Open-circuit voltage: up to 500VDC.
- Battery types: 48V AGM/Sealed, Gel, Flooded, Lithium; includes a user mode for broad compatibility; supports battery-free operation in certain configurations.
- Interfaces: CAN, USB, and RS485 communication with compatible batteries.

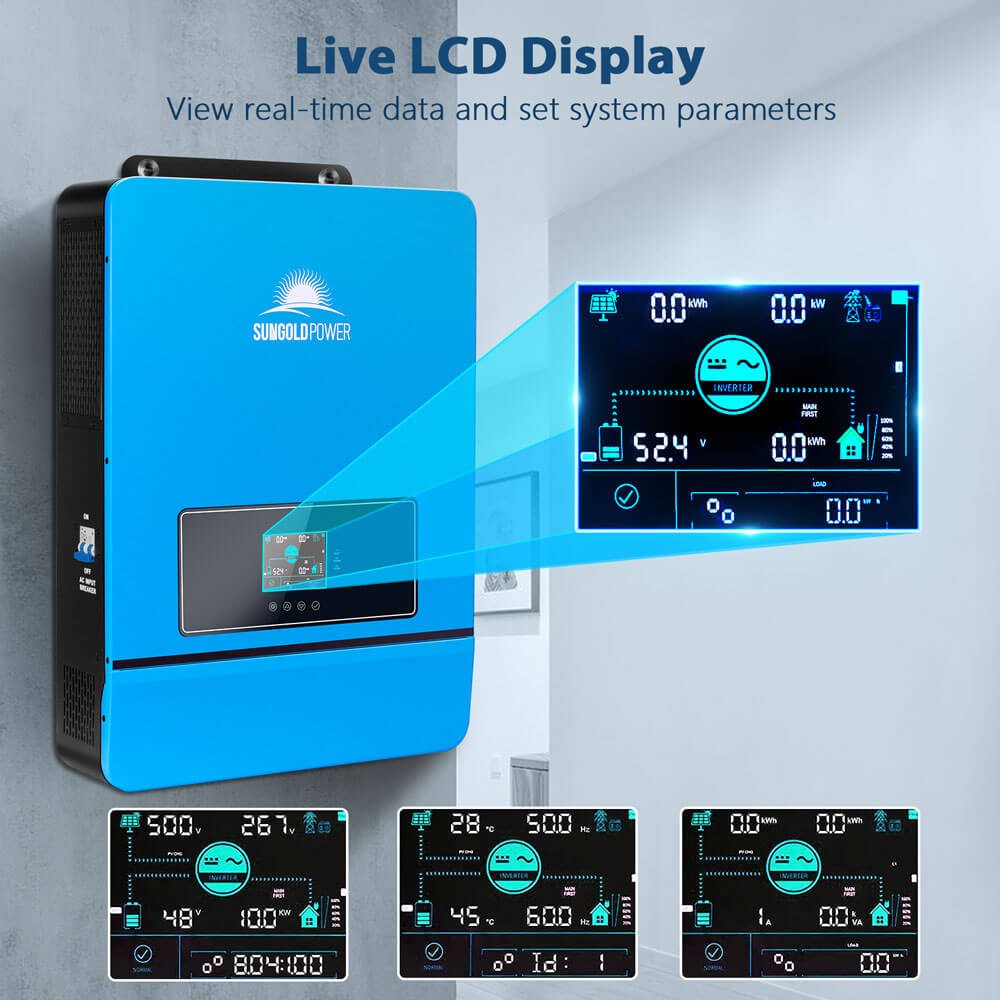

- Monitoring: built-in wifi module for remote status and parameter viewing.
- Certification: UL 1741 by ETL for off-grid solar systems.
