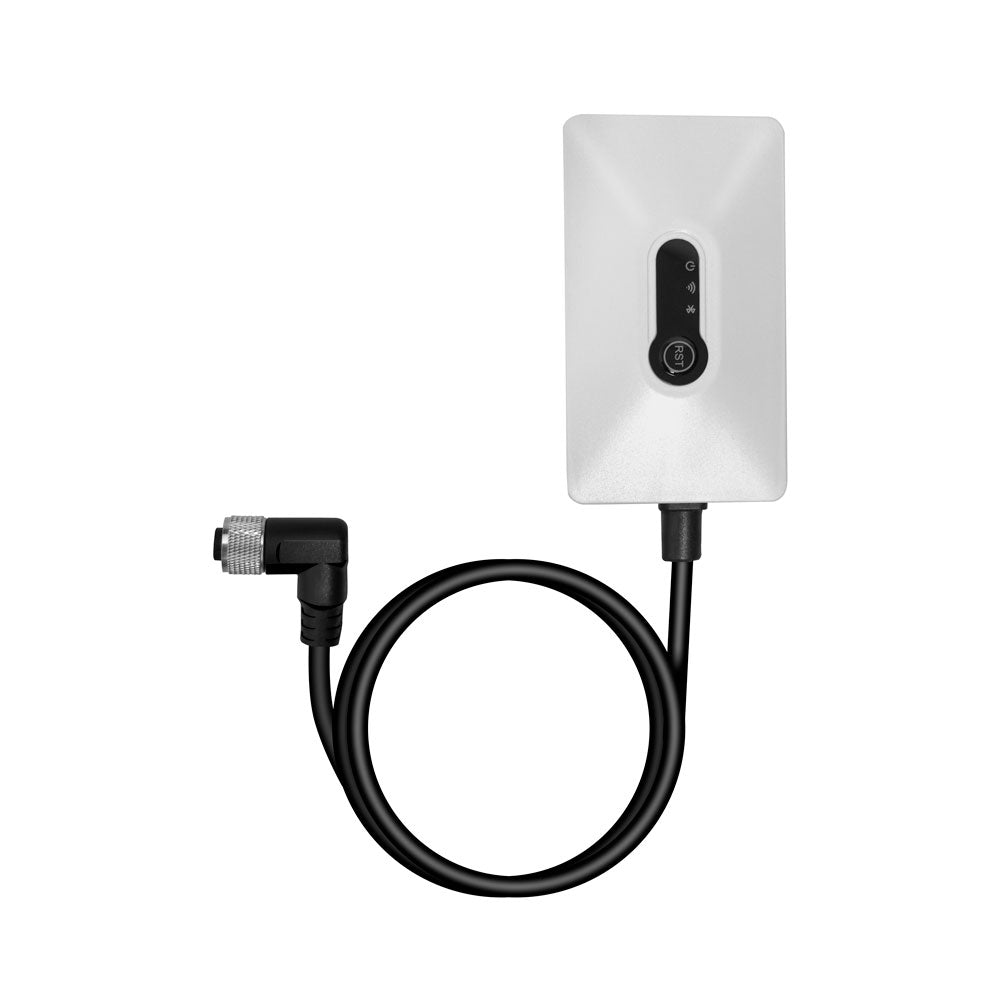

SunGoldPower Wi-Fi Module for SG48200T Battery
Overview
The SunGoldPower Wi-Fi Module adds wireless connectivity to the SG48200T battery. It provides real-time metrics, remote monitoring, and over-the-air updates with a simple setup. It’s small, practical, and ready to live on your battery shelf.
Benefits
- Real-time metrics: voltage, current, temperature, and state of charge
- Remote monitoring over Wi?Fi from anywhere on your network
- Over-the-air updates for the module and connected systems
- Secure data with encryption and authentication
- Low power draw to minimize impact on battery life
- Easy integration with existing IoT platforms and apps
Features
- 2.4 GHz Wi?Fi connectivity (802.11 b/g/n) for broad compatibility
- Supports common IoT protocols (MQTT, HTTP/REST)
- Live measurements: voltage, current, temperature, SOC, and health
- OTA firmware updates and simple configuration via built-in interface
- Secure boot, encryption for data in transit, and credential management
- Low power mode with smart wake to reduce idle drain
- Compact module design with standard SG48200T battery interface
- Simple setup with a web interface and local API
Specifications
- Wireless: 2.4 GHz Wi?Fi, 802.11 b/g/n
- Security: WPA2?PSK/AES; TLS for data in transit
- Power input: 3.3–5.0 V DC
- Interfaces: UART, I2C, GPIO
- Operating temperature: -20°C to 60°C
- Humidity: 5–95% non-condensing
- Dimensions: approx. 28 × 18 × 4 mm
- Certification: as applicable to region
