| Aircraft |
|
| Waterproof Rating |
IP67 |
| Weight (Including Battery) |
8.3 lbs / 3.78 kg |
| Size (Unfolded) |
20207.5 in / 522522192 mm |
| Size (Folded) |
1210.57.5 in / 306266192 mm |
| Max Ascend Speed |
7 mph / 3 m/s |
| Max Descent Speed |
4.5 mph / 2 m/s |
| Max Flight Speed |
ATTI: 45 mph / 20 m/s; GPS: 22 mph / 10 m/s |
| Max Tilt Angle |
25° |
| Max Flight Altitude |
1 mile / 1500 m |
| Max Flight Distance |
1 mile / 1500 m |
| Max Image Transmission Distance |
0.7 mile / 1000 m |
| Max Payload Capacity |
7 lbs / 3.2 kg |
| Flight Time |
Up to 28 mins (no wind & no load) |
| Max Wind Speed Resistance |
40 mph / 18 m/s / 35 knots |
| Hovering Precision |
±1.6 feet / ±0.5 m |
| Satellite Positioning System |
GPS / Galileo |
| Motor |
4114 - 400Kv |
| ESC |
40A |
| Propellers |
#1655 Carbon Fiber |
| Operating Frequency |
2.405 - 2.475 GHz |
| Transmitter Power (EIRP) |
<33 dBm (FCC), <20 dBm (CE) |
| Working Temperature |
14℉ ~ 104℉ / -10℃ ~ 40℃ |
| Certifications |
CE / FCC / ROHS / RCM |
| Remote Controller (Advanced Version) |
|
| Weight |
1.56 lbs / 709 g |
| Waterproof Rating |
IP54 |
| Size |
117.53 in / 27619074 mm |
| Operating Frequency |
2.405-2.475 GHz; 5.725 - 5.825 GHz |
| Transmitter Power (EIRP) |
<26 dBm (FCC), <20 dBm (CE) |
| Latency |
20 ms |
| Battery |
3000mAh |
| Working Time |
4 hours |
| Charging Time |
3 hours |
| Power Input |
5V/2A USB-C |
| Screen Size |
5 in |
| Screen Resolution |
800*480 px |
| Screen Brightness |
500 cd/m² |
| Aspect Ratio |
16:9 |
| Language |
English |
| Working Temperature |
14℉ ~ 104℉ / -10℃ ~ 40℃ |
| Remote Controller (Basic Version) |
|
| Weight |
1.49 lbs / 680 g |
| Waterproof Rating |
IP54 |
| Size |
117.53 in / 27619074 mm |
| Operating Frequency |
2.405-2.475 GHz |
| Transmitter Power (EIRP) |
<26 dBm (FCC), <20 dBm (CE) |
| Latency |
20 ms |
| Battery |
3000mAh |
| Working Time |
9 hours |
| Charging Time |
3 hours |
| Power Input |
5V/2A USB-C |
| Screen Type |
Single-color text display |
| Screen Size |
3.6 in |
| Language |
English |
| Working Temperature |
14℉ ~ 104℉ / -10℃ ~ 40℃ |
| Flight Battery |
|
| Capacity |
4500 mAh |
| Voltage |
22.2V |
| Type |
6S LiPo |
| Size |
8.64.72.5 in / 21911965 mm |
| Weight |
2.8 lbs / 1255 g |
| Working Temperature |
32℉ ~ 104℉ / 0℃ ~ 40℃ |
| Charging Time |
80 mins |
| Max Charging Current |
8A |
| Charger |
|
| Input |
100 - 240V |
| Output |
25.2V |
| Max Charging Power |
200W |
| Supported Battery Types and Cells |
6S LiPo |
| Size |
5.642.4 in / 14310060 mm |
| Power Cable |
3.9 ft / 1.2 m |
| Charging Cable |
1.6 ft / 0.5 m |
| Weight |
1 lb / 454.6 g |
| Working Temperature |
32℉ ~ 140℉ / 0℃ ~ 60℃ |
| Available Power Adapter Types |
A (USA, Canada, Mexico, Japan), B (Europe, South America, Asia), G (UK, Ireland, Malta, Singapore), I (Australia, New Zealand) |

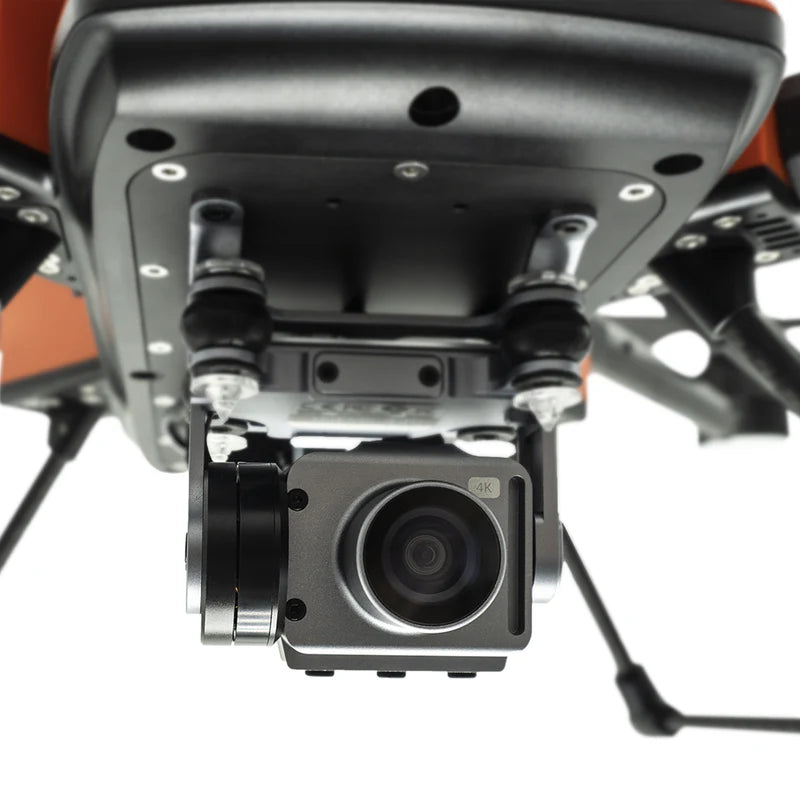

| Camera (Advanced Version Only) |
|
| Waterproof Rating |
IP67 |
| Stabilization |
1-axis (tilt) |
| Tilt Range |
-90° to 0° |
| Weight |
0.38 lbs / 176.5 g |
| Size |
3.12.72.7 in / 796970 mm |
| Image Sensor |
SONY IMX377 |
| Lens |
F4.53mm f/2.65, FOV: 92.6° |
| ISO Range |
100 - 3200 |
| Shutter Speed |
16 - 1/16000 s |
| Video Resolution |
4K: 30fps, 2.7K: 60fps, 1080P: 120/60/30fps, 720P: 240/120/60fps |
| Photo Resolution |
40003000 (4:3), 38402160 (16:9) |
| Max Video Bitrate |
60 Mbps |
| Photo Format |
JPEG / DNG (RAW) |
| Video Format |
MP4 / MOV |
| Supported Memory Card |
microSD (Max 128GB, Class 10, UHS-1, Write Speed ≥ 60 MB/s) |
| Working Temperature |
14℉ ~ 104℉ / -10℃ - 40℃ |
